Nagy pontosságú AD HAT Raspberry Pi-hez, ADS1263 10 csatornás 32 bites ADC

ÚJ
Raktárkészlet: VAN
Nagy pontosságú AD HAT Raspberry Pi-hez, ADS1263 10 csatornás 32 bites ADC
  • Nagy pontosságú AD HAT Raspberry Pi-hez, ADS1263 10 csatornás 32 bites ADC
  • Nagy pontosságú AD HAT Raspberry Pi-hez, ADS1263 10 csatornás 32 bites ADC
  • Nagy pontosságú AD HAT Raspberry Pi-hez, ADS1263 10 csatornás 32 bites ADC
15 693 Ft + ÁFA | Bruttó:19 930 Ft
db Kosárba Kosárba
Olcsóbban szeretném
Nagy pontosságú AD HAT Raspberry Pi-hez, ADS1263 10 csatornás 32 bites ADC
Részletek Adatok Csomag tartalma
  • High-Precision AD HAT for Raspberry Pi, ADS1263 10-ch 32-bit ADC
    High-Precision AD HAT

    compatible with Raspberry Pi series and Jetson Nano

    Features at a glance
    • Adopts ADS1263 chip, low noise, low temperature drift, 10-ch 32-bit high precision ADC (5-ch differential input), 38.4kSPS Max sampling rate with embedded 24-bit auxiliary ADC, internal ADC test signal, IDAC, 2.5V internal reference voltage, 8x multiplexing GPIO, PGA (32 times Max)
    • Onboard AD header input, compatible with Waveshare sensor pinout, for connecting sorts of sensor modules
    • Onboard AD screw terminal input, allows connecting analog signal and analog power supply, general purpose interface
    • Onboard control header, make it easy to control the module by other hosts in additional to Raspberry Pi
    • Three-wire RTD (resistor temperature detector) circuit, enabled by soldering 0R resistor
    Specifications
    Resolution32 BitsInput channels10
    Sampling rate (Max)38.4 kSPSPGA Magnification (Max)32
    BusSPIStructureDelta-Sigma
    Input typedifferential, single-endReference voltageinternal, external
    Input voltage range (Max)2.5V, 5VInput voltage range (Min)-2.5V, 0V
    What can it do?

    enable high precision AD conversion capability for your Raspberry Pi

    Raspberry Pi and Jetson Nano are NOT included.
    ADS1263 onboard

    10-ch 32-bit high precision ADC

    AD input headers

    for connecting sorts of analog sensor modules, compatible with Waveshare sensor pinout

    AD input Screw terminal

    for connecting analog signal and analog power supply, general purpose

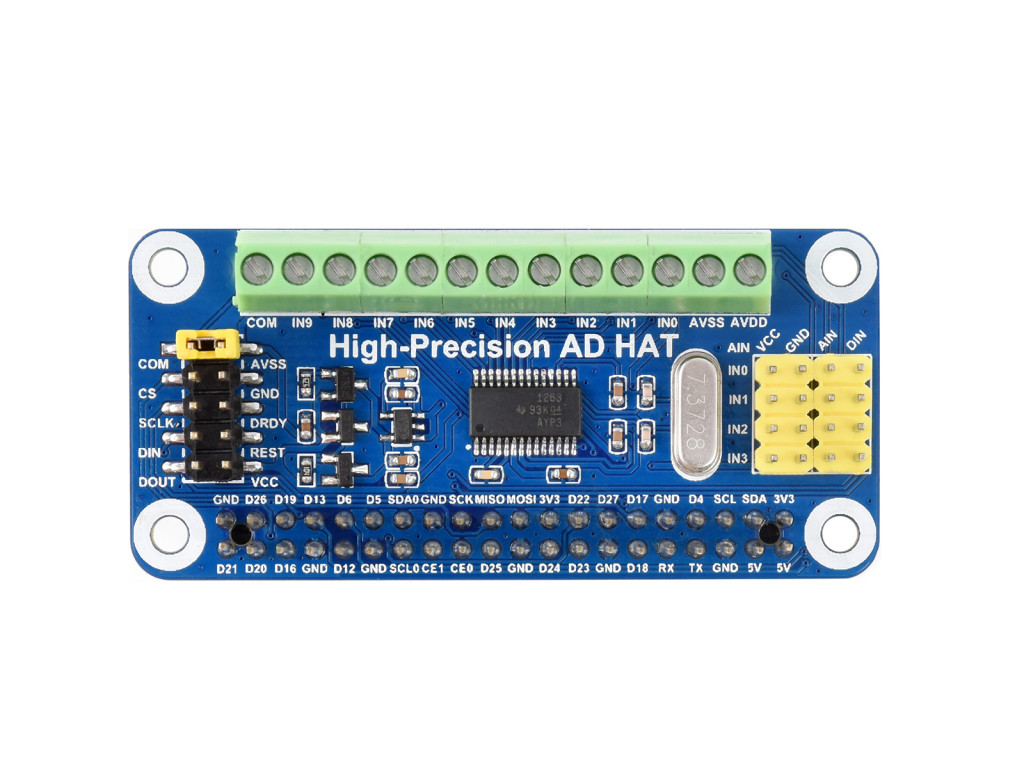

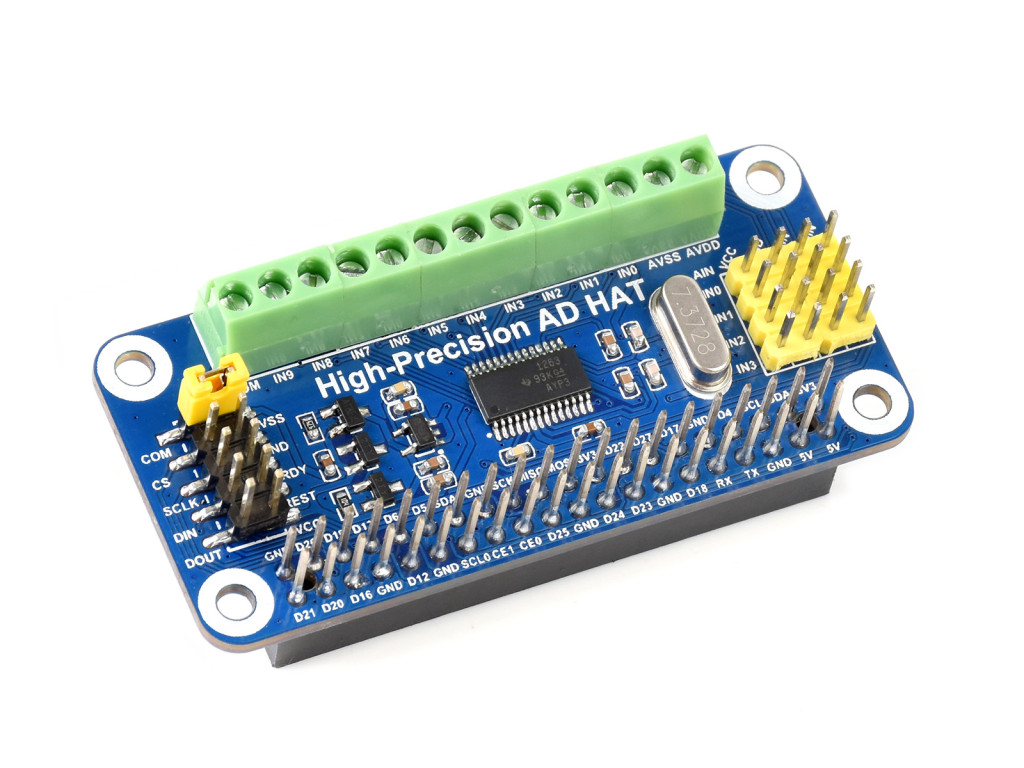

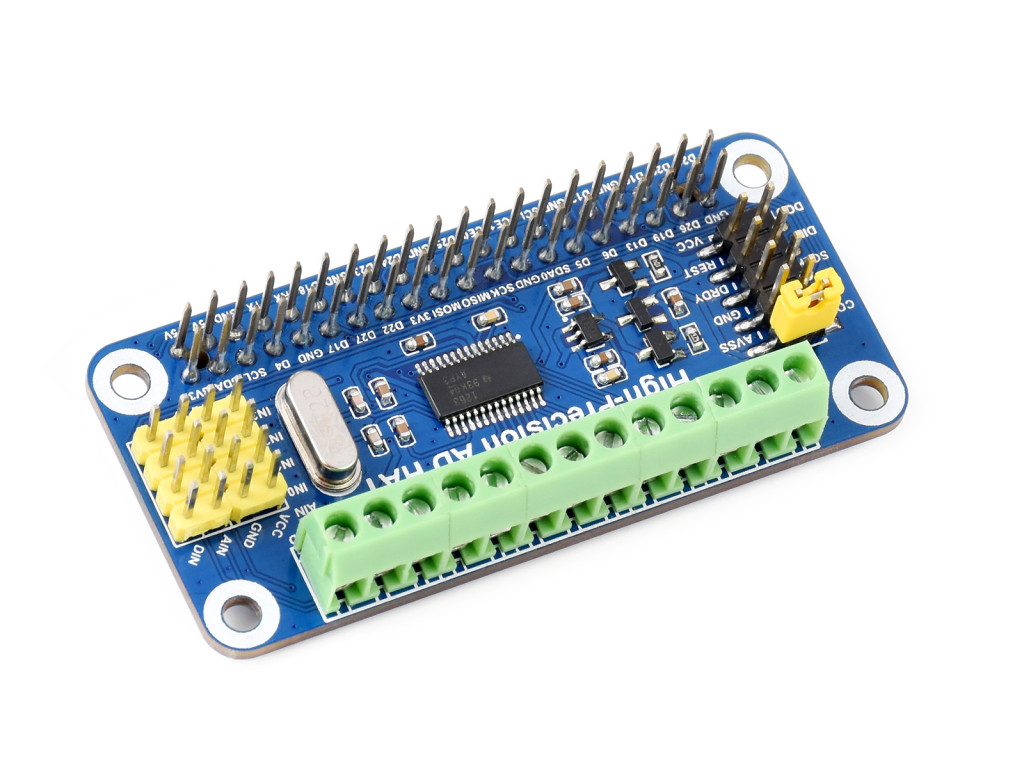

    What's On Board
    1. Raspberry Pi GPIO header for connecting Raspberry Pi
    2. AD input (screw terminal) general purpose
    3. AD input (header) for connecting sensor modules, Waveshare standard compliant
    4. Control input (header) allows to be controlled by other hosts

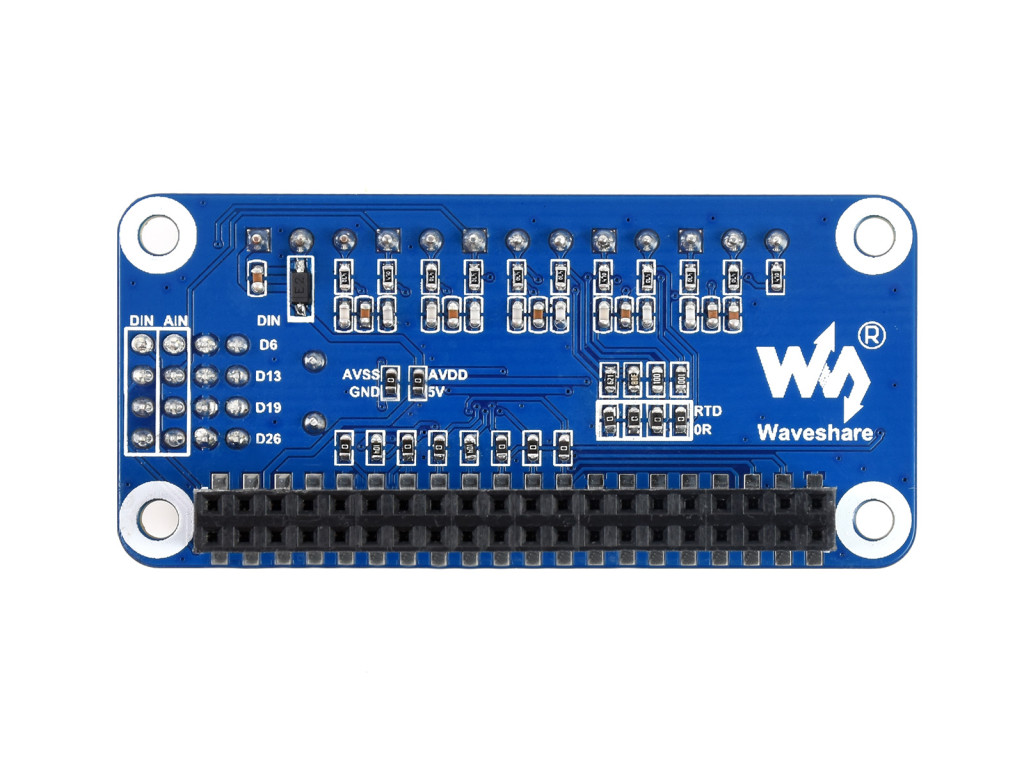

    1. Power configuration resistor
    2. RTD configuration resistor
    3. ADC ground reference configuration COM is used as negative input terminal on AD single-end input mode, connect it to GND or external reference voltage
    4. 7.3728M crystal
    5. Power supply section
    6. RTD section
    7. Input filtering section
    8. ADS1263 32-bit high precision ADC, 10-ch (5-ch differential input)
    Pinout definition
    Outline dimensions
    Resources & Services

    * Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

  • Brand
    Waveshare
    PartNumber
    High-Precision AD HAT
    Raktárkészlet
    VAN
    Cikkszám
    RPI-WS18983
    Státusz
    ÚJ
    1. High-Precision AD HAT x1
    2. RPi screws pack (2PCS) x1
