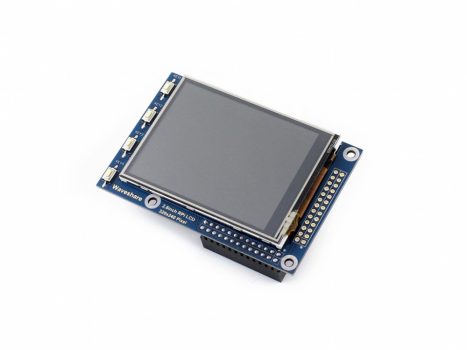

2.8 inch LCD, 320×240 Raspberry PI érintőkijelző 4 nyomógombbal
2.8 inch LCD, 320x240, rezisztív érintőkijelző
- LCD, 320x240-es felbontás
- összes Raspberry PI modell támogatása (Raspberry PI Model/A+/B+/PI2/PI3)
- rezisztív érintőpanel
- kiváló minőségű kép
- 4 szabadon definiálható nyomógomb
- SPI interfész
-
320x240, 2.8 inch Resistive Touch Screen TFT LCD, Designed for Raspberry Pi2.8″ Touch Display for Raspberry Pi
- Size
2.8″ - Resolution
320×240 - Display Port
SPI - Touch Type
Resistive - Touch Port
SPI - PCB Process
Immersion Gold - Consumption
Lower Power - Certification 1
CE - Certification 2
ROHS
Device & System Support
Raspberry PiSupports Raspberry Pi OS / Ubuntu MATE / Kali / Retropie, driver provided Supports FBCP software driver, allows setting software resolution and dual-displaySupports all versions of Raspberry Pi computers

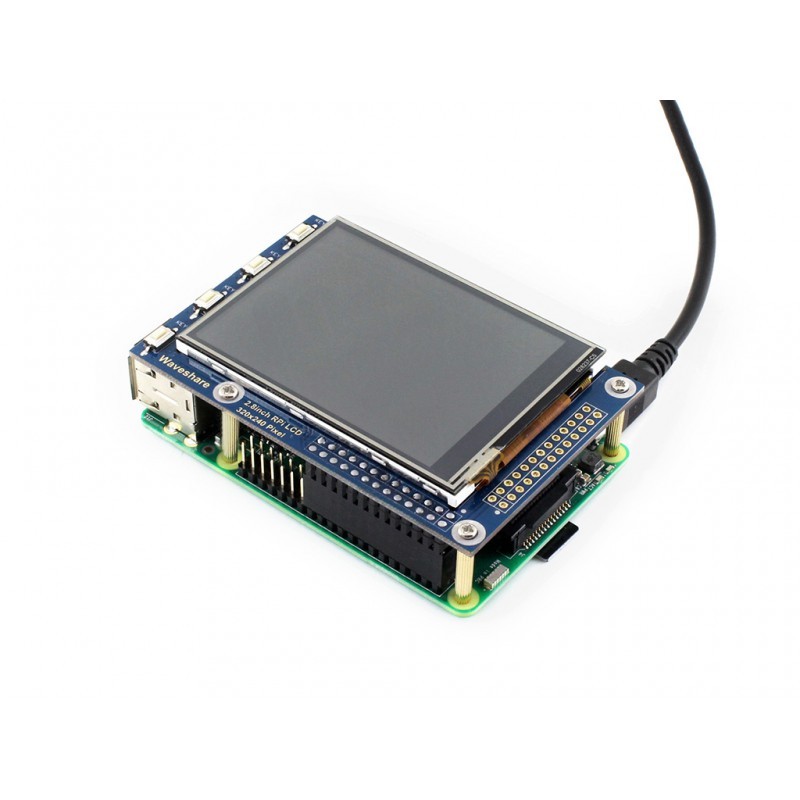

Connection ExamplesWorking with Raspberry Pi 4
Working with Raspberry Pi Zero W
DisplayFBCP software driver support allows setting software resolution and dual-display
Touch ControlComes with stylus
Pinout definition

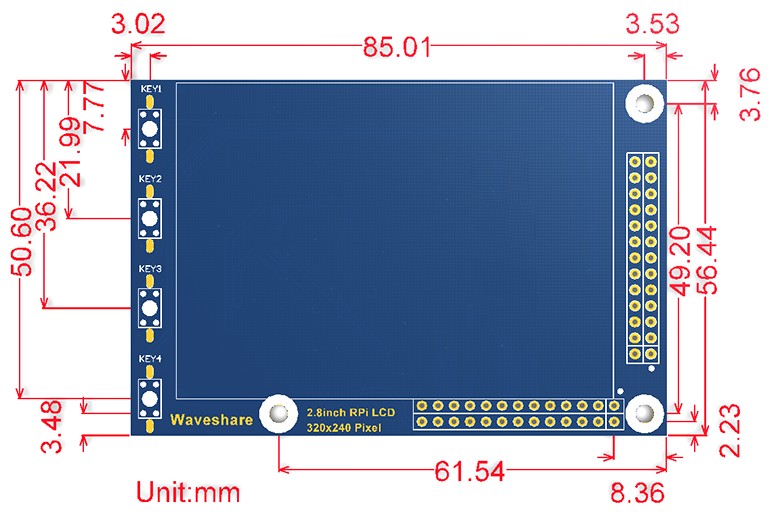

Appearance and Dimensions
Support touch screen customizationSupport the following ways to customize the touch screen display in bulk order
Over a decadeWaveshare grows with display
* Waveshare has been focusing on display design for over 10 years.
Selection Guide
PartNumber Display Touch Audio Device Support Resolu-tion Display Port Display Panel View Angle Touch Type Touch Port Toughened Glass Panel Optical Bonding Spe-aker Signal Output Pi JETSON NANO PC SPI DISPLAYS PROS: low price. CONS: low refresh rate & resolution, supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO (the SPI bus), poor compatibility with Raspberry Pi system. 2.8inch RPi LCD (A) 320×240 SPI TFT – Resistive SPI × × × × √ × × 3.2inch RPi LCD (B) 320×240 SPI TFT – Resistive SPI × × × × √ × × 3.5inch RPi LCD (A) 480×320 SPI TFT – Resistive SPI × × × × √ × × 3.5inch RPi LCD (B) 480×320 SPI IPS 160° Resistive SPI × × × × √ × × 3.5inch RPi LCD (C) 480×320 High-Speed SPI TFT – Resistive SPI × × × × √ × × 3.5inch RPi LCD (F) 320×480 SPI IPS 170° Capacitive I2C √ × × × √ × × 3.5inch RPi LCD (G) 320×480 SPI IPS 170° Resistive SPI × × × × √ × × 4inch RPi LCD (A) 480×320 SPI TFT – Resistive SPI × × × × √ × × DPI DISPLAYS PROS: low price, high refresh rate, multiple resolution support, better compatibility with Raspberry Pi system. CONS: supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO. 2.8inch DPI LCD 480×640 DPI IPS 160° Capacitive I2C √ √ × × √ × × 3.5inch DPI LCD 640×480 DPI IPS 170° Capacitive I2C √ × × × √ × × 4inch DPI LCD (C) 720×720 DPI IPS 170° Capacitive I2C √ √ × × √ × × 5inch DPI LCD 800×480 DPI IPS 160° – – × × × × √ × × 7inch DPI LCD 1024×600 DPI IPS 170° – – × × × × √ × × DSI DISPLAYS PROS: moderate price, high refresh rate, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system. CONS: supports Raspberry Pi only. 2.8inch DSI LCD 480×640 DSI IPS 160° Capacitive I2C √ √ × × √ × × 3.4inch DSI LCD (C) 800×800 DSI IPS 170° Capacitive I2C √ √ × × √ × × 3.5inch DSI LCD (E) 640×480 DSI IPS 170° Capacitive I2C √ × × × √ × × 4inch DSI LCD 480×800 DSI IPS 170° Capacitive I2C √ √ × × √ × × 4inch DSI LCD (C) 720×720 DSI IPS 170° Capacitive I2C √ √ × × √ × × 4-DSI-TOUCH-C 720×720 DSI IPS 170° Capacitive I2C √ √ × × √ × × 4.3inch DSI LCD 800×480 DSI IPS 160° Capacitive I2C √ × × × √ × × 4.3inch DSI LCD (with case) 800×480 DSI IPS 160° Capacitive I2C √ × × × √ × × 4.3inch DSI QLED 800×480 DSI IPS(QLED) 160° Capacitive I2C √ × × × √ × × 5inch DSI LCD 800×480 DSI TFT – Capacitive I2C √ × × × √ × × 5inch DSI LCD (B) 800×480 DSI IPS 160° Capacitive I2C √ × × × √ × × 5inch DSI LCD (C) 1024×600 DSI IPS 178° Capacitive I2C √ × × × √ × × 5inch DSI LCD (D) 720×1280 DSI IPS 178° Capacitive I2C √ √ × × √ × × 5-DSI-TOUCH-A 720×1280 DSI IPS 178° Capacitive I2C √ √ × × √ × × 5inch Raspberry Pi Touch Display 2 720×1280 DSI IPS 160° Capacitive I2C × × × × √ × × 6.25inch DSI LCD 720×1560 DSI IPS 178° Capacitive I2C √ √ × × √ × × 7inch DSI LCD 800×480 DSI TFT – Capacitive I2C √ × × × √ × × 7inch DSI LCD (with case A) 800×480 DSI TFT – Capacitive I2C √ × × × √ × × 7inch DSI LCD (with cam) 800×480 DSI TFT – Capacitive I2C √ × × × √ × × 7inch DSI LCD (with cam and case) 800×480 DSI TFT – Capacitive I2C √ × × × √ × × 7inch DSI LCD (B) 800×480 DSI IPS 170° Capacitive I2C √ × × × √ × × 7inch DSI LCD (B) (with case A) 800×480 DSI IPS 170° Capacitive I2C √ × × × √ × × 7inch DSI LCD (C) 1024×600 DSI IPS 170° Capacitive I2C √ × × × √ × × 7inch DSI LCD (C) (with case A) 1024×600 DSI IPS 170° Capacitive I2C √ × × × √ × × 7inch DSI LCD (E) 1280×800 DSI IPS 178° Capacitive I2C √ √ × × √ × × 7-DSI-TOUCH-A 720×1280 DSI IPS 170° Capacitive I2C √ √ × × √ × × 7inch DSI LCD (H) 1280×720 DSI IPS 170° Capacitive I2C √ √ × × √ × × 7.9inch DSI LCD 400×1280 DSI IPS 170° Capacitive I2C √ × × × √ × × 8-DSI-TOUCH-A 800×1280 DSI IPS 178° Capacitive I2C √ √ × × √ × × 8inch DSI LCD 800×480 DSI TFT – Capacitive I2C √ × × × √ × × 8inch DSI LCD (with cam) 800×480 DSI TFT – Capacitive I2C √ × × × √ × × 8inch DSI LCD (C) 1280×800 DSI IPS 178° Capacitive I2C √ √ × × √ × × 8.8inch DSI LCD 480×1920 DSI IPS 178° Capacitive I2C √ √ × × √ × × 9-DSI-TOUCH-B 720×1280 DSI IPS 160° Capacitive I2C √ × × × √ × × 10.1-DSI-TOUCH-A 800×1280 DSI IPS 178° Capacitive I2C √ √ × × √ × × 10.1-DSI-TOUCH-B 720×1280 DSI IPS 170° Capacitive I2C √ × × × √ × × 10.1inch DSI LCD (C) 1280×800 DSI IPS 178° Capacitive I2C √ √ × × √ × × 11.9inch DSI LCD 320×1480 DSI IPS 170° Capacitive I2C √ × × × √ × × 12.3-DSI-TOUCH-A 720×1920 DSI IPS 178° Capacitive I2C √ √ × × √ × × 13.3inch DSI LCD 1920×1080 DSI IPS 178° Capacitive I2C √ × × × √ × × HDMI / TYPE-C DISPLAYS PROS: high refresh rate, multiple resolution support, multiple devices support, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system. CONS: somewhat costly. 2.8inch HDMI LCD (H) 480×640 HDMI IPS 160° Capacitive USB-C / I2C √ √ × × √ √ √ 3.2inch HDMI LCD (H) 480×800 HDMI IPS 160° × × × × × × √ √ Display ONLY 3.4inch 800x800 LCD 800x800 HDMI IPS 170° Capacitive Type-C √ √ × √ √ √ √ 3.5inch HDMI LCD 480×320 HDMI IPS 160° Resistive SPI × × × √ √ × Display ONLY 3.5inch 480x800 LCD 480×800 HDMI IPS 170° Capacitive USB-C × × × × √ √ √ 4inch 720x720 LCD 720x720 HDMI IPS 170° Capacitive Type-C √ √ × √ √ √ √ 4inch HDMI LCD 480×800 HDMI IPS 170° Resistive SPI × × × × √ × Display ONLY 4inch HDMI LCD (C) 720×720 HDMI IPS 170° Capacitive USB-C / I2C √ √ × √ √ √ √ 4inch HDMI LCD (H) 480×800 HDMI IPS 170° Resistive SPI × × × √ √ × Display ONLY 4.3inch HDMI LCD (B) 800×480 HDMI IPS 160° Capacitive USB × × × √ √ √ √ 5DP-CAPLCD-H 1024×600 HDMI IPS 178° Capacitive Type-C √ × × √ √ √ √ 5DP-CAPLCD-B 1024×600 HDMI IPS 178° Capacitive Type-C √ √ × √ √ √ √ 5DP-CAPLCD-G 1024×600 HDMI IPS 178° Resistive Type-C √ × × √ √ √ √ 5inch HDMI LCD 800×480 HDMI TFT – Resistive SPI × × × × √ × × 5inch HDMI LCD (with bicolor case) 800×480 HDMI TFT – Resistive SPI × × × × √ × × 5inch HDMI LCD (B) 800×480 HDMI TFT – Resistive USB × × × × √ × √ 5inch HDMI LCD (B) (with bicolor case) 800×480 HDMI TFT – Resistive USB × × × × √ × √ 5inch HDMI LCD (G) 800×480 HDMI/VGA TFT – Resistive USB × × × √ √ × √ 5inch HDMI LCD (H) 800×480 HDMI/VGA TFT – Capacitive USB √ × × √ √ √ √ 5inch HDMI LCD (H) V4 800×480 HDMI TFT – Capacitive USB √ × × × √ × √ 5inch HDMI AMOLED 960×544 HDMI AMOLED 170° Capacitive USB √ √ × √ √ √ √ 5inch 1080x1080 LCD 1080×1080 HDMI IPS 160° Capacitive Type-C √ √ √ √ √ √ √ 5inch 720x1280 LCD 720×1280 HDMI IPS 178° Capacitive Type-C √ √ √ × √ √ √ 5.5inch HDMI AMOLED 1080×1920 HDMI AMOLED 170° Capacitive USB √ √ × √ √ √ √ 5.5inch HDMI AMOLED (with case A) 1080×1920 HDMI AMOLED 170° Capacitive USB √ √ × √ √ × × 5.5inch 1440x2560 LCD 1440×2560 HDMI IPS 170° Capacitive USB √ √ × √ √ × √ 5.5inch 1440x2560 LCD (with case A) 1440×2560 HDMI IPS 170° Capacitive USB √ √ × √ √ × × 6.25inch 720x1560 LCD 720×1560 HDMI IPS 178° Capacitive Type-C √ √ √ × √ √ √ PI5-HMI-7A 720×1280 HDMI IPS 170° Capacitive Type-C √ √ × × √ × × 7EP-CAPLCD 1280×800 HDMI IPS 178° Capacitive USB √ √ √ √ √ √ √ 7EP-CAPLCD Monitor 1280×800 HDMI/Type-C IPS 178° Capacitive USB √ √ √ √ √ √ √ 7inch HDMI LCD 1024×600 HDMI IPS 170° Resistive SPI × × × × √ × Display ONLY 7inch HDMI LCD (B) 800×480 HDMI TFT – Capacitive USB × × × × √ × √ 7inch HDMI LCD (B) (with bicolor case) 800×480 HDMI TFT – Capacitive USB × × × × √ × √ 7inch HDMI LCD (C) 1024×600 HDMI IPS 170° Capacitive USB × × × × √ × √ 7inch HDMI LCD (C) (with bicolor case) 1024×600 HDMI IPS 170° Capacitive USB × × × × √ × √ 7inch HDMI LCD (H) 1024×600 HDMI/VGA IPS 170° Capacitive USB × × × √ √ √ √ 7inch HDMI LCD (H) (with case) 1024×600 HDMI/VGA IPS 170° Capacitive USB √ × × √ √ √ √ 7HP-CAPQLED 1024×600 HDMI IPS (QLED) 170° Capacitive USB √ × × √ √ √ √ 7.9inch HDMI LCD 400×1280 HDMI IPS 170° Capacitive USB √ × × √ √ √ √ 7.9inch Side Monitor 400×1280 HDMI IPS 170° × × √ × √ × √ √ √ 7.9inch Touch Monitor 400×1280 HDMI IPS 170° Capacitive USB √ × √ × √ √ √ PI5-HMI-080D 1280×800 HDMI IPS 178° Capacitive Type-C √ √ × × √ × × 8DP-CAPLCD 1280×800 HDMI IPS 178° Capacitive USB √ √ × √ √ √ √ 8HP-CAPLCD Monitor 1280×800 HDMI/Type-C IPS 178° Capacitive USB √ √ √ √ √ √ √ 8inch 768x1024 LCD 768×1024 HDMI IPS 178° Capacitive Type-C √ × √ √ √ √ √ 8inch 1536x2048 LCD 1536×2048 HDMI IPS 178° Capacitive Type-C √ √ √ √ √ √ √ 8.8inch Side Monitor 480×1920 HDMI IPS 170° × × × × √ × √ √ Display ONLY 9HP-CAPQLED-B 1280×720 HDMI IPS (QLED) 178° Capacitive USB √ × × √ √ √ √ 9.3inch 1600x600 LCD 1600×600 HDMI IPS 178° Capacitive Type-C √ √ √ √ √ √ √ 9.7inch 768x1024 LCD 768×1024 HDMI IPS 178° Capacitive Type-C √ × √ √ √ √ √ PI5-HMI-101D 1280×800 HDMI IPS 178° Capacitive Type-C √ √ × × √ × × 10.1inch HDMI LCD 1024×600 HDMI IPS 170° Resistive SPI × × × × √ × Display ONLY 10.1inch HDMI LCD (B) (with case) 1280×800 HDMI IPS 170° Capacitive USB √ × × × √ × √ 10.1inch HDMI LCD (E) 1024×600 HDMI IPS 170° Capacitive USB √ √ × √ √ √ √ 10.1inch HDMI LCD (G) (with case) 1920×1200 HDMI IPS 160° Capacitive USB √ √ √ √ √ √ √ 10.1inch HDMI LCD (H) (with case) 1024×600 HDMI/VGA TFT – Capacitive USB × × × × √ √ √ 10.1inch HDMI LCD (F) (with case) 1024×600 HDMI/VGA IPS 170° Capacitive USB √ × √ × √ √ √ 10.1EP-CAPLCD 1920×1200 HDMI IPS 178° Capacitive Type-C √ √ √ √ √ √ √ 10.1DP-CAPLCD 1280×800 HDMI IPS 178° Capacitive USB √ √ × √ √ √ √ 10.1HP-CAPQLED 1280×720 HDMI IPS (QLED) 170° Capacitive USB √ × × √ √ √ √ 10.1HP-CAPLCD Monitor 1280×800 HDMI/Type-C IPS 178° Capacitive USB √ √ √ √ √ √ √ 10.4HP-CAPQLED 1600×720 HDMI IPS(QLED) 178° Capacitive Type-C √ √ √ √ √ √ √ 10.5inch HDMI AMOLED 2560×1600 HDMI AMOLED 160° Capacitive USB √ √ √ √ √ √ √ 11.6inch 1768x828 LCD 1768×828 HDMI/Type-C IPS 178° Capacitive Type-C In-Cell × × √ √ √ √ 11.6inch HDMI LCD (H) 1920×1080 HDMI IPS 178° Capacitive USB √ √ × √ √ √ √ 11.6inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ √ √ √ √ √ √ 11.9inch HDMI LCD 320×1480 HDMI IPS 170° Capacitive USB √ × × √ √ √ √ 11.9inch Side Monitor 320×1480 HDMI IPS 170° × × √ × √ × √ √ √ 11.9inch Touch Monitor 320×1480 HDMI IPS 170° Capacitive USB √ × √ × √ √ √ 12.3inch 1920x720 LCD 1920×720 HDMI/Type-C IPS 178° Capacitive Type-C In-Cell × × √ √ √ √ 12.3inch HDMI LCD 1920×720 HDMI IPS 178° Capacitive USB √ √ √ √ √ √ √ 13.3inch HDMI LCD (H) 1920×1080 HDMI IPS 178° Capacitive USB √ × × √ √ √ √ 13.3inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ × √ √ √ √ √ 13.3inch HDMI LCD (H) (with case) V2 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ × √ √ √ √ √ 13.3inch QHD AMOLED 2560×1440 HDMI/Type-C AMOLED 178° Capacitive Type-C √ √ √ √ √ √ √ 13.3inch FHD AMOLED 1920×1080 HDMI/Type-C AMOLED 178° Capacitive Type-C √ √ √ √ √ √ √ 13.3inch FHD Monitor 1920×1080 HDMI/Type-C IPS 178° Capacitive Type-C √ × × √ √ √ √ 14″ Portable Monitor 1920×1200 HDMI/Type-C IPS 178° × × × × √ √ √ √ √ 14inch Dual Monitor 1920×1080 HDMI/Type-C IPS 178° × × × × √ √ √ √ √ 15.6″ Portable Monitor 1920×1080 HDMI/Type-C IPS 178° × × × × √ √ √ √ √ 15.6inch FHD Monitor (C) 1920×1080 mini HDMI/Type-C IPS 178° Capacitive Type-C √ √ √ √ √ √ √ 15.6inch Dual Monitor 1920×1080 HDMI/Type-C IPS 178° × × × × √ √ √ √ √ 15.6inch HDMI LCD 1920×1080 HDMI IPS 178° Capacitive USB √ × × √ √ √ √ 15.6inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ × √ √ √ √ √ 15.6inch FHD Monitor 1920×1080 HDMI/Type-C IPS 178° Capacitive Type-C / USB √ × √ √ √ √ √ 15.6HP-CAPQLED 1920×1080 HDMI IPS(QLED) 178° Capacitive USB √ √ × √ √ √ √ 15.6inch QLED Monitor 1920×1080 HDMI IPS(QLED) 178° Capacitive Type-C √ √ √ √ √ √ √ 18.5inch Dual Monitor 1920×1080 HDMI/Type-C IPS 178° × × × × √ √ √ √ √ 18.5inch FHD LCD 1080×1920 HDMI/Type-C IPS 178° Capacitive Type-C √ √ × √ √ √ √ 18.5″ Portable Monitor 1920×1080 HDMI/Type-C IPS 178° × × × × √ √ √ √ √ 18.5″ Touch Monitor 1920×1080 HDMI/Type-C IPS 178° Capacitive Type-C √ √ √ √ √ √ √ 18.5″ 4K Portable Monitor 3840×2160 HDMI/Type-C IPS 178° × × × × √ √ √ √ √ 21.5inch FHD LCD 1080×1920 HDMI IPS 170° Capacitive Type-C √ √ × √ √ √ √ 21.5inch FHD Monitor 1080×1920 HDMI IPS 170° Capacitive Type-C √ √ √ × √ √ √ 21.5″ Portable Monitor 1920×1080 HDMI/Type-C IPS 178° × × × × √ √ √ √ √ 24.5″ 2K Portable Monitor 2560×1440 HDMI/Type-C IPS 178° × × × × √ √ √ √ √ Have a look :
- Size
-
11 803 Ft + ÁFA | Bruttó:14 990 Ft
-
14 165 Ft + ÁFA | Bruttó:17 990 Ft
11 016 Ft + ÁFA | Bruttó:13 990 Ft
13 307 Ft + ÁFA | Bruttó:16 900 Ft
15 740 Ft + ÁFA | Bruttó:19 990 Ft
4 717 Ft + ÁFA | Bruttó:5 990 Ft
4 717 Ft + ÁFA | Bruttó:5 990 Ft
4 717 Ft + ÁFA | Bruttó:5 990 Ft
6 921 Ft + ÁFA | Bruttó:8 790 Ft
-
Felbontás 320x240Csatlakozás SPITípus TFTÉrintőpanel RezisztívKépátló 2.8Audio kimenet NincsBrand WaveshareRaktárkészlet VANCikkszám RPI-WS12219
-
- 2.8inch RPi LCD (A) x 1
- Touch pen x 1
- RPi screws pack (2pcs) x 2
