2.13 hüvelykes érintőképernyős E-Paper E-Ink kijelző Raspberry Pi Zerohoz, 250 × 122, ABS tokkal

Raktárkészlet: VAN
2.13 hüvelykes érintőképernyős E-Paper E-Ink kijelző Raspberry Pi Zerohoz, 250 × 122, ABS tokkal
  • 2.13 hüvelykes érintőképernyős E-Paper E-Ink kijelző Raspberry Pi Zerohoz, 250 × 122, ABS tokkal
  • 2.13 hüvelykes érintőképernyős E-Paper E-Ink kijelző Raspberry Pi Zerohoz, 250 × 122, ABS tokkal
  • 2.13 hüvelykes érintőképernyős E-Paper E-Ink kijelző Raspberry Pi Zerohoz, 250 × 122, ABS tokkal
10 345 Ft + ÁFA | Bruttó:13 138 Ft
db Kosárba Kosárba
Olcsóbban szeretném
2,13 hüvelykes érintőképernyős E-Paper E-Ink kijelző Raspberry Pi Zero-hoz, 250 × 122 pixel, ABS védőtok
Részletek Adatok Csomag tartalma
  • 2.13inch Touch e-Paper E-Ink Display for Raspberry Pi Zero, 250×122 pixels, ABS protection case
    2.13" Touch e-Paper with case

    partial refresh support, low power, wide viewing angle, paper-like effect

    Specialized for Raspberry Pi Zero / Zero W

    • Size2.13"
    • Resolution250×122
    • Viewing Angle>170°
    • Display ColorBlack and White
    • Grey Scale2
    • Touch TypeCapacitive
    • Touch Points5-Points
    • Touch PortI2C
    • Touch PanelToughened Glass
    • CommunicationSPI
    • Power ConsumptionUltra Low
    • Display DurationPersists without Power
    • Display PanelE-paper
    • ExperiencePaper-like
    • Comfortably ReadingEye Care, No Bluelight
    • EnvironmentAmbient Light Required
    • Display TypePassively Reflective
    • RefreshingPartial Refresh Support
    • EnclosureABS Dull Polish
    Features at a glance
    • 2.13" capacitive touch e-Paper display, 5-point touch, 250×122 pixels
    • Supports waken up by user-defined gesture
    • No backlight, keeps displaying last content for a long time even when power down
    • Ultra low power consumption, basically power is only required for refreshing
    • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi Zero / Zero W
    • Comes with development resources and manual (examples for Raspberry Pi)
    Specifications
    operating voltage3.3Vgrey scale2
    interface3-wire SPI, 4-wire SPIpartial refresh time0.3s
    outline dimensions69.15 x38.90mmfull refresh time2s
    display size48.55 x23.70mmrefresh power26.4mW(typ.)
    dot pitch0.194 x0.194mmstandby current<0.01uA (almost none)
    resolution250×122 pixelsviewing angle>170°
    display colorblack, whiteTouch point5 (max)
    Advantages of EINK

    E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper. E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

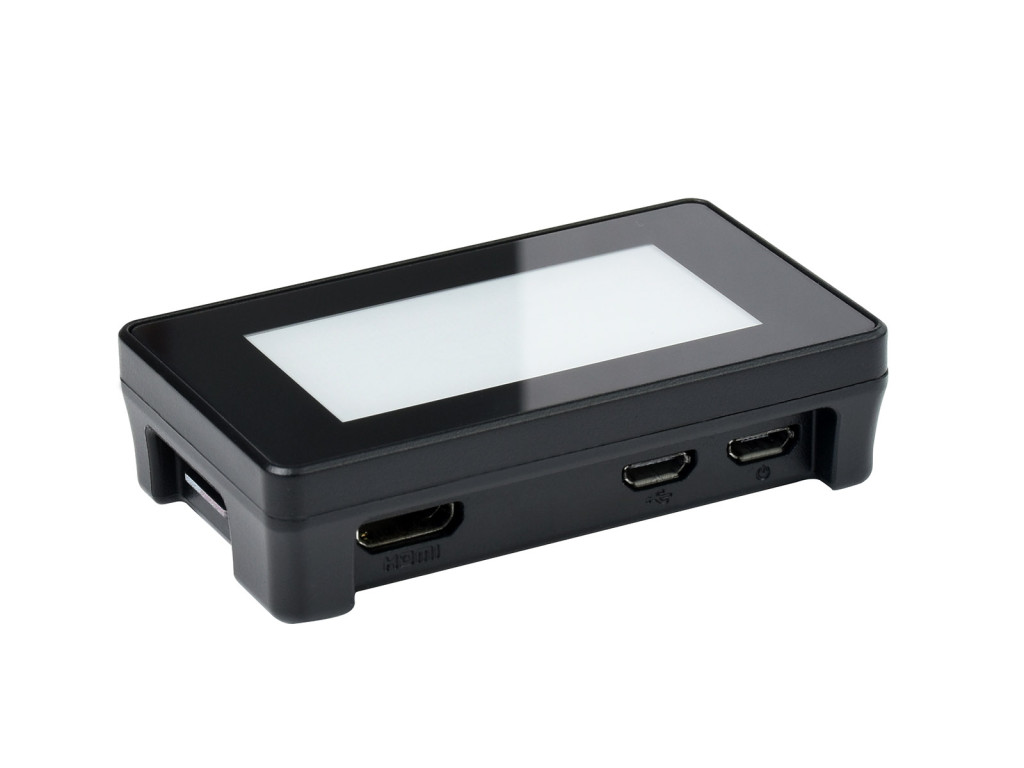

    Fine design, precise cut-out

    highly aligned connectors, rounded corner design, slant sides for easily standing

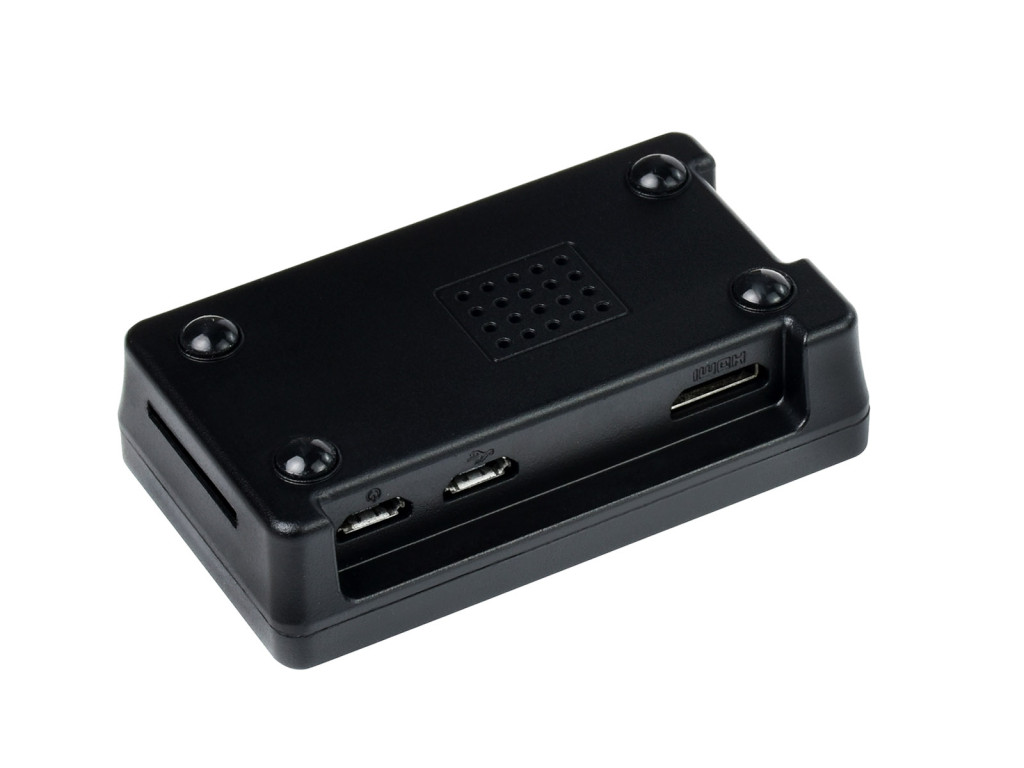

    Heat dissipation holes on the back

    combined with thermal tape, effective heat dissipation

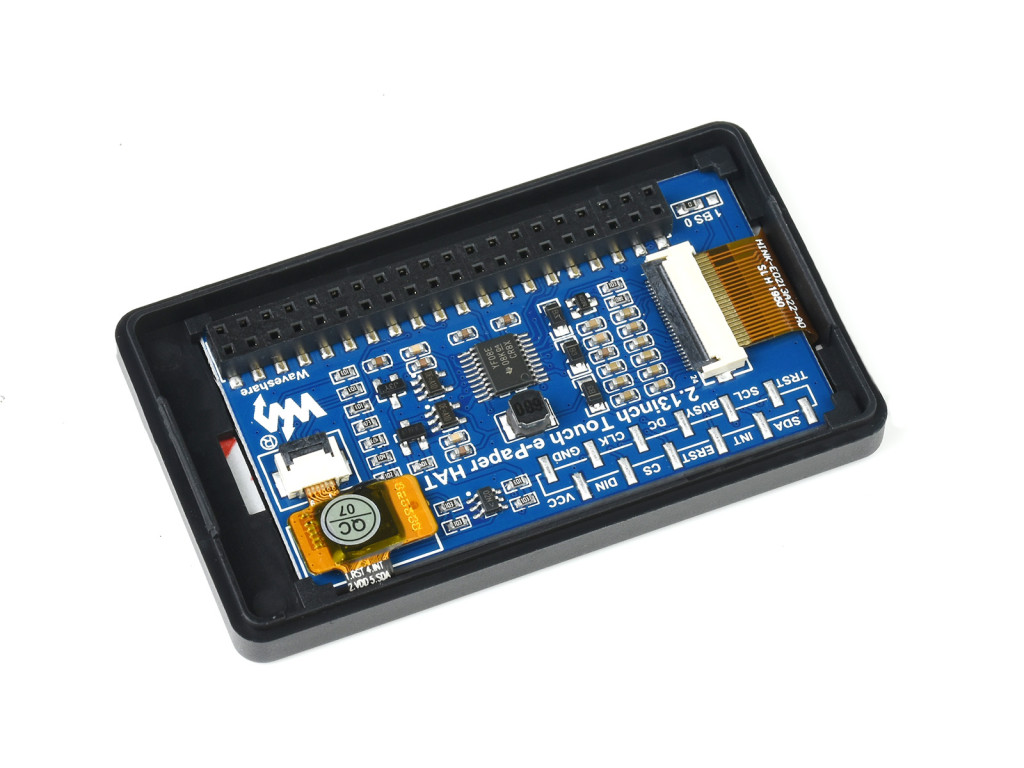

    Standard Raspberry Pi 40PIN GPIO header

    compatible with Raspberry Zero / Zero W

    Raspberry Pi in the photo is NOT included.

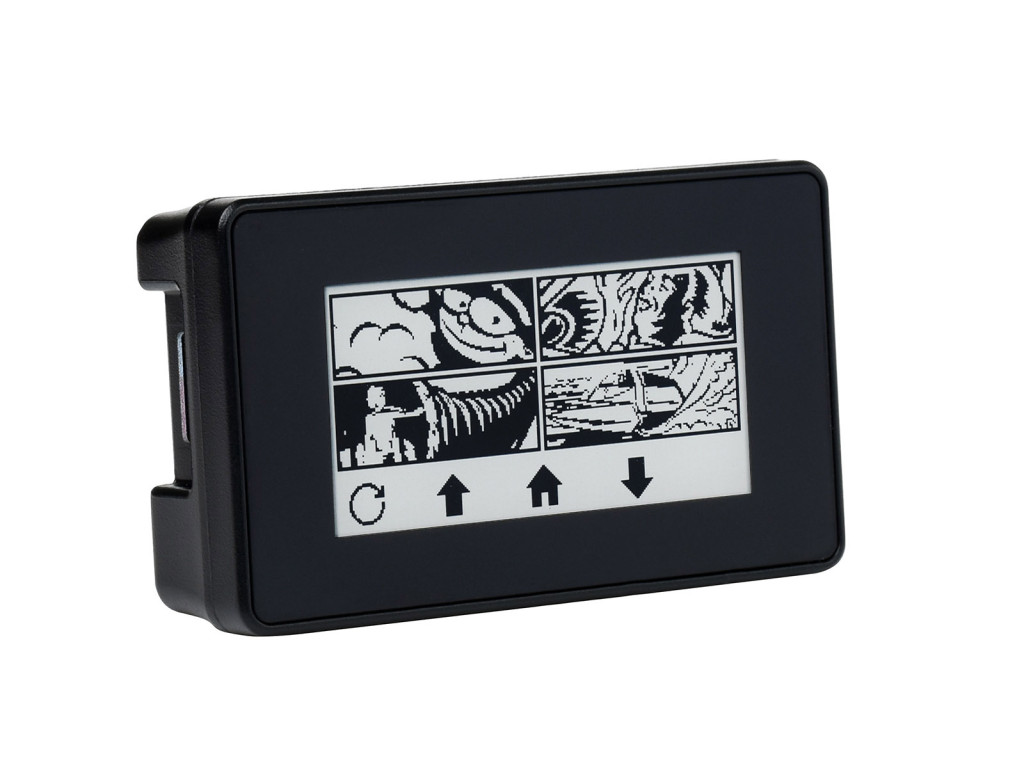

    Demonstration
    Pinout definition
    Outline dimensions
    How to install
    Resources & Services
    WIKI:2.13inch_Touch_e-Paper_HAT

    * Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

    Selection Guide

    Part NumberColorsGrey ScaleResolutionDisplay size (mm)Outline Dimension (mm)Full Refresh Time (s)Partial Refresh1Pi Head-er2Flexi-bleInterface
    1.02inch e-Paper Moduleblack, white2128×8021.76 × 14.0042.0 × 27.02√SPI
    1.54inch e-Paper Moduleblack, white2200×20027.60 × 27.6048.0 × 33.02√SPI
    1.54inch e-Paper Module (B)red, black, white2200×20027.60 × 27.6048.0 × 33.014SPI
    1.54inch e-Paper Module (C)yellow, black, white2152×15227.51 × 27.5148.0 × 33.027SPI
    1.64inch e-Paper Module (G)red, yellow, black, white2168×16829.568 × 29.56847 × 3812SPI
    2.13inch e-Paper HATblack, white2250×12248.55 × 23.7065.0 × 30.22√√SPI
    2.13inch e-Paper HAT+black, white2250×12248.55 × 23.7065.0 × 30.52√√SPI
    2.13inch e-Paper HAT (B)red, black, white2250×12248.55 × 23.7065.0 × 30.215√SPI
    2.13inch e-Paper HAT (C)yellow, black, white2212×10448.55 × 23.7065.0 × 30.215√SPI
    2.13inch e-Paper HAT (D)black, white2212×10448.55 × 23.7059.2 × 29.22√√√SPI
    2.13inch e-Paper HAT (G)red, yellow, black, white2250×12248.55 × 23.7065.0 × 30.225√SPI
    2.13inch Touch e-Paper HATblack, white2250×12248.55 × 23.7069.15 × 38.902√√SPI
    2.13inch Touch e-Paper HAT (with case)black, white2250×12248.55 × 23.7072.20 × 41.902√√SPI
    2.36inch e-Paper Module (G)red, yellow, black, white2296×16852.096 × 29.56869.5 × 38.512SPI
    2.66inch e-Paper Moduleblack, white2296×15230.704 × 60.08837.0 × 83.56√SPI
    2.66inch e-Paper Module (B)red, black, white2296×15230.704 × 60.08837.0 × 83.515SPI
    2.66inch e-Paper Module (G)red, yellow, black, white2360×18460.05 × 30.6985.0 × 38.526SPI
    2.7inch e-Paper HATblack, white4264×17657.29 × 38.1985.0 × 56.06√√SPI
    2.7inch e-Paper HAT (B)red, black, white2264×17657.288 × 38.19273.5 × 56.015√SPI
    2.9inch e-Paper Moduleblack, white4296×12866.89 × 29.0589.5 × 38.03√SPI
    2.9inch e-Paper Module (B)red, black, white2296×12866.89 × 29.0589.5 × 38.015SPI
    2.9inch e-Paper Module (C)yellow, black, white2296×12866.89 × 29.0589.5 × 38.015SPI
    2.9inch e-Paper HAT (D)black, white2296×12866.90 × 29.0679.0 × 36.72√√√SPI
    2.9inch Touch e-Paper HATblack, white4296×12866.89 × 29.0589.10 × 42.703√√SPI
    3inch e-Paper Module (G)red, yellow, black, white2400×16870.4 × 29.56888.5 × 4112SPI
    3.52inch e-Paper HATblack, white2360×24074.51 × 49.6786.5 × 571.5td>√SPI
    3.7inch e-Paper HATblack, white4480×28047.32 × 81.1258.0 × 96.53√√SPI
    4.01inch e-Paper HAT (F)7-Color2640×40086.40 × 54.0098.5 × 70.030√SPI
    4.2inch e-Paper Moduleblack, white4400×30084.80 × 63.60103.0 × 78.55√SPI
    4.2inch e-Paper Module (B)red, black, white2400×30084.80 × 63.60103.0 × 78.515SPI
    4.26inch e-Paper HATblack, white4800×48092.80 × 55.68107.0 × 64.04√√SPI
    4.3inch e-Paper UART Moduleblack, white4800×60088.00 × 66.00118.0 × 75.01.5UART
    4.37inch e-Paper Module (G)red, yellow, black, white2512×36890.11 × 64.77101.5 × 81.514SPI
    5.65inch e-Paper Module (F)7-Color2600×448114.9 × 85.8138.5 × 100.5<35SPI
    5.79inch e-Paper Moduleblack, white4792×272139.00 × 47.74152.50 × 58.503.5√SPI
    5.79inch e-Paper Module (B)red, black, white2792×272139.00 × 47.74152.50 × 58.5024SPI
    5.79inch e-Paper Module (G)red, yellow, black, white2792×272139.00 × 47.74152.50 × 58.5021SPI
    5.83inch e-Paper HATblack, white2648×480119.232 × 88.320125.4 × 99.55√SPI
    5.83inch e-Paper HAT (B)red, black, white2648×480119.232 × 88.320125.4 × 99.520√SPI
    6inch e-Paper HATblack, white16800×600122.4 × 90.6138.4 × 101.8<1√√USB/SPI/ I80
    6inch HD e-Paper HATblack, white161448×1072122.4 × 90.6138.4 × 101.8<1√√USB/SPI/ I80
    7.3inch E-Paper HAT (E)6-Color2800×480160 × 96170.2 × 111.212√SPI
    7.3inch E-Paper HAT (F)7-Color2800×480160 × 96170.2 × 111.235√SPI
    7.3inch E-Paper HAT (G)red, yellow, black, white2800×480160 × 96170.2 × 111.216√SPI
    7.5inch e-Paper HATblack, white2800×480163.20 × 97.92170.2 × 111.25√√SPI
    7.5inch HD e-Paper HATblack, white2880×528163.24 × 97.94170.2 × 111.25√SPI
    7.5inch e-Paper HAT (B)red, black, white2800×480163.20 × 97.92170.2 × 111.226√SPI
    7.5inch HD e-Paper HAT (B)red, black, white2880×528163.24 × 97.94170.2 × 111.221√SPI
    7.5inch e-Paper HAT (C)yellow, black, white2640×384163.20 × 97.92170.2 × 111.216√SPI
    7.8inch e-Paper HATblack, white161872×1404158.18 × 118.64173.8 × 127.6<1√√USB/SPI/ I80
    9.7inch e-Paper HATblack, white161200×825202.8 × 139.43218.8×156.4<1√√USB/SPI/ I80
    10.3inch e-Paper HATblack, white161872×1404209.66 × 157.25216.7 × 174.4<1√√USB/SPI/ I80
    10.3inch e-Paper HAT (D)black, white161872×1404209.66 × 157.25227.7 × 165.8<1√√√USB/SPI/ I80
    10.3inch e-Paper HAT (G)black, white161872×1404209.66 × 157.25225.70 × 183.40<1√√USB/SPI/ I80
    12.48inch e-Paper Moduleblack, white21304×984252.98 × 190.90280.0 × 229.5<8√SPI
    12.48inch e-Paper Module (B)red, black, white21304×984252.98 × 190.90280.0 × 229.537√SPI
    13.3inch e-Paper HATblack, white161600×1200270.40 × 202.80285.80 × 213.65<1√√USB/SPI/ I80
    13.3inch e-Paper HAT (B)red, black, white2960×680275.52 × 195.16286.32 × 212.2622√√SPI
    13.3inch e-Paper HAT (K)black, white4960×680275.52 × 195.16286.32 × 212.265√√SPI
    1. It usually takes about 0.3s for partial refresh
    2. Pi Header: standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards

    e-Paper panels comparing

  • Brand
    Waveshare
    Raktárkészlet
    VAN
    Cikkszám
    RPI-WS20716
    1. 2.13inch Touch e-Paper HAT x1
    2. ABS case x1
    3. Screwdriver x1
    4. Thermal tape x1
    5. rubber feet 4PCS x1
    6. Screws x2
:
;
