Termék részletek
3,4 hüvelykes HDMI kerek érintőképernyő, 800 × 800, IPS, 10 pontos érintőképernyő, kerek LCD, optikai ragasztású edzett üvegpanel
3,4 hüvelykes HDMI kerek érintőképernyő, 800 × 800, IPS, 10 pontos érintőképernyő, kerek LCD, optikai ragasztású edzett üvegpanel
-
3.4inch HDMI Round Touch Display, 800 × 800, IPS, 10-Point Touch, Round LCD, Optical Bonding Toughened Glass Panel3.4″ Round Touch Display
High Resolution | Multi-touch | Full Color
- Size
3.4″ - Resolution
800×800 - Display Interface
HDMI - Display Panel
IPS - Viewing Angle
170° - Touch Type
Capacitive - Touch Points
10-Point - Touch Interface
USB Type-C - Touch Panel
Toughened Glass - Touch Panel Tech
Optical Bonding
Device & System Support
Raspberry PiSupports Raspberry Pi OS, 10-point touch, driver free Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free Supports Retropie, driver freeSupports all versions of Raspberry Pi
Jetson NanoSupports Ubuntu, single point touch, driver freePCSupports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver freeConnection ExamplesWorking with Raspberry Pi 5
Working with Raspberry Pi 4B
Working with Raspberry Pi 3B+
Working with Raspberry Pi Zero 2 W
You need to prepare additional mini HDMI adapter and USB cable
Working with Jetson Nano
Working with mini PC

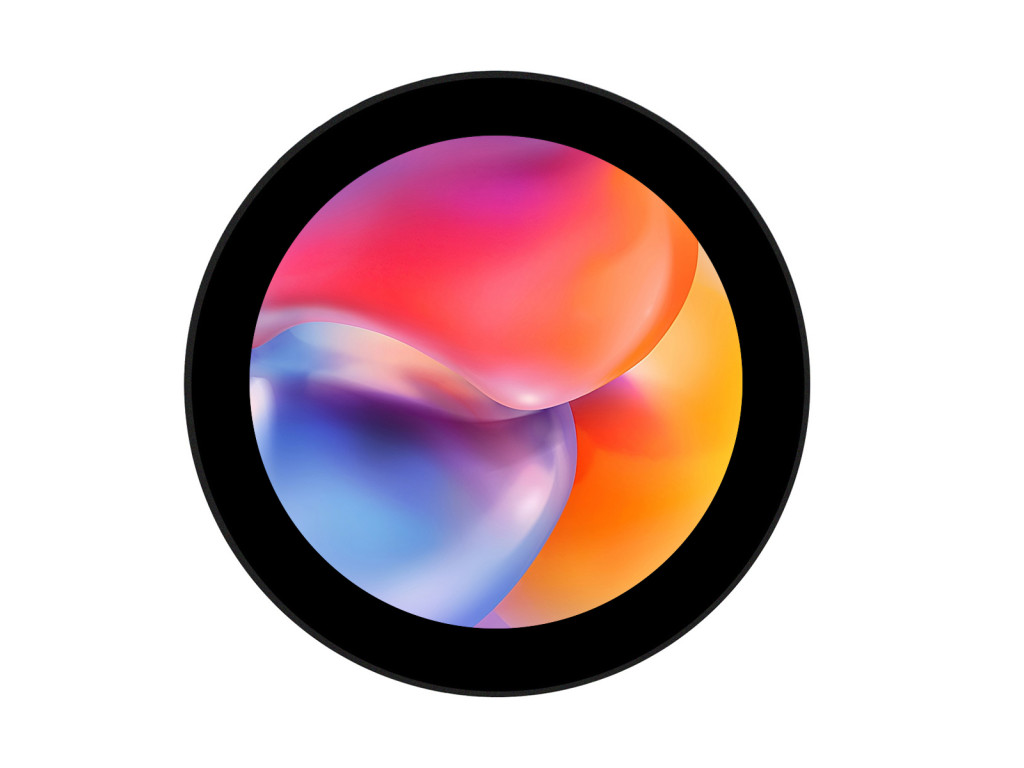

for reference only, the Raspberry Pi boards and the hosts above are NOT included.IPS Display PanelExcellent Display Performance With 170° Wide Viewing Angle
10-Point Capacitive Touch
- up to 10-point touch, depending on the operating system
- up to 6H hardness toughened glass panel
- Optical Bonding, display well and dustproof

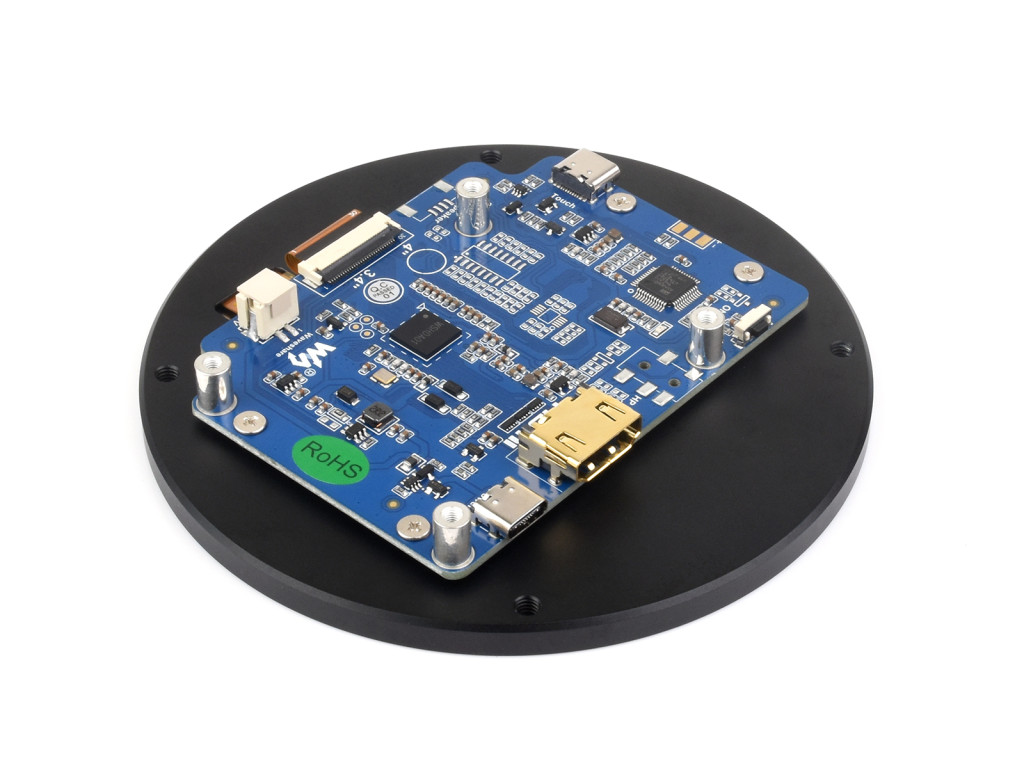

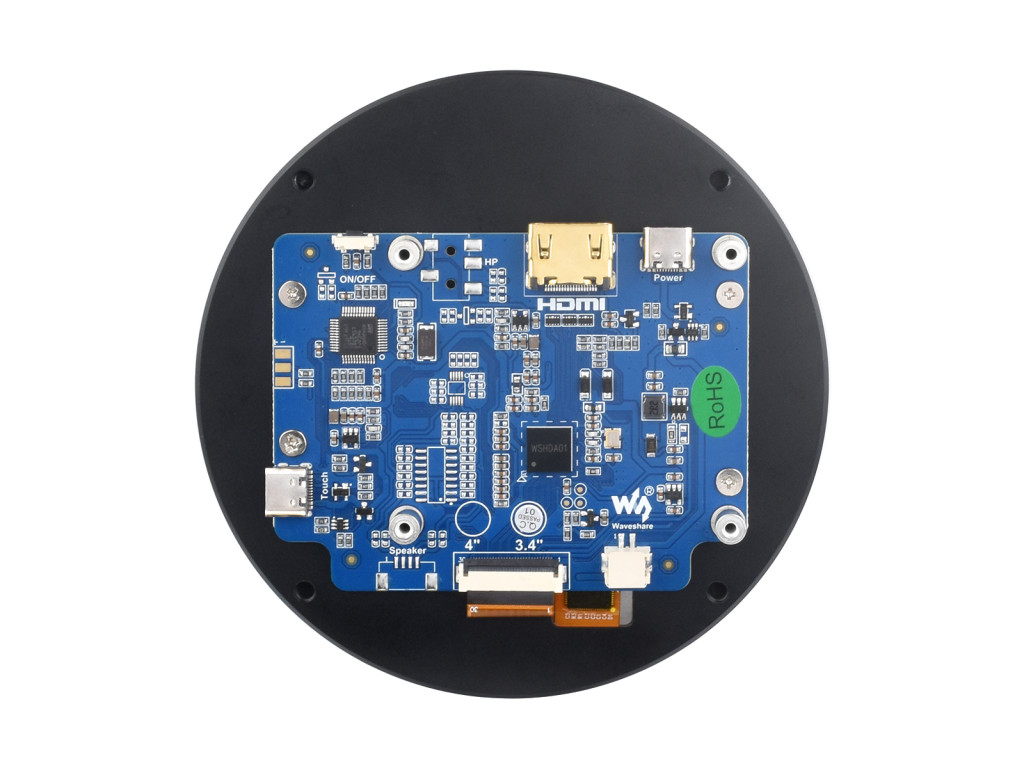

Interface Introduction
Application Examples
Smart Home
In-vehicle Devices
Consumer Electronics
Industrial Equipments
Product show
Dimensions
Support touch screen customizationSupport the following ways to customize the touch screen display in bulk order
Over a decadeWaveshare grows with display
* Waveshare has been focusing on display design for over 10 years.
Selection Guide
PartNumber Display Touch Audio Device Support Resolu-tion Display Port Display Panel View Angle Touch Type Touch Port Toughened Glass Panel Optical Bonding Spe-aker Signal Output Pi JETSON NANO PC SPI DISPLAYSPROS: low price.CONS: low refresh rate & resolution, supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO (the SPI bus), poor compatibility with Raspberry Pi system. 2.8inch RPi LCD (A) 320×240 SPI TFT – Resistive SPI × × × × √ × × 3.2inch RPi LCD (B) 320×240 SPI TFT – Resistive SPI × × × × √ × × 3.5inch RPi LCD (A) 480×320 SPI TFT – Resistive SPI × × × × √ × × 3.5inch RPi LCD (B) 480×320 SPI IPS 160° Resistive SPI × × × × √ × × 3.5inch RPi LCD (C) 480×320 High-Speed SPI TFT – Resistive SPI × × × × √ × × 3.5inch RPi LCD (F) 320×480 SPI IPS 170° Capacitive I2C √ × × × √ × × 3.5inch RPi LCD (G) 320×480 SPI IPS 170° Resistive SPI × × × × √ × × 4inch RPi LCD (A) 480×320 SPI TFT – Resistive SPI × × × × √ × × DPI DISPLAYSPROS: low price, high refresh rate, multiple resolution support, better compatibility with Raspberry Pi system.CONS: supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO. 2.8inch DPI LCD 480×640 DPI IPS 160° Capacitive I2C √ √ × × √ × × 3.5inch DPI LCD 640×480 DPI IPS 170° Capacitive I2C √ × × × √ × × 4inch DPI LCD (C) 720×720 DPI IPS 170° Capacitive I2C √ √ × × √ × × 5inch DPI LCD 800×480 DPI IPS 160° – – × × × × √ × × 7inch DPI LCD 1024×600 DPI IPS 170° – – × × × × √ × × DSI DISPLAYSPROS: moderate price, high refresh rate, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system.CONS: supports Raspberry Pi only. 2.8inch DSI LCD 480×640 DSI IPS 160° Capacitive I2C √ √ × × √ × × 3.4inch DSI LCD (C) 800×800 DSI IPS 170° Capacitive I2C √ √ × × √ × × 4inch DSI LCD 480×800 DSI IPS 170° Capacitive I2C √ √ × × √ × × 4inch DSI LCD (C) 720×720 DSI IPS 170° Capacitive I2C √ √ × × √ × × 4.3inch DSI LCD 800×480 DSI IPS 160° Capacitive I2C √ × × × √ × × 4.3inch DSI LCD (with case) 800×480 DSI IPS 160° Capacitive I2C √ × × × √ × × 4.3inch DSI QLED 800×480 DSI IPS(QLED) 160° Capacitive I2C √ × × × √ × × 5inch DSI LCD 800×480 DSI TFT – Capacitive I2C √ × × × √ × × 5inch DSI LCD (B) 800×480 DSI IPS 160° Capacitive I2C √ × × × √ × × 5inch DSI LCD (C) 1024×600 DSI IPS 178° Capacitive I2C √ × × × √ × × 5inch DSI LCD (D) 720×1280 DSI IPS 178° Capacitive I2C √ √ × × √ × × 5-DSI-TOUCH-A 720×1280 DSI IPS 178° Capacitive I2C √ √ × × √ × × 5inch Raspberry Pi Touch Display 2 720×1280 DSI IPS 160° Capacitive I2C × × × × √ × × 6.25inch DSI LCD 720×1560 DSI IPS 178° Capacitive I2C √ √ × × √ × × 7inch DSI LCD 800×480 DSI TFT – Capacitive I2C √ × × × √ × × 7inch DSI LCD (with case A) 800×480 DSI TFT – Capacitive I2C √ × × × √ × × 7inch DSI LCD (with cam) 800×480 DSI TFT – Capacitive I2C √ × × × √ × × 7inch DSI LCD (with cam and case) 800×480 DSI TFT – Capacitive I2C √ × × × √ × × 7inch DSI LCD (B) 800×480 DSI IPS 170° Capacitive I2C √ × × × √ × × 7inch DSI LCD (B) (with case A) 800×480 DSI IPS 170° Capacitive I2C √ × × × √ × × 7inch DSI LCD (C) 1024×600 DSI IPS 170° Capacitive I2C √ × × × √ × × 7inch DSI LCD (C) (with case A) 1024×600 DSI IPS 170° Capacitive I2C √ × × × √ × × 7inch DSI LCD (E) 1280×800 DSI IPS 178° Capacitive I2C √ √ × × √ × × 7-DSI-TOUCH-A 720×1280 DSI IPS 170° Capacitive I2C √ √ × × √ × × 7inch DSI LCD (H) 1280×720 DSI IPS 170° Capacitive I2C √ √ × × √ × × 7.9inch DSI LCD 400×1280 DSI IPS 170° Capacitive I2C √ × × × √ × × 8-DSI-TOUCH-A 800×1280 DSI IPS 178° Capacitive I2C √ √ × × √ × × 8inch DSI LCD 800×480 DSI TFT – Capacitive I2C √ × × × √ × × 8inch DSI LCD (with cam) 800×480 DSI TFT – Capacitive I2C √ × × × √ × × 8inch DSI LCD (C) 1280×800 DSI IPS 178° Capacitive I2C √ √ × × √ × × 8.8inch DSI LCD 480×1920 DSI IPS 178° Capacitive I2C √ √ × × √ × × 10.1-DSI-TOUCH-A 800×1280 DSI IPS 178° Capacitive I2C √ √ × × √ × × 10.1inch DSI LCD (C) 1280×800 DSI IPS 178° Capacitive I2C √ √ × × √ × × 11.9inch DSI LCD 320×1480 DSI IPS 170° Capacitive I2C √ × × × √ × × 12.3-DSI-TOUCH-A 720×1920 DSI IPS 178° Capacitive I2C √ √ × × √ × × 13.3inch DSI LCD 1920×1080 DSI IPS 178° Capacitive I2C √ × × × √ × × HDMI / TYPE-C DISPLAYSPROS: high refresh rate, multiple resolution support, multiple devices support, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system.CONS: somewhat costly. 2.8inch HDMI LCD (H) 480×640 HDMI IPS 160° Capacitive USB-C / I2C √ √ × × √ √ √ 3.2inch HDMI LCD (H) 480×800 HDMI IPS 160° × × × × × × √ √ Display ONLY 3.4inch 800x800 LCD 800x800 HDMI IPS 170° Capacitive Type-C √ √ × √ √ √ √ 3.5inch HDMI LCD 480×320 HDMI IPS 160° Resistive SPI × × × √ √ × Display ONLY 3.5inch 480x800 LCD 480×800 HDMI IPS 170° Capacitive USB-C × × × × √ √ √ 4inch 720x720 LCD 720x720 HDMI IPS 170° Capacitive Type-C √ √ × √ √ √ √ 4inch HDMI LCD 480×800 HDMI IPS 170° Resistive SPI × × × × √ × Display ONLY 4inch HDMI LCD (C) 720×720 HDMI IPS 170° Capacitive USB-C / I2C √ √ × √ √ √ √ 4inch HDMI LCD (H) 480×800 HDMI IPS 170° Resistive SPI × × × √ √ × Display ONLY 4.3inch HDMI LCD (B) 800×480 HDMI IPS 160° Capacitive USB × × × √ √ √ √ 5DP-CAPLCD-H 1024×600 HDMI IPS 178° Capacitive Type-C √ × × √ √ √ √ 5DP-CAPLCD-B 1024×600 HDMI IPS 178° Capacitive Type-C √ √ × √ √ √ √ 5DP-CAPLCD-G 1024×600 HDMI IPS 178° Resistive Type-C √ × × √ √ √ √ 5inch HDMI LCD 800×480 HDMI TFT – Resistive SPI × × × × √ × × 5inch HDMI LCD (with bicolor case) 800×480 HDMI TFT – Resistive SPI × × × × √ × × 5inch HDMI LCD (B) 800×480 HDMI TFT – Resistive USB × × × × √ × √ 5inch HDMI LCD (B) (with bicolor case) 800×480 HDMI TFT – Resistive USB × × × × √ × √ 5inch HDMI LCD (G) 800×480 HDMI/VGA TFT – Resistive USB × × × √ √ × √ 5inch HDMI LCD (H) 800×480 HDMI/VGA TFT – Capacitive USB √ × × √ √ √ √ 5inch HDMI LCD (H) V4 800×480 HDMI TFT – Capacitive USB √ × × × √ × √ 5inch HDMI AMOLED 960×544 HDMI AMOLED 170° Capacitive USB √ √ × √ √ √ √ 5inch 1080x1080 LCD 1080×1080 HDMI IPS 160° Capacitive Type-C √ √ √ √ √ √ √ 5inch 720x1280 LCD 720×1280 HDMI IPS 178° Capacitive Type-C √ √ √ × √ √ √ 5.5inch HDMI AMOLED 1080×1920 HDMI AMOLED 170° Capacitive USB √ √ × √ √ √ √ 5.5inch HDMI AMOLED (with case A) 1080×1920 HDMI AMOLED 170° Capacitive USB √ √ × √ √ × × 5.5inch 1440x2560 LCD 1440×2560 HDMI IPS 170° Capacitive USB √ √ × √ √ × √ 5.5inch 1440x2560 LCD (with case A) 1440×2560 HDMI IPS 170° Capacitive USB √ √ × √ √ × × 6.25inch 720x1560 LCD 720×1560 HDMI IPS 178° Capacitive Type-C √ √ √ × √ √ √ PI5-HMI-7A 720×1280 HDMI IPS 170° Capacitive Type-C √ √ × × √ × × 7EP-CAPLCD 1280×800 HDMI IPS 178° Capacitive USB √ √ √ √ √ √ √ 7EP-CAPLCD Monitor 1280×800 HDMI/Type-C IPS 178° Capacitive USB √ √ √ √ √ √ √ 7inch HDMI LCD 1024×600 HDMI IPS 170° Resistive SPI × × × × √ × Display ONLY 7inch HDMI LCD (B) 800×480 HDMI TFT – Capacitive USB × × × × √ × √ 7inch HDMI LCD (B) (with bicolor case) 800×480 HDMI TFT – Capacitive USB × × × × √ × √ 7inch HDMI LCD (C) 1024×600 HDMI IPS 170° Capacitive USB × × × × √ × √ 7inch HDMI LCD (C) (with bicolor case) 1024×600 HDMI IPS 170° Capacitive USB × × × × √ × √ 7inch HDMI LCD (H) 1024×600 HDMI/VGA IPS 170° Capacitive USB × × × √ √ √ √ 7inch HDMI LCD (H) (with case) 1024×600 HDMI/VGA IPS 170° Capacitive USB √ × × √ √ √ √ 7HP-CAPQLED 1024×600 HDMI IPS (QLED) 170° Capacitive USB √ × × √ √ √ √ 7.9inch HDMI LCD 400×1280 HDMI IPS 170° Capacitive USB √ × × √ √ √ √ 7.9inch Side Monitor 400×1280 HDMI IPS 170° × × √ × √ × √ √ √ 7.9inch Touch Monitor 400×1280 HDMI IPS 170° Capacitive USB √ × √ × √ √ √ PI5-HMI-080D 1280×800 HDMI IPS 178° Capacitive Type-C √ √ × × √ × × 8DP-CAPLCD 1280×800 HDMI IPS 178° Capacitive USB √ √ × √ √ √ √ 8HP-CAPLCD Monitor 1280×800 HDMI/Type-C IPS 178° Capacitive USB √ √ √ √ √ √ √ 8inch 768x1024 LCD 768×1024 HDMI IPS 178° Capacitive Type-C √ × √ √ √ √ √ 8inch 1536x2048 LCD 1536×2048 HDMI IPS 178° Capacitive Type-C √ √ √ √ √ √ √ 8.8inch Side Monitor 480×1920 HDMI IPS 170° × × × × √ × √ √ Display ONLY 9HP-CAPQLED-B 1280×720 HDMI IPS (QLED) 178° Capacitive USB √ × × √ √ √ √ 9.3inch 1600x600 LCD 1600×600 HDMI IPS 178° Capacitive Type-C √ √ √ √ √ √ √ 9.7inch 768x1024 LCD 768×1024 HDMI IPS 178° Capacitive Type-C √ × √ √ √ √ √ PI5-HMI-101D 1280×800 HDMI IPS 178° Capacitive Type-C √ √ × × √ × × 10.1inch HDMI LCD 1024×600 HDMI IPS 170° Resistive SPI × × × × √ × Display ONLY 10.1inch HDMI LCD (B) (with case) 1280×800 HDMI IPS 170° Capacitive USB √ × × × √ × √ 10.1inch HDMI LCD (E) 1024×600 HDMI IPS 170° Capacitive USB √ √ × √ √ √ √ 10.1inch HDMI LCD (G) (with case) 1920×1200 HDMI IPS 160° Capacitive USB √ √ √ √ √ √ √ 10.1inch HDMI LCD (H) (with case) 1024×600 HDMI/VGA TFT – Capacitive USB × × × × √ √ √ 10.1inch HDMI LCD (F) (with case) 1024×600 HDMI/VGA IPS 170° Capacitive USB √ × √ × √ √ √ 10.1EP-CAPLCD 1920×1200 HDMI IPS 178° Capacitive Type-C √ √ √ √ √ √ √ 10.1DP-CAPLCD 1280×800 HDMI IPS 178° Capacitive USB √ √ × √ √ √ √ 10.1HP-CAPQLED 1280×720 HDMI IPS (QLED) 170° Capacitive USB √ × × √ √ √ √ 10.1HP-CAPLCD Monitor 1280×800 HDMI/Type-C IPS 178° Capacitive USB √ √ √ √ √ √ √ 10.4HP-CAPQLED 1600×720 HDMI IPS(QLED) 178° Capacitive Type-C √ √ √ √ √ √ √ 10.5inch HDMI AMOLED 2560×1600 HDMI AMOLED 160° Capacitive USB √ √ √ √ √ √ √ 11.6inch 1768x828 LCD 1768×828 HDMI/Type-C IPS 178° Capacitive Type-C In-Cell × × √ √ √ √ 11.6inch HDMI LCD (H) 1920×1080 HDMI IPS 178° Capacitive USB √ √ × √ √ √ √ 11.6inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ √ √ √ √ √ √ 11.9inch HDMI LCD 320×1480 HDMI IPS 170° Capacitive USB √ × × √ √ √ √ 11.9inch Side Monitor 320×1480 HDMI IPS 170° × × √ × √ × √ √ √ 11.9inch Touch Monitor 320×1480 HDMI IPS 170° Capacitive USB √ × √ × √ √ √ 12.3inch 1920x720 LCD 1920×720 HDMI/Type-C IPS 178° Capacitive Type-C In-Cell × × √ √ √ √ 12.3inch HDMI LCD 1920×720 HDMI IPS 178° Capacitive USB √ √ √ √ √ √ √ 13.3inch HDMI LCD (H) 1920×1080 HDMI IPS 178° Capacitive USB √ × × √ √ √ √ 13.3inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ × √ √ √ √ √ 13.3inch HDMI LCD (H) (with case) V2 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ × √ √ √ √ √ 13.3inch QHD AMOLED 2560×1440 HDMI/Type-C AMOLED 178° Capacitive Type-C √ √ √ √ √ √ √ 13.3inch FHD Monitor 1920×1080 HDMI/Type-C IPS 178° Capacitive Type-C √ × × √ √ √ √ 14″ Portable Monitor 1920×1200 HDMI/Type-C IPS 178° × × × × √ √ √ √ √ 14inch Dual Monitor 1920×1080 HDMI/Type-C IPS 178° × × × × √ √ √ √ √ 15.6″ Portable Monitor 1920×1080 HDMI/Type-C IPS 178° × × × × √ √ √ √ √ 15.6inch FHD Monitor (C) 1920×1080 mini HDMI/Type-C IPS 178° Capacitive Type-C √ √ √ √ √ √ √ 15.6inch Dual Monitor 1920×1080 HDMI/Type-C IPS 178° × × × × √ √ √ √ √ 15.6inch HDMI LCD 1920×1080 HDMI IPS 178° Capacitive USB √ × × √ √ √ √ 15.6inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ × √ √ √ √ √ 15.6inch FHD Monitor 1920×1080 HDMI/Type-C IPS 178° Capacitive Type-C / USB √ × √ √ √ √ √ 15.6HP-CAPQLED 1920×1080 HDMI IPS(QLED) 178° Capacitive USB √ √ × √ √ √ √ 15.6inch QLED Monitor 1920×1080 HDMI IPS(QLED) 178° Capacitive Type-C √ √ √ √ √ √ √ 18.5inch Dual Monitor 1920×1080 HDMI/Type-C IPS 178° × × × × √ √ √ √ √ 18.5inch FHD LCD 1080×1920 HDMI/Type-C IPS 178° Capacitive Type-C √ √ × √ √ √ √ 18.5″ Portable Monitor 1920×1080 HDMI/Type-C IPS 178° × × × × √ √ √ √ √ 18.5″ Touch Monitor 1920×1080 HDMI/Type-C IPS 178° Capacitive Type-C √ √ √ √ √ √ √ 18.5″ 4K Portable Monitor 3840×2160 HDMI/Type-C IPS 178° × × × × √ √ √ √ √ 21.5inch FHD LCD 1080×1920 HDMI IPS 170° Capacitive Type-C √ √ × √ √ √ √ 21.5inch FHD Monitor 1080×1920 HDMI IPS 170° Capacitive Type-C √ √ √ × √ √ √ 21.5″ Portable Monitor 1920×1080 HDMI/Type-C IPS 178° × × × × √ √ √ √ √ 24.5″ 2K Portable Monitor 2560×1440 HDMI/Type-C IPS 178° × × × × √ √ √ √ √ Have a look :
- Size
-
Brand WavesharePartNumber 3.4inch 800x800 LCDRaktárkészlet NINCSCikkszám RPI-WS27478
-
- 3.4inch 800x800 LCD ×1
- Silver capacitive touch pen ×1
- USB-A to USB-C cable ~1m ×1
- HDMI flat cable ~1m ×1
- USB to Type-C adapter (C) ×1
- USB to Type-C adapter (B) ×1
- HDMI to Micro HDMI adapter ×1
- HDMI adapter ×1
- Screwspack ×1
