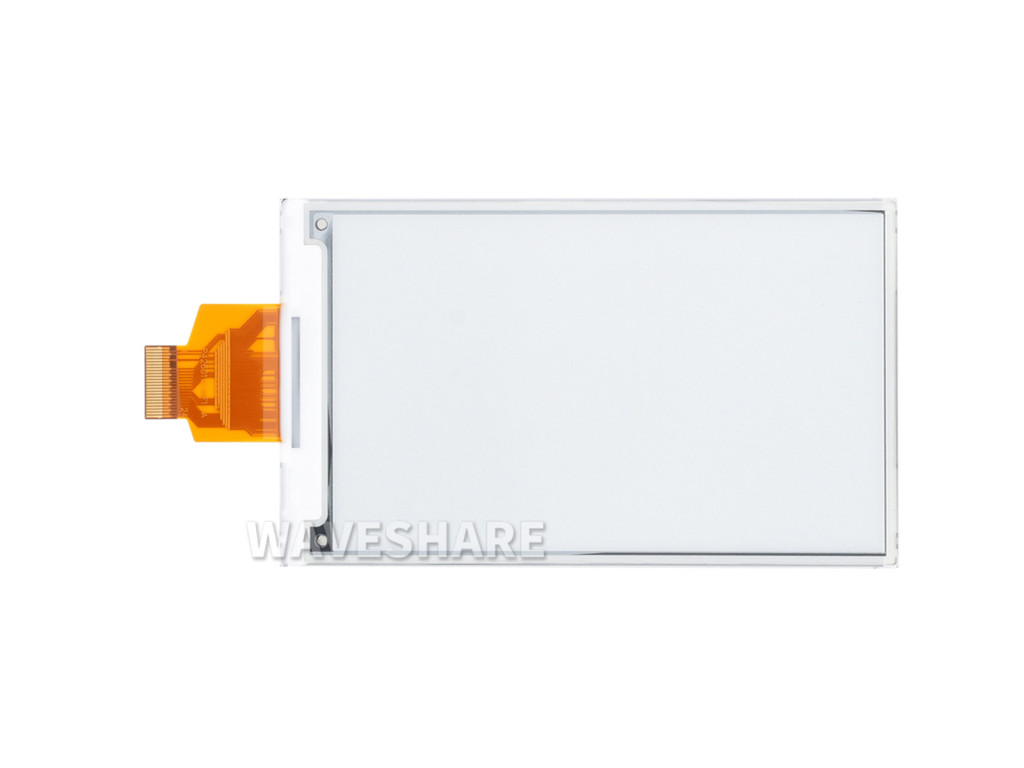

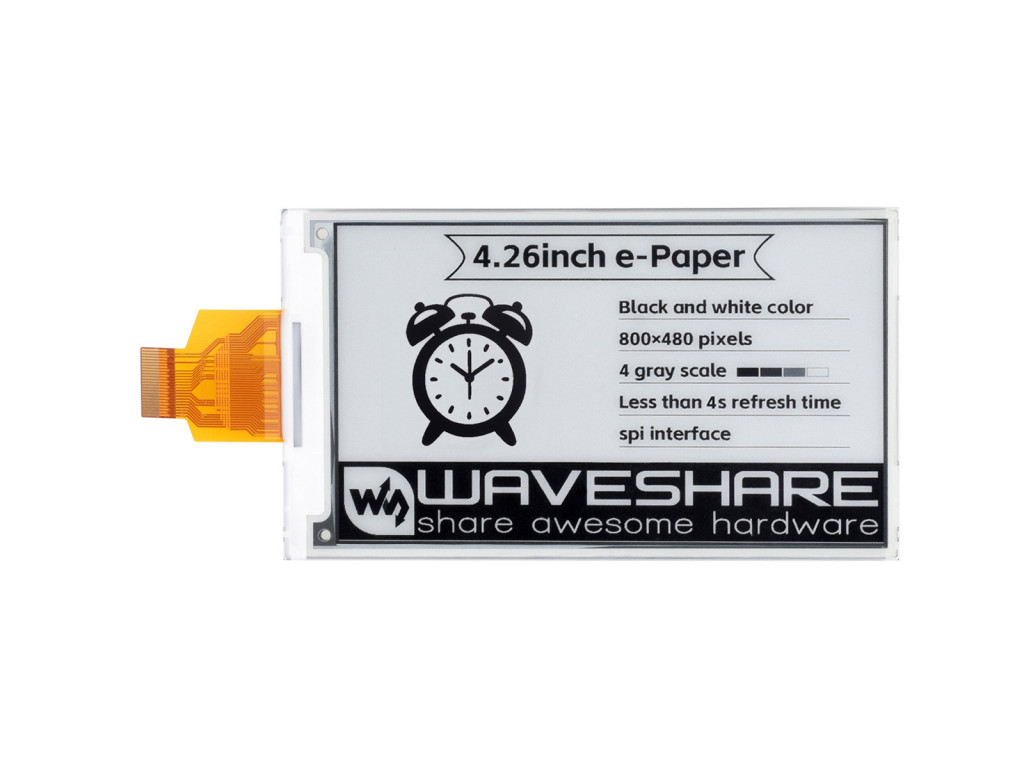

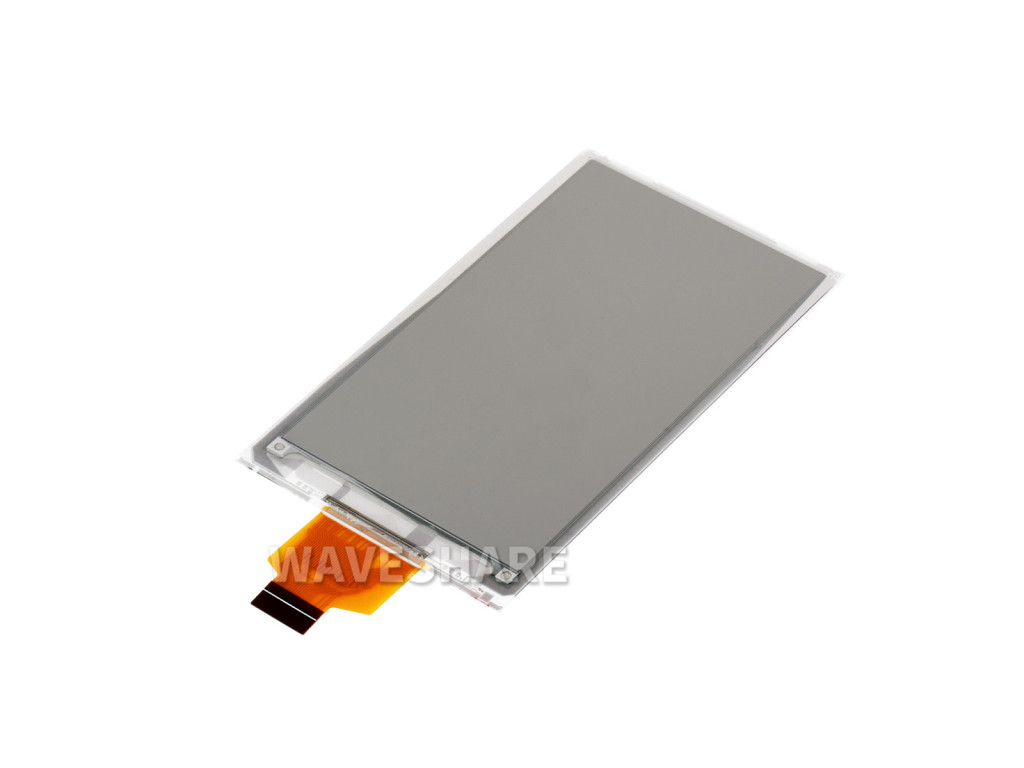

4,26 inch E-Paper kijelző, 800x480, fekete/fehér, SPI kommunikáció

Raktárkészlet: NINCS
4,26 inch E-Paper kijelző, 800x480, fekete/fehér, SPI kommunikáció
  • 4,26 inch E-Paper kijelző, 800x480, fekete/fehér, SPI kommunikáció
  • 4,26 inch E-Paper kijelző, 800x480, fekete/fehér, SPI kommunikáció
  • 4,26 inch E-Paper kijelző, 800x480, fekete/fehér, SPI kommunikáció
12 480 Ft + ÁFA | Bruttó:15 850 Ft
Nincs raktáron
Készletértesítő
4,26 hüvelykes E-Paper nyers kijelző, 800x480, fekete/fehér, SPI kommunikáció
Részletek Adatok Csomag tartalma
  • 4.26inch E-Paper raw display, 800x480, Black/White, SPI Communication
    4.26″E-Paper

    low power, wide viewing angle, paper-like effect without electricity

    Ideal for price tags, shelf labels, industrial instruments...

    • Size4.26″
    • Resolution800×480
    • Viewing Angle>170°
    • Display ColorBlack/White
    • Grey Scale4
    • CommunicationSPI
    • Display PanelE-paper
    • ExperiencePaper-like
    • EnvironmentAmbient Light Required
    • Display TypePassively Reflective
    • RefreshingPartial Refresh Support
    Features at a glance
    • No backlight, keeps displaying last content for a long time even when power down
    • Ultra low power consumption, basically power is only required for refreshing
    • Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
    Specifications
    operating voltage3.3Vdisplay colorBlack/White
    interface3-wire SPI, 4-wire SPIgrey scale4
    outline dimensions129.33 × 62.37 × 0.93mmfull refresh time4s
    display size92.80 × 55.68mmPartial refresh time0.7s
    DOT PITCH0.116 × 0.116mmrefresh power<35mW
    viewing angle>170°standby current<0.01uA (almost none)
    RESOLUTION800 × 480 pixels
    Advantages of EINK

    E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper. E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

    This is raw display without driver board

    To test and compare this raw display easily, it is recommended to purchase the following solutions:

    4.26inch e-apper with driver board4.26inch e-Paper HATClick here to purchase
    Universal e-Paper Raw Panel Driver HATe-Paper Driver HATClick here to purchase
    Universal e-Paper Raw Panel Driver Board, ESP32 WiFi / Bluetooth Wirelesse-Paper ESP32 Driver BoardClick here to purchase
    Universal e-Paper Raw Panel Driver Board, ESP8266 WiFi Wirelesse-Paper ESP8266 Driver BoardClick here to purchase
    Universal e-Paper Raw Panel Driver Shield for Arduino / NUCLEOe-Paper ShieldClick here to purchase
    Application examples

    Suitable for price Tags, asset/equipment Tags, shelf labels, conference name tags...

    Outline dimensions
    Resources & Services

    * Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

    Selection Guide

    Part NumberColorsGrey ScaleResolutionDisplay size (mm)Outline Dimension (mm)Full Refresh Time (s)Partial RefreshFlexibleInterface
    1.02inch e-Paperblack, white2128×8021.76 × 14.0032.57 × 18.60 × 0.982√SPI
    1.54inch e-Paperblack, white2200×20027.60 × 27.6037.32 × 31.80 × 1.052√SPI
    1.54inch e-Paper (B)red, black, white2200×20027.60 × 27.6037.32 × 31.80 × 1.0514SPI
    1.54inch e-Paper (G)red, yellow, black, white2200×20027.00 × 27.0037.32 × 31.8 × 1.0020SPI
    1.64inch e-Paper (G)red, yellow, black, white2168×16829.568 × 29.56845.5 × 36.4 × 0.9112SPI
    2.13inch e-Paperblack, white2250×12248.55 × 23.7159.20 × 29.20 × 1.052√SPI
    2.13inch e-Paper (B)red, black, white2250×12248.55 × 23.7059.20 × 29.20 × 0.9815SPI
    2.13inch e-Paper (C)yellow, black, white2212×10448.55 × 23.7059.20 × 29.20 × 0.9815SPI
    2.13inch e-Paper (D)black, white2212×10448.55 × 23.7059.20 × 29.20 × 0.302√√SPI
    2.13inch e-Paper (G)red, yellow, black, white2250×12248.55 × 23.7059.20 × 29.20 × 1.0025SPI
    2.15inch e-Paper (B)red, black, white2296×16048.10 × 26.0060.8 × 31.8 × 1.0023SPI
    2.15inch e-Paper (G)red, yellow, black, white2296×16048.10 × 26.0060.8 × 31.8 × 1.0020SPI
    2.36inch e-Paper (G)red, yellow, black, white2296×16852.096 × 29.56868.1 × 37.9 × 0.8512SPI
    2.66inch e-Paperblack, white2296×15230.704 × 60.08836.304 × 71.820 × 1.006√SPI
    2.66inch e-Paper (B)red, black, white2296×15230.704 × 60.08836.304 × 71.820 × 1.0015SPI
    2.66inch e-Paper (G)red, yellow, black, white2360×18460.05 × 30.6972.59 × 37.11 × 1.0026SPI
    2.7inch e-Paperblack, white4264×17657.29 × 38.1970.42 × 45.80 × 0.986√SPI
    2.7inch e-Paper (B)red, black, white2264×17657.29 × 38.1970.42 × 45.80 × 0.9815SPI
    2.9inch e-Paperblack, white4296×12866.89 × 29.0579.00 × 36.70 × 1.053√SPI
    2.9inch e-Paper (B)red, black, white2296×12866.90 × 29.0679.00 × 36.70 × 1.2014√SPI
    2.9inch e-Paper (C)yellow, black, white2296×12866.89 × 29.0579.00 × 36.70 × 1.1815SPI
    2.9inch e-Paper (D)black, white2296×12866.90 × 29.0679.00 × 36.70 × 0.342√√SPI
    3inch e-Paper (G)red, yellow, black, white2400×16870.4 × 29.56886.4 × 39.2 × 0.8512SPI
    3.5inch e-Paper (G)red, yellow, black, white2384×18479.68 × 38.1891.75 × 45.03 × 1.0020SPI
    3.52inch e-Paperblack, white2360×24074.51 × 49.6784.70 × 54.41 × 1.181.5SPI
    3.52inch e-Paper (B)red, black, white2360×24074.51 × 49.6784.70 × 54.41 × 0.8516SPI
    3.7inch e-Paperblack, white4480×28047.32 × 81.1254.90 × 93.30 × 0.783√SPI
    3.7inch e-Paper (G)red, yellow, black, white2416×24081.54 × 47.0792.99 × 53.00 × 1.0020SPI
    3.97inch e-Paperblack, white4800×48099.50 × 60.0096.62 × 56.24 × 0.923.5√SPI
    3.97inch e-Paper (G)red, yellow, black, white2800×48099.50 × 60.0096.62 × 56.24 × 0.9221SPI
    4inch e-Paper (E)E6 full color2600×40084.6 × 56.499.00 × 66.00 × 0.8519SPI
    4.01inch e-Paper (F)7-Color2640×40086.40 × 54.0096.80 × 68.70 × 0.9130SPI
    4.2inch e-Paperblack, white4400×30084.80 × 63.6091.00 × 77.00 × 1.185√SPI
    4.2inch e-Paper (B)red, black, white2400×30084.80 × 63.6091.00 × 77.00 × 1.0515SPI
    4.2inch e-Paper (G)red, yellow, black, white2400×30084.80 × 63.6091.00 × 77.00 × 1.0021SPI
    4.26inch e-Paperblack, white4800×48092.8 × 55.68129.33 × 62.37 × 0.934√SPI
    4.37inch e-Paper (G)red, yellow, black, white2512×36890.11 × 64.7799.5 × 79.5 × 0.8514SPI
    5.65inch e-Paper (F)7-Color2600×448114.9 × 85.8125.4 × 99.5 × 0.91<35SPI
    5.79inch e-Paperblack, white4792×272139.00 × 47.74150.92 × 56.94 × 1.003.5√SPI
    5.79inch e-Paper (B)red, black, white2792×272139.00 × 47.74150.92 × 56.94 × 1.0024SPI
    5.79inch e-Paper (G)red, yellow, black, white2792×272139.00 × 47.74150.92 × 56.94 × 1.0021SPI
    5.83inch e-Paperblack, white2648×480119.232 × 88.320125.40 × 99.50 × 1.185SPI
    5.83inch e-Paper (B)red, black, white2648×480119.232 × 88.320125.40 × 99.50 × 1.1820SPI
    6inch HD e-Paperblack, white161448×1072122.40 × 90.60138.40 × 101.80 × 1.01<1√Parallel port
    7.3inch e-Paper (E)E6 full color2800×480160 × 96170.2 × 111.2 × 0.9112SPI
    7.3inch e-Paper (F)7-Color2800×480160 × 96170.2 × 111.2 × 0.9135SPI
    7.3inch e-Paper (G)red, yellow, black, white2800×480160 × 96170.2 × 111.2 × 0.9116SPI
    7.5inch e-Paperblack, white4800×480163.20 × 97.92170.20 × 111.20 × 1.184√SPI
    7.5inch e-Paper (B)red, black, white2800×480163.20 × 97.92170.20 × 111.20 × 1.1826√SPI
    7.5inch e-Paper (G)black, white2800×480163.20 × 97.92177.20 × 118.20 × 2.005√SPI
    7.5inch e-Paper (H)red, yellow, black, white2800×480163.20 × 97.92170.20 × 111.20 × 1.2022SPI
    7.8inch e-Paperblack, white161872×1404158.18 × 118.64173.80 × 127.60 × 0.78<1√Parallel port
    9.7inch e-Paperblack, white161200×825202.8 × 139.43218.80 × 156.425 × 1.15<1√Parallel port
    10.2inch e-Paper (G)red, yellow, black, white2960×640215.52 × 143.68224.00 × 157.00 × 1.0027SPI
    10.3inch e-Paperblack, white161872×1404209.66 × 157.25216.70 × 174.40 × 0.78<1√Parallel port
    10.3inch e-Paper (D)black, white161872×1404209.66 × 157.25227.70 × 165.80 × 0.647<1√√Parallel port
    10.3inch e-Paper (G)black, white161872×1404209.66 × 157.25225.70 × 183.40 × 2.00<1√Parallel port
    10.85inch e-Paperblack, white21360×480259.76 × 91.68270.56 × 105.92 × 1.203.5SPI
    10.85inch e-Paper (G)red, yellow, black, white21360×480259.76 × 91.68270.56 × 105.92 × 1.2021SPI
    12.48inch e-Paperblack, white21304×984252.98 × 190.90261.50 × 211.00 × 0.30<8SPI
    12.48inch e-Paper (B)red, black, white21304×984252.98 × 190.90261.40 × 211.00 × 1.2037SPI
    13.3inch e-Paperblack, white161600×1200270.40 × 202.80285.80 × 213.65 × 0.78<1√Parallel port
    13.3inch e-Paper (B)red, black, white2960×680275.52 × 195.16286.32 × 212.26 × 1.2022√SPI
    13.3inch e-Paper (E)E6 full color21600×1200270.40 × 202.80284.70 × 208.80 × 0.85019SPI
    13.3inch e-Paper (K)black, white4960×680275.52 × 195.16286.32 × 212.26 × 1.205√SPI

    e-Paper raw panels comparing

  • Brand
    Waveshare
    PartNumber
    4.26inch e-Paper
    Raktárkészlet
    NINCS
    Cikkszám
    RPI-WS26175
    1. 4.26inch e-Paper x1
