7,5 inch E-Paper E-Ink kijelző Raspberry Pi-hez, 800 × 480, piros / fekete / fehér, SPI

Raktárkészlet: NINCS
7,5 inch E-Paper E-Ink kijelző Raspberry Pi-hez, 800 × 480, piros / fekete / fehér, SPI
  • 7,5 inch E-Paper E-Ink kijelző Raspberry Pi-hez, 800 × 480, piros / fekete / fehér, SPI
  • 7,5 inch E-Paper E-Ink kijelző Raspberry Pi-hez, 800 × 480, piros / fekete / fehér, SPI
  • 7,5 inch E-Paper E-Ink kijelző Raspberry Pi-hez, 800 × 480, piros / fekete / fehér, SPI
  • 7,5 inch E-Paper E-Ink kijelző Raspberry Pi-hez, 800 × 480, piros / fekete / fehér, SPI
29 361 Ft + 27% ÁFA | Bruttó:37 288 Ft
Nincs raktáron
Értesítést kérek, ha újra lesz raktáron
7,5 hüvelykes E-Paper E-Ink kijelző KAPCS (B) Raspberry Pi-hez, 800×480 pixel, piros/fekete/fehér háromszínű, SPI interfész
Részletek Adatok Csomag tartalma

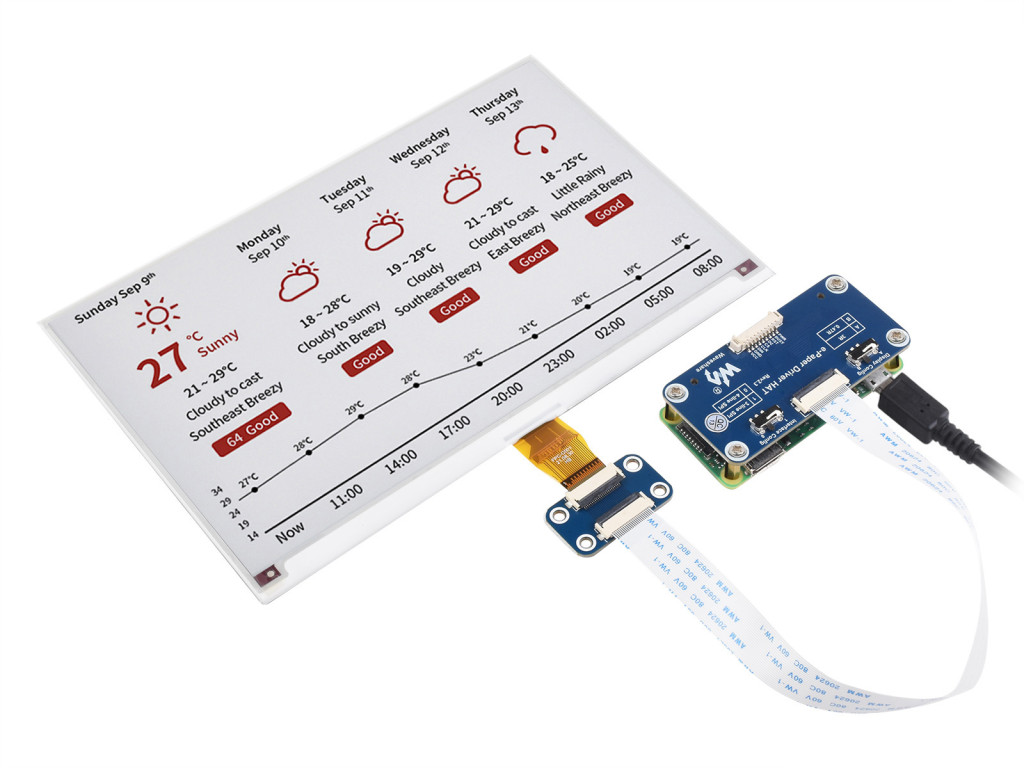

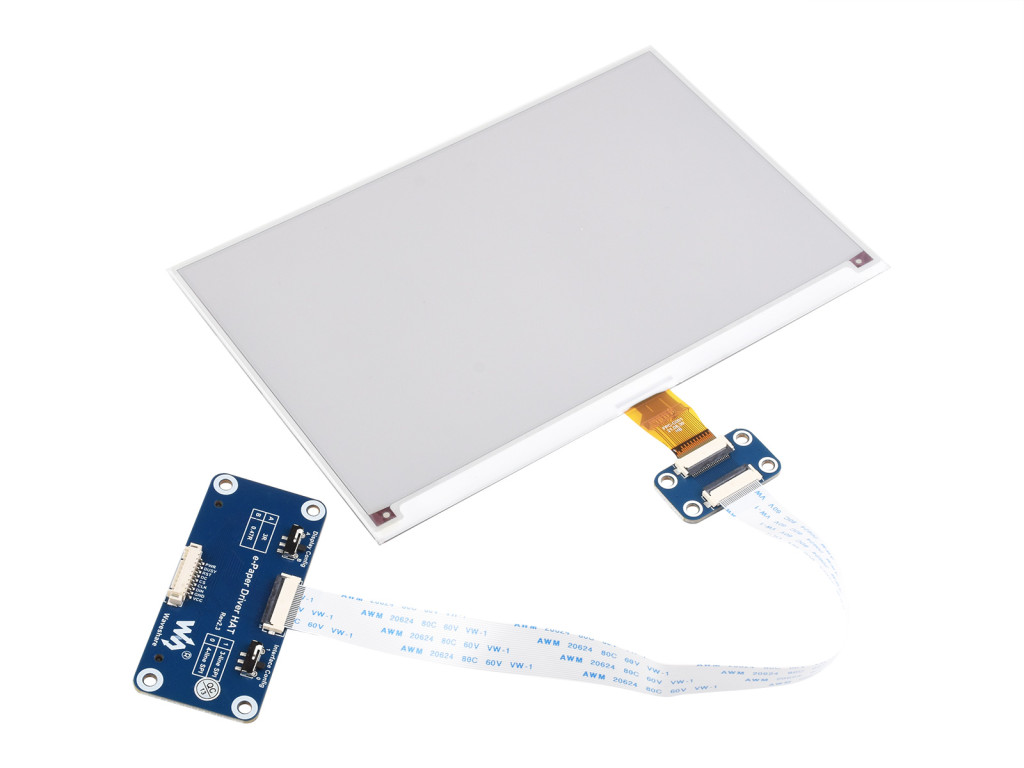

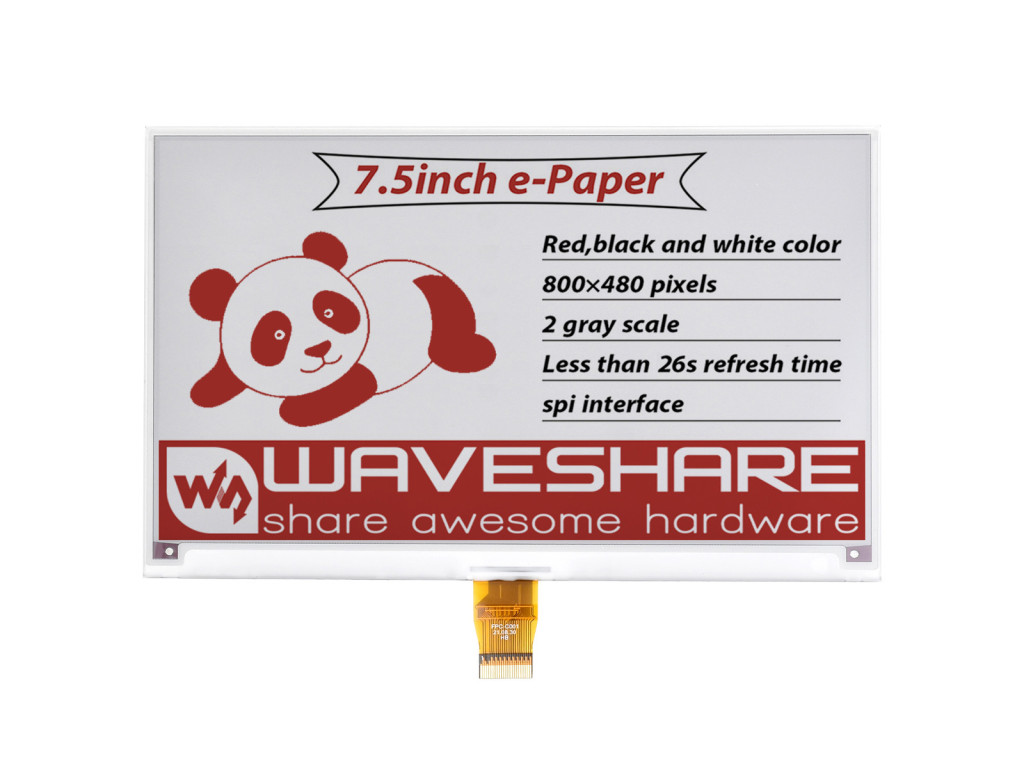

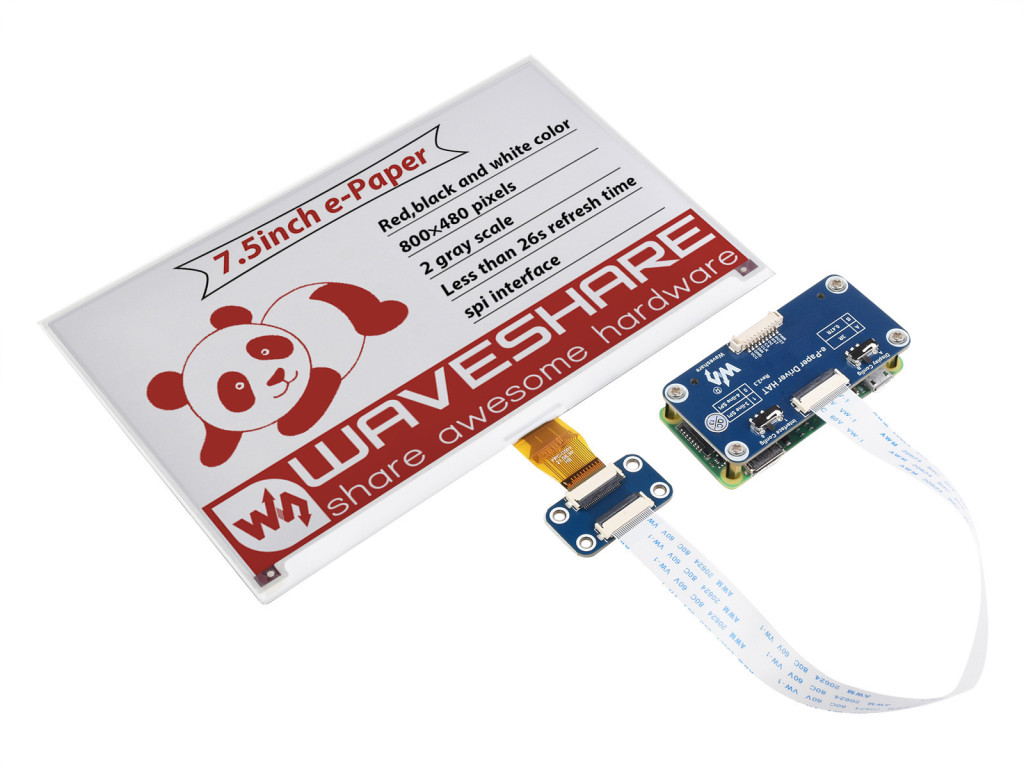

  • 7.5inch e-Paper E-Ink Display HAT (B) for Raspberry Pi, 800×480 pixels, Red / Black / White Three-Color, SPI Interface
    7.5" e-Paper HAT (B)

    low power consumption, wide viewing angle, paper-like displaying without electricity

    Ideal for price tags, shelf labels, industrial instruments...

    • Size7.5"
    • Resolution800×480
    • Viewing Angle>170°
    • Display ColorRed / Black / White
    • Grey Scale2
    • CommunicationSPI
    • Display PanelE-paper
    • ExperiencePaper-like
    • EnvironmentAmbient Light Required
    • Display TypePassively Reflective
    • RefreshingBlack & White ColorPartial Refresh Support
    Features at a glance
    • No backlight, keeps displaying last content for a long time even when power down
    • Ultra low power consumption, basically power is only required for refreshing
    • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano, and RDK X3
    • SPI interface, for connecting with controller boards like Raspberry Pi/Jetson Nano/RDK X3/Arduino/STM32, etc.
    • Onboard voltage translator, compatible with 3.3V / 5V MCUs
    • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/RDK X3/Arduino/STM32)
    Specifications
    operating voltage3.3V/5Vdisplay colorred, black, white
    interface3-wire SPI, 4-wire SPIgrey scale2
    outline dimensions170.2mm × 111.2mmfull refresh time26s
    display size163.2mm × 97.92mmFast Refresh time16s
    refresh power48mW (typ.)Black & White Partial Refresh time1.5s
    dot pitch0.205mm × 0.204mmstandby current<0.01uA (almost none)
    resolution800 × 480 pixelsviewing angle>170°
    Advantages of EINK

    E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper. E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

    Standard Raspberry Pi 40PIN GPIO header

    compatible with Raspberry Pi series boards, Jetson Nano, and RDK X3

    Raspberry Pi, Jetson Nano in the photo are NOT included.
    Onboard SPI control interface

    for use with other controller boards like Raspberry Pi/Jetson Nano/STM32/Arduino

    VCC3.3V/5V
    GNDGround
    DINSPI MOSI pin
    CLKSPI SCK pin
    CSSPI chip selection, low active
    DCData / Command selection (high for data, low for command)
    RSTExternal reset, low active
    BUSYBusy status output
    PWRPower on/off control
    Application examples

    Suitable for price Tags, asset/equipment Tags, shelf labels, conference name tags...

    Product show
    Outline dimensions
    Resources & Services
    WIKI:www.waveshare.com/wiki/7.5inch_e-Paper_HAT_(B)

    * Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

    Selection Guide

    Part NumberColorsGrey ScaleResolutionDisplay size (mm)Outline Dimension (mm)Full Refresh Time (s)Partial Refresh1Pi Head-er2Flexi-bleInterface
    1.02inch e-Paper Moduleblack, white2128×8021.76 × 14.0042.0 × 27.02√SPI
    1.54inch e-Paper Moduleblack, white2200×20027.00 × 27.0048.0 × 33.02√SPI
    1.54inch e-Paper Module (B)red, black, white2200×20027.00 × 27.0048.0 × 33.014SPI
    1.54inch e-Paper Module (G)red, yellow, black, white2200×20027.00 × 27.0048.0 × 33.020SPI
    1.64inch e-Paper Module (G)red, yellow, black, white2168×16829.568 × 29.56847 × 3812SPI
    2.13inch e-Paper HATblack, white2250×12248.55 × 23.7065.0 × 30.22√√SPI
    2.13inch e-Paper HAT+black, white2250×12248.55 × 23.7065.0 × 30.52√√SPI
    2.13inch e-Paper HAT (B)red, black, white2250×12248.55 × 23.7065.0 × 30.215√SPI
    2.13inch e-Paper HAT (C)yellow, black, white2212×10448.55 × 23.7065.0 × 30.215√SPI
    2.13inch e-Paper HAT (D)black, white2212×10448.55 × 23.7059.2 × 29.22√√√SPI
    2.13inch e-Paper HAT (G)red, yellow, black, white2250×12248.55 × 23.7065.0 × 30.225√SPI
    2.13inch Touch e-Paper HATblack, white2250×12248.55 × 23.7069.15 × 38.902√√SPI
    2.13inch Touch e-Paper HAT (with case)black, white2250×12248.55 × 23.7072.20 × 41.902√√SPI
    2.15inch e-Paper HAT+ (B)red, black, white2296×16048.10 × 26.0065.0 × 34.023√SPI
    2.15inch e-Paper HAT+ (G)red, yellow, black, white2296×16048.10 × 26.0065.0 × 34.020√SPI
    2.36inch e-Paper Module (G)red, yellow, black, white2296×16852.096 × 29.56869.5 × 38.512SPI
    2.66inch e-Paper Moduleblack, white2296×15230.704 × 60.08837.0 × 83.56√SPI
    2.66inch e-Paper Module (B)red, black, white2296×15230.704 × 60.08837.0 × 83.515SPI
    2.66inch e-Paper Module (G)red, yellow, black, white2360×18460.05 × 30.6985.0 × 38.526SPI
    2.7inch e-Paper HATblack, white4264×17657.29 × 38.1985.0 × 56.06√√SPI
    2.7inch e-Paper HAT (B)red, black, white2264×17657.288 × 38.19273.5 × 56.015√SPI
    2.9inch e-Paper Moduleblack, white4296×12866.89 × 29.0589.5 × 38.03√SPI
    2.9inch e-Paper Module (B)red, black, white2296×12866.89 × 29.0589.5 × 38.015SPI
    2.9inch e-Paper Module (C)yellow, black, white2296×12866.89 × 29.0589.5 × 38.015SPI
    2.9inch e-Paper HAT (D)black, white2296×12866.90 × 29.0679.0 × 36.72√√√SPI
    2.9inch Touch e-Paper HATblack, white4296×12866.89 × 29.0589.10 × 42.703√√SPI
    3inch e-Paper Module (G)red, yellow, black, white2400×16870.4 × 29.56888.5 × 4112SPI
    3.52inch e-Paper HATblack, white2360×24074.51 × 49.6786.5 × 571.5√SPI
    3.52inch e-Paper HAT (B)red, black, white2360×24074.51 × 49.6786.5 × 5716√SPI
    3.7inch e-Paper HATblack, white4480×28047.32 × 81.1258.0 × 96.53√√SPI
    4inch e-Paper HAT+ (E)E6 full color2600×40084.6 × 56.40101.00 × 68.0019√SPI
    4.01inch e-Paper HAT (F)7-Color2640×40086.40 × 54.0098.5 × 70.030√SPI
    4.2inch e-Paper Moduleblack, white4400×30084.80 × 63.60103.0 × 78.55√SPI
    4.2inch e-Paper Module (B)red, black, white2400×30084.80 × 63.60103.0 × 78.515SPI
    4.2inch e-Paper Module (G)red, yellow, black, white2400×30084.80 × 63.60103.0 × 78.521SPI
    4.26inch e-Paper HATblack, white4800×48092.80 × 55.68107.0 × 64.04√√SPI
    4.3inch e-Paper UART Moduleblack, white4800×60088.00 × 66.00118.0 × 75.01.5UART
    4.37inch e-Paper Module (G)red, yellow, black, white2512×36890.11 × 64.77101.5 × 81.514SPI
    5.65inch e-Paper Module (F)7-Color2600×448114.9 × 85.8138.5 × 100.5<35SPI
    5.79inch e-Paper Moduleblack, white4792×272139.00 × 47.74152.50 × 58.503.5√SPI
    5.79inch e-Paper Module (B)red, black, white2792×272139.00 × 47.74152.50 × 58.5024SPI
    5.79inch e-Paper Module (G)red, yellow, black, white2792×272139.00 × 47.74152.50 × 58.5021SPI
    5.83inch e-Paper HATblack, white2648×480119.232 × 88.320125.4 × 99.55√SPI
    5.83inch e-Paper HAT (B)red, black, white2648×480119.232 × 88.320125.4 × 99.520√SPI
    6inch e-Paper HATblack, white16800×600122.4 × 90.6138.4 × 101.8<1√√USB/SPI/ I80
    6inch HD e-Paper HATblack, white161448×1072122.4 × 90.6138.4 × 101.8<1√√USB/SPI/ I80
    7.3inch E-Paper HAT (E)E6 full color2800×480160 × 96170.2 × 111.212√SPI
    7.3inch E-Paper HAT (F)7-Color2800×480160 × 96170.2 × 111.235√SPI
    7.3inch E-Paper HAT (G)red, yellow, black, white2800×480160 × 96170.2 × 111.216√SPI
    7.5inch e-Paper HATblack, white4800×480163.20 × 97.92170.2 × 111.24√√SPI
    7.5inch HD e-Paper HATblack, white2880×528163.24 × 97.94170.2 × 111.25√SPI
    7.5inch e-Paper HAT (B)red, black, white2800×480163.20 × 97.92170.2 × 111.226√√SPI
    7.5inch e-Paper HAT (H)red, yellow, black, white2800×480163.20 × 97.92170.20 × 111.2022√SPI
    7.8inch e-Paper HATblack, white161872×1404158.18 × 118.64173.8 × 127.6<1√√USB/SPI/ I80
    9.7inch e-Paper HATblack, white161200×825202.8 × 139.43218.8×156.4<1√√USB/SPI/ I80
    10.2inch e-Paper HAT (G)red, yellow, black, white2960 × 640215.52 × 143.68224.00 × 157.0027√SPI
    10.3inch e-Paper HATblack, white161872×1404209.66 × 157.25216.7 × 174.4<1√√USB/SPI/ I80
    10.3inch e-Paper HAT (D)black, white161872×1404209.66 × 157.25227.7 × 165.8<1√√√USB/SPI/ I80
    10.3inch e-Paper HAT (G)black, white161872×1404209.66 × 157.25225.70 × 183.40<1√√USB/SPI/ I80
    10.85inch e-Paper HAT+ (G)red, yellow, black, white21360 × 480259.76 × 91.68270.56 × 105.9221√SPI
    12.48inch e-Paper Moduleblack, white21304×984252.98 × 190.90280.0 × 229.5<8√SPI
    12.48inch e-Paper Module (B)red, black, white21304×984252.98 × 190.90280.0 × 229.537√SPI
    13.3inch e-Paper HATblack, white161600×1200270.40 × 202.80285.80 × 213.65<1√√USB/SPI/ I80
    13.3inch e-Paper HAT (B)red, black, white2960×680275.52 × 195.16286.32 × 212.2622√√SPI
    13.3inch e-Paper HAT (K)black, white4960×680275.52 × 195.16286.32 × 212.265√√SPI
    13.3inch e-Paper HAT (E)E6 full color21600×1200270.40 × 202.80284.70 × 208.8019√SPI
    1. It usually takes about 0.3s for partial refresh
    2. Pi Header: standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
    e-Paper panels comparing
  • Brand
    Waveshare
    Raktárkészlet
    NINCS
    Cikkszám
    RPI-WS13505
