Főkategória >Waveshare



7 inch DSI kapacitív érintőkijelző, 1280 × 720 pixel, IPS panel, optikai ragasztású edzett üvegpanel, 10 pontos érintés, ujjlenyomatmentes üvegfelület,fém hátlap

Raktárkészlet: VAN
7 inch DSI kapacitív érintőkijelző, 1280 × 720 pixel, IPS panel, optikai ragasztású edzett üvegpanel, 10 pontos érintés, ujjlenyomatmentes üvegfelület,fém hátlap
  • 7 inch DSI kapacitív érintőkijelző, 1280 × 720 pixel, IPS panel, optikai ragasztású edzett üvegpanel, 10 pontos érintés, ujjlenyomatmentes üvegfelület,fém hátlap
  • 7 inch DSI kapacitív érintőkijelző, 1280 × 720 pixel, IPS panel, optikai ragasztású edzett üvegpanel, 10 pontos érintés, ujjlenyomatmentes üvegfelület,fém hátlap
  • 7 inch DSI kapacitív érintőkijelző, 1280 × 720 pixel, IPS panel, optikai ragasztású edzett üvegpanel, 10 pontos érintés, ujjlenyomatmentes üvegfelület,fém hátlap
  • 7 inch DSI kapacitív érintőkijelző, 1280 × 720 pixel, IPS panel, optikai ragasztású edzett üvegpanel, 10 pontos érintés, ujjlenyomatmentes üvegfelület,fém hátlap
28 331 Ft + ÁFA | Bruttó:35 980 Ft
db Kosárba Kosárba
Olcsóbban szeretném
7 hüvelykes DSI kapacitív érintőkijelző, 1280 × 720 pixel, IPS panel, optikai ragasztású edzett üvegpanel, 10 pontos érintés, ujjlenyomat-mentes eljárás, tokkal (opcionális)
Részletek Adatok Csomag tartalma
  • 7inch DSI Capacitive Touch Display, 1280×720 Pixels, IPS Panel, Optical Bonding Toughened Glass Panel, 10-Point Touch, Anti-Fingerprint Process, With Case(Optional)
    7″ DSI Capacitive Touch Display

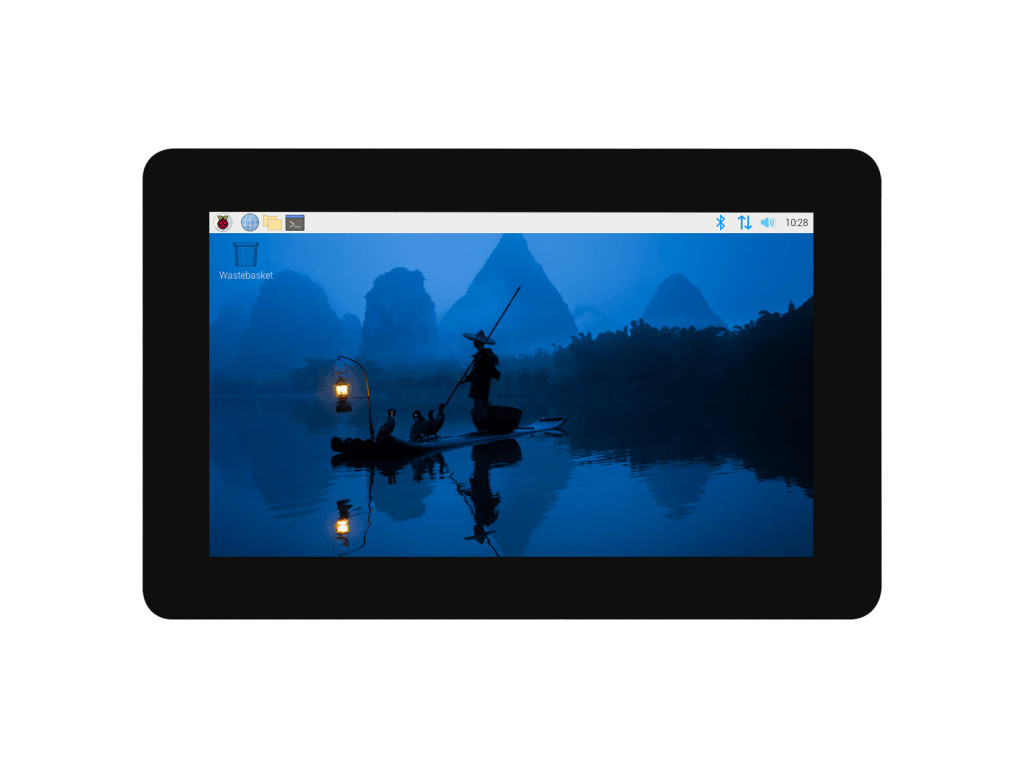

    7inch DSI capacitive touch display, front and back view
    • Size7″
    • Resolution1280×720
    • Display InterfaceDSI
    • Display PanelIPS
    • Viewing Angle170°
    • Touch TypeCapacitive
    • Touch Points10-Point
    • Touch PanelToughened Glass
    • Touch Panel TechOptical Bonding
    • Panel CoatingAF
    • Touch InterfaceI2C
    • Brightness450cd/㎡
    • BackplateAll-metal backplate
    • Enclosure(optional)ABS

    Version Options

    7inch DSI LCD (H)Standard version

    7inch DSI LCD (H) (with case) with protective case (suitable for Raspberry Pi 5 only)


    Device & System Support
    Raspberry Pi
    Supports Raspberry Pi OS, 10-point touch
    ESP32-P4
    Supports LVGL GUI programs, up to 10-point touch
    RK3506
    Supports Buildroot / Ubuntu, etc. 10-point touch
    RK3576
    Supports Buildroot / Debian / Ubuntu / Android, etc. 10-point touch

    * (the case supports Raspberry Pi 5 only, due to connector layout)

    connection examples

    Working with Raspberry Pi 5

    7inch DSI capacitive touch display, working with Raspberry Pi 5

    Please connect the FPC cable as shown above, and power the LCD through the GPIO 5V pin

    with protective case (suitable for Raspberry Pi 5 only)

    7inch DSI capacitive touch display with protective case, working with Raspberry Pi 5

    Working with Raspberry Pi 4B

    7inch DSI capacitive touch display, working with Raspberry Pi 4B

    Please connect the DSI cable as shown above, and power the LCD through the GPIO 5V pin

    Working with ESP32-P4-NANO

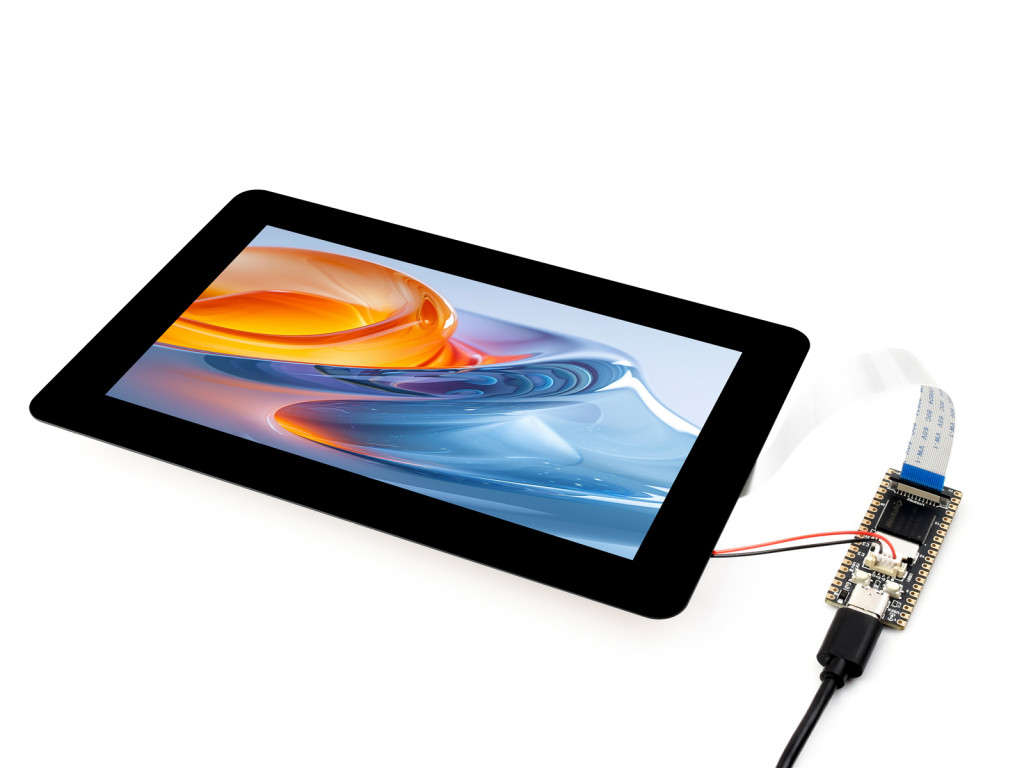

    7inch DSI capacitive touch display, connecting to ESP32-P4-NANO


    Working with Luckfox Lyra

    7inch DSI capacitive touch display, connecting to Luckfox Lyra


    Working with Luckfox Omni3576

    7inch DSI capacitive touch display, connecting to Luckfox Omni3576


    * for reference only, the above controller boards or hosts are NOT included

    IPS Display Panel

    Excellent Display Performance With 170° Wide Viewing Angle

    7inch DSI capacitive touch display, adopts IPS display panel
    10-Point Capacitive Touch
    7inch DSI capacitive touch display, supports 10-point capacitive touch
    1. up to 10-point touch, depending on the operating system
    2. up to 6H hardness toughened glass panel
    3. Optical bonding, provides clear image, dustproof
    4. Adopts anti-fingerprint panel coating, easy to clean
    Supports backlight adjustment via software
    7inch DSI capacitive touch display, backlight adjustment demo
    Thinner and more space-saving

    Integrates the driver circuit into an FPC cable, the total thickness of the LCD is only 9.3mm

    7inch DSI capacitive touch display, more space-saving

    interface definition

    7inch DSI capacitive touch display, interface definition
    with protective case

    7inch DSI capacitive touch display, interface definition7inch DSI capacitive touch display, interface definition
    How to install

    First, fix the silicone button cap inside the case as picture below, and then use the PM2.5 * 4mm black metal screws to secure the case and screen

    PI5-CASE-TD2 Internal View

    * for reference only, the Raspberry Pi is NOT included

    outline dimensions

    Standard version

    7inch DSI capacitive touch display, outline dimensions

    the protective case

    7inch DSI capacitive touch display with case, outline dimensions

    Support touch screen customization

    Support the following ways to customize the touch screen display in bulk order

    Over a decadeWaveshare grows with display


    * Waveshare has been focusing on display design for over 10 years.

    Resources & Services
    Wiki:www.waveshare.com/wiki/7inch_DSI_LCD_(H)

    Selection Guide

    PartNumber Display Touch Audio Device Support
    Resolu-tion Display Port Display Panel View Angle Touch Type Touch Port Toughened Glass Panel Optical Bonding Spe-aker Signal Output Pi JETSON NANO PC
    SPI DISPLAYS PROS: low price. CONS: low refresh rate & resolution, supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO (the SPI bus), poor compatibility with Raspberry Pi system.
    2.8inch RPi LCD (A) 320×240 SPI TFT – Resistive SPI × × × × √ × ×
    3.2inch RPi LCD (B) 320×240 SPI TFT – Resistive SPI × × × × √ × ×
    3.5inch RPi LCD (A) 480×320 SPI TFT – Resistive SPI × × × × √ × ×
    3.5inch RPi LCD (B) 480×320 SPI IPS 160° Resistive SPI × × × × √ × ×
    3.5inch RPi LCD (C) 480×320 High-Speed SPI TFT – Resistive SPI × × × × √ × ×
    3.5inch RPi LCD (F) 320×480 SPI IPS 170° Capacitive I2C √ × × × √ × ×
    3.5inch RPi LCD (G) 320×480 SPI IPS 170° Resistive SPI × × × × √ × ×
    4inch RPi LCD (A) 480×320 SPI TFT – Resistive SPI × × × × √ × ×
    DPI DISPLAYS PROS: low price, high refresh rate, multiple resolution support, better compatibility with Raspberry Pi system. CONS: supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO.
    2.8inch DPI LCD 480×640 DPI IPS 160° Capacitive I2C √ √ × × √ × ×
    3.5inch DPI LCD 640×480 DPI IPS 170° Capacitive I2C √ × × × √ × ×
    4inch DPI LCD (C) 720×720 DPI IPS 170° Capacitive I2C √ √ × × √ × ×
    5inch DPI LCD 800×480 DPI IPS 160° – – × × × × √ × ×
    7inch DPI LCD 1024×600 DPI IPS 170° – – × × × × √ × ×
    DSI DISPLAYS PROS: moderate price, high refresh rate, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system. CONS: supports Raspberry Pi only.
    2.8inch DSI LCD 480×640 DSI IPS 160° Capacitive I2C √ √ × × √ × ×
    3.4inch DSI LCD (C) 800×800 DSI IPS 170° Capacitive I2C √ √ × × √ × ×
    4inch DSI LCD 480×800 DSI IPS 170° Capacitive I2C √ √ × × √ × ×
    4inch DSI LCD (C) 720×720 DSI IPS 170° Capacitive I2C √ √ × × √ × ×
    4.3inch DSI LCD 800×480 DSI IPS 160° Capacitive I2C √ × × × √ × ×
    4.3inch DSI LCD (with case) 800×480 DSI IPS 160° Capacitive I2C √ × × × √ × ×
    4.3inch DSI QLED 800×480 DSI IPS(QLED) 160° Capacitive I2C √ × × × √ × ×
    5inch DSI LCD 800×480 DSI TFT – Capacitive I2C √ × × × √ × ×
    5inch DSI LCD (B) 800×480 DSI IPS 160° Capacitive I2C √ × × × √ × ×
    5inch DSI LCD (C) 1024×600 DSI IPS 178° Capacitive I2C √ × × × √ × ×
    5inch DSI LCD (D) 720×1280 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
    5-DSI-TOUCH-A 720×1280 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
    6.25inch DSI LCD 720×1560 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
    7inch DSI LCD 800×480 DSI TFT – Capacitive I2C √ × × × √ × ×
    7inch DSI LCD (with case A) 800×480 DSI TFT – Capacitive I2C √ × × × √ × ×
    7inch DSI LCD (with cam) 800×480 DSI TFT – Capacitive I2C √ × × × √ × ×
    7inch DSI LCD (with cam and case) 800×480 DSI TFT – Capacitive I2C √ × × × √ × ×
    7inch DSI LCD (B) 800×480 DSI IPS 170° Capacitive I2C √ × × × √ × ×
    7inch DSI LCD (B) (with case A) 800×480 DSI IPS 170° Capacitive I2C √ × × × √ × ×
    7inch DSI LCD (C) 1024×600 DSI IPS 170° Capacitive I2C √ × × × √ × ×
    7inch DSI LCD (C) (with case A) 1024×600 DSI IPS 170° Capacitive I2C √ × × × √ × ×
    7inch DSI LCD (E) 1280×800 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
    7-DSI-TOUCH-A 720×1280 DSI IPS 170° Capacitive I2C √ √ × × √ × ×
    7inch DSI LCD (H) 1280×720 DSI IPS 170° Capacitive I2C √ √ × × √ × ×
    7.9inch DSI LCD 400×1280 DSI IPS 170° Capacitive I2C √ × × × √ × ×
    8-DSI-TOUCH-A 800×1280 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
    8inch DSI LCD 800×480 DSI TFT – Capacitive I2C √ × × × √ × ×
    8inch DSI LCD (with cam) 800×480 DSI TFT – Capacitive I2C √ × × × √ × ×
    8inch DSI LCD (C) 1280×800 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
    8.8inch DSI LCD 480×1920 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
    10.1-DSI-TOUCH-A 800×1280 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
    10.1inch DSI LCD (C) 1280×800 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
    11.9inch DSI LCD 320×1480 DSI IPS 170° Capacitive I2C √ × × × √ × ×
    12.3-DSI-TOUCH-A 720×1920 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
    13.3inch DSI LCD 1920×1080 DSI IPS 178° Capacitive I2C √ × × × √ × ×
    HDMI / TYPE-C DISPLAYS PROS: high refresh rate, multiple resolution support, multiple devices support, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system. CONS: somewhat costly.
    2.8inch HDMI LCD (H) 480×640 HDMI IPS 160° Capacitive USB-C / I2C √ √ × × √ √ √
    3.2inch HDMI LCD (H) 480×800 HDMI IPS 160° × × × × × × √ √ Display ONLY
    3.4inch 800x800 LCD 800x800 HDMI IPS 170° Capacitive Type-C √ √ × √ √ √ √
    3.5inch HDMI LCD 480×320 HDMI IPS 160° Resistive SPI × × × √ √ × Display ONLY
    3.5inch 480x800 LCD 480×800 HDMI IPS 170° Capacitive USB-C × × × × √ √ √
    4inch 720x720 LCD 720x720 HDMI IPS 170° Capacitive Type-C √ √ × √ √ √ √
    4inch HDMI LCD 480×800 HDMI IPS 170° Resistive SPI × × × × √ × Display ONLY
    4inch HDMI LCD (C) 720×720 HDMI IPS 170° Capacitive USB-C / I2C √ √ × √ √ √ √
    4inch HDMI LCD (H) 480×800 HDMI IPS 170° Resistive SPI × × × √ √ × Display ONLY
    4.3inch HDMI LCD (B) 800×480 HDMI IPS 160° Capacitive USB × × × √ √ √ √
    5DP-CAPLCD-H 1024×600 HDMI IPS 178° Capacitive Type-C √ × × √ √ √ √
    5DP-CAPLCD-B 1024×600 HDMI IPS 178° Capacitive Type-C √ √ × √ √ √ √
    5DP-CAPLCD-G 1024×600 HDMI IPS 178° Resistive Type-C √ × × √ √ √ √
    5inch HDMI LCD 800×480 HDMI TFT – Resistive SPI × × × × √ × ×
    5inch HDMI LCD (with bicolor case) 800×480 HDMI TFT – Resistive SPI × × × × √ × ×
    5inch HDMI LCD (B) 800×480 HDMI TFT – Resistive USB × × × × √ × √
    5inch HDMI LCD (B) (with bicolor case) 800×480 HDMI TFT – Resistive USB × × × × √ × √
    5inch HDMI LCD (G) 800×480 HDMI/VGA TFT – Resistive USB × × × √ √ × √
    5inch HDMI LCD (H) 800×480 HDMI/VGA TFT – Capacitive USB √ × × √ √ √ √
    5inch HDMI LCD (H) V4 800×480 HDMI TFT – Capacitive USB √ × × × √ × √
    5inch HDMI AMOLED 960×544 HDMI AMOLED 170° Capacitive USB √ √ × √ √ √ √
    5inch 1080x1080 LCD 1080×1080 HDMI IPS 160° Capacitive Type-C √ √ √ √ √ √ √
    5inch 720x1280 LCD 720×1280 HDMI IPS 178° Capacitive Type-C √ √ √ × √ √ √
    5.5inch HDMI AMOLED 1080×1920 HDMI AMOLED 170° Capacitive USB √ √ × √ √ √ √
    5.5inch HDMI AMOLED (with case A) 1080×1920 HDMI AMOLED 170° Capacitive USB √ √ × √ √ × ×
    5.5inch 1440x2560 LCD 1440×2560 HDMI IPS 170° Capacitive USB √ √ × √ √ × √
    5.5inch 1440x2560 LCD (with case A) 1440×2560 HDMI IPS 170° Capacitive USB √ √ × √ √ × ×
    6.25inch 720x1560 LCD 720×1560 HDMI IPS 178° Capacitive Type-C √ √ √ × √ √ √
    PI5-HMI-7A 720×1280 HDMI IPS 170° Capacitive Type-C √ √ × × √ × ×
    7EP-CAPLCD 1280×800 HDMI IPS 178° Capacitive USB √ √ √ √ √ √ √
    7EP-CAPLCD Monitor 1280×800 HDMI/Type-C IPS 178° Capacitive USB √ √ √ √ √ √ √
    7inch HDMI LCD 1024×600 HDMI IPS 170° Resistive SPI × × × × √ × Display ONLY
    7inch HDMI LCD (B) 800×480 HDMI TFT – Capacitive USB × × × × √ × √
    7inch HDMI LCD (B) (with bicolor case) 800×480 HDMI TFT – Capacitive USB × × × × √ × √
    7inch HDMI LCD (C) 1024×600 HDMI IPS 170° Capacitive USB × × × × √ × √
    7inch HDMI LCD (C) (with bicolor case) 1024×600 HDMI IPS 170° Capacitive USB × × × × √ × √
    7inch HDMI LCD (H) 1024×600 HDMI/VGA IPS 170° Capacitive USB × × × √ √ √ √
    7inch HDMI LCD (H) (with case) 1024×600 HDMI/VGA IPS 170° Capacitive USB √ × × √ √ √ √
    7HP-CAPQLED 1024×600 HDMI IPS (QLED) 170° Capacitive USB √ × × √ √ √ √
    7.9inch HDMI LCD 400×1280 HDMI IPS 170° Capacitive USB √ × × √ √ √ √
    7.9inch Side Monitor 400×1280 HDMI IPS 170° × × √ × √ × √ √ √
    7.9inch Touch Monitor 400×1280 HDMI IPS 170° Capacitive USB √ × √ × √ √ √
    PI5-HMI-080D 1280×800 HDMI IPS 178° Capacitive Type-C √ √ × × √ × ×
    8DP-CAPLCD 1280×800 HDMI IPS 178° Capacitive USB √ √ × √ √ √ √
    8HP-CAPLCD Monitor 1280×800 HDMI/Type-C IPS 178° Capacitive USB √ √ √ √ √ √ √
    8inch 768x1024 LCD 768×1024 HDMI IPS 178° Capacitive Type-C √ × √ √ √ √ √
    8inch 1536x2048 LCD 1536×2048 HDMI IPS 178° Capacitive Type-C √ √ √ √ √ √ √
    8.8inch Side Monitor 480×1920 HDMI IPS 170° × × × × √ × √ √ Display ONLY
    9HP-CAPQLED-B 1280×720 HDMI IPS (QLED) 178° Capacitive USB √ × × √ √ √ √
    9.3inch 1600x600 LCD 1600×600 HDMI IPS 178° Capacitive Type-C √ √ √ √ √ √ √
    9.7inch 768x1024 LCD 768×1024 HDMI IPS 178° Capacitive Type-C √ × √ √ √ √ √
    PI5-HMI-101D 1280×800 HDMI IPS 178° Capacitive Type-C √ √ × × √ × ×
    10.1inch HDMI LCD 1024×600 HDMI IPS 170° Resistive SPI × × × × √ × Display ONLY
    10.1inch HDMI LCD (B) (with case) 1280×800 HDMI IPS 170° Capacitive USB √ × × × √ × √
    10.1inch HDMI LCD (E) 1024×600 HDMI IPS 170° Capacitive USB √ √ × √ √ √ √
    10.1inch HDMI LCD (G) (with case) 1920×1200 HDMI IPS 160° Capacitive USB √ √ √ √ √ √ √
    10.1inch HDMI LCD (H) (with case) 1024×600 HDMI/VGA TFT – Capacitive USB × × × × √ √ √
    10.1inch HDMI LCD (F) (with case) 1024×600 HDMI/VGA IPS 170° Capacitive USB √ × √ × √ √ √
    10.1EP-CAPLCD 1920×1200 HDMI IPS 178° Capacitive Type-C √ √ √ √ √ √ √
    10.1DP-CAPLCD 1280×800 HDMI IPS 178° Capacitive USB √ √ × √ √ √ √
    10.1HP-CAPQLED 1280×720 HDMI IPS (QLED) 170° Capacitive USB √ × × √ √ √ √
    10.1HP-CAPLCD Monitor 1280×800 HDMI/Type-C IPS 178° Capacitive USB √ √ √ √ √ √ √
    10.4HP-CAPQLED 1600×720 HDMI IPS(QLED) 178° Capacitive Type-C √ √ √ √ √ √ √
    10.5inch HDMI AMOLED 2560×1600 HDMI AMOLED 160° Capacitive USB √ √ √ √ √ √ √
    11.6inch 1768x828 LCD 1768×828 HDMI/Type-C IPS 178° Capacitive Type-C In-Cell × × √ √ √ √
    11.6inch HDMI LCD (H) 1920×1080 HDMI IPS 178° Capacitive USB √ √ × √ √ √ √
    11.6inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ √ √ √ √ √ √
    11.9inch HDMI LCD 320×1480 HDMI IPS 170° Capacitive USB √ × × √ √ √ √
    11.9inch Side Monitor 320×1480 HDMI IPS 170° × × √ × √ × √ √ √
    11.9inch Touch Monitor 320×1480 HDMI IPS 170° Capacitive USB √ × √ × √ √ √
    12.3inch 1920x720 LCD 1920×720 HDMI/Type-C IPS 178° Capacitive Type-C In-Cell × × √ √ √ √
    12.3inch HDMI LCD 1920×720 HDMI IPS 178° Capacitive USB √ √ √ √ √ √ √
    13.3inch HDMI LCD (H) 1920×1080 HDMI IPS 178° Capacitive USB √ × × √ √ √ √
    13.3inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ × √ √ √ √ √
    13.3inch HDMI LCD (H) (with case) V2 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ × √ √ √ √ √
    13.3inch QHD AMOLED 2560×1440 HDMI/Type-C AMOLED 178° Capacitive Type-C √ √ √ √ √ √ √
    13.3inch FHD Monitor 1920×1080 HDMI/Type-C IPS 178° Capacitive Type-C √ × × √ √ √ √
    14″ Portable Monitor 1920×1200 HDMI/Type-C IPS 178° × × × × √ √ √ √ √
    14inch Dual Monitor 1920×1080 HDMI/Type-C IPS 178° × × × × √ √ √ √ √
    15.6″ Portable Monitor 1920×1080 HDMI/Type-C IPS 178° × × × × √ √ √ √ √
    15.6inch FHD Monitor (C) 1920×1080 mini HDMI/Type-C IPS 178° Capacitive Type-C √ √ √ √ √ √ √
    15.6inch Dual Monitor 1920×1080 HDMI/Type-C IPS 178° × × × × √ √ √ √ √
    15.6inch HDMI LCD 1920×1080 HDMI IPS 178° Capacitive USB √ × × √ √ √ √
    15.6inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ × √ √ √ √ √
    15.6inch FHD Monitor 1920×1080 HDMI/Type-C IPS 178° Capacitive Type-C / USB √ × √ √ √ √ √
    15.6HP-CAPQLED 1920×1080 HDMI IPS(QLED) 178° Capacitive USB √ √ × √ √ √ √
    15.6inch QLED Monitor 1920×1080 HDMI IPS(QLED) 178° Capacitive Type-C √ √ √ √ √ √ √
    18.5inch Dual Monitor 1920×1080 HDMI/Type-C IPS 178° × × × × √ √ √ √ √
    18.5inch FHD LCD 1080×1920 HDMI/Type-C IPS 178° Capacitive Type-C √ √ × √ √ √ √
    18.5″ Portable Monitor 1920×1080 HDMI/Type-C IPS 178° × × × × √ √ √ √ √
    18.5″ Touch Monitor 1920×1080 HDMI/Type-C IPS 178° Capacitive Type-C √ √ √ √ √ √ √
    18.5″ 4K Portable Monitor 3840×2160 HDMI/Type-C IPS 178° × × × × √ √ √ √ √
    21.5inch FHD LCD 1080×1920 HDMI IPS 170° Capacitive Type-C √ √ × √ √ √ √
    21.5inch FHD Monitor 1080×1920 HDMI IPS 170° Capacitive Type-C √ √ √ × √ √ √
    21.5″ Portable Monitor 1920×1080 HDMI/Type-C IPS 178° × × × × √ √ √ √ √
    24.5″ 2K Portable Monitor 2560×1440 HDMI/Type-C IPS 178° × × × × √ √ √ √ √

    Have a look : RPi LCD Comparing

  • Brand
    Waveshare
    Raktárkészlet
    VAN
    Cikkszám
    RPI-WS30646

  • 7inch DSI LCD (H)

    1. 7inch DSI LCD (H) x1
    2. MIPI-DSI-Cable-12cm x1
    3. MX 1.25 2PIN to 2.54 3PIN cable x1
    4. FFC 22PIN cable ~200mm (opposite sides) x2
    5. Standoffs x1
    17inch DSI LCD (H)
    2
    3
    4
    5

    7inch DSI LCD (H) (with case)

    1. 7inch DSI LCD (H) x1
    2. PI5-CASE-TD2 x1
    3. MIPI-DSI-Cable-12cm x1
    4. MX 1.25 2PIN to 2.54 3PIN cable x1
    5. FFC 22PIN cable ~200mm (opposite sides) x2
    6. Silicon button cap × 1
    7. Standoffs x1
    8. Screws pack x1
    17inch DSI LCD (H)
    2PI5-CASE-TD2 accessories
    3
    4
    5
    6PI5-CASE-TD2 Silicon rubber keypads
    7
    8PI5-CASE-TD2 Screw package
:
;
