Termék részletek
7 inch kapacitív érintőképernyős LCD (B), 800×480, HDMI, alacsony fogyasztású
7 inch kapacitív érintőképernyős LCD (B), 800×480, HDMI, alacsony energiafogyasztás
-

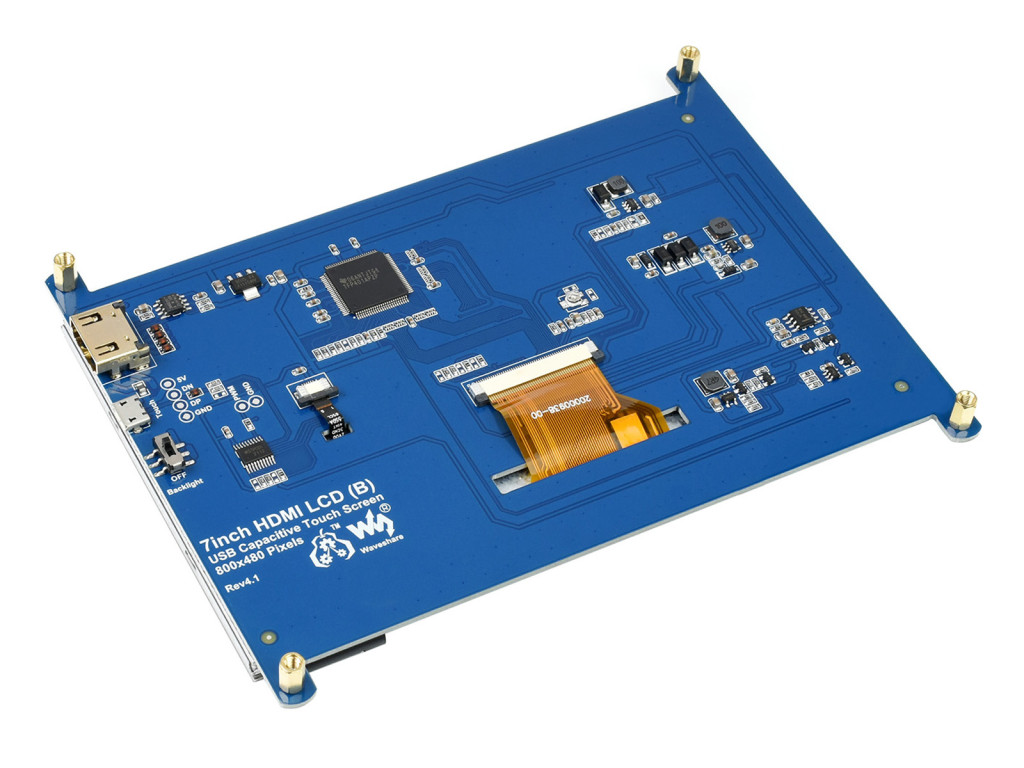

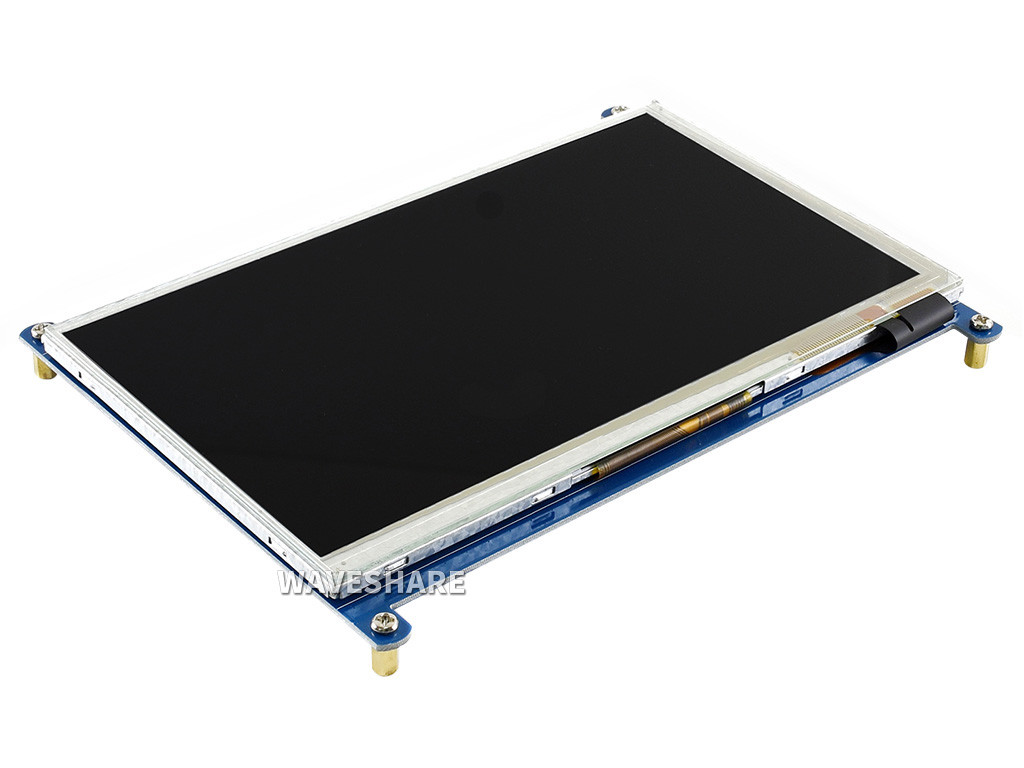

7inch Capacitive Touch Screen LCD (B), 800×480, HDMI, Low Power Consumption7" HDMI Touch Display
- Size
7" - Resolution
800×480 - Display Interface
HDMI - Consumption
Low Power - Touch Type
Capacitive - Touch Points
5-Points - Touch Port
USB - Certification
CE

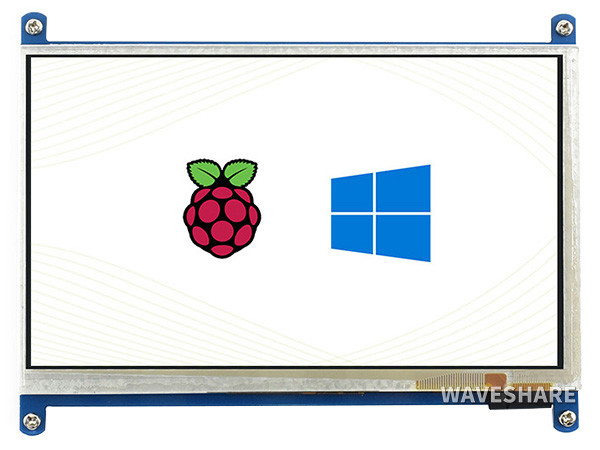

Device & System Support
Raspberry PiSupports Raspberry Pi OS, 5-point touch, driver free Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free Supports Retropie, driver freeSupports all versions of Raspberry Pi
PCSupports Windows 11 / 10 / 8.1 / 8 / 7, 5-points touch, driver freeConnection ExamplesWorking with Raspberry Pi 4
Working with Raspberry Pi 3B+
Working with Raspberry Pi Zero W
Working with mini PC

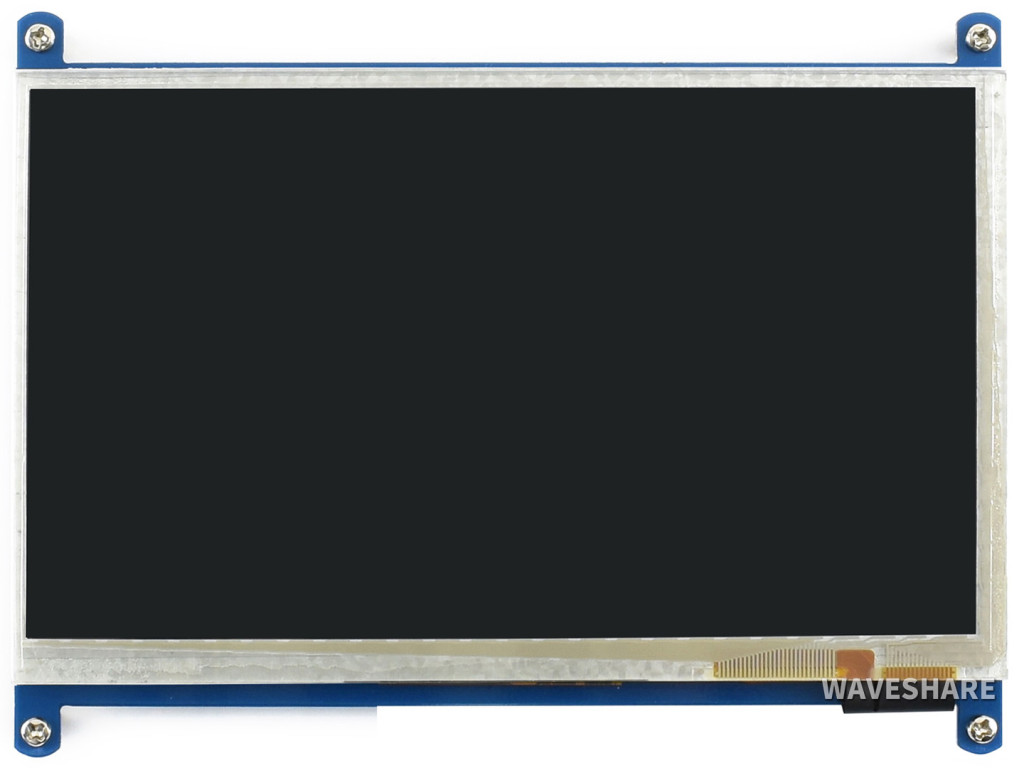

Display

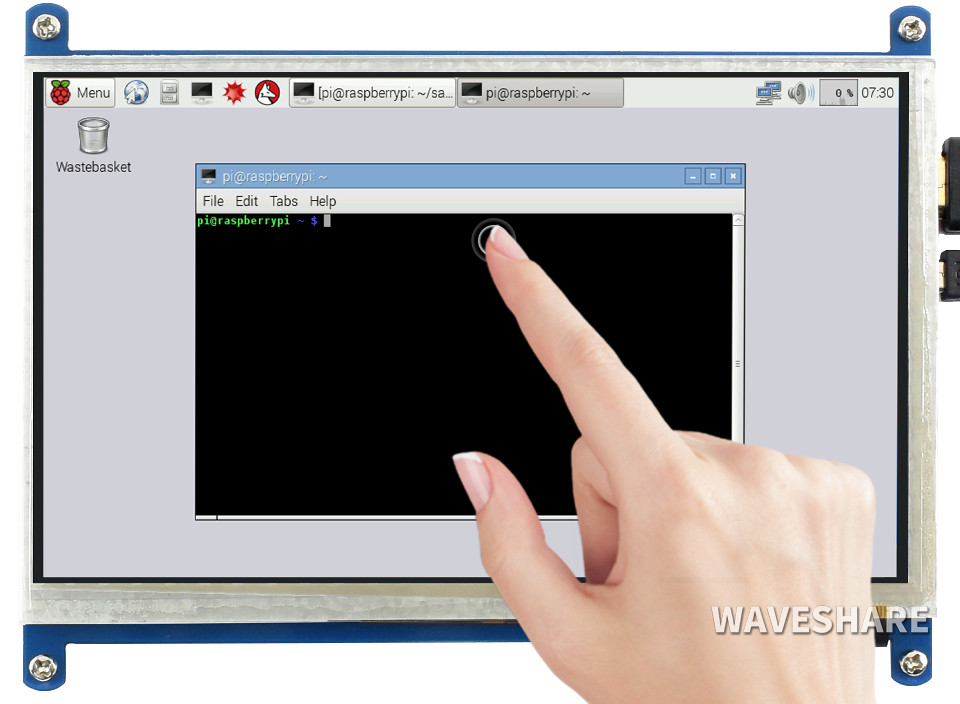

Touch Control
1) up to 5-points touch, depending on the operating system.

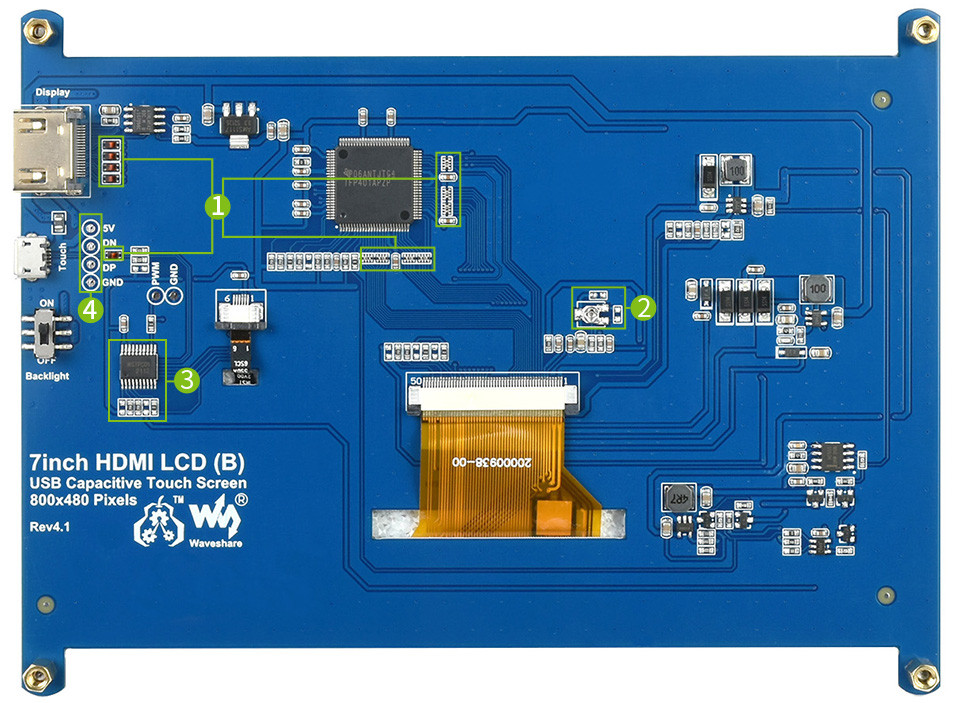

Demystifying Design Details
- EMI and ESD protection, in compliance with CE certification
- VCOM voltage adjustment for optimizing display effect
- USB protocol translator, converting the touch signal into standard multi-points touch protocol to achieve smooth multi-points touch control
- USB and power input solder pads, breakout USB interface, easy for connecting external power supply
Appearance and Dimensions
Product CertificationHDMI Certified
CE Certified
* This display is in compliance with CE standard.
Support touch screen customizationSupport the following ways to customize the touch screen display in bulk order
Over a decadeWaveshare grows with display
* Waveshare has been focusing on display design for over 10 years.
Selection Guide
PartNumber Display Touch Audio Device Support Resolu-tion Display Port Display Panel View Angle Touch Type Touch Port Toughened Glass Panel Optical Bonding Spe-aker Signal Output Pi JETSON NANO PC SPI DISPLAYSPROS: low price.CONS: low refresh rate & resolution, supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO (the SPI bus), poor compatibility with Raspberry Pi system. 2.8inch RPi LCD (A) 320×240 SPI TFT – Resistive SPI × × × × √ × × 3.2inch RPi LCD (B) 320×240 SPI TFT – Resistive SPI × × × × √ × × 3.5inch RPi LCD (A) 480×320 SPI TFT – Resistive SPI × × × × √ × × 3.5inch RPi LCD (B) 480×320 SPI IPS 160° Resistive SPI × × × × √ × × 3.5inch RPi LCD (C) 480×320 High-Speed SPI TFT – Resistive SPI × × × × √ × × 3.5inch RPi LCD (F) 320×480 SPI IPS 170° Capacitive I2C √ × × × √ × × 3.5inch RPi LCD (G) 320×480 SPI IPS 170° Resistive SPI × × × × √ × × 4inch RPi LCD (A) 480×320 SPI TFT – Resistive SPI × × × × √ × × DPI DISPLAYSPROS: low price, high refresh rate, multiple resolution support, better compatibility with Raspberry Pi system.CONS: supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO. 2.8inch DPI LCD 480×640 DPI IPS 160° Capacitive I2C √ √ × × √ × × 3.5inch DPI LCD 640×480 DPI IPS 170° Capacitive I2C √ × × × √ × × 4inch DPI LCD (C) 720×720 DPI IPS 170° Capacitive I2C √ √ × × √ × × 5inch DPI LCD 800×480 DPI IPS 160° – – × × × × √ × × 7inch DPI LCD 1024×600 DPI IPS 170° – – × × × × √ × × DSI DISPLAYSPROS: moderate price, high refresh rate, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system.CONS: supports Raspberry Pi only. 2.8inch DSI LCD 480×640 DSI IPS 160° Capacitive I2C √ √ × × √ × × 3.4inch DSI LCD (C) 800×800 DSI IPS 170° Capacitive I2C √ √ × × √ × × 3.4-DSI-TOUCH-C 800×800 DSI IPS 170° Capacitive I2C √ √ × × √ × × 3.5inch DSI LCD (E) 640×480 DSI IPS 170° Capacitive I2C √ × × × √ × × 3.5inch DSI LCD (H) 480×800 DSI IPS 170° Capacitive I2C √ × × × √ × × 4inch DSI LCD 480×800 DSI IPS 170° Capacitive I2C √ √ × × √ × × 4inch DSI LCD (C) 720×720 DSI IPS 170° Capacitive I2C √ √ × × √ × × 4-DSI-TOUCH-C 720×720 DSI IPS 170° Capacitive I2C √ √ × × √ × × 4.3inch DSI LCD 800×480 DSI IPS 160° Capacitive I2C √ × × × √ × × 4.3inch DSI LCD (with case) 800×480 DSI IPS 160° Capacitive I2C √ × × × √ × × 4.3inch DSI QLED 800×480 DSI IPS(QLED) 160° Capacitive I2C √ × × × √ × × 5inch DSI LCD 800×480 DSI TFT – Capacitive I2C √ × × × √ × × 5inch DSI LCD (B) 800×480 DSI IPS 160° Capacitive I2C √ × × × √ × × 5inch DSI LCD (C) 1024×600 DSI IPS 178° Capacitive I2C √ × × × √ × × 5inch DSI LCD (D) 720×1280 DSI IPS 178° Capacitive I2C √ √ × × √ × × 5-DSI-TOUCH-A 720×1280 DSI IPS 178° Capacitive I2C √ √ × × √ × × 5-DSI-TOUCH-B 720×1280 DSI IPS 178° Capacitive I2C √ √ × × √ × × 5inch Raspberry Pi Touch Display 2 720×1280 DSI IPS 160° Capacitive I2C × × × × √ × × 6.25inch DSI LCD 720×1560 DSI IPS 178° Capacitive I2C √ √ × × √ × × 7inch DSI LCD 800×480 DSI TFT – Capacitive I2C √ × × × √ × × 7inch DSI LCD (with case A) 800×480 DSI TFT – Capacitive I2C √ × × × √ × × 7inch DSI LCD (with cam) 800×480 DSI TFT – Capacitive I2C √ × × × √ × × 7inch DSI LCD (with cam and case) 800×480 DSI TFT – Capacitive I2C √ × × × √ × × 7inch DSI LCD (B) 800×480 DSI IPS 170° Capacitive I2C √ × × × √ × × 7inch DSI LCD (B) (with case A) 800×480 DSI IPS 170° Capacitive I2C √ × × × √ × × 7inch DSI LCD (C) 1024×600 DSI IPS 170° Capacitive I2C √ × × × √ × × 7inch DSI LCD (C) (with case A) 1024×600 DSI IPS 170° Capacitive I2C √ × × × √ × × 7inch DSI LCD (E) 1280×800 DSI IPS 178° Capacitive I2C √ √ × × √ × × 7-DSI-TOUCH-A 720×1280 DSI IPS 170° Capacitive I2C √ √ × × √ × × 7-DSI-TOUCH-C 1024×600 DSI IPS 170° Capacitive I2C × × × × √ × × 7inch DSI LCD (H) 1280×720 DSI IPS 170° Capacitive I2C √ √ × × √ × × 7.9inch DSI LCD 400×1280 DSI IPS 170° Capacitive I2C √ × × × √ × × 8-DSI-TOUCH-A 800×1280 DSI IPS 178° Capacitive I2C √ √ × × √ × × 8inch DSI LCD 800×480 DSI TFT – Capacitive I2C √ × × × √ × × 8inch DSI LCD (with cam) 800×480 DSI TFT – Capacitive I2C √ × × × √ × × 8inch DSI LCD (C) 1280×800 DSI IPS 178° Capacitive I2C √ √ × × √ × × 8.8inch DSI LCD 480×1920 DSI IPS 178° Capacitive I2C √ √ × × √ × × 8.8-DSI-TOUCH-A 480×1920 DSI IPS 178° Capacitive I2C √ √ × × √ × × 9-DSI-TOUCH-B 720×1280 DSI IPS 160° Capacitive I2C √ × × × √ × × 10.1-DSI-TOUCH-A 800×1280 DSI IPS 178° Capacitive I2C √ √ × × √ × × 10.1-DSI-TOUCH-B 720×1280 DSI IPS 170° Capacitive I2C √ × × × √ × × 10.1inch DSI LCD (C) 1280×800 DSI IPS 178° Capacitive I2C √ √ × × √ × × 11.9inch DSI LCD 320×1480 DSI IPS 170° Capacitive I2C √ × × × √ × × 12.3-DSI-TOUCH-A 720×1920 DSI IPS 178° Capacitive I2C √ √ × × √ × × 13.3inch DSI LCD 1920×1080 DSI IPS 178° Capacitive I2C √ × × × √ × × HDMI / TYPE-C DISPLAYSPROS: high refresh rate, multiple resolution support, multiple devices support, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system.CONS: somewhat costly. 2.8inch HDMI LCD (H) 480×640 HDMI IPS 160° Capacitive USB-C / I2C √ √ × × √ √ √ 3.2inch HDMI LCD (H) 480×800 HDMI IPS 160° × × × × × × √ √ Display ONLY 3.4inch 800x800 LCD 800x800 HDMI IPS 170° Capacitive Type-C √ √ × √ √ √ √ 3.5inch HDMI LCD 480×320 HDMI IPS 160° Resistive SPI × × × √ √ × Display ONLY 3.5inch 480x800 LCD 480×800 HDMI IPS 170° Capacitive USB-C × × × × √ √ √ 4inch 720x720 LCD 720x720 HDMI IPS 170° Capacitive Type-C √ √ × √ √ √ √ 4inch HDMI LCD 480×800 HDMI IPS 170° Resistive SPI × × × × √ × Display ONLY 4inch HDMI LCD (C) 720×720 HDMI IPS 170° Capacitive USB-C / I2C √ √ × √ √ √ √ 4inch HDMI LCD (H) 480×800 HDMI IPS 170° Resistive SPI × × × √ √ × Display ONLY 4.3inch HDMI LCD (B) 800×480 HDMI IPS 160° Capacitive USB × × × √ √ √ √ 5DP-CAPLCD-H 1024×600 HDMI IPS 178° Capacitive Type-C √ × × √ √ √ √ 5DP-CAPLCD-B 1024×600 HDMI IPS 178° Capacitive Type-C √ √ × √ √ √ √ 5DP-CAPLCD-G 1024×600 HDMI IPS 178° Resistive Type-C √ × × √ √ √ √ 5inch HDMI LCD 800×480 HDMI TFT – Resistive SPI × × × × √ × × 5inch HDMI LCD (with bicolor case) 800×480 HDMI TFT – Resistive SPI × × × × √ × × 5inch HDMI LCD (B) 800×480 HDMI TFT – Resistive USB × × × × √ × √ 5inch HDMI LCD (B) (with bicolor case) 800×480 HDMI TFT – Resistive USB × × × × √ × √ 5inch HDMI LCD (G) 800×480 HDMI/VGA TFT – Resistive USB × × × √ √ × √ 5inch HDMI LCD (H) 800×480 HDMI/VGA TFT – Capacitive USB √ × × √ √ √ √ 5inch HDMI LCD (H) V4 800×480 HDMI TFT – Capacitive USB √ × × × √ × √ 5inch HDMI AMOLED 960×544 HDMI AMOLED 170° Capacitive USB √ √ × √ √ √ √ 5inch 1080x1080 LCD 1080×1080 HDMI IPS 160° Capacitive Type-C √ √ √ √ √ √ √ 5inch 720x1280 LCD 720×1280 HDMI IPS 178° Capacitive Type-C √ √ √ × √ √ √ 5.5inch HDMI AMOLED 1080×1920 HDMI AMOLED 170° Capacitive USB √ √ × √ √ √ √ 5.5inch HDMI AMOLED (with case A) 1080×1920 HDMI AMOLED 170° Capacitive USB √ √ × √ √ × × 5.5inch 1440x2560 LCD 1440×2560 HDMI IPS 170° Capacitive USB √ √ × √ √ × √ 5.5inch 1440x2560 LCD (with case A) 1440×2560 HDMI IPS 170° Capacitive USB √ √ × √ √ × × 6.25inch 720x1560 LCD 720×1560 HDMI IPS 178° Capacitive Type-C √ √ √ × √ √ √ PI5-HMI-7A 720×1280 HDMI IPS 170° Capacitive Type-C √ √ × × √ × × 7EP-CAPLCD 1280×800 HDMI IPS 178° Capacitive USB √ √ √ √ √ √ √ 7EP-CAPLCD Monitor 1280×800 HDMI/Type-C IPS 178° Capacitive Type-C √ √ √ √ √ √ √ 7inch HDMI LCD 1024×600 HDMI IPS 170° Resistive SPI × × × × √ × Display ONLY 7inch HDMI LCD (B) 800×480 HDMI TFT – Capacitive USB × × × × √ × √ 7inch 1080x1080 LCD 1080×1080 HDMI IPS 160° Capacitive Type-C √ √ × √ √ √ √ 7inch HDMI LCD (B) (with bicolor case) 800×480 HDMI TFT – Capacitive USB × × × × √ × √ 7inch HDMI LCD (C) 1024×600 HDMI IPS 170° Capacitive USB × × × × √ × √ 7inch HDMI LCD (C) (with bicolor case) 1024×600 HDMI IPS 170° Capacitive USB × × × × √ × √ 7inch HDMI LCD (H) 1024×600 HDMI/VGA IPS 170° Capacitive USB × × × √ √ √ √ 7inch HDMI LCD (H) (with case) 1024×600 HDMI/VGA IPS 170° Capacitive USB √ × × √ √ √ √ 7HP-CAPQLED 1024×600 HDMI IPS (QLED) 170° Capacitive USB √ × × √ √ √ √ 7.9inch HDMI LCD 400×1280 HDMI IPS 170° Capacitive USB √ × × √ √ √ √ 7.9inch Side Monitor 400×1280 HDMI IPS 170° × × √ × √ × √ √ √ 7.9inch Touch Monitor 400×1280 HDMI IPS 170° Capacitive USB √ × √ × √ √ √ PI5-HMI-080D 1280×800 HDMI IPS 178° Capacitive Type-C √ √ × × √ × × 8DP-CAPLCD 1280×800 HDMI IPS 178° Capacitive USB √ √ × √ √ √ √ 8HP-CAPLCD Monitor 1280×800 HDMI/Type-C IPS 178° Capacitive USB √ √ √ √ √ √ √ 8inch 768x1024 LCD 768×1024 HDMI IPS 178° Capacitive Type-C √ × √ √ √ √ √ 8inch 1536x2048 LCD 1536×2048 HDMI IPS 178° Capacitive Type-C √ √ √ √ √ √ √ 8.8inch Side Monitor 480×1920 HDMI IPS 170° × × × × √ × √ √ Display ONLY 9HP-CAPQLED-B 1280×720 HDMI IPS (QLED) 178° Capacitive USB √ × × √ √ √ √ 9.3inch 1600x600 LCD 1600×600 HDMI IPS 178° Capacitive Type-C √ √ √ √ √ √ √ 9.7inch 768x1024 LCD 768×1024 HDMI IPS 178° Capacitive Type-C √ × √ √ √ √ √ PI5-HMI-101D 1280×800 HDMI IPS 178° Capacitive Type-C √ √ × × √ × × 10.1inch HDMI LCD 1024×600 HDMI IPS 170° Resistive SPI × × × × √ × Display ONLY 10.1inch HDMI LCD (B) (with case) 1280×800 HDMI IPS 170° Capacitive USB √ × × × √ × √ 10.1inch HDMI LCD (E) 1024×600 HDMI IPS 170° Capacitive USB √ √ × √ √ √ √ 10.1inch HDMI LCD (G) (with case) 1920×1200 HDMI IPS 160° Capacitive USB √ √ √ √ √ √ √ 10.1inch HDMI LCD (H) (with case) 1024×600 HDMI/VGA TFT – Capacitive USB × × × × √ √ √ 10.1inch HDMI LCD (F) (with case) 1024×600 HDMI/VGA IPS 170° Capacitive USB √ × √ × √ √ √ 10.1EP-CAPLCD 1920×1200 HDMI IPS 178° Capacitive Type-C √ √ √ √ √ √ √ 10.1DP-CAPLCD 1280×800 HDMI IPS 178° Capacitive USB √ √ × √ √ √ √ 10.1HP-CAPQLED 1280×720 HDMI IPS (QLED) 170° Capacitive USB √ × × √ √ √ √ 10.1HP-CAPLCD Monitor 1280×800 HDMI/Type-C IPS 178° Capacitive USB √ √ √ √ √ √ √ 10.4HP-CAPQLED 1600×720 HDMI IPS(QLED) 178° Capacitive Type-C √ √ √ √ √ √ √ 10.5inch HDMI AMOLED 2560×1600 HDMI AMOLED 160° Capacitive USB √ √ √ √ √ √ √ 11.6inch 1768x828 LCD 1768×828 HDMI/Type-C IPS 178° Capacitive Type-C In-Cell × × √ √ √ √ 11.6inch HDMI LCD (H) 1920×1080 HDMI IPS 178° Capacitive USB √ √ × √ √ √ √ 11.6inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ √ √ √ √ √ √ 11.9inch HDMI LCD 320×1480 HDMI IPS 170° Capacitive USB √ × × √ √ √ √ 11.9inch Side Monitor 320×1480 HDMI IPS 170° × × √ × √ × √ √ √ 11.9inch Touch Monitor 320×1480 HDMI IPS 170° Capacitive USB √ × √ × √ √ √ 12.3inch 1920x720 LCD 1920×720 HDMI/Type-C IPS 178° Capacitive Type-C In-Cell × × √ √ √ √ 12.3inch HDMI LCD 1920×720 HDMI IPS 178° Capacitive USB √ √ √ √ √ √ √ 13.3inch HDMI LCD (H) 1920×1080 HDMI IPS 178° Capacitive USB √ × × √ √ √ √ 13.3inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ × √ √ √ √ √ 13.3inch HDMI LCD (H) (with case) V2 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ × √ √ √ √ √ 13.3inch QHD AMOLED 2560×1440 HDMI/Type-C AMOLED 178° Capacitive Type-C √ √ √ √ √ √ √ 13.3inch FHD AMOLED 1920×1080 HDMI/Type-C AMOLED 178° Capacitive Type-C √ √ √ √ √ √ √ 13.3inch FHD Monitor 1920×1080 HDMI/Type-C IPS 178° Capacitive Type-C √ × × √ √ √ √ 14-Portable-Monitor 1920×1200 HDMI/Type-C IPS 178° × × × × √ √ √ √ √ 14inch Dual Monitor 1920×1080 HDMI/Type-C IPS 178° × × × × √ √ √ √ √ 15.6-Portable-Monitor 1920×1080 HDMI/Type-C IPS 178° × × × × √ √ √ √ √ 15.6inch FHD Monitor (C) 1920×1080 mini HDMI/Type-C IPS 178° Capacitive Type-C √ √ √ √ √ √ √ 15.6inch Dual Monitor 1920×1080 HDMI/Type-C IPS 178° × × × × √ √ √ √ √ 15.6inch HDMI LCD 1920×1080 HDMI IPS 178° Capacitive USB √ × × √ √ √ √ 15.6inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ × √ √ √ √ √ 15.6inch FHD Monitor 1920×1080 HDMI/Type-C IPS 178° Capacitive Type-C / USB √ × √ √ √ √ √ 15.6HP-CAPQLED 1920×1080 HDMI IPS(QLED) 178° Capacitive USB √ √ × √ √ √ √ 15.6inch QLED Monitor 1920×1080 HDMI IPS(QLED) 178° Capacitive Type-C √ √ √ √ √ √ √ 18.5inch Dual Monitor 1920×1080 HDMI/Type-C IPS 178° × × × × √ √ √ √ √ 16-2K-Touch-Monitor 2560×1600 HDMI/Type-C IPS 178° Capacitive Type-C √ √ √ √ √ √ √ 16-4K-Touch-Monitor 3840×2400 HDMI/Type-C IPS 178° Capacitive Type-C √ √ √ √ √ √ √ 18.5inch FHD LCD 1080×1920 HDMI/Type-C IPS 178° Capacitive Type-C √ √ × √ √ √ √ 18.5-Portable-Monitor 1920×1080 HDMI/Type-C IPS 178° × × × × √ √ √ √ √ 18.5-Touch-Monitor 1920×1080 HDMI/Type-C IPS 178° Capacitive Type-C √ √ √ √ √ √ √ 18.5-4K-Portable-Monitor 3840×2160 HDMI/Type-C IPS 178° × × × × √ √ √ √ √ 21.5inch FHD LCD 1080×1920 HDMI IPS 170° Capacitive Type-C √ √ × √ √ √ √ 21.5inch FHD Monitor 1080×1920 HDMI IPS 170° Capacitive Type-C √ √ √ × √ √ √ 21.5-Portable-Monitor 1920×1080 HDMI/Type-C IPS 178° × × × × √ √ √ √ √ 24.5-2K-Portable-Monitor 2560×1440 HDMI/Type-C IPS 178° × × × × √ √ √ √ √ Have a look :
- Size
-
Brand WavesharePartNumber 7inch HDMI LCD (B)Raktárkészlet VANCikkszám RPI-WS10829
-
- 7inch HDMI LCD (B) x1
- HDMI cable x1
- HDMI to Micro HDMI Adapter x1
- USB type A plug to micro B plug cable x1
- RPi screws pack (4pcs) x1
