Arducam V3Link Camera Kit for TI Development Boards-4×IMX219 V3Link Kit

105 900 Ft + ÁFA | Bruttó:134 493 Ft

Nincs raktáron

Készletértesítő

TI SK-AM62A-LP/AM68A/AM69A Ready, nagy sávszélességű, többkamerás megoldás.
IMX219 CMOS-alapú, akár 10 m hatótávolságú nagysebességű adatátvitel.
Rugalmas és kapcsolható 4 csatornás vezérlés.
Könnyű beállítás, nincs szükség további konfigurálásra.

Részletek Adatok

Overview

Arducam's V3Link camera kit boasts full HD with IMX219 sensor and V3Link interface—a go-to for high-bandwidth, long-distance vision projects. The shielded coaxial cable ensures reliable power and data transmission over distances of up to 10m, maintaining low latency for optimal performance.

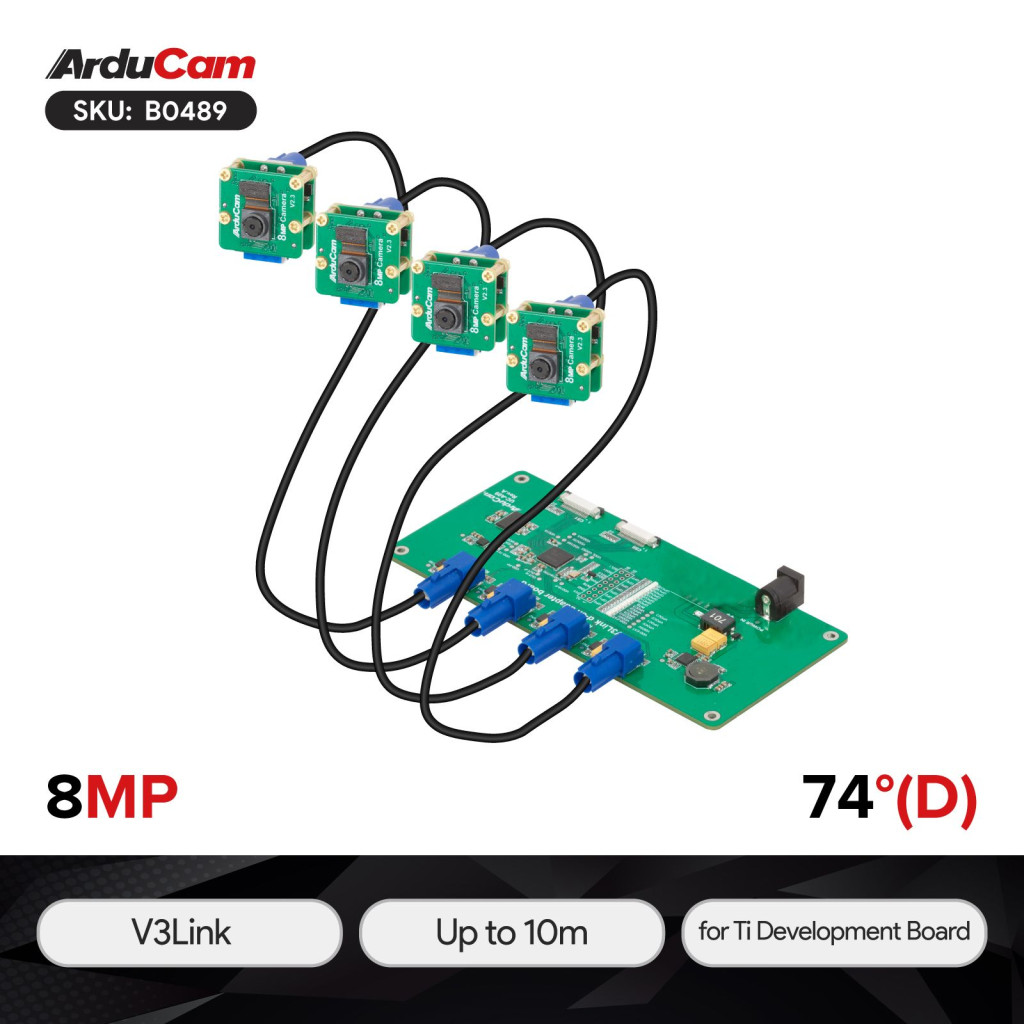

Featuring 4× 8MP camera modules, this kit allows flexible channel switching or independent control. Achieving both multi-camera switchable and remote control, it offers unparalleled flexibility and convenience.

V3Link, a high-bandwidth transmission interface developed by Texas Instruments, leverages FPD-Link's IP for ADAS, security cameras, industrial, and medical imaging. Empowering Arducam's camera kit, ensures efficient data transmission, making it a robust choice for various applications and long-distance connections.

Applications

ADAS
Automotive
Security Cameras
Industrial Systems
Medical Imaging

Features

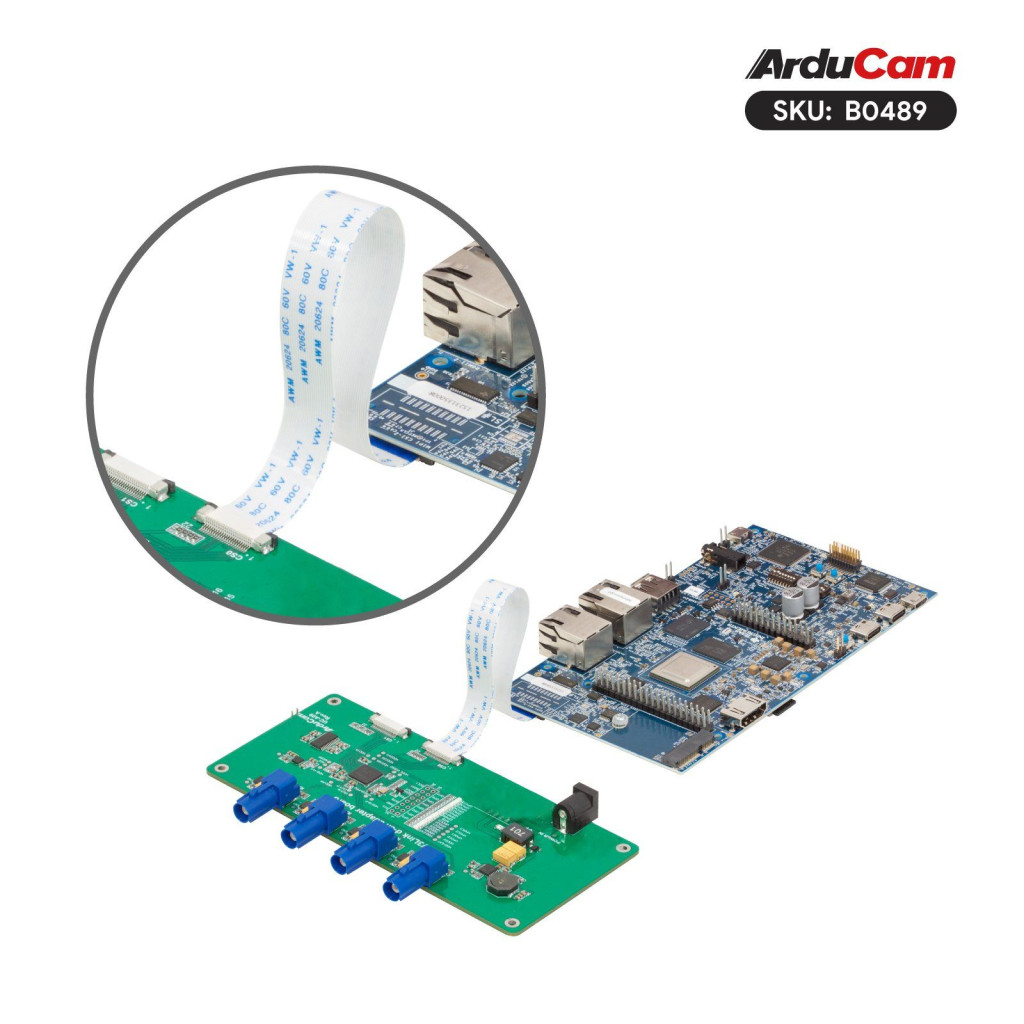

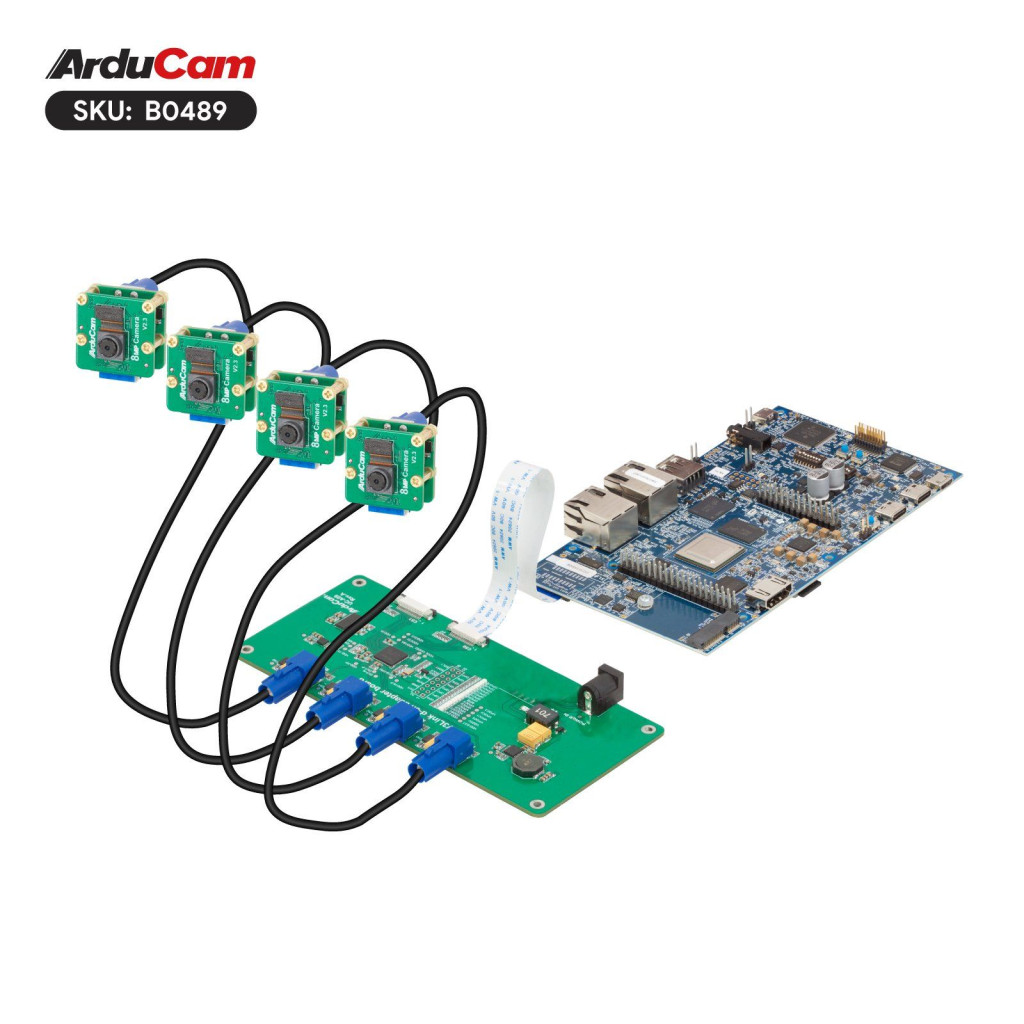

TI SK-AM62A-LP Compatibility: Tailored for TI SK-AM62A-LP/AM68A/AM69A development board, offering a multi-camera solution with high bandwidth for extended-distance transmission.
IMX219 CMOS & Long-Range Stability: Utilizes the IMX219 8MP sensor for high-quality imaging. Achieves stable cable connections up to 10 meters with multi-camera.
Flexible Channel Management: Enables channel switching and independent control, supporting up to four cameras. High-frequency signal transmission facilitates versatile applications like automotive, surveillance, medical, and industrial imaging.
Cost-Effective 4-Channel System: Allows the creation of a switchable 4-channel vision system, reducing development costs. Ideal for various applications, ensuring a smaller footprint and flexible deployment.
Plug-and-Play Convenience: Effortless setup with no additional configuration or drivers required. Streamlines the integration process for quick and hassle-free deployment in diverse scenarios.

Specifications

Image Sensor	IMX219
Image Sensor
Still Resolution	8 Megapixels
Video Modes	1080p30, 640 × 480p30
Sensor Resolution	3280 × 2464 pixels
Sensor image area	3.68 x 2.76 mm (4.6 mm diagonal)
Pixel Size	1.12 µm x 1.12 µm
Optical Size	1/4"
IR Sensitivity	Integral IR-cut Filter, visible light only
Lens
Focus Type	Fixed Focus
Focal Length	3.04mm
F.NO	F2.0
Field of View(FOV)	62.2°(H)×48.8°(V)
Lens Type	Stock Lens
Focus Distance	200mm to infinity
Electrical and Mechanical
Camera Board Size	25 × 24mm
Peaking Current	300mA

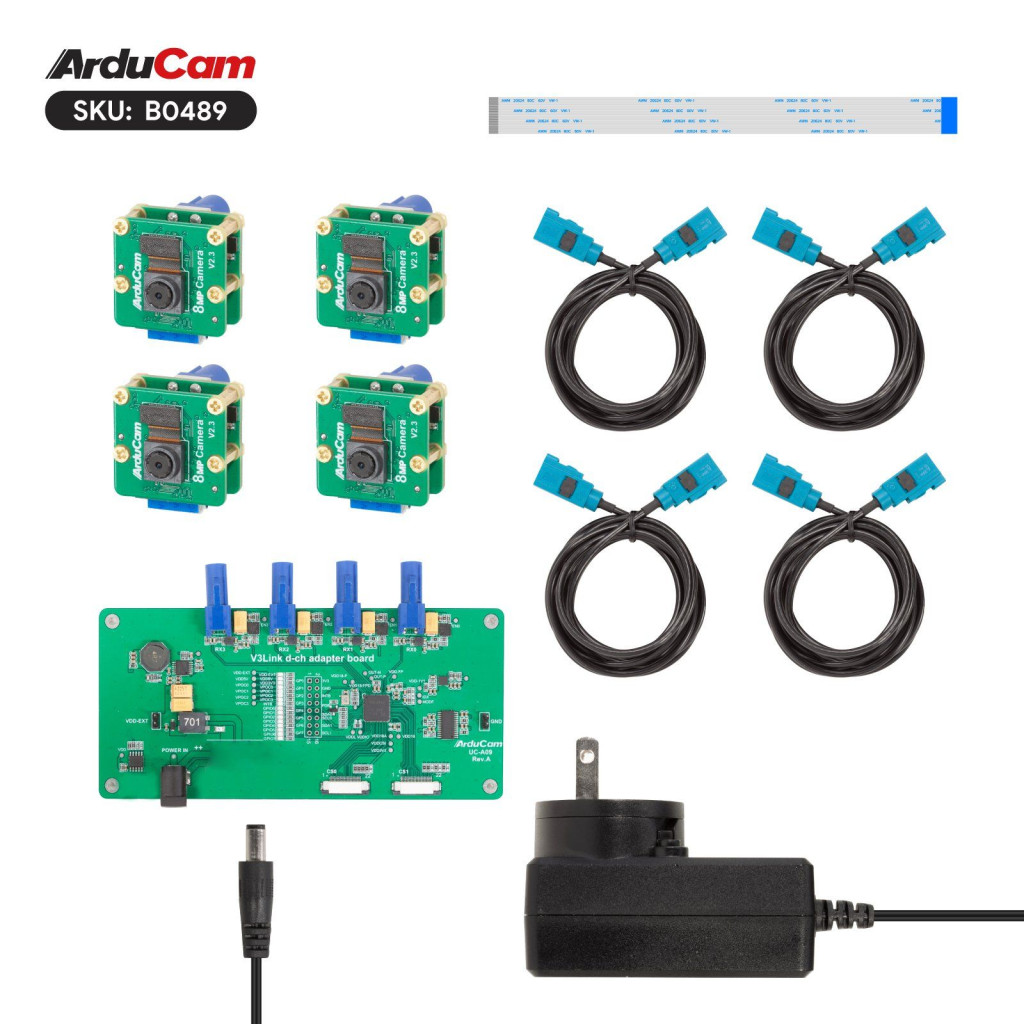

Package Including

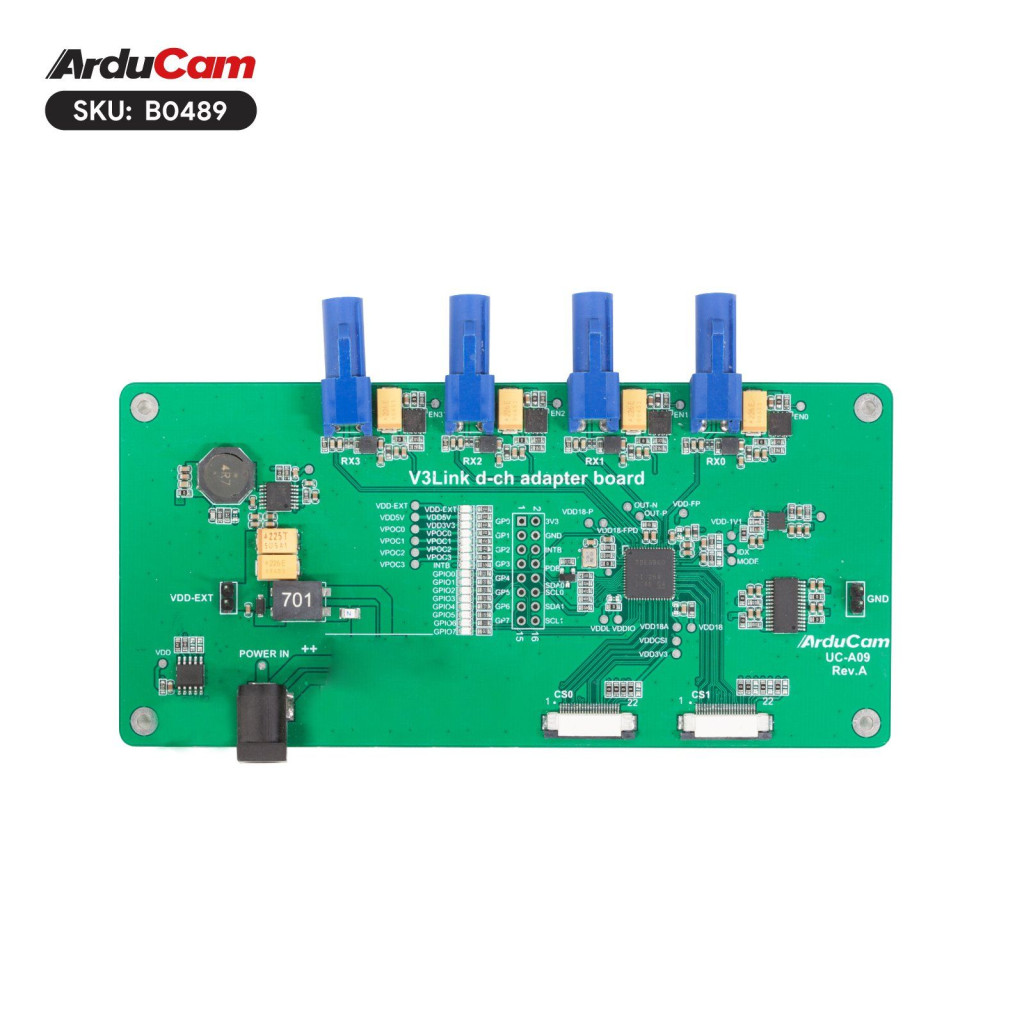

1× Arducam V3Link d-ch Rx board

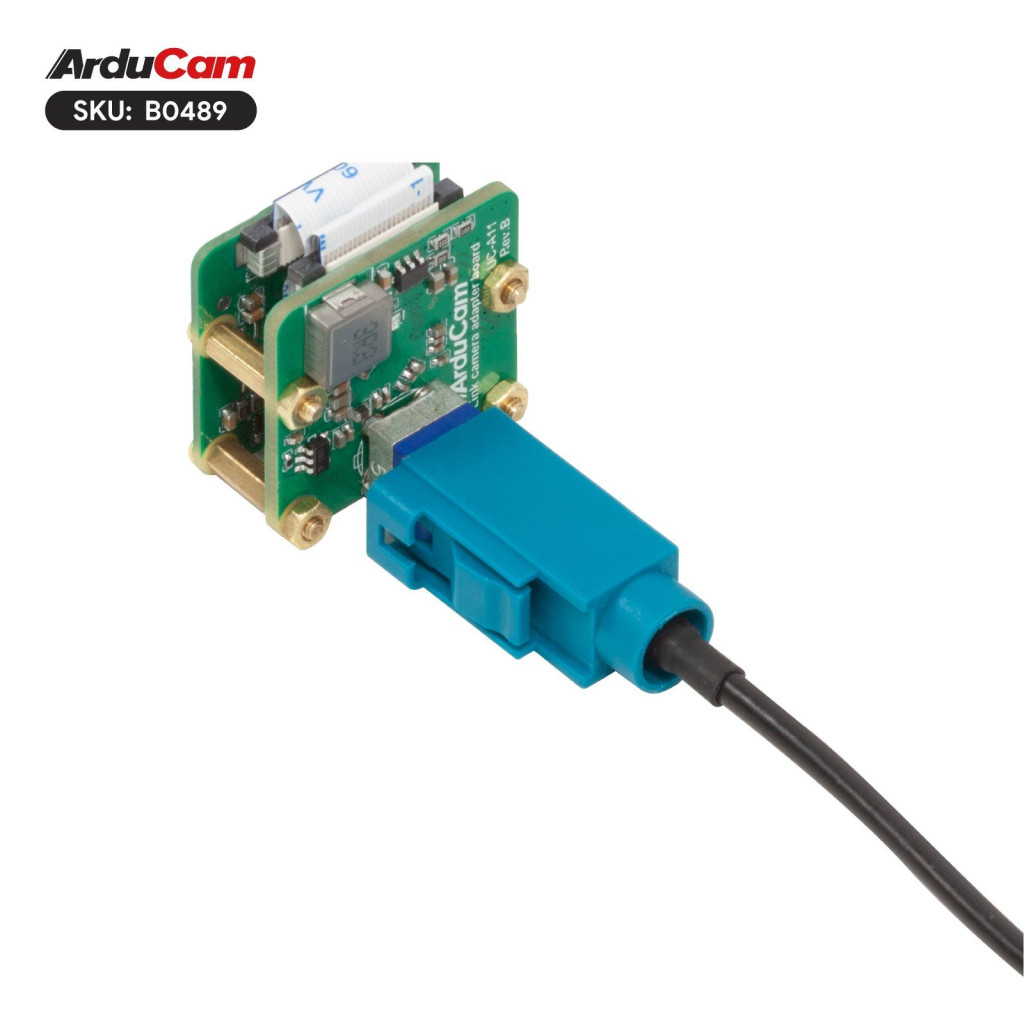

4× Arducam V3Link camera Tx board
4× 1m Fakra Z Female to Female RF Coaxial Cable

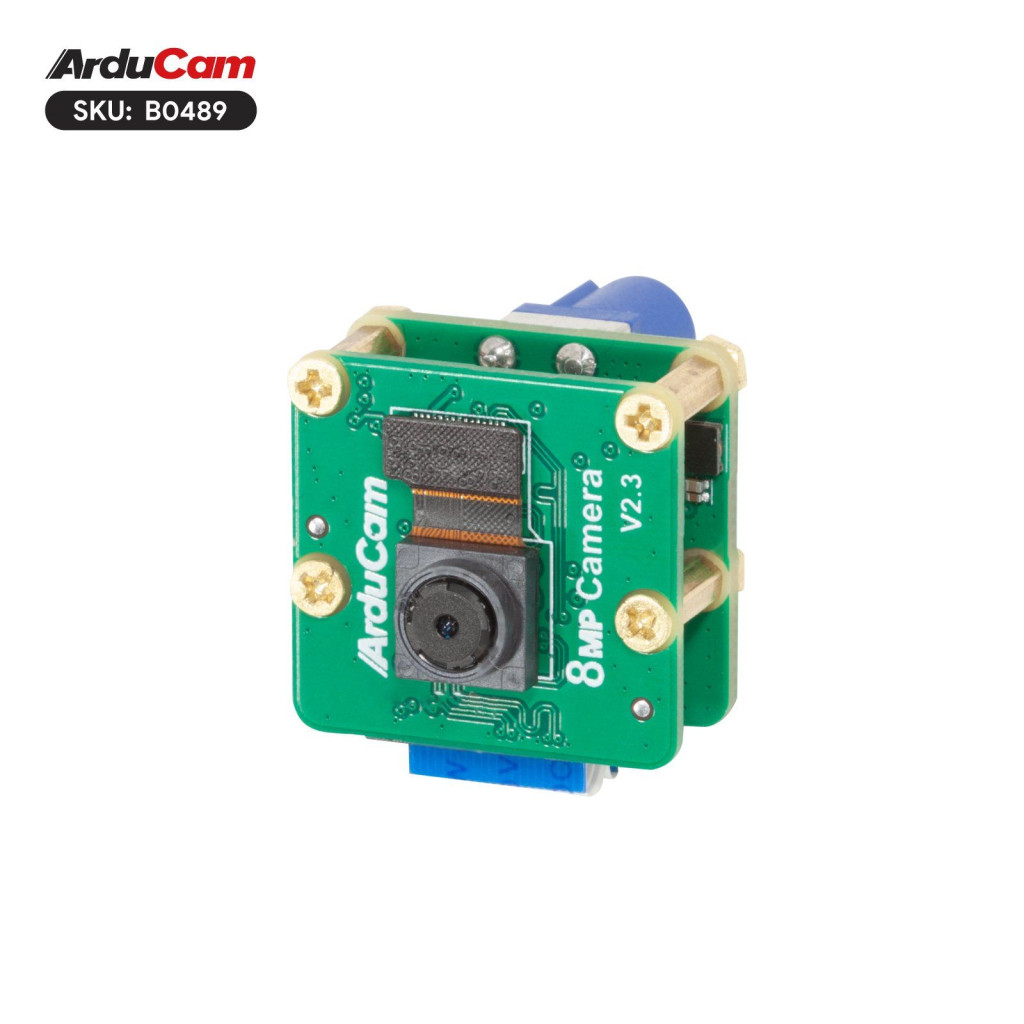

4× Arducam IMX219 Camera Module
4× 40cm 22-22pin FPC Cable
1× 15cm 22-22pin FFC Cable
1× Power Adapter

Note

TI development board is not included in the package.
This kit includes IMX219 camera modules and cannot be mixed with other sensors.
The V3LINK solution also supports other camera modules, please contact sales for more details.
