IMX378 12 MP-es USB-kamera (A), 30 FPS kimenetet támogat, jobb érzékenység gyenge fényviszonyok között, torzításmentes, beépített stereo mikrofon

ÚJ

22 550 Ft + 27% ÁFA | Bruttó:28 639 Ft

Kosárba

Értesítést kérek árcsökkenés esetén

IMX378 12MP USB Camera (A), Supports 30 FPS Output, Better Sensitivity In Low-Light Condition, Distortion-Free, Onboard Dual Microphones

Részletek Adatok Csomag tartalma

IMX378 12MP USB Camera (A), Supports 30 FPS Output, Better Sensitivity In Low-Light Condition, Distortion-Free, Onboard Dual Microphones

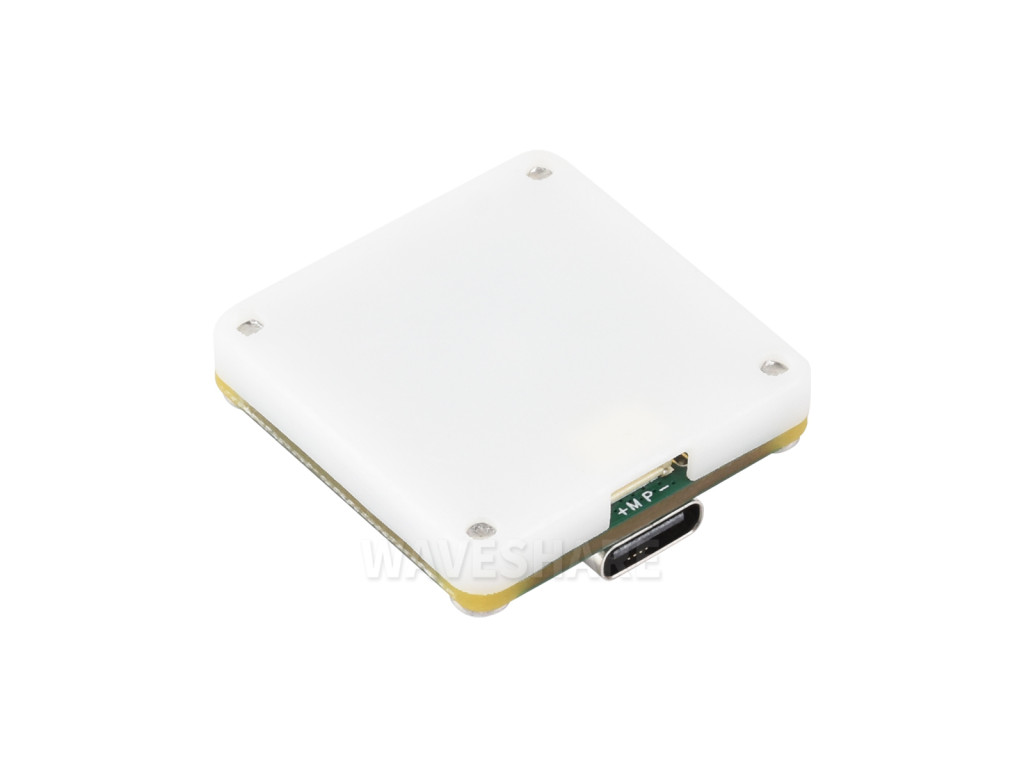

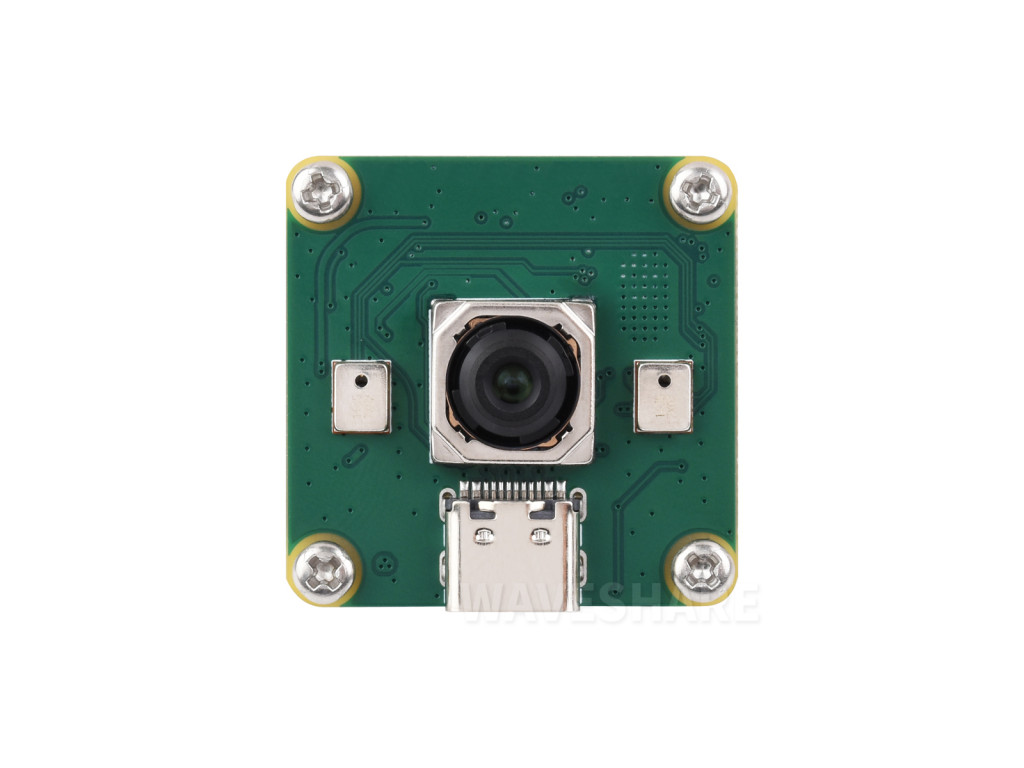

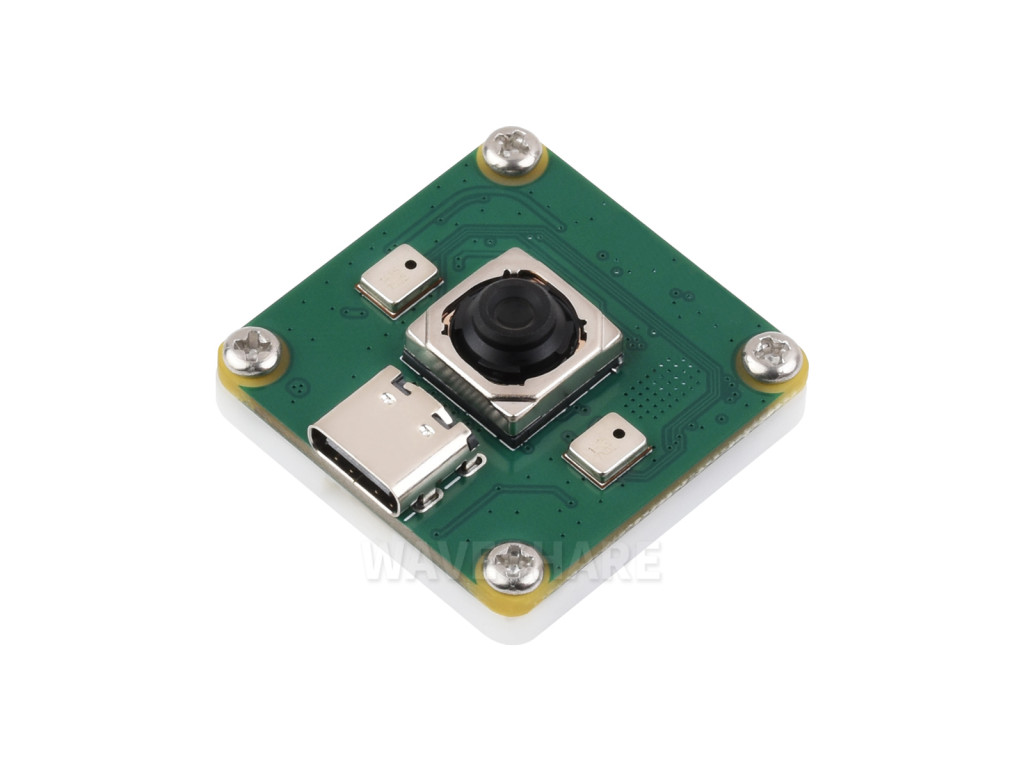

IMX378 12MP USB camera module

12MP | USB Type-C port | 79.8° FOV | Dual Microphones

Specifications

Pixels	12MP
Sensor	IMX378
Interface	USB2.0 Type-C
Camera	Sensor size	1/2.3 inch
	Aperture (F)	1.79
	Focal length (EFL)	4.7mm
	Field of view (FOV)	79.8°
	Distortion	<0.39%
	Focusing	Auto-focus
Image	Format support	MJPG, YVY2
	Static image resolution	3840 × 3032
	Video recording	30 FPS 3840 × 3032 30 FPS 3840 × 2160 30 FPS 2592 × 1944
Audio	Onboard dual microphones
Operating voltage	5V ± 5%
operating temperature	0°C ~ 50°C
Module size	30.00 × 30.00 (mm)

Connecting with USB cable

Connecting to Raspberry Pi 5

Connecting to Jetson Orin kit

Connecting to RDK X5 Development Board

* for reference only, the Raspberry Pi 5,Jetson Orin kitandRDK X5 Development Board are not included

12MP High resolution

Supports 30 FPS output, suitable for capturing details

Distortion-Free

Equipped with a distortion-free lens with a distortion rate of less than 0.39%, delivering undistorted imaging and more accurate reproduction of real-world scenes

* Note: In the industry, lenses with distortion rate less than 2% are generally considered distortion-free.

Pinout Definition

Onboard two types of connectors

Connecting via USB Type-C port

IMX378 12MP USB Camera (A), connecting via 4PIN connector

Connecting via 1.0mm pitch 4PIN connector

Outline dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/IMX378_12MP_USB_Camera_(A)

Selection Guide

Part Number	Pixels	Sensor	Best Resolution	Dimension	Field of View	Feature
OV9281 1MP USB Camera (A)	1MP	OV9281	1280×720	25×25mm	120°	Global shutter, 120FPS high frame rate, mono camera
OV2710 2MP USB Camera (A)	2MP	OV2710	1920x1080	38x38mm	145°	Low-light sensitivity
GC2093 2MP USB Camera (A)	2MP	GC2093	1920x1080	38x38mm	170°	Wide dynamic range, backlit imaging, onboard microphone
OV5693 5MP USB Camera (A)	5MP	OV5693	2592x1944	18×40mm	135°	Auto focus
OV5693 5MP USB Camera (B)	5MP	OV5693	2592x1944	8.5×60.2mm	75°	Small size, auto focus
OV5640 5MP USB Camera (B)	5MP	OV5640	2592x1944	9×62mm	68°	Small size, auto focus
OV5640 5MP USB Camera (C)	5MP	OV5640	2592x1944	9×62mm	68°	Small size
IMX335 5MP USB Camera (A)	5MP	IMX335	2592x1944	38×38mm	106.9°	Manual focus, low-light sensitivity, wide dynamic range
IMX335 5MP USB Camera (B)	5MP	IMX335	2592x1944	25×24mm	175°	Fixed-focus, wide angle, low-light sensitivity, wide dynamic range
IMX335 5MP USB Camera (C)	5MP	IMX335	2592x1944	25×24.3mm	91.7°	Fixed-focus, low-light sensitivity, wide dynamic range, distortion-free, onboard microphone
IMX378 12MP USB Camera (A)	12MP	IMX378	3840×3032	30×30mm	79.8°	HD, auto-focus, onboard dual microphones
IMX179 8MP USB Camera (A)	8MP	IMX179	3288x2512	38x38mm	145°	HD, embedded digital mic
IMX179 8MP USB Camera (B)	8MP	IMX179	3264×2448	9×62mm	75°	HD, small size, auto focus
IMX258 13MP OIS USB Camera (A)	13MP	IMX258	4208×3120	38×38mm	127°	HD, OIS
