8 csatornás Ethernet relémodul 8 digitális bemenet, Modbus RTU/Modbus TCP protokollal, PoE port kommunikációval, különböző szigetelési és védelmi áramkörökkel, ipari minőségű sínre szerelhető tokkal

Raktárkészlet: VAN
8 csatornás Ethernet relémodul 8 digitális bemenet, Modbus RTU/Modbus TCP protokollal, PoE port kommunikációval, különböző szigetelési és védelmi áramkörökkel, ipari minőségű sínre szerelhető tokkal
  • 8 csatornás Ethernet relémodul 8 digitális bemenet, Modbus RTU/Modbus TCP protokollal, PoE port kommunikációval, különböző szigetelési és védelmi áramkörökkel, ipari minőségű sínre szerelhető tokkal
  • 8 csatornás Ethernet relémodul 8 digitális bemenet, Modbus RTU/Modbus TCP protokollal, PoE port kommunikációval, különböző szigetelési és védelmi áramkörökkel, ipari minőségű sínre szerelhető tokkal
  • 8 csatornás Ethernet relémodul 8 digitális bemenet, Modbus RTU/Modbus TCP protokollal, PoE port kommunikációval, különböző szigetelési és védelmi áramkörökkel, ipari minőségű sínre szerelhető tokkal
  • 8 csatornás Ethernet relémodul 8 digitális bemenet, Modbus RTU/Modbus TCP protokollal, PoE port kommunikációval, különböző szigetelési és védelmi áramkörökkel, ipari minőségű sínre szerelhető tokkal
23 543 Ft + ÁFA | Bruttó:29 900 Ft
db Kosárba Kosárba
Olcsóbban szeretném
Részletek Kiegészítő termékek Adatok
  • 8-ch Ethernet Relay Module (B) With Digital Input, Modbus RTU/Modbus TCP Protocol, PoE Port Communication, With Various Isolation And Protection Circuits, Industrial Grade Rail-Mount Case
    8-ch Ethernet Relay Module (B)With Digital Input

    Ethernet Port Communication, Modbus Protocol, PoE Power Supply

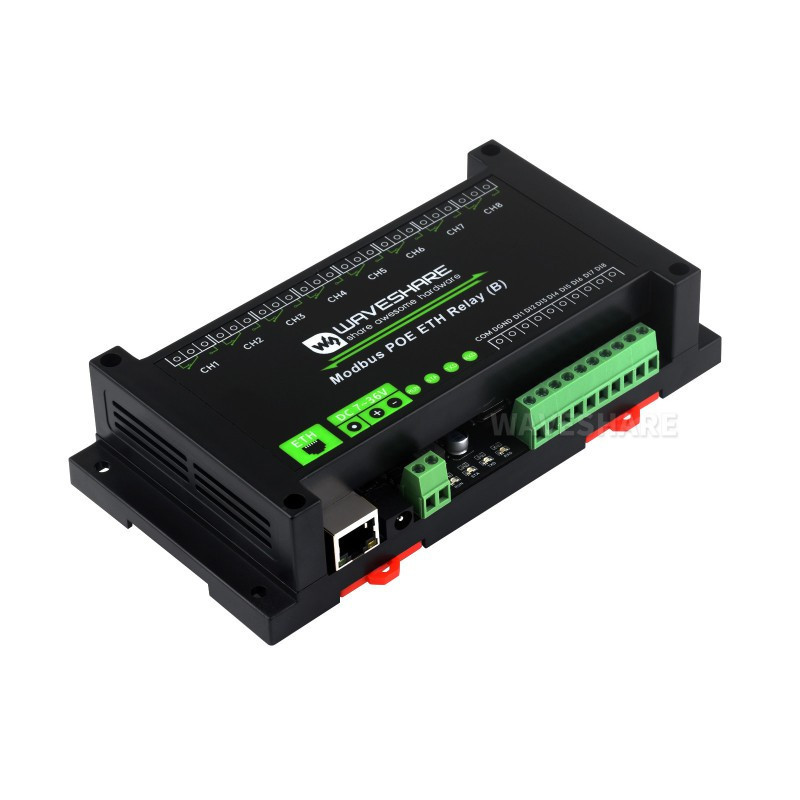

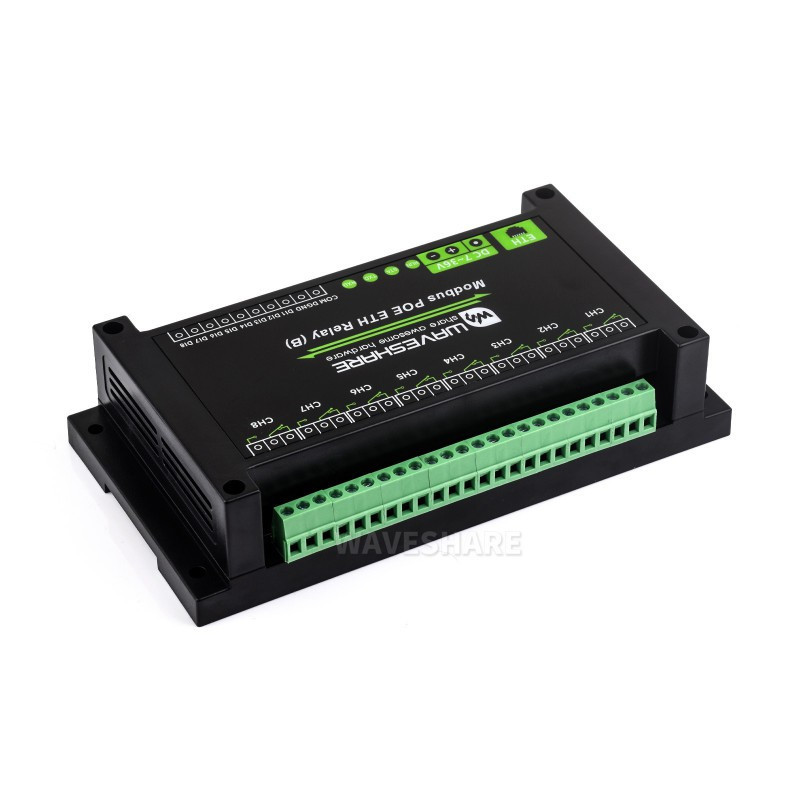

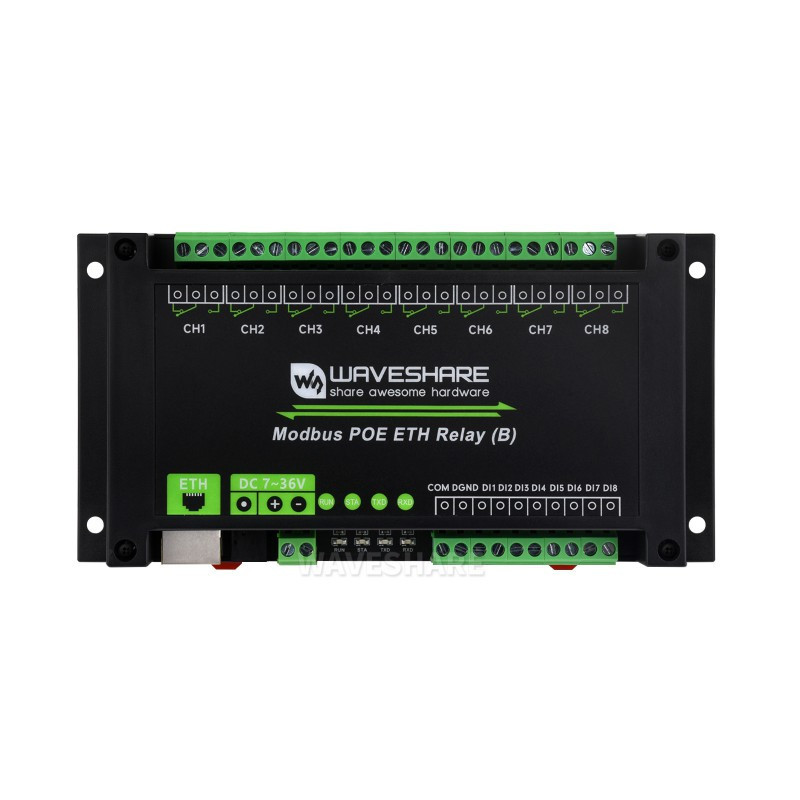

    8-ch Ethernet Relay Module (B), front view
    Features At A Glance

    This product is an industrial 8-ch relay module controlled via Ethernet port, with 8-ch digital input, adopts Modbus RTU/Modbus TCP protocols, supports PoE power supply, also comes with an ABS rail-mount case.

    The Modbus POE ETH Relay (B) is very easy to use. Due to its fast communication, stability, reliability, and safety, it is an ideal choice for industrial control equipments and/or applications with high communication requirements.

    • Features flash-on, flash-off function, by passing argument to the command, it is possible to turn on the relay for a while and then close it automatically
    • Supports DC 7~36V wide range power input and PoE power supply
    • Supports relay control through MQTT protocol, comes with Alibaba Cloud MQTT application demo
    • Onboard Optocoupler isolation, prevent the relay from being interfered by high-voltage circuit
    • Adopts dedicated relay driver chip, with built-in flyback diode protection, for stronger and more stable driving ability
    • Supports passive and active digital input, with bi-directional optocoupler isolation, built in debouncing algorithm. The relay supports digital input linkage control or toggle control
    • Reverse-proof circuit, prevent the circuit from being damaged accidentally by incorrect connection
    • High quality relay, contact rating: ≤10A 250VAC/30VDC
    • Rail-mounted ABS plastic enclosure, easy to install, safe to use
    • 4 LEDs and Network indicators for indicating the MCU status and signal transceiving status

    Primary function

    Supports reading digital input by sending Modbus RTU protocol commands via Ethernet for relay output control

    8-ch Ethernet Relay Module (B), primary function
    Supports Multiple Communication Modes, Adopts Modbus Protocol

    Supports TCP Server / TCP Client / UDP Mode / UDP Multicast / HTTP / MQTTSupports Modbus RTU protocol/Modbus TCP protocol

    8-ch Ethernet Relay Module (B), supports Modbus RTU protocol/Modbus TCP protocol
    Multi Configuration Methods

    Supports software and Web Browser Configuration, Obtaining Dynamic IP Via DHCP,connecting to domain name server via DNS protocol

    8-ch Ethernet Relay Module (B), supports multi configuration methods
    Multi Power Supply Options, Wide Range Power Input

    DC Power port: directly uses a power plug for power supply; Screw terminal: DC 7~36V wide range power input; PoE port: IEEE 802.3af PoE compliant

    8-ch Ethernet Relay Module (B), supports multi power supply methods
    * The external power supply adapter is NOT included by default, it is recommended to purchase 12V power supply if you need it.
    Digital Input

    Supports passive (dry contact) and active (wet contact) digital input, with bi-directional optocoupler isolation

    8-ch Ethernet Relay Module (B), digital input connection demo
    Interfaces & Indicators

    With Multiple LED Indicators, Easy To Monitor The Operating Status

    8-ch Ethernet Relay Module (B), Interfaces & Indicators instruction
    RUN Ethernet port indicator, blinking when Ethernet port normally working
    STA MCU indicator, blinking when the MCU normally working
    TXD TX indicator, lights up when sending data
    RXD RX indicator, lights up when receiving data
    Ethernet port Green Indicator Lights up when the connection is established
    Ethernet Port Yellow Indicator Data activity indicator, blinking when transmitting data
    Multiple modes for various automation scenarios

    Supports multiple relay control modes, each channel supports independent control mode setting

    8-ch Ethernet Relay Module (B), normal and flash ON / flash OFF relay control mode8-ch Ethernet Relay Module (B), Linkage and Toggle relay control mode
    Relay connection

    Contact rating of the onboard relay up to 10A 250VAC/30VDC Directly controlling 220VAC home appliances, or devices below 30VDC

    8-ch Ethernet Relay Module (B), relay connection demo
    Enclosure Design

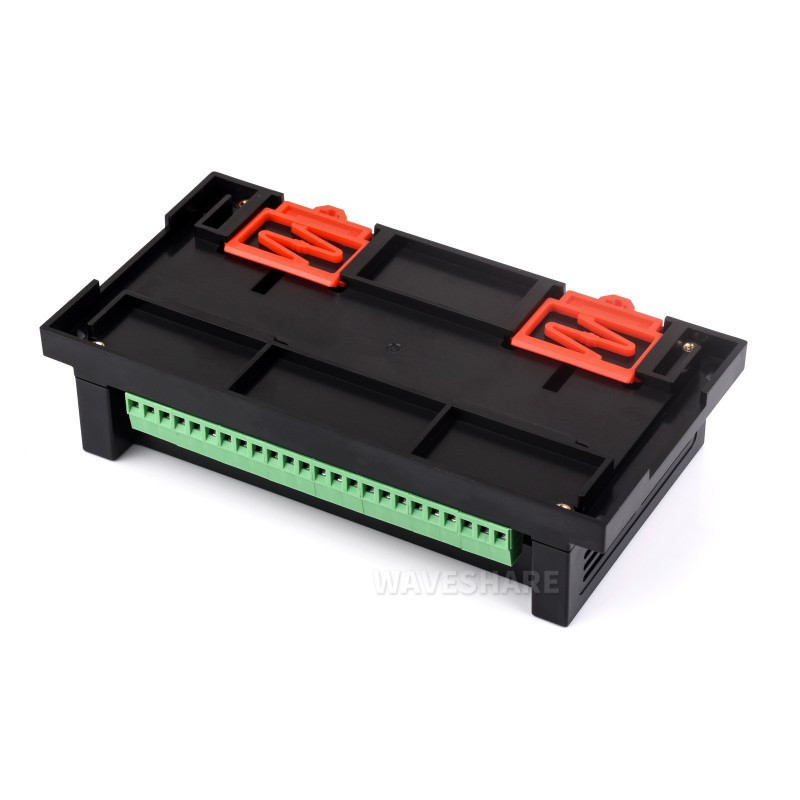

    Rail-mounted ABS plastic enclosure, easy to install, safe to use

    8-ch Ethernet Relay Module (B), adopts rail-mounted ABS plastic enclosure
    Applications
    8-ch Ethernet Relay Module (B), applications
    Product show
    8-ch Ethernet Relay Module (B), product show
    Outline dimensions
    8-ch Ethernet Relay Module (B), outline dimensions
    Resources & Services

    * Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

    Selection Guide
    product Communication parameters Relay type Output control Input control Power range Dimensions
    Modbus RTU Relay RS485 port 10A Universal Relay 8-ch - 5V 145×90×40mm
    Modbus RTU Relay (B) 10A Universal Relay 8-ch - 7V~36V 175×90×40mm
    Modbus RTU Relay (C) 10A Latching Relay 8-ch - 7V~36V 145×90×40mm
    Modbus RTU Relay (D) 10A Universal Relay 8-ch 8-ch 7V~36V 175×90×40mm
    Modbus RTU Relay (E) 30A High Current Relay 8-ch - 7V~36V 200×110×60mm
    Modbus RTU Relay 4CH 30A High Current Relay 4-ch - 7V~36V 145×90×40mm
    Modbus RTU Relay 16CH 10A Universal Relay 16-ch - 5V 200×110×60mm
    Modbus RTU Relay 32CH 10A Universal Relay 32-ch - 7V~36V 300×110×60mm
    Modbus POE ETH Relay Ethernet port (PoE support) 10A Universal Relay 8-ch - 7V~36V 145×90×40mm
    Modbus POE ETH Relay (B) 10A Universal Relay 8-ch 8-ch 7V~36V 175×90×40mm
    Modbus POE ETH Relay (C) Dual Ethernet ports (PoE support) 10A Universal Relay 8-ch 8-ch 7V~36V 175×90×40mm
    Modbus POE ETH Relay 16CH Dual Ethernet ports (PoE support) 10A Universal Relay 16-ch - 7V~36V 200×110×60mm
    Modbus POE ETH Relay 30CH Ethernet port (PoE support) 10A Universal Relay 30-ch - 7V~36V 300×110×60mm
  • Brand
    Waveshare
    Raktárkészlet
    VAN
    Cikkszám
    RPI-WS27876
:
;
