Termék részletek
Dedikált 3007-es hűtőventilátor a Raspberry Pi CM5 modulhoz, alacsony zajszint, hőszalaggal, 5 V-os tápegység
Dedikált 3007-es hűtőventilátor a Raspberry Pi Compute Module 5-höz, alacsony zajszint, hőszalaggal, 5 V tápegységgel
-

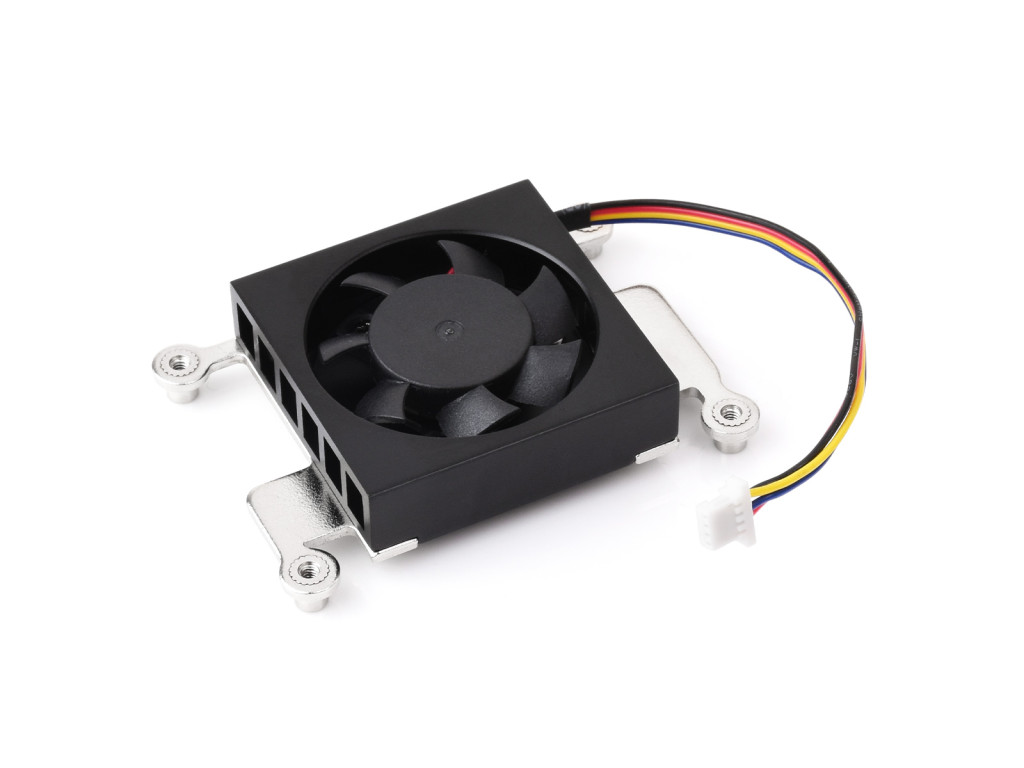

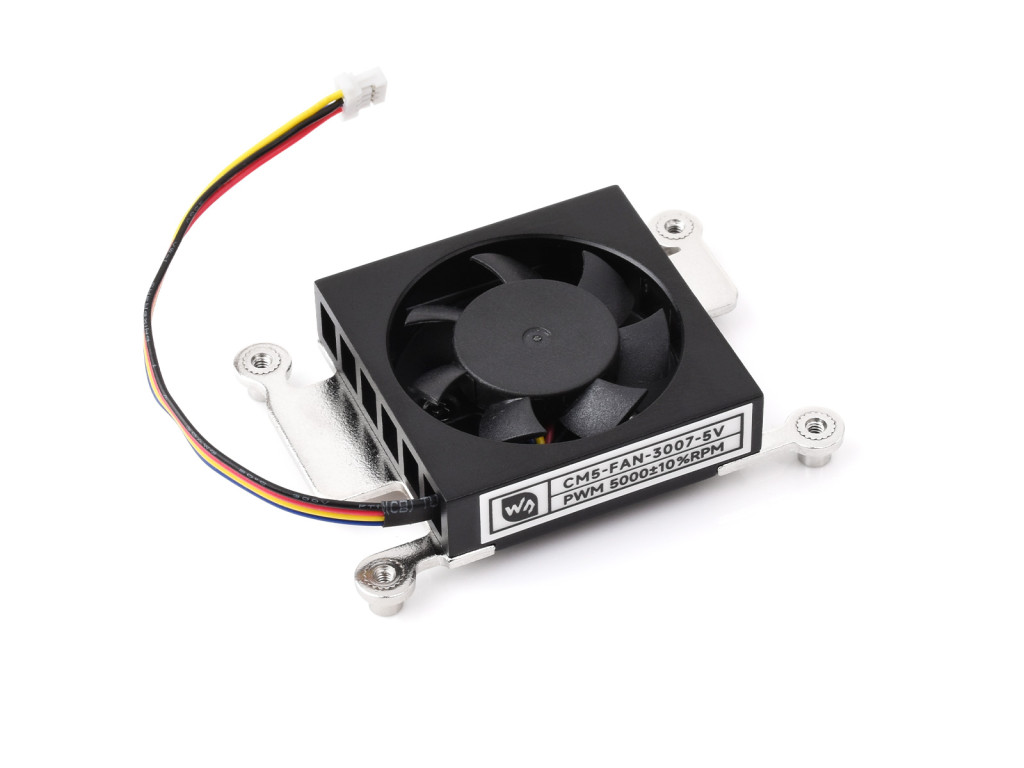

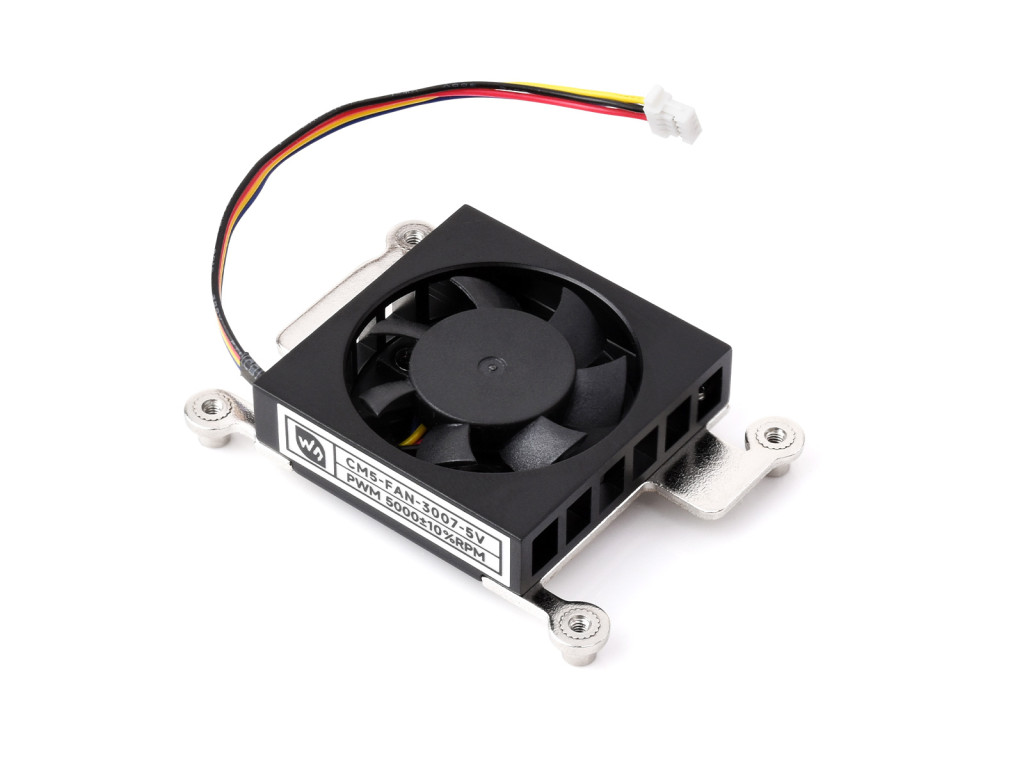

Dedicated 3007 cooling fan for Raspberry Pi Compute Module 5, low noise, with thermal tapes, 5V power supply3007 cooling fan for CM5
low noise, with thermal tapes
SpecificationsRated power 1W (5V, 0.2±0.02A) Rated speed 5000±10%RPM General Low-profile, PWM speed adjustment Interface 4-wire PWM speed-adjustable fan header Cable length 90±10mm Dimensions 54×39×13mm tailored for Raspberry Pi CM5matching with the CM5 on size and mounting holes, fast heat dissipation
proper space for antenna sectionno hindrance to the antenna

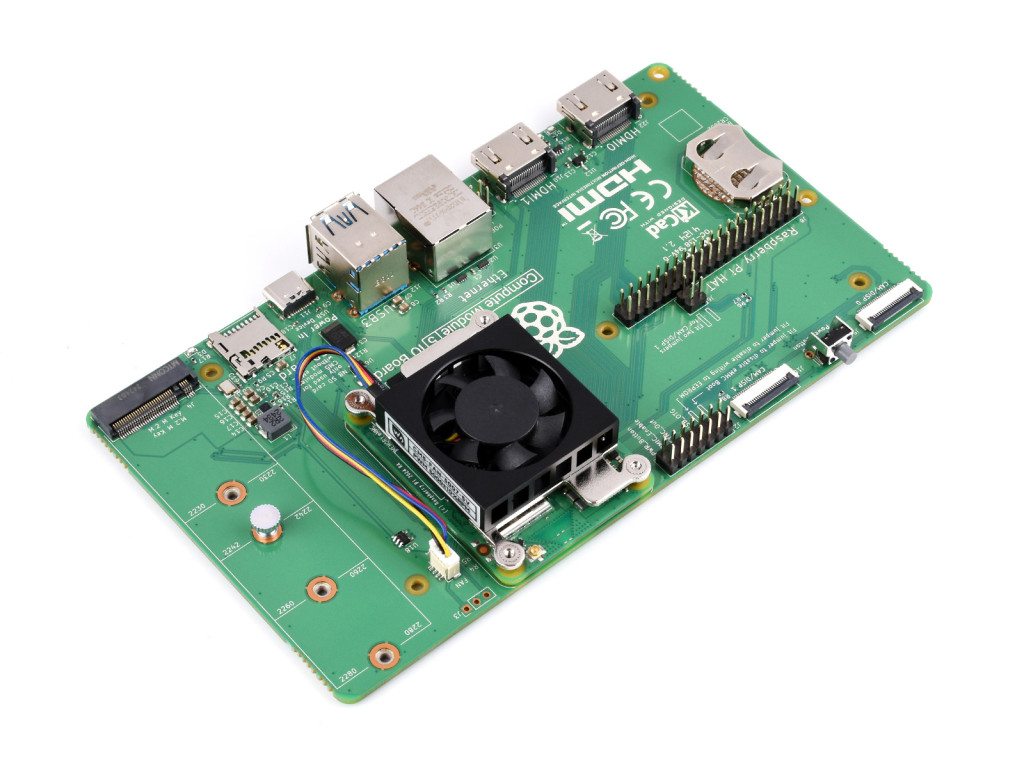

using with base board
Compute Module 5 IO Board
Compute Module 5 PoE Board
for reference only, Compute module 5,Compute Module 5 IO BoardandCompute Module 5 PoE Board are NOT included.comparing CM5 Cooling Solutions
Outline dimensions
How to install1. Attach thermal tapes onto the CM5
2. Fix the screws as the pictures show
-
Brand WaveshareRaktárkészlet VANCikkszám RPI-WS29437
-

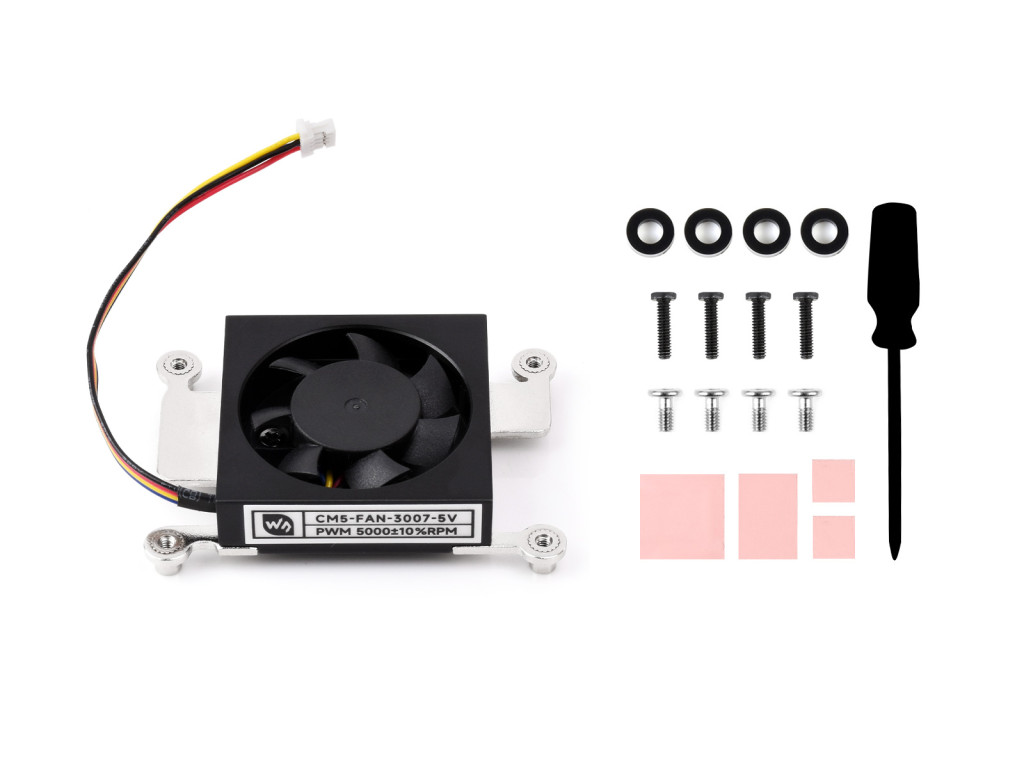

- CM5-FAN-3007-5V x1
- Screwspack and thermal tapes x1
1
2
