  • Mini Base Board (A) / Mini-Computer designed for Raspberry Pi Compute Module 5 (NOT Included)
    Mini-computer for Compute Module 5

    Designed for Raspberry Pi Compute Module 5

    WaveshareCM5-IO-BASE-A inside, fast and easy to build a mini-computer

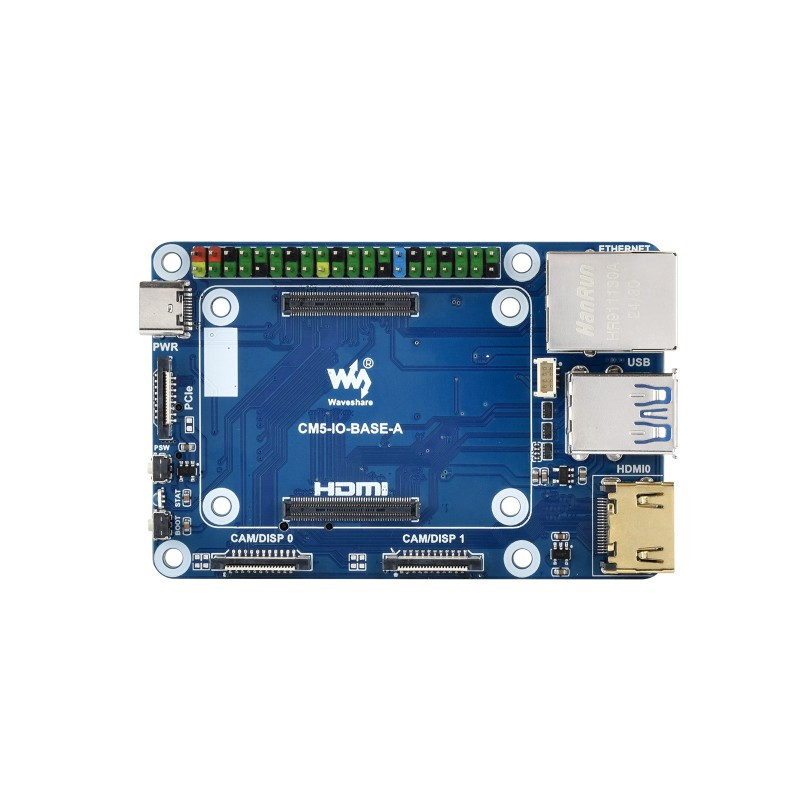

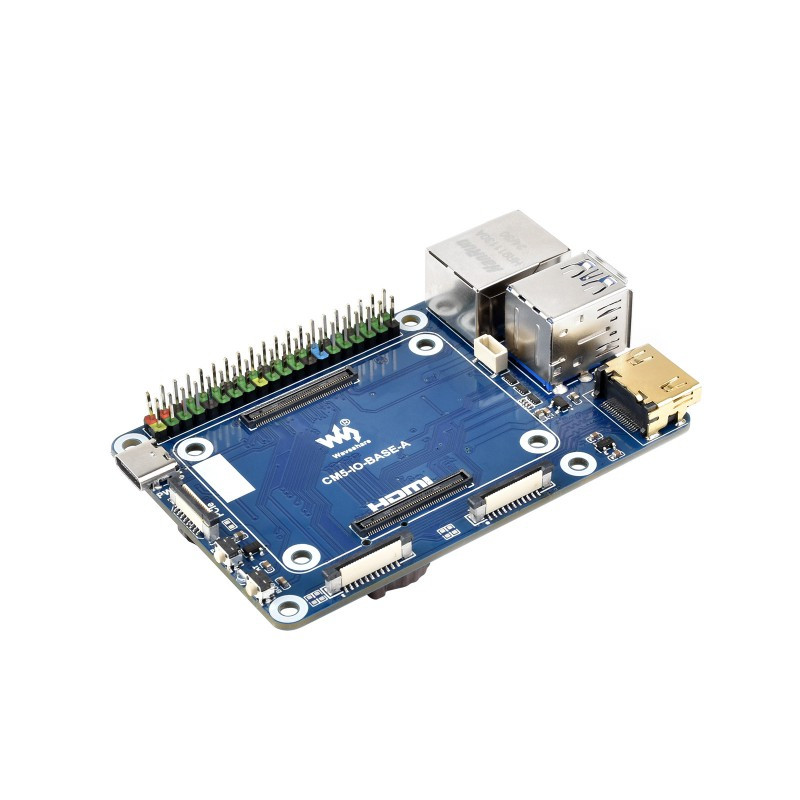

    Mini Base Board (A) designed for CM 5, front view
    Version options
    CM5-IO-BASE-A

    CM5-IO-BASE-Athe base board only

    CM5-IO-BASE-BOX-A

    CM5-IO-BASE-BOX-A the base board + Aluminum Alloy case + 27W power supply

    * Please refer to the Package Content for detailed part list

    Specifications
    CM5 socketsuitable for all variants of Compute Module 5
    NetworkingGigabit Ethernet RJ45 connector
    Connector16PIN PCIe (PCIe Gen2/3 x1)
    Raspberry Pi 40PIN GPIO header
    USBUSB 3.2 Gen1 Type A × 2, USB 2.0 via 6PIN 1mm FFC connector × 2
    MIPI4-lane MIPI interface × 2 (22pin 0.5mm FFC connector)
    VideoHDMI port × 2 (including one port via FFC connector), supports dual 4K outputs
    StorageTF card slot for Compute Module 5 Lite (without eMMC) variants
    Fan header5V, 4PIN JST-SH PWM connector
    Power inputDC 5V 5A
    Dimensionsthe base board: 85 × 56mm
    with metal case: 90 × 68mm
    What's the differences
    CM5 Base BoardInterface count and specifications
    PoEGigabit ETH40PIN GPIOPCIeUSB①MIPIHDMIRTCFan Header②Power InputFeatures
    NANO A√3.0×1×2SH1.0√5VCM5 sized
    NANO B×1√16PIN PCIe3.0×1×2√SH1.0√5VCM5 sized
    mini Base A×1√16PIN PCIe3.0×2 2.0×2×2×2ML/CR1220√5Vmini size
    mini Base B×1√M.2 M KEY3.0×2 2.0×2×2×2ML/CR1220√5Vmini size, onboard EEPROM and encryption chip
    Mini Dual Gigabit×2√3.0×1SH1.0√5Vdual ETH
    PoE Base√×1√M.2 M3.0×2 2.0×2×2×2ML/CR1220√5VUSB×4
    Raspberry Pi official③×1√M.2 M3.0×2×2×2ML/CR1220√5VOfficial IO base board
    Note① USB 3.0 is equivalent to USB 3.2 Gen1. ② Unless otherwise specified, the Fan header usually is JST-SH type connector. ③ There's PoE header only on the Raspberry Pi official IO board without PoE circuit, which means additional PoE module is required for the official IO board to enable PoE feature. Unless otherwise specified, the PoE feature here stands for integrating 802.3af-compliant PoE circuit (5V/2.5A).
    Connecting with Compute Module 5

    standard CM5 socket and color-coded Raspberry Pi 40PIN GPIO headersuitable for Compute Module 5 Lite/eMMC series module

    Mini Base Board (A) designed for CM 5, connecting with Compute Module 5
    Compact, yet Complete

    onboard multiple connectors, more convenient to use

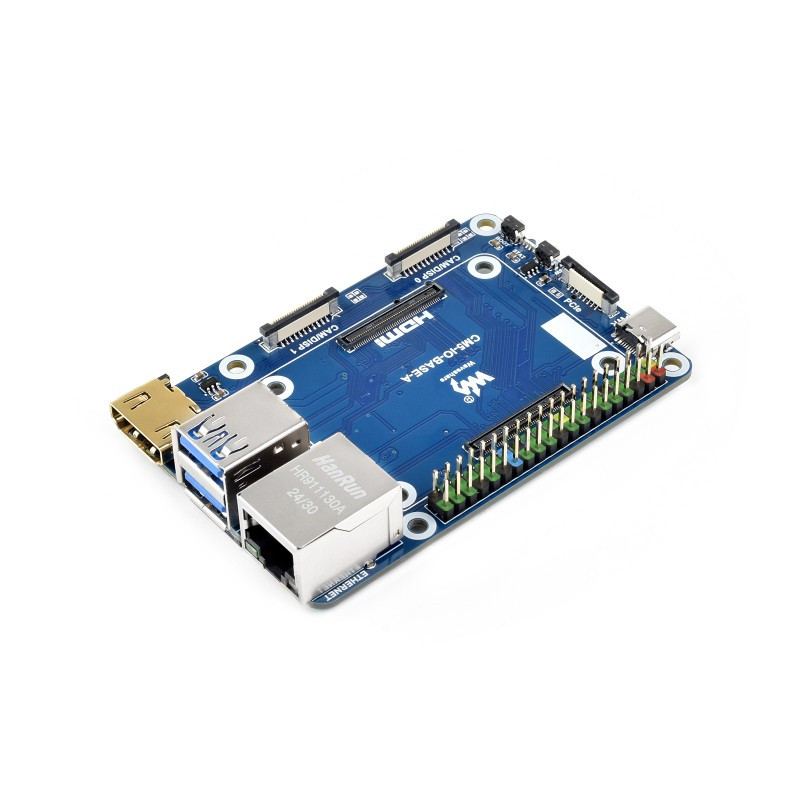

    Mini Base Board (A) designed for CM 5, onboard interface
    Precise cut-out with clear label

    each cut-out is completely aligned with the connector

    Mini-Computer designed for CM 5, onboard interfaceMini-Computer designed for CM 5, onboard interface
    Cooling fan included

    comes with cooling fan, combined with the airflow vent, better heat dissipation

    Mini-Computer designed for CM 5, with cooling fan
    Wall-mount & Rail-mount support

    comes with wall-mount brackets and rail-mount buckle for more flexible installation

    Mini-Computer designed for CM 5, wall-mount installation

    Wall-mount Installation

    Mini-Computer designed for CM 5, rail-mount installation

    Rail-mount Installation

    Access to USB HDMI Adapter
    Mini Base Board (A) designed for CM 5, access to USB HDMI Adapter

    for reference only, the USB HDMI Adapter is NOT included.

    What's On Board
    Mini Base Board (A) designed for CM 5, onboard components
    1. CM5 socket suitable for all variants of Compute Module 5
    2. 40PIN GPIO header for connecting various HAT / HAT+ modules
    3. Power input/Programming 5V / 5A power supply, or used for eMMC burning
    4. PCIe interface for connecting various PCIe expansion boards
    5. PSW Power button Long press to force power off, short press to soft power off or on
    6. STAT LED Dual-color status LED
    7. BOOT button Press before powering on and release after powering on to enter the burning mode
    8. Dual MIPI interfaces for connecting DSI displays and CSI cameras
    9. HDMI0 connector HDMI0 port, supports 4K output
    10. USB 3.2 Gen1 ports 2x USB 3.2 Gen1 high-speed ports, supports 5Gbps synchronous operation

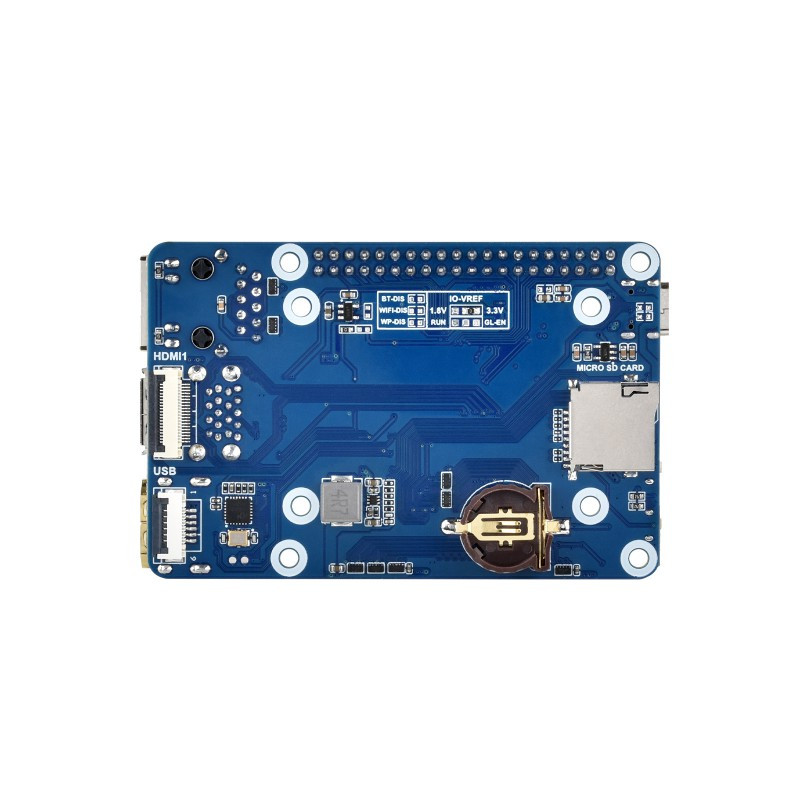

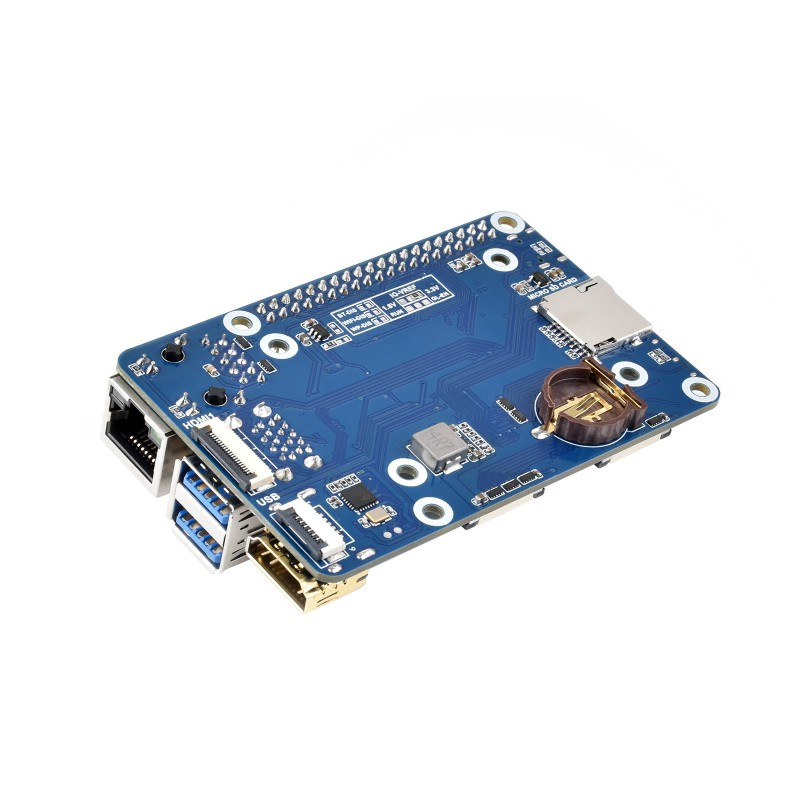

    1. RJ45 Gigabit Ethernet port Supports 10M / 100M / 1000M network access
    2. 4PIN JST-SH PWM Fan header for connecting cooling fan, 5V power supply
    3. TF card slot for connecting a TF card with pre-burnt image (Lite variant ONLY)
    4. IO-VREF selection CM5 IO logic level: 3.3V (default) or 1.8V
    5. Other function pins WIFI / BT hardware disable or write protection
    6. HDMI1 FFC connector HDMI1 port, supports 4K output, can be connected through an adapter
    7. USB 2.0 FFC connector can be connected through an adapter
    8. RTC battery holder Supports CR / ML1220 button cell
    Application example
    Mini Base Board (A) designed for CM 5, application example
    for reference only, the CM5,displays, and cameras are NOT included.
    Outline dimensions

    CM5-IO-BASE-A

    Mini Base Board (A) designed for CM 5, outline dimensions

    with metal case

    Mini Base Board (A) with metal case, outline dimensions
    Resources & Services
    WIKI:www.waveshare.com/wiki/CM5-IO-BASE-A

    * Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

  • Brand
    Waveshare
    Raktárkészlet
    VAN
    Cikkszám
    RPI-WS31231
    Státusz
    ÚJ

  • CM5-IO-BASE-A

    1. CM5-IO-BASE-A x1
    2. Screws pack x1
    1CM5-IO-BASE-A
    2

    CM5-IO-BASE-BOX-A

    1. CM5-IO-BASE-A x1
    2. Metal case (top and bottom) x1
    3. Antenna connector rubber plug x1
    4. EVA foam pad x1
    5. CM5-FAN-4010-5V x1
    6. Rail-mount buckle x1
    7. Screws pack x1
    8. Screwdriver x1
    9. OPTIONS 27W Power Supply x1
    CM5-IO-BASE-BOX-A
:
;
