Termék részletek
CM5 - Pi 5 adapterkártya Raspberry Pi 5-höz, Alternatív megoldás Raspberry Pi 5-höz, Beépített audio csatlakozó, Mikrofoncsatlakozás támogatása
CM5 - Pi 5 adapterkártya Raspberry Pi 5-höz, Alternatív megoldás Raspberry Pi 5-höz, Beépített audio csatlakozó, Mikrofoncsatlakozás támogatása
-

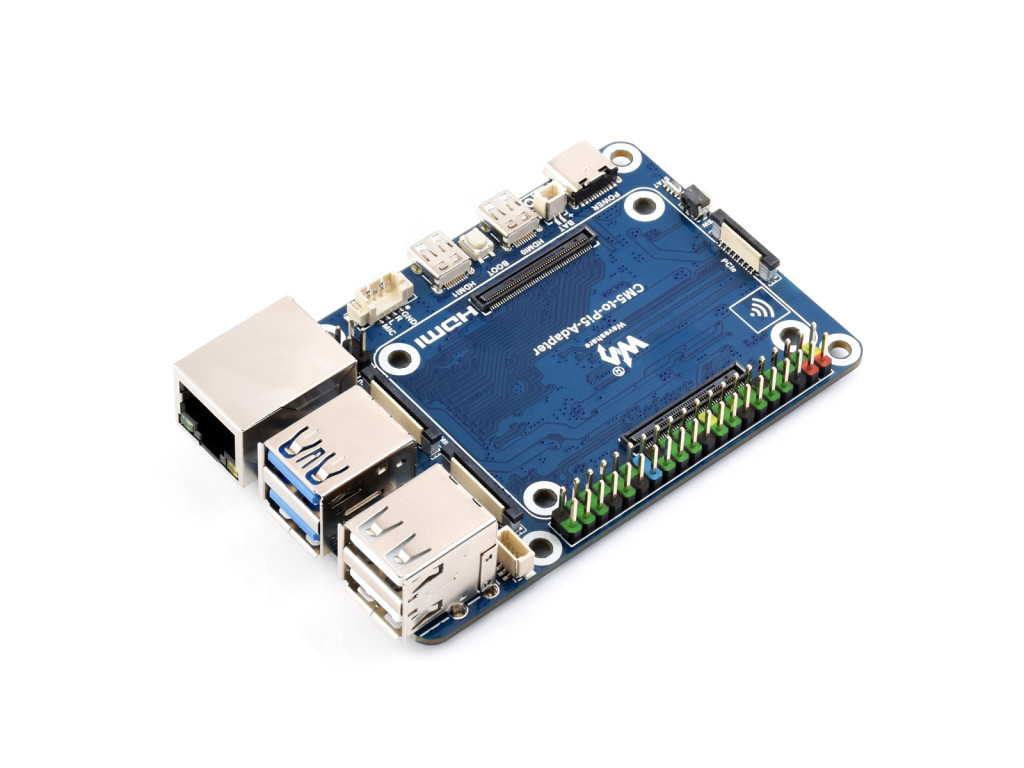

CM5 To Pi 5 Adapter Board For Raspberry Pi 5, Alternative Solution for Raspberry Pi 5, Onboard Audio Header, Supports Connecting To MicrophoneCM5 To Pi 5 Adapter Board
Designed for Raspberry Pi Compute Module 5
SpecificationsCM5 socket Suitable for all variants of Compute Module 5 Networking Gigabit Ethernet RJ45 port Connector 16PIN PCIe (PCIe Gen2/3 × 1)Raspberry Pi 40PIN GPIO header × 1 USB USB 3.2 Gen1 × 2; USB 2.0 × 2 MIPI MIPI 4-lane interface × 2 (22pin 0.5mm FPC connector) Video HDMI port × 2, supports dual 4K outputs Audio Onboard audio header, comes with an audio adapter for connecting 3.5mm headphone / microphone, enabling audio input and output Storage TF card socket for Compute Module 5 Lite (without eMMC) variants Fan Header 5V, 4PIN JST-SH PWM connector Power input DC 5V 5A Dimensions 85 × 56 (mm) Check the Compute Module 5variants
Based on the Raspberry Pi CM5Use CM5 to reproduce the original appearance of the Pi 5 as much as possible.Compatible with the interfaces of the Raspberry Pi 5
* for reference only, please refer to the package content for detailed part list.
Install CM5 EasilyOnboard 40 PIN GPIO header and Standard CM5 connectorSupports Access To Compute Module 5 Lite / eMMC Series Boards
* the CM5 is NOT included.

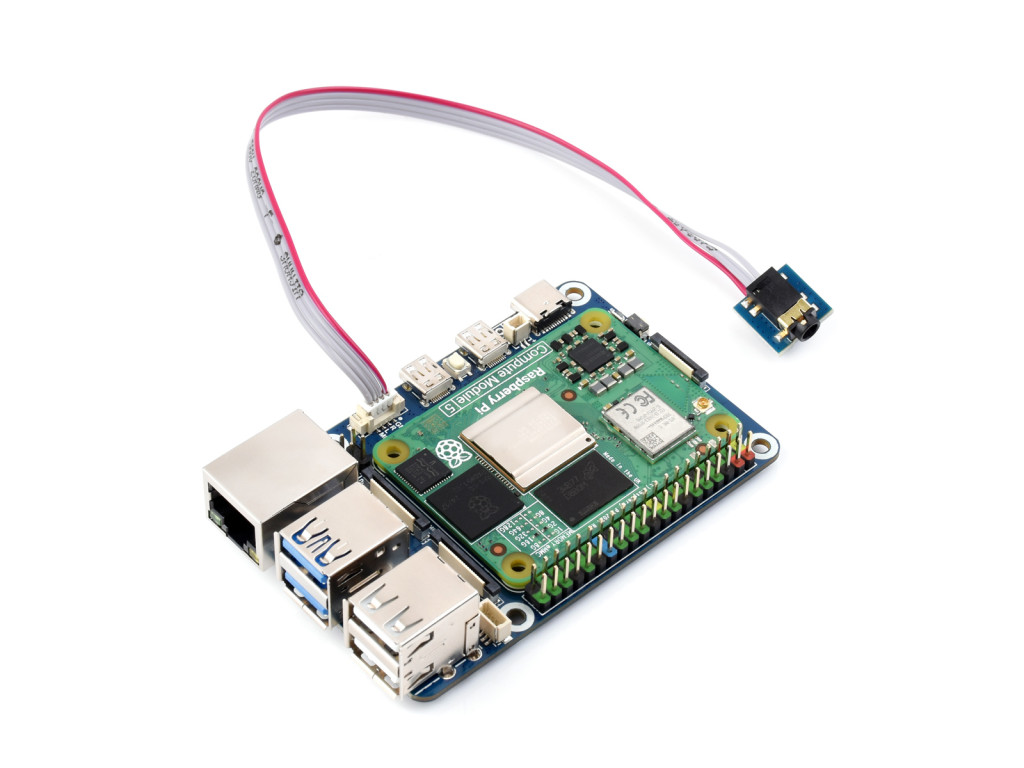

Onboard USB Audio Decoder ChipCompared to the Raspberry Pi 5, the CM5-to-Pi5-Adapter adds an audio header, supports microphone input
* for reference only, please refer to the package content for detailed part list.

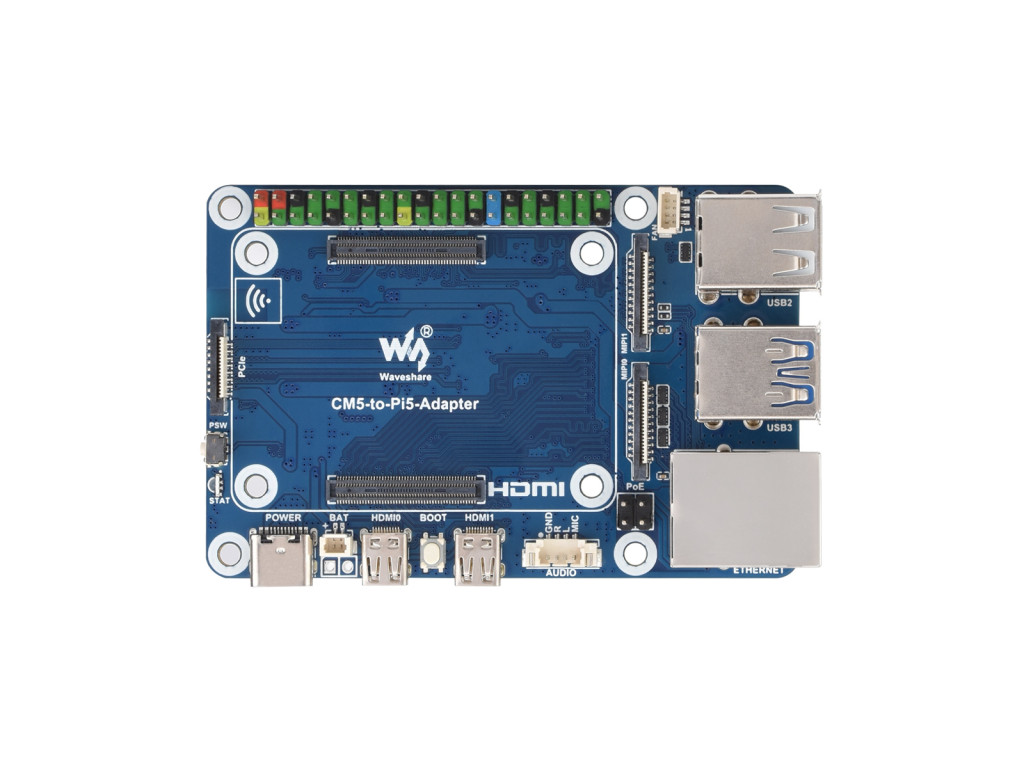

What's On Board
- CM5 socket Suitable for all variants of Compute Module 5
- 40PIN GPIO interface Suitable for connecting to various HAT / HAT+ modules
- Power supply / Programming 5V / 5A power supply, or used for eMMC burning
- STAT LED Dual-color LED indicator
- PSW power button Long press to force power off, short press to soft power off or on
- PCIe interface for connecting various PCIe expansion boards
- RTC battery header for connecting an external RTC battery to maintain real-time clock operation
- BOOT button Press before powering on and release after powering on to enter the burning mode
- Micro HDMI port × 2 supports 4k output
- Extended audio interface Expands audio header via USB, comes with an audio adapter for connecting 3.5mm headphone/Mic
- PoE 4PIN header for connecting to PoE module
- Dual MIPI interfacesfor connecting to DSI displays or CSI cameras
- 4PIN JST-SH PWM Fan header for connecting cooling fan, 5V power supply
- USB 2.0 port × 2
- USB 3.2 Gen1 port × 2Dual USB 3.2 Gen1 ports, supports simultaneous read and write, up to 5 Gbps speed.
- Gigabit Ethernet RJ45 port Supports 10M / 100M / 1000M network access

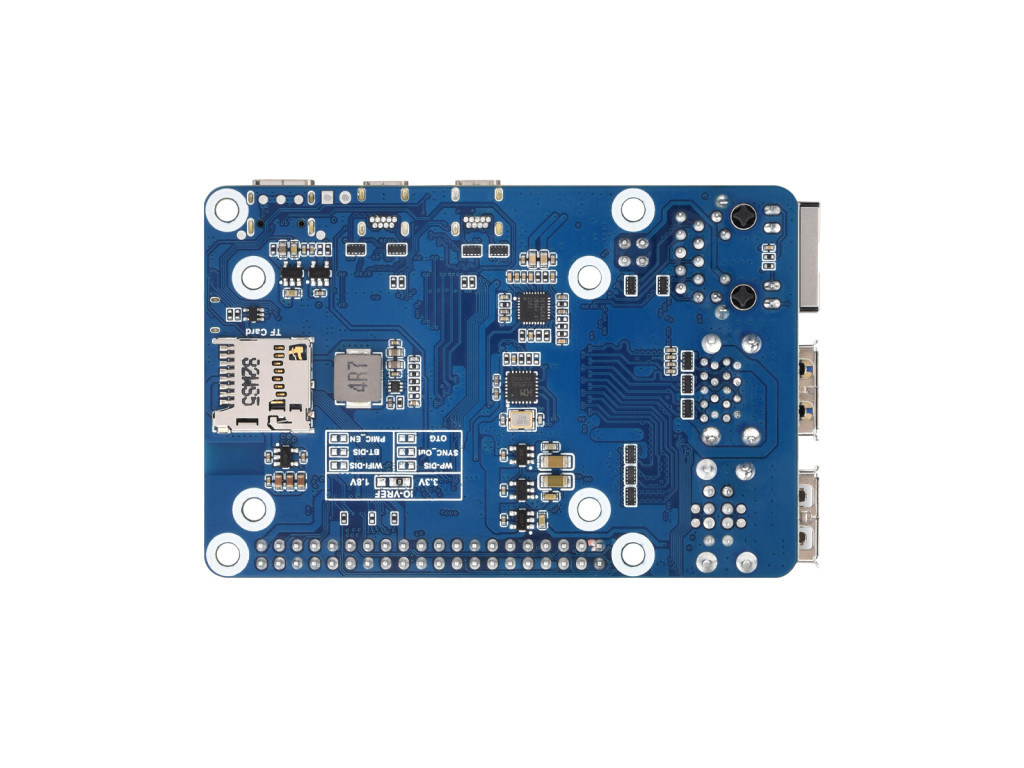

- TF card slot for connecting a TF card with pre-burnt image (Lite variant ONLY)
- IO-VREF selection CM5 IO logic level: 3.3V (default) or 1.8V
- Other function pins Hardware disable function or write protection
Outline dimensions
-
Brand WavesharePartNumber CM5-to-Pi5-AdapterRaktárkészlet VANCikkszám RPI-WS32049Státusz ÚJ
-
- CM5-to-Pi5-Adapter × 1
- Audio-Adapter × 1
- MX1.25 4PIN dual-plug cable ~200mm × 1
- Screws pack × 1
