ESP32-C6 2,06 hüvelykes AMOLED érintőképernyős fejlesztőkártya, 410×502 pixel, RISC-V 32 bites processzor, WiFi 6 / Bluetooth 5 / Zigbee támogatás, ESP32 kijelzővel

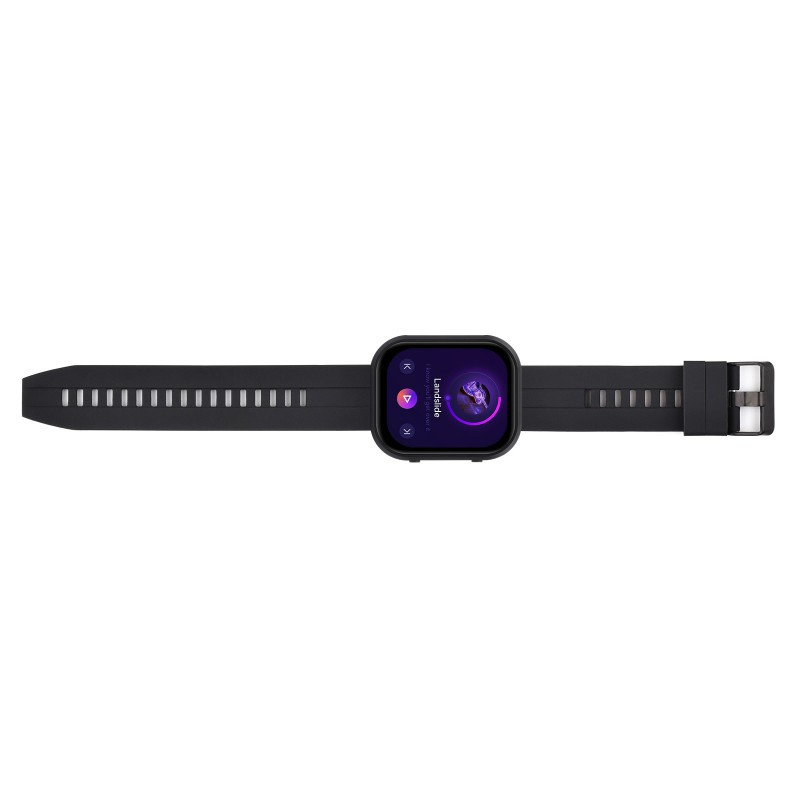

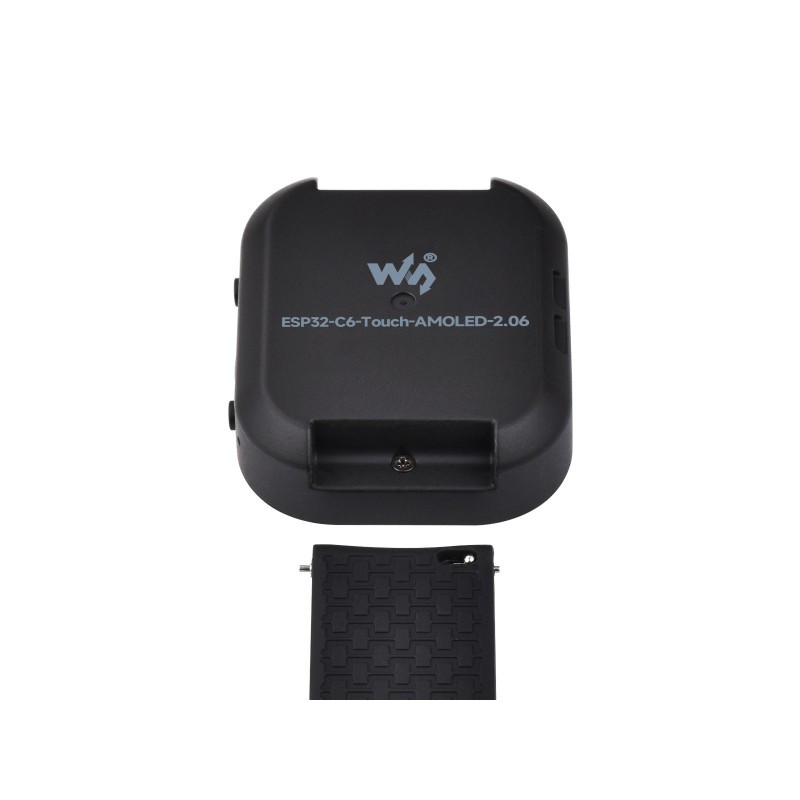

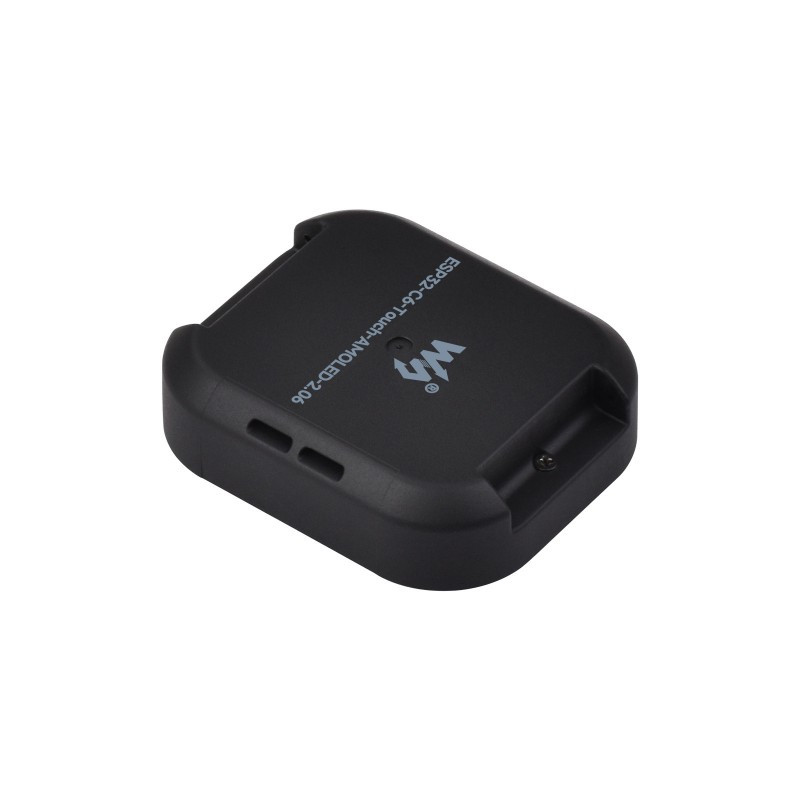

TheESP32-C6-Touch-AMOLED-2.06 is a high-performance, wearable watch-style development board designed by Waveshare. Based on the ESP32-C6 microcontroller, it integrates a 2.06inch AMOLED capacitive touch display, 6-axis IMU, RTC chip, audio codec chip, power management IC, and so on. Comes with a custom-designed case with a smartwatch-like appearance, making it ideal for prototyping and functional verification of wearable applications.

• Adopts ESP32-C6 module with RISC-V 32-bit processor, up to 160MHz frequency
• Integrated WiFi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance
• Built-in 512KB HP SRAM, 16KB LP SRAM, 320KB ROM, and 16MB Flash memory
• Type-C connector, improving device compatibility, easier to use

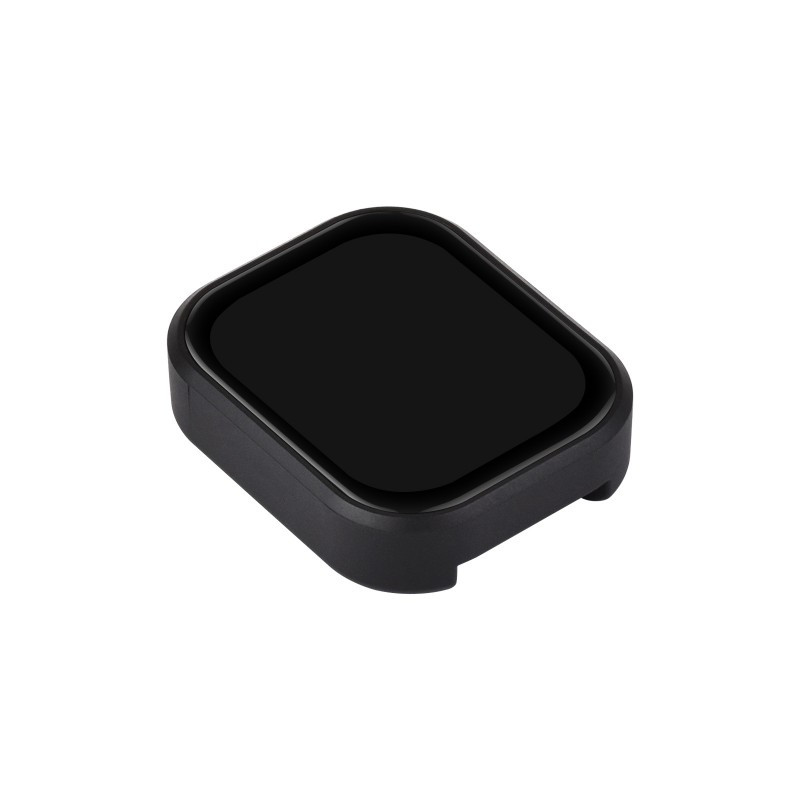

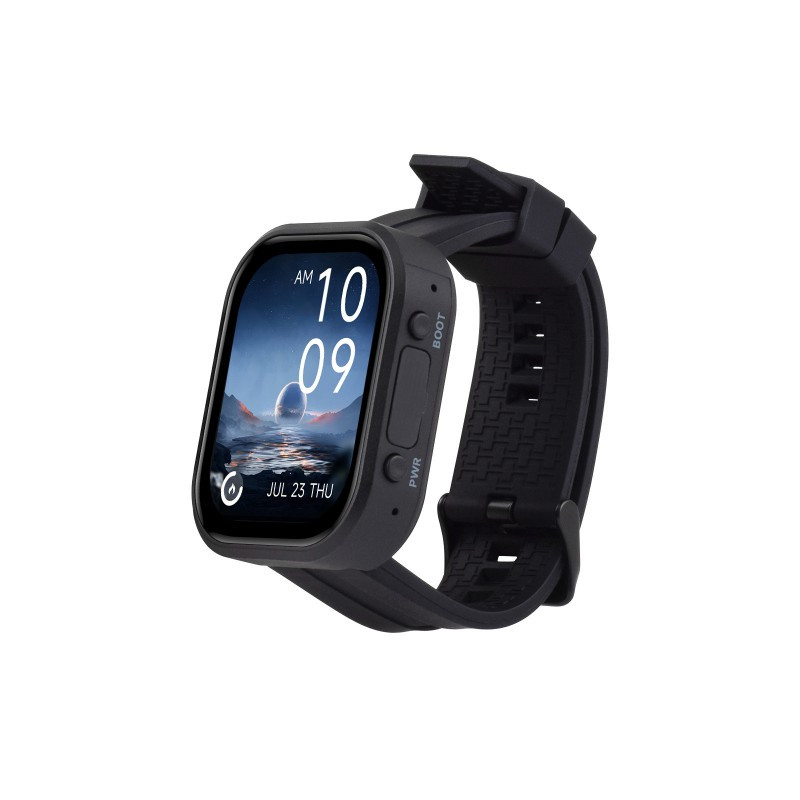

• Onboard 2.06inch AMOLED capacitive touch display for clear color picture display, 410 × 502 resolution, 16.7M color
• Built-in CO5300 display driver and FT3168 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources
• Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.
• Onboard PCF85063 RTC chip, powered by Lithium Batt. through AXP2101 chip for uninterrupted power supply

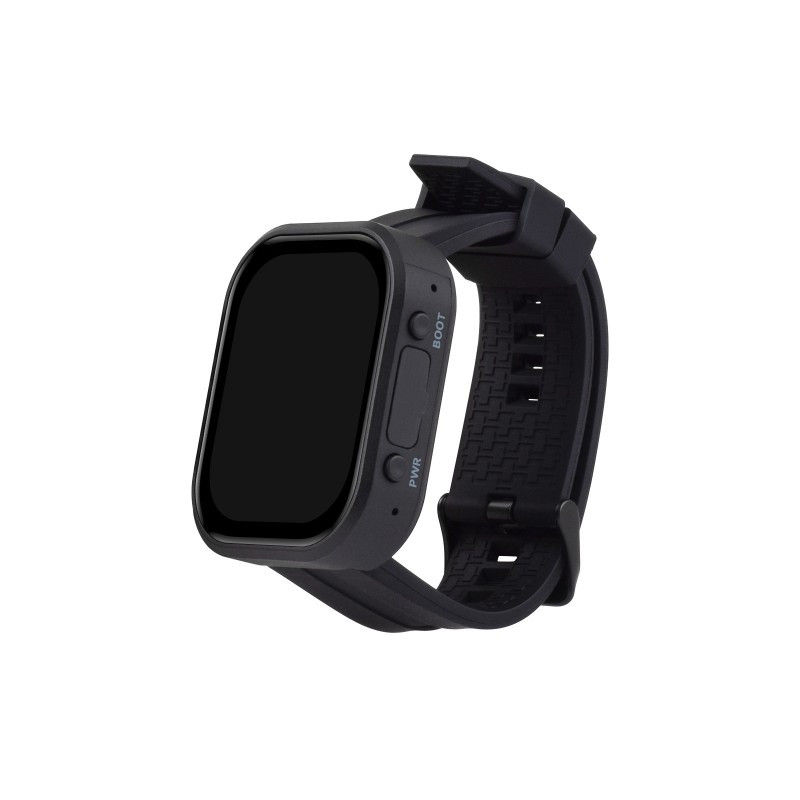

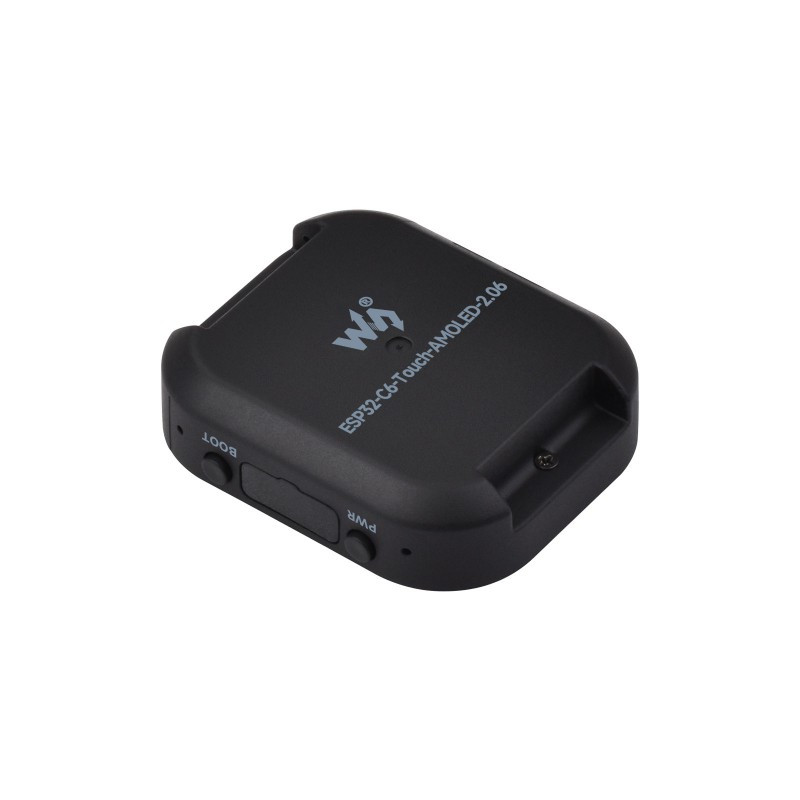

• Onboard PWR and BOOT programmable buttons for easy custom function development
• Onboard 3.7V MX1.25 Lithium Batt. recharge/discharge header
• Onboard reserved pads of 1 × I2C, 1 × UART and 1 × USB interfaces, for connecting peripherals and debugging
• Adopts AXP2101 IC for efficient power management, supports multiple voltage outputs, BATT charging, BATT management, and BATT life optimization, etc.
• Adopts AMOLED screen, featuring advantages of high contrast, wide viewing angle, rich colors, fast response, thinner design, and low power consumption, etc.
