ESP32-C6 1,83 inch érintőképernyős fejlesztőkártya, 240 × 284, beépített audiokodek chip, beépített mikrofonok és hangszóró, Wi-Fi 6 és BLE 5 támogatás

Raktárkészlet: VAN
ESP32-C6 1,83 inch érintőképernyős fejlesztőkártya, 240 × 284, beépített audiokodek chip, beépített mikrofonok és hangszóró, Wi-Fi 6 és BLE 5 támogatás
  • ESP32-C6 1,83 inch érintőképernyős fejlesztőkártya, 240 × 284, beépített audiokodek chip, beépített mikrofonok és hangszóró, Wi-Fi 6 és BLE 5 támogatás
  • ESP32-C6 1,83 inch érintőképernyős fejlesztőkártya, 240 × 284, beépített audiokodek chip, beépített mikrofonok és hangszóró, Wi-Fi 6 és BLE 5 támogatás
  • ESP32-C6 1,83 inch érintőképernyős fejlesztőkártya, 240 × 284, beépített audiokodek chip, beépített mikrofonok és hangszóró, Wi-Fi 6 és BLE 5 támogatás
  • ESP32-C6 1,83 inch érintőképernyős fejlesztőkártya, 240 × 284, beépített audiokodek chip, beépített mikrofonok és hangszóró, Wi-Fi 6 és BLE 5 támogatás
11 621 Ft + ÁFA | Bruttó:14 759 Ft
db Kosárba Kosárba
Árváltozás értesítő
ESP32-C6 1,83 hüvelykes érintőképernyős fejlesztőkártya, 240 × 284, beépített audiokodek chip, beépített mikrofonok és hangszóró, Wi-Fi 6 és BLE 5 támogatás
Részletek Adatok Csomag tartalma
  • ESP32-C6 1.83inch Touch Display Development Board, 240 × 284, Onboard Audio Codec Chip, Built-in Microphones And Speaker, Supports Wi-Fi 6 And BLE 5
    ESP32-C6 1.83inch Touch Displaydevelopment board

    Embedded with ST7789P Display Driver and CST816D Capacitive Touch Chip

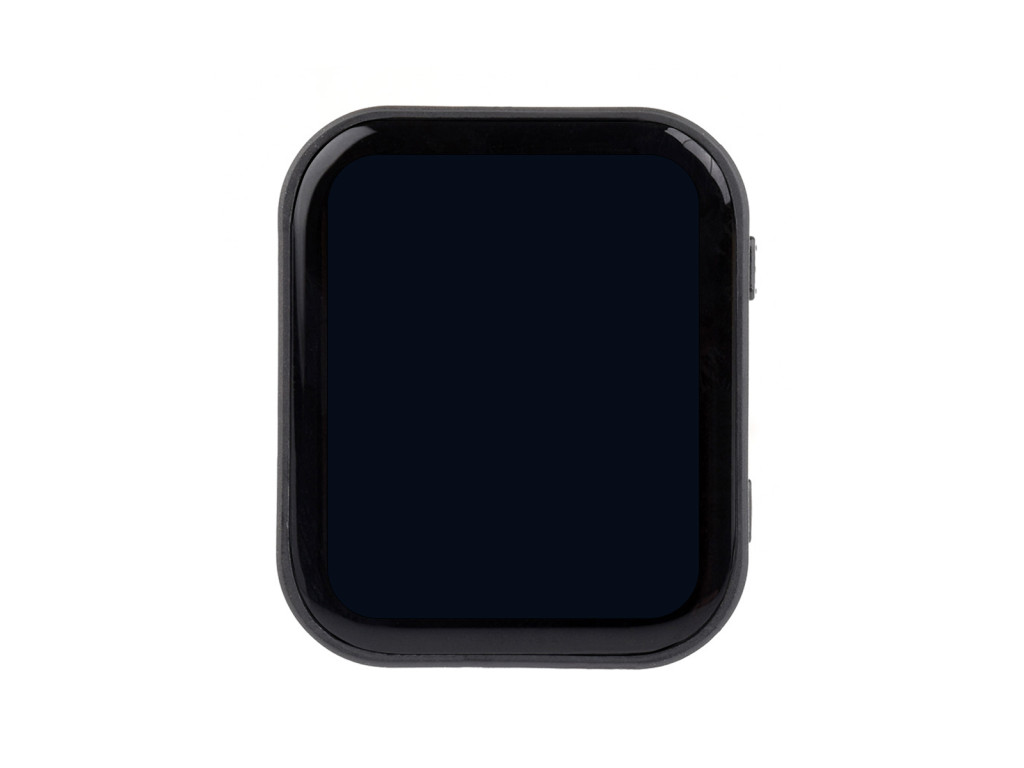

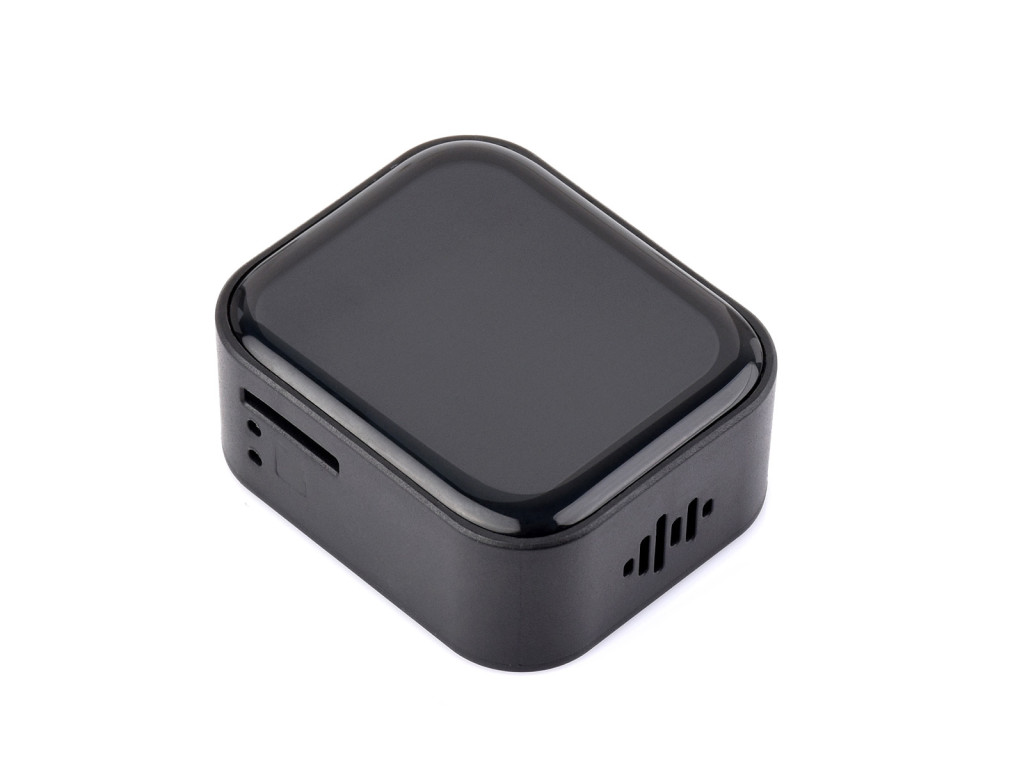

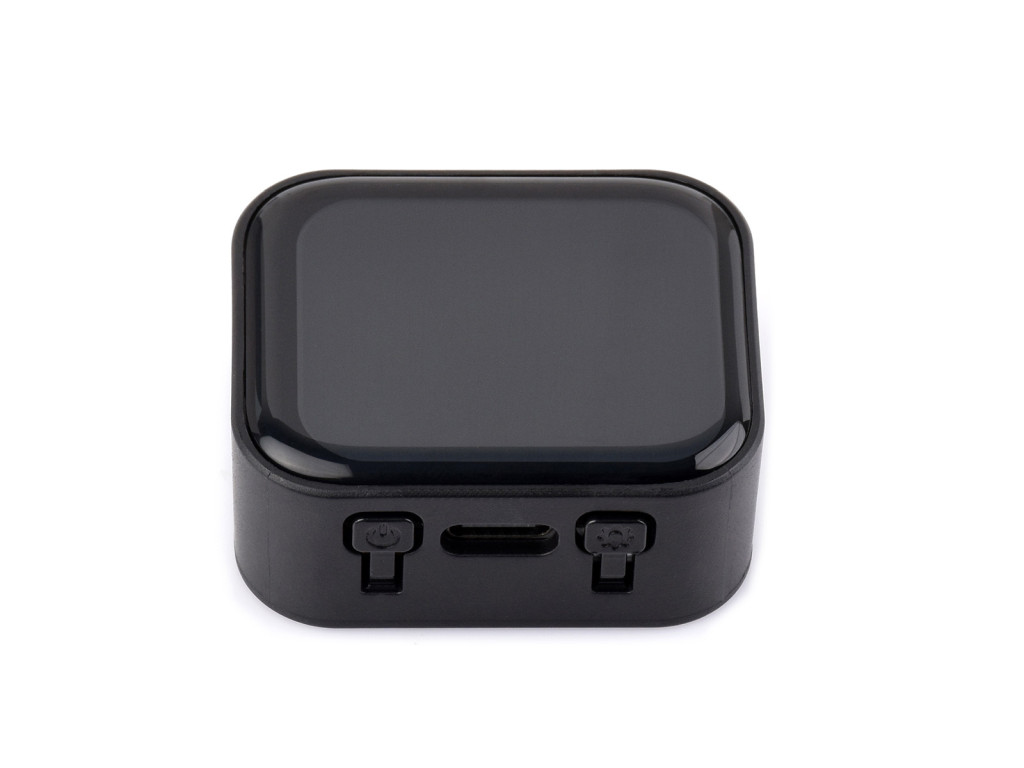

    ESP32-C6-Touch-LCD-1.83 Development Board, front viewESP32-C6-Touch-LCD-1.83 Development Board, features
    version options
    ESP32-C6-Touch-LCD-1.83-EN

    ESP32-C6-Touch-LCD-1.83-EN Standard version, without Lithium Batt.

    ESP32-C6-Touch-LCD-1.83

    ESP32-C6-Touch-LCD-1.83 Comes with a 3.7V Lithium Batt. (can be installed inside the case)

    Features

    ESP32-C6-Touch-LCD-1.83 is a low-cost, high-performance microcontroller development board designed by Waveshare. Tiny size with onboard 1.83inch capacitive LCD display, Lithium Batt. recharge chip, audio codec IC, 6-axis IMU (3-axis accelerometer and 3-axis gyroscope), RTC chip, and so on, specifically designed for the prototype development and function verification of wearable AI voice-interaction agent applications.

    Key features include:

    • Equipped with a high-performance RISC-V 32-bit processor with up to 160MHz operating frequency and a low-power RISC-V 32-bit processor with up to 20MHz operating frequency
    • Integrated Wi-Fi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance
    • Onboard 320KB ROM, 512KB HP Static RAM, 16KB LP Static RAM and external 16MB Flash memory
    • Type-C port, easier to use
    • Onboard 1.83inch capacitive touch display, 240 × 284 resolution, 65K color
    • Built-in ST7789P display driver and CST816D capacitive touch chip, using SPI and I2C communication respectively, effectively saving the IO resources
    • Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc
    • Onboard PCF85063 RTC chip, powered by Lithium batt. through AXP2101 chip for uninterrupted power supply
    • Onboard PWR and BOOT programmable buttons for easy custom function development
    • Onboard 3.7V MX1.25 Lithium Batt. recharge/discharge header
    • Equipped with dual microphone array with noise reduction and echo cancellation circuit, suitable for near/far-field wake-up
    • Onboard ES8311 audio codec chip, microphones, and speaker
    • Adapting GPIO, I2C, USB and UART pads for external devices connection and debugging, enabling flexible peripheral configuration
    • Supports accurate control such as flexible clock and independent module power setting to realize low power consumption in different scenarios
    • High touch screen transmittance, fast response and long lifetime
    LCD Specifications
    DISPLAY PANELIPSDISPLAY SIZE1.83inch
    Resolution240 × 284 pixelsColor65K
    Brightness300cd/㎡Contrast Ratio1200:1
    Communication InterfaceSPIDisplay DriverST7789P
    TouchSupportTouch ICCST816D
    Tiny size, Touch More Possibilities

    Suitable for various smart device development, enabling human-machine interaction function, supports connecting to a Batt. for independent operation

    ESP32-C6-Touch-LCD-1.83 Development Board, suitable for various smart device development
    IPS Display Panel

    Excellent display performance, wide viewing angle

    ESP32-C6-Touch-LCD-1.83 Development Board, IPS Display Panel
    Onboard audio codec chip

    Onboard ES8311 audio codec chip and ES7210 echo cancellation circuit to meet daily audio application scenarios

    ESP32-C6-Touch-LCD-1.83 Development Board, Onboard audio codec chip
    Supports AI Speech Interaction

    Allows access to online large model platforms such as DeepSeek, Doubao, etc

    ESP32-C6-Touch-LCD-1.83 Development Board, Supports Offline Speech recognition and AI Speech Interaction
    Supports ESP-IDF, Arduino IDE

    Comprehensive SDK, dev resources, tutorials to help you easily get started

    ESP32-C6 Touch LCD 1.83, supports ESP-IDFESP32-C6 Touch LCD 1.83, supports Arduino
    Wi-Fi 6 and BLE 5 support

    supports Wi-Fi 6, Bluetooth 5, and IEEE 802.15.4 (Zigbee 3.0 and Thread), Its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh

    ESP32-C6-Touch-LCD-1.83 Development Board, more powerful wireless connectivity capability
    Function Introduction
    ESP32-C6-Touch-LCD-1.83 Development Board, Function Introduction
    What's On Board

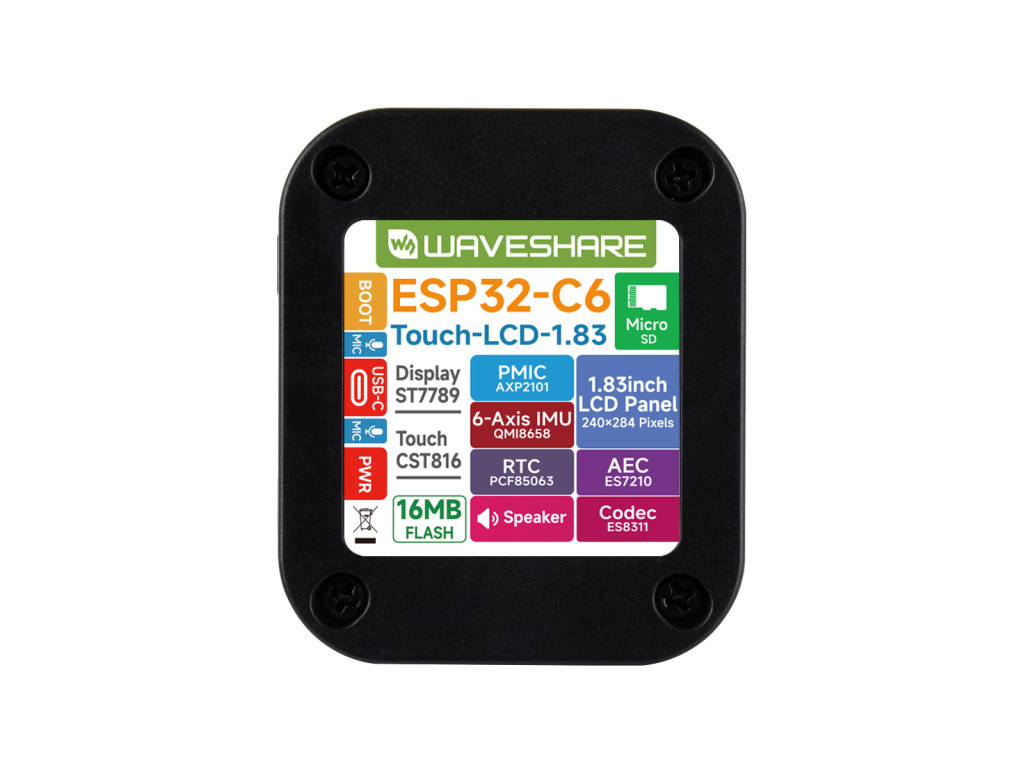

    ESP32-C6-Touch-LCD-1.83 Development Board, onboard resources
    1. ESP32-C6The SoC with Wi-Fi and Bluetooth, up to 160MHz operating frequency
    2. AXP2101Highly integrated power management IC
    3. ES8311Low-power audio codec IC
    4. ES7210ADC chip for echo cancellation circuits
    5. MX1.25 speaker headernon-polarized
    6. 1.2mm Lithium Batt. header 1.2mm 2PIN connector, for 3.7V Lithium Batt., supports charging and discharging (the Batt. with 6 × 25 × 25 mm dimensions is recommended for installation inside the case)
    7. Type-C portUSB port, for program burning and log printing
    8. 16MB NOR-Flashfor storing data
    1. Onboard dual microphones arrayMicrophone input and echo cancellation
    2. Onboard antennaSupports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE)
    3. Reserved GPIO padsAdapting available I/O function pins for easy expansion
    4. TF card slot
    5. BOOT buttonfor device startup and functional debugging
    6. PWR buttonlong press for 6s to shut down, short press to power on, supports custom functions
    7. 1.83inch display panel connector
    8. QMI86586-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer
    9. Speaker amplifier chip
    10. PCF85063RTC chip
    Pin Definition
    ESP32-C6-Touch-LCD-1.83, Pin Definition
    Outline dimensions
    ESP32-C6-Touch-LCD-1.83 Development Board, outline dimensions
    Resources & Services
    Wiki:www.waveshare.com/wiki/ESP32-C6-Touch-LCD-1.83
    ESP32 LCD Selection
    ModelCore Configurationdisplayonboard resourcesPeripheral interfaces
    CPUPSRAMFlashpixelsInterfaceDisplayTouchIMURTCTFSpeakermicbatteryheader
    AMOLED display
    ESP32-S3-Touch-AMOLED-2.41ESP32-S3R88MB16MB600 × 450QSPIRM690B0FT6336√√√--√I2C, UART, USB, 34PIN GPIO header
    ESP32-S3-Touch-AMOLED-2.41-BESP32-S3R88MB16MB600 × 450QSPIRM690B0FT6336√√√--√I2C, UART, USB, 34PIN GPIO header, with case
    ESP32-S3-Touch-AMOLED-2.06ESP32-S3R88MB32MB410 × 502QSPICO5300FT3168√√√√√√I2C, UART, and USB reserved pads
    ESP32-C6-Touch-AMOLED-2.06ESP32-C6-16MB410 × 502QSPICO5300FT3168√√-√√√I2C, UART, and USB reserved pads
    ESP32-S3-Touch-AMOLED-1.91ESP32-S3R88MB16MB240 × 536QSPIRM67162FT3168√-√--√40PIN header
    ESP32-S3-AMOLED-1.91ESP32-S3R88MB16MB240 × 536QSPIRM67162-√-√--√40PIN header
    ESP32-S3-Touch-AMOLED-1.8ESP32-S3R88MB16MB368 × 448QSPISH8601FT3168√√√√√√I2C, UART, GPIO pads
    ESP32-S3-Touch-AMOLED-1.75ESP32-S3R88MB16MB466 × 466QSPICO5300CST9217√√√√√√I2C, UART, USB, 8PIN headers (2.54mm pitch)
    ESP32-S3-Touch-AMOLED-1.75-BESP32-S3R88MB16MB466 × 466QSPICO5300CST9217√√√√√√I2C, UART, USB, 8PIN headers (2.54mm pitch)
    ESP32-S3-Touch-AMOLED-1.64ESP32-S3R88MB16MB280 × 456QSPICO5300FT3168√-√--√2 × 11PIN headers (2.54mm pitch)
    ESP32-C6-Touch-AMOLED-1.43ESP32-C6-16MB466 × 466QSPICO5300FT6146√√√√√√UART, I2C, 16PIN header (2.54mm pitch)
    ESP32-C6-Touch-AMOLED-1.43-BESP32-C6-16MB466 × 466QSPICO5300FT6146√√√√√√UART, I2C, 16PIN header (2.54mm pitch)
    ESP32-S3-Touch-AMOLED-1.43ESP32-S3R88MB16MB466 × 466QSPISH8601/C05300FT3168/FT6146√√√--√I2C, UART, USB, 2 × 14PIN headers
    ESP32-S3-Touch-AMOLED-1.43-BESP32-S3R88MB16MB466 × 466QSPISH8601/C05300FT3168/FT6146√√√--√I2C, UART, USB, 2 × 14PIN headers
    ESP32-C6-Touch-AMOLED-1.32ESP32-C6-16MB466 × 466QSPICO5300CST820---√√√SH1.0 12PIN header
    ESP32-S3-Touch-AMOLED-1.32ESP32-S3-PICO-1-N8R88MB8MB466 × 466QSPICO5300CST820---√√√SH1.0 12PIN header
    LCD display
    ESP32-Touch-LCD-3.5ESP32-D0WDR2-V32MB16MB320 × 480SPIST7796FT6336-√√√√√32PIN GPIO header
    ESP32-S3-Touch-LCD-3.5ESP32-S3R88MB16MB320 × 480SPIST7796FT6336√√√√√√32PIN GPIO header, camera interface
    ESP32-S3-Touch-LCD-3.5ESP32-S3R88MB16MB320 × 480SPIST7796FT6336√√√√√√32PIN GPIO header, camera interface
    ESP32-S3-Touch-LCD-3.5BESP32-S3R88MB16MB320 × 480QSPIAXS15231BAXS15231B√√√√√√32PIN GPIO header, camera interface
    ESP32-S3-Touch-LCD-3.5BESP32-S3R88MB16MB320 × 480QSPIAXS15231BAXS15231B√√√√√√32PIN GPIO header, camera interface
    ESP32-S3-Touch-LCD-3.49ESP32-S3R88MB16MB172 × 640QSPIAXS15231BAXS15231B√√√√√√22pin 2.54mm pitch pads
    ESP32-S3-Touch-LCD-3.49BESP32-S3R88MB16MB172 × 640QSPIAXS15231BAXS15231B√√√√√√22pin 2.54mm pitch pads
    ESP32-S3-LCD-3.16ESP32-S3R88MB16MB320 × 820RGBST7701-√√√--√I2C, UART, USB headers
    ESP32-S3-Touch-LCD-2.8ESP32-S3R88MB16MB240 × 320SPIST7789CST328√√√√-√I2C, UART, SH1.0 12PIN header
    ESP32-S3-LCD-2.8ESP32-S3R88MB16MB240 × 320SPIST7789-√√√√-√I2C, UART, SH1.0 12PIN header
    ESP32-S3-Touch-LCD-2.8BESP32-S3R88MB16MB480 × 640RGBST7701GT911√√√--√20PIN header
    ESP32-S3-LCD-2.8BESP32-S3R88MB16MB480 × 640RGBST7701-√√√--√20PIN header
    ESP32-S3-Touch-LCD-2.8CESP32-S3R88MB16MB480 × 480RGBST7701GT911√√√--√I2C, UART, SH1.0 12PIN header
    ESP32-S3-LCD-2.8CESP32-S3R88MB16MB480 × 480RGBST7701-√√√--√I2C, UART, SH1.0 12PIN header
    ESP32-S3-Touch-LCD-2.1ESP32-S3R88MB16MB480 × 480RGBST7701CST820√√√--√I2C, UART, SH1.0 12PIN header
    ESP32-S3-Touch-LCD-2.1BESP32-S3R88MB16MB480 × 480RGBST7701CST820√√√--√I2C, UART, SH1.0 12PIN header
    ESP32-S3-Touch-LCD-2ESP32-S3R88MB16MB240 × 320SPIST7789T3CST816√-√--√28PIN header, camera interface
    ESP32-S3-LCD-2ESP32-S3R88MB16MB240 × 320SPIST7789T3-√-√--√28PIN header, camera interface
    ESP32-S3-Touch-LCD-1.9ESP32-S3R88MB16MB170 × 320SPIST7789CST816√-√--√40PIN header, compatible with Pico header
    ESP32-S3-LCD-1.9ESP32-S3R88MB16MB170 × 320SPIST7789-√-√--√40PIN header, compatible with Pico header
    ESP32-C6-Touch-LCD-1.9ESP32-C6FH8-8MB170 × 320SPIST7789CST816√-√--√40PIN header, compatible with Pico header
    ESP32-C6-LCD-1.9ESP32-C6FH8-8MB170 × 320SPIST7789-√-√--√40PIN header, compatible with Pico header
    ESP32-S3-Touch-LCD-1.85CESP32-S3R88MB16MB360 × 360QSPIST77916CST816-√√√√√I2C, UART, 2×14PIN header (1.27mm pitch)
    ESP32-S3-Touch-LCD-1.85C-BOXESP32-S3R88MB16MB360 × 360QSPIST77916CST816-√√√√√I2C, UART, 2×14PIN header (1.27mm pitch)
    ESP32-S3-Touch-LCD-1.85ESP32-S3R88MB16MB360 × 360QSPIST77916CST816√√√√√√I2C, UART, GPIO pads
    ESP32-S3-LCD-1.85ESP32-S3R88MB16MB360 × 360QSPIST77916-√√√√√√I2C, UART, GPIO pads
    ESP32-S3-Touch-LCD-1.83ESP32-S3R88MB16MB240 × 284SPIST7789PCST816D√√√√√√Reserved I2C, UART, USB pads
    ESP32-C6-Touch-LCD-1.83ESP32-C6-16MB240 × 284SPIST7789PCST816D√√√√√√Reserved I2C, UART, USB pads
    ESP32-C6-Touch-LCD-1.69ESP32-C6-16MB240 × 280SPIST7789V2CST816T√√-√√√Reserved USB, I2C, UART, and GPIO pads
    ESP32-C6-LCD-1.69ESP32-C6-16MB240 × 280SPIST7789V2-√√-√√√Reserved USB, I2C, UART, and GPIO pads
    ESP32-S3-Touch-LCD-1.69ESP32-S3R88MB16MB240 × 280SPIST7789CST816√√---√I2C, UART, GPIO pads
    ESP32-S3-LCD-1.69ESP32-S3R88MB16MB240 × 280SPIST7789-√√---√SH1.0 12PIN header
    ESP32-S3-Touch-LCD-1.47ESP32-S3R88MB16MB172 × 320SPIJD9853AXS5106L--√--√22PIN header
    ESP32-S3-LCD-1.47ESP32-S3R88MB16MB172 × 320SPIST7789---√---18PIN header
    ESP32-S3-LCD-1.47BESP32-S3R88MB16MB172 × 320SPIST7789-√-√--√18PIN header
    ESP32-C6-Touch-LCD-1.47ESP32-C6FH8-8MB172 × 320SPIJD9853AXS5106L√-√--√22PIN header
    ESP32-C6-LCD-1.47ESP32-C6FH8-8MB172 × 320SPIST7789---√---18PIN header
    ESP32-S3-Touch-LCD-1.46BESP32-S3R88MB16MB412 × 412QSPISPD2010SPD2010√√√√√√20pin GPIO header
    ESP32-S3-Touch-LCD-1.46ESP32-S3R88MB16MB412 × 412QSPISPD2010SPD2010√√√√√√20pin GPIO header
    ESP32-S3-LCD-1.3ESP32-S3R88MB16MB240 × 240SPIST7789-√-√--√2.54mm 13PIN header
    ESP32-S3-LCD-1.3-BESP32-S3R88MB16MB240 × 240SPIST7789-√-√--√2.54mm 13PIN header, with case
    ESP32-S3-LCD-1.3-CESP32-S3R88MB16MB240 × 240SPIST7789-√-√--√2.54mm 13PIN header, with case and prism cube
    ESP32-S3-Touch-LCD-1.28ESP32-S3R22MB16MB240 × 240SPIGC9A01ACST816√----√SH1.0 12PIN header
    ESP32-S3-LCD-1.28ESP32-S3R22MB16MB240 × 240SPIGC9A01A-√----√2 × 20PIN header (1.27mm pitch)
    ESP32-C3-LCD-0.71ESP32-C3FH4-4MB160 × 160SPIGC9D01------√12PIN GPIO pads
    ESP32-S3-GEEKESP32-S3R22MB16MB240 × 135SPIGC9A01A---√---I2C, UART, GPIO
  • Brand
    Waveshare
    PartNumber
    ESP32-C6-Touch-LCD-1.83
    Raktárkészlet
    VAN
    Cikkszám
    RPI-WS32793
  • * the 3.7V Lithium Batt. is optional.
    1. ESP32-C6-Touch-LCD-1.83 host x1
    2. OPTIONAL Lithium Batt. x1
    1ESP32-C6-Touch-LCD-1.83
    2Lithium Batt.
:
;
