ESP32-P4-NANO Nagy teljesítményű fejlesztőkártya, ESP32-P4 chip, RISC-V kétmagos és egymagos processzorokkal, Wi-Fi 6 és Bluetooth 5/BLE támogatással, PoE adapterrel és hangszóróval

Raktárkészlet: NINCS
ESP32-P4-NANO Nagy teljesítményű fejlesztőkártya, ESP32-P4 chip, RISC-V kétmagos és egymagos processzorokkal, Wi-Fi 6 és Bluetooth 5/BLE támogatással, PoE adapterrel és hangszóróval
  • ESP32-P4-NANO Nagy teljesítményű fejlesztőkártya, ESP32-P4 chip, RISC-V kétmagos és egymagos processzorokkal, Wi-Fi 6 és Bluetooth 5/BLE támogatással, PoE adapterrel és hangszóróval
  • ESP32-P4-NANO Nagy teljesítményű fejlesztőkártya, ESP32-P4 chip, RISC-V kétmagos és egymagos processzorokkal, Wi-Fi 6 és Bluetooth 5/BLE támogatással, PoE adapterrel és hangszóróval
  • ESP32-P4-NANO Nagy teljesítményű fejlesztőkártya, ESP32-P4 chip, RISC-V kétmagos és egymagos processzorokkal, Wi-Fi 6 és Bluetooth 5/BLE támogatással, PoE adapterrel és hangszóróval
  • ESP32-P4-NANO Nagy teljesítményű fejlesztőkártya, ESP32-P4 chip, RISC-V kétmagos és egymagos processzorokkal, Wi-Fi 6 és Bluetooth 5/BLE támogatással, PoE adapterrel és hangszóróval
13 372 Ft + ÁFA | Bruttó:16 982 Ft
Nincs raktáron
Készletértesítő
ESP32-P4-NANO Nagy teljesítményű fejlesztőkártya, ESP32-P4 chipre épülve, RISC-V kétmagos és egymagos processzorokkal, Wi-Fi 6 és Bluetooth 5/BLE támogatással
Részletek Adatok Csomag tartalma
  • ESP32-P4-NANO High-performance Development Board, Based On ESP32-P4 Chip With RISC-V Dual-core And Single-core Processors, Supports Wi-Fi 6 And Bluetooth 5/BLE

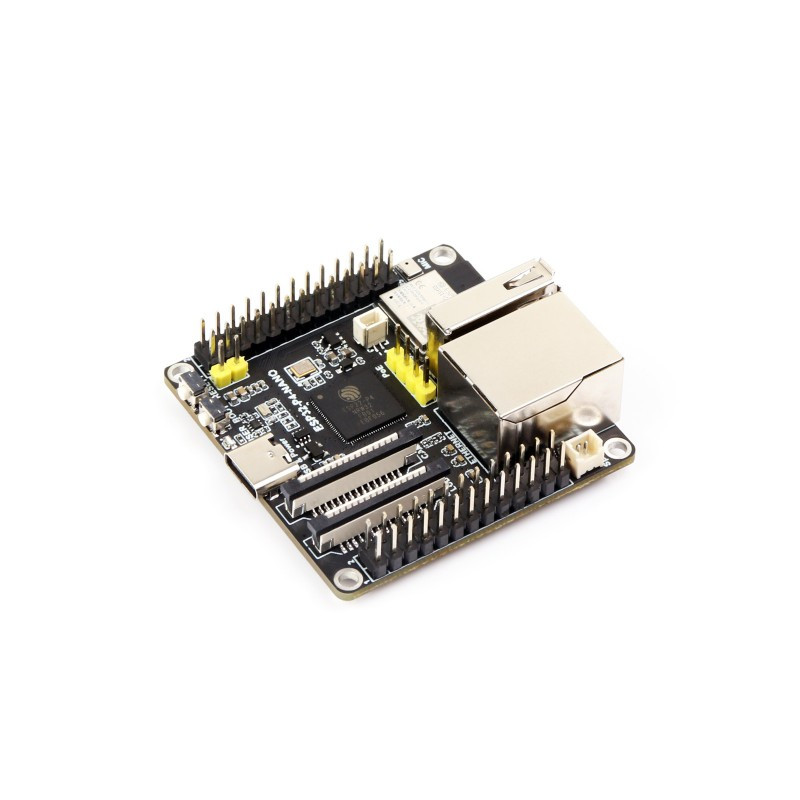

    ESP32-P4-NANO Development Board

    Based on ESP32-P4 chip with RISC-V dual-core and single-core processors

    Rich Human-machine Interfaces

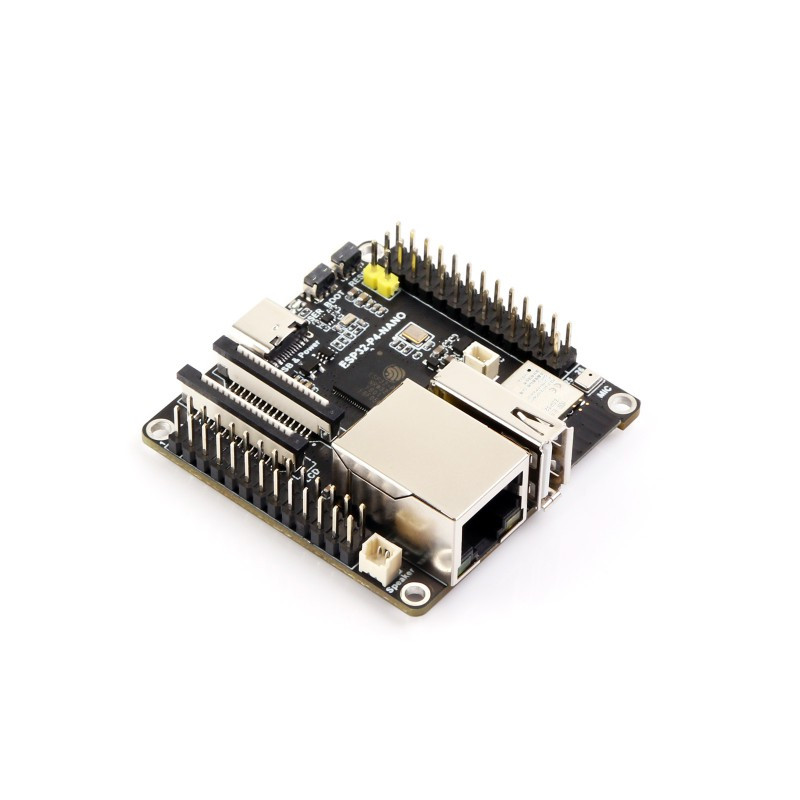

    ESP32-P4-NANO development board, front viewESP32-P4-NANO development board, features
    Kit Selection
    ESP32-P4-NANO development board, basic kit
    ESP32-P4-NANO development board, kit A
    ESP32-P4-NANO development board, kit B
    ESP32-P4-NANO development board, kit C
    ESP32-P4-NANO development board, kit D
    Kit Connection Examples
    ESP32-P4-NANO development board, kit connection examplesESP32-P4-NANO development board, kit connection examples
    10.1″ DSI Capacitive Touch Display

    IPS Screen, Optical Bonding Toughened Glass Panel, 800×1280 Resolution, With 178° Wide Viewing Angle. Supports 10-Point Touch, provides clear image and excellent visual experience

    10.1″ DSI touch display, capacitive touch
    Resolution800 × 1280 (H×V)Outline Dimension147.0 × 239.0 (mm)
    Communication InterfaceMIPI 2-lane (supports ESP32-P4, RK3576, RK3506)Display area135.36 × 216.58 (mm)
    MIPI 4-lane (only RK3576 can support)Pixel pitch0.1692 (H) × 0.1692 (V) (mm)
    Brightness400cd/m² (supports customization for 1000cd/m² high brightness version)Contrast ratio800:1
    Touch ChipGT9271Operation temperature0℃~60℃

    * the 10.1inch DSI LCD is only included in the ESP32-P4-NANO-KIT-D

    Raspberry Pi Camera (B)

    5MP | Manual Focus

    Compatible with Raspberry Pi series boards

    Raspberry Pi Camera (B) front view
    SensorOV5647CMOS size1/4inch
    PIXELS5MPApertureF2.0
    Focal length6mmField of view60.6°
    Night Vision functionNot supportFOCUSINGManual Focus
    Development Board Introduction

    This product is a high-performance development board based on the ESP32-P4 chip with RISC-V dual-core and single-core processors, and features rich Human-Machine Interfaces, including MIPI-CSI (with integrated Image Signal Processor) and MIPI-DSI interface. It supports a comprehensive range of commonly used peripherals including SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, and TWAI. Additionally, it offers support for USB OTG 2.0 HS, Ethernet, and SDIO Host 3.0, facilitating high-speed connectivity.

    The ESP32-P4 chip integrates the Digital Signature Peripheral and a dedicated Key Management Unit, ensuring secure data and operations. Specifically designed for high-performance and high-security applications, the ESP32-P4-NANO meets the advanced requirements of Human-Machine Interfaces, efficient edge computing, and increased IO-connectivity.

    Key features include:

    • High-performance MCU with RISC-V 32-bit dual-core and single-core processors
    • 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP SRAM, 8 KB TCM
    • Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder
    • 32MB PSRAM in the chip's package, with onboard 16MB Nor Flash
    • Commonly used peripherals such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0 TF card slot, microphone, speaker header and RTC battery header, etc.
    • Adtaping 2*2*13 GPIO headers with 28 x programmable GPIOs
    • Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege Separation
    Highly integrated and powerful performance

    Adopts ESP32-P4 high-performance MCU

    ESP32-P4-NANO development board, high-performance MCU
    WiFi 6 and Bluetooth module

    Onboard ESP32-C6-MINI module to extend 2.4GHz Wi-Fi 6 and Bluetooth 5/BLE for ESP32-P4, using SDIO interface protocol for communication, stable connection and efficient transmission.

    ESP32-P4-NANO development board, supports WiFi 6 and Bluetooth
    Reserved PoE Module Header

    More Flexible for Power Supply

    ESP32-P4-NANO development board, onboard reserved PoE module header
    optional for PoE Module, Supports PoE Power Supply

    Provides Both Network Connection And Power Supply for ESP32-P4-NANO board In Only One Ethernet Cable

    ESP32-P4-NANO development board, optional for PoE Module
    ESP32-P4-NANO development board, supports PoE power supply

    * the PoE module is optional, and the switch in the picture above is NOT included.

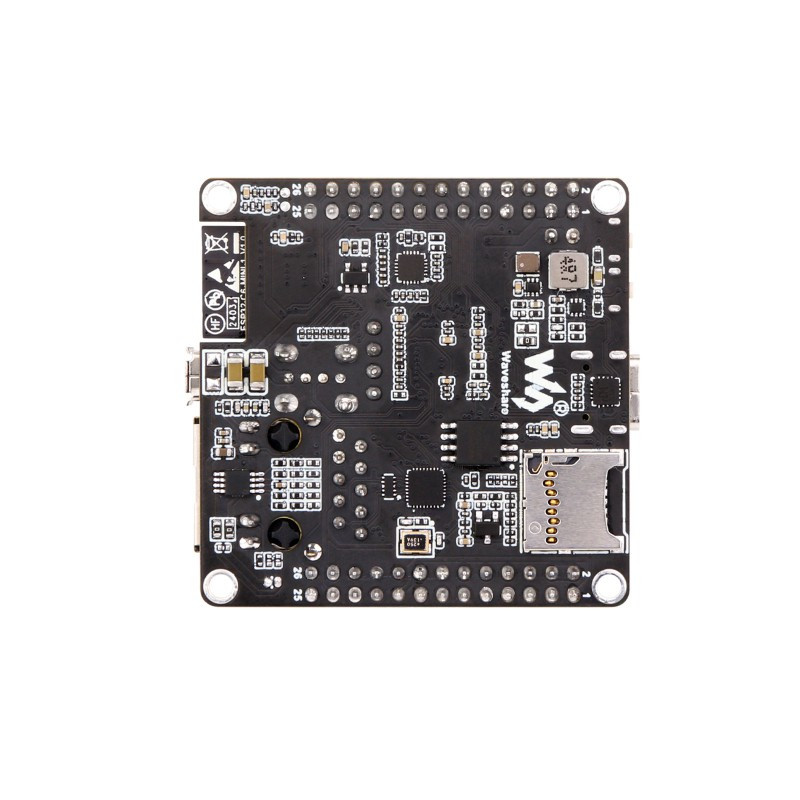

    What's On Board

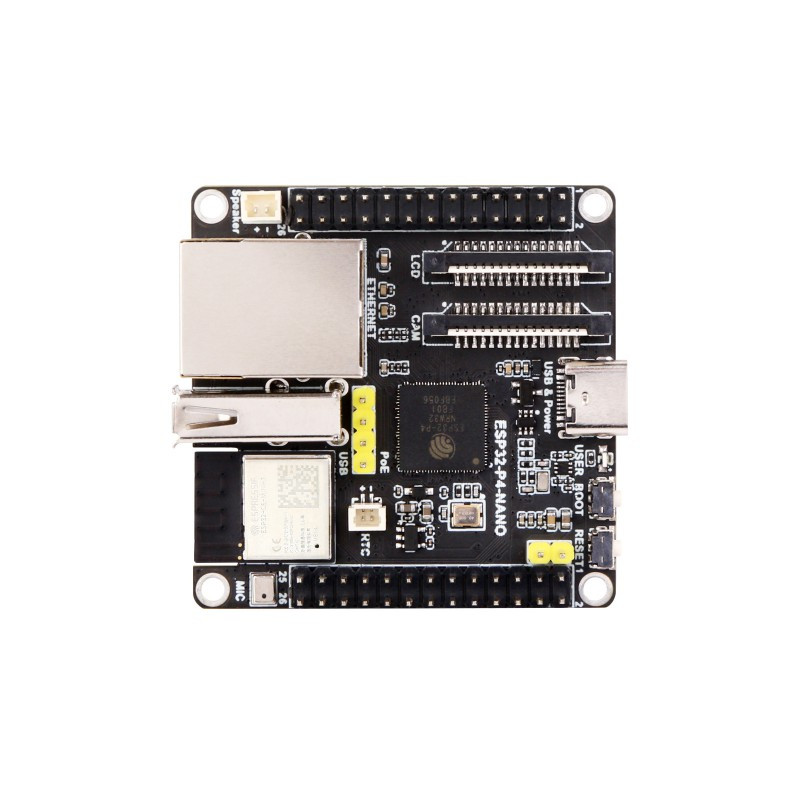

    ESP32-P4-NANO development board, onboard components
    1. ESP32-P4NRW32 ESP32-P4 chip with 32MB PSRAM
    2. ESP32-C6-MINI-1 SDIO interface protocol, extending Wi-Fi 6 and Bluetooth 5 for ESP32-P4-NANO
    3. Display interface MIPI 2-lane
    4. Camera interface MIPI 2-lane
    5. USB Type-C connector for power supply, program burning and debugging
    6. USER-LED Power supply indicator
    7. BOOT button Press it when powering on or resetting to enter download mode
    8. RESET button
    1. PoE module / external power supply header for connecting external 5V power supply or PoE module power supply
    2. RTC battery headerfor connecting rechargeable RTC battery (supports rechargeable RTC batteries only)
    3. Onboard microphone
    4. PoE module header
    5. Type-A Port USB OTG 2.0 High Speed port
    6. RJ45 100M Ethernet port
    7. Speaker header MX1.25 2P connector, supports 8Ω 2W speaker
    8. GPIO header
    9. TF card slot SDIO 3.0 interface protocol
    Pin definition
    ESP32-P4-NANO development board, pin definition
    outline dimensions
    ESP32-P4-NANO development board, outline dimensions
    Resources & Services
    Wiki:www.waveshare.com/wiki/ESP32-P4-NANO
  • Brand
    Waveshare
    PartNumber
    ESP32-P4-NANO-KIT-B
    Raktárkészlet
    NINCS
    Cikkszám
    RPI-WS29028

  • ESP32-P4-NANO

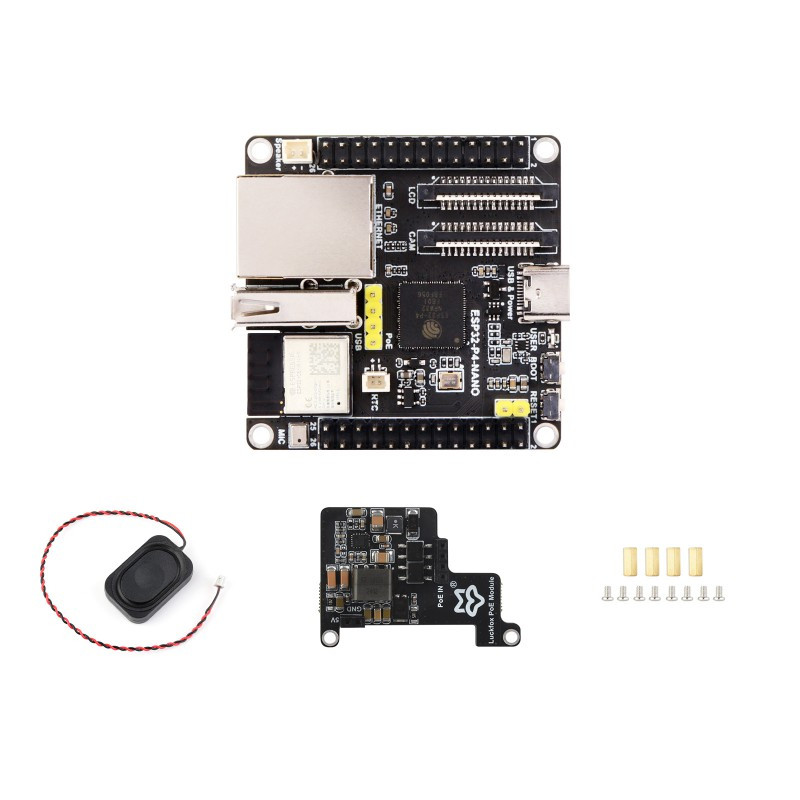

    1. ESP32-P4-NANO x1
    2. 8Ω 2W speaker x1
    1ESP32-P4-NANO
    2

    ESP32-P4-NANO-KIT-A

    1. ESP32-P4-NANO x1
    2. RPi Camera (B)x1
    3. 8Ω 2W speaker x1
    4. FFC 15PIN cable x1
    1ESP32-P4-NANO
    2
    3
    4

    ESP32-P4-NANO-KIT-B

    1. ESP32-P4-NANO x1
    2. PoE module x1
    3. 8Ω 2W speaker x1
    4. Screws pack x1
    1ESP32-P4-NANO
    2
    3
    4

    ESP32-P4-NANO-KIT-C

    1. ESP32-P4-NANO x1
    2. PoE module x1
    3. 8Ω 2W speaker x1
    4. FFC 15PIN cable x1
    5. RPi Camera (B)x1
    6. Screws pack x1
    ESP32-P4-NANO-KIT-C

    ESP32-P4-NANO-KIT-D

    1. 10.1inch DSI LCD x1
    2. ESP32-P4-NANO x1
    3. PoE module x1
    4. Standoffs x1
    5. Screws pack x1
    6. USB Type-A dual-plug cable x1
    7. USB Type-A to Type-C cable ~1m x1
    8. RPi Camera (B)x1
    9. MIPI-DSI-Cable x1
    10. MX1.25 2PIN to MX1.25 4PIN cable x1
    11. FFC 15PIN cable x1
    12. FFC 22PIN cable x2
    13. MX 1.25 2PIN to 2.54 3PIN cable x1
    14. 8Ω 2W speaker x1
    ESP32-P4-NANO-KIT-D
:
;
