Ipari 8 csatornás ESP32-S3 WiFi relé modul, beépített, leválasztott RS485 interfész, beépített Xtensa 32 bites LX7 kétmagos processzor, többszörös leválasztó védelmi áramkörökkel, 8 digitális bemenettel

Raktárkészlet: VAN
Ipari 8 csatornás ESP32-S3 WiFi relé modul, beépített, leválasztott RS485 interfész, beépített Xtensa 32 bites LX7 kétmagos processzor, többszörös leválasztó védelmi áramkörökkel, 8 digitális bemenettel
  • Ipari 8 csatornás ESP32-S3 WiFi relé modul, beépített, leválasztott RS485 interfész, beépített Xtensa 32 bites LX7 kétmagos processzor, többszörös leválasztó védelmi áramkörökkel, 8 digitális bemenettel
  • Ipari 8 csatornás ESP32-S3 WiFi relé modul, beépített, leválasztott RS485 interfész, beépített Xtensa 32 bites LX7 kétmagos processzor, többszörös leválasztó védelmi áramkörökkel, 8 digitális bemenettel
  • Ipari 8 csatornás ESP32-S3 WiFi relé modul, beépített, leválasztott RS485 interfész, beépített Xtensa 32 bites LX7 kétmagos processzor, többszörös leválasztó védelmi áramkörökkel, 8 digitális bemenettel
  • Ipari 8 csatornás ESP32-S3 WiFi relé modul, beépített, leválasztott RS485 interfész, beépített Xtensa 32 bites LX7 kétmagos processzor, többszörös leválasztó védelmi áramkörökkel, 8 digitális bemenettel
21 226 Ft + ÁFA | Bruttó:26 957 Ft
db Kosárba Kosárba
Árváltozás értesítő
Ipari 8 csatornás ESP32-S3 WiFi relé modul, beépített, leválasztott RS485 interfész, beépített Xtensa 32 bites LX7 kétmagos processzor, akár 240 MHz-ig, többszörös leválasztó védelmi áramkörökkel
Részletek Adatok Csomag tartalma
  • Industrial 8-Channel ESP32-S3 WiFi Relay Module, Onboard isolated RS485 interface, Built-in Xtensa 32-bit LX7 Dual-core Processor, Up To 240MHz, With Multiple Isolation Protection Circuits
    Industrial 8-Ch ESP32-S3 WiFi Relay Module

    Based on ESP32-S3, Supports WiFi / Bluetooth

    Onboard Digital input, RS485, and ethernet port interfaces. Built-in protection circuits such as power isolation and optocoupler isolation, Safe & Stable & Reliable

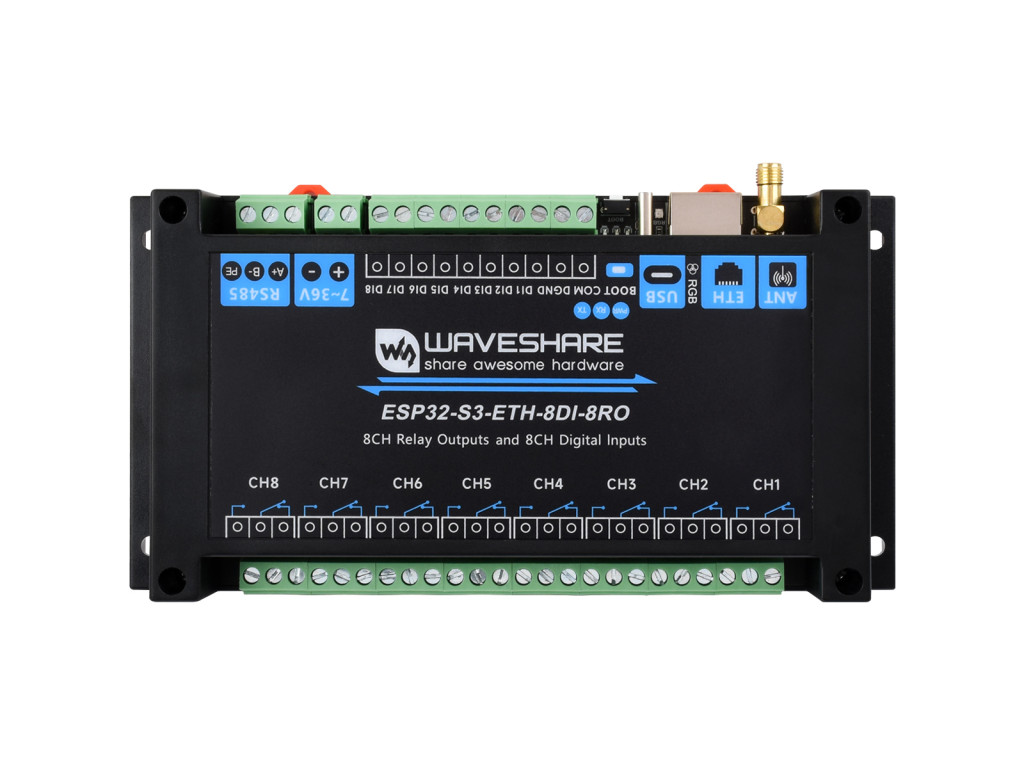

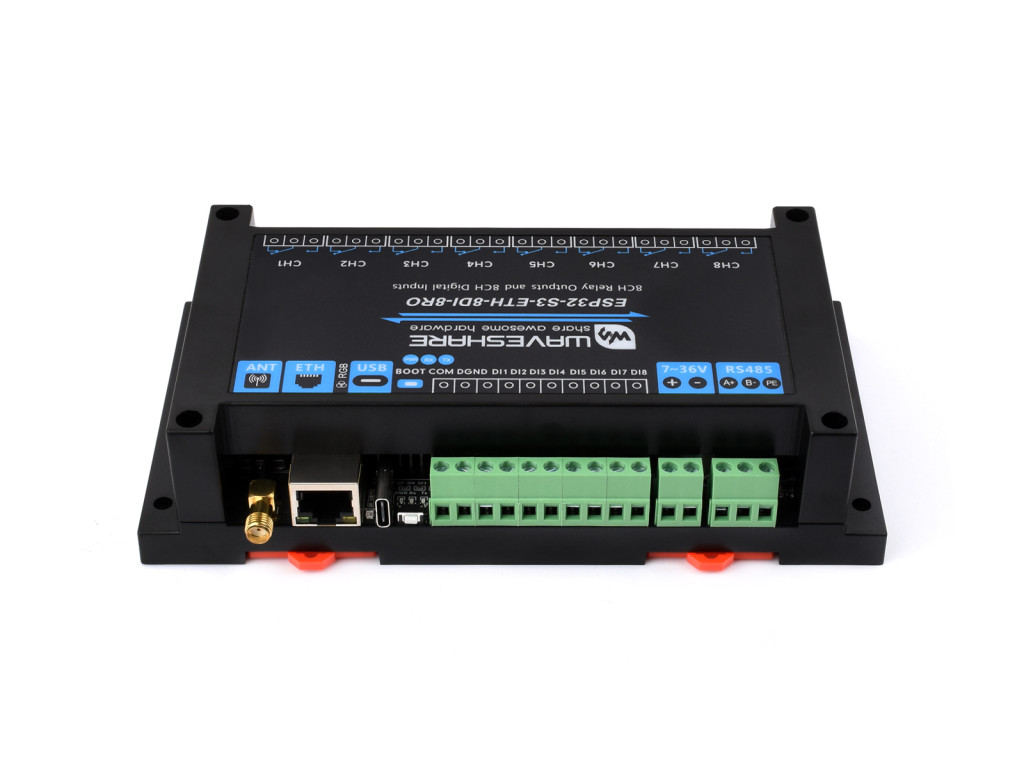

    Industrial 8-Channel ESP32-S3 WiFi Relay Module, front view
    Version options
    ESP32-S3-ETH-8DI-8RO

    ESP32-S3-ETH-8DI-8RO Common network port + isolated RS4858-ch digital inputs + 8-ch relays

    ESP32-S3-POE-ETH-8DI-8RO

    ESP32-S3-POE-ETH-8DI-8RO PoE network port + isolated RS4858-ch digital inputs + 8-ch relays

    Features
    • Based on ESP32-S3 microcontroller with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
    • Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance
    • High quality relay, contact rating: ≤10A 250V AC / 30V DC
    • Supports passive and active digital input, with bi-directional optocoupler isolation. The relay supports digital input linkage control
    • Onboard isolated RS485 interface, for connecting to various RS485 Modbus industrial modules or sensors
    • Onboard pin header, allowing access to other devices
    • Onboard USB Type-C port for power supply, firmware downloading and debugging
    • Onboard power supply screw terminal, supports 7~36V wide voltage input, suitable for industrial applications
    • Onboard RTC chip, supports scheduled tasks
    • Onboard W5500 Ethernet chip for extending 10/100Mbps network port through SPI interface
    • Optional for PoE network port version, with built-in PoE module for PoE capability (compliant with IEEE 802.3af standard)
    • Onboard optocoupler isolation to prevent interference from external high-voltage circuit connected to the relay
    • Onboard digital isolation to prevent interference from external signal
    • Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal
    • Onboard TF card slot for external TF card storage of images and files
    • Built-in buzzer, RGB LED, power supply and RS485 TX/RX indicators for monitoring the operating status of the devices
    • Rail-mounted ABS case, easy to install, safe to use
    Specifications
    VersionESP32-S3-POE-ETH-8DI-8ROESP32-S3-POE-ETH-8DI-8RO-C
    MicrocontrollerESP32-S3 (Default module: ESP32-S3-WROOM-1U-N16R8, customizable for other modules)
    Wireless communicatoin2.4GHz WiFi (802.11 b/g/n)、Bluetooth 5, BLE
    USBConnectorUSB Type-C
    Power supply5V
    FunctionsPower supply, USB communication, firmware downloading, etc.
    isolated comm interfaceInterfaceRS485CAN
    ConnectorScrew terminal
    Direction controlHardware automatic control
    ProtectionTVS diode, surge protection & ESD protection
    ResistorOnboard reserved 120R matching resistor, NC by default, enabled via jumper
    Ethernet interfacePoE Ethernet port, supports IEEE 802.3af standard (for PoE port version only)
    Digital inputInput channels8
    Input voltage5V~36V
    Input typePassive input / active input (NPN or PNP type)
    Isolation typeBi-directional optocoupler isolation
    RelayContact rating≤10A 250V AC / 30V DC
    Relay channels8
    Contact form1NO 1NC
    IsolationOptocoupler isolation
    LED indicatorsRGBRGB colorful LED, supports programmable control of display color
    PWRRed power indicator, lights up when there is USB connection and voltage is detected
    TXDGreen TX indicator, lights up when the RS485/CAN port sends data
    RXDBlue RX indicator, lights up when the device port sends data back
    power supply Screw terminalVoltage range7~36V
    AppearanceEnclosureRail-mount ABS protective case
    Dimensions175 × 90 × 40 (mm)
    Based on ESP32-S3, Designed for AIoT market

    Equipped with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz, with Powerful AI Computing Performance and Security Encryption Mechanism; Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication

    Industrial 8-Channel ESP32-S3 WiFi Relay Module, built-in ESP32-S3
    Onboard multiple isolation protection circuits

    Multiple protections, more safe and reliable

    Industrial 8-Channel ESP32-S3 WiFi Relay Module, multiple isolation protection circuits
    supports RS485 and Bluetooth / WIFi remote control

    Onboard 8-ch relays and 8-ch digital inputs Contact rating of the onboard relay up to 10A 250V AC / 30V DC Directly controlling 220VAC home appliances, or devices below 30V DC

    Industrial 8-Channel ESP32-S3 WiFi Relay Module, AC / DC connection demo
    Digital input

    Supports passive (dry contact) and active (wet contact) digital input, with bi-directional optocoupler isolation

    Industrial 8-Channel ESP32-S3 WiFi Relay Module, digital input connection
    Application scenarios
    Industrial 8-Channel ESP32-S3 WiFi Relay Module, linkage control demo
    Supports Arduino IDE

    Comprehensive SDK, Dev Resources, And Tutorials To Help You Easily Get Started

    Optional for PoE function

    built-in PoE module, providing both network connection and power supply in one cable

    Industrial 8-Channel ESP32-S3 WiFi Relay Module, built-in PoE module

    * the PoE function is only available on ESP32-S3-POE-ETH-8DI-8RO version, and the switch shown in the picture is NOT included.

    Application Examples

    Provides Multiple Networking Demos With Waveshare.Cloud, Using The Lightweight MQTT Protocol To Achieve Data Visualization Service

    Industrial 8-Channel ESP32-S3 WiFi Relay Module, application examples
    What's On Board

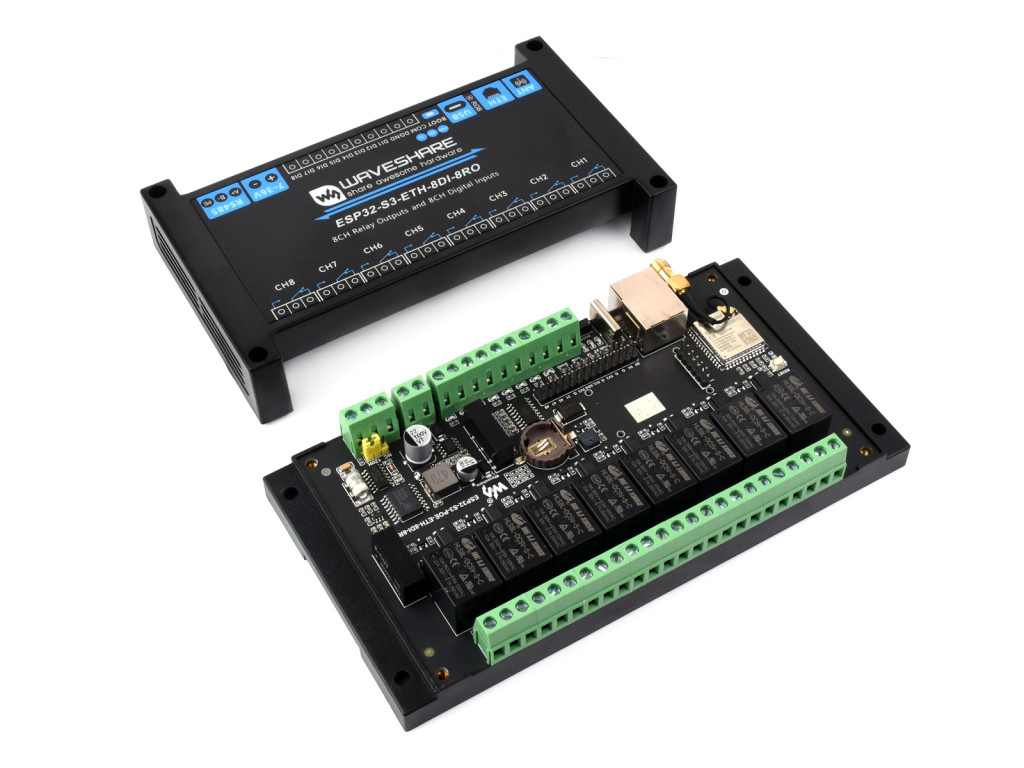

    Industrial 8-Channel ESP32-S3 WiFi Relay Module, PCB front view
    1. ESP32-S3-WROOM-1U-N16R8 Adopts ESP32-S3 series chip with Xtensa 32-bit LX7 dual-core processor, built in 16MB Flash and 8MB PSRAM
    2. 8-channel quality relayscontact rating per channel: ≤ 10A 250V AC or ≤ 10A 30V DC
    3. Optocoupler isolationprevents interference from external high-voltage circuit connected to the relay
    4. RESET button
    5. PoE header supports connecting to PoE module for PoE capability (for PoE port version only)
    6. BOOT button
    7. Power IC
    8. Digital isolationprevents interference from external signal
    9. Power supply isolation provides stable isolated voltage, needs no extra power supply for the isolated terminal
    10. Bi-directional optocoupler isolation
    11. RTC battery holder
    12. Buzzer
    13. Digital input screw terminals
    1. Pin headerfor connecting other devices
    2. LED indicators PWR: power indicator RXD: RS485 RX indicator TXD: RS485 TX indicator
    3. USB Type-C connector for module power supply, firmware downloading and USB communication
    4. WS2812 RGB LED controllable via GPIO38
    5. Ethernet port
    6. External antenna connector SMA female connector, for WiFi and Bluetooth wireless communication
    7. Power supply screw terminal supports DC 7~36V wide voltage input
    8. RS485 comm interface for connecting to external RS485 devices
    9. RS485 matching resistor jumper onboard reserved 120R matching resistor, enabled via jumper
    10. Relay screw terminals
    Industrial 8-Channel ESP32-S3 WiFi Relay Module, PCB back view
    1. Onboard TVS (Transient Voltage Suppressor) can effectively suppress surge voltage and transient spike voltage in the circuit
    2. RS485 conversion chip
    3. MP1605GTF-ZDC-DC power module
    4. PCF85063ATLRTC chip, can achieve some scheduled tasks
    1. TCA9554PWRGPIO expansion chip
    2. W5500for extending 10/100Mbps network port through SPI interface
    3. TF card slotsupports external TF card storage for images and files
    Enclosure Design

    ABS Protection Enclosure With 35mm Rail-Mount Support, Easy To Install, Safe To Use

    Industrial 8-Channel ESP32-S3 WiFi Relay Module, front view

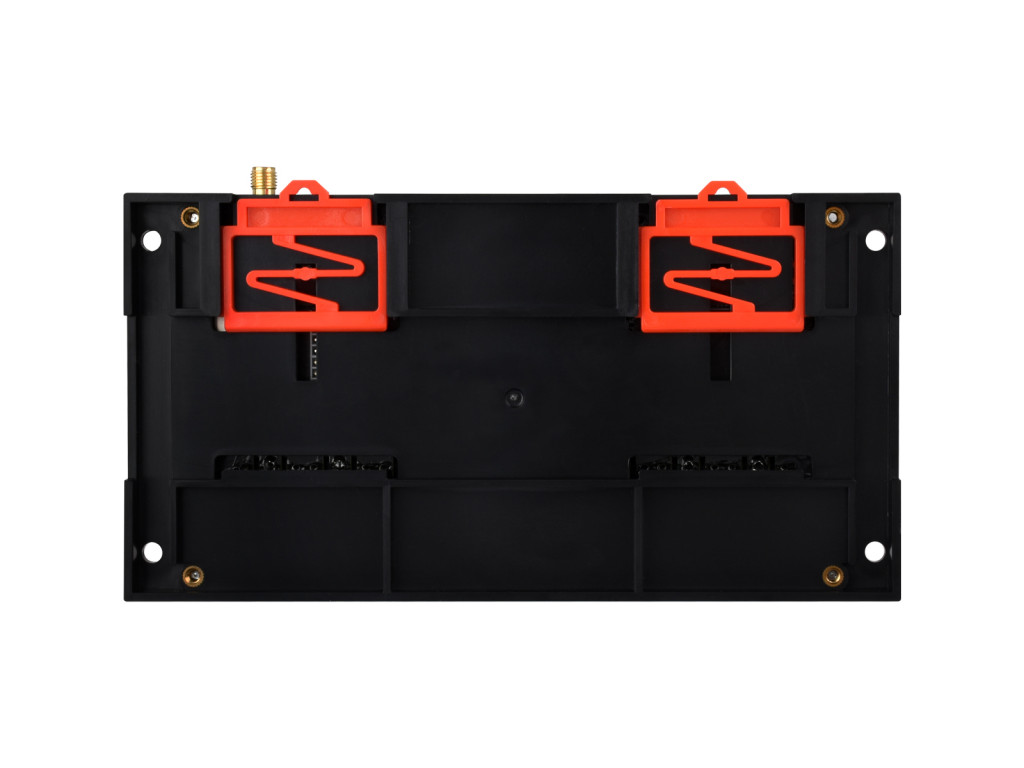

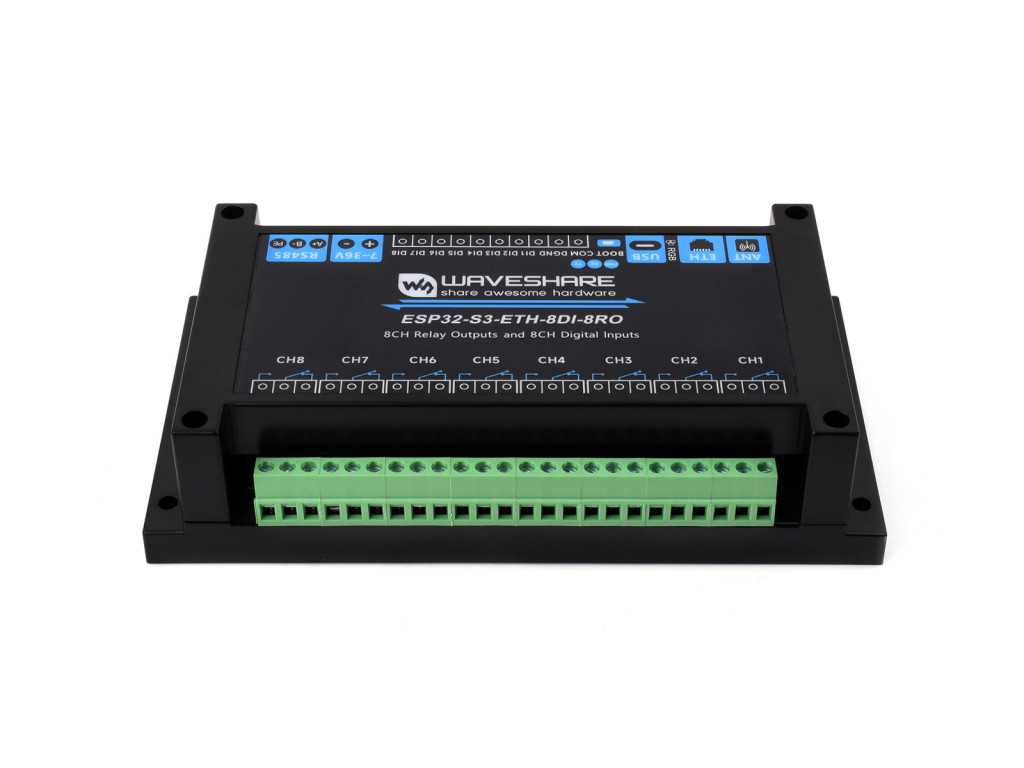

    Industrial 8-Channel ESP32-S3 WiFi Relay Module, back view
    Industrial 8-Channel ESP32-S3 WiFi Relay Module, rail mounting
    Industrial 8-Channel PoE ESP32-S3 WiFi Relay Module, rail mounting
    Outline dimensions

    Common network port

    Industrial 8-Channel ESP32-S3 WiFi Relay Module, normal Ethernet port outline dimensions

    PoE network port

    Industrial 8-Channel ESP32-S3 WiFi Relay Module, PoE Ethernet port outline dimensions
    Support Batch Customization

    Support software and hardware customizationIncluding hardware interface, LOGO, label, case and web page, etc.

    Selection guide
    ModelDIDORelayRS485CANnetwork portPoERTCbuzzerTFantennaPIN header
    ESP32-S3-Relay-6CH--6√----√-√40PIN header, compatible with Raspberry Pi Pico interface, 2.54mm pitch
    ESP32-S3-ETH-8DI-8RO8-8√-√-√√√√28PIN header, 2.54mm pitch
    ESP32-S3-POE-ETH-8DI-8RO8-8√-√√√√√√28PIN header, 2.54mm pitch
    ESP32-S3-ETH-8DI-8RO-C8-8-√√-√√√√28PIN header, 2.54mm pitch
    ESP32-S3-POE-ETH-8DI-8RO-C8-8-√√√√√√√28PIN header, 2.54mm pitch
    ESP32-S3-POE-ETH-8DI-8DO88-√√√√√√√√8PIN screw terminal, 5.0mm pitch
    ESP32-S3-Relay-1CH--1√---√--√20PIN header, 2.54mm pitch
    ESP32-S3-RS485-CAN---√√--√--√20PIN header, 2.54mm pitch
  • Brand
    Waveshare
    PartNumber
    ESP32-S3-ETH-8DI-8RO
    Raktárkészlet
    VAN
    Cikkszám
    RPI-WS31130

  • ESP32-S3-ETH-8DI-8RO

    1. ESP32-S3-ETH-8DI-8RO × 1
    2. 2.4G 4DB SMA antenna × 1
    3. Screwdriver × 1
    1ESP32-S3-ETH-8DI-8RO
    2
    3

    ESP32-S3-POE-ETH-8DI-8RO

    1. ESP32-S3-POE-ETH-8DI-8RO × 1
    2. 2.4G 4DB SMA antenna × 1
    3. Screwdriver × 1
    1ESP32-S3-POE-ETH-8DI-8RO
    2
    3
:
;
