Ipari 1 csatornás ESP32-S3 WiFi relé modul, WiFi / Bluetooth / RS485 vezérlés támogatásával, többszörös izolációs védelmi áramkörökkel, ipari minőségű sínre szerelhető ház
Részletek Adatok Csomag tartalma
  • Industrial 1-Channel ESP32-S3 WiFi Relay Module, Supports Wi-Fi / Bluetooth, Onboard RS485 interface, With Multiple Isolation Protection Circuits, Industrial-Grade Rail-Mount Case
    Industrial 1-Ch ESP32-S3 WiFi Relay Module

    Based on ESP32-S3, Supports Wi-Fi / Bluetooth, Onboard RS485 interface

    Built-in protection circuits such as power isolation and optocoupler isolation, Safe & Stable & Reliable

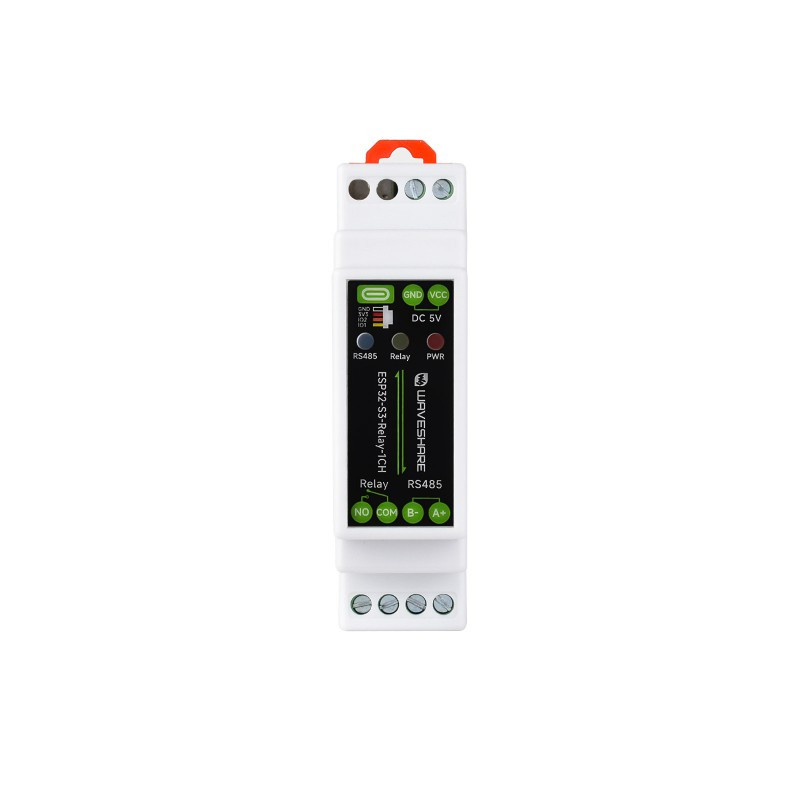

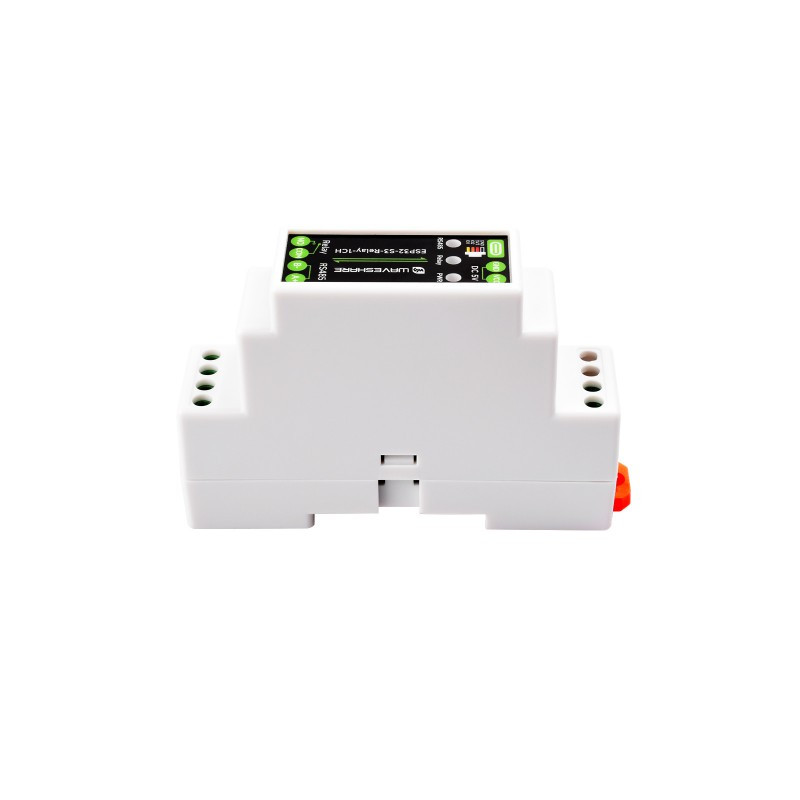

    Industrial 1-Channel ESP32-S3 WiFi Relay Module, front view
    Features
    • Based on ESP32-S3 microcontroller with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
    • Integrated 2.4GHz Wi-Fi and Bluetooth 5 (LE) dual-mode wireless communication, with superior RF performance
    • High quality relay, contact rating: ≤10A 250VAC/30VDC
    • Onboard isolated RS485 interface, for connecting to various RS485 Modbus industrial modules or sensors
    • Onboard RTC chip, supports scheduled tasks
    • Onboard USB Type-C port for power supply, firmware downloading and debugging
    • Onboard power supply screw terminal, supports 5V power supply only
    • Onboard optocoupler isolation to prevent interference from external high-voltage circuit
    • Onboard digital isolation to prevent interference from external signal
    • Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply is required for the isolated terminal
    • Onboard RS485 TX/RX indicators for monitoring the operating status of the module
    • Rail-mounted protective case, easy to install, safe to use
    Specifications
    MicrocontrollerESP32-S3 (Default module: ESP32-S3R8, customizable for other modules)
    Wireless communication2.4GHz WiFi (802.11 b/g/n), Bluetooth 5 (LE)
    USBConnectorUSB Type-C
    Power supply5V
    FunctionsPower supply, USB communication, firmware downloading, etc.
    ISOLATED RS485ConnectorScrew terminal
    Direction controlAutomatically controlled via main controller hardware flow settings
    ProtectionTVS diode, surge protection & ESD protection
    ResistorOnboard reserved 120R matching resistor, NC by default, enabled via jumper
    RelayContact rating≤10A 250VAC/30VDC
    Relay channel1
    Contact form1 NO
    IsolationOptocoupler isolation
    LED indicatorsPWR indicatorRed power indicator, lights up when there is USB connection and voltage is detected
    Relay indicatorlights up when the Normally Open (NO) is closed
    RS485 indicatorlights up green when the RS485 port sends data lights up blue when the RS485 port receives data
    power supply Screw terminalVoltage range5V
    AppearanceEnclosureRail-mount protective case
    Dimensions91.6 × 23.3 × 58.7 (mm)
    Based on ESP32-S3, Designed for AIoT market

    Equipped with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz, with Powerful AI Computing Performance and Security Encryption Mechanism; Integrated 2.4GHz Wi-Fi and Bluetooth 5 (LE) dual-mode wireless communication

    Industrial 1-Channel ESP32-S3 WiFi Relay Module, based on ESP32-S3
    Onboard multiple isolation protection circuits

    Multiple protections, more safe and reliable

    Industrial 1-Channel ESP32-S3 WiFi Relay Module, multiple isolation protection circuits
    High quality 1-Ch relay, supports RS485 and Bluetooth / WIFi remote control

    Contact rating of the onboard relay up to 10A 250VAC/30VDC Directly controlling 220VAC home appliances, or devices below 30VDC

    Industrial 1-Channel ESP32-S3 WiFi Relay Module, connection methods
    Supports Arduino development

    Comprehensive SDK, Dev Resources, And Tutorials To Help You Easily Get Started

    Application Example

    Provides Multiple Networking Demos With Waveshare.Cloud, Using The Lightweight MQTT Protocol To Achieve Data Visualization Service

    Industrial 1-Channel ESP32-S3 WiFi Relay Module, application example
    Interface Description

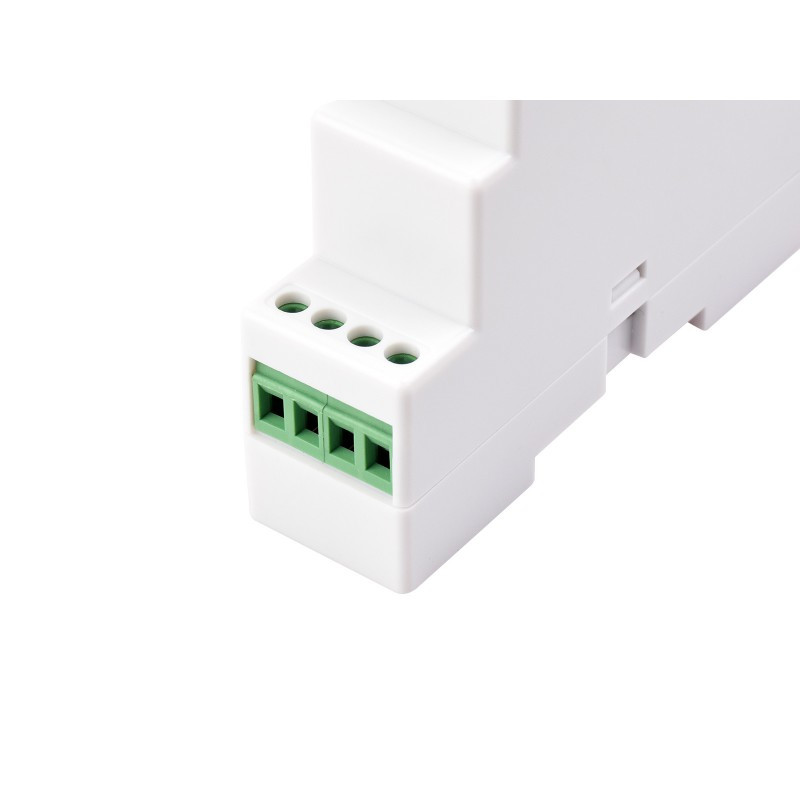

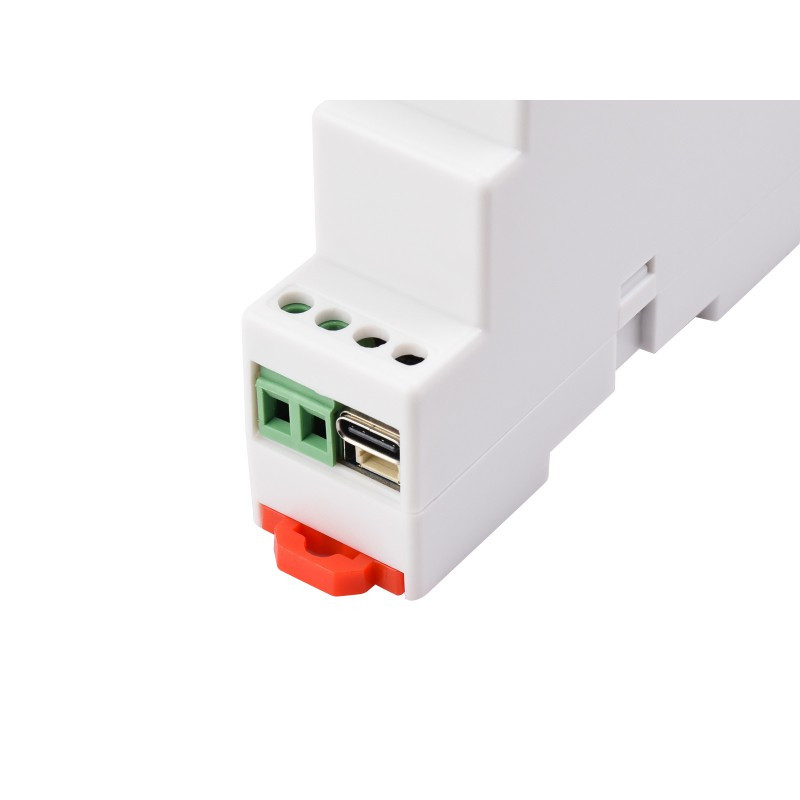

    Industrial 1-Channel ESP32-S3 WiFi Relay Module, interface description
    Top Terminal Block DescriptionBottom Terminal Block Description
    Power Supply TerminalPower positive: DC 5VRS485 TerminalA+ signal pin
    Power negative
    Type-Cfor power supply, firmware download, and USB communicationB- signal pin
    SH1.0GNDGround (GND)Relay TerminalRelay COM
    3V33.3V power output
    GPIO2ESP32-S3 IO pinRelay NO
    GPIO1ESP32-S3 IO pin
    Industrial 1-Channel ESP32-S3 WiFi Relay Module, pin definition
    What's On Board
    Industrial 1-Channel ESP32-S3 WiFi Relay Module, onboard components
    1. ESP32-S3 up to 240MHz operating frequency, with 2.4GHz WiFi and BLE
    2. DC-DC power modulesupports up to 3.3V 2A output
    3. Pin header (2.0mm pitch)for connecting to other functional modules
    4. Power supply screw terminalsupports DC 5V voltage input
    5. USB Type-C port for module power supply, firmware downloading and USB communication
    6. RTC battery headerfor connecting rechargeable RTC battery (SH1.0)
    7. Onboard ceramic antenna
    8. IPEX 1 connectorfor connecting external antenna, enabled via resoldering an onboard resistor
    9. LED indicatorsPWR: Power indicatorRELAY: Relay indicator, lights up when the Normally Open (NO) is closedRS485: lights up green when the RS485 port sends data; lights up blue when the RS485 port receives data
    1. Optocoupler isolation
    2. Power supply isolationProvides stable isolated voltage, no extra power supply is required for the isolated terminal
    3. ESP32 BOOT button
    4. ESP32 RESET button
    5. TVS diodeEffectively suppresses surge voltage and transient spike voltage in the circuit
    6. Quality relaycontact rating: ≤10A 250V AC or ≤10A 30V DC
    7. RS485 matching resistorOnboard reserved 120R matching resistor, enabled via jumper
    8. RS485 and relay terminal
    9. PCF85063 RTC chip
    10. 16MB Flash
    11. Digital isolationprevents interference from external signal
    12. RS485 transceiver chip
    13. ME6217C33M5GLow dropout regulator, 800mA output (Max.)
    14. Thicken track for large current
    Enclosure Design

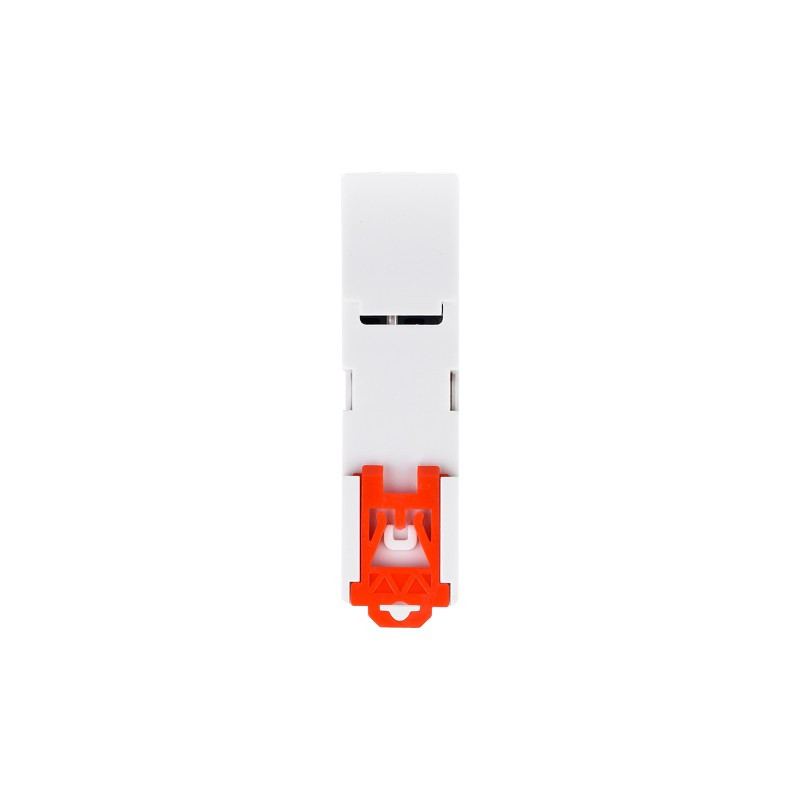

    Protection Enclosure With Rail-Mount Support, Easy To Install, Safe To Use

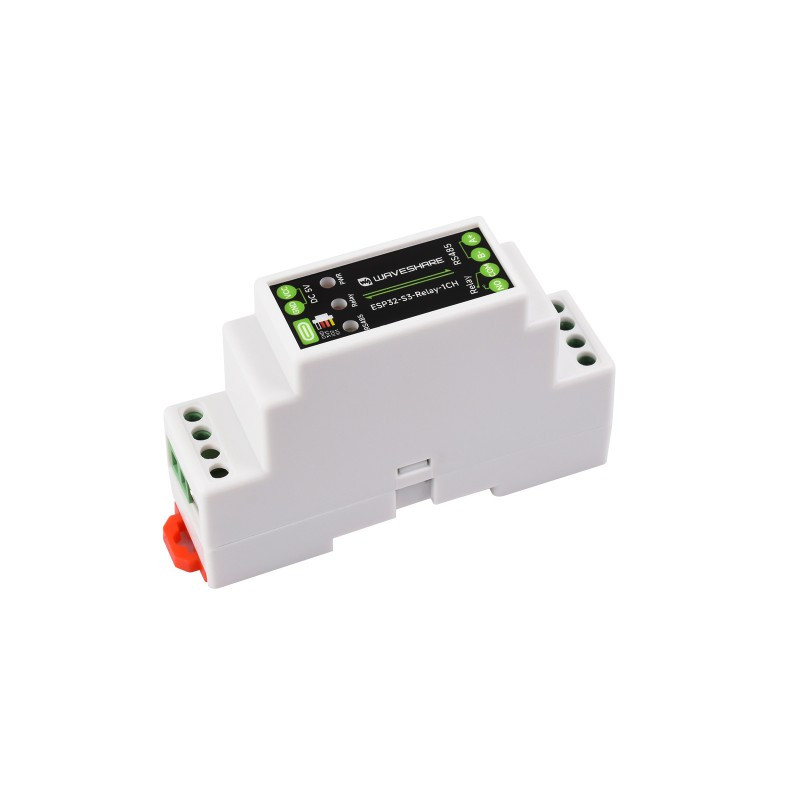

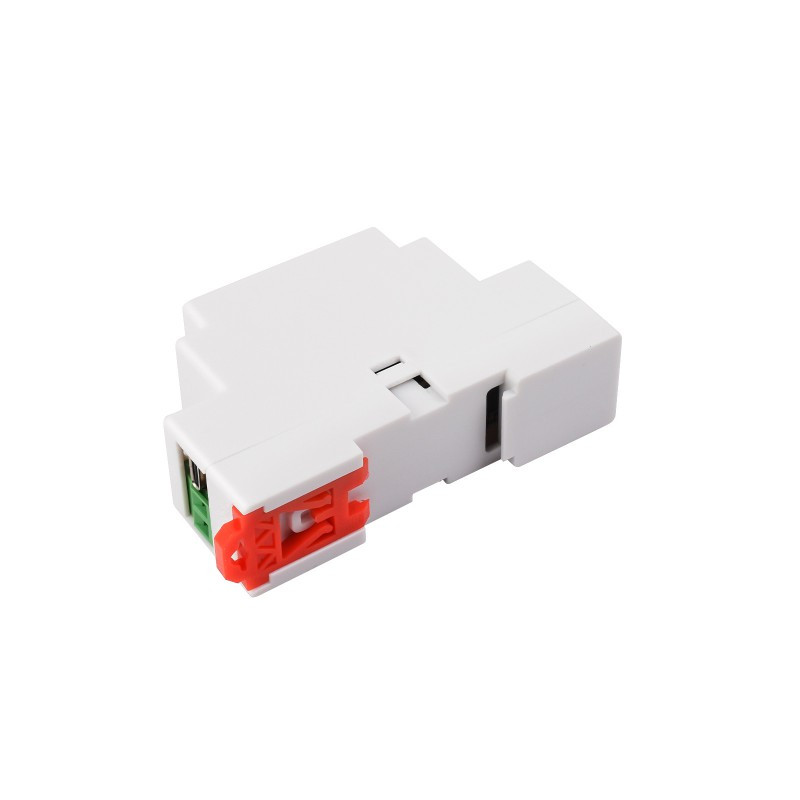

    Industrial 1-Channel ESP32-S3 WiFi Relay Module, with rail-mount case
    Outline dimensions
    Industrial 1-Channel ESP32-S3 WiFi Relay Module, outline dimensions
    Support Batch Customization

    Support software and hardware customizationIncluding hardware interface, LOGO, label, case and web page, etc.

    Selection guide
    ModelDIDORelayRS485CANnetwork portPoERTCbuzzerTFantennaPIN header
    ESP32-S3-Relay-6CH--6√----√-√40PIN header, compatible with Raspberry Pi Pico interface, 2.54mm pitch
    ESP32-S3-ETH-8DI-8RO8-8√-√-√√√√28PIN header, 2.54mm pitch
    ESP32-S3-POE-ETH-8DI-8RO8-8√-√√√√√√28PIN header, 2.54mm pitch
    ESP32-S3-ETH-8DI-8RO-C8-8-√√-√√√√28PIN header, 2.54mm pitch
    ESP32-S3-POE-ETH-8DI-8RO-C8-8-√√√√√√√28PIN header, 2.54mm pitch
    ESP32-S3-POE-ETH-8DI-8DO88-√√√√√√√√8PIN screw terminal, 5.0mm pitch
    ESP32-S3-Relay-1CH--1√---√--√20PIN header, 2.54mm pitch
    ESP32-S3-RS485-CAN---√√--√--√20PIN header, 2.54mm pitch
  • Brand
    Waveshare
    PartNumber
    ESP32-S3-Relay-1CH
    Raktárkészlet
    VAN
    Cikkszám
    RPI-WS32152
    1. ESP32-S3-Relay-1CH x1
    2. SH1.0 4PIN cable ~150mm x1
    3. Screwdriver x1
    1ESP32-S3-Relay-1CH
