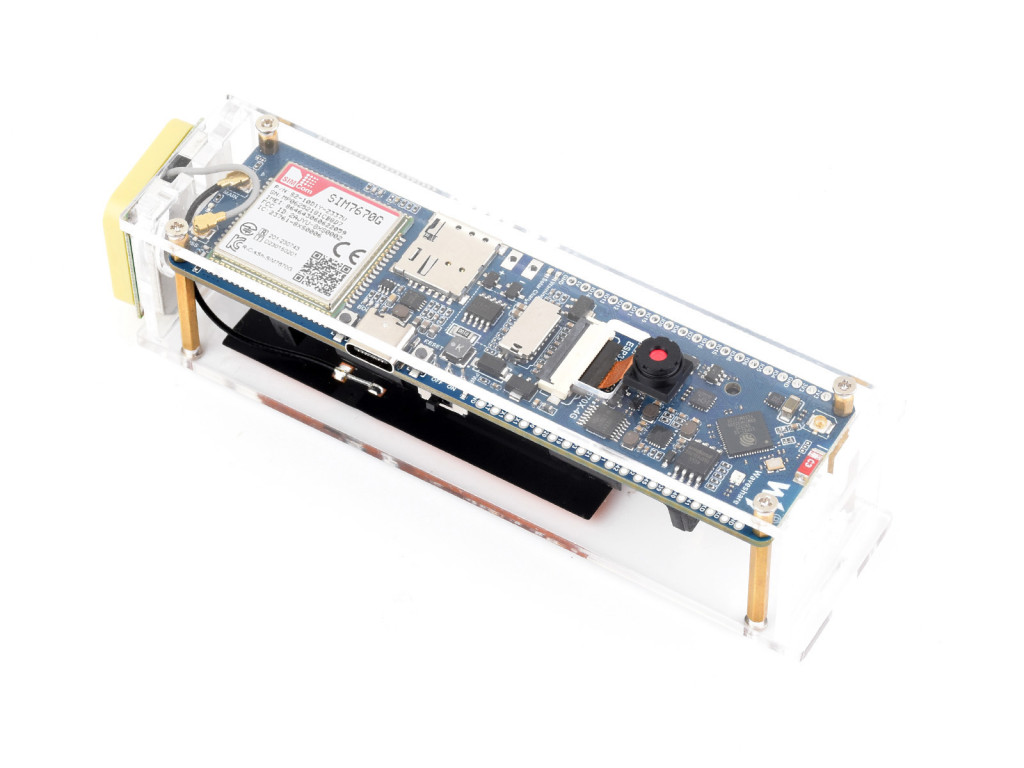

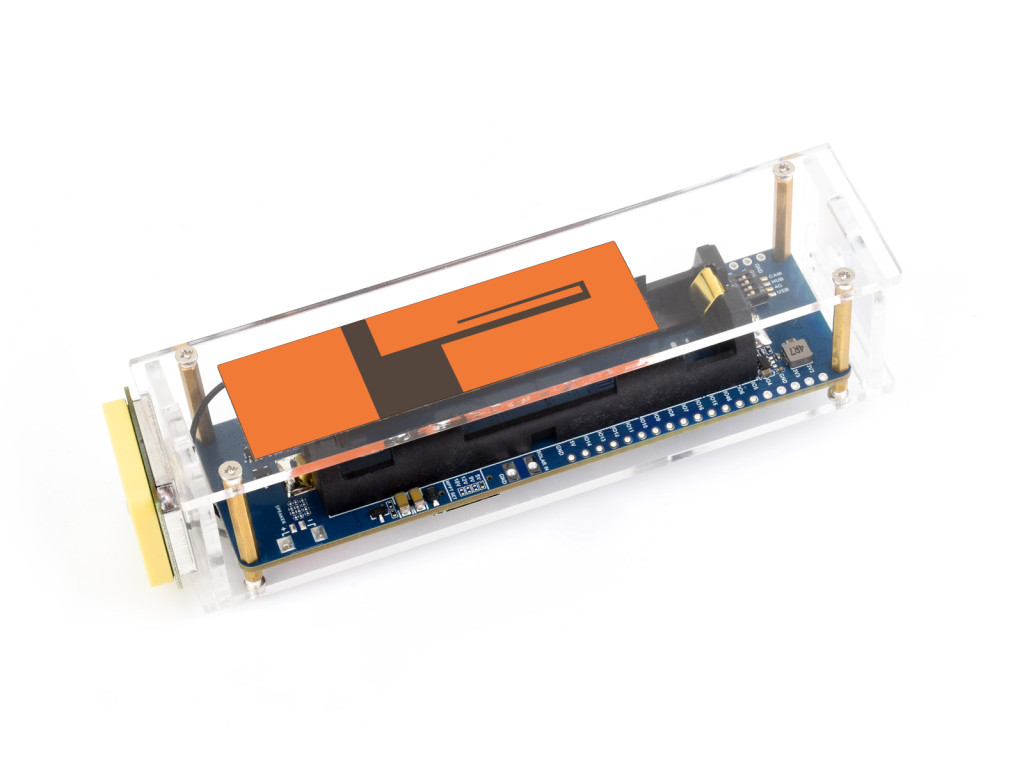

ESP32-S3 SIM7670G 4G Development Board, LTE Cat-1 / WiFi / Bluetooth / GNSS Positioning Support, Global Coverage Multi Band

ÚJ
Raktárkészlet: VAN
ESP32-S3 SIM7670G 4G Development Board, LTE Cat-1 / WiFi / Bluetooth / GNSS Positioning Support, Global Coverage Multi Band
  • ESP32-S3 SIM7670G 4G Development Board, LTE Cat-1 / WiFi / Bluetooth / GNSS Positioning Support, Global Coverage Multi Band
  • ESP32-S3 SIM7670G 4G Development Board, LTE Cat-1 / WiFi / Bluetooth / GNSS Positioning Support, Global Coverage Multi Band
  • ESP32-S3 SIM7670G 4G Development Board, LTE Cat-1 / WiFi / Bluetooth / GNSS Positioning Support, Global Coverage Multi Band
  • ESP32-S3 SIM7670G 4G Development Board, LTE Cat-1 / WiFi / Bluetooth / GNSS Positioning Support, Global Coverage Multi Band
24 348 Ft + ÁFA | Bruttó:30 922 Ft
db Kosárba Kosárba
Árváltozás értesítő
ESP32-S3 SIM7670G 4G Development Board, LTE Cat-1 / WiFi / Bluetooth / GNSS Positioning Support, Global Coverage Multi Band, Suitable for 4G Portable WiFi, Onboard Camera / Antenna
Részletek Adatok Csomag tartalma
  • Prohibited by the module manufacturer SIMCOM, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.
    ESP32-S3 SIM7670G 4G Development Board, LTE Cat-1 / WiFi / Bluetooth / GNSS Positioning Support, Global Coverage Multi Band, Suitable for 4G Portable WiFi, Onboard Camera / Antenna
    ESP32-S3 SIM7670G 4G Development Board

    Based on ESP32-S3, Integrates SIM7670G 4G module, Camera and TF Card Slot, etc.

    Multiple low-power working modes, Suitable for Applications such as outdoor monitoring, 4G Portable WiFi, smart home, etc.

    Features at a glance

    TheESP32-S3-SIM7670G-4G is a multi-functional and high-performance microcontroller development board designed by Waveshare, build-in SIM7670G 4G communication module, onboard OV series camera interface, TF card slot, RGB colorful LED, 18650 battery holder (18650 battery is NOT included), battery voltage measurement IC, solar panel charging interface, and other peripherals. Adopts the ESP32-S3R8 chip, which integrates low-power WiFi and BLE 5.0, onboard external 16MB Flash and 8MB PSRAM, built-in hardware encryption accelerator, random number generator, HMAC, and digital signature module to meet the security requirements of the IoT. Equipped with SIM7670G Cat-1 4G communication module to achieve mobile network connection and meet the low-power requirements of IoT, mobile devices, outdoor monitoring, smart home, and other applications.

    • Adopts ESP32-S3R8 chip with high-performance Xtensa® 32-bit LX7 dual-core processor, capable of running at 240 MHz
    • Built in 512KB Static RAM, 384KB ROM, 8MB of PSRAM, and 16MB Flash memory
    • Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, featuring superior RF performance
    • Equipped with the SIM7670G cellular module, supports 4G Cat-1 networking, GNSS positioning and other functions
    • Onboard USB switching IC and DIP switch for switching to use the USB interface of SIM7670G, suitable for connecting with PC for dial-up internet or debugging of SIM7670G module
    • Onboard lithium battery charging, solar charging, power management, battery capacity measurement, and related protection circuits, supports USB and solar charging with real-time battery capacity measurement
    • Onboard 18650 battery holder (18650 battery is NOT included), adapting VBAT pin header for connecting to external 3.7V lithium battery, with anti-reverse protection
    • Rich peripheral interfaces such as camera interface, TF card slot, USB port, 38PIN header, etc., easy to expand and achieve various functions
    • Onboard multiple DIP switches for camera on/off, switching USB channels to avoid interface conflict, and setting power on/off for some circuits to reduce power consumption
    • Comes with GNSS high-precision ceramic antenna, OV5640 camera, acrylic case, etc., easy to develop various applications
    • Comes with online development resources and manual (including tutorials, demos for 4G portable WiFi and other IoT examples)
    Specifications
    Communication Parameters
    Frequency BandLTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66LTE-TDD: B34, B38, B39, B40, B41
    GNSSGPS, BeiDou, GLONASS, Galileo
    Operating Parameters
    Power supply methodUSB port, 18650 lithium battery holder (18650 battery is NOT included), pin header
    Power input5V (USB port / 5V pin header) 3.7~4.2V (18650 lithium battery holder / VBAT pin header)
    Logic Level3.3V
    Global Coverage Multi Band support of LTE Cat-1

    Global Coverage Multi Band Support, LTE Cat-1: 5Mbps(UL), 10Mbps(DL)

    Provides portable 4G WiFi solution

    ESP32-S3 is connected to the SIM7670G via USB to enable 4G networking while simultaneously activating WiFi AP hotspot, allowing smartphones or other WiFi terminals to connect and access network

    Supports image recognition

    Onboard 24PIN camera interface, comes with OV5640 cameraCompatible with the ESP32-Camera framework, Suitable for facial recognition

    Supports charging via solar panel or USB port

    Onboard lithium battery charging, solar charging, power management, battery capacity measurement, and related protection circuits, supports USB and solar charging with real-time battery capacity measurement

    The solar panel is NOT included, it is recommended to purchase Solar Panel (5.5V 6W),Solar Panel (6V 5W), and Solar Panel (18V 10W).
    GNSS positioning

    Supports GPS, BeiDou, GLONASS, Galileo positioning

    Application Scenarios
    What's On Board
    1. ESP32-S3R8
    2. SIM7670G
    3. EA3036CDC-DC 3-ch power output
    4. ETA6098Battery charging IC
    5. CN3791 Solar power charging IC
    6. MAX17048GBattery voltage measurement IC
    7. CH343UART to USB IC
    8. CH334USB HUB
    9. W25Q128JVSIQExternal 16MB Flash
    10. FSUSB42UMXUSB switching IC
    11. TXB0104PWRVoltage translator
    12. Camera 24PIN interfaceCompatible with cameras such as OV5640 / OV2640
    13. TF Card Slot
    14. USB Type-C portOnboard CH343 And CH334, supports connecting to UART and USB of the ESP32-S3Onboard USB switching IC and DIP switch for switching to use the USB interface of SIM7670G
    15. RESET button
    16. BOOT button
    17. Nano SIM card slot
    1. Solar panel input interfacefor connecting to 5V/6V/9V/12V/18V solar panel
    2. Onboard antenna
    3. ESP32-S3 WiFi connector (IPEX 1) using onboard ceramic antenna by default, supports connecting to external WiFi antenna by modifying solder pad
    4. GNSS connector (IPEX 1)
    5. LTE connector (IPEX 1)
    6. WS2812BRGB LED
    7. Power indicator
    8. Battery reverse warning indicator
    9. Solar power input indicator
    10. Network status indicator
    11. Solar power input voltage selectionfor setting solar panel input voltage:5V level by default, for connecting with 5.5V/6V solar power panel, supports modifying solder pads for 9V/12V/18V solar panels
    12. SY8105IADC External input DC-DC
    13. DIP SwitchCAM: for turning on/off the cameraHUB: for controlling the power supply of USB HUB driver circuit4G: for controlling the power supply of SIM7670G moduleUSB: for switching to the USB channel of SIM7670G module.
    14. Battery power supply on/off
    15. 18650 battery holder
    Pinout Definition
    Outline Dimensions
    Resources & Services

    * Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

    Selection Guide
    productESP32-S3-SIM7670G-4GESP32-S3-A7670E-4G
    Band
    LTE Cat-1 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66LTE-TDD: B34/B38/B39/B40/B41LTE-FDD: B1/B3/B5/B7/B8/B20
    3GN/A
    2GN/AGSM/GPRS/EDGE: 900/1800MHz
    GNSSGPS/Beidou/GLONASS/GALILEOGPS/Beidou/GLONASS
    Data Rate
    LTE Cat-110Mbps(DL)/5Mbps(UL)
    3G (HSPA+)N/A
    2G (GPRS/EDGE)N/A236.8Kbps(DL/UL)
    Software Features
    Network protocolTCP/HTTP(S)/MQTT(S)/FTP(S)
    Dial-up protocolRNDIS/PPP/ECM
    USB driverWindows XP/7/8/10, Linux (driver free for Raspberry Pi OS)
    Hardware Interfaces
    UART GPIOReserved pins for external devices or external control (3.3V operating level)
    USBSupports AT commands testing, GNSS positioning, firmware upgrading, program burning, etc.
    Audio jackN/ASupports audio actions like making telephoto call
    Antenna connectorIPEX 1
    Dimensions30.44 × 110mm
    Applications
    ExamplesHealthcare, smart payment, Internet talk, environmental monitoring, energy monitoring, fleet management, smart industry, intelligent agriculture, mobile devices, outdoor monitoring, smart home, portable WiFi, etc.
    Applicable regionsGlobalEurope, Southeast Asia, West Asia, Africa, China, South Korea
  • Brand
    Waveshare
    PartNumber
    ESP32-S3-SIM7670G-4G-EN
    Raktárkészlet
    VAN
    Cikkszám
    RPI-WS26750
    Státusz
    ÚJ
    1. ESP32-S3-SIM7670G-4G x1
    2. Transparent acrylic case and screws pack x1
    3. GNSS ceramic antenna x1
    4. OV5640 camera x1
    5. 2P screw terminal x1
    6. 40PIN yellow straight pin header x1
    7. USB Type-A to Type-C cable 1m x1
    8. FPC antenna x1
    9. Screwdriver x1
    10. Double-side tape (4PCS) x1
:
;
