ESP32-S3 2,06 hüvelykes AMOLED érintő kijelzős óra, 32 bites LX7 kétmagos processzor, 410×502 pixel, QSPI interfész, beépített duál digitális mikrofon, ESP32 fejlesztőkártya kijelzővel

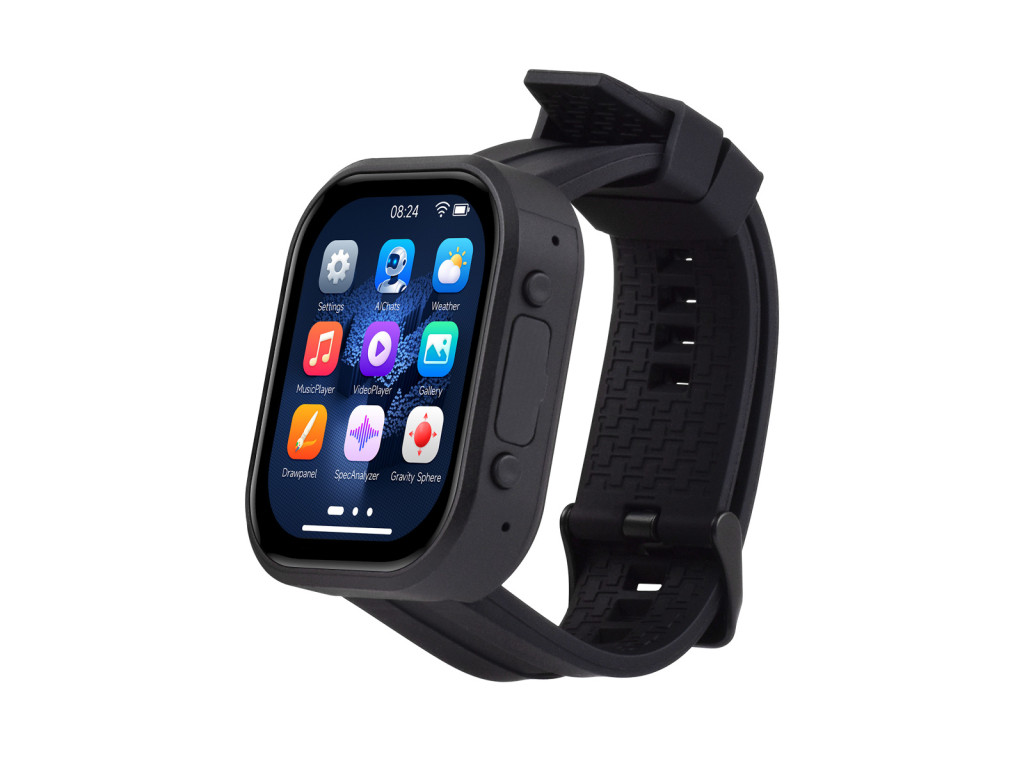

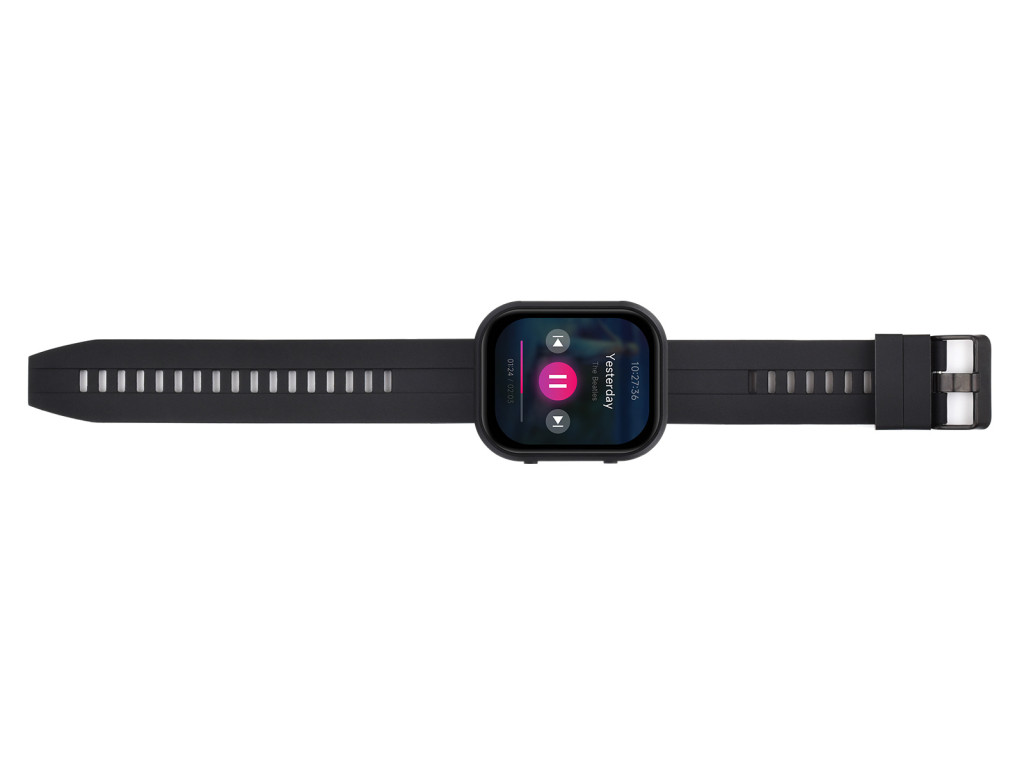

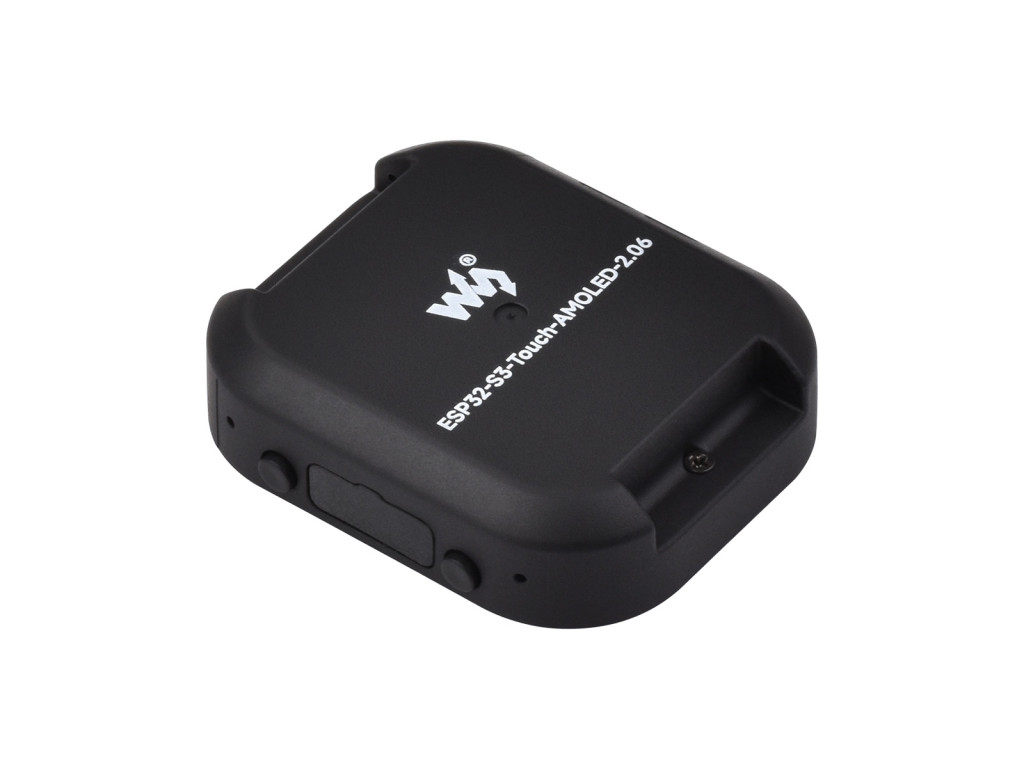

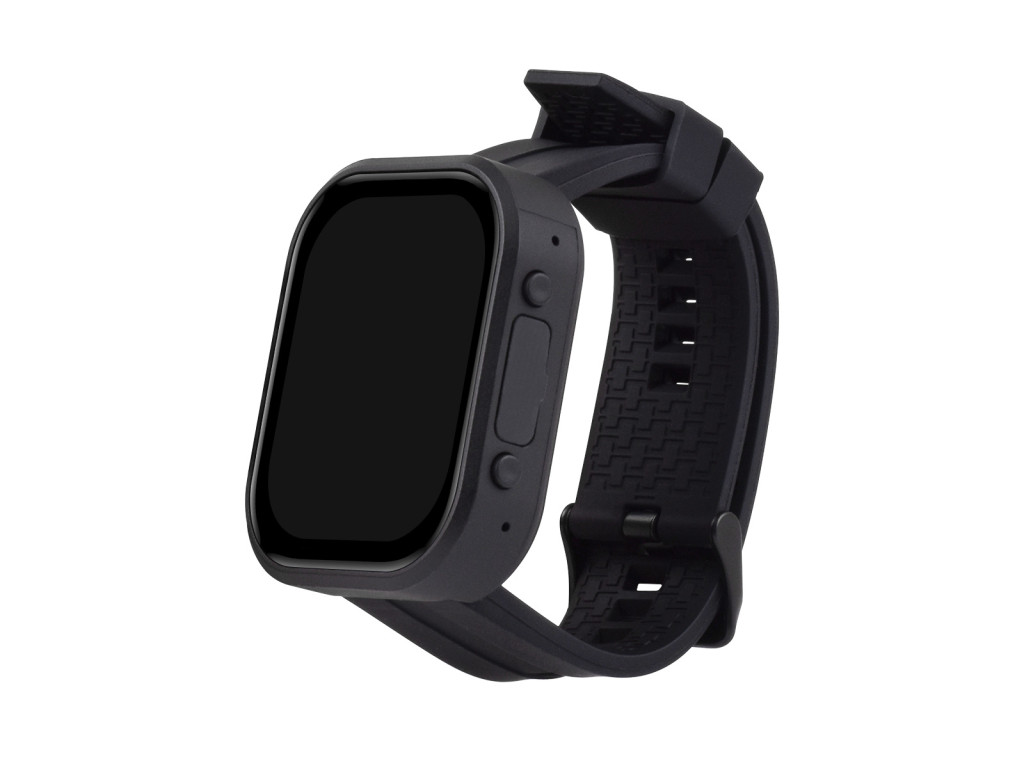

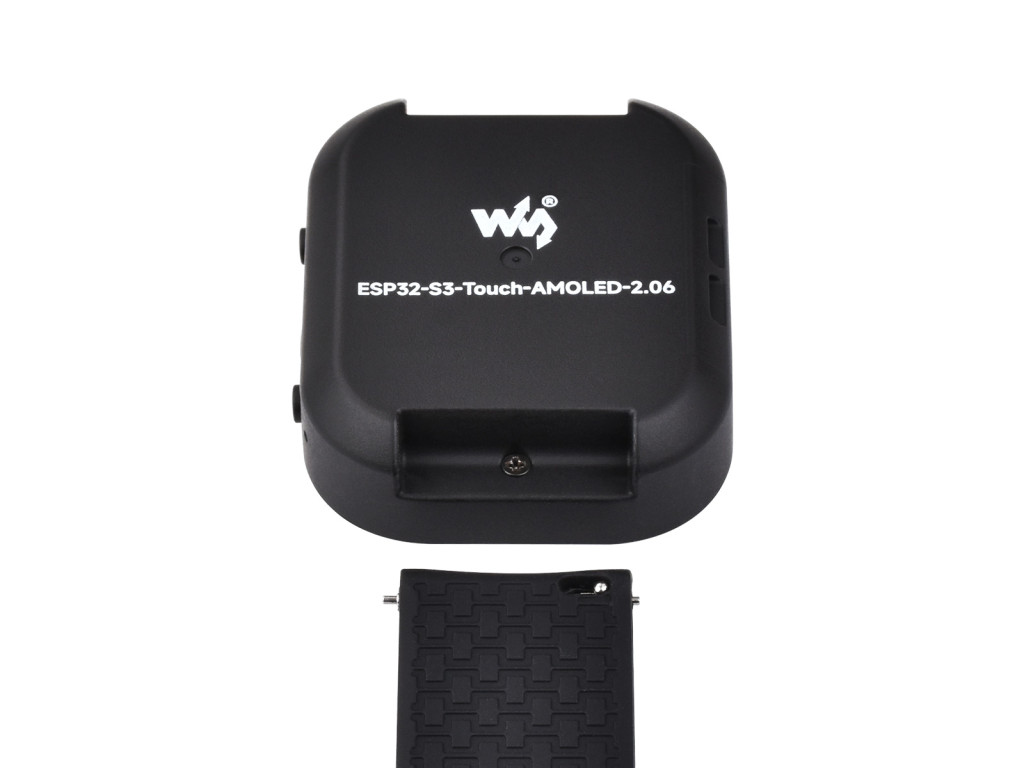

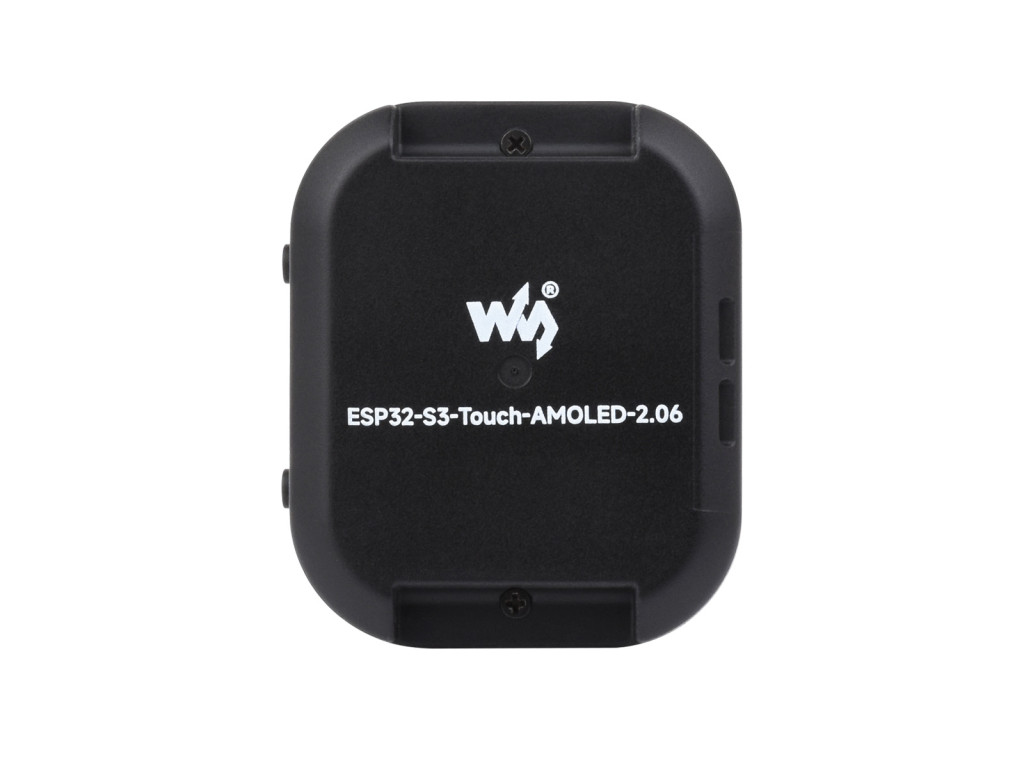

TheESP32-S3-Touch-AMOLED-2.06 is a high-performance, wearable watch-style development board designed by Waveshare. Based on the ESP32-S3R8 microcontroller, it integrates a 2.06inch AMOLED capacitive touch display, 6-axis IMU, RTC chip, audio codec chip, power management IC, and so on. Comes with a custom-designed case with a smartwatch-like appearance, making it ideal for prototyping and functional verification of wearable applications.

• Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
• Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
• Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 32MB Flash memory
• Type-C connector, improving device compatibility, easier to use

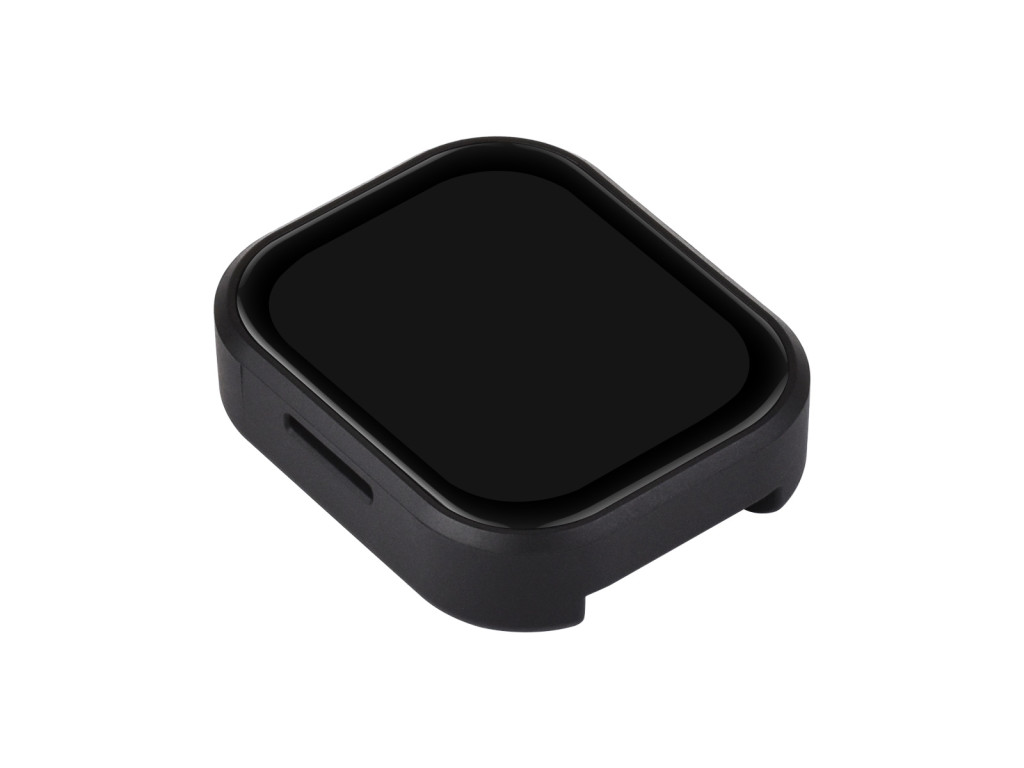

• Onboard 2.06inch AMOLED capacitive touch display for clear color picture display, 410 × 502 resolution, 16.7M color
• Built-in CO5300 display driver and FT3168 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources
• Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.
• Onboard PCF85063 RTC chip, powered by Lithium battery through AXP2101 chip for uninterrupted power supply
• Onboard PWR and BOOT programmable buttons for easy custom function development
• Onboard 3.7V MX1.25 Lithium battery recharge/discharge header
• Onboard reserved pads of 1 × I2C, 1 × UART and 1 × USB interfaces, for connecting peripherals and debugging
• Onboard TF card slot for extended storage and fast data transfer, suitable for applications such as data recording and media playback, simplifying circuit design
• Adopts AXP2101 IC for efficient power management, supports multiple voltage outputs, battery charging, battery management, and battery life optimization, etc.
• Adopts AMOLED screen, featuring advantages of high contrast, wide viewing angle, rich colors, fast response, thinner design, and low power consumption, etc.
