Industrial 5P Gigabit Ethernet Switch, Full-Duplex 10/100/1000M, DIN Rail Mount

ÚJ
Raktárkészlet: NINCS

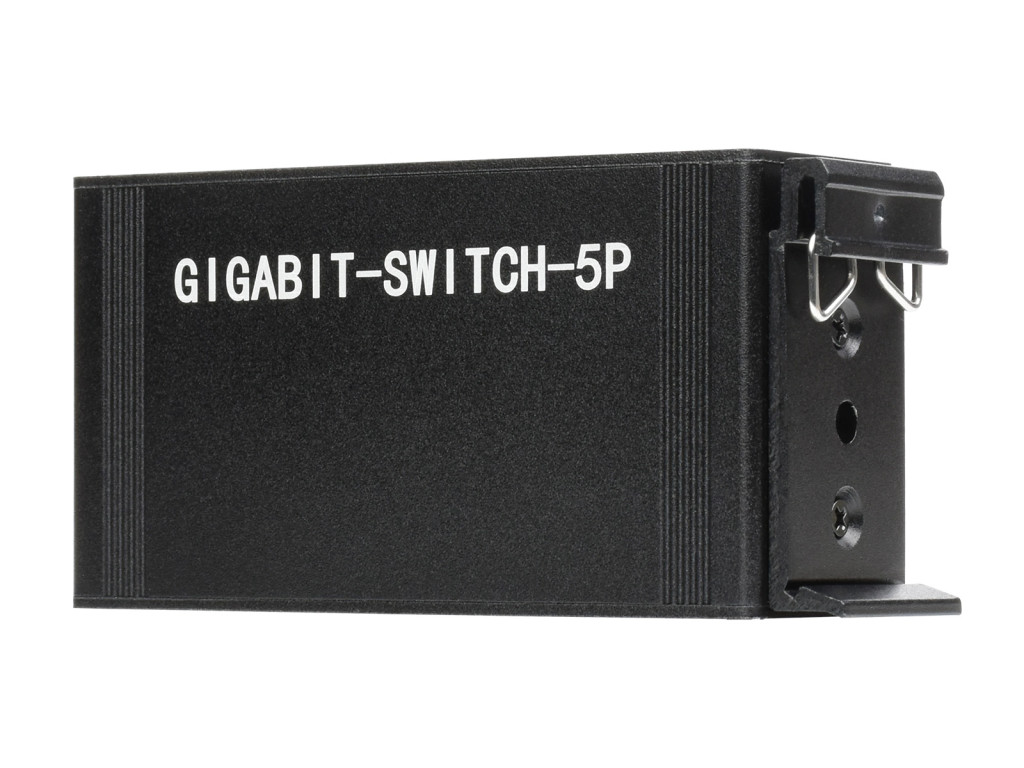

Industrial 5P Gigabit Ethernet Switch, Full-Duplex 10/100/1000M, DIN Rail Mount
  • Industrial 5P Gigabit Ethernet Switch, Full-Duplex 10/100/1000M, DIN Rail Mount
  • Industrial 5P Gigabit Ethernet Switch, Full-Duplex 10/100/1000M, DIN Rail Mount
  • Industrial 5P Gigabit Ethernet Switch, Full-Duplex 10/100/1000M, DIN Rail Mount
  • Industrial 5P Gigabit Ethernet Switch, Full-Duplex 10/100/1000M, DIN Rail Mount
  • Industrial 5P Gigabit Ethernet Switch, Full-Duplex 10/100/1000M, DIN Rail Mount
11 208 Ft + ÁFA | Bruttó:14 234 Ft
Nincs raktáron
Készletértesítő
Industrial Grade 5P Gigabit Ethernet Switch, IEEE 802.3x-Compliant Full-Duplex 10/100/1000M Connection, DIN Rail Mount
Részletek Adatok Csomag tartalma
  • Industrial grade 5P Gigabit Ethernet switch, IEEE 802.3x-compliant full-duplex 10/100/1000M connection, DIN rail mount
    Industrial 5P Gigabit switch

    Full-duplex 10/100/1000M connection

    Features at a glance
    • Onboard switch chip, 5x ports 10/100/1000M non-blocking switch architecture
    • Full-duplex 10/100/1000M support for each port (the half-duplex 100M connection is only supported on 10/100M mode)
    • Full/Half-duplex operations with IEEE 802.3x flow control and back pressure support
    • Allow forwarding 9216 bytes huge data packet on linear speed
    • Over-voltage protection, effectively preventing damages caused by other high voltage power supply
    • Industrial grade alloy case, solid and durable, with DIN rail mount support for easy installing
    Robust alloy body
    DIN rail mount support

    compatible with 25mm standard rail

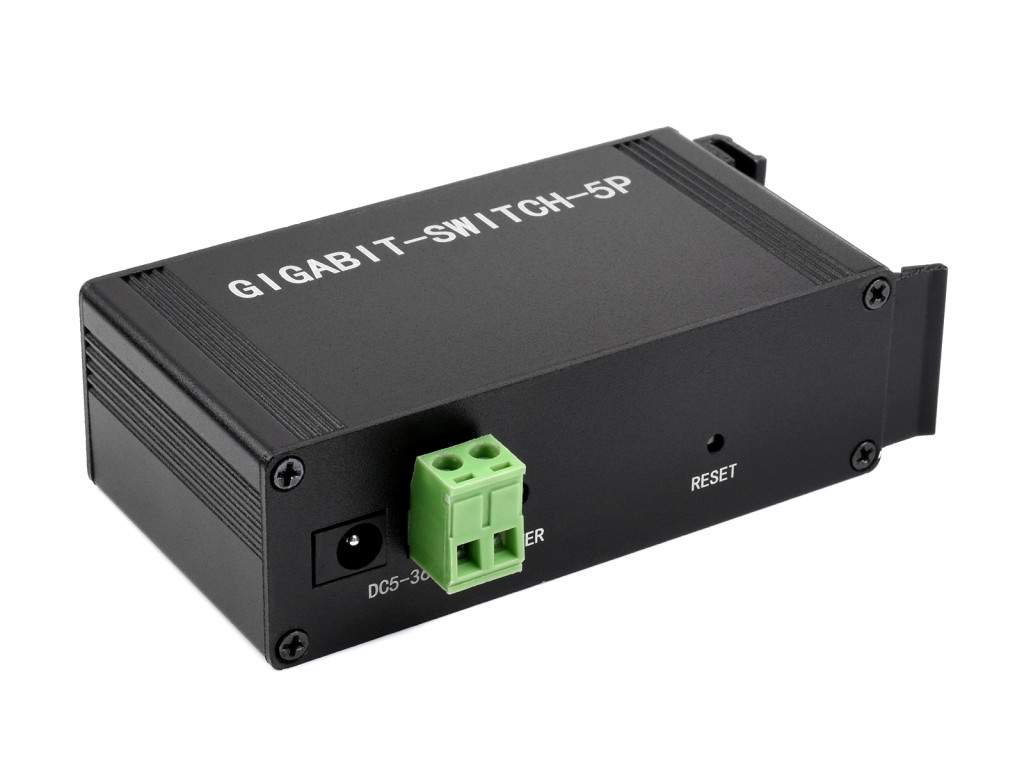

    Wide range supply, Multiple protections

    5~36V wide voltage range power supply, dual power inputs (DC jack and screw terminal).onboard over-voltage protection and reverse-proof protection

    plug & play

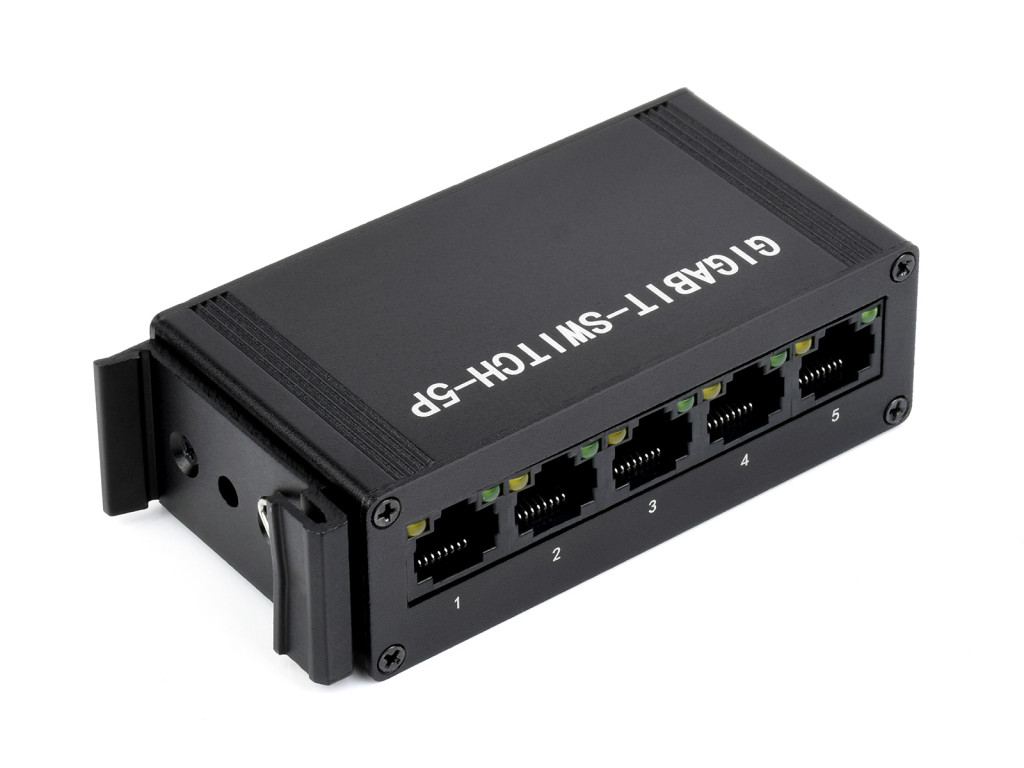

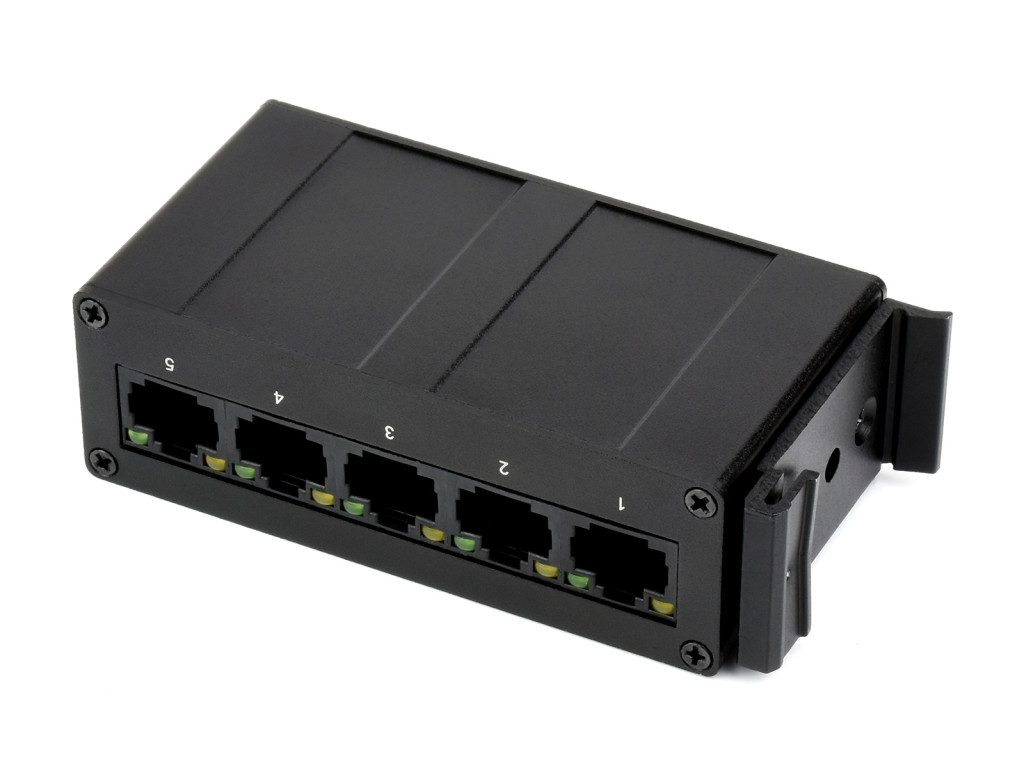

    5x 10/100/1000M Ethernet ports with Auto MDI/MDI-X support,no extra configuration required, plug and play

    Application examples
    Interface introduction
    Outline dimensions
  • Brand
    Waveshare
    PartNumber
    Gigabit-Switch-5P (EU)
    Raktárkészlet
    NINCS
    Cikkszám
    RPI-WS22496
    Státusz
    ÚJ

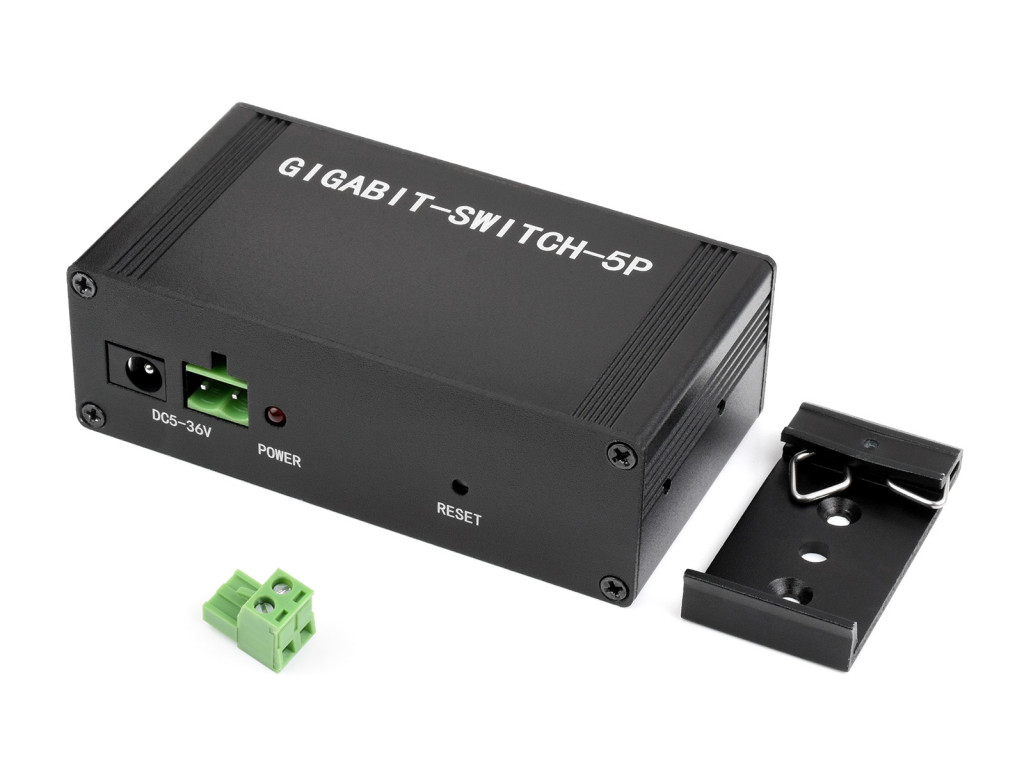

    1. Gigabit-Switch-5P x1
    2. Power supply screw terminal x1
    3. 12V 1A power adapter x1
