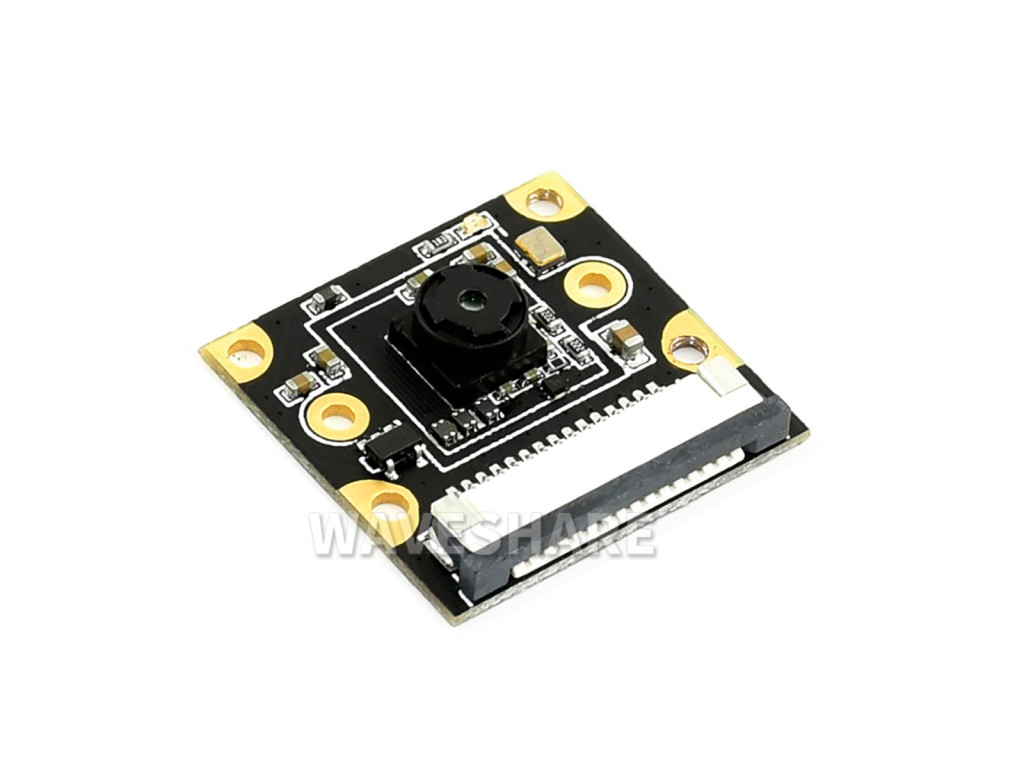

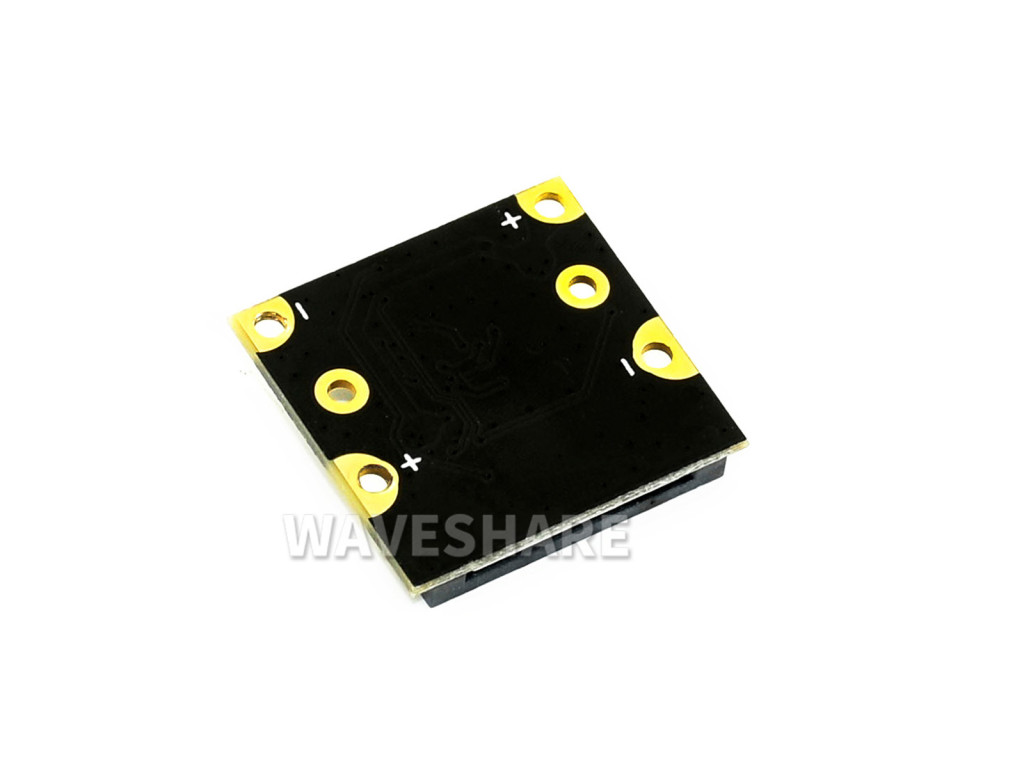

IMX219-77IR kamera, infravörös, Jetson Nano készülékhez alkalmazható

Raktárkészlet: VAN
IMX219-77IR kamera, infravörös, Jetson Nano készülékhez alkalmazható
  • IMX219-77IR kamera, infravörös, Jetson Nano készülékhez alkalmazható
  • IMX219-77IR kamera, infravörös, Jetson Nano készülékhez alkalmazható
  • IMX219-77IR kamera, infravörös, Jetson Nano készülékhez alkalmazható
  • IMX219-77IR kamera, infravörös, Jetson Nano készülékhez alkalmazható
8 959 Ft + ÁFA | Bruttó:11 378 Ft
db Kosárba Kosárba
Árváltozás értesítő
IMX219 kamerasorozat, 8MP, Jetson Nano és Raspberry Pi készülékekhez használható, látómező (FOV) és éjjellátó funkció opciókkal
Részletek Adatok Csomag tartalma
  • IMX219 Camera series, 8MP, Applicable for Jetson Nano and Raspberry Pi, Options for FOV and Night Vision function
    IMX219 8MP Camera series

    Options for FOV | Compatible with Raspberry Pi, Jetson Series, and RDK Series boards

    The8MP camera series is based on IMX219 sensor, options for FOV, night vision function support in specific versions (need to be used with infrared lighting). Compatible with Raspberry Pi series boards, Jetson Series, RDK Series, and VisionFive2, etc. Suitable for AI projects such as Face recognition, Road mark detection and License plate recognition.

    Specifications
    ModelPIXELSSensorCMOS sizeINFRAREDFOVApertureFocal length (mm)DISTORTIONdimensionothers
    IMX219-77 Camera8MPIMX2191/4inch×79.3°2.02.85<1%25×244 screw holes, used for attachment, provides 3.3V power output
    IMX219-77IR Camera√79.3°2.02.85<1%25×244 screw holes, used for attachment, provides 3.3V power output, comes with Infrared LEDs
    IMX219-120 Camera×120°2.01.79<13.6%25×244 screw holes, used for attachment, provides 3.3V power output
    IMX219-160 Camera×160°2.353.15<14.3%25×244 screw holes, used for attachment, provides 3.3V power output
    IMX219-160IR Camera√160°2.353.15<14.3%25×244 screw holes, used for attachment, provides 3.3V power output, comes with Infrared LEDs
    IMX219-160 IR-CUT Camera√162.4°2.71.75<-22.7%32.04×26.444 screw holes, used for attachment, provides 3.3V power output, built in IR-CUT, comes with Infrared LEDs
    IMX219-170 Camera×170°2.42.2<22%32×324 screw holes, used for attachment
    IMX219-200 Camera×200°2.00.87<11%25×244 screw holes, used for attachment, provides 3.3V power output

    * The IR cameras will take curious reddish pictures by daylight for lacking of IR filter in the CCD, yet that is the reason why the camera can see in the dark with IR LEDs

    multiple motherboards Support

    Compatible with all Raspberry Pi boards, Jetson Series, RDK Series, Core3566 and VisionFive2, etc. extra FPC cable is required for Raspberry Pi 5, CM3/3+/4, Zero Series, Jetson Orin Nano/NX and RDK Series

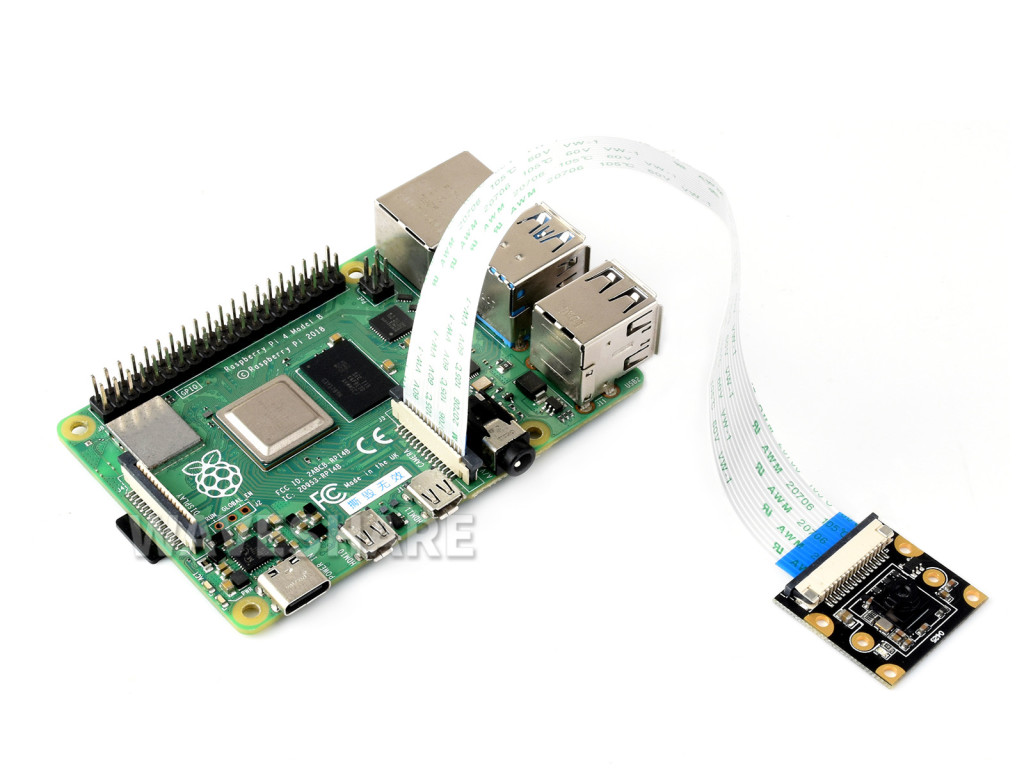

    IMX219-77 Camera connecting with Raspberry Pi 4B

    IMX219-120 Camera connecting with Raspberry Pi 5

    IMX219-170 Camera connecting with CM4 IO Board

    IMX219-200 Camera connecting with Zero 2 W

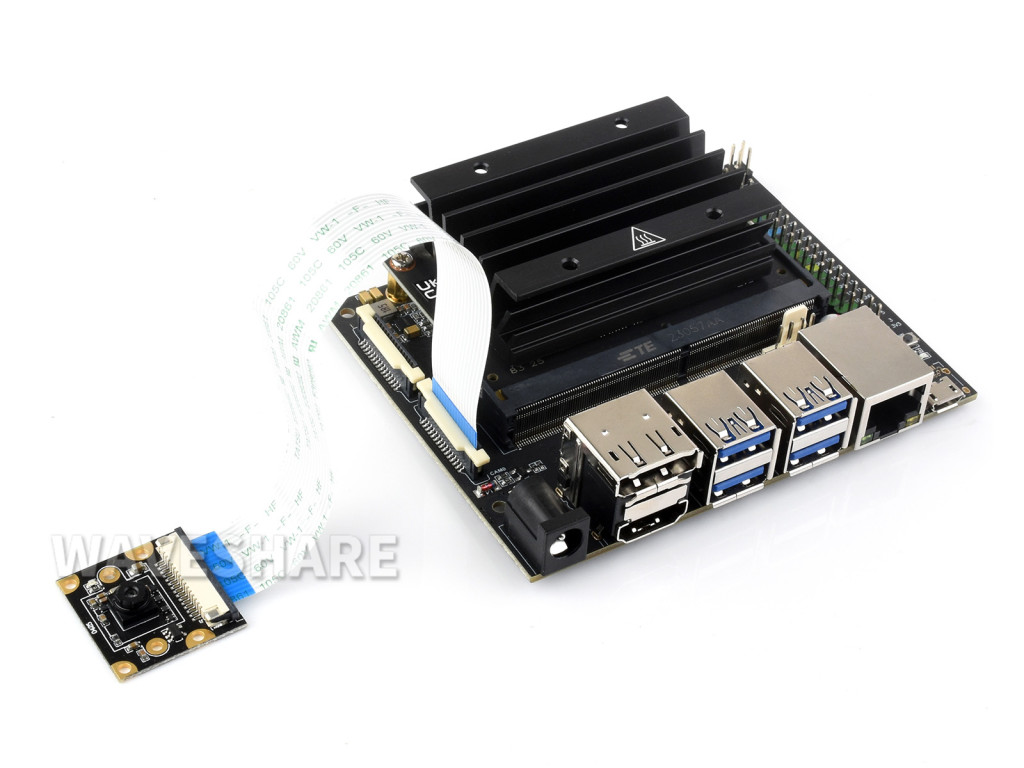

    IMX219-160 Camera connecting with Jetson Nano Kit

    IMX219-160IR Camera connecting with Jetson Orin Kit

    IMX219-77 Cameraconnecting with RDK X5

    IMX219-77 Cameraconnecting with Core3566

    * for reference only, Raspberry Pi 4B,Raspberry Pi 5,Compute Module 4 IO Board,Zero 2 W,Jetson Nano Kit,Jetson Orin Kit,RDK X5,Core3566 are used as examples only, other boards may have different pinouts and cables, black FPCandyellow FPC are NOT included.
    Product Show
    outline dimensions
    Resources & Services
    Wiki:www.waveshare.com/wiki/IMX219-77_CameraWiki:www.waveshare.com/wiki/IMX219-77IR_CameraWiki:www.waveshare.com/wiki/IMX219-120_CameraWiki:www.waveshare.com/wiki/IMX219-160_CameraWiki:www.waveshare.com/wiki/IMX219-160IR_CameraWiki:www.waveshare.com/wiki/IMX219-160_IR-CUT_CameraWiki:www.waveshare.com/wiki/IMX219-170_CameraWiki:www.waveshare.com/wiki/IMX219-200_Camera

    Selection Guide

    ProductPixelsSensorInfraredCameraAngle of View (diagonal) (degree)Aperture (F)Focal Length (mm)PCBASuit for
    RPi Camera V28 MegaIMX219×162.22.03.04√Raspberry Pi, CM3/3+/4, Jetson Nano, Jetson Xavier NX, VisionFive2
    RPi NoIR Camera V2√162.22.03.04√Raspberry Pi, CM3/3+/4, Jetson Nano, VisionFive2
    IMX219-77 Camera×179.32.02.85√Raspberry Pi, CM3/3+/4, Jetson series, VisionFive2
    IMX219-77IR Camera√179.32.02.85√
    IMX219-120 Camera×11202.01.79√
    IMX219-160 Camera×11602.353.15√
    IMX219-160IR Camera√11602.353.15√
    IMX219-160 IR-CUT Camera√1162.42.71.75√
    IMX219-170 Camera×11702.42.2√
    IMX219-200 Camera×12002.00.87√
    IMX219-83-Stereo-Camera×2832.42.6√Raspberry Pi, CM3/3+/4, Jetson series
    IMX219-D160×11602.353.15×Raspberry Pi, CM3/3+/4, Jetson series, VisionFive2
    1. The IR cameras will take curious reddish pictures by daylight for lacking of IR filter in the CCD, yet that is the reason why the camera can see in the dark with IR LEDs
    2. Jetson Nano —— supports both Jetson Nano Developer Kit (B01) and Jetson Nano 2GB Devekoper Kit Jetson Nano (B01) —— supports Jetson Nano Developer Kit (B01) only Jetson Xavier NX —— supports Jetson Xavier NX Developer Kit
  • Brand
    Waveshare
    PartNumber
    IMX219-77IR Camera
    Raktárkészlet
    VAN
    Cikkszám
    RPI-WS16755

  • IMX219-77 Camera

    1. IMX219-77 Camera x1
    2. 15-pin FFC (opposite sides contact) x1
    1
    2

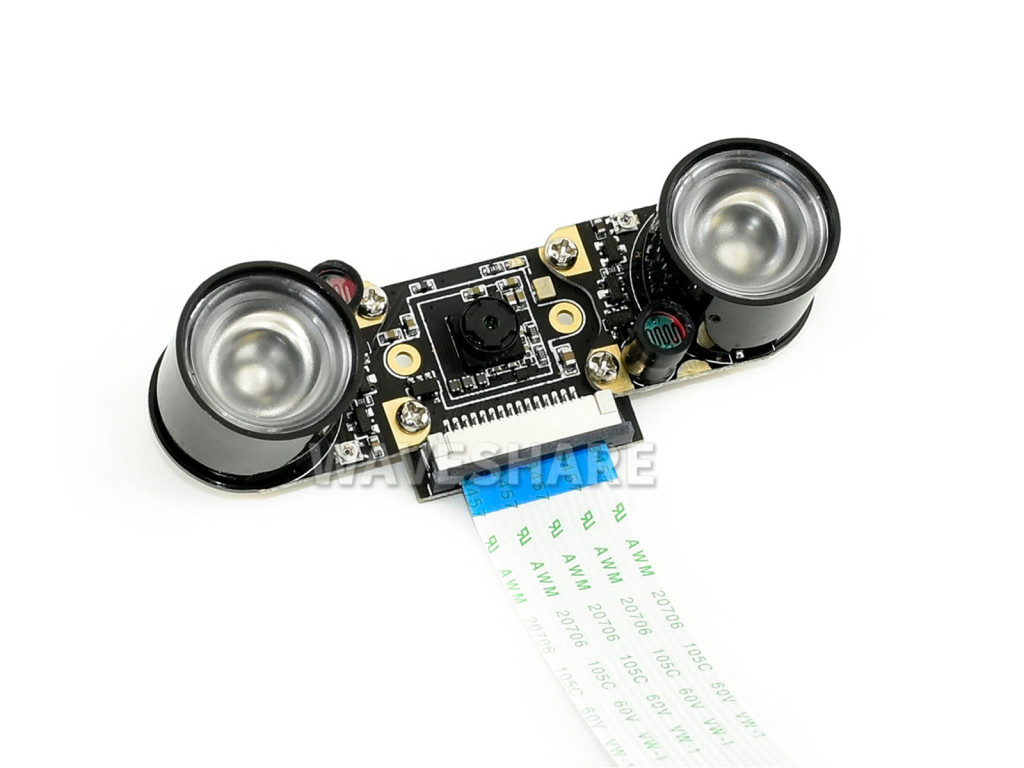

    IMX219-77IR Camera

    1. IMX219-77IR Camera x1
    2. Infrared LED Board (B) 2PCS x1
    3. 15-pin FFC (opposite sides contact) x1
    1
    2
    3

    IMX219-120 Camera

    1. IMX219-120 Camera x1
    2. 15-pin FFC (opposite sides contact) x1
    1
    2

    IMX219-160 Camera

    1. IMX219-160 Camera x1
    2. 15-pin FFC (opposite sides contact) x1
    1
    2

    IMX219-160IR Camera

    1. IMX219-160IR Camera x1
    2. Infrared LED Board (B) 2PCS x1
    3. 15-pin FFC (opposite sides contact) x1
    1
    2
    3

    IMX219-160 IR-CUT Camera

    1. IMX219-160 IR-CUT Camera x1
    2. Infrared LED Board (B) 2PCS x1
    3. 15-pin FFC (opposite sides contact) x1
    1
    2
    3

    IMX219-170 Camera

    1. IMX219-170 Camera x1
    2. 15-pin FFC (opposite sides contact) x1
    1
    2

    IMX219-200 Camera

    1. IMX219-200 Camera x1
    2. 15-pin FFC (opposite sides contact) x1
    1
    2
:
;
