IMX335 5 MP USB kamera (C), 2K videó rögzítés, jobb érzékenység gyenge fényviszonyok mellett, széles dinamika tartomány, torzítás mentes

Raktárkészlet: VAN
IMX335 5 MP USB kamera (C), 2K videó rögzítés, jobb érzékenység gyenge fényviszonyok mellett, széles dinamika tartomány, torzítás mentes
  • IMX335 5 MP USB kamera (C), 2K videó rögzítés, jobb érzékenység gyenge fényviszonyok mellett, széles dinamika tartomány, torzítás mentes
  • IMX335 5 MP USB kamera (C), 2K videó rögzítés, jobb érzékenység gyenge fényviszonyok mellett, széles dinamika tartomány, torzítás mentes
  • IMX335 5 MP USB kamera (C), 2K videó rögzítés, jobb érzékenység gyenge fényviszonyok mellett, széles dinamika tartomány, torzítás mentes
  • IMX335 5 MP USB kamera (C), 2K videó rögzítés, jobb érzékenység gyenge fényviszonyok mellett, széles dinamika tartomány, torzítás mentes
19 572 Ft + ÁFA | Bruttó:24 857 Ft
db Kosárba Kosárba
Olcsóbban szeretném
IMX335 5 MP USB kamera (C), 2K videó rögzítés, jobb érzékenység gyenge fényviszonyok mellett, széles dinamika tartomány, torzítás mentes
Részletek Adatok Csomag tartalma
  • IMX335 5MP USB Camera (C), 2K Video Recording, Better Sensitivity In Low-Light Condition, Wide Dynamic Range, Distortion-Free

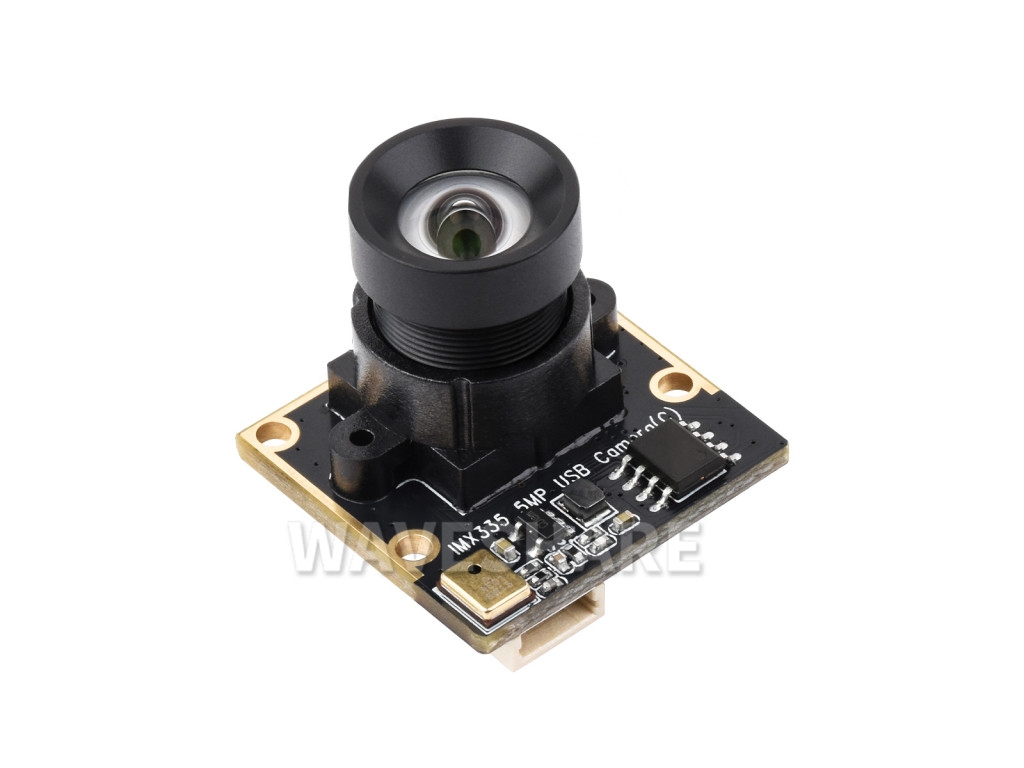

    5MP USB camera module

    IMX335 sensor, USB2.0 port, 91.7° distortion-free lens

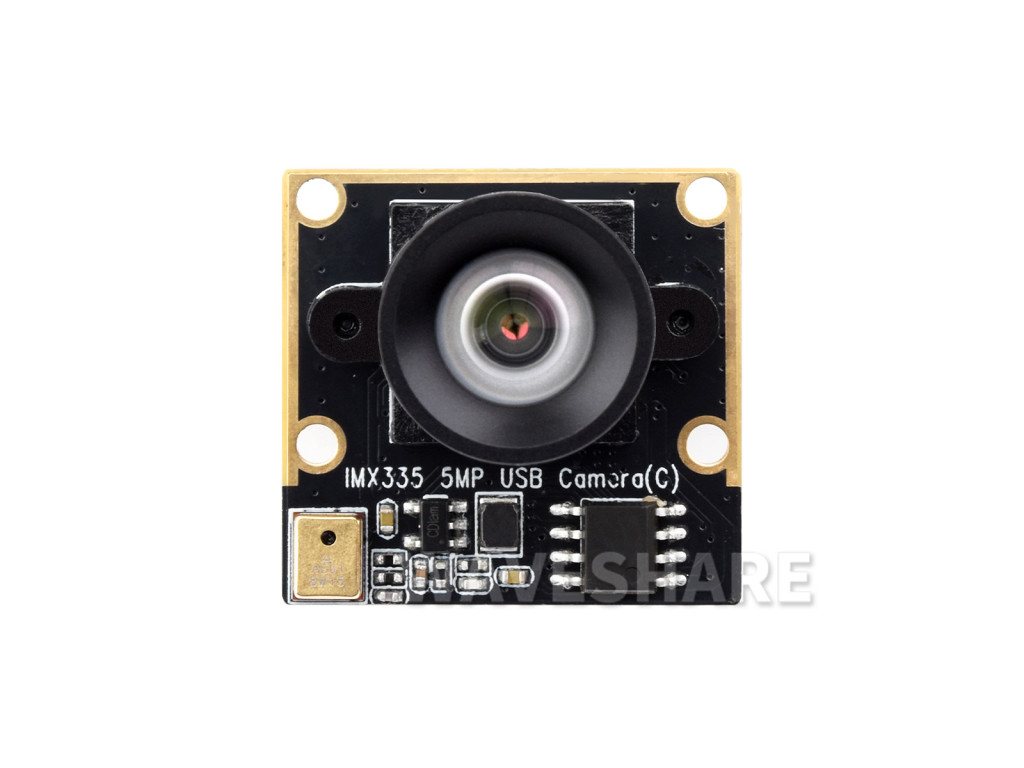

    IMX335 5MP USB Camera (C), front view
    Specifications
    Pixels5MP
    SensorIMX335
    InterfaceUSB 2.0
    CameraSensor size1/2.8 inch
    Aperture (F)2.4
    Focal length (EFL)3.25mm
    Field of view (FOV)91.7°
    Distortion<-1.22%
    FocusingFixed-focus
    MountM12
    CONSTRUCTION3G2P + IR Filter (650nm)
    ImageFormat supportMJPG, YVY2
    Static image resolution2592 × 1944
    Video recording30 FPS 2592 × 1944 30 FPS 1920 × 1080 30 FPS 1280 × 720
    Dynamic range71.6dB@8xgain
    SNR36dB
    Audioonboard 1 × microphone
    Operating voltage5V ± 5%
    operating temperature-10°C~60°C
    Module size25.00 × 24.30 (mm)

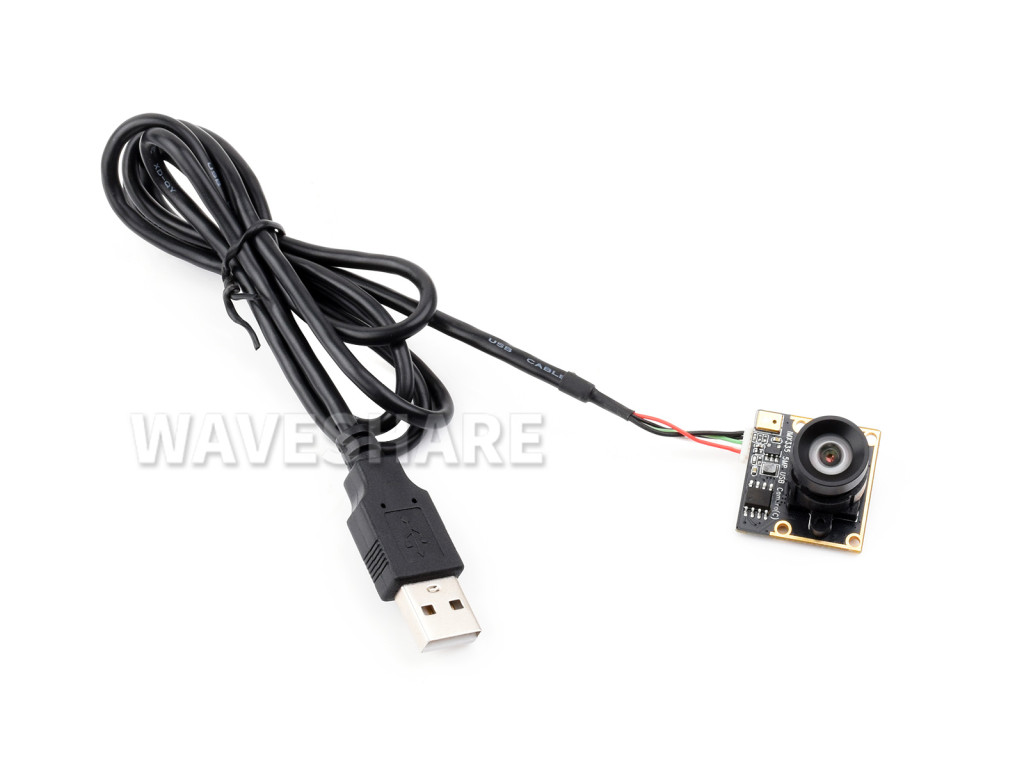

    Connecting with USB cable

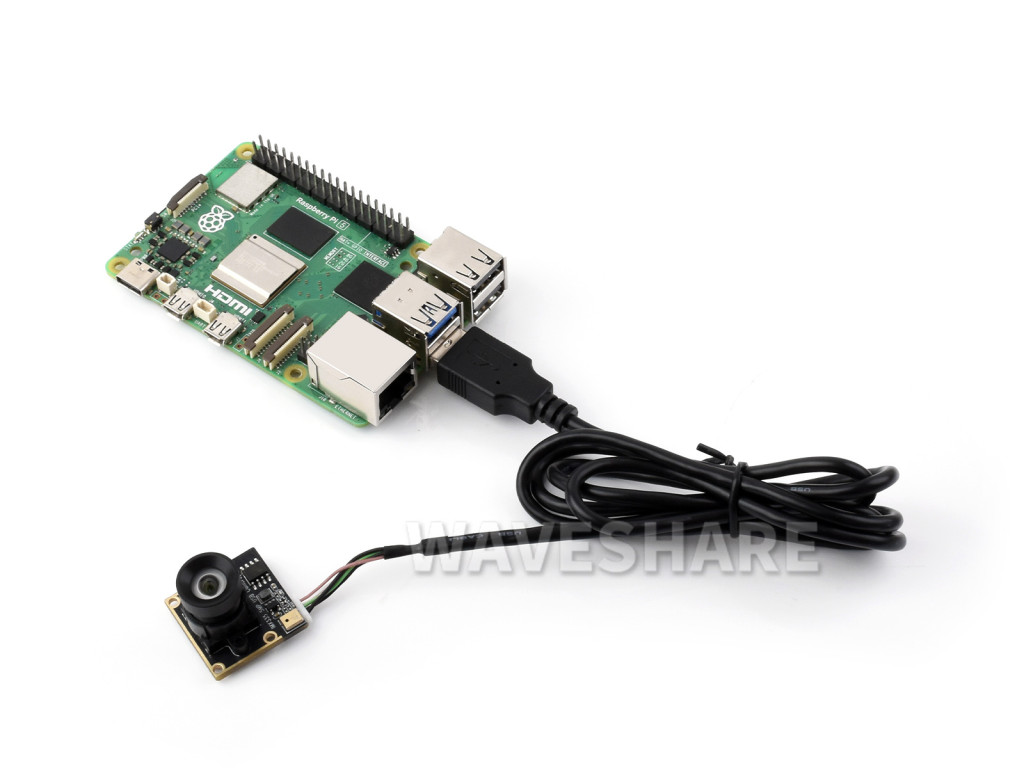

    IMX335 5MP USB Camera (C), connecting to Raspberry Pi 5

    Connecting to Raspberry Pi 5

    IMX335 5MP USB Camera (C), Connecting to Jetson Orin kit

    Connecting to Jetson Orin kit

    IMX335 5MP USB Camera (C), Connecting to RDK X5 Development Board

    Connecting to RDK X5 Development Board

    * for reference only, the Raspberry Pi 5,Jetson Orin kitandRDK X5 Development Board are not included

    5MP High resolution

    Supports 30 FPS output, suitable for capturing details

    IMX335 5MP USB Camera (C), supports 5MP high resolution
    Better Low-light sensitivity

    Provides a better imaging effect in low light condition

    IMX335 5MP USB Camera (C), with better low-light sensitivity
    Wide Dynamic Range

    supports wide dynamic range (WDR) technology for maintaining image details and quality in high contrast scenes

    IMX335 5MP USB Camera (C), supports wide dynamic range
    * The above pictures are the simulated effect for demonstrating the expected performance of IMX335 camera under various conditions, for reference only, please refer to actual effect.
    Distortion-Free

    Equipped with a distortion-free lens with a distortion rate of less than -1.22%, delivering undistorted imaging and more accurate reproduction of real-world scenes

    IMX335 5MP USB Camera (C), adopts distortion-free lens
    * Note: In the industry, lenses with distortion rate less than 2% are generally considered distortion-free.

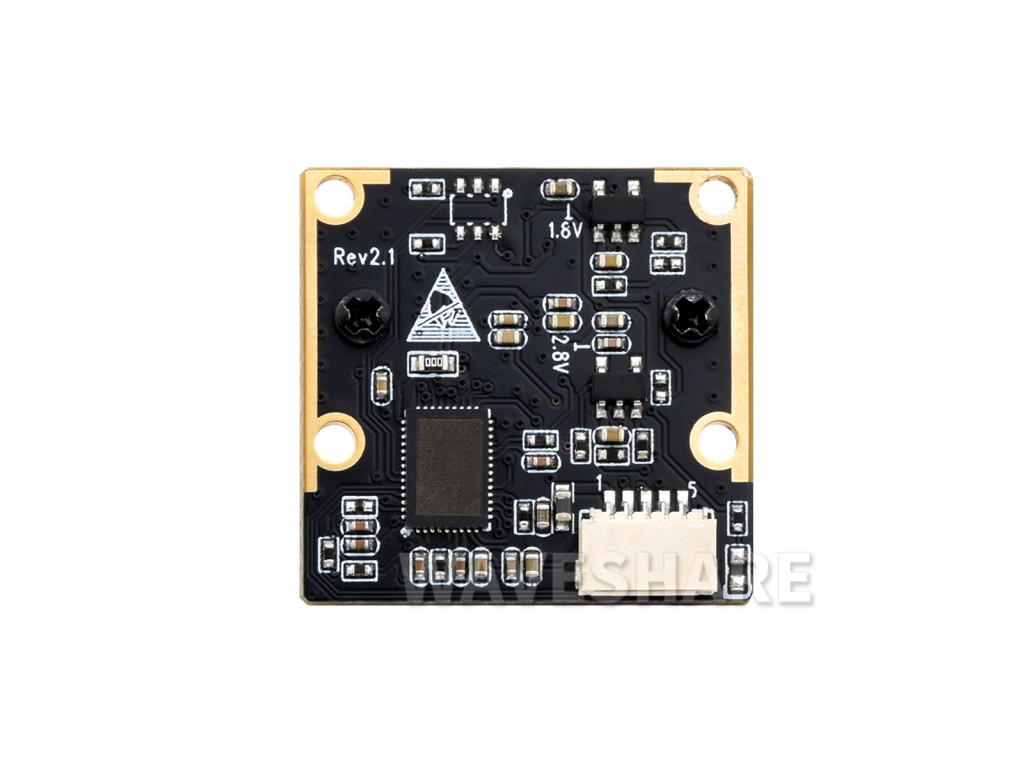

    Pinout Definition
    IMX335 5MP USB Camera (C), pinout definition
    Outline dimensions
    IMX335 5MP USB Camera (C), outline dimensions

    Selection Guide

    Part NumberPixelsSensorBest ResolutionDimensionField of ViewFeature
    OV9281 1MP USB Camera (A)1MPOV92811280×72025×25mm120°Global shutter, 120FPS high frame rate, mono camera
    OV2710 2MP USB Camera (A)2MPOV27101920x108038x38mm145°Low-light sensitivity
    GC2093 2MP USB Camera (A)2MPGC20931920x108038x38mm170°Wide dynamic range, backlit imaging, onboard microphone
    OV5693 5MP USB Camera (A)5MPOV56932592x194418×40mm135°Auto focus
    OV5693 5MP USB Camera (B)5MPOV56932592x19448.5×60.2mm75°Small size, auto focus
    OV5640 5MP USB Camera (B)5MPOV56402592x19449×62mm68°Small size, auto focus
    OV5640 5MP USB Camera (C)Small size
    IMX335 5MP USB Camera (A)5MPIMX3352592x194438×38mm106.9°Manual focus, low-light sensitivity, wide dynamic range
    IMX335 5MP USB Camera (B)5MPIMX3352592x194425×24mm175°Fixed-focus, wide angle, low-light sensitivity, wide dynamic range
    IMX335 5MP USB Camera (C)5MPIMX3352592x194425×24.3mm91.7°Fixed-focus, low-light sensitivity, wide dynamic range, distortion-free, onboard microphone
    IMX378 12MP USB Camera (A)12MPIMX3783840×303230×30mm79.8°HD, auto-focus, onboard dual microphones
    IMX179 8MP USB Camera (A)8MPIMX1793288x251238x38mm145°HD, embedded digital mic
    IMX179 8MP USB Camera (B)8MPIMX1793264×24489×62mm75°HD, small size, auto focus
    IMX258 13MP OIS USB Camera (A)13MPIMX2584208×312038×38mm127°HD, OIS
  • Brand
    Waveshare
    PartNumber
    IMX335 5MP USB Camera (C)
    Raktárkészlet
    VAN
    Cikkszám
    RPI-WS31824

  • IMX335 5MP USB Camera (C) x1

    IMX335 5MP USB Camera (C)
:
;
