IMX378 12 MP USB kamera (A), támogatja a 30 FPS kimenetet, jobb érzékenység gyenge fényviszonyok mellett, torzításmentes, beépített kettős mikrofon

Raktárkészlet: VAN
IMX378 12 MP USB kamera (A), támogatja a 30 FPS kimenetet, jobb érzékenység gyenge fényviszonyok mellett, torzításmentes, beépített kettős mikrofon
  • IMX378 12 MP USB kamera (A), támogatja a 30 FPS kimenetet, jobb érzékenység gyenge fényviszonyok mellett, torzításmentes, beépített kettős mikrofon
  • IMX378 12 MP USB kamera (A), támogatja a 30 FPS kimenetet, jobb érzékenység gyenge fényviszonyok mellett, torzításmentes, beépített kettős mikrofon
  • IMX378 12 MP USB kamera (A), támogatja a 30 FPS kimenetet, jobb érzékenység gyenge fényviszonyok mellett, torzításmentes, beépített kettős mikrofon
  • IMX378 12 MP USB kamera (A), támogatja a 30 FPS kimenetet, jobb érzékenység gyenge fényviszonyok mellett, torzításmentes, beépített kettős mikrofon
21 633 Ft + ÁFA | Bruttó:27 474 Ft
db Kosárba Kosárba
Olcsóbban szeretném
IMX378 12 MP USB kamera (A), támogatja a 30 FPS kimenetet, jobb érzékenység gyenge fényviszonyok mellett, torzításmentes, beépített kettős mikrofon
Részletek Adatok Csomag tartalma
  • IMX378 12MP USB Camera (A), Supports 30 FPS Output, Better Sensitivity In Low-Light Condition, Distortion-Free, Onboard Dual Microphones
    IMX378 12MP USB camera module

    12MP | USB Type-C port | 79.8° FOV | Dual Microphones

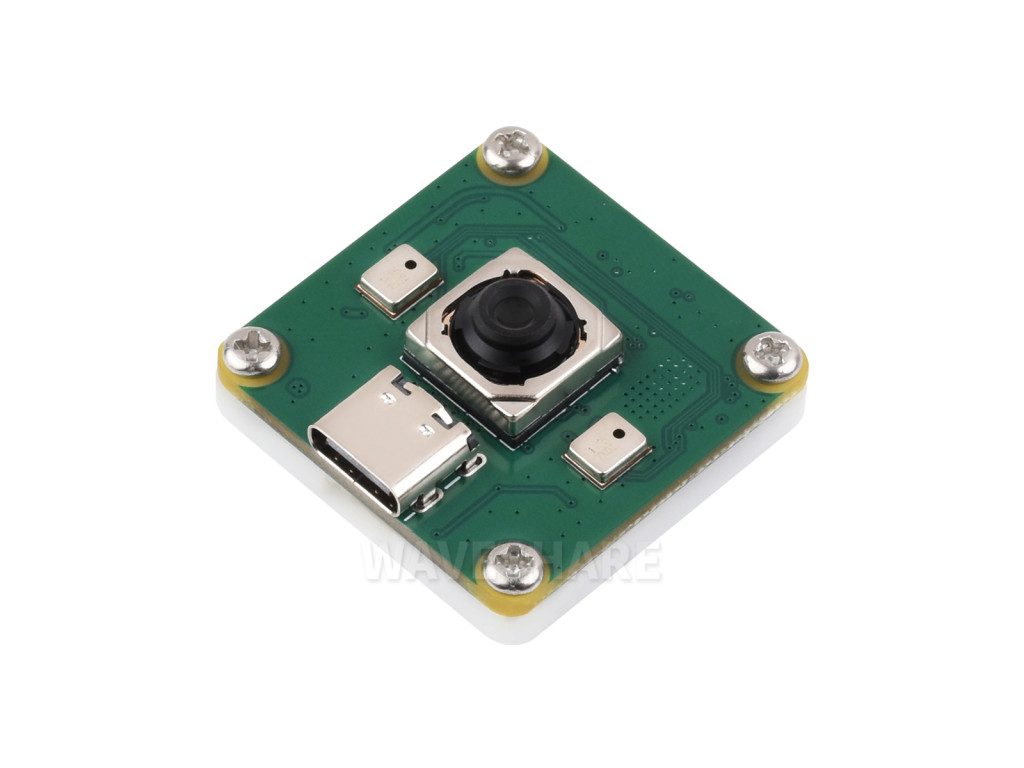

    IMX378 12MP USB Camera (A), front view
    Specifications
    Pixels12MP
    SensorIMX378
    InterfaceUSB2.0 Type-C
    CameraSensor size1/2.3 inch
    Aperture (F)1.79
    Focal length (EFL)4.7mm
    Field of view (FOV)79.8°
    Distortion<0.39%
    FocusingAuto-focus
    ImageFormat supportMJPG, YVY2
    Static image resolution3840 × 3032
    Video recording30 FPS 3840 × 3032 30 FPS 3840 × 2160 30 FPS 2592 × 1944
    AudioOnboard dual microphones
    Operating voltage5V ± 5%
    operating temperature0°C ~ 50°C
    Module size30.00 × 30.00 (mm)
    Connecting with USB cable

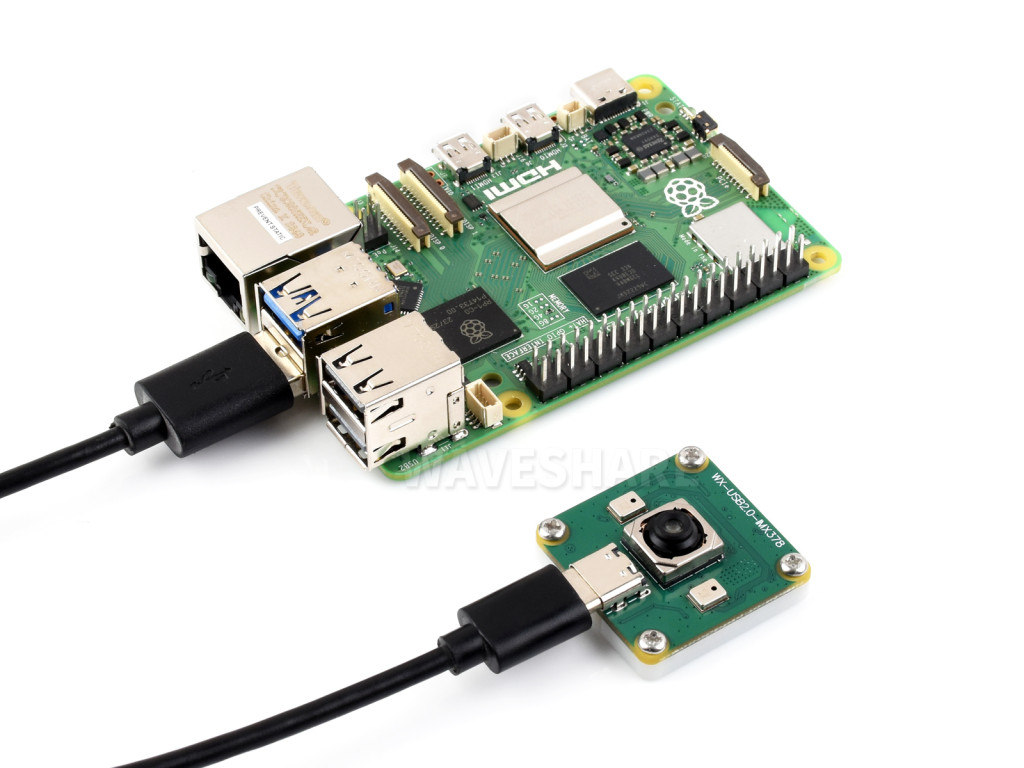

    IMX378 12MP USB Camera (A), connecting to Raspberry Pi 5

    Connecting to Raspberry Pi 5

    IMX378 12MP USB Camera (A), connecting to Jetson Orin kit

    Connecting to Jetson Orin kit

    IMX378 12MP USB Camera (A), connecting to RDK X5 Development Board

    Connecting to RDK X5 Development Board

    * for reference only, the Raspberry Pi 5,Jetson Orin kitandRDK X5 Development Board are not included

    12MP High resolution

    Supports 30 FPS output, suitable for capturing details

    IMX378 12MP USB Camera (A), supports 12MP high resolution
    Distortion-Free

    Equipped with a distortion-free lens with a distortion rate of less than 0.39%, delivering undistorted imaging and more accurate reproduction of real-world scenes

    IMX378 12MP USB Camera (A), adopts distortion-free lens
    * Note: In the industry, lenses with distortion rate less than 2% are generally considered distortion-free.
    Pinout Definition
    IMX378 12MP USB Camera (A), pinout definition
    Onboard two types of connectors
    IMX378 12MP USB Camera (A), connecting via USB Type-C port

    Connecting via USB Type-C port

    IMX378 12MP USB Camera (A), connecting via 4PIN connector

    Connecting via 1.0mm pitch 4PIN connector

    Outline dimensions
    IMX378 12MP USB Camera (A), outline dimensions

    Selection Guide

    Part NumberPixelsSensorBest ResolutionDimensionField of ViewFeature
    OV9281 1MP USB Camera (A)1MPOV92811280×72025×25mm120°Global shutter, 120FPS high frame rate, mono camera
    OV2710 2MP USB Camera (A)2MPOV27101920x108038x38mm145°Low-light sensitivity
    GC2093 2MP USB Camera (A)2MPGC20931920x108038x38mm170°Wide dynamic range, backlit imaging, onboard microphone
    OV5693 5MP USB Camera (A)5MPOV56932592x194418×40mm135°Auto focus
    OV5693 5MP USB Camera (B)5MPOV56932592x19448.5×60.2mm75°Small size, auto focus
    OV5640 5MP USB Camera (B)5MPOV56402592x19449×62mm68°Small size, auto focus
    OV5640 5MP USB Camera (C)Small size
    IMX335 5MP USB Camera (A)5MPIMX3352592x194438×38mm106.9°Manual focus, low-light sensitivity, wide dynamic range
    IMX335 5MP USB Camera (B)5MPIMX3352592x194425×24mm175°Fixed-focus, wide angle, low-light sensitivity, wide dynamic range
    IMX335 5MP USB Camera (C)5MPIMX3352592x194425×24.3mm91.7°Fixed-focus, low-light sensitivity, wide dynamic range, distortion-free, onboard microphone
    IMX378 12MP USB Camera (A)12MPIMX3783840×303230×30mm79.8°HD, auto-focus, onboard dual microphones
    IMX179 8MP USB Camera (A)8MPIMX1793288x251238x38mm145°HD, embedded digital mic
    IMX179 8MP USB Camera (B)8MPIMX1793264×24489×62mm75°HD, small size, auto focus
    IMX258 13MP OIS USB Camera (A)13MPIMX2584208×312038×38mm127°HD, OIS
  • Brand
    Waveshare
    PartNumber
    IMX378 12MP USB Camera (A)
    Raktárkészlet
    VAN
    Cikkszám
    RPI-WS31672
    1. IMX378 12MP USB Camera (A) x1
    2. SH1.0 4PIN dual plug cable x1
    1IMX378 12MP USB Camera (A)
