High Quality Camera for Raspberry Pi / Raspberry Pi Compute Module / Jetson Nano / RDK Series, 12.3MP IMX477 Sensor, High Sensitivity, Supports C- and CS-mount Lenses

ÚJ
Raktárkészlet: VAN
High Quality Camera for Raspberry Pi / Raspberry Pi Compute Module / Jetson Nano / RDK Series, 12.3MP IMX477 Sensor, High Sensitivity, Supports C- and CS-mount Lenses
  • High Quality Camera for Raspberry Pi / Raspberry Pi Compute Module / Jetson Nano / RDK Series, 12.3MP IMX477 Sensor, High Sensitivity, Supports C- and CS-mount Lenses
  • High Quality Camera for Raspberry Pi / Raspberry Pi Compute Module / Jetson Nano / RDK Series, 12.3MP IMX477 Sensor, High Sensitivity, Supports C- and CS-mount Lenses
  • High Quality Camera for Raspberry Pi / Raspberry Pi Compute Module / Jetson Nano / RDK Series, 12.3MP IMX477 Sensor, High Sensitivity, Supports C- and CS-mount Lenses
  • High Quality Camera for Raspberry Pi / Raspberry Pi Compute Module / Jetson Nano / RDK Series, 12.3MP IMX477 Sensor, High Sensitivity, Supports C- and CS-mount Lenses
  • High Quality Camera for Raspberry Pi / Raspberry Pi Compute Module / Jetson Nano / RDK Series, 12.3MP IMX477 Sensor, High Sensitivity, Supports C- and CS-mount Lenses
  • High Quality Camera for Raspberry Pi / Raspberry Pi Compute Module / Jetson Nano / RDK Series, 12.3MP IMX477 Sensor, High Sensitivity, Supports C- and CS-mount Lenses
27 802 Ft + ÁFA | Bruttó:35 309 Ft
db Kosárba Kosárba
Árváltozás értesítő
High Quality Camera For Raspberry Pi Compute Module / Jetson Nano, 12.3MP IMX477 Sensor, High Sensitivity, Supports C- And CS-Mount Lenses
Részletek Adatok Csomag tartalma
  • High Quality Camera for Raspberry Pi / Raspberry Pi Compute Module / Jetson Nano / RDK Series, 12.3MP IMX477 Sensor, High Sensitivity, Supports C- and CS-mount Lenses
    High Quality 12.3MP Camera

    High Resolution High Sensitivity IMX477 Sensor

    Supports Raspberry Pi / Jetson Series / RDK Series Boards

    TheIMX477 12.3MP Camera is a high quality camera module which adopts the IMX477R sensor, and requires a C- or CS-mount lens to work. It is compatible with Raspberry Pi Compute Module and NVIDIA Jetson Nano, offers higher resolution (12.3MP) and higher sensitivity (nearly 50% greater area per pixel for improved low-light performance) than IMX219 cameras.

    TheIMX477 12.3MP Camera is suitable for industrial and consumer applications like security camera, and other specialist optical devices which require higher level of visual fidelity.

    Specifications
    SensorIMX477R
    12.3MP, 4056 (H) × 3040 (V)
    7.9mm CMOS diagonal size
    1.55µm (H) × 1.55µm (V) pixel size
    OutputRAW12 / 10 / 8, COMP8
    Back focusAdjustable
    Lens SupportC-mount / CS-mount (C-CS adapter included)
    IR cut filterIntegrated
    Lens Selection
    Product6mm Wide Angle Lens16mm Telephoto Lens25mm Telephoto Lens35mm Telephoto Lens8-50mm Zoom Lens100X Microscope Lens for Pi
    Image format1/2"1"2/3"1"1/2.3"1/2"
    Focal length6mm16mm25mm35mm8-50mm-
    ApertureF1.2F1.4-16F1.4-16F1.7-16F1.4-
    OPTICAL MAGNIFICATION-0.12X~1.8X
    ZOOM RATIO-15:01
    MountCS-mountC-mountC/CS-mount
    Angle of view63°1" 44.6° × 33.6° 2/3" 30.0° × 23.2° 1/1.8" 24.7° × 18.6° 1/2" 21.8° ×16.4°2/3" 20.2° × 15.1° 1/1.8" 16.5° × 12.4° 1/2" 14.5° × 10.5°1" 20.9° × 15.8° 2/3" 14.4° × 10.8° 1/2" 10.5° × 7.9°45°-5.35°-
    Back focus7.53mm17.53mm-
    Optical length-67.53mm-
    Distortion-1"（-0.7%） 1/2"（-0.5%） 1/3"（-0.15%）0.05%0.35%-< -0.1%
    M.O.D.0.20m0.20m0.25m0.30m0.20m2.4mm
    DimensionsΦ30.00 × 34.00mmΦ39.00 × 50.00mmΦ34.00 × 34.00mmΦ35.00 × 34.00mmΦ40.00×68.30mmΦ39.00×112.00mm
    OperationManual aperture adjustmentFixed aperture
    Weight53g133.7g82g78g148g202g
    Higher resolution, better imaging effect

    Compared to 8MP of normal Raspberry Camera, this high quality camera offers up to 12.3MP, along with nearly 50% greater area per pixel, delivering better imaging effect

    with mounted lens

    C-mount 16mm Telephoto Lens(C-CS adapter required)

    CS-mount 6mm Wide Angle Lens(C-CS adapter should be removed)

    * for reference only, please refer to the Package Content for detailed part list

    Multiple Motherboards Support

    Compatible With Raspberry Pi Series, Jetson Series (Specific driver is required), RDK Series Boards, and CM3/3+/4/5 Series, Zero Series

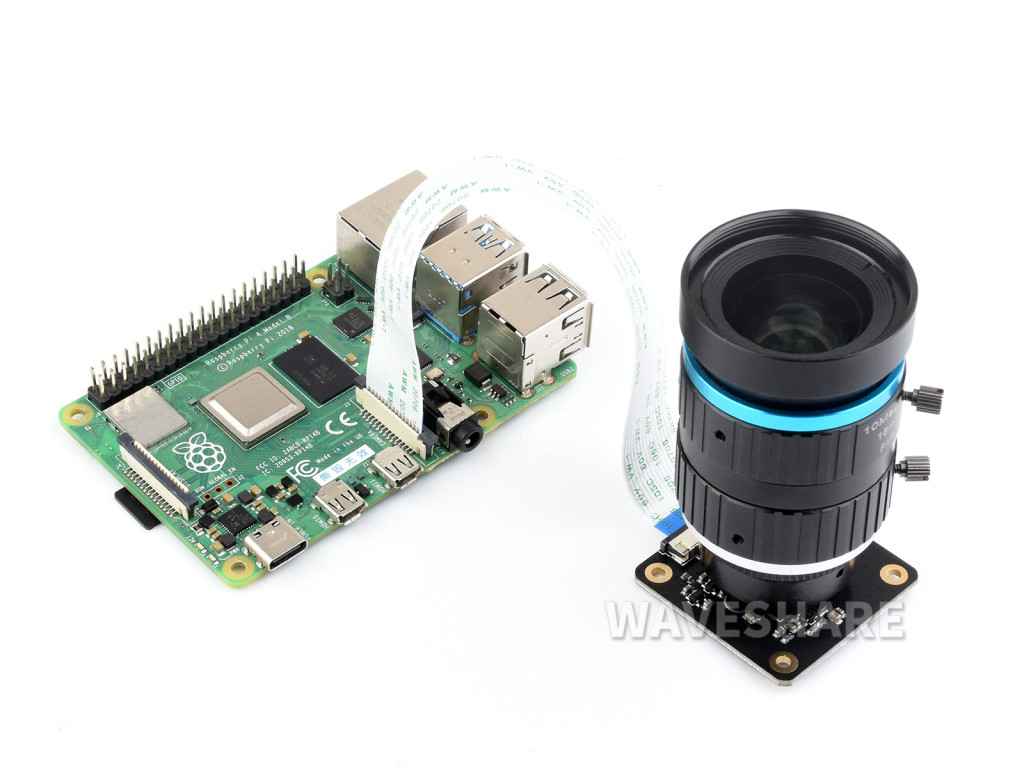

    Connecting with Raspberry Pi 4B

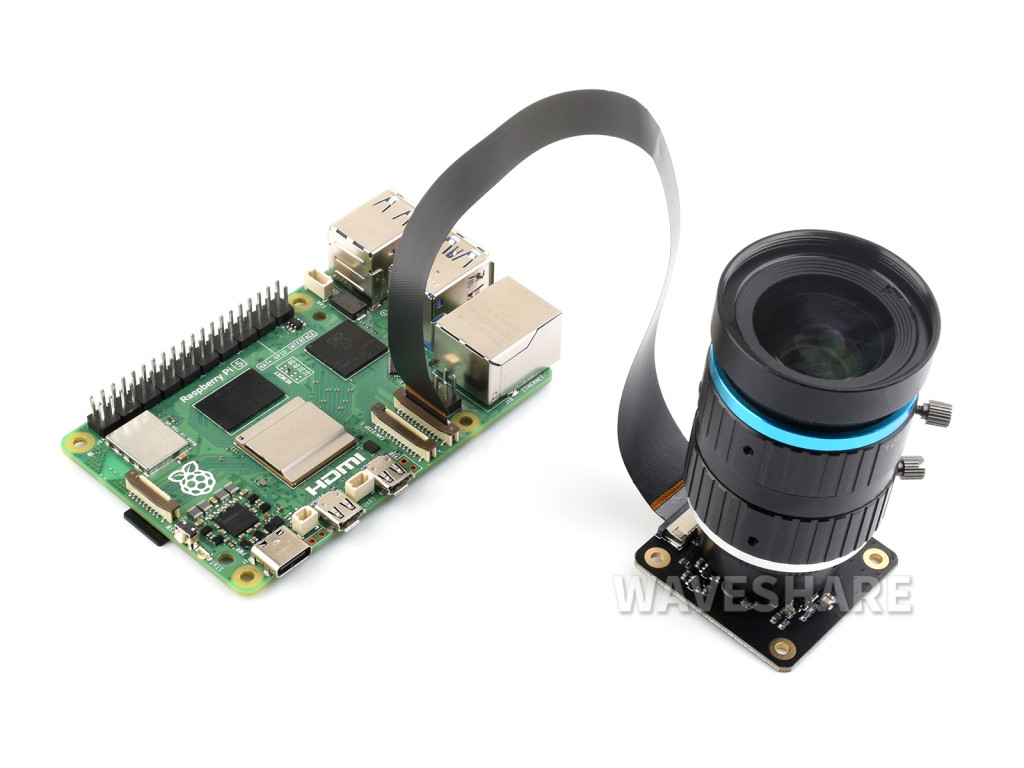

    Connecting with Raspberry Pi 5

    Connecting with CM5 IO Board

    Connecting with Zero 2 W

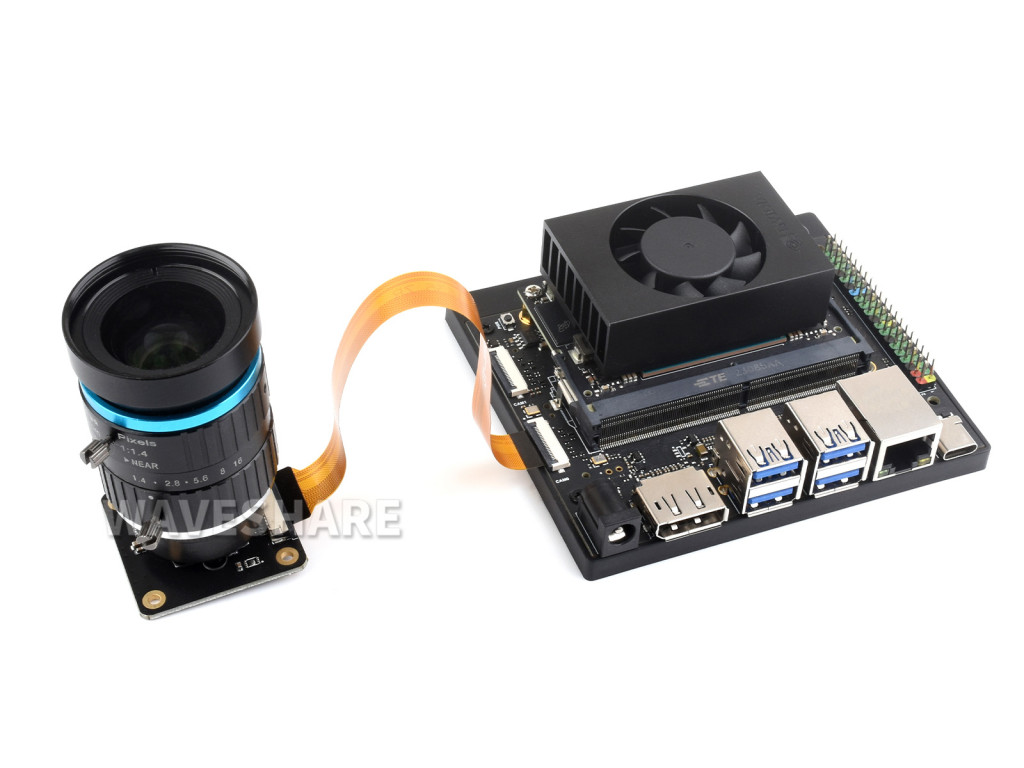

    Connecting with Jetson Nano Kit

    Connecting with Jetson Orin Kit

    Connecting with RDK X5

    * for reference only, Raspberry Pi 4B, Raspberry Pi 5, Compute Module 5 IO Board,Zero 2 W, Jetson Nano Kit, Jetson Orin Kit, RDK X5, and 16mm Telephoto Lens are NOT included.
    Resources & Services
    Wiki:IMX477_12.3MP_Camera
    Selection Guide
    Part Number PixelsSensor FoV (°) Distortion Shutter Type IR Filter Aperture (F) Focal Length (mm) For Use With Features
    OV9281-110 Camera1MP (1280×800) OV9281110°(D)×93°(H)×70°(V)<1%Global ShutterNone2.22.1Raspberry Pi series boards and Compute ModulesGlobal shutter, monochrome camera, distortion-free
    OV9281-120 Camera120°(D)<7.5%2.52.33Global shutter, monochrome camera, wide angle
    OV9281-160 Camera160°(D)×126°(H)×91°(V)<14.3%2.353.15Global shutter, monochrome camera, wide angle
    Raspberry Pi Global Shutter Camera1.6MP (1440×1080)IMX296--Integrated--C/CS mount, global shutter, official Raspberry Pi camera
    IMX296 Global Camera (A)--Integrated--C/CS mount, global shutter
    IMX296-130 BW Camera130°(D)×99°(H)×72°<20%Integrated1.63Global shutter, monochrome camera
    IMX290 2MP Camera (A)2MP (1920×1080)IMX29094°(D)×86°(H)×56°(V)<-0.3%Rolling ShutterIntegrated2.72.88Distortion-free, wide dynamic range
    IMX290-83 IR-CUT Camera90°(D)×83°(H)×47°(V)<5%IR-CUT23.95IR-CUT, wide dynamic range
    IMX291-83 IR-CUT CameraIMX29190°(D)×83°(H)×47°(V)<5%IR-CUT23.95IR-CUT, wide dynamic range
    IMX327 2MP IR-CUT Camera (A)IMX32790°(D)×83°(H)×47°(V)<5%IR-CUT23.95IR-CUT, wide dynamic range
    IMX462-100 2MP Starlight CameraIMX462100.0°<-32%Integrated13.9Raspberry Pi series boards and Jetson NanoStarlight, onboard ISP, driver required
    IMX462-127 2MP Starlight Camera127.9°<-51%Integrated1.613.18
    IMX462 IR-CUT Camera (A)90°(D)<5%IR-CUT23.95Raspberry Pi series boards and Compute ModulesIR-CUT, wide dynamic range
    ISX031 3MP Camera3MP (1920×1536)ISX031123°(D)-Integrated22.8Raspberry Pi series and mainstream Jetson boardsBuilt-in ISP, wide angle
    SC3336 3MP Camera (B)3MP (2304×1296)SC333698.3°(D)<33%Integrated23.95Luckfox Pico series boardsHigh sensitivity, low dark current
    MIS5001 5MP Camera (A)5MP (2592×1944)MIS500193°<-10.7%Integrated1.64.15High sensitivity, low dark current
    MIS5001 5MP Camera (B)95.5°<1%Integrated2.42.88High sensitivity, low dark current, distortion-free
    RPi Camera (B)OV564760.6°(D)-Integrated26Raspberry Pi series boards and RDK boards-
    RPi Camera (F)60°(D)<0.32%None23.6Distortion-free, night vision
    RPi Camera (G)160°(D)<14.3%Integrated2.353.15Wide angle
    RPi Camera (H)160°(D)<14.3%None2.353.15Fisheye lens, night vision
    RPi Camera (I)185°(D)-Integrated21.55Fisheye lens
    RPi Camera (M)200°(D)-Integrated20.87Fisheye lens
    RPi IR-CUT Camera50°(D)-IR-CUT23.6IR-CUT
    RPi Zero V1.3 Camera69.8°(D)-Integrated2.83.21Raspberry Pi boards and Compute Modules with 22PIN camera connectorCompact size
    RPi FPC Camera (B)72.9°(D)-Integrated2.43.89Raspberry Pi boards and Compute Modules with 15PIN camera connector, RDK boardsCompact size
    OV5647-70 5MP OIS Camera70°(D)<1.0%Integrated2.83.2Optical image stabilization
    IMX219-77 Camera8MP (3296×2512)IMX21979.3°<1%Integrated22.85Raspberry Pi series boards and RDK boardsDistortion-free, high resolution
    IMX219-77IR Camera79.3°<1%None22.85Night vision support
    IMX219-120 Camera120°<1%Integrated2.642.85Wide angle
    IMX219-160 Camera160°<14.3%Integrated2.353.15Wide angle
    IMX219-D160160°<14.3%Integrated2.353.15Camera module, requires driver PCB
    IMX219-160IR Camera160°<14.3%None2.353.15Night vision, wide angle
    IMX219-160 IR-CUT Camera162.4°<-22.7%IR-CUT2.71.75Night vision, IR-CUT
    IMX219-170 Camera170°<22%Integrated2.42.2Wide angle
    IMX219-200 Camera200°<11%Integrated20.87Fisheye
    IMX219-83 Stereo Camera83°(D)×73°(H)×50°(V)<1%Integrated2.42.6Raspberry Pi boards and Compute Modules with dual camera interfaces, RDK boards, Jetson boardsStereo camera, onboard IMU
    RPi Camera V262.2°(D)-Integrated23.04Raspberry Pi series boards and Compute Modules, RDK boards, Jetson boardsOfficial Raspberry Pi camera
    RPi NoIR Camera V262.2°(D)-None23.04Official Raspberry Pi camera
    IMX415 8MP AF CameraIMX41595.5°(D)<1%Integrated2.42.2Auto focus
    IMX415 8MP Camera (A)95.5°(D)<1%IR-CUT2.42.88Raspberry Pi series boards and Compute Modules, Luckfox boardsIR-CUT
    IMX415-98 IR-CUT Camera98°(D)<1%IR-CUT23.95IR-CUT
    Raspberry Pi Camera Module 311.9MP (4608×2592)IMX70875°(D)-Integrated1.84.74Raspberry Pi series boards and Compute ModulesOfficial Raspberry Pi camera, auto focus
    Raspberry Pi Camera Module 3 Wide120°(D)-Integrated2.22.75Official Raspberry Pi camera, auto focus, wide angle
    Raspberry Pi Camera Module 3 NoIR75°(D)-None1.84.74Official Raspberry Pi camera, auto focus, night vision
    Raspberry Pi Camera Module 3 NoIR Wide120°(D)-None2.22.75Official Raspberry Pi camera, auto focus, wide angle, night vision
    Camera Module 3 Sensor Assembly75°(D)-Integrated1.84.74Official Raspberry Pi camera module, requires driver PCB, auto focus
    Camera Module 3 Sensor Assembly NoIR75°(D)-None1.84.74Official Raspberry Pi camera module, requires driver PCB, night vision, auto focus
    Camera Module 3 Sensor Assembly Wide120°(D)-Integrated2.22.75Official Raspberry Pi camera module, requires driver PCB, wide angle, auto focus
    Camera Module 3 Sensor Assembly Wide NoIR120°(D)-None2.22.75Official Raspberry Pi camera module, requires driver PCB, wide angle, night vision, auto focus
    IMX708-75 Camera75°(D)-Integrated1.84.74Auto focus, Official RPi camera module
    IMX708-75 Camera NoIR75°(D)-None1.84.74Night vision, auto focus, Official RPi camera module
    IMX708-75 Camera Module79.8°(D)<1%Integrated1.794.7Camera module, requires driver PCB, auto focus
    IMX708-120 Camera120°(D)-Integrated2.22.75Wide angle, auto focus, Official RPi camera module
    IMX708-120 Camera NoIR120°(D)-None2.22.75Wide angle, night vision, auto focus, Official RPi camera module
    IMX708-120 Camera Module120°(D)<3.5%Integrated2.23.08Camera module, requires driver PCB, auto focus
    IMX708-75 Camera (B)79.8°(D)<1%Integrated1.794.7distortion-free, auto focus, high resolution
    IMX708-120 Camera (B)120°(D)<3.5%Integrated2.23.08Wide angle, high resolution
    IMX378-190 12.3MP Camera (B)12.3MP (4056×3040)IMX378190°(D)<58%Integrated2.46.5Wide angle fisheye lens
    IMX477 12.3MP Camera12.3MP (4056×3040)IMX477--Integrated--Raspberry Pi series boards and Compute Modules, RDK boards, Jetson boardsC/CS mount, requires additional lens
    IMX477-160 12.3MP Camera154.2°(D)×117.6°(H)×85.6°(V)-72.3%Integrated2.73.25Wide angle, high resolution
    IMX477 IR-CUT Camera (A)90°(D)<12.5%IR-CUT23.95IR-CUT, high resolution
    IMX477 IR-CUT Camera (B)113°(D)<-1.5%IR-CUT2.82.7IR-CUT, high resolution
    Raspberry Pi HQ Camera M12--Integrated--M12 mount, requires additional lens, official camera
    Raspberry Pi HQ Camera--Integrated--C/CS mount, requires additional lens, official camera
    Raspberry Pi AI CameraIMX50078.3°(D)×66°(H)×52.3°(V)-Integrated1.794.74Raspberry Pi series boards and Compute ModulesOfficial camera, AI camera
  • PartNumber
    IMX477 12.3MP Camera
    Raktárkészlet
    VAN
    Cikkszám
    RPI-WS18510
    Státusz
    ÚJ
  • * the included FFC is 16cm, if you need a longer cable, please purchase separately.
    1. IMX477 12.3MP Camera main unit x1
    2. 15PIN FFC (opposite sides contact) x1
    3. C-CS adapter and dust cap x1
    4. RPi Zero V1.3 Camera Cable ~15cm x1
