Raspberry Pi CM5 alapú, Gigabit/2,5G kettős Ethernet-csatlakozással és 2 × RS485 + 2 × RS232 interfésszel rendelkező ipari számítógép, amely támogatja a 4K-s kijelző kimenetet és a 4G/5G modult, és a Compute Module 5 összes változatához alkalmas
Részletek Adatok Csomag tartalma
  • Gigabit/2.5G Dual Ethernet Industrial Computer based on Raspberry Pi CM5 (NOT included), Supports 4K Display Output and 4G / 5G module, Suitable for all variants of Compute Module 5
    Dual Ethernet Industrial Computer based on Raspberry Pi CM5

    Designed for Raspberry Pi Compute Module 5

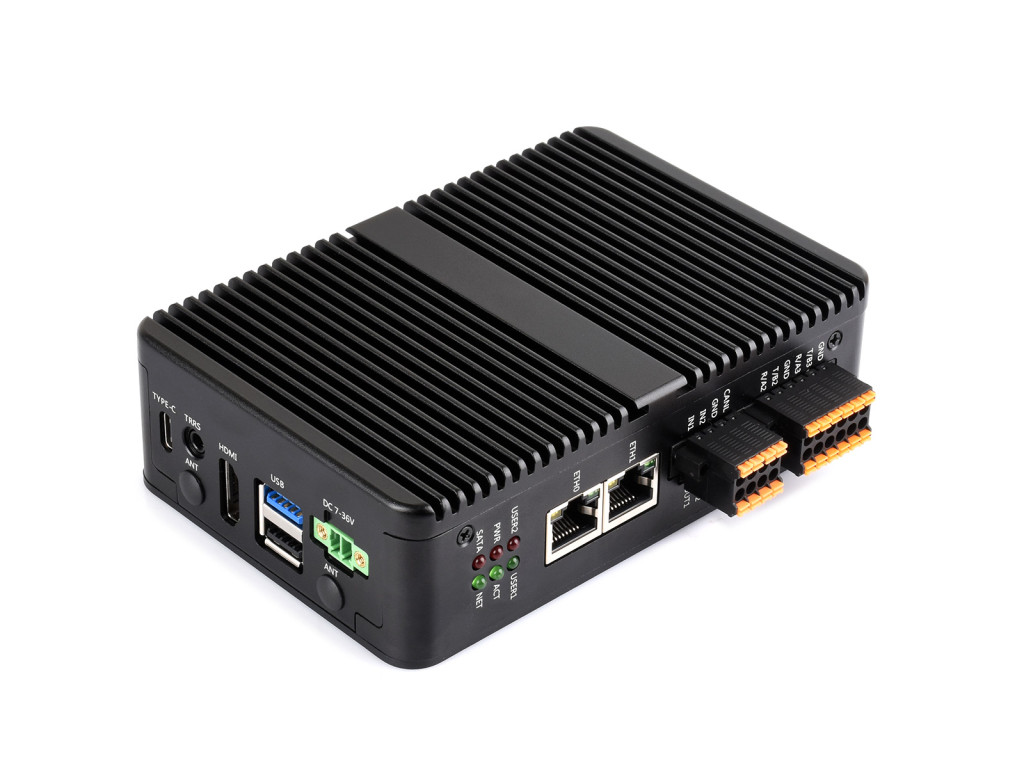

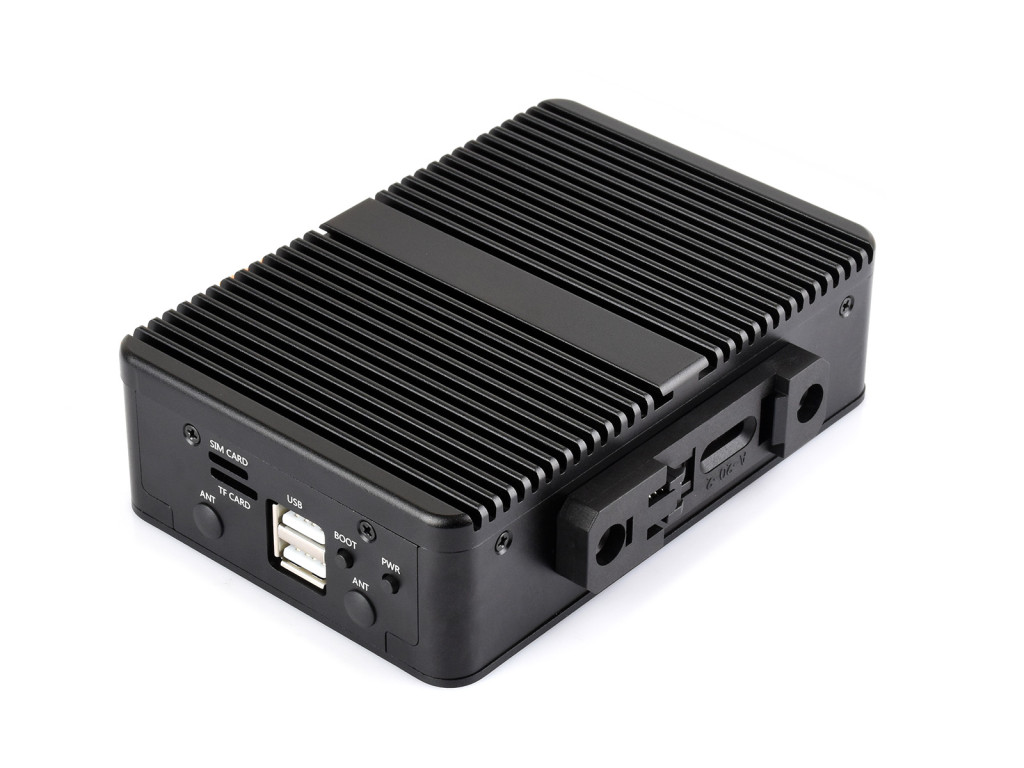

    Gigabit/2.5G Dual Ethernet Industrial Computer For Raspberry Pi CM5, front view
    * the Raspberry Pi CM5 is NOT included.
    Version Options
    IPCBOX-CM5-A

    IPCBOX-CM5-ADual Ethernet ports, onboard 4 × RS485 interfaces

    IPCBOX-CM5-B

    IPCBOX-CM5-BDual Ethernet ports, onboard 2 × RS485 + 2 × RS232 interfaces

    All versions come with an aluminum alloy case and power supply adapter,please refer to the package content for the detailed part list.

    Specifications
    CM5 socketSuitable for all variants of Compute Module 5
    Networking1000M Ethernet RJ45 port × 12500M Ethernet RJ45 port × 1
    USBUSB 3.2 Gen1 port × 1
    USB 2.0 port × 3
    VideoHDMI interface × 1, supports 4K display output
    M.2M.2 M KEY (PCIe Gen2/3 × 1, 2230 / 2242)
    M.2 B KEY, supports connecting 4G / 5G communication module
    StorageTF card socket for Compute Module 5 Lite (without eMMC) variants
    Serial InterfaceOptions for 2 × RS485 + 2 × RS232 version or 4 × RS485 version
    1 × CAN with up to 1Mbps communication rate
    Digital Input/Output2 × digital outputs + 2 × digital inputs
    Audio3.5mm audio jack (microphone support), PH2.0 speaker header
    Fan header5V, 4PIN JST-SH PWM fan header
    Buzzer1-ch controllable buzzer
    OtherOnboard EEPROM and encryption chip
    Power Input7V ~ 36V wide voltage range screw terminal, 5V 5A Type-C port
    Dimensions136.00 × 92.00 × 39.50 (mm)
    What's the differences
    CM5 Base BoardInterface count and specifications
    PoEGigabitETH40PINGPIOPCIeUSB①MIPIHDMIRTCFanHeader②PowerInputFeatures
    NANO A√3.0×1×2SH1.0√5VCM5 sized
    NANO B×1√16PIN PCIe3.0×1×2√SH1.0√5VCM5 sized
    mini Base A×1√16PIN PCIe3.0×22.0×2×2×2ML/CR1220√5Vmini size
    mini Base B×1√M.2 M KEY3.0×22.0×2×2×2ML/CR1220√5Vmini size, onboard EEPROM and encryption chip
    Mini Dual Gigabit×2√3.0×1SH1.0√5Vdual ETH
    Dual ETH A1G ×1 2.5G ×1√M.2 M KEY3.0×12.0×2×2×2ML/CR1220√7V~36Vdual ETH, onboard EEPROM and Encryption chip
    Dual ETH B1G ×1 2.5G ×1√M.2 M KEY3.0×12.0×1×2×1SH1.0√5Vdual ETH ports
    Dual ETH 4G/5G1G ×1 2.5G ×1√M.2 M KEY3.0×2×2×2ML/CR1220√7V~36Vdual ETH and 4G/5G support
    PoE Base√×1√M.2 M KEY3.0×22.0×2×2×2ML/CR1220√5VUSB×4
    Raspberry Pi official③×1√M.2 M KEY3.0×2×2×2ML/CR1220√5VOfficial IO base board
    IPCBOX-CM51G ×1 2.5G ×1M.2 M KEY3.0×12.0×3×1SH1.0√7V~36Vdual ETH, 4G/5G support,RS485/RS232,Encryption chip,EEPROM,CAN,digital inputs,digital outputs,audio,an buzzer
    CM5 Dual ETH Multi-function1G ×1 2.5G ×1M.2 M KEY3.0×12.0×2×2×1SH1.0√7V~36Vdual ETH, 4G/5G support,RS485,Encryption chip,digital input,relay,and buzzer
    Note① USB 3.0 is equivalent to USB 3.2 Gen1.② Unless otherwise specified, the Fan header usually is JST-SH type connector.③ There's PoE header only on the Raspberry Pi official IO board without PoE circuit, which means additional PoE module is required for the official IO board to enable PoE feature. Unless otherwise specified, the PoE feature here stands for integrating 802.3af-compliant PoE circuit (5V/2.5A).
    Connecting with Compute Module 5

    standard CM5 socket suitable for Compute Module 5 Lite / eMMC series module

    Dual Ethernet Base Board connecting with Compute Module 5

    * for reference only, please refer to the package content for detailed part list

    4G / 5G module compatibility

    compatible with communication modules with M.2 B KEY interface

    Gigabit/2.5G Dual Ethernet Industrial Computer For Raspberry Pi CM5, compatible with communication modules with M.2 B KEY interface

    * An additional communication module is required to enable 5G/4G/3G/2G cellular network function, recommended: SIM7600G-H-M.2,SIM8260G-M2, and SIM8262E-M2.

    Supports connecting to M.2 NVMe Drive

    Faster reading/writing speed compared to the TF card slot of Raspberry Pi, greatly improving reading/writing efficiency of the system or files, Supports booting Pi5 from NVME Solid State Drive

    Gigabit/2.5G Dual Ethernet Industrial Computer For Raspberry Pi CM5, Supports M.2 NVMe Solid State Drive

    * for reference only, please refer to the package content for detailed part list

    Applicable M.2 drive sizes
    Gigabit/2.5G Dual Ethernet Industrial Computer For Raspberry Pi CM5, Suitable with M.2 Solid State Drive dimensions
    NVMe Drive Slot Support
    Gigabit/2.5G Dual Ethernet Industrial Computer For Raspberry Pi CM5, Suitable with Solid State Drive Interface

    * Only supports the NVMe Protocol Solid State Drives.

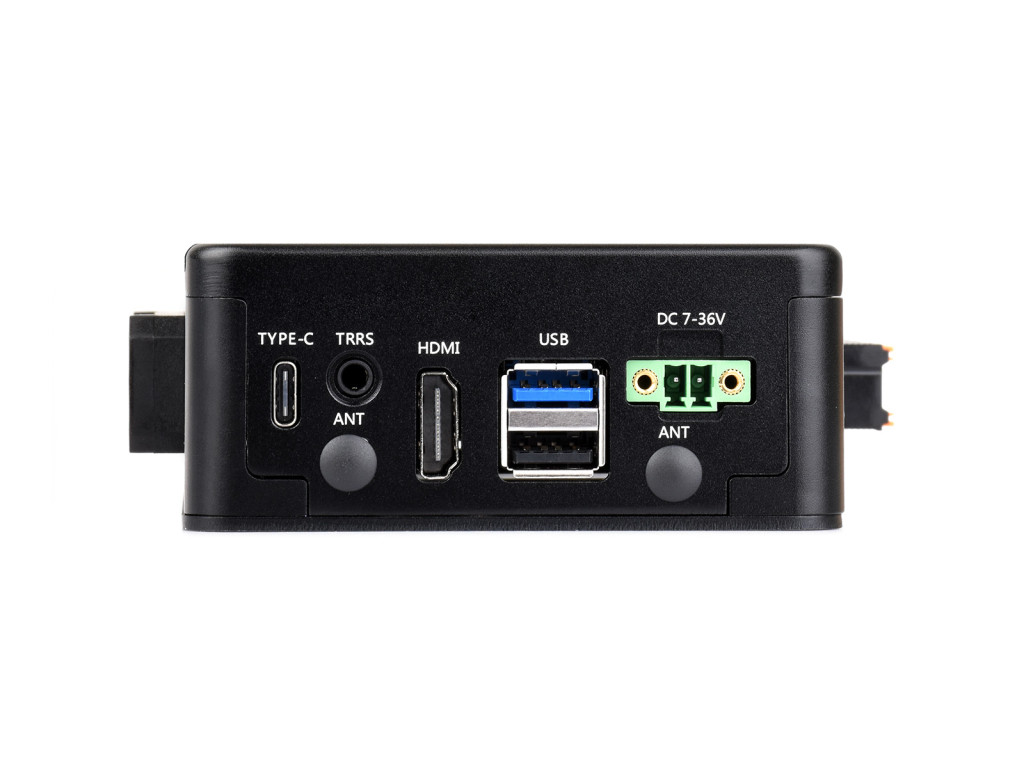

    More rich interfaces
    Gigabit/2.5G Dual Ethernet Industrial Computer For Raspberry Pi CM5, More rich interfaces

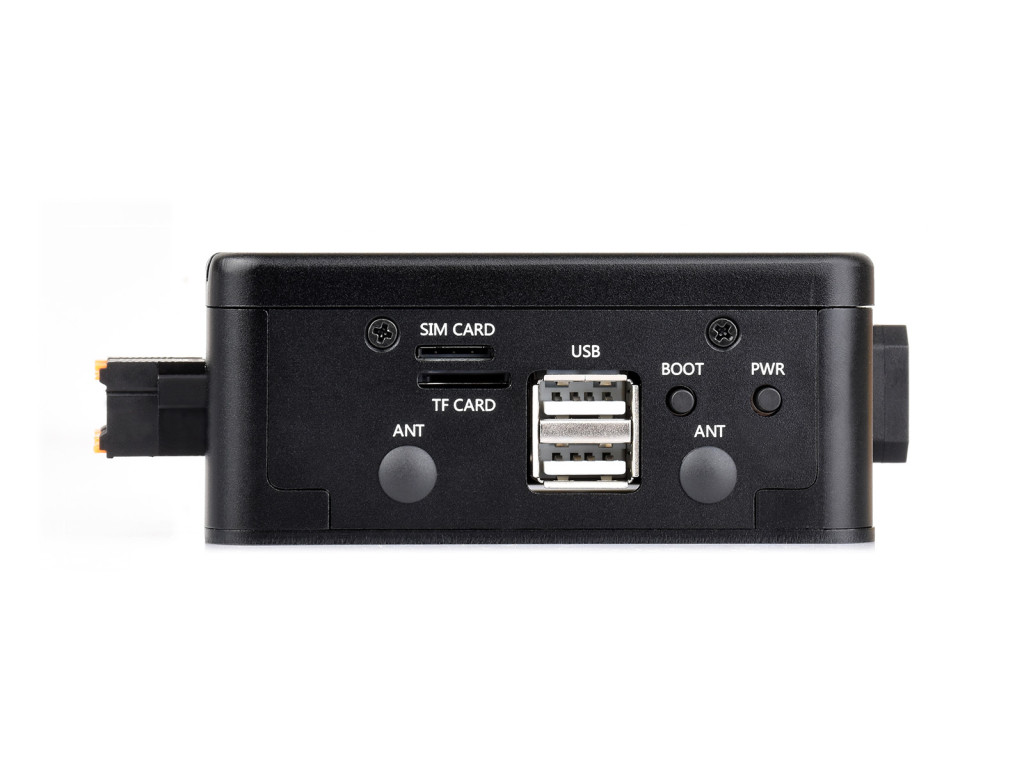

    Precise cut-out with clear label

    each cut-out is completely aligned with the connector

    Gigabit/2.5G Dual Ethernet Industrial Computer For Raspberry Pi CM5, Precise hole positioning design
    Heat Dissipation Design

    Aluminum alloy case enables large-area heat conduction and dissipation, combined with heat sink fins, better heat dissipation

    Gigabit/2.5G Dual Ethernet Industrial Computer For Raspberry Pi CM5, The top of the case is reserved for ventilation openings, built-in fans for better heat dissipation.
    supports Rail mounting and VASE mounting

    Reserved Rail-mount buckle and VASE mounting holes for more convenient installations

    Gigabit/2.5G Dual Ethernet Industrial Computer For Raspberry Pi CM5, The top of the case is reserved for ventilation openings, built-in fans for better heat dissipation.

    * for reference only, comes with rail-mount buckle and is compatible with VESA mounting.

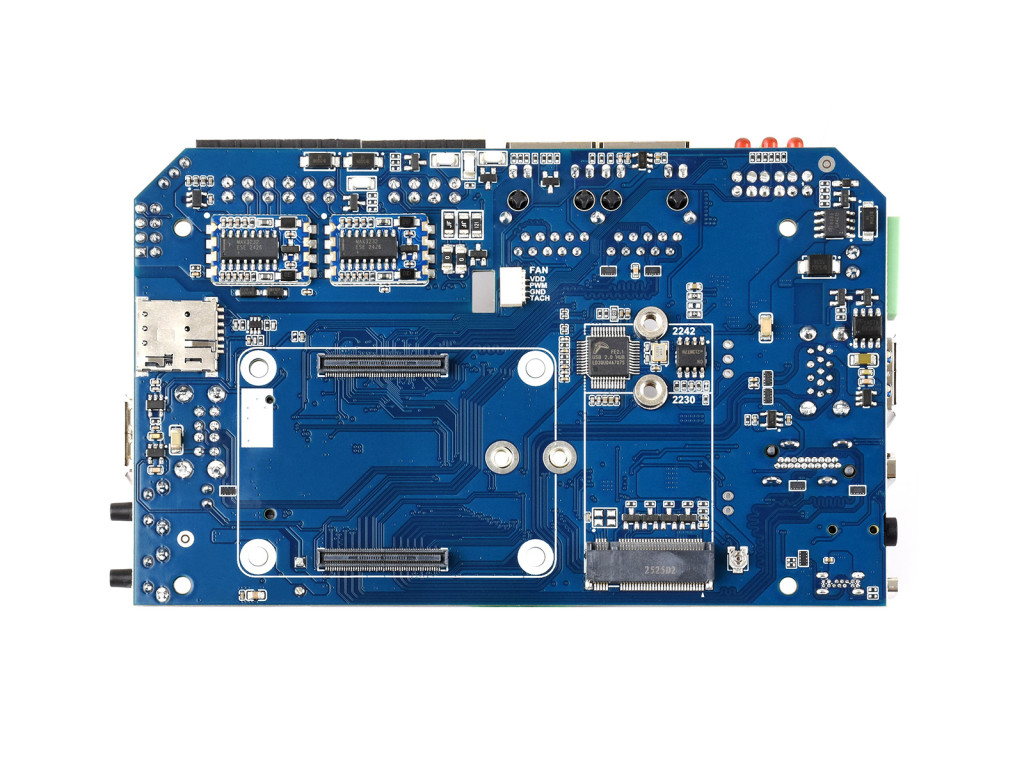

    What's On Board

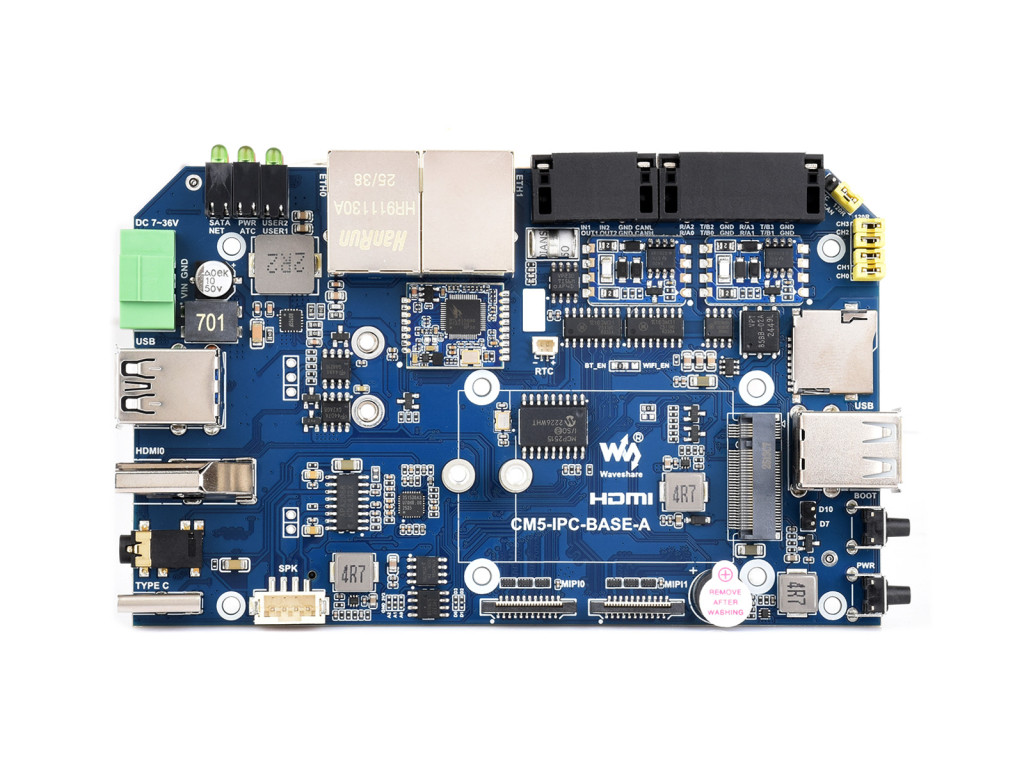

    Dual Ethernet 4G/5G Base Board designed for CM 5, onboard components
    1. CM5 socketsuitable for all variants of Compute Module 5
    2. M.2 M KEYsupports 2242 / 2230 NVMe Solid State Drives or AI modules
    3. Nano SIM card slot
    4. TF card slotfor connecting a TF card with pre-burnt system (Lite variant ONLY)
    5. Dual USB 2.0 portsstandard USB 2.0 ports
    6. BOOT buttonpress before powering on to enter the burning mode
    7. PSW power buttonLong press to force power off, short press to soft power off or on
    8. M.2 B KEYsupports connecting 4G/5G communication module
    9. Buzzer
    10. PH2.0 speaker headersupports connecting to 8Ω 5W speaker
    11. Programming portused for eMMC burning
    12. 3.5mm Jacksupports audio input and output
    1. HDMI interfacesupports 4K outputs
    2. USB ports1 × standard USB 2.0 port, 1 × USB 3.2 Gen1 Type-A port with up to 5Gbps rate
    3. DC power screw terminalsupports DC 7V ~ 36V power supply
    4. Indicators
    5. 1000M Ethernet RJ45 portsupports 10M / 100M / 1000M network connections
    6. 2500M Ethernet RJ45 portsupports 10M / 100M / 1000M / 2500M network connections
    7. RTC Batt headerfor connecting with compatible RTC Batt to power the RTC chip
    8. Multi-function interface1 × CAN interface with up to 1Mbps and 2 × digital outputs + 2 × digital inputs
    9. RS485 / RS232 interfaceOptions for 2 × RS485 + 2 × RS232 version or 4 × RS485 version
    10. 120R JumperRS485 and CAN terminal resistor selection (No function for RS232)
    Application Example

    Suitable for Raspberry Pi applications in remote communication or other industrial situations

    Gigabit/2.5G Dual Ethernet Industrial Computer For Raspberry Pi CM5, Suitable for Raspberry Pi applications in remote communications or other industrial settings

    * for reference only, the display, keyboard, and mouse are NOT included, please purchase separately.

    How to install
    Gigabit/2.5G Dual Ethernet Industrial Computer For Raspberry Pi CM5, How to install
    Outline dimensions
    Dual Ethernet Base Board designed for CM 5, outline dimensions
    About Compute Module 5
    Raspberry Pi Compute module 5, front view
    Newly upgraded, more powerful
    • Upgraded processor BCM2712, quad-core Cortex-A76 64-bit SoC, more powerful performance
    • More options for RAM (2GB / 4GB / 8GB / 16GB)
    • More options for eMMC Flash (0GB (Lite) / 8GB / 16GB / 32GB / 64GB)
    • Faster eMMC Flash storage, up to 200 Mbps data rate
    • Optional for certified radio module, supports either PCB trace antenna or external antenna, more suitable for industrial applications
    • Adopts B to B connectors, most compatible with Compute Module 4
    • Onboard Gigabit Ethernet PHY supporting IEEE1588, suitable for network applications
    • Onboard PCIe Gen 2 x1 interface, allows connecting more useful modules
    Resources & Services

    * Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

  • Brand
    Waveshare
    PartNumber
    IPCBOX-CM5-B (EU)
    Raktárkészlet
    NINCS
    Cikkszám
    RPI-WS34124
    Státusz
    ÚJ

  • IPCBOX-CM5-A

    1. IPCBOX-CM5-A metal case x1
    2. CM5-IPC-BASE-A-4RS485 baseboard x1
    3. OPTIONS 12V 4A power x1
    4. Power adapter cable 15cm x1
    5. Black nylon spacers x4
    6. Screws pack x1
    7. Screwdriver x1
    8. 6PIN 3.5mm pitch double-layer terminal block x1
    9. 4PIN 3.5mm pitch double-layer terminal block x1
    10. Rail-mount buckle x1
    11. Pink thermal tapes x1
    Dual Ethernet Base Board designed for CM 5, IPCBOX-CM5-A package contents

    IPCBOX-CM5-B

    1. IPCBOX-CM5-B metal case x1
    2. CM5-IPC-BASE-A-2RS485 baseboard x1
    3. OPTIONS 12V 4A power x1
    4. Power adapter cable 15cm x1
    5. Black nylon spacers x4
    6. Screws pack x1
    7. Screwdriver x1
    8. 6PIN 3.5mm pitch double-layer terminal block x1
    9. 4PIN 3.5mm pitch double-layer terminal block x1
    10. Rail-mount buckle x1
    11. Pink thermal tapes x1
    Dual Ethernet Base Board designed for CM 5, IPCBOX-CM5-B package contents
:
;
