MAX-M8Q GNSS HAT Raspberry Pi-hez, többkonstellációs vevő támogatás, GPS, Beidou, Galileo, GLONASS

Raktárkészlet: NINCS
MAX-M8Q GNSS HAT Raspberry Pi-hez, többkonstellációs vevő támogatás, GPS, Beidou, Galileo, GLONASS
  • MAX-M8Q GNSS HAT Raspberry Pi-hez, többkonstellációs vevő támogatás, GPS, Beidou, Galileo, GLONASS
  • MAX-M8Q GNSS HAT Raspberry Pi-hez, többkonstellációs vevő támogatás, GPS, Beidou, Galileo, GLONASS
  • MAX-M8Q GNSS HAT Raspberry Pi-hez, többkonstellációs vevő támogatás, GPS, Beidou, Galileo, GLONASS
  • MAX-M8Q GNSS HAT Raspberry Pi-hez, többkonstellációs vevő támogatás, GPS, Beidou, Galileo, GLONASS
  • MAX-M8Q GNSS HAT Raspberry Pi-hez, többkonstellációs vevő támogatás, GPS, Beidou, Galileo, GLONASS
  • MAX-M8Q GNSS HAT Raspberry Pi-hez, többkonstellációs vevő támogatás, GPS, Beidou, Galileo, GLONASS
18 027 Ft + 27% ÁFA | Bruttó:22 894 Ft
Nincs raktáron
Értesítést kérek, ha újra lesz raktáron
MAX-M8Q GNSS HAT Raspberry Pi-hez, több konstellációs vevő támogatás
Részletek Adatok Csomag tartalma
  • MAX-M8Q GNSS HAT for Raspberry Pi, Multi-constellation receiver support
    MAX-M8Q GNSS HAT

    GNSS module based on MAX-M8Q for Raspberry Pi

    accurate & fast positioning with minor drifting, low power consumption, outstanding ability for anti-spoofing & anti-jamming

    This is a Raspberry Pi GNSS HAT based on MAX-M8Q with multi-constellation receiver support, which means up to 3 types of GNSS satellite systems can be used together, including GPS, Beidou, Galileo, and GLONASS. It also support augment systems like SBAS, QZSS, IMES, and D-GPS. It features accurate & fast positioning with minor drifting, low power consumption, outstanding ability for anti-spoofing & anti-jamming, and so on.

    By simply attaching it onto the Pi, it is fairly easy to enable GNSS capability for your Raspberry Pi.

    Features at a glance
    • Multi-constellation receiver support, concurrent reception of up to 3 types of GNSS satellite systems from GPS, Beidou, Galileo, and GLONASS, and still retains low power consumption
    • Augment systems support, including SBAS, QZSS, IMES, D-GPS, improving the positioning performance of service location
    • A-GNSS (Assisted GNSS) support, reducing the first positioning time when powered up, improving the acquisition sensitivity
    • Features -167dBm navigating sensitivity and outstanding ability for anti-spoofing & anti-jamming, supports geo-fencing
    • Supports U-Center, an easy way to config the module

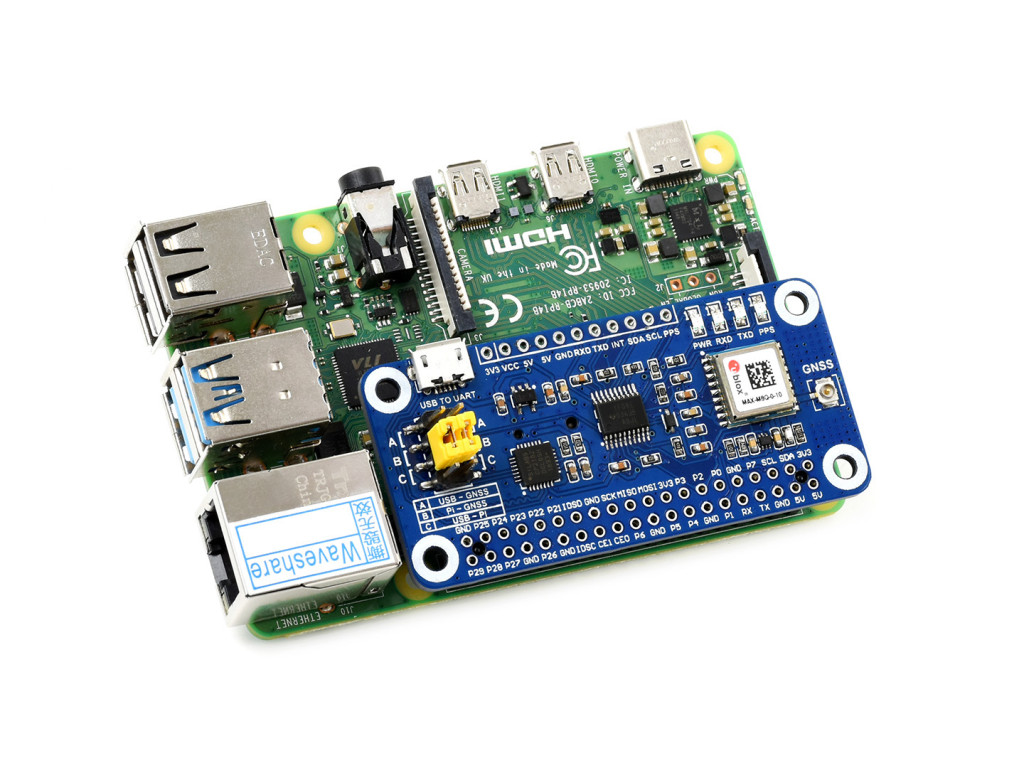

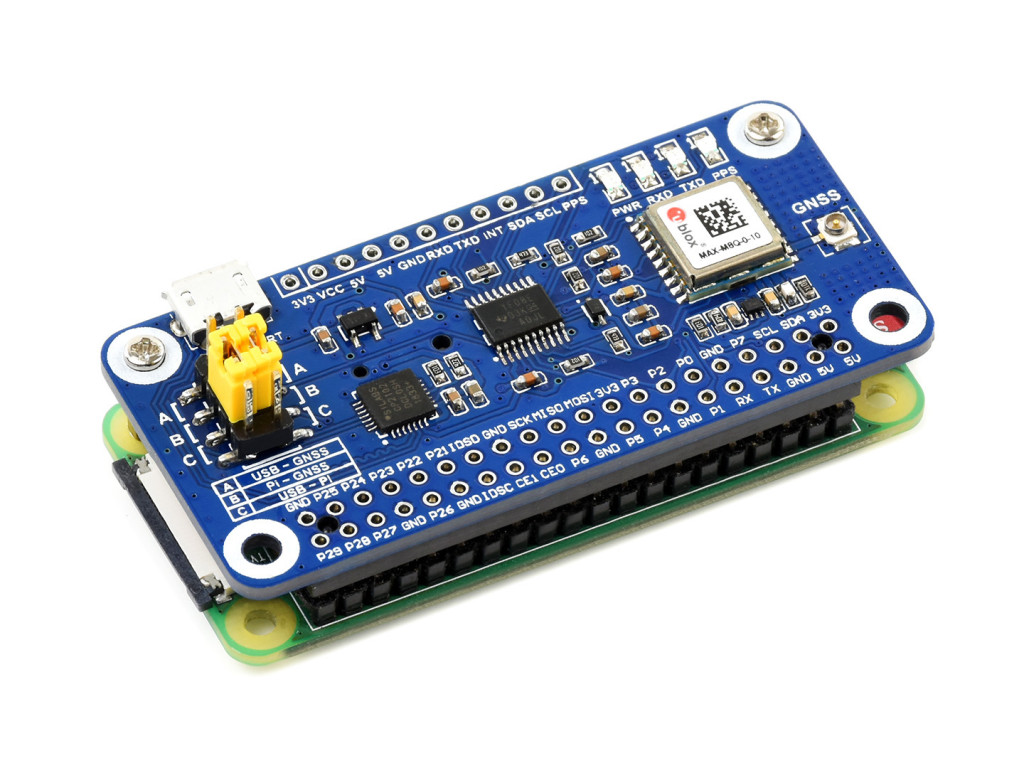

    • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
    • Onboard USB TO UART converter CP2102 for serial debugging
    • Breakouts the module's UART and I2C interface, for connecting with host boards like Arduino/STM32
    • Baudrate range: 4800~921600bps (9600bps by default)
    • Supports DDC (I2C compliant) interface: up to 400KHz (max)
    • Onboard battery holder, supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts
    • 4x LEDs for indicating the module operating status
    • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
    Specifications
    GNSS Specifications
    MAX-M8QGPS & GLONASSGPSGLONASSBeiDouGalileo
    Frequency band72x u-blox M8 engine channelsGPS L1C/A, SBAS L1C/A, QZSS L1C/A, QZSS L1 SAIF, GLONASS L1OF, BeiDou B1I, Galileo E1B/C
    Horizontal positioning accuracy2.5m CEP2.5m CEP4.0m CEP3.0m CEP-
    Max navigation update rate10Hz18Hz18Hz18Hz18Hz
    Time-To-First-FixCold starts26s29s30s34s45s
    Hot starts1s1s1s1s1s
    Aided starts2s2s2s3s7s
    SensitivityTracking and navigating-167 dBm-166 dBm-166 dBm-160 dBm-159 dBm
    Re-acquisition-160 dBm-160 dBm-156 dBm-157 dBm-153 dBm
    Cold starts-148 dBm-148 dBm-145 dBm-143 dBm-138 dBm
    Hot starts-157 dBm-157 dBm-156 dBm-155 dBm-151 dBm
    PPS accuracyRMS30ns30ns30ns30ns30ns
    99%60ns60ns60ns60ns60ns
    PPS frequency0.25Hz…10MHz (configurable)
    Velocity accuracy0.05m/s
    Heading accuracy0.3 degree
    Operational limitsAcceleration (max): 4g
    Altitude (max): 50000m
    Velocity (max): 500m/s
    other Specifications
    Communication interfaceUART (4800~921600bps, 9600bps by default), I2C (max 400KHz)
    Update rate1Hz (default), 18Hz (max)
    ProtocolNMEA 0183 Version 4.0 (V2.1, V2.3 or V4.1 selectable), UBX, RTCM 2.3
    Power supply5V
    Overall current<40mA@5V (Continue mode)
    Module current23mA@3V (Continue mode, tracking status)
    Operating temperature-40℃ ~ 85℃
    Dimensions65mm × 30.5mm
    Standard Raspberry Pi 40PIN GPIO

    Compatible with Raspberry Pi series boards, Jetson Nano

    Multi-constellation receiver support

    concurrent reception of up to 3 types of GNSS satellite systems, and still retains low power consumption

    Supports GPS, Beidou, Galileo, and GLONASS

    Augment systems support

    Augment system is aimed at improving the accuracy, completeness, reliability, and availability of positioning and navigation

    Supports augment systems including SBAS, QZSS, IMES, D-GPS

    Geo-fencing support

    Features -167dBm navigating sensitivity, outstanding ability for anti-spoofing & anti-jamming

    software U-Center support

    an easy way to config the module

    applications

    Ideal for fleet management, asset tracking, security systems, industrial PDA, GIS app, etc.

    What's on board

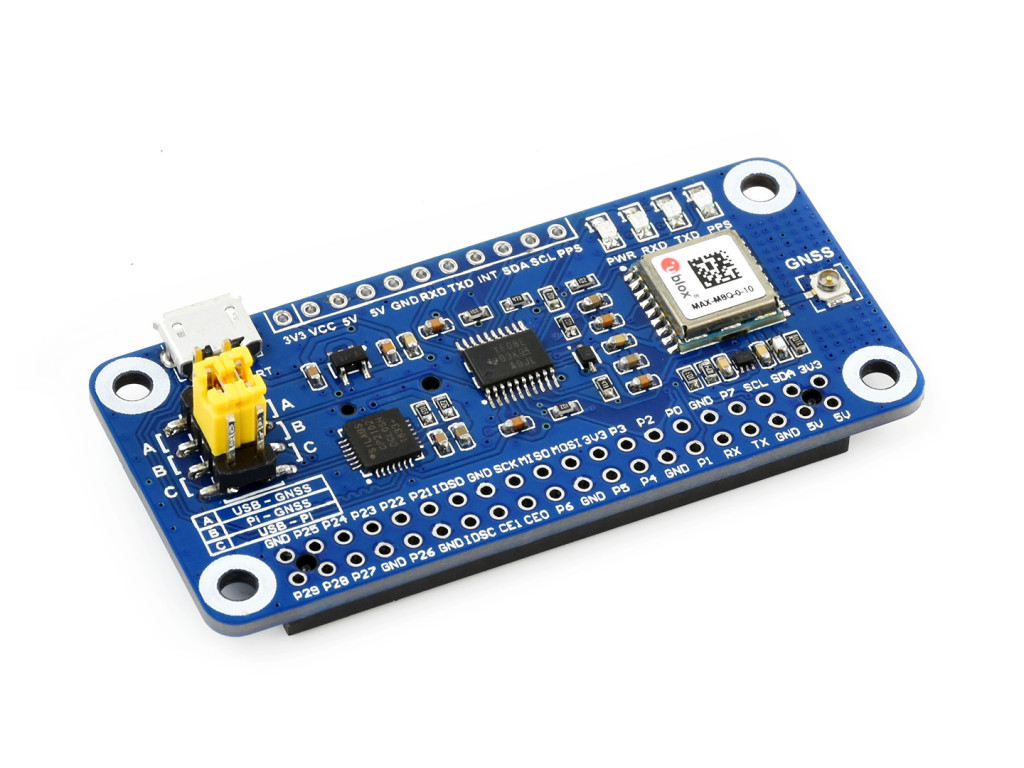

    1. MAX-M8Q module
    2. TXS0108EPWR voltage translator
    3. RT9193-33 power chip
    4. CP2102 USB TO UART converter
    5. Status indicators RXD/TXD: UART TX/RX indicator PPS: GPS status indicatorPWR: power indicator

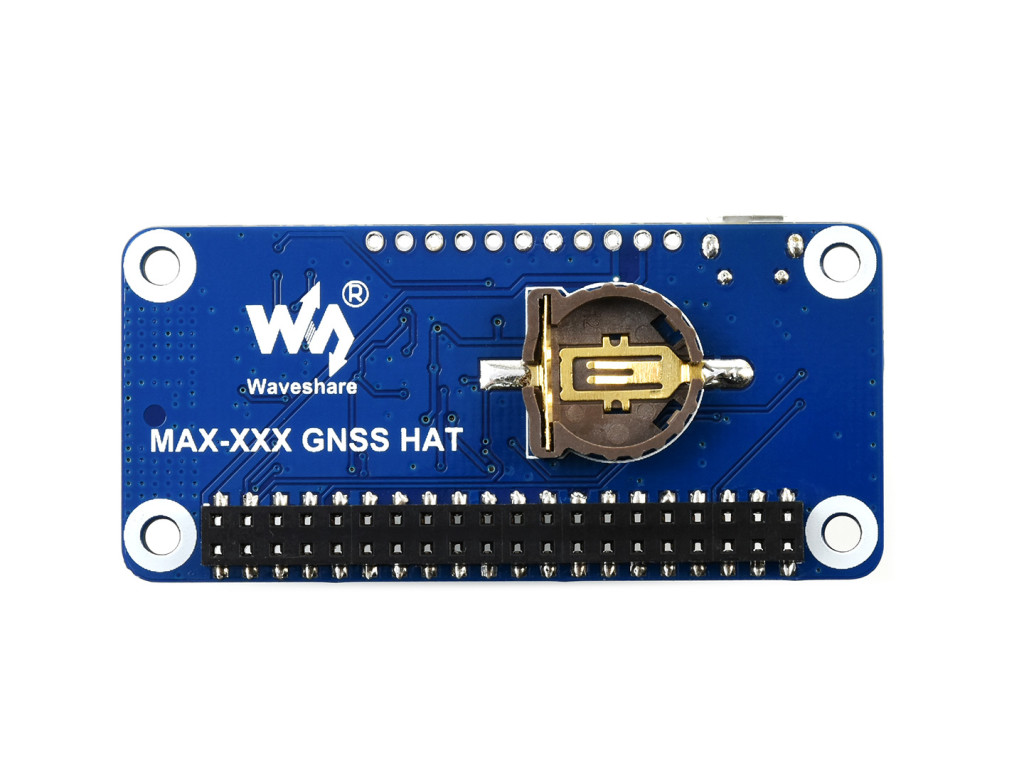

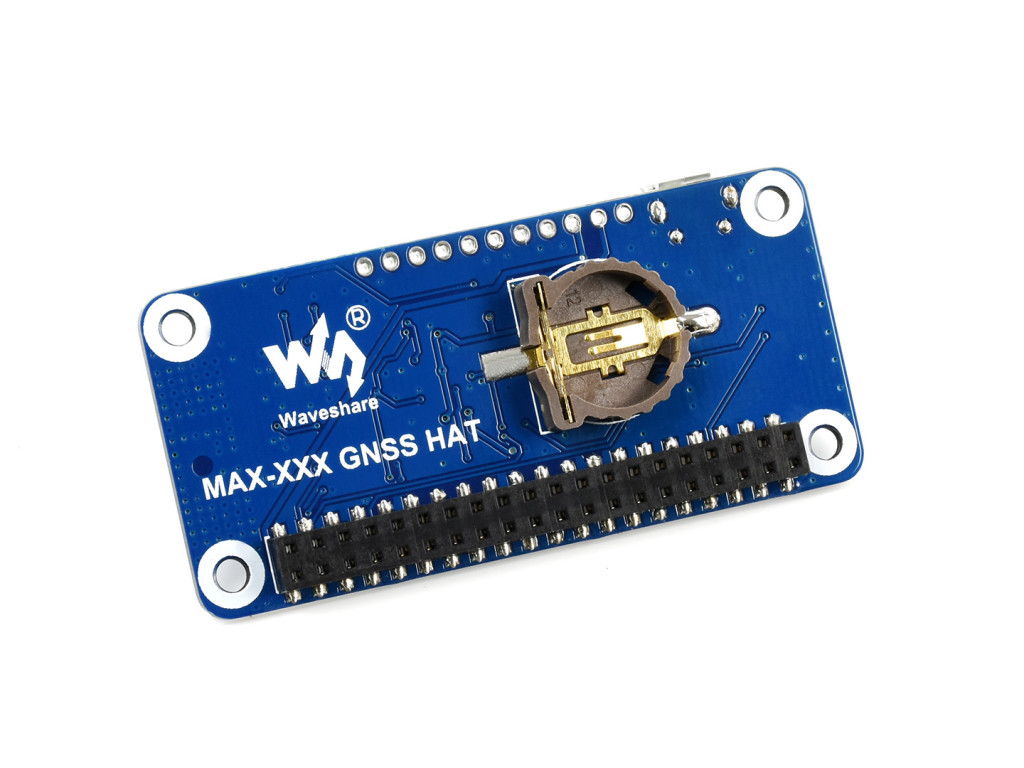

    6. Battery holdersupports ML1220 rechargeable cell, for preserving ephemeris information and hot starts

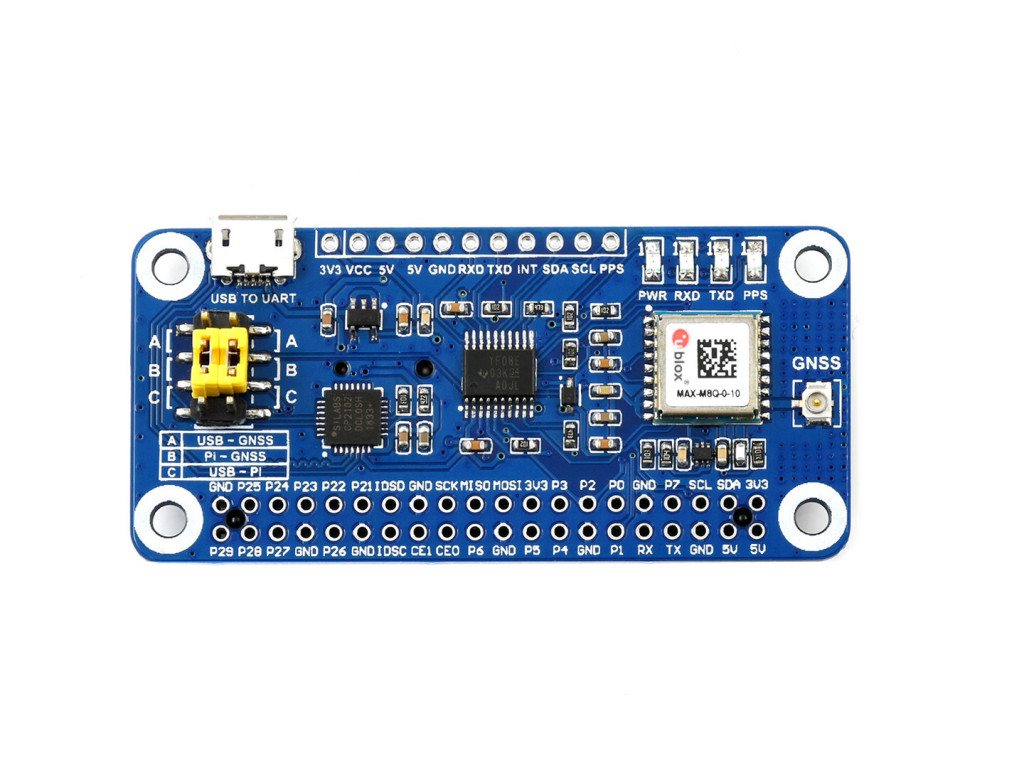

    1. Raspberry Pi GPIO headerfor connecting with Raspberry Pi
    2. UART, I2C interfacefor connecting with other MCUs
    3. USB TO UART port
    4. GNSS antenna connector
    5. UART selection jumper A: control the MAX-M8Q through USB TO UART B: control the MAX-M8Q through Raspberry Pi C: access Raspberry Pi through USB TO UART
    Pinout definition
    Outline Dimensions
    Resources & Services
    WIKI:www.waveshare.com/wiki/MAX-M8Q_GNSS_HAT

    * Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

  • Brand
    Waveshare
    Raktárkészlet
    NINCS
    Cikkszám
    RPI-WS18233

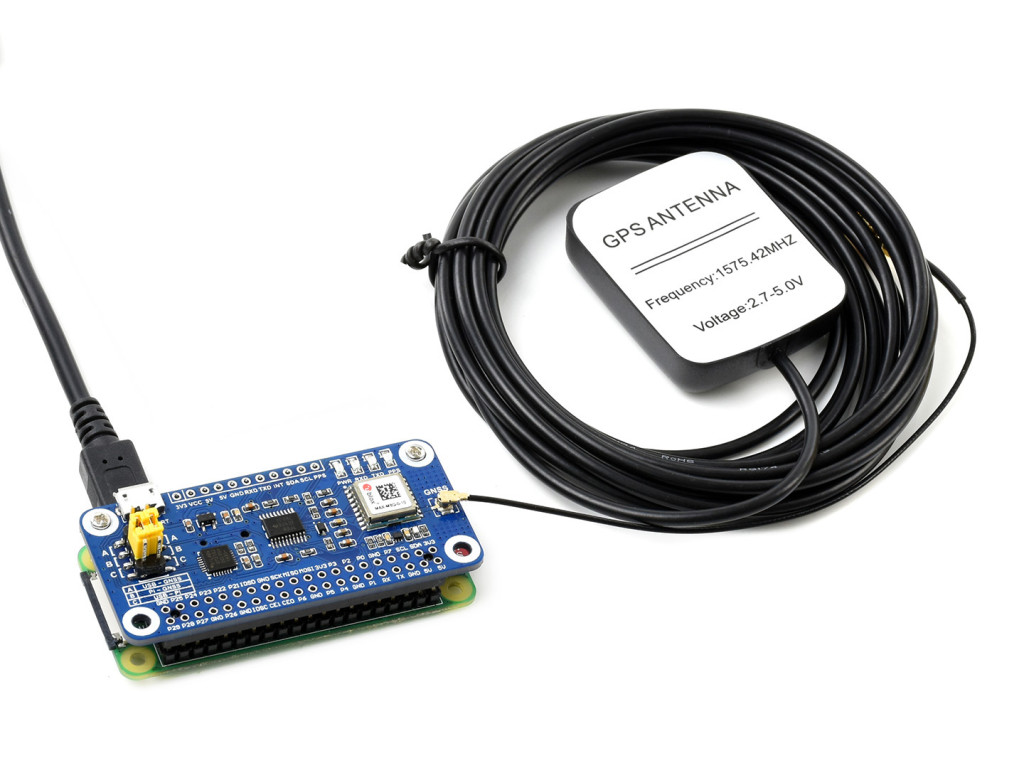

    1. MAX-M8Q GNSS HAT x1
    2. GPS External Antenna (B) x1
    3. USB-A to Micro-B cable x1
    4. RPi screws pack (2pcs) x1
    5. 2x20PIN female header x1
    1
    2
    3
    4
    5
:
;
