16 csatornás Ethernet relé modul, Modbus RTU / Modbus TCP protokoll, Ethernet port kommunikáció, támogatja a PoE tápegységet, különféle leválasztó és védelmi áramkörökkel

Raktárkészlet: VAN
16 csatornás Ethernet relé modul, Modbus RTU / Modbus TCP protokoll, Ethernet port kommunikáció, támogatja a PoE tápegységet, különféle leválasztó és védelmi áramkörökkel
  • 16 csatornás Ethernet relé modul, Modbus RTU / Modbus TCP protokoll, Ethernet port kommunikáció, támogatja a PoE tápegységet, különféle leválasztó és védelmi áramkörökkel
  • 16 csatornás Ethernet relé modul, Modbus RTU / Modbus TCP protokoll, Ethernet port kommunikáció, támogatja a PoE tápegységet, különféle leválasztó és védelmi áramkörökkel
  • 16 csatornás Ethernet relé modul, Modbus RTU / Modbus TCP protokoll, Ethernet port kommunikáció, támogatja a PoE tápegységet, különféle leválasztó és védelmi áramkörökkel
  • 16 csatornás Ethernet relé modul, Modbus RTU / Modbus TCP protokoll, Ethernet port kommunikáció, támogatja a PoE tápegységet, különféle leválasztó és védelmi áramkörökkel
28 331 Ft + 27% ÁFA | Bruttó:35 980 Ft
Státusz
:
Raktárról azonnal szállítjuk!
db Kosárba Kosárba
Értesítést kérek árcsökkenés esetén
16 csatornás Ethernet relé modul, Modbus RTU / Modbus TCP protokoll, Ethernet port kommunikáció, PoE tápegység támogatása, különféle leválasztó és védelmi áramkörökkel, ipari minőségű sínre szerelhető tok
Részletek Kiegészítő termékek Adatok Csomag tartalma
  • 16-Ch Ethernet Relay Module, Modbus RTU / Modbus TCP Protocol, Ethernet Port Communication, Supports PoE Power Supply, With Various Isolation And Protection Circuits, Industrial Grade Rail-Mount Case
    16-Ch Ethernet Relay Module

    Ethernet Port Communication & Cascade Support, Modbus Protocol, PoE Power Supply

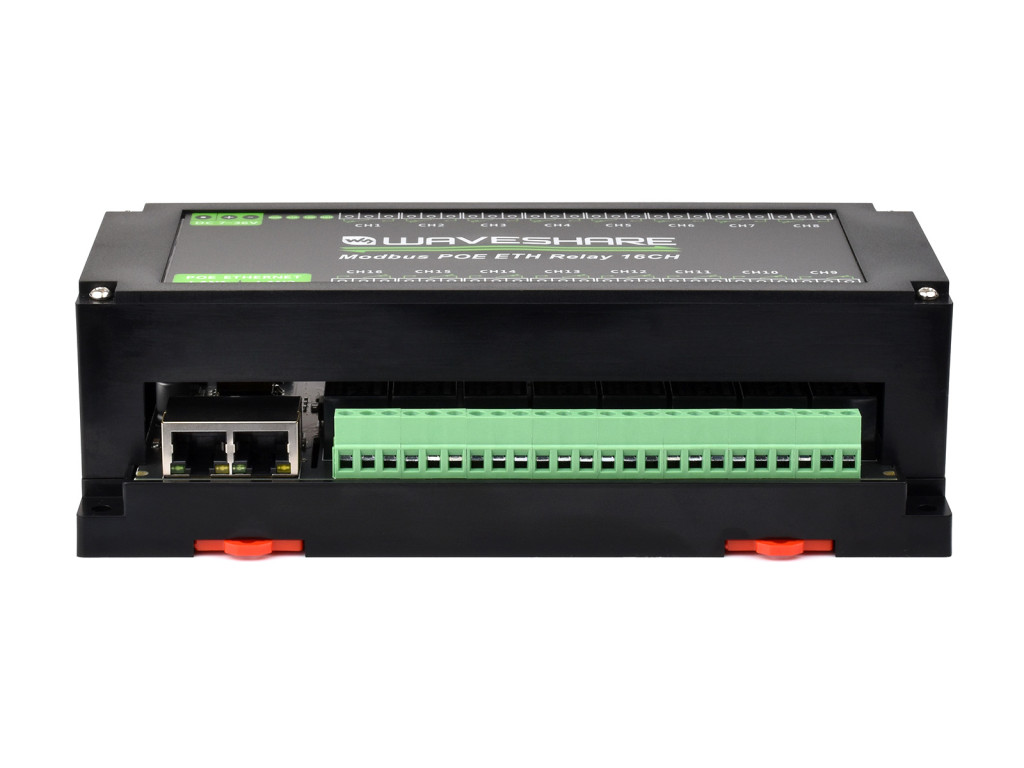

    16-Ch Ethernet Relay Module, front view
    Features At A Glance

    This product is a 16-ch relay module designed for industrial environments, featuring dual Ethernet interfaces control. It adopts Modbus RTU / Modbus TCP protocols, supports PoE power supply, also comes with an ABS rail-mount case.

    The Modbus POE ETH Relay 16CH is very easy to use. Due to its fast communication, stability, reliability, and safety, it is an ideal choice for industrial control equipments and/or applications with high communication requirements.

    • Dual Ethernet ports design, supports Ethernet port communication cascade and PoE power supply cascade
    • Features flash-on, flash-off function, it is possible to set the delay closing after opening or delay opening after closing
    • Supports DC 7~36V wide range power input and PoE power supply
    • Supports relay control through MQTT protocol, comes with Alibaba Cloud MQTT application demo
    • Onboard Optocoupler isolation, prevent the relay from being interfered by high-voltage circuit
    • Adopts dedicated relay driver chip, with built-in flyback diode protection, for stronger and more stable driving ability
    • Reverse-proof circuit, prevent the circuit from being damaged accidentally by incorrect connection
    • High quality relay, contact rating: ≤10A 250VAC/30VDC
    • Rail-mounted ABS plastic enclosure, easy to install, safe to use
    • 4 LEDs and Network indicators for indicating the MCU status and signal transceiving status
    Primary function

    Supports Sending Modbus RTU/TCP Protocol Commands Via Ethernet Port To Control Relay And Various Devices

    16-Ch Ethernet Relay Module, primary function
    Supports Multiple Communication Modes, Adopts Modbus Protocol

    Supports TCP Server / TCP Client / UDP Mode / UDP Multicast / HTTP / MQTTSupports Modbus RTU protocol/Modbus TCP protocol

    16-Ch Ethernet Relay Module, supports multiple communication modes
    Multi Configuration Methods

    Supports software and Web Browser Configuration, Obtaining Dynamic IP Via DHCP,connecting to domain name server via DNS protocol

    16-Ch Ethernet Relay Module, supports multi configuration methods
    Multi Power Supply Options, Wide Range Power Input

    DC Power port: directly uses a power plug for power supply; Screw terminal: DC 7~36V wide range power input; PoE port: IEEE 802.3af PoE compliant

    16-Ch Ethernet Relay Module, supports multi power supply methods
    * The external power supply adapter is NOT included by default, it is recommended to purchase 12V power supply if you need it.
    Interfaces & Indicators

    With Multiple LED Indicators, Easy To Monitor The Operating Status

    16-Ch Ethernet Relay Module, Interfaces & Indicators instruction
    RUNEthernet port indicator, blinking when Ethernet port normally working
    STAMCU indicator, blinking when the MCU is normally working
    TXDTX indicator, lights up when sending data
    RXDRX indicator, lights up when receiving data
    Left Ethernet port Green IndicatorLights up when the connection of Ethernet Port 1 is established
    Right Ethernet port Green IndicatorLights up when the connection of Ethernet Port 2 is established
    Left Ethernet Port Yellow IndicatorLights up when the TCP connection is established
    Right Ethernet Port Yellow IndicatorData activity indicator, blinking when transmitting data
    Supports Ethernet Port Cascade and PoE cascade power supply

    Onboard 2-ch Ethernet Ports for communication and cascade Either one can be used for dual serial server network communication, while the other one can be used for cascading or communication with other devices

    16-Ch Ethernet Relay Module, support Ethernet Port cascade and PoE cascade power supply
    * Note: Each module in the cascade needs to be powered individually or using PoE cascade power supply. The maximum power consumption of a single module is 7W, please pay attention to the output power of Router when using PoE cascade power supply.
    Relay connection

    Contact rating of the onboard relay up to 10A 250VAC/30VDC

    16-Ch Ethernet Relay Module, relay connection demo
    Enclosure Design

    Rail-mounted ABS plastic enclosure, easy to install, safe to use

    16-Ch Ethernet Relay Module, with ABS plastic enclosure
    Applications
    16-Ch Ethernet Relay Module, applications
    Product show
    16-Ch Ethernet Relay Module, product show
    Outline dimensions
    16-Ch Ethernet Relay Module, outline dimensions
    Resources & Services
    WIKI:www.waveshare.com/wiki/Modbus_POE_ETH_Relay_16CH

    * Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

    Selection Guide
    productCommunication parametersRelay typeOutput controlInput controlPower rangeDimensions
    Modbus RTU RelayRS485 port10A Universal Relay8-ch-5V145×90×40mm
    Modbus RTU Relay (B)10A Universal Relay8-ch-7V~36V175×90×40mm
    Modbus RTU Relay (C)10A Latching Relay8-ch-7V~36V145×90×40mm
    Modbus RTU Relay (D)10A Universal Relay8-ch8-ch7V~36V175×90×40mm
    Modbus RTU Relay (E)30A High Current Relay8-ch-7V~36V200×110×60mm
    Modbus RTU Relay 4CH30A High Current Relay4-ch-7V~36V145×90×40mm
    Modbus RTU Relay 16CH10A Universal Relay16-ch-5V200×110×60mm
    Modbus RTU Relay 32CH10A Universal Relay32-ch-7V~36V300×110×60mm
    Modbus POE ETH RelayEthernet port (PoE support)10A Universal Relay8-ch-7V~36V145×90×40mm
    Modbus POE ETH Relay (B)10A Universal Relay8-ch8-ch7V~36V175×90×40mm
    Modbus POE ETH Relay (C)Dual Ethernet ports (PoE support)10A Universal Relay8-ch8-ch7V~36V175×90×40mm
    Modbus POE ETH Relay 16CHDual Ethernet ports (PoE support)10A Universal Relay16-ch-7V~36V200×110×60mm
    Modbus POE ETH Relay 30CHEthernet port (PoE support)10A Universal Relay30-ch-7V~36V300×110×60mm
  • Brand
    Waveshare
    Raktárkészlet
    VAN
    Cikkszám
    RPI-WS30795
  • The power supply of this product is not included, it is recommended to purchase 12V power supply if you need it.

    Modbus POE ETH Relay 16CH x1

    Modbus POE ETH Relay 16CH
:
;
