30 csatornás Ethernet relé modul, Modbus RTU/Modbus TCP protokoll, PoE port kommunikáció, különféle leválasztó és védelmi áramkörökkel

Raktárkészlet: NINCS
30 csatornás Ethernet relé modul, Modbus RTU/Modbus TCP protokoll, PoE port kommunikáció, különféle leválasztó és védelmi áramkörökkel
  • 30 csatornás Ethernet relé modul, Modbus RTU/Modbus TCP protokoll, PoE port kommunikáció, különféle leválasztó és védelmi áramkörökkel
  • 30 csatornás Ethernet relé modul, Modbus RTU/Modbus TCP protokoll, PoE port kommunikáció, különféle leválasztó és védelmi áramkörökkel
  • 30 csatornás Ethernet relé modul, Modbus RTU/Modbus TCP protokoll, PoE port kommunikáció, különféle leválasztó és védelmi áramkörökkel
  • 30 csatornás Ethernet relé modul, Modbus RTU/Modbus TCP protokoll, PoE port kommunikáció, különféle leválasztó és védelmi áramkörökkel
36 058 Ft + 27% ÁFA | Bruttó:45 794 Ft
Nincs raktáron
Értesítést kérek, ha újra lesz raktáron
30 csatornás Ethernet relé modul, Modbus RTU/Modbus TCP protokoll, PoE port kommunikáció, különféle leválasztó és védelmi áramkörökkel, ipari minőségű sínre szerelhető tok
Részletek Kiegészítő termékek Adatok Csomag tartalma
  • 30-Ch Ethernet Relay Module, Modbus RTU/Modbus TCP Protocol, PoE Port Communication, With Various Isolation And Protection Circuits, Industrial Grade Rail-Mount Case
    30-Ch Ethernet Relay Module

    Ethernet Port Communication, Modbus Protocol, PoE Power Supply

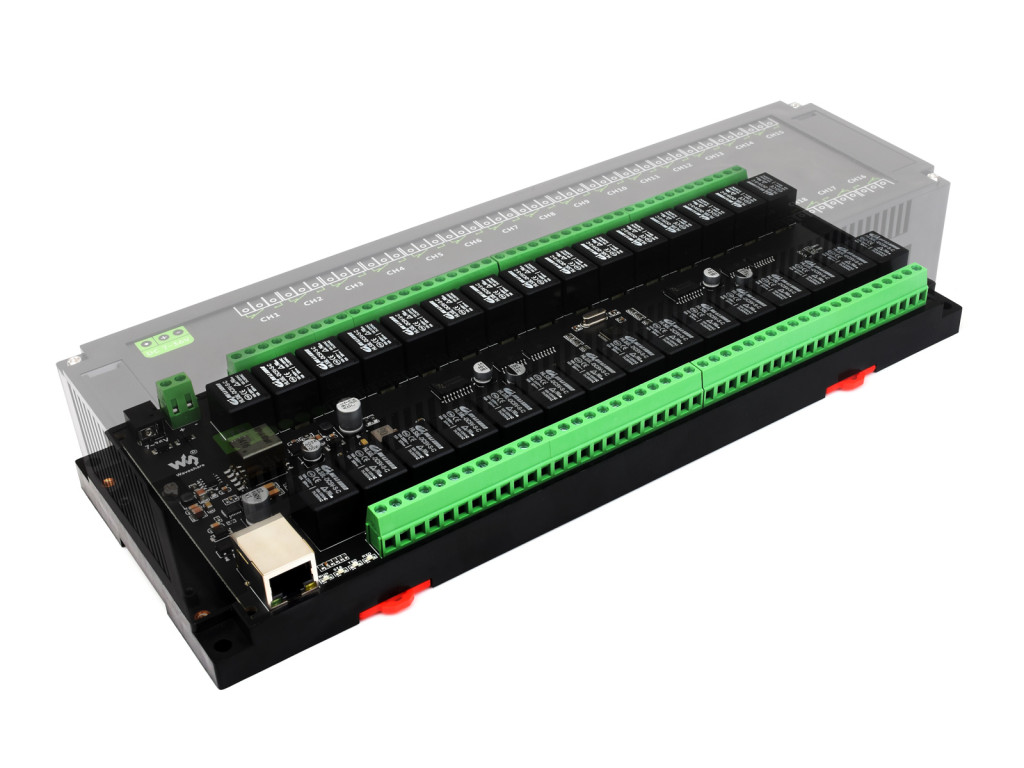

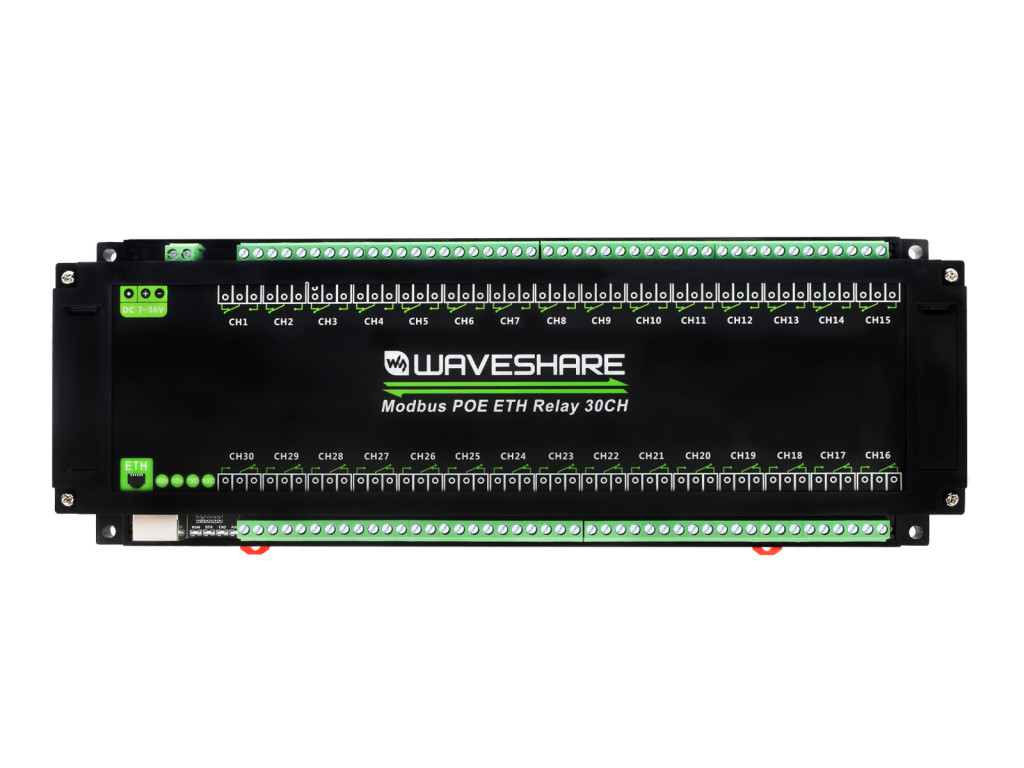

    30-Ch Ethernet Relay Module, front view
    Features At A Glance

    This product is an industrial 30-ch relay module controlled via Ethernet port, adopts Modbus RTU/Modbus TCP protocols, supports PoE power supply, also comes with an ABS rail-mount case.

    The Modbus POE ETH Relay 30CH is very easy to use. Due to its fast communication, stability, reliability, and safety, it is an ideal choice for industrial control equipments and/or applications with high communication requirements.

    • Features flash-on, flash-off function, by passing argument to the command, it is possible to turn on the relay for a while and then close it automatically
    • Supports DC 7~36V wide range power input and PoE power supply
    • Supports relay control through MQTT protocol, comes with Alibaba Cloud MQTT application demo
    • Onboard Optocoupler isolation, prevent the relay from being interfered by high-voltage circuit
    • Adopts dedicated relay driver chip, with built-in flyback diode protection, for stronger and more stable driving ability
    • Reverse-proof circuit, prevent the circuit from being damaged accidentally by incorrect connection
    • High quality relay, contact rating: ≤10A 250VAC/30VDC
    • Rail-mounted ABS plastic enclosure, easy to install, safe to use
    • 4 LEDs and Network indicators for indicating the MCU status and signal transceiving status
    Primary function

    Supports Sending Modbus RTU/TCP Protocol Commands Via Ethernet Port To Control Relay And Various Devices

    30-Ch Ethernet Relay Module, primary function
    Supports Multiple Communication Modes, Adopts Modbus Protocol

    Supports TCP Server / TCP Client / UDP Mode / UDP Multicast / HTTP / MQTTSupports Modbus RTU protocol/Modbus TCP protocol

    30-Ch Ethernet Relay Module, supports Modbus RTU protocol/Modbus TCP protocol
    Multi Configuration Methods

    Supports software and Web Browser Configuration, Obtaining Dynamic IP Via DHCP,connecting to domain name server via DNS protocol

    30-Ch Ethernet Relay Module, supports multi configuration methods
    Multi Power Supply Options, Wide Range Power Input

    DC Power port: directly uses a power plug for power supply; Screw terminal: DC 7~36V wide range power input; PoE port: IEEE 802.3af PoE compliant

    30-Ch Ethernet Relay Module, supports multi power supply methods
    * The external power supply adapter is NOT included by default, it is recommended to purchase 12V power supply if you need it.
    Interfaces & Indicators

    With Multiple LED Indicators, Easy To Monitor The Operating Status

    30-Ch Ethernet Relay Module, Interfaces & Indicators instruction
    RUNEthernet port indicator, blinking when Ethernet port normally working
    STAMCU indicator, blinking when the MCU normally working
    TXDTX indicator, lights up when sending data
    RXDRX indicator, lights up when receiving data
    Ethernet port Green IndicatorLights up when the connection is established
    Ethernet Port Yellow IndicatorData activity indicator, blinking when transmitting data
    Relay connection

    Contact rating of the onboard relay up to 10A 250VAC/30VDC Directly controlling 220VAC home appliances, or devices below 30VDC

    30-Ch Ethernet Relay Module, relay connection demo
    Enclosure Design

    Rail-mounted ABS plastic enclosure, easy to install, safe to use

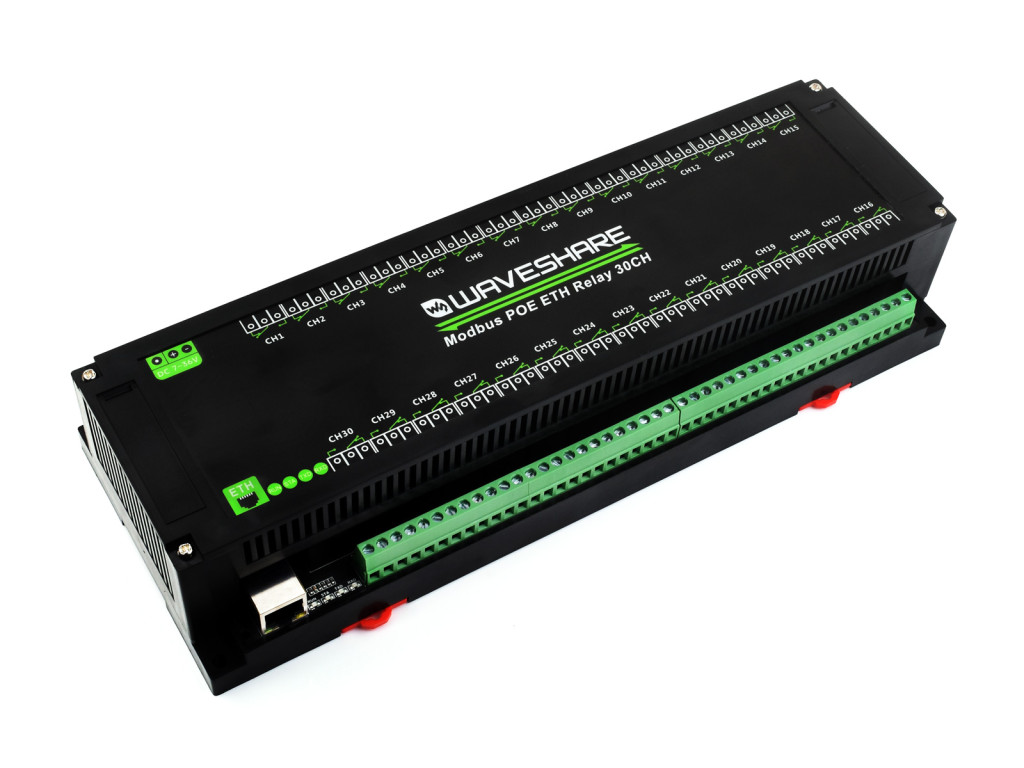

    30-Ch Ethernet Relay Module, adopts rail-mounted ABS plastic enclosure, front view

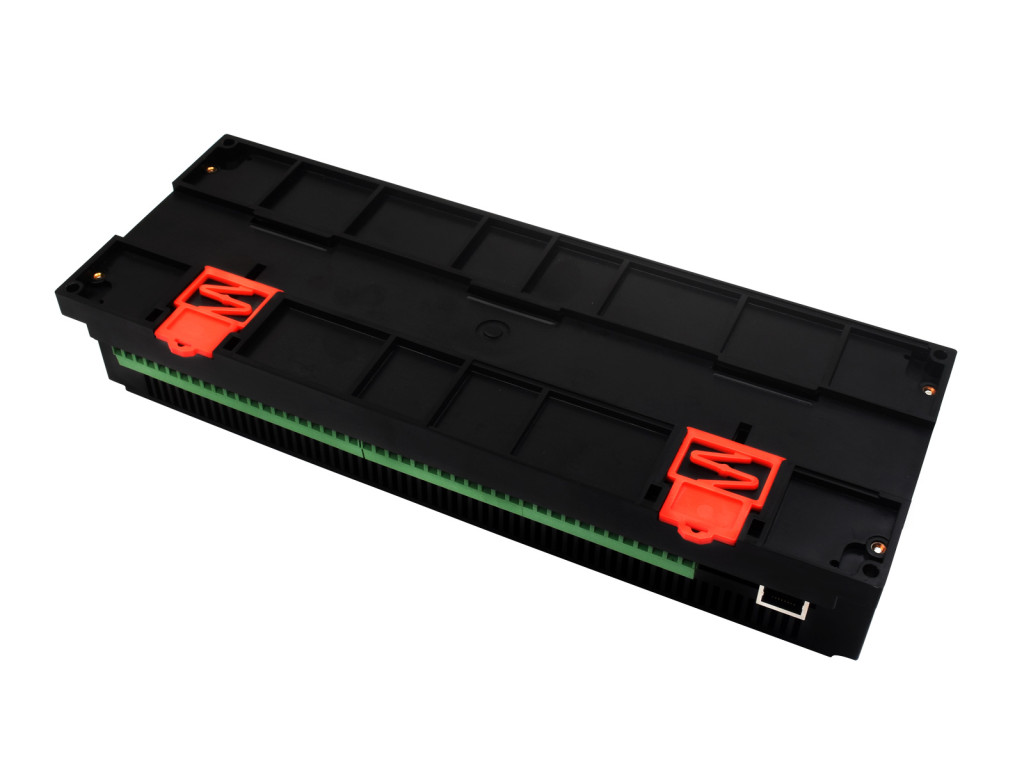

    30-Ch Ethernet Relay Module, adopts rail-mounted ABS plastic enclosure, back view
    Applications
    30-Ch Ethernet Relay Module, applications
    Product show

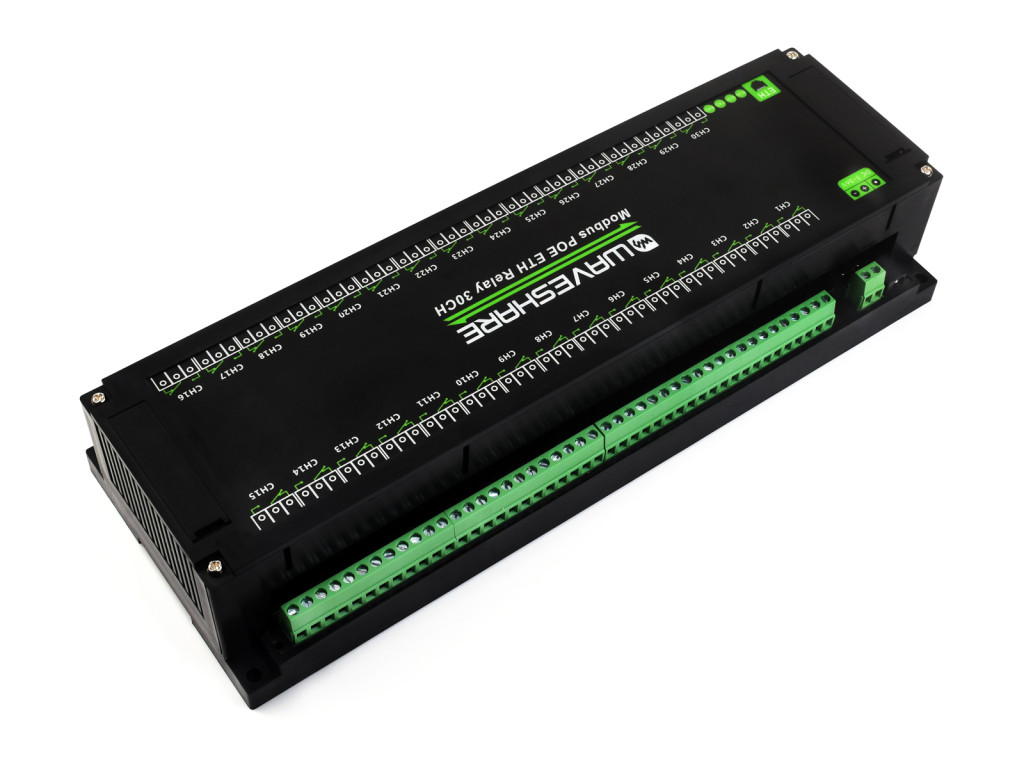

    30-Ch Ethernet Relay Module, product show
    Outline dimensions
    30-Ch Ethernet Relay Module, outline dimensions
    Resources & Services
    WIKI:www.waveshare.com/wiki/Modbus_POE_ETH_Relay_30CH

    * Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

    Selection Guide
    productCommunication parametersRelay typeOutput controlInput controlPower rangeDimensions
    Modbus RTU RelayRS485 port10A Universal Relay8-ch-5V145×90×40mm
    Modbus RTU Relay (B)10A Universal Relay8-ch-7V~36V175×90×40mm
    Modbus RTU Relay (C)10A Latching Relay8-ch-7V~36V145×90×40mm
    Modbus RTU Relay (D)10A Universal Relay8-ch8-ch7V~36V175×90×40mm
    Modbus RTU Relay (E)30A High Current Relay8-ch-7V~36V200×110×60mm
    Modbus RTU Relay 4CH30A High Current Relay4-ch-7V~36V145×90×40mm
    Modbus RTU Relay 16CH10A Universal Relay16-ch-5V200×110×60mm
    Modbus RTU Relay 32CH10A Universal Relay32-ch-7V~36V300×110×60mm
    Modbus POE ETH RelayEthernet port (PoE support)10A Universal Relay8-ch-7V~36V145×90×40mm
    Modbus POE ETH Relay (B)10A Universal Relay8-ch8-ch7V~36V175×90×40mm
    Modbus POE ETH Relay (C)Dual Ethernet ports (PoE support)10A Universal Relay8-ch8-ch7V~36V175×90×40mm
    Modbus POE ETH Relay 16CHDual Ethernet ports (PoE support)10A Universal Relay16-ch-7V~36V200×110×60mm
    Modbus POE ETH Relay 30CHEthernet port (PoE support)10A Universal Relay30-ch-7V~36V300×110×60mm
  • Brand
    Waveshare
    Raktárkészlet
    NINCS
    Cikkszám
    RPI-WS27928
  • The power supply of this product is not included, it is recommended to purchase 12V power supply if you need it.

    Modbus POE ETH Relay 30CH x1

    Modbus POE ETH Relay 30CH
:
;
