Dual Ethernet Ports 8-ch Relay Module (C), Modbus RTU Protocol, PoE Power Supply, With Various Isolation And Protection Circuits, Industrial Grade Rail-Mount Case
Részletek Adatok Csomag tartalma
  • Dual Ethernet Ports 8-ch Relay Module (C), Modbus RTU Protocol, PoE Power Supply, With Various Isolation And Protection Circuits, Industrial Grade Rail-Mount Case

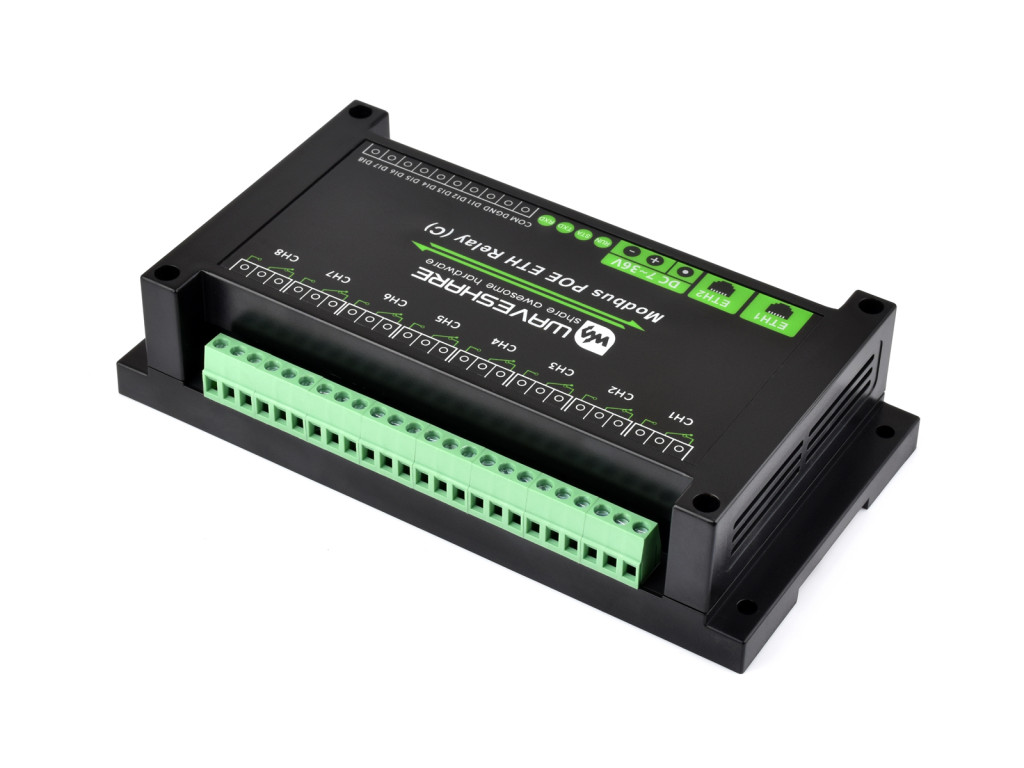

    Dual Ethernet Ports 8-ch Relay Module (C)

    With Digital Input

    Ethernet Port Communication, Supports Ethernet Port Cascade,Modbus Protocol, PoE Power Supply

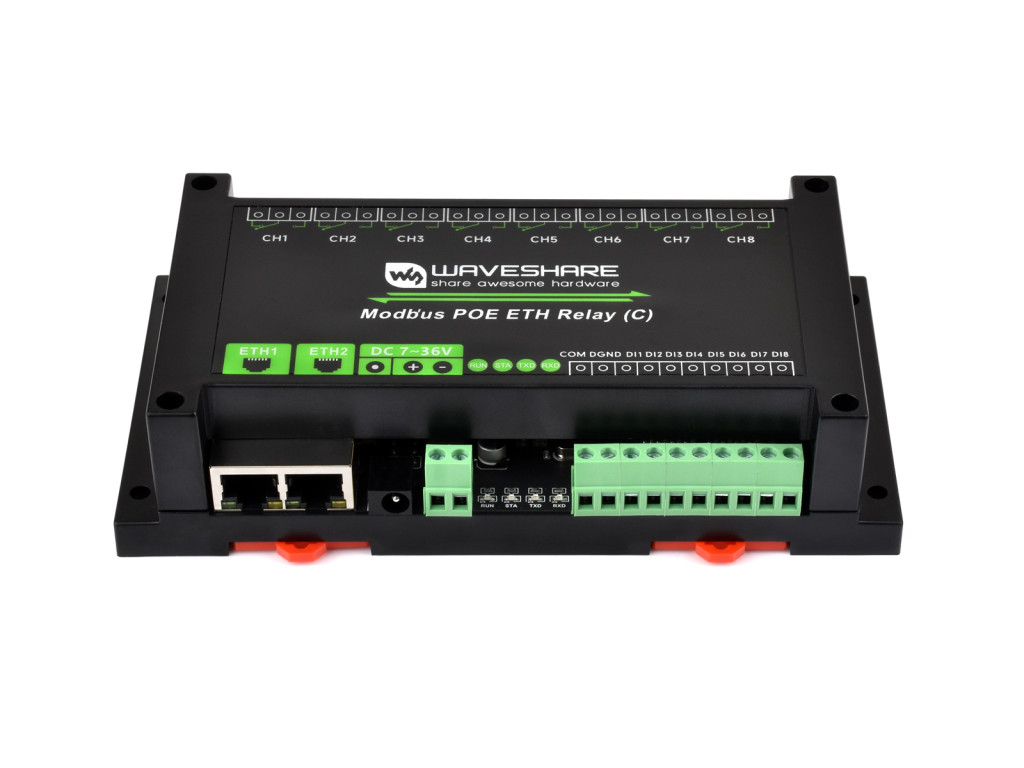

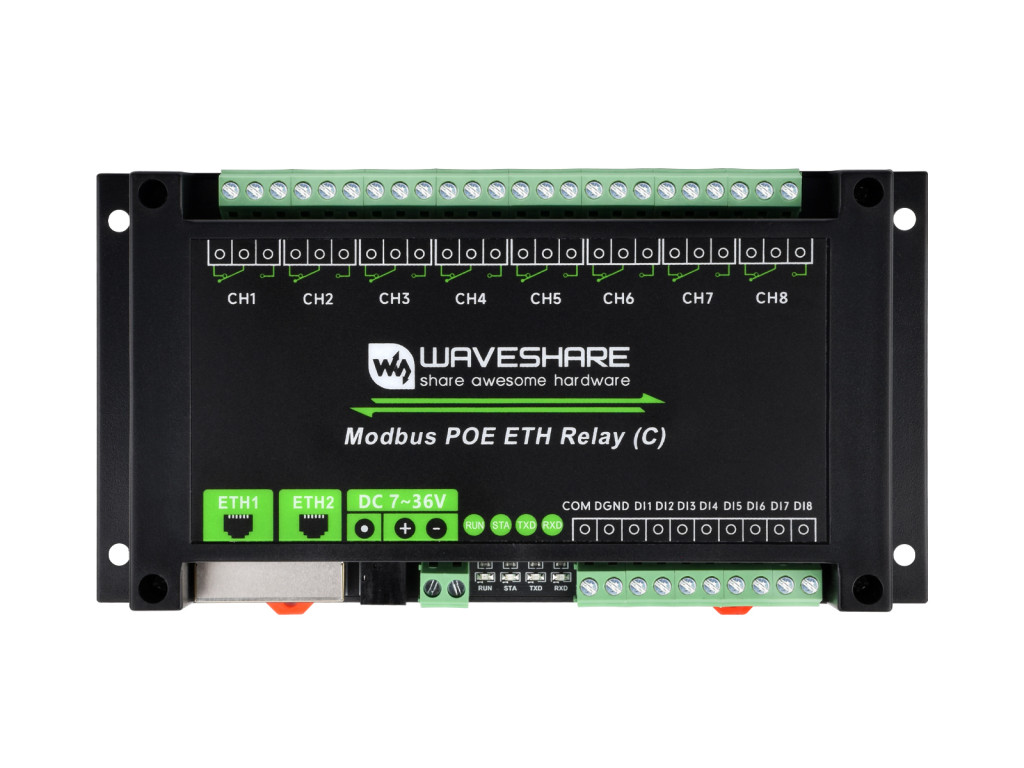

    8-ch Ethernet Relay Module (C), front view
    Features At A Glance

    This product is an 8-ch relay module designed for industrial environments, featuring dual Ethernet interfaces control and 8 digital inputs. It adopts Modbus RTU / Modbus TCP protocols, supports Ethernet port cascade and PoE power supply, also comes with an ABS rail-mount case.

    The Modbus POE ETH Relay (C) is very easy to use. Due to its fast communication, stability, reliability, and safety, it is an ideal choice for industrial control equipments and/or applications with high communication requirements.

    • Dual Ethernet ports design, supports Ethernet port communication cascade and PoE power supply cascade
    • Features flash-on, flash-off function, by passing arguments to the command, it is possible to turn on the relay for a while and then close it automatically
    • Supports DC 7~36V wide range power input and PoE power supply
    • Supports relay control through MQTT protocol, comes with Alibaba Cloud MQTT application demo
    • Onboard Optocoupler isolation, prevent the relay from being interfered by high-voltage circuit
    • Adopts dedicated relay driver chip, with built-in flyback diode protection, for stronger and more stable driving ability
    • Supports passive and active digital input, with bi-directional optocoupler isolation, built in debouncing algorithm. The relay supports digital input linkage control or toggle control
    • Reverse-proof circuit, prevent the circuit from being damaged accidentally by incorrect connection
    • High quality relay, contact rating: ≤10A 250VAC/30VDC
    • Rail-mounted ABS plastic enclosure, easy to install, safe to use
    • 4 LEDs and Network indicators for indicating the MCU status and signal transceiving status
    Primary function

    Supports reading digital input by sending Modbus protocol commands via Ethernet for relay output control

    8-ch Ethernet Relay Module (C), primary function
    Supports Multiple Communication Modes, Adopts Modbus Protocol

    Supports TCP Server / TCP Client / UDP Mode / UDP Multicast / MQTTSupports Modbus RTU / Modbus TCP protocols

    8-ch Ethernet Relay Module (C), supports Modbus RTU protocol/Modbus TCP protocol
    Multi Configuration Methods

    Supports software and Web Browser Configuration, Obtaining Dynamic IP Via DHCP,connecting to domain name server via DNS protocol

    8-ch Ethernet Relay Module (C), supports multi configuration methods
    Multi Power Supply Options, Wide Range Power Input

    DC Power port: directly uses a power plug for power supply; Screw terminal: DC 7~36V wide range power input; PoE port: IEEE 802.3af PoE compliant

    8-ch Ethernet Relay Module (C), supports multi power supply methods
    * The external power supply adapter is NOT included by default, it is recommended to purchase 12V power supply if you need it.
    Digital Input

    Supports passive (dry contact) and active (wet contact) digital input, with bi-directional optocoupler isolation

    8-ch Ethernet Relay Module (C), digital input connection demo
    Interfaces & Indicators

    With Multiple LED Indicators, Easy To Monitor The Operating Status

    8-ch Ethernet Relay Module (C), Interfaces & Indicators instruction
    RUNEthernet port indicator, blinking when Ethernet port is normally working
    STAMCU indicator, blinking when the MCU is normally working
    TXDTX indicator, lights up when sending data
    RXDRX indicator, lights up when receiving data
    Left Ethernet port Green IndicatorLights up when the connection of Ethernet Port 1 is established
    Right Ethernet port Green IndicatorLights up when the connection of Ethernet Port 2 is established
    Left Ethernet Port Yellow IndicatorLights up when the TCP connection is established
    Right Ethernet Port Yellow IndicatorData activity indicator, blinking when transmitting data
    Multiple modes for various automation scenarios

    Supports multiple relay control modes, each channel supports independent control mode setting

    8-ch Ethernet Relay Module (C), normal and flash ON / flash OFF relay control mode8-ch Ethernet Relay Module (C), Linkage and Toggle relay control mode

    Note: Except for linkage mode, all other modes also support relay control via commands.

    Support Ethernet Port Cascade and PoE cascade power supply

    Onboard 2-ch Ethernet Ports for communication and cascade Either one can be used for dual serial server network communication, while the other one can be used for cascading or communication with other devices

    * Note: Each module in the cascade needs to be powered individually or using PoE cascade power supply. The maximum power consumption of a single module is 7W, please pay attention to the output power of Router when using PoE cascade power supply.
    Relay connection

    Contact rating of the onboard relay up to 10A 250VAC/30VDC

    8-ch Ethernet Relay Module (C), relay connection demo

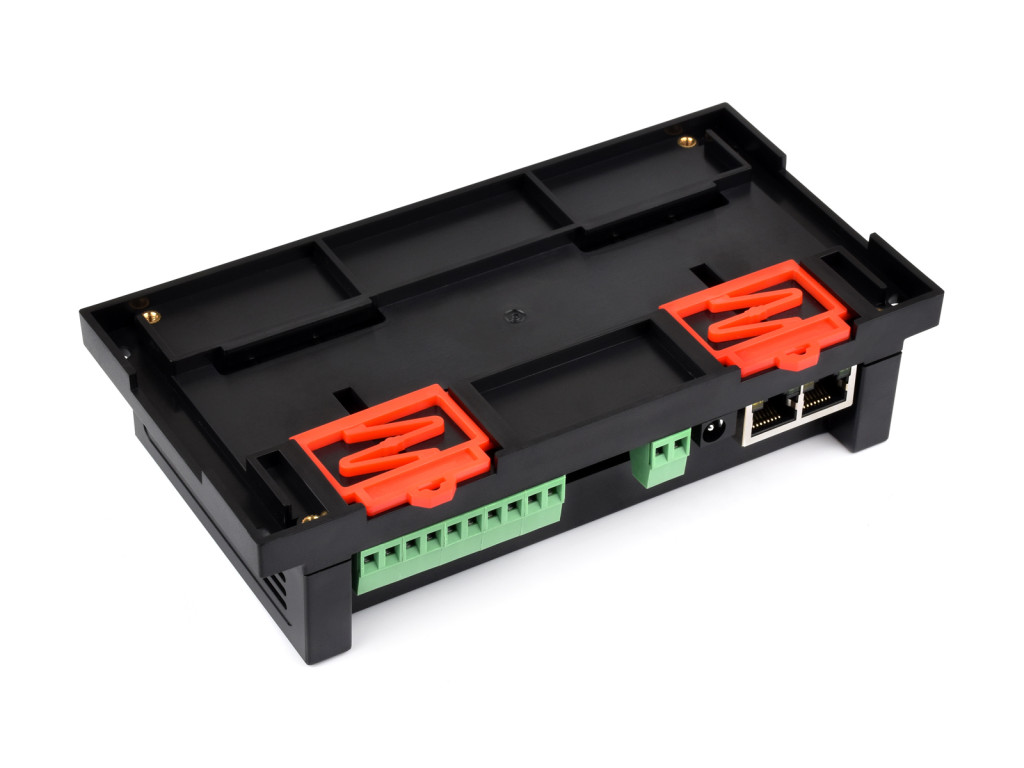

    Enclosure Design

    Rail-mounted ABS plastic enclosure, easy to install, safe to use

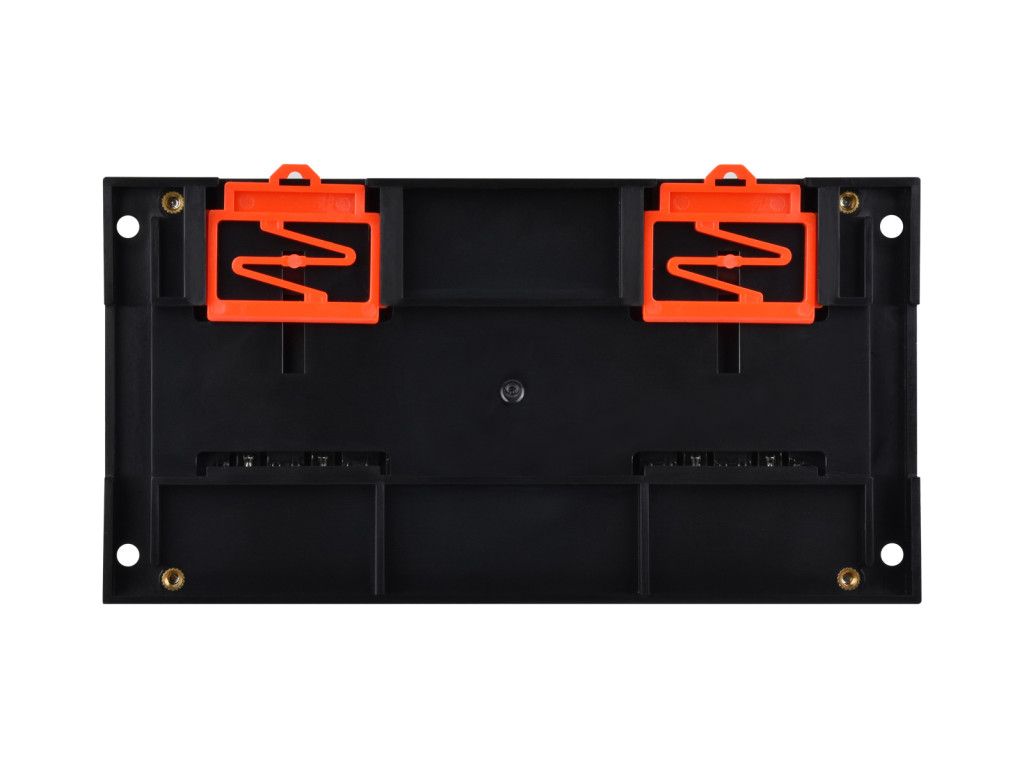

    8-ch Ethernet Relay Module (C), adopts rail-mounted ABS plastic enclosure
    Applications
    8-ch Ethernet Relay Module (C), applications
    Product show
    8-ch Ethernet Relay Module (C), product show
    Outline dimensions
    8-ch Ethernet Relay Module (C), outline dimensions
    Resources & Services

    * Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

    Selection Guide
    productCommunication parametersRelay typeOutput controlInput controlPower rangeDimensions
    Modbus RTU RelayRS485 port10A Universal Relay8-ch-5V145×90×40mm
    Modbus RTU Relay (B)10A Universal Relay8-ch-7V~36V175×90×40mm
    Modbus RTU Relay (C)10A Latching Relay8-ch-7V~36V145×90×40mm
    Modbus RTU Relay (D)10A Universal Relay8-ch8-ch7V~36V175×90×40mm
    Modbus RTU Relay (E)20A High Current Relay8-ch-7V~36V200×110×60mm
    Modbus RTU Relay 4CH20A High Current Relay4-ch-7V~36V145×90×40mm
    Modbus RTU Relay 16CH10A Universal Relay16-ch-5V200×110×60mm
    Modbus RTU Relay 32CH10A Universal Relay32-ch-7V~36V300×110×60mm
    Modbus POE ETH RelayEthernet port (PoE support)10A Universal Relay8-ch-7V~36V145×90×40mm
    Modbus POE ETH Relay (B)10A Universal Relay8-ch8-ch7V~36V175×90×40mm
    Modbus POE ETH Relay (C)Dual Ethernet ports (PoE support)10A Universal Relay8-ch8-ch7V~36V175×90×40mm
    Modbus POE ETH Relay 16CHDual Ethernet ports (PoE support)10A Universal Relay16-ch-7V~36V200×110×60mm
    Modbus POE ETH Relay 30CHEthernet port (PoE support)10A Universal Relay30-ch-7V~36V300×110×60mm
  • Brand
    Waveshare
    PartNumber
    Modbus POE ETH Relay (C)
    Raktárkészlet
    VAN
    Cikkszám
    RPI-WS30544
    Státusz
    ÚJ

  • Modbus POE ETH Relay (C) x1

    Modbus POE ETH Relay (C)
:
;
