OV5640 5MP USB Camera, 1080P Video Recording, AF - Autofocus

ÚJ
Raktárkészlet: VAN
OV5640 5MP USB Camera, 1080P Video Recording, AF - Autofocus
  • OV5640 5MP USB Camera, 1080P Video Recording, AF - Autofocus
  • OV5640 5MP USB Camera, 1080P Video Recording, AF - Autofocus
  • OV5640 5MP USB Camera, 1080P Video Recording, AF - Autofocus
  • OV5640 5MP USB Camera, 1080P Video Recording, AF - Autofocus
13 002 Ft + ÁFA | Bruttó:16 513 Ft
db Kosárba Kosárba
Árváltozás értesítő
OV5640 5MP USB Camera, 1080P Video Recording, Available In AF/FF
Részletek Adatok Csomag tartalma
  • OV5640 5MP USB Camera, 1080P Video Recording, Available in AF/FF

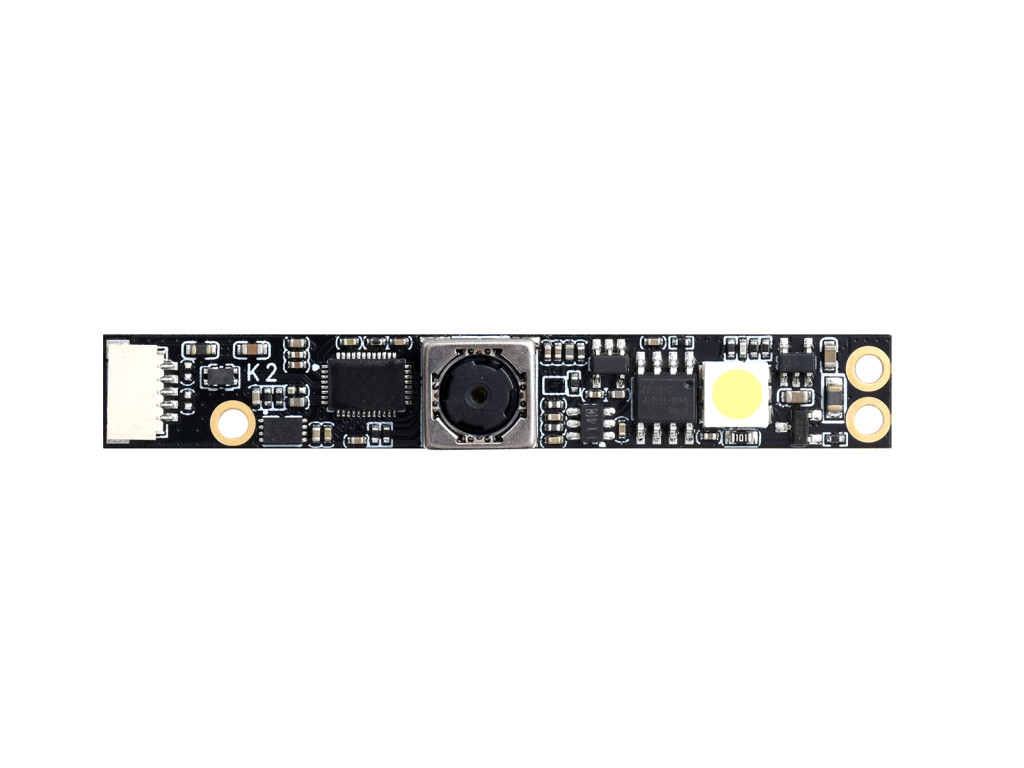

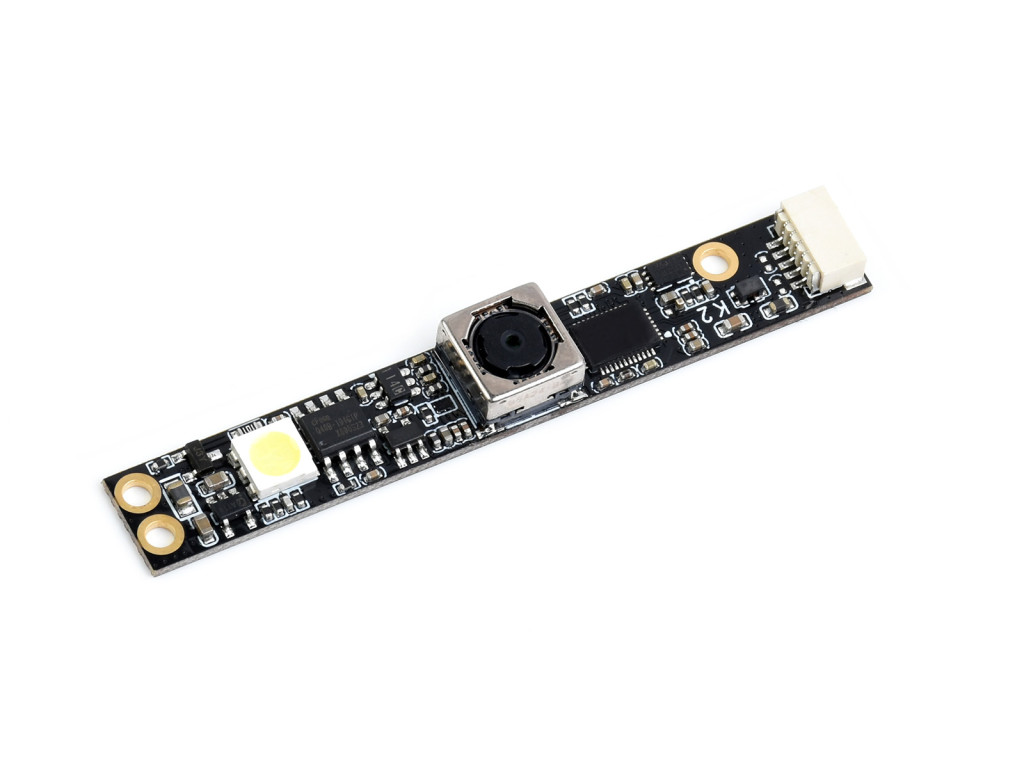

    5MP camera module

    OV5640 sensor, USB port

    Version options
    OV5640 5MP USB Camera (B)

    OV5640 5MP USB Camera (B)Auto-Focus

    OV5640 5MP USB Camera (C)

    OV5640 5MP USB Camera (C) Fixed-Focus

    Specifications
    Pixels5MP
    SensorOV5640
    InterfaceUSB 2.0
    CameraSensor size1/4 inch
    Aperture (F)2.8
    Focal length (EFL)3.29 mm
    Field of view (FOV)68°
    Distortion< 1%
    Focusing(B): AF Auto-Focus (C): FF Fixed-Focus
    ImageFormat supportMJPG, YUV422
    Static image resolution2592 × 1944
    Video recording15 FPS 2592 × 1944 30 FPS 1920 × 1080 30 FPS 1280 × 720
    Operating voltage5V ± 5%
    Camera size8.5 × 8.5 mm
    Module size9 × 62 mm
    NoteSelect OV5640 5MP USB Camera (B)forAuto-focus, Select OV5640 5MP USB Camera (C)forFixed-focus, Except for the focus mechanism, the two cameras are exactly the same.

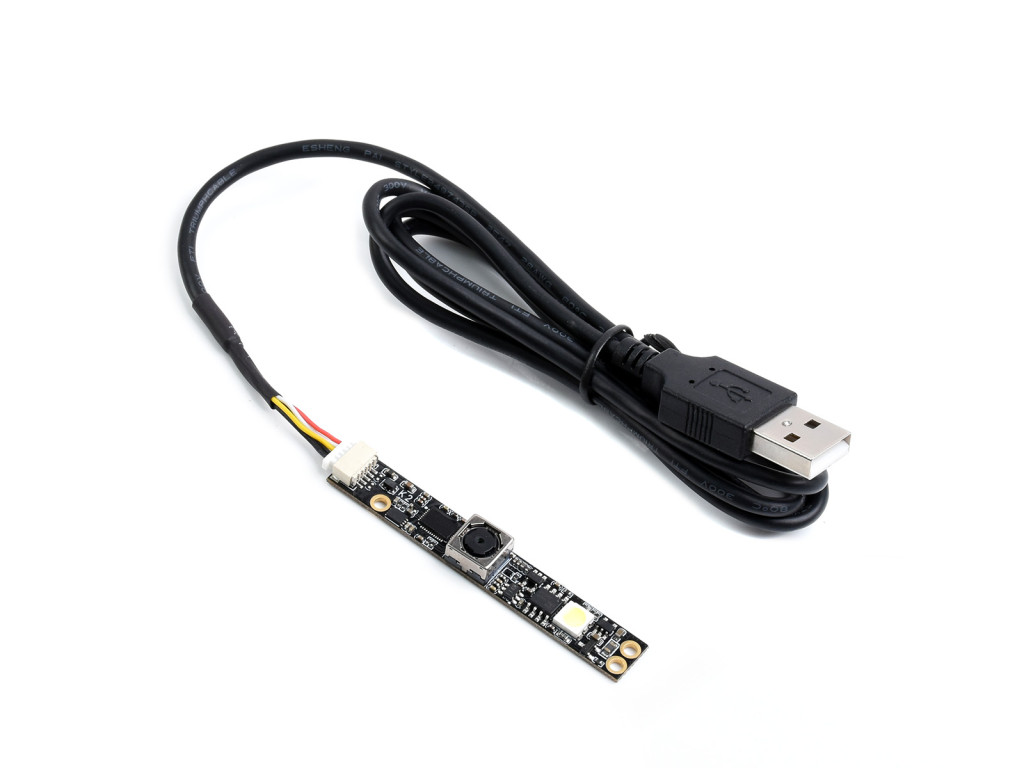

    Connecting with USB cable
    Outline dimensions
    Resources & Services
    Wiki:OV5640_5MP_USB_Camera

    Selection Guide

    Part NumberPixelsSensorBest ResolutionDimensionField of ViewShutter ModeFeature
    OV9281 1MP USB Camera (A)1MPOV92811280×72025×25mm105°Global shutter120FPS high frame rate, mono camera
    OV2735 2MP USB Camera (A)2MPOV27351920×108025×25mm96°Rolling shutterdistortion-free
    OV2710 2MP USB Camera (A)2MPOV27101920x108038x38mm145°Rolling shutterLow-light sensitivity
    GC2093 2MP USB Camera (A)2MPGC20931920x108038x38mm170°Rolling shutterWide dynamic range, backlit imaging, onboard microphone
    SC2210 2MP USB Camera (A)2MPSC22101920x108038x38mm110.8°Rolling shutterLarge aperture, starlight-level
    PS5268-2MP-USB-Camera-A2MPPS52681920x108030×30mm112.6°Rolling shutterWide dynamic range, IP67 water-resistant case
    OV4689 4MP USB Camera (A)4MPOV46892688×152025×25mm92°Rolling shutterLow-light sensitivity, distortion-free
    OS05A10 5MP USB Camera (A)5MPOS05A102592×194425×25mm96°Rolling shutterwide dynamic range, distortion-free
    OV5693 5MP USB Camera (A)5MPOV56932592x194418×40mm135°Rolling shutterauto-focus
    OV5693 5MP USB Camera (B)5MPOV56932592x19448.5×60.2mm75°Rolling shutterSmall size, auto-focus
    OV5640 5MP USB Camera (B)5MPOV56402592x19449×62mm68°Rolling shutterSmall size, auto-focus
    OV5640 5MP USB Camera (C)Small size
    IMX335 5MP USB Camera (A)5MPIMX3352592x194438×38mm106.9°Rolling shutterManual focus, low-light sensitivity, wide dynamic range
    IMX335 5MP USB Camera (B)5MPIMX3352592x194425×24mm175°Rolling shutterFixed-focus, wide angle, low-light sensitivity, wide dynamic range
    IMX335 5MP USB Camera (C)5MPIMX3352592x194425×24.3mm91.7°Rolling shutterFixed-focus, low-light sensitivity, wide dynamic range, distortion-free, onboard microphone
    IMX378 12MP USB Camera (A)12MPIMX3783840×303230×30mm79.8°Rolling shutterHD, auto-focus, onboard dual microphones
    IMX179 8MP USB Camera (A)8MPIMX1793288x251238x38mm145°Rolling shutterHD, embedded digital mic
    IMX179 8MP USB Camera (B)8MPIMX1793264×24489×62mm75°Rolling shutterHD, small size, auto-focus
    IMX415 8MP USB Camera (A)8MPIMX4153840×216038×38mm95.5°Rolling shutterHD, auto-focus, onboard dual microphones, distortion-free
    IMX678 8MP USB Camera (A)8MPIMX6783840×216038×38mm93°Rolling shutterHD, Low-light sensitivity, distortion-free
    OS08A10 8MP USB Camera (A)8MPOS08A1103840×216038×38mm68°Rolling shutterHD, Low-light sensitivity, Low distortion
    IMX258 13MP OIS USB Camera (A)13MPIMX2584208×312038×38mm123°Rolling shutterHD, OIS
    AR0144 Stereo USB Camera (A)1MPAR01442560×80066×30mm74°Global shutterFrame-synchronized stereo output, distortion-free
    IMX577 12MP USB Camera (A)12MPIMX5773840×302434×34mm113°Rolling shutterHD, distortion-free
    IMX577 12MP USB Camera (B)12MPIMX5773840×302434×34mm-Rolling shutterHD, C/CS lenses support
    OS02G10 Stereo USB Camera (A)2MPOS02G103840×1080100×22mm92°Rolling shutterFrame-synchronized stereo output, distortion-free
  • Brand
    Waveshare
    PartNumber
    OV5640 5MP USB Camera (B)
    Raktárkészlet
    VAN
    Cikkszám
    RPI-WS21635
    Státusz
    ÚJ

  • OV5640 5MP USB Camera (B)

    OV5640 5MP USB Camera (B) x1

    OV5640 5MP USB Camera (C)

    OV5640 5MP USB Camera (C) x1

:
;
