PCIe - M.2 4G/5G és USB 3.2 HAT Raspberry Pi 5-höz, Kompatibilis a SIMCom/Quectel 4G/5G modulokkal, Raspberry Pi 5 HAT, Nagysebességű hálózatépítés

ÚJ
Raktárkészlet: VAN
PCIe - M.2 4G/5G és USB 3.2 HAT Raspberry Pi 5-höz, Kompatibilis a SIMCom/Quectel 4G/5G modulokkal, Raspberry Pi 5 HAT, Nagysebességű hálózatépítés
  • PCIe - M.2 4G/5G és USB 3.2 HAT Raspberry Pi 5-höz, Kompatibilis a SIMCom/Quectel 4G/5G modulokkal, Raspberry Pi 5 HAT, Nagysebességű hálózatépítés
  • PCIe - M.2 4G/5G és USB 3.2 HAT Raspberry Pi 5-höz, Kompatibilis a SIMCom/Quectel 4G/5G modulokkal, Raspberry Pi 5 HAT, Nagysebességű hálózatépítés
  • PCIe - M.2 4G/5G és USB 3.2 HAT Raspberry Pi 5-höz, Kompatibilis a SIMCom/Quectel 4G/5G modulokkal, Raspberry Pi 5 HAT, Nagysebességű hálózatépítés
  • PCIe - M.2 4G/5G és USB 3.2 HAT Raspberry Pi 5-höz, Kompatibilis a SIMCom/Quectel 4G/5G modulokkal, Raspberry Pi 5 HAT, Nagysebességű hálózatépítés
14 796 Ft + ÁFA | Bruttó:18 791 Ft
db Kosárba Kosárba
Olcsóbban szeretném
PCIe - M.2 4G/5G és USB 3.2 HAT Raspberry Pi 5-höz, Kompatibilis a SIMCom/Quectel 4G/5G modulokkal, 5G-4IN1-NYÁK antennával, Raspberry Pi 5 HAT, Nagysebességű hálózatépítés
Részletek Adatok Csomag tartalma
  • PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5, Compatible with SIMCom/Quectel 4G/5G modules, Comes With 5G-4IN1-PCB Antenna, Raspberry Pi 5 HAT, High-speed Networking

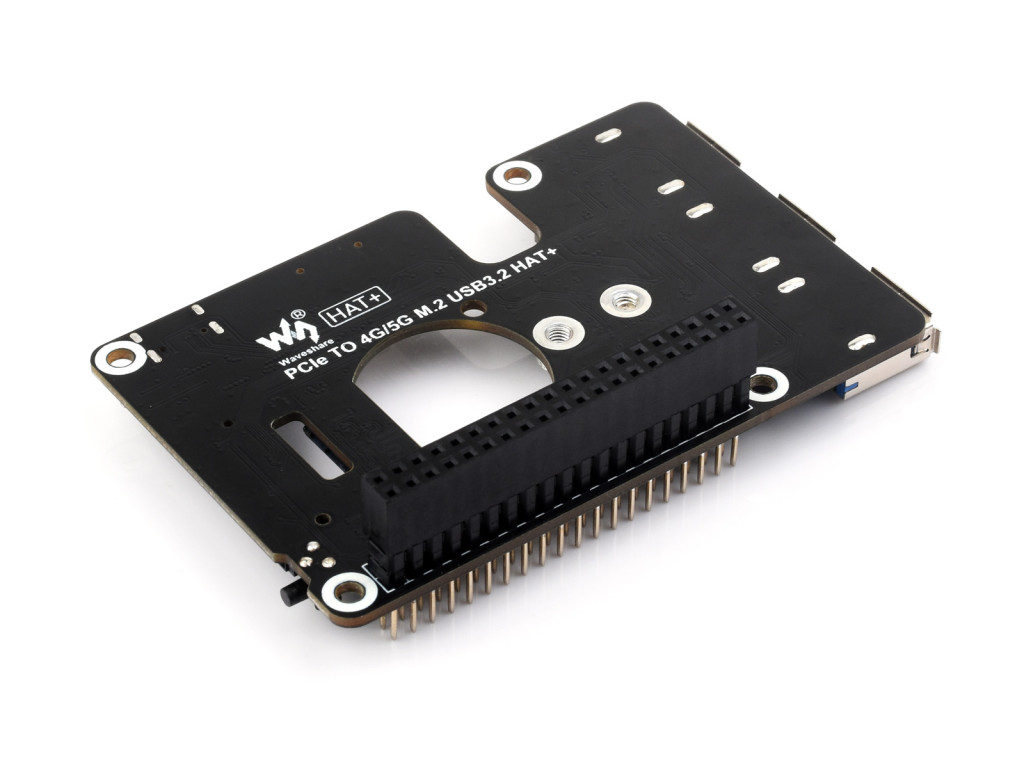

    PCIe TO M.2 4G/5G And USB3.2 HAT

    Suitable for Raspberry Pi 5

    Compatible With Multiple SIMCom/Quectel 4G/5G modules with M.2 Key B interface

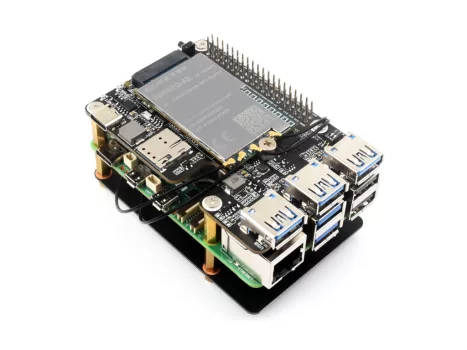

    PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5, front view, connecting with Raspberry Pi 5

    * for reference only, the Raspberry Pi 5 and 5G module are NOT included.

    PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5, features
    Features at a glance
    • Designed for Raspberry Pi 5, HAT+ standard design with onboard I2C EEPROM, and supports Raspberry Pi 40PIN GPIO stackable expansion
    • Extends 3x high-speed USB 3.2 Gen1 ports for connecting more peripherals
    • Onboard M.2(NGFF) Key B slot, supports SIM7600XX-M.2, SIM82XX and RM5XX series 4G/5G modules and is compatible with 3042/3052 packages
    • Onboard Type-C port for connecting to a PC for 4G/5G networking, debugging and firmware updating, or external power supply input
    • Onboard power monitoring chip for real-time measurement of voltage, current and power
    • Onboard SIM card slot for NANO-SIM card
    • Onboard Reset button, Power and Network indicators for easy debugging and monitoring the operating status
    • Comes with customized 5G-4IN1-PCB Antenna for neat wiring management, supports top or bottom installation
    • Reserved airflow vent and mounting holes for cooling fan to increase airflow and provide better heat dissipation
    Designed for Raspberry Pi 5, HAT+ standard

    Onboard PCIe interface for directly connecting to Raspberry Pi 5 via 16PIN cable

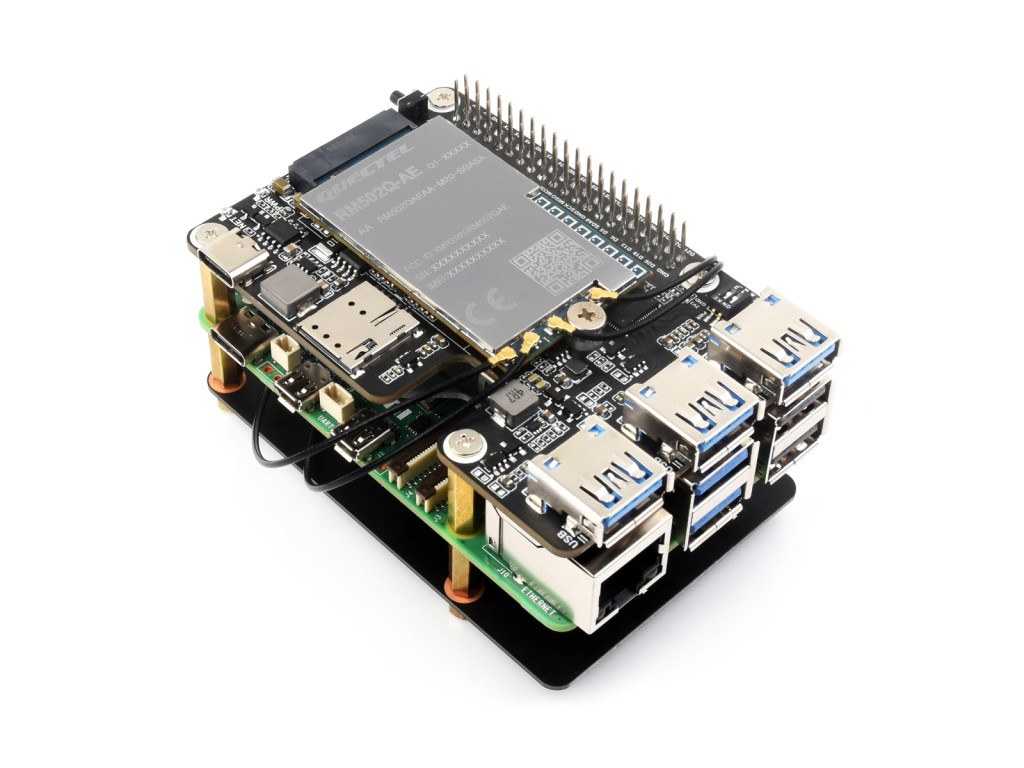

    PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5, connecting to Raspberry Pi 5
    More USB Capability For Raspberry Pi 5

    Extends The PCIe Interface To 3x High Speed USB 3.2 Gen1 Ports For Connecting More Peripherals

    PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5, extends 3x high speed USB 3.2 Gen1 ports
    Compatible With Multiple SIMCom/Quectel 4G/5G modules with M.2 Key B interface

    Onboard M.2(NGFF) Key B slot, Tested To Support SIM7600XX-M.2, SIM82XX and RM5XX series Modules, Compatible with 3042/3052 Packages

    5G ModuleRM502Q-AERM520N-GLRM530N-GLSIM8262E-M2SIM8262A-M2SIM7600G-H-M.2
    RM502Q-AERM520N-GLRM530N-GLSIM8262E-M2SIM8262A-M2SIM7600G-H-M.2
    5G Standard3GPP R153GPP R16-
    5GSub-6 GHzSub-6G & mmWaveSub-6 GHz-
    Applicable RegionGlobal (except China)Globalexcept AmericasAmericasGlobal
    Dimensions30.0 × 52.0 × 2.3 (mm)30.0 × 42.0 × 2.3 (mm)42.0 × 31.4 × 3.8 (mm)
    Frequency band
    5G5G NR-n257, n258, n260, n261n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78, n79n2, n5, n7, n12, n13, n14, n25, n30, n41, n48, n66, n71, n77, n78, n79-
    5G NR NSAn1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
    5G NR SAn1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
    LTELTE-FDDB1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66, B71B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66
    LTE-TDDB34, B38, B39, B40, B41, B42, B43, B48B38, B39, B40, B41, B42, B43B41, B46, B48B34, B38, B39, B40, B41
    LAAB46-
    UMTSWCDMAB1, B2, B3, B4, B5, B6, B8, B19B1, B2, B4, B5, B8, B19B1, B5, B8B2, B4, B5B1, B2, B4, B5, B6, B8, B19
    GNSSGPS / GLONASS / BeiDou (Compass) / Galileo / QZSS (QZSS is not supported on RM502Q-AE)GPS / GLONASS / BeiDou / Galileo / QZSS
    Data rate
    5G mmWave-downlink 4 Gbps; uplink 1.4 Gbps-
    5G SA Sub-6downlink 4.2 Gbps; uplink 450 Mbpsdownlink 2.4 Gbps; uplink 900 Mbpsdownlink 2.4 Gbps; uplink 500 Mbps-
    5G NSA Sub-6downlink 5 Gbps; uplink 650 Mbpsdownlink 3.4 Gbps; uplink 550 Mbps
    LTEdownlink 2 Gbps; uplink 200 Mbpsdownlink 1.6 Gbps; uplink 200 Mbpsdownlink 1.0 Gbps; uplink 200 Mbpsdownlink 150 Mbps; uplink 50 Mbps
    UMTSdownlink 42 Mbps; uplink 5.76 Mbps
    Note: The 4G/5G module is NOT included, please purchase separately. The above are the supported modules after testing; If you need to use with other modules, please confirm with the module manufacturer for interface compatibility.
    Multi-system Support

    Supports systems such as Raspberry Pi OS, Ubuntu, OpenWRT, etc.

    Raspberry Pi OS

    PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5, supports Raspberry Pi OS

    OpenWRT

    PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5, supports OpenWRT

    Ubuntu

    PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5, supports Ubuntu

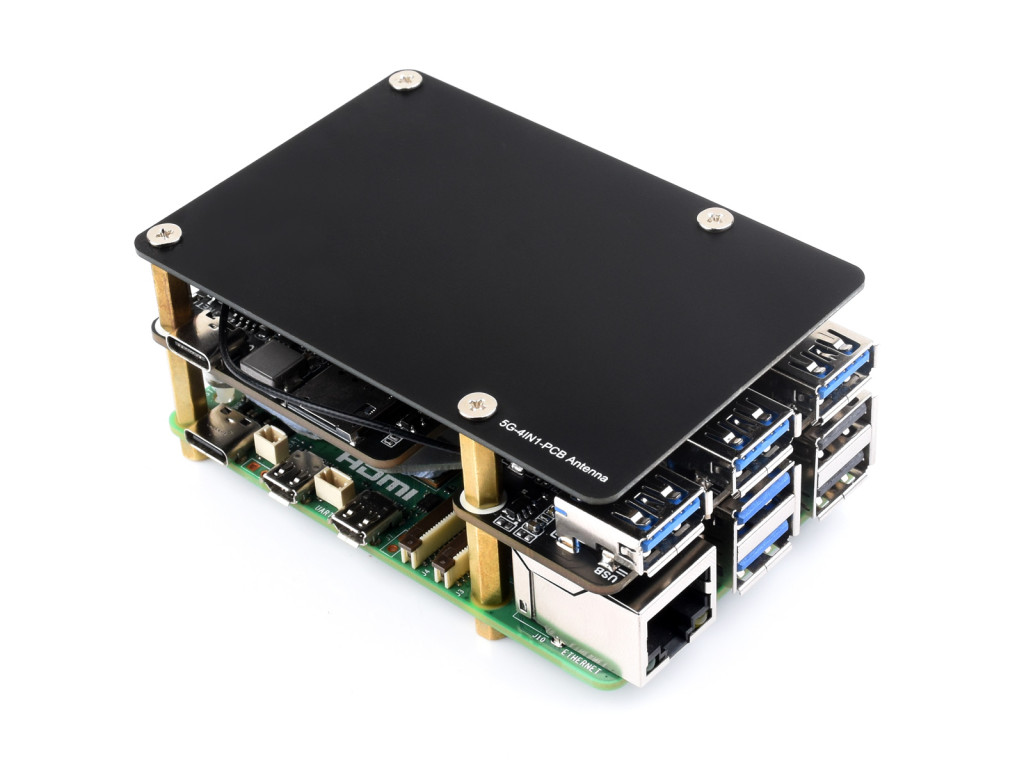

    Comes with 5G-4IN1-PCB Antenna

    Supports top and bottom mounting, easy to install, good communication effect

    PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5 with 5G-4IN1-PCB Antenna on the bottom

    Install on the Bottom

    PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5 with 5G-4IN1-PCB Antenna on the top

    Install on the Top

    * for reference only, please refer to the Package Content for detailed part list

    Onboard power monitoring chip and EEPROM

    for real-time monitoring voltage, current and power of module Via I2Csupports saving HAT+ ID and product information, compatible with HAT+ standard

    PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5 with onboard power monitoring chip and EEPROM
    Reserved Airflow Vent For Cooling Fan

    More Airflow for Pi5, Faster Cooling Effect, More Stable Operation

    PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5 with reserved airflow vent for cooling fan
    How to Install
    how to install PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5

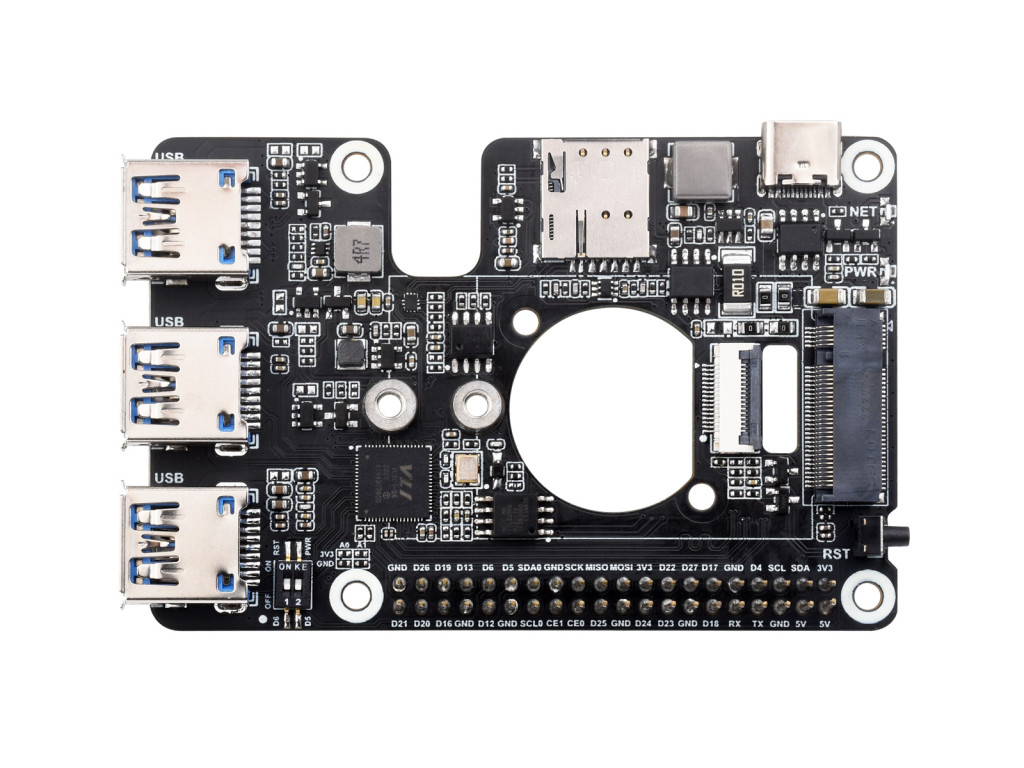

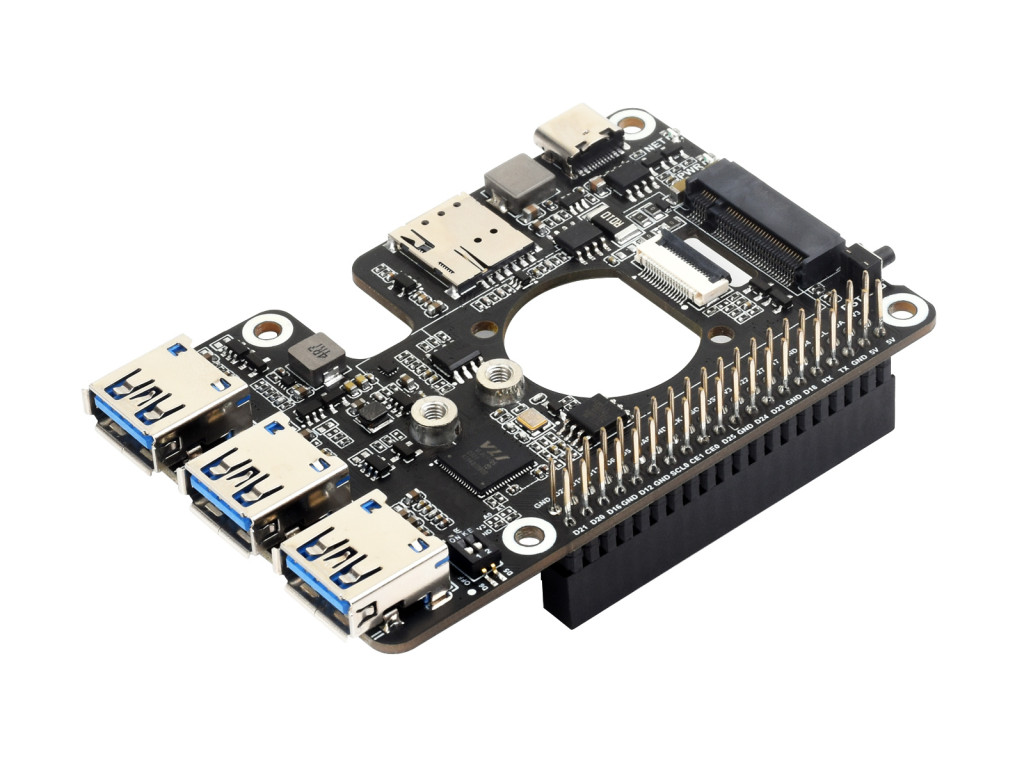

    What's On Board
    PCIe to M.2 4G/5G And USB 3.2 HAT, onboard components
    1. VL805 PCIe to USB 3.2 Gen1 HUB chip
    2. EEPROM for saving HAT ID and product information
    3. INA219 Power monitoring chip
    4. 16PIN PCIe interface for connecting to the PCIe interface of Raspberry Pi 5
    5. M.2(NGFF) Key B slot Compatible with 3042/3052 packages M.2 4G/5G modules
    6. Raspberry Pi GPIO header for connecting Raspberry Pi 5
    7. USB 3.2 Gen1 expanded ports USB1~USB3
    1. Nano SIM card slot for installing Nano-SIM card
    2. Type-C interface for 4G/5G networking of Raspberry Pi or PC via USB cable, firmware updating, or external power supply input
    3. DIP switch for switching to use GPIO pins to control power on/off and reset of the module
    4. Reset button Press it to reset the module
    5. PWR indicator Power indicator
    6. NET indicator Module Network status indicator
    Pinout definition
    PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5, pinout definition
    Application Scenarios

    Industrial Routers, Home Gateways, Set Top Boxes, Industrial Laptops, ConsumerLaptops, Industrial PDAs, Rugged Industrial PCs, And Digital Signage...

    PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5, application scenarios
    Outline dimensions
    PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5, outline dimensions
  • Brand
    Waveshare
    PartNumber
    PCIe TO 4G/5G M.2 USB3.2 HAT+
    Raktárkészlet
    VAN
    Cikkszám
    RPI-WS27698
    Státusz
    ÚJ
    1. PCIe TO 4G/5G M.2 USB3.2 HAT+ x1
    2. 5G-4IN1-PCB Antenna x1
    3. 16P-Cable-40mm cable x1
    4. IPEX1 to IPEX4 cable ~13cm 4PCS x1
    5. Screws pack x1
    PCIe TO 4G/5G M.2 USB3.2 HAT+
:
;
