Termék részletek
Főkategória >Brand >Waveshare



PCIe - USB 3.2 Gen1 / 2.5G ETH / M.2 NVMe adapter Raspberry Pi 5-höz, támogatja az NVMe protokollt, M.2 SSD meghajtót, kibővíti a 2 csatornás USB 3.2 portokat és a 2 csatornás Ethernet portokat

Raktárkészlet: VAN
PCIe - USB 3.2 Gen1 / 2.5G ETH / M.2 NVMe adapter Raspberry Pi 5-höz, támogatja az NVMe protokollt, M.2 SSD meghajtót, kibővíti a 2 csatornás USB 3.2 portokat és a 2 csatornás Ethernet portokat
  • PCIe - USB 3.2 Gen1 / 2.5G ETH / M.2 NVMe adapter Raspberry Pi 5-höz, támogatja az NVMe protokollt, M.2 SSD meghajtót, kibővíti a 2 csatornás USB 3.2 portokat és a 2 csatornás Ethernet portokat
  • PCIe - USB 3.2 Gen1 / 2.5G ETH / M.2 NVMe adapter Raspberry Pi 5-höz, támogatja az NVMe protokollt, M.2 SSD meghajtót, kibővíti a 2 csatornás USB 3.2 portokat és a 2 csatornás Ethernet portokat
  • PCIe - USB 3.2 Gen1 / 2.5G ETH / M.2 NVMe adapter Raspberry Pi 5-höz, támogatja az NVMe protokollt, M.2 SSD meghajtót, kibővíti a 2 csatornás USB 3.2 portokat és a 2 csatornás Ethernet portokat
  • PCIe - USB 3.2 Gen1 / 2.5G ETH / M.2 NVMe adapter Raspberry Pi 5-höz, támogatja az NVMe protokollt, M.2 SSD meghajtót, kibővíti a 2 csatornás USB 3.2 portokat és a 2 csatornás Ethernet portokat
21 954 Ft + ÁFA | Bruttó:27 882 Ft
db Kosárba Kosárba
Árváltozás értesítő
PCIe - USB 3.2 Gen1 / 2.5G ETH / M.2 NVMe adapter Raspberry Pi 5-höz, támogatja az NVMe protokollt, M.2 szilárdtestalapú meghajtó, kibővíti a 2 csatornás USB 3.2 portokat és a 2 csatornás Ethernet portokat, nagy sebességű olvasás/írás, HAT + szabvány, illesztőprogram nélküli, plug and play
Részletek Adatok Csomag tartalma
  • PCIe To USB 3.2 Gen1 / 2.5G ETH / M.2 NVMe Adapter For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, Expands 2-ch USB 3.2 Ports And 2-ch Ethernet Ports, High-speed Reading/Writing, HAT + Standard, Driver-free, Plug And Play
    PCIe TO M.2 USB ETH HAT+

    Designed For Raspberry Pi 5, driver-free, plug and play

    Dual 2.5G Ethernet Ports | Dual USB 3.2 Ports | M.2 NVMe Slot

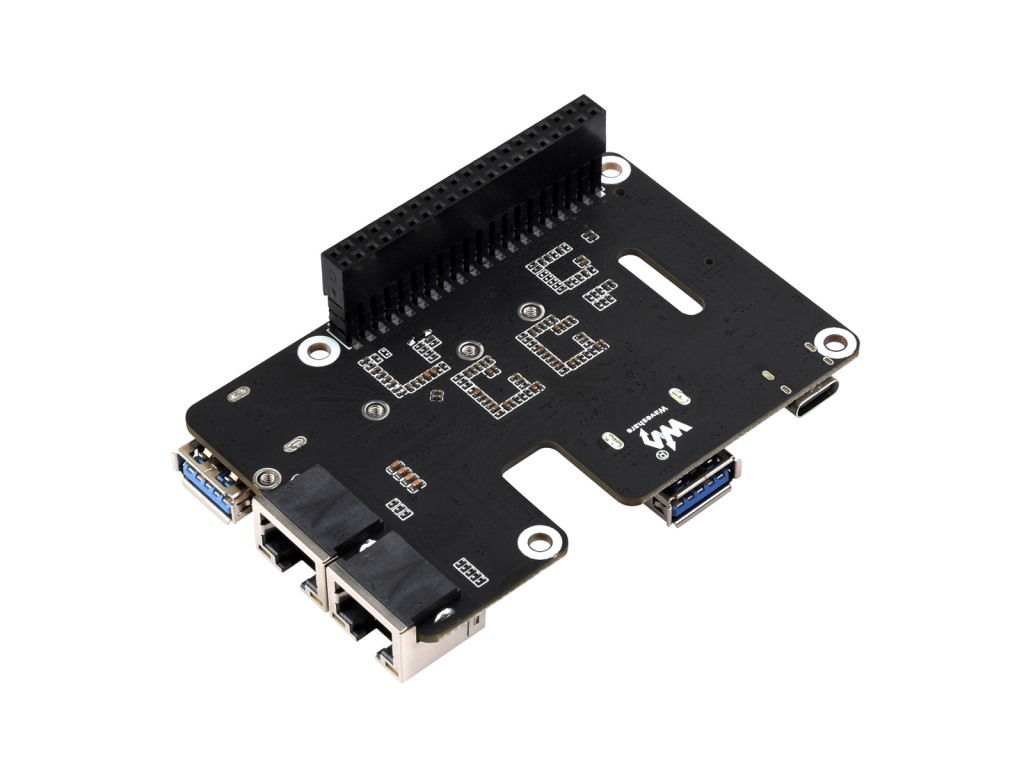

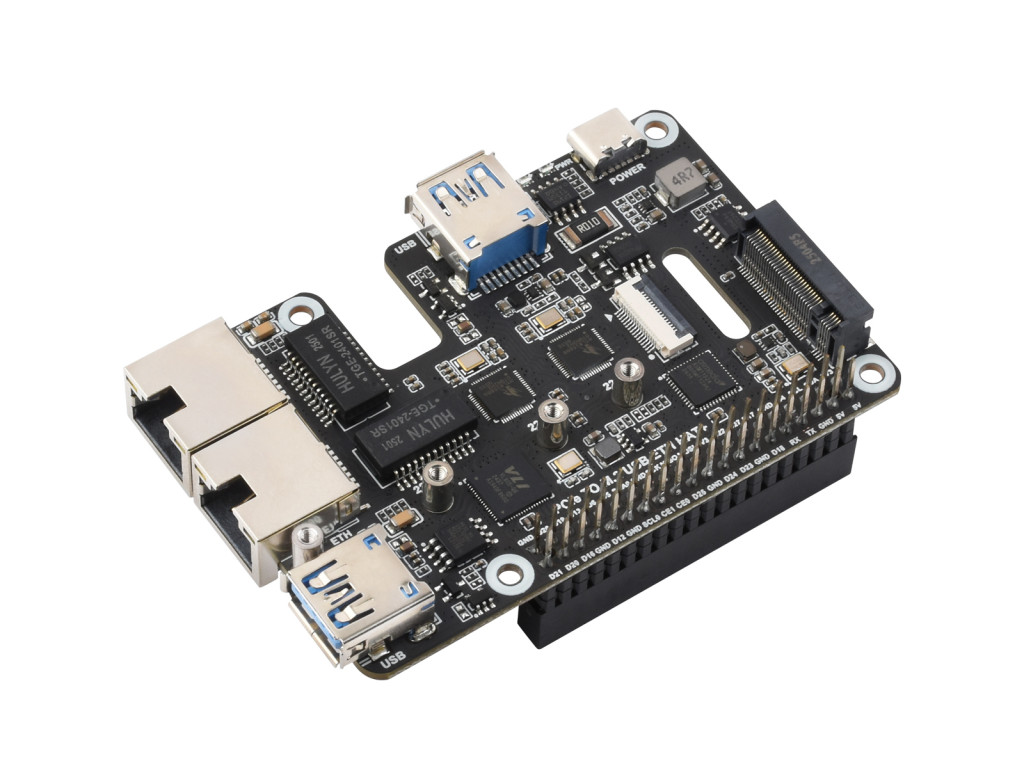

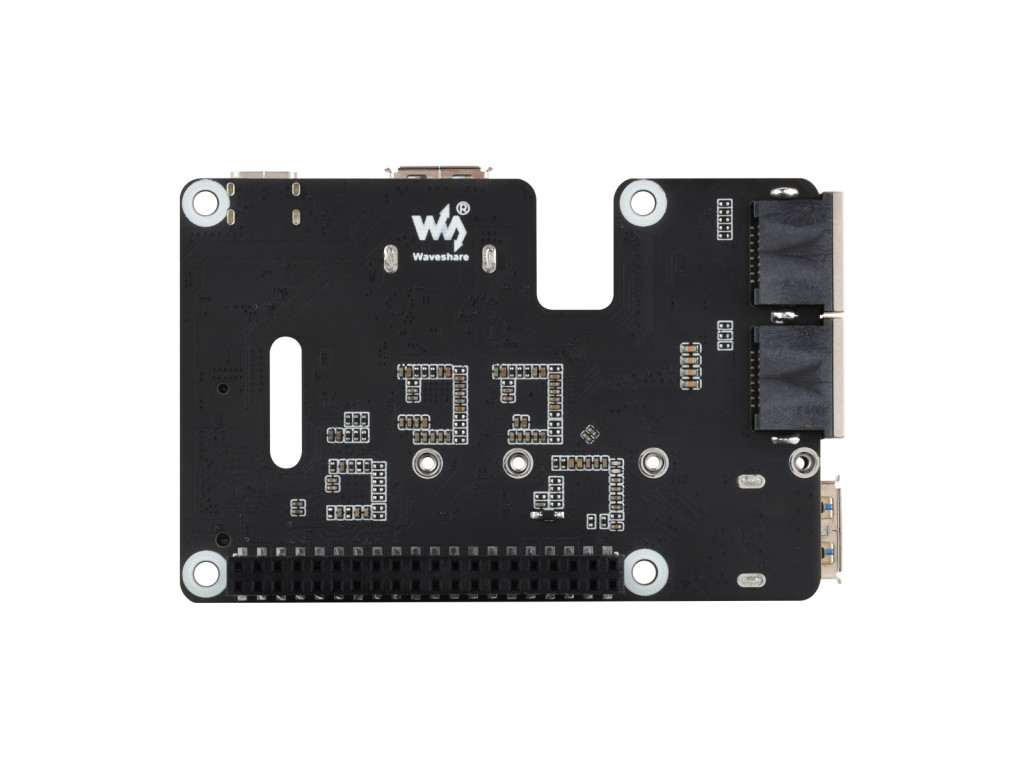

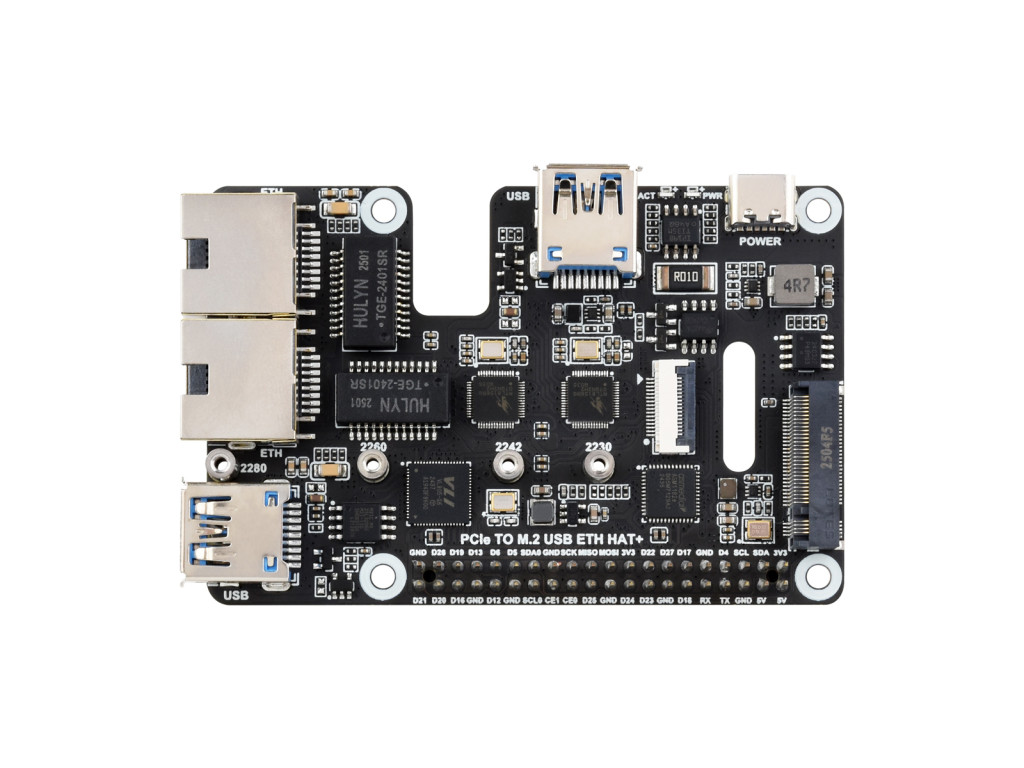

    PCIe To USB 3.2 Gen1 / 2.5G ETH Port / M.2 NVMe Slot Adapter for Raspberry Pi 5, front view
    Connecting to Pi 5 via 16PIN Cable

    Based on 16PIN PCIe Interface of Raspberry Pi 5

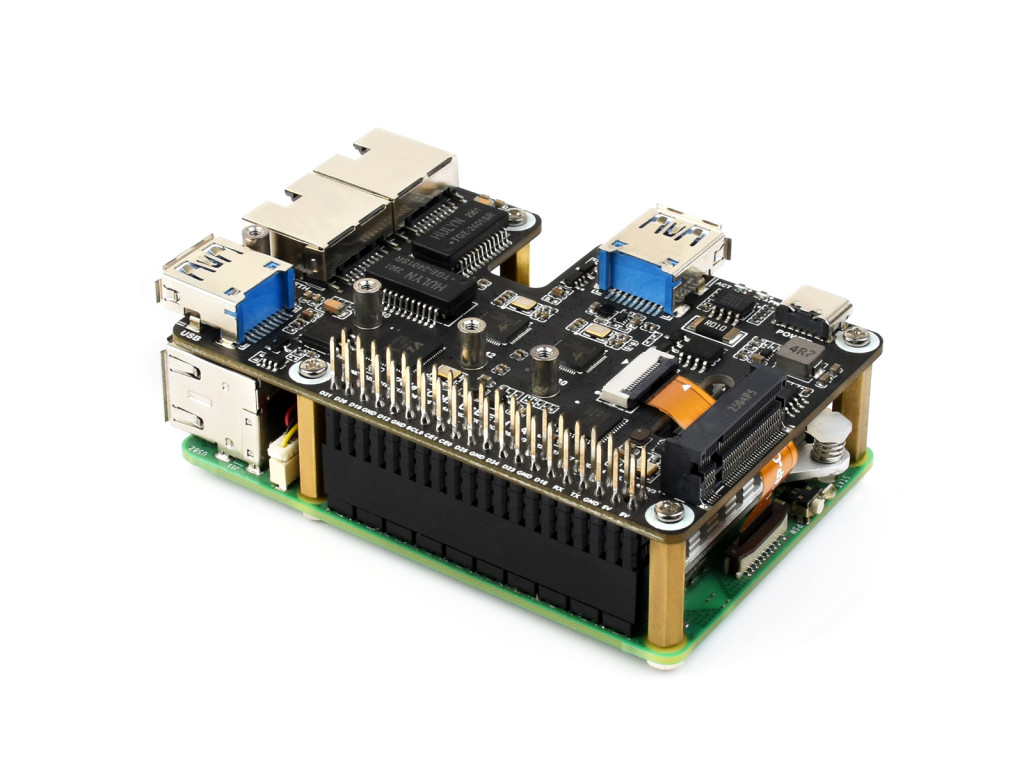

    PCIe To USB 3.2 Gen1 / 2.5G ETH Port / M.2 NVMe Slot Adapter for Raspberry Pi 5, connecting to PI5 via 16PIN cable

    * for reference only, the Raspberry Pi 5 is not included

    NVMe Drive Protocol Support

    Compatible With 2230 / 2242 / 2260 / 2280 Size M.2 Solid State Drive Supports Gen2 Mode, Supports Booting PI5 From Solid State Drive

    PCIe To USB 3.2 Gen1 / 2.5G ETH Port / M.2 NVMe Slot Adapter for Raspberry Pi 5, compatible With 2230 / 2242 / 2260 / 2280 Size M.2 Solid State Drive
    NVMe Drive Slot Support
    PCIe To USB 3.2 Gen1 / 2.5G ETH Port / M.2 NVMe Slot Adapter for Raspberry Pi 5, NVMe Drive slot support

    * Only supports the NVMe Protocol Solid State Drives.

    Onboard 2-channel USB 3.2 ports

    Extends The PCIe Interface To 2-ch High-Speed USB 3.2 Gen1 Ports for connecting more peripherals

    PCIe To USB 3.2 Gen1 / 2.5G ETH Port / M.2 NVMe Slot Adapter for Raspberry Pi 5, onboard 2-channel USB 3.2 ports
    Extends 2-channel 2.5G Ethernet ports

    Onboard RTL8156B high-performance Gigabit ETH chip, sinking design of network port, neat and beautiful

    PCIe To USB 3.2 Gen1 / 2.5G ETH Port / M.2 NVMe Slot Adapter for Raspberry Pi 5, onboard 2-channel Ethernet ports

    * for reference only, the Raspberry Pi 5 is not included

    Improves reading/writing speed of your Pi

    Faster reading/writing speed compared to the TF card slot of Raspberry Pi, greatly improving reading/writing efficiency of the system or files, Supports booting Pi5 from NVME Solid State Drive

    PCIe To USB 3.2 Gen1 / 2.5G ETH Port / M.2 NVMe Slot Adapter for Raspberry Pi 5, improves reading/writing speed

    * for reference only, the Raspberry Pi 5 and Solid State Drive are not included.

    Onboard Dual LED Indicators

    Easy to monitor the Working Status

    PCIe To USB 3.2 Gen1 / 2.5G ETH Port / M.2 NVMe Slot Adapter for Raspberry Pi 5, onboard dual LED indicators
    Onboard Power Monitoring Chip And EEPROM

    Real-time monitoring of Solid State Drive power status for More Stable operation

    PCIe To USB 3.2 Gen1 / 2.5G ETH Port / M.2 NVMe Slot Adapter for Raspberry Pi 5, onboard power monitoring chip and EEPROM
    How to install

    Attach the thermal tapes first, then install the Official Active Cooler and fix the HAT

    PCIe To USB 3.2 Gen1 / 2.5G ETH Port / M.2 NVMe Slot Adapter for Raspberry Pi 5, how to install
    * for reference only, please refer to the Package Content for the detailed part list.
    PCIe To USB 3.2 Gen1 / 2.5G ETH Port / M.2 NVMe Slot Adapter for Raspberry Pi 5, Hat+ standard
    Outline dimensions
    PCIe To USB 3.2 Gen1 / 2.5G ETH Port / M.2 NVMe Slot Adapter for Raspberry Pi 5, outline dimensions
  • Brand
    Waveshare
    PartNumber
    PCIe TO M.2 USB ETH HAT+
    Raktárkészlet
    VAN
    Cikkszám
    RPI-WS31454
    1. PCIe TO M.2 USB ETH HAT+ × 1
    2. 16PIN PCIe cable × 1
    3. Screws pack × 1
    PCIe TO M.2 USB ETH HAT+
:
;
