Ipari HMI többfunkciós érintőképernyő Raspberry Pi-hez, 10,1 inch, kettős 4K HDMI kimenettel, 10 pontos érintéssel, optikai kötéssel, alumíniumötvözet házzal
Ipari HMI többfunkciós érintőképernyő Raspberry Pi-hez, 10,1 hüvelykes változatban is kapható, kettős 4K HDMI kimenettel, 10 pontos érintéssel, optikai kötés, alumíniumötvözet ház, nagy hatékonyságú hőelvezetés
(Raspberry PI nélkül)
(Raspberry PI nélkül)
-
Industrial HMI All-in-one Touch Display For Raspberry Pi, Options For 8inch / 10.1inch, Supports Dual 4K HDMI Output, 10-point Touch, Optical Bonding, Aluminum Alloy Case, High-efficiency Heat DissipationIndustrial HMI All-in-one touch Displayfor Raspberry pi
High Resolution | 10-point Touch | Aluminum alloy case
- Size
Options For 8″/10.1″ - Resolution
1280×800 - Display Panel
IPS - Viewing Angle
178° - Touch Type
Capacitive - Touch Points
10-Point - Touch Panel
Toughened Glass - Touch Panel Tech
Optical Bonding - Front Camera
5MP - Display Interface
Dual Standard HDMI4K Output - Power Port
Type-C/Screw Terminal - Enclosure
Aluminum Alloy
Size Options
8″
10.1″
Version Options
Pi5 All-in-one Display(Raspberry Pi 5-4GB is included, assembled before shippment)
Pi4 All-in-one Display(Raspberry Pi 4-2GB is included, assembled before shippment)
RPI-HMI-080D/101D-ACCETouch Display + Power Supply + TF Card + Accessories pack(the Raspberry Pi is NOT included)
RPI-HMI-080D/101D-ACCE-BTouch Display + Accessories pack only, without Power Supply and TF Card(the Raspberry Pi is NOT included)
Toughened Glass PanelSensitive touch control with High Resolution display, durable design
Built-in Raspberry Pi (Optional)Pi5 All-in-one Display: quad-core Arm Cortex-A76 64-bit 2.4GHz CPUPi4 All-in-one Display: quad-core Arm Cortex-A76 64-bit 1.5GHz CPU
* the Raspberry Pi is optional.
5MP front cameraFor Accurate face recognition, ensuring safety every moment
10-Point Capacitive Touch
- up to 10-point touch, depending on the operating system
- up to 6H hardness toughened glass panel
- Optical bonding, display well and dustproof
Adjustable brightness via softwareExcellent heat dissipationFull Metal Enclosure with efficient heat dissipation, Pure passive cooling, no fan noise worries
Two power supply methodsSupports power supply via screw terminal or USB Type-C Port
VESA Mounting SupportEasily adaptable to various monitor arms, enjoy a flexible installation experience
* Note: the monitor arm is NOT included, please refer to the package content for the detailed part list.

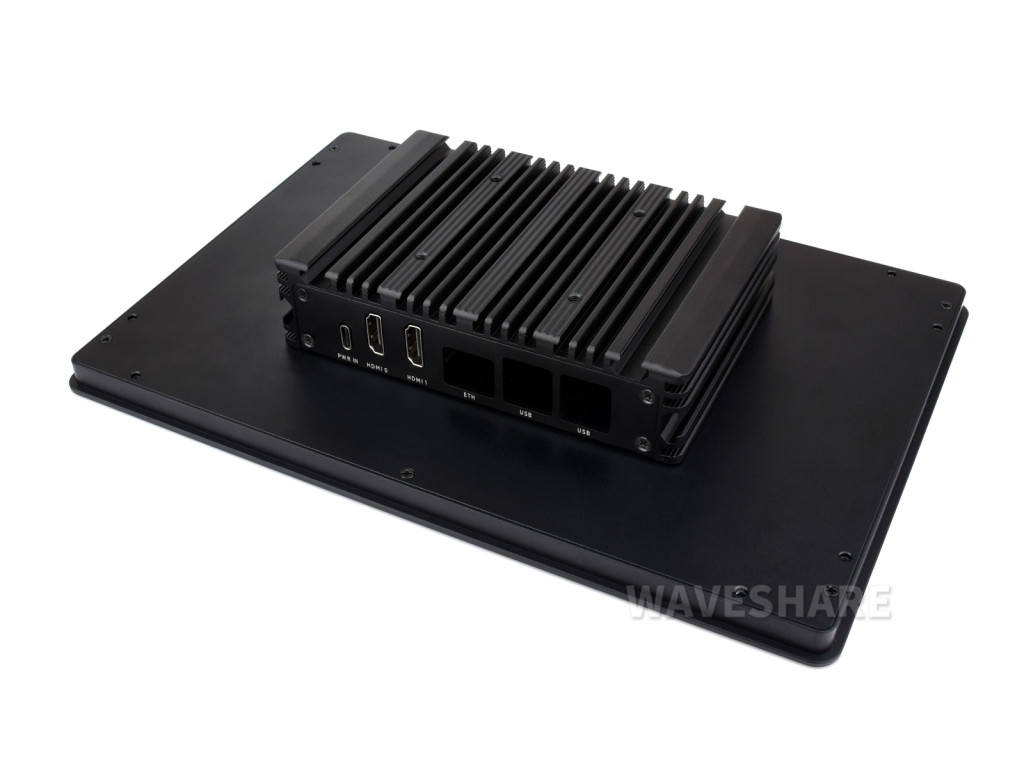

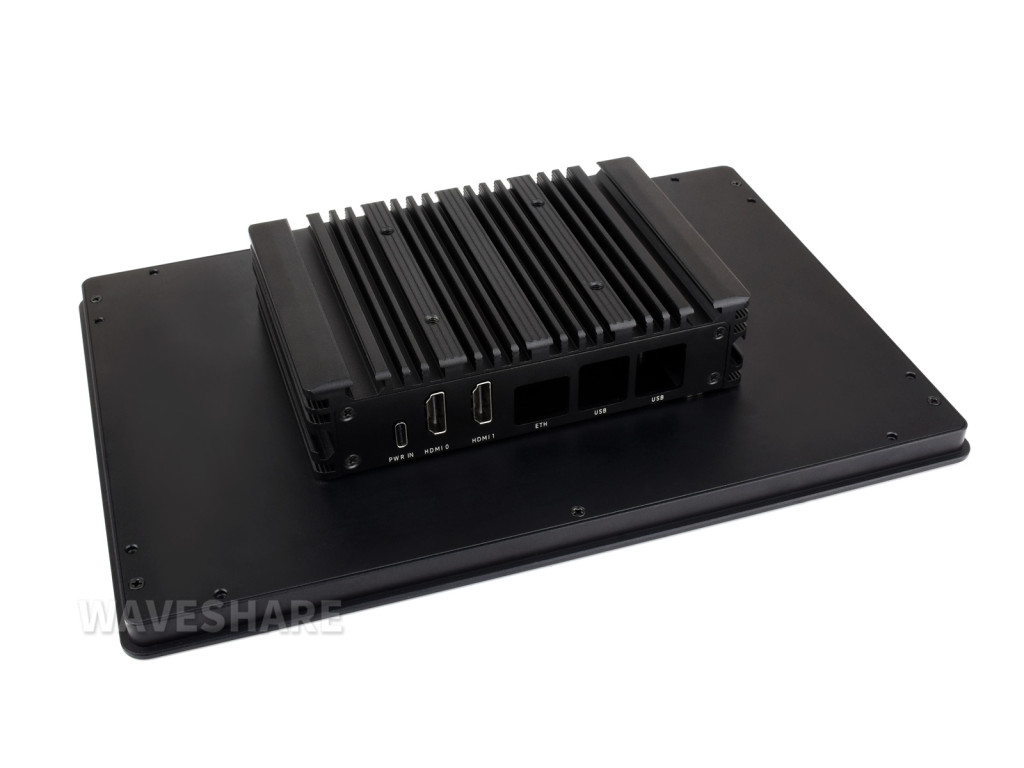

Interface Introduction
- 5V Type-C power port
- Standard HDMI Interface x 2
- USB3.0 port x 2
- USB2.0 port x 2
- Gigabit Ethernet connector
- TF card slot
- Power button
- Power indicator
- 5V Power supply screw terminal (3.81mm pitch)
- Debugging serial port
Dimensions8inch version
10.1inch version
Support touch screen customizationSupport the following ways to customize the touch screen display in bulk order
Over a decadeWaveshare grows with display
* Waveshare has been focusing on display design for over 10 years.
Selection Guide
PartNumber Display Touch Audio Device Support Resolu-tion Display Port Display Panel View Angle Touch Type Touch Port Toughened Glass Panel Optical Bonding Spe-aker Signal Output Pi JETSON NANO PC SPI DISPLAYSPROS: low price.CONS: low refresh rate & resolution, supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO (the SPI bus), poor compatibility with Raspberry Pi system. 2.8inch RPi LCD (A) 320×240 SPI TFT – Resistive SPI × × × × √ × × 3.2inch RPi LCD (B) 320×240 SPI TFT – Resistive SPI × × × × √ × × 3.5inch RPi LCD (A) 480×320 SPI TFT – Resistive SPI × × × × √ × × 3.5inch RPi LCD (B) 480×320 SPI IPS 160° Resistive SPI × × × × √ × × 3.5inch RPi LCD (C) 480×320 High-Speed SPI TFT – Resistive SPI × × × × √ × × 3.5inch RPi LCD (F) 320×480 SPI IPS 170° Capacitive I2C √ × × × √ × × 3.5inch RPi LCD (G) 320×480 SPI IPS 170° Resistive SPI × × × × √ × × 4inch RPi LCD (A) 480×320 SPI TFT – Resistive SPI × × × × √ × × DPI DISPLAYSPROS: low price, high refresh rate, multiple resolution support, better compatibility with Raspberry Pi system.CONS: supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO. 2.8inch DPI LCD 480×640 DPI IPS 160° Capacitive I2C √ √ × × √ × × 3.5inch DPI LCD 640×480 DPI IPS 170° Capacitive I2C √ × × × √ × × 4inch DPI LCD (C) 720×720 DPI IPS 170° Capacitive I2C √ √ × × √ × × 5inch DPI LCD 800×480 DPI IPS 160° – – × × × × √ × × 7inch DPI LCD 1024×600 DPI IPS 170° – – × × × × √ × × DSI DISPLAYSPROS: moderate price, high refresh rate, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system.CONS: supports Raspberry Pi only. 2.8inch DSI LCD 480×640 DSI IPS 160° Capacitive I2C √ √ × × √ × × 3.4inch DSI LCD (C) 800×800 DSI IPS 170° Capacitive I2C √ √ × × √ × × 3.4-DSI-TOUCH-C 800×800 DSI IPS 170° Capacitive I2C √ √ × × √ × × 3.5inch DSI LCD (E) 640×480 DSI IPS 170° Capacitive I2C √ × × × √ × × 3.5inch DSI LCD (H) 480×800 DSI IPS 170° Capacitive I2C √ × × × √ × × 4inch DSI LCD 480×800 DSI IPS 170° Capacitive I2C √ √ × × √ × × 4inch DSI LCD (C) 720×720 DSI IPS 170° Capacitive I2C √ √ × × √ × × 4-DSI-TOUCH-C 720×720 DSI IPS 170° Capacitive I2C √ √ × × √ × × 4.3inch DSI LCD 800×480 DSI IPS 160° Capacitive I2C √ × × × √ × × 4.3inch DSI LCD (with case) 800×480 DSI IPS 160° Capacitive I2C √ × × × √ × × 4.3inch DSI QLED 800×480 DSI IPS(QLED) 160° Capacitive I2C √ × × × √ × × 5inch DSI LCD 800×480 DSI TFT – Capacitive I2C √ × × × √ × × 5inch DSI LCD (B) 800×480 DSI IPS 160° Capacitive I2C √ × × × √ × × 5inch DSI LCD (C) 1024×600 DSI IPS 178° Capacitive I2C √ × × × √ × × 5inch DSI LCD (D) 720×1280 DSI IPS 178° Capacitive I2C √ √ × × √ × × 5-DSI-TOUCH-A 720×1280 DSI IPS 178° Capacitive I2C √ √ × × √ × × 5-DSI-TOUCH-B 720×1280 DSI IPS 178° Capacitive I2C √ √ × × √ × × 5inch Raspberry Pi Touch Display 2 720×1280 DSI IPS 160° Capacitive I2C × × × × √ × × 6.25inch DSI LCD 720×1560 DSI IPS 178° Capacitive I2C √ √ × × √ × × 7inch DSI LCD 800×480 DSI TFT – Capacitive I2C √ × × × √ × × 7inch DSI LCD (with case A) 800×480 DSI TFT – Capacitive I2C √ × × × √ × × 7inch DSI LCD (with cam) 800×480 DSI TFT – Capacitive I2C √ × × × √ × × 7inch DSI LCD (with cam and case) 800×480 DSI TFT – Capacitive I2C √ × × × √ × × 7inch DSI LCD (B) 800×480 DSI IPS 170° Capacitive I2C √ × × × √ × × 7inch DSI LCD (B) (with case A) 800×480 DSI IPS 170° Capacitive I2C √ × × × √ × × 7inch DSI LCD (C) 1024×600 DSI IPS 170° Capacitive I2C √ × × × √ × × 7inch DSI LCD (C) (with case A) 1024×600 DSI IPS 170° Capacitive I2C √ × × × √ × × 7inch DSI LCD (E) 1280×800 DSI IPS 178° Capacitive I2C √ √ × × √ × × 7-DSI-TOUCH-A 720×1280 DSI IPS 170° Capacitive I2C √ √ × × √ × × 7-DSI-TOUCH-C 1024×600 DSI IPS 170° Capacitive I2C × × × × √ × × 7inch DSI LCD (H) 1280×720 DSI IPS 170° Capacitive I2C √ √ × × √ × × 7.9inch DSI LCD 400×1280 DSI IPS 170° Capacitive I2C √ × × × √ × × 8-DSI-TOUCH-A 800×1280 DSI IPS 178° Capacitive I2C √ √ × × √ × × 8inch DSI LCD 800×480 DSI TFT – Capacitive I2C √ × × × √ × × 8inch DSI LCD (with cam) 800×480 DSI TFT – Capacitive I2C √ × × × √ × × 8inch DSI LCD (C) 1280×800 DSI IPS 178° Capacitive I2C √ √ × × √ × × 8.8inch DSI LCD 480×1920 DSI IPS 178° Capacitive I2C √ √ × × √ × × 8.8-DSI-TOUCH-A 480×1920 DSI IPS 178° Capacitive I2C √ √ × × √ × × 9-DSI-TOUCH-B 720×1280 DSI IPS 160° Capacitive I2C √ × × × √ × × 10.1-DSI-TOUCH-A 800×1280 DSI IPS 178° Capacitive I2C √ √ × × √ × × 10.1-DSI-TOUCH-B 720×1280 DSI IPS 170° Capacitive I2C √ × × × √ × × 10.1inch DSI LCD (C) 1280×800 DSI IPS 178° Capacitive I2C √ √ × × √ × × 11.9inch DSI LCD 320×1480 DSI IPS 170° Capacitive I2C √ × × × √ × × 12.3-DSI-TOUCH-A 720×1920 DSI IPS 178° Capacitive I2C √ √ × × √ × × 13.3inch DSI LCD 1920×1080 DSI IPS 178° Capacitive I2C √ × × × √ × × HDMI / TYPE-C DISPLAYSPROS: high refresh rate, multiple resolution support, multiple devices support, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system.CONS: somewhat costly. 2.8inch HDMI LCD (H) 480×640 HDMI IPS 160° Capacitive USB-C / I2C √ √ × × √ √ √ 3.2inch HDMI LCD (H) 480×800 HDMI IPS 160° × × × × × × √ √ Display ONLY 3.4inch 800x800 LCD 800x800 HDMI IPS 170° Capacitive Type-C √ √ × √ √ √ √ 3.5inch HDMI LCD 480×320 HDMI IPS 160° Resistive SPI × × × √ √ × Display ONLY 3.5inch 480x800 LCD 480×800 HDMI IPS 170° Capacitive USB-C × × × × √ √ √ 4inch 720x720 LCD 720x720 HDMI IPS 170° Capacitive Type-C √ √ × √ √ √ √ 4inch HDMI LCD 480×800 HDMI IPS 170° Resistive SPI × × × × √ × Display ONLY 4inch HDMI LCD (C) 720×720 HDMI IPS 170° Capacitive USB-C / I2C √ √ × √ √ √ √ 4inch HDMI LCD (H) 480×800 HDMI IPS 170° Resistive SPI × × × √ √ × Display ONLY 4.3inch HDMI LCD (B) 800×480 HDMI IPS 160° Capacitive USB × × × √ √ √ √ 5DP-CAPLCD-H 1024×600 HDMI IPS 178° Capacitive Type-C √ × × √ √ √ √ 5DP-CAPLCD-B 1024×600 HDMI IPS 178° Capacitive Type-C √ √ × √ √ √ √ 5DP-CAPLCD-G 1024×600 HDMI IPS 178° Resistive Type-C √ × × √ √ √ √ 5inch HDMI LCD 800×480 HDMI TFT – Resistive SPI × × × × √ × × 5inch HDMI LCD (with bicolor case) 800×480 HDMI TFT – Resistive SPI × × × × √ × × 5inch HDMI LCD (B) 800×480 HDMI TFT – Resistive USB × × × × √ × √ 5inch HDMI LCD (B) (with bicolor case) 800×480 HDMI TFT – Resistive USB × × × × √ × √ 5inch HDMI LCD (G) 800×480 HDMI/VGA TFT – Resistive USB × × × √ √ × √ 5inch HDMI LCD (H) 800×480 HDMI/VGA TFT – Capacitive USB √ × × √ √ √ √ 5inch HDMI LCD (H) V4 800×480 HDMI TFT – Capacitive USB √ × × × √ × √ 5inch HDMI AMOLED 960×544 HDMI AMOLED 170° Capacitive USB √ √ × √ √ √ √ 5inch 1080x1080 LCD 1080×1080 HDMI IPS 160° Capacitive Type-C √ √ √ √ √ √ √ 5inch 720x1280 LCD 720×1280 HDMI IPS 178° Capacitive Type-C √ √ √ × √ √ √ 5.5inch HDMI AMOLED 1080×1920 HDMI AMOLED 170° Capacitive USB √ √ × √ √ √ √ 5.5inch HDMI AMOLED (with case A) 1080×1920 HDMI AMOLED 170° Capacitive USB √ √ × √ √ × × 5.5inch 1440x2560 LCD 1440×2560 HDMI IPS 170° Capacitive USB √ √ × √ √ × √ 5.5inch 1440x2560 LCD (with case A) 1440×2560 HDMI IPS 170° Capacitive USB √ √ × √ √ × × 6.25inch 720x1560 LCD 720×1560 HDMI IPS 178° Capacitive Type-C √ √ √ × √ √ √ PI5-HMI-7A 720×1280 HDMI IPS 170° Capacitive Type-C √ √ × × √ × × 7EP-CAPLCD 1280×800 HDMI IPS 178° Capacitive USB √ √ √ √ √ √ √ 7EP-CAPLCD Monitor 1280×800 HDMI/Type-C IPS 178° Capacitive Type-C √ √ √ √ √ √ √ 7inch HDMI LCD 1024×600 HDMI IPS 170° Resistive SPI × × × × √ × Display ONLY 7inch HDMI LCD (B) 800×480 HDMI TFT – Capacitive USB × × × × √ × √ 7inch 1080x1080 LCD 1080×1080 HDMI IPS 160° Capacitive Type-C √ √ × √ √ √ √ 7inch HDMI LCD (B) (with bicolor case) 800×480 HDMI TFT – Capacitive USB × × × × √ × √ 7inch HDMI LCD (C) 1024×600 HDMI IPS 170° Capacitive USB × × × × √ × √ 7inch HDMI LCD (C) (with bicolor case) 1024×600 HDMI IPS 170° Capacitive USB × × × × √ × √ 7inch HDMI LCD (H) 1024×600 HDMI/VGA IPS 170° Capacitive USB × × × √ √ √ √ 7inch HDMI LCD (H) (with case) 1024×600 HDMI/VGA IPS 170° Capacitive USB √ × × √ √ √ √ 7HP-CAPQLED 1024×600 HDMI IPS (QLED) 170° Capacitive USB √ × × √ √ √ √ 7.9inch HDMI LCD 400×1280 HDMI IPS 170° Capacitive USB √ × × √ √ √ √ 7.9inch Side Monitor 400×1280 HDMI IPS 170° × × √ × √ × √ √ √ 7.9inch Touch Monitor 400×1280 HDMI IPS 170° Capacitive USB √ × √ × √ √ √ PI5-HMI-080D 1280×800 HDMI IPS 178° Capacitive Type-C √ √ × × √ × × 8DP-CAPLCD 1280×800 HDMI IPS 178° Capacitive USB √ √ × √ √ √ √ 8HP-CAPLCD Monitor 1280×800 HDMI/Type-C IPS 178° Capacitive USB √ √ √ √ √ √ √ 8inch 768x1024 LCD 768×1024 HDMI IPS 178° Capacitive Type-C √ × √ √ √ √ √ 8inch 1536x2048 LCD 1536×2048 HDMI IPS 178° Capacitive Type-C √ √ √ √ √ √ √ 8.8inch Side Monitor 480×1920 HDMI IPS 170° × × × × √ × √ √ Display ONLY 9HP-CAPQLED-B 1280×720 HDMI IPS (QLED) 178° Capacitive USB √ × × √ √ √ √ 9.3inch 1600x600 LCD 1600×600 HDMI IPS 178° Capacitive Type-C √ √ √ √ √ √ √ 9.7inch 768x1024 LCD 768×1024 HDMI IPS 178° Capacitive Type-C √ × √ √ √ √ √ PI5-HMI-101D 1280×800 HDMI IPS 178° Capacitive Type-C √ √ × × √ × × 10.1inch HDMI LCD 1024×600 HDMI IPS 170° Resistive SPI × × × × √ × Display ONLY 10.1inch HDMI LCD (B) (with case) 1280×800 HDMI IPS 170° Capacitive USB √ × × × √ × √ 10.1inch HDMI LCD (E) 1024×600 HDMI IPS 170° Capacitive USB √ √ × √ √ √ √ 10.1inch HDMI LCD (G) (with case) 1920×1200 HDMI IPS 160° Capacitive USB √ √ √ √ √ √ √ 10.1inch HDMI LCD (H) (with case) 1024×600 HDMI/VGA TFT – Capacitive USB × × × × √ √ √ 10.1inch HDMI LCD (F) (with case) 1024×600 HDMI/VGA IPS 170° Capacitive USB √ × √ × √ √ √ 10.1EP-CAPLCD 1920×1200 HDMI IPS 178° Capacitive Type-C √ √ √ √ √ √ √ 10.1DP-CAPLCD 1280×800 HDMI IPS 178° Capacitive USB √ √ × √ √ √ √ 10.1HP-CAPQLED 1280×720 HDMI IPS (QLED) 170° Capacitive USB √ × × √ √ √ √ 10.1HP-CAPLCD Monitor 1280×800 HDMI/Type-C IPS 178° Capacitive USB √ √ √ √ √ √ √ 10.4HP-CAPQLED 1600×720 HDMI IPS(QLED) 178° Capacitive Type-C √ √ √ √ √ √ √ 10.5inch HDMI AMOLED 2560×1600 HDMI AMOLED 160° Capacitive USB √ √ √ √ √ √ √ 11.6inch 1768x828 LCD 1768×828 HDMI/Type-C IPS 178° Capacitive Type-C In-Cell × × √ √ √ √ 11.6inch HDMI LCD (H) 1920×1080 HDMI IPS 178° Capacitive USB √ √ × √ √ √ √ 11.6inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ √ √ √ √ √ √ 11.9inch HDMI LCD 320×1480 HDMI IPS 170° Capacitive USB √ × × √ √ √ √ 11.9inch Side Monitor 320×1480 HDMI IPS 170° × × √ × √ × √ √ √ 11.9inch Touch Monitor 320×1480 HDMI IPS 170° Capacitive USB √ × √ × √ √ √ 12.3inch 1920x720 LCD 1920×720 HDMI/Type-C IPS 178° Capacitive Type-C In-Cell × × √ √ √ √ 12.3inch HDMI LCD 1920×720 HDMI IPS 178° Capacitive USB √ √ √ √ √ √ √ 13.3inch HDMI LCD (H) 1920×1080 HDMI IPS 178° Capacitive USB √ × × √ √ √ √ 13.3inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ × √ √ √ √ √ 13.3inch HDMI LCD (H) (with case) V2 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ × √ √ √ √ √ 13.3inch QHD AMOLED 2560×1440 HDMI/Type-C AMOLED 178° Capacitive Type-C √ √ √ √ √ √ √ 13.3inch FHD AMOLED 1920×1080 HDMI/Type-C AMOLED 178° Capacitive Type-C √ √ √ √ √ √ √ 13.3inch FHD Monitor 1920×1080 HDMI/Type-C IPS 178° Capacitive Type-C √ × × √ √ √ √ 14-Portable-Monitor 1920×1200 HDMI/Type-C IPS 178° × × × × √ √ √ √ √ 14inch Dual Monitor 1920×1080 HDMI/Type-C IPS 178° × × × × √ √ √ √ √ 15.6-Portable-Monitor 1920×1080 HDMI/Type-C IPS 178° × × × × √ √ √ √ √ 15.6inch FHD Monitor (C) 1920×1080 mini HDMI/Type-C IPS 178° Capacitive Type-C √ √ √ √ √ √ √ 15.6inch Dual Monitor 1920×1080 HDMI/Type-C IPS 178° × × × × √ √ √ √ √ 15.6inch HDMI LCD 1920×1080 HDMI IPS 178° Capacitive USB √ × × √ √ √ √ 15.6inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ × √ √ √ √ √ 15.6inch FHD Monitor 1920×1080 HDMI/Type-C IPS 178° Capacitive Type-C / USB √ × √ √ √ √ √ 15.6HP-CAPQLED 1920×1080 HDMI IPS(QLED) 178° Capacitive USB √ √ × √ √ √ √ 15.6inch QLED Monitor 1920×1080 HDMI IPS(QLED) 178° Capacitive Type-C √ √ √ √ √ √ √ 18.5inch Dual Monitor 1920×1080 HDMI/Type-C IPS 178° × × × × √ √ √ √ √ 16-2K-Touch-Monitor 2560×1600 HDMI/Type-C IPS 178° Capacitive Type-C √ √ √ √ √ √ √ 16-4K-Touch-Monitor 3840×2400 HDMI/Type-C IPS 178° Capacitive Type-C √ √ √ √ √ √ √ 18.5inch FHD LCD 1080×1920 HDMI/Type-C IPS 178° Capacitive Type-C √ √ × √ √ √ √ 18.5-Portable-Monitor 1920×1080 HDMI/Type-C IPS 178° × × × × √ √ √ √ √ 18.5-Touch-Monitor 1920×1080 HDMI/Type-C IPS 178° Capacitive Type-C √ √ √ √ √ √ √ 18.5-4K-Portable-Monitor 3840×2160 HDMI/Type-C IPS 178° × × × × √ √ √ √ √ 21.5inch FHD LCD 1080×1920 HDMI IPS 170° Capacitive Type-C √ √ × √ √ √ √ 21.5inch FHD Monitor 1080×1920 HDMI IPS 170° Capacitive Type-C √ √ √ × √ √ √ 21.5-Portable-Monitor 1920×1080 HDMI/Type-C IPS 178° × × × × √ √ √ √ √ 24.5-2K-Portable-Monitor 2560×1440 HDMI/Type-C IPS 178° × × × × √ √ √ √ √ Have a look :
- Size
-
11 898 Ft + ÁFA | Bruttó:15 110 Ft
22 239 Ft + ÁFA | Bruttó:28 244 Ft
35 335 Ft + ÁFA | Bruttó:44 875 Ft
59 429 Ft + ÁFA | Bruttó:75 475 Ft
-
Brand WavesharePartNumber RPI-HMI-101D-ACCE (EU)Raktárkészlet VANCikkszám RPI-WS29991
-
PI5-HMI-080D
- 8inch PI5 all-in-one display (Pi5-4GB included) x1
- Mounting buckle (4PCS) x1
- Screws pack x1
- OPTIONS 27W power supply x1
PI4-HMI-080D
- 8inch PI4 all-in-one display (Pi4-2GB included) x1
- Mounting buckle (4PCS) x1
- Screws pack x1
- OPTIONS 27W power supply x1
RPI-HMI-080D-ACCE
- 8inch touch display x1
- Mounting buckle (4PCS) x1
- Screws pack x1
- TF card 64GB x1
- OPTIONS 27W power supply x1
- 5W thermal pad 16*16*1mm x1
- Pi5-HMI Accessories Pack:
- PI5 side panel x1
- Aluminum alloy heatsink x1
- DSI-Cable-12cm x1
- Silicon button x1
- Camera cable -15cm x1
- Pi4-HMI Accessories Pack:
- PI4 side panel x1
- Copper heatsink x1
- FFC 15PIN 1.0 pitch ~160mm x2
RPI-HMI-080D-ACCE-B
- 8inch touch display x1
- Mounting buckle (4PCS) x1
- Screws pack x1
- 5W thermal pad 16*16*1mm x1
- Pi5-HMI Accessories Pack:
- PI5 side panel x1
- Aluminum alloy heatsink x1
- DSI-Cable-12cm x1
- Silicon button x1
- Camera cable -15cm x1
- Pi4-HMI Accessories Pack:
- PI4 side panel x1
- Copper heatsink x1
- FFC 15PIN 1.0 pitch ~160mm x2
PI5-HMI-101D
- 10.1inch PI5 all-in-one display (Pi5-4GB included) x1
- Mounting buckle (4PCS) x1
- Screws pack x1
- OPTIONS 27W power supply x1
PI4-HMI-101D
- 10.1inch PI4 all-in-one display (Pi4-2GB included) x1
- Mounting buckle (4PCS) x1
- Screws pack x1
- OPTIONS 27W power supply x1

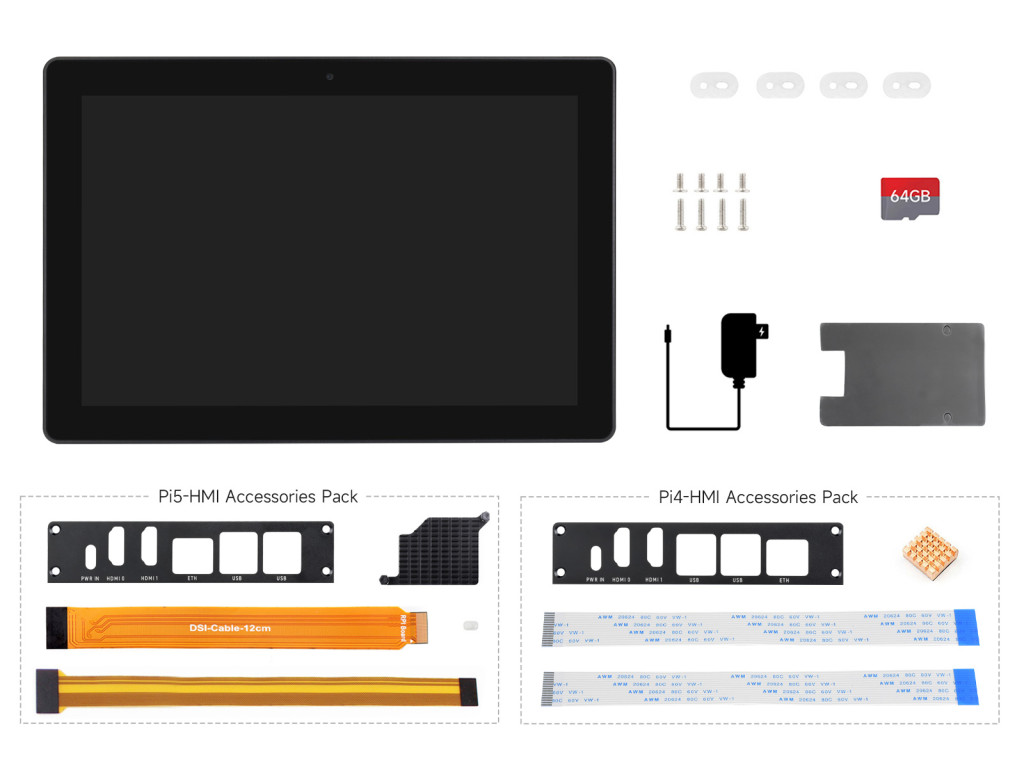

RPI-HMI-101D-ACCE
- 10.1inch touch display x1
- Mounting buckle (4PCS) x1
- Screws pack x1
- TF card 64GB x1
- OPTIONS 27W power supply x1
- 5W thermal pad 16*16*1mm x1
- Pi5-HMI Accessories Pack:
- PI5 side panel x1
- Aluminum alloy heatsink x1
- DSI-Cable-12cm x1
- Silicon button x1
- Camera cable -15cm x1
- Pi4-HMI Accessories Pack:
- PI4 side panel x1
- Copper heatsink x1
- FFC 15PIN 1.0 pitch ~160mm x2
RPI-HMI-101D-ACCE-B
- 10.1inch touch display x1
- Mounting buckle (4PCS) x1
- Screws pack x1
- 5W thermal pad 16*16*1mm x1
- Pi5-HMI Accessories Pack:
- PI5 side panel x1
- Aluminum alloy heatsink x1
- DSI-Cable-12cm x1
- Silicon button x1
- Camera cable -15cm x1
- Pi4-HMI Accessories Pack:
- PI4 side panel x1
- Copper heatsink x1
- FFC 15PIN 1.0 pitch ~160mm x2
