Power Over Ethernet HAT (H) Raspberry Pi 5 / CM 5, 5V 5A kimenethez, támogatja a 802.3af/at hálózati szabványt, izolált kapcsolóüzemű tápegység, Raspberry Pi 5 PoE HAT

ÚJ
Raktárkészlet: VAN
Power Over Ethernet HAT (H) Raspberry Pi 5 / CM 5, 5V 5A kimenethez, támogatja a 802.3af/at hálózati szabványt, izolált kapcsolóüzemű tápegység, Raspberry Pi 5 PoE HAT
  • Power Over Ethernet HAT (H) Raspberry Pi 5 / CM 5, 5V 5A kimenethez, támogatja a 802.3af/at hálózati szabványt, izolált kapcsolóüzemű tápegység, Raspberry Pi 5 PoE HAT
  • Power Over Ethernet HAT (H) Raspberry Pi 5 / CM 5, 5V 5A kimenethez, támogatja a 802.3af/at hálózati szabványt, izolált kapcsolóüzemű tápegység, Raspberry Pi 5 PoE HAT
  • Power Over Ethernet HAT (H) Raspberry Pi 5 / CM 5, 5V 5A kimenethez, támogatja a 802.3af/at hálózati szabványt, izolált kapcsolóüzemű tápegység, Raspberry Pi 5 PoE HAT
  • Power Over Ethernet HAT (H) Raspberry Pi 5 / CM 5, 5V 5A kimenethez, támogatja a 802.3af/at hálózati szabványt, izolált kapcsolóüzemű tápegység, Raspberry Pi 5 PoE HAT
11 329 Ft + 27% ÁFA | Bruttó:14 388 Ft
Státusz
:
Raktárról azonnal szállítjuk!
db Kosárba Kosárba
Értesítést kérek árcsökkenés esetén
Power Over Ethernet HAT (H) Raspberry Pi 5 / CM 5, 5V 5A kimenet, stabil teljesítmény, támogatja a 802.3af/hálózati szabványt, Izolált kapcsolóüzemű tápegység, Raspberry Pi 5 PoE HAT, opcionális a Raspberry Pi 5 hivatalos tokhoz
Részletek Adatok Csomag tartalma
  • Power Over Ethernet HAT (H) For Raspberry Pi 5 / CM 5, 5V 5A Output, stable performance, Supports 802.3af/at network standard, Isolated Switched-mode Power Supply, Raspberry Pi 5 PoE HAT, Optional for Raspberry Pi 5 Official Case
    PoE HAT (H) for Raspberry Pi 5

    Suitable For Raspberry Pi 5 / CM 5, Supports IEEE 802.3af/at Network Standard

    5V 5A Output, Compatible With Raspberry Pi 5 Official Case

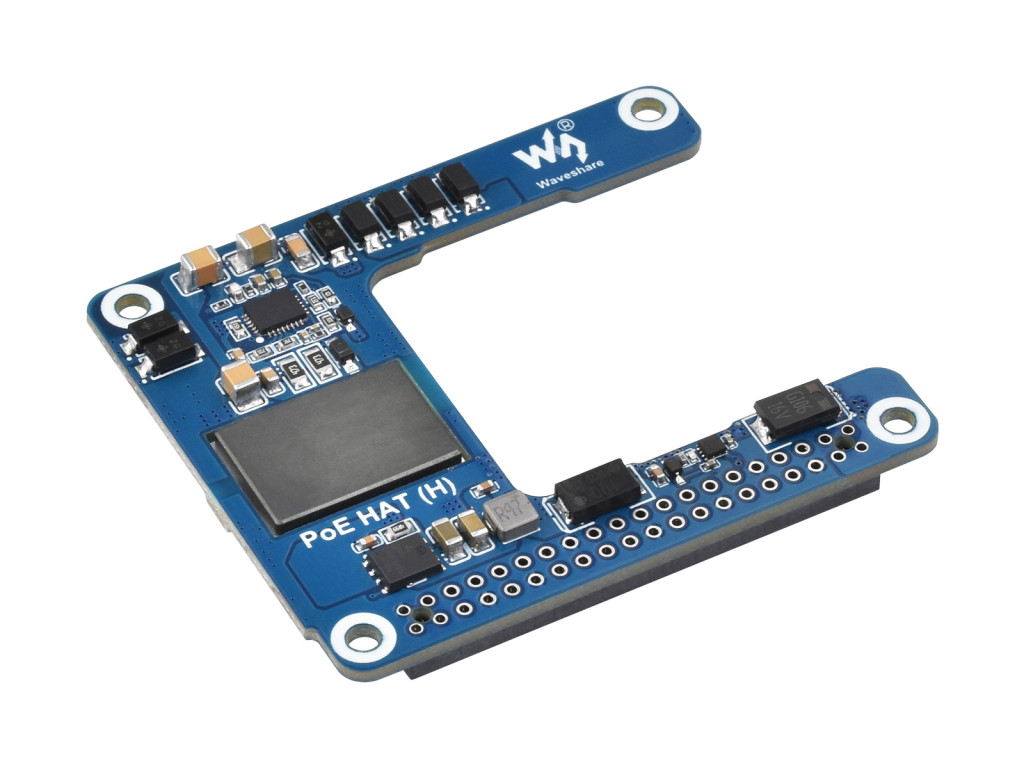

    PoE HAT (H), front view
    Version Options

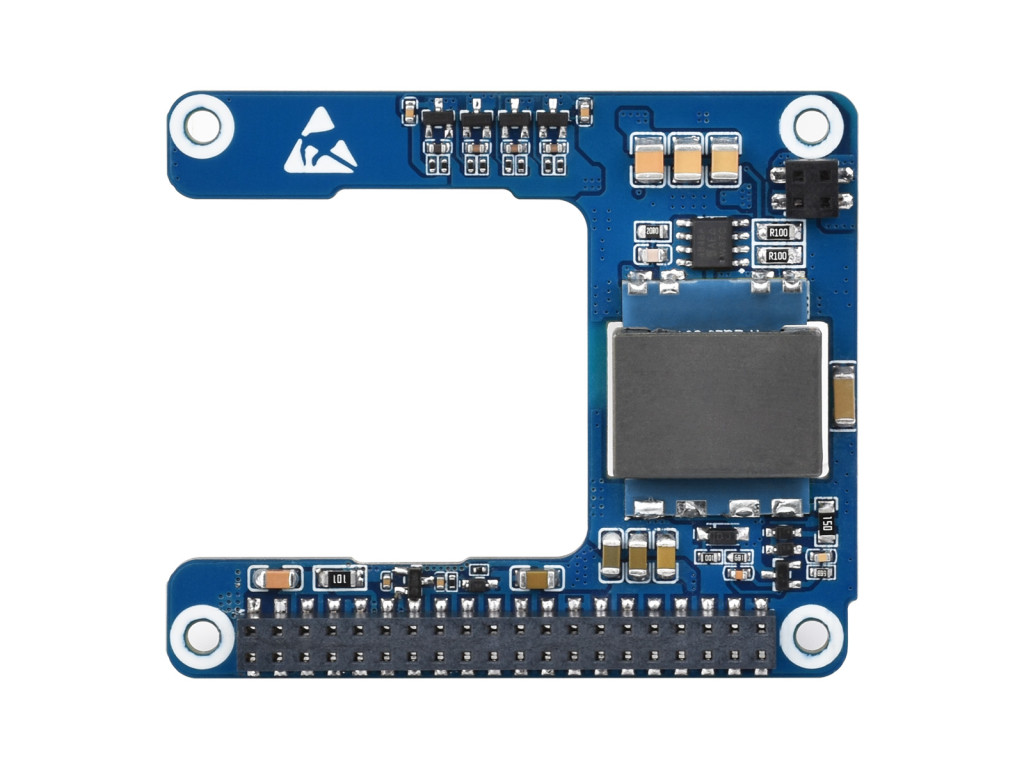

    PoE HAT (H), front view

    PoE HAT (H)the PoE HAT only

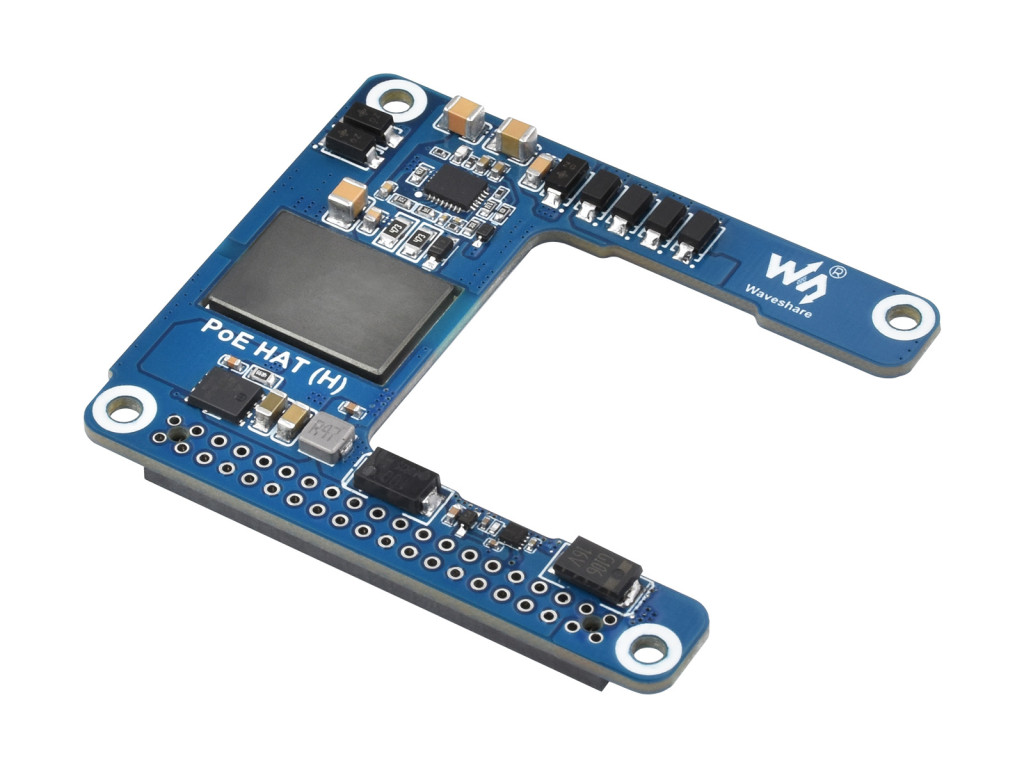

    PoE HAT (H) Acce A, front view

    PoE HAT (H) Acce APoE HAT (H) + Raspberry Pi 5 Official Case (with cooling fan)

    Features at a glance

    ThePoE HAT (H) is an IEEE 802.3af/at-compliant PoE (Power Over Ethernet) HAT for Raspberry Pi 5 / CM 5. By using with a PoE router or switch that supports the IEEE 802.3af/at network standard, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.

    • Standard Raspberry Pi 40PIN GPIO header
    • PoE capability，IEEE 802.3af/at-compliant
    • Onboard original IC solution for more stable PoE power performance
    • Adopts isolated switched-mode power supply (SMPS)
    • Compact and easy to assemble
    Specifications
    PoE HAT (H)
    PoE power input38V ~ 57V DC in
    Power outputGPIO header: 5V 5A (MAX)
    Dimensions56.5 × 65.0mm
    Network standardIEEE 802.3af/at PoE
    Raspberry Pi 5 Official Case (with cooling fan)
    Input voltage5V DC (supplied via four-pin fan header on Raspberry Pi 5)
    Fan speed controlPulse width modulation control with tachometer
    Maximum airflow2.79 CFM
    Maximum Fan speed8000 RPM ±15%
    Case materialABS (base, frame, lid) and PC (fan assembly)
    Suitable for Raspberry Pi 5 / CM 5

    Standard Raspberry Pi 40PIN GPIO header, easy to assemble into the official case

    PoE HAT (H), Raspberry Pi 40PIN GPIO header
    Power Over Ethernet

    providing both network connection and power supply for the Raspberry Pi 5 / CM 5 in one cable

    PoE HAT (H), Power Over Ethernet
    * for reference only, the Raspberry Pi 5and120W switch are NOT included.
    Installation with Raspberry Pi 5 Official Case
    PoE HAT (H), installation

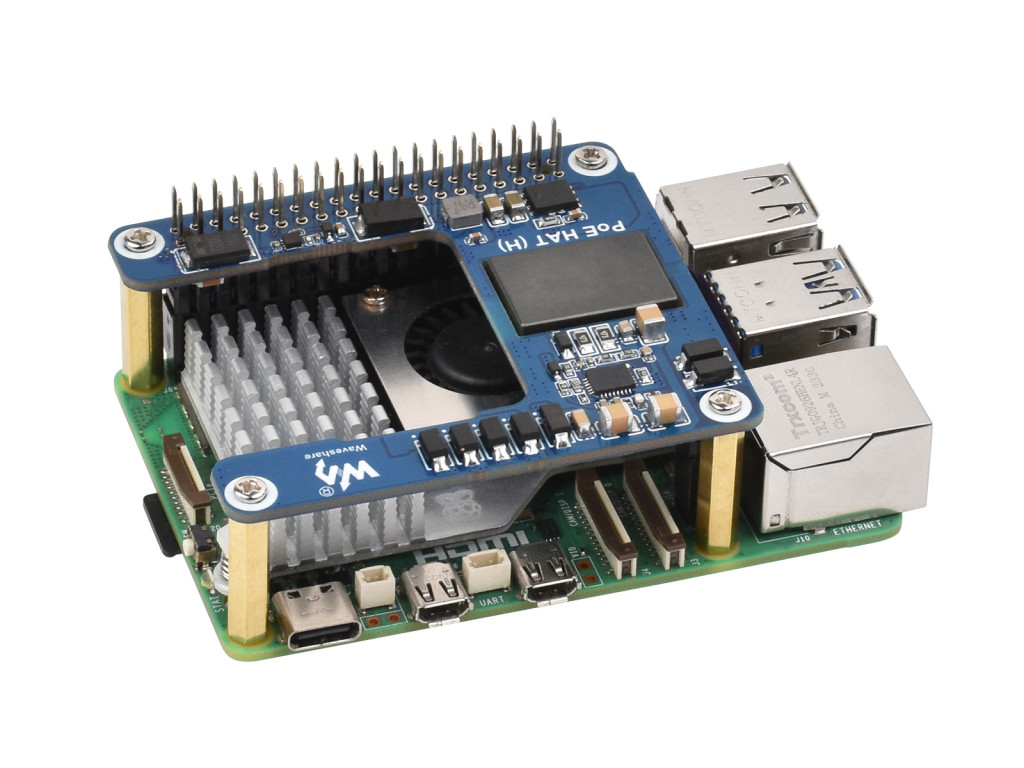

    Compatible With Raspberry Pi 5 Official Active Cooler
    PoE HAT (H), Raspberry Pi 5 official case
    * for reference only, the Raspberry Pi 5andactive cooler are NOT included.
    Application Example

    With this product, you can use an Ethernet cable with PoE function to power the Raspberry Pi 5 / CM 5 directly

    PoE HAT (H), application example
    PoE HAT (H), application example
    * for reference only, please refer to the Package Content for detailed part list
    Outline dimensions
    PoE HAT (H), outline dimensions
    Resources & Services
    WIKI:www.waveshare.com/wiki/PoE_HAT_(H)

    * Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

    Selection guide
    ProductSupported PiPoE standardPoE power outputFeature
    Raspberry Pi PoE+ HATPi 3B+/4B802.3af/at5V 4ARaspberry Pi official (second generation)
    PoE HAT (B)802.3af5V 2.5Awith OLED display, cost effective
    PoE HAT (C)802.3af/at5V 4A / 12V 2Ahigh power, cost effective
    PoE HAT (D)802.3af5V 2.5Atailored for Raspberry Pi official case, cost effective
    PoE HAT (E)802.3af5V 2.5Amini body, tailored for Raspberry Pi official case, cost effective
    PoE HAT (F)Pi 5 / CM 5802.3af/at5V 4.5A / 12V 2Awith metal heatsink, high power, cost effective
    PoE HAT (G)802.3af/at5V 5A (MAX)compact and easy to assemble, high power, tailored for Raspberry Pi official case, cost effective
    PoE HAT (H)802.3af/at5V 5A (MAX)compact and easy to assemble, high power, tailored for Raspberry Pi official case, cost effective, isolated SMPS
  • Brand
    Waveshare
    Raktárkészlet
    VAN
    Cikkszám
    RPI-WS30901
    Státusz
    ÚJ

  • PoE HAT (H)

    1. PoE HAT (H) x1
    2. 2*2 header x1
    3. 2*20 header x1
    4. Standoffs pack x1
    1PoE HAT (H)
    2
    3
    4

    PoE HAT (H) Acce A

    1. PoE HAT (H) x1
    2. Raspberry Pi 5 Official Casex1
    3. Standoffs pack x1
    1PoE HAT (H)
    2Raspberry Pi 5 Official Case
    3
:
;
