PCIe–M.2 E Key adapter PoE funkcióval a Raspberry Pi 5-hez, kompatibilis az NGFF (M.2 E Key) vezeték nélküli hálózati kártyával és a Raspberry Pi 5 PCIe HAT-tal

Name: PCIe–M.2 E Key adapter PoE funkcióval a Raspberry Pi 5-hez, kompatibilis az NGFF (M.2 E Key) vezeték nélküli hálózati kártyával és a Raspberry Pi 5 PCIe HAT-tal
Brand: Waveshare
SKU: RPI-WS30396
Price: 22778 HUF
Availability: InStock

ÚJ

PCIe–M.2 E Key adapter PoE funkcióval a Raspberry Pi 5-hez, kompatibilis az NGFF (M.2 E Key) vezeték nélküli hálózati kártyával és a Raspberry Pi 5 PCIe HAT-tal

17 935 Ft + ÁFA | Bruttó:22 778 Ft

Kosárba

Árváltozás értesítő

PCIe To M.2 E KEY Adapter With PoE Function for Raspberry Pi 5, Compatible With NGFF (M.2 E Key) Wireless NIC, Raspberry Pi 5 PCIe HAT

Részletek Adatok Csomag tartalma

PCIe To M.2 E KEY Adapter With PoE Function for Raspberry Pi 5, Compatible With NGFF (M.2 E Key) Wireless NIC, Raspberry Pi 5 PCIe HAT

PCIe To M.2 E KEY With PoE HAT

Supports PoE power supply

Designed for Raspberry Pi 5, Compatible With NGFF (M.2 E Key) Wireless NIC

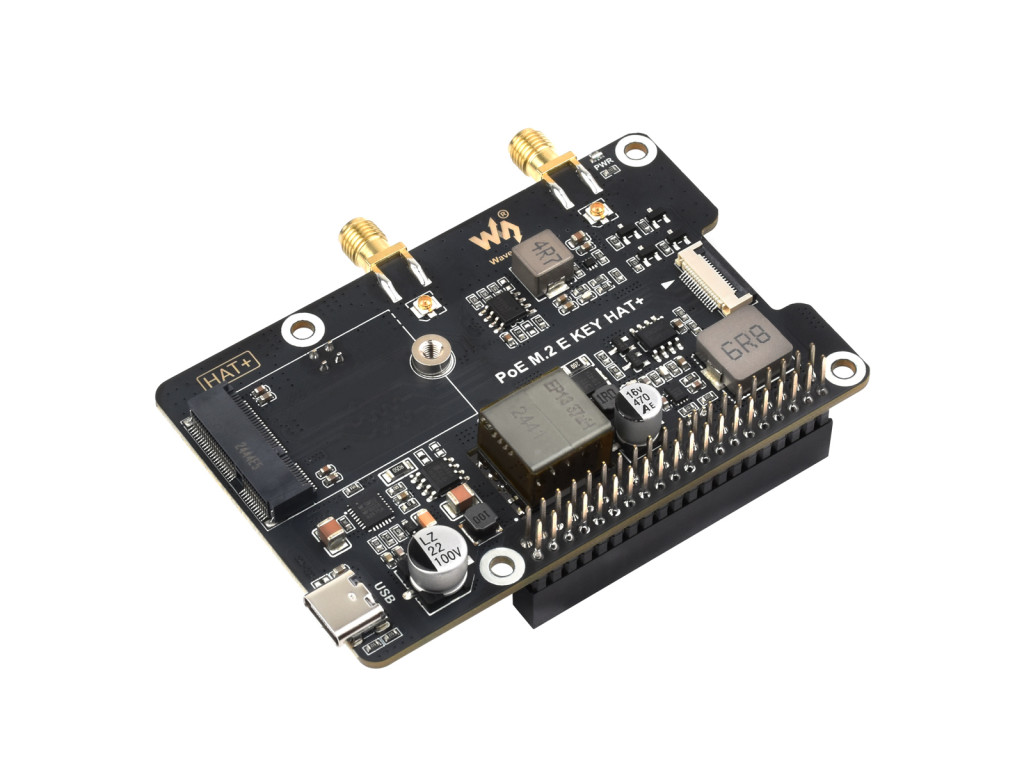

PCIe To M.2 E KEY Adapter With PoE for Raspberry Pi 5, front view and features

Kit Selection

PoE M.2 E KEY HAT+ Acce A

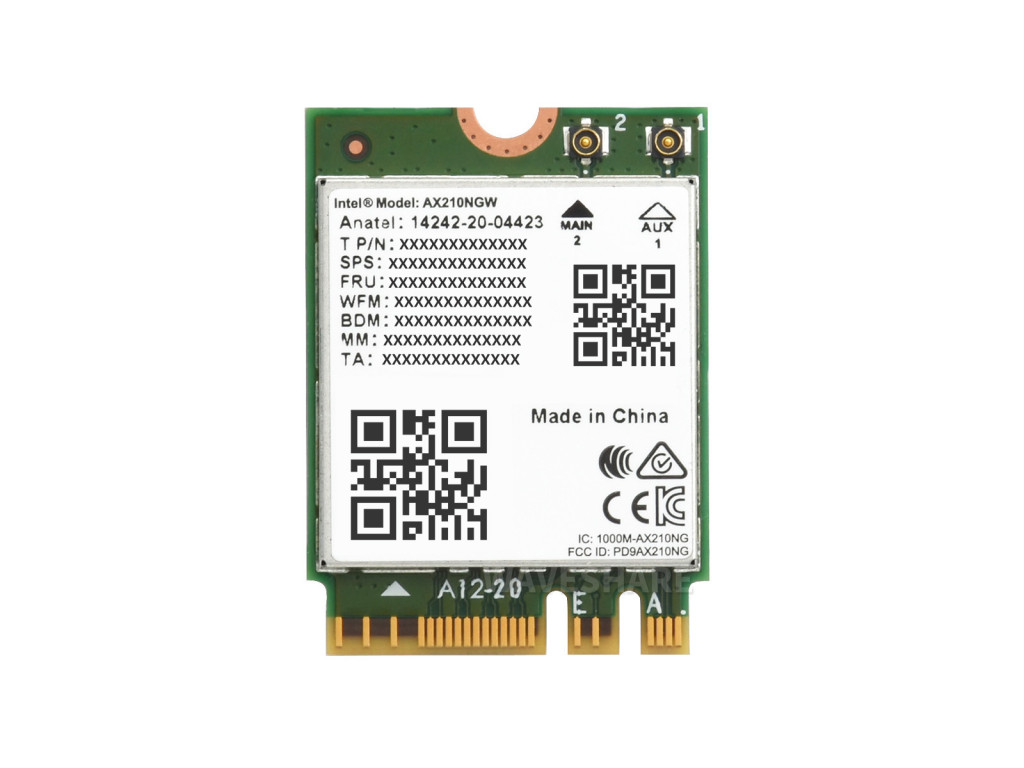

This kit includes PoE M.2 E KEY HAT+ kit, Wireless-AX210 module and WiFi antenna (2pcs).

Specifications

PoE power input	37V ~ 57V DC in
Power output	GPIO header: 5V 4.5A (MAX) 2P header: 12V 2A (MAX)
Dimensions	56.0 × 85.0 (mm)
Network standard	IEEE 802.3af/at PoE
M.2 Slot	M.2 E Key

Compatible with wireless NIC

suitable for A/E Key and E Key

PCIe To M.2 E KEY Adapter With PoE for Raspberry Pi 5, wireless NIC support

Various wireless NIC support

Supports the following modules, with more compatible modules coming soon

Model	RTL8822CE		AX200		AX210			BE200
Wi-Fi Version	Wi-Fi 5		Wi-Fi 6		Wi-Fi 6E			Wi-Fi 7
Wi-Fi Band	2.4GHz	5GHz	2.4GHz	5GHz	2.4GHz	5GHz	6GHz	2.4GHz	5GHz	6GHz
Wi-Fi Rate	300Mbps	867Mbps	574Mbps	2400Mbps	574Mbps	2400Mbps	2400Mbps	574Mbps	2400Mbps	5800Mbps
Interface	NGFF (M.2 A/E Key)							NGFF (M.2 E Key)
Bluetooth Version	5.0		5.2		5.3			5.4
Technical Support	MU-MIMO
Antenna Connector	IPEX 4 Connector
System Support	Linux, Windows 10 / 11
Dimensions	22.0 × 30.0 × 2.4mm

Onboard SMA female antenna connectorSupports USB Bluetooth connection

Supports inputting Bluetooth signal into the Raspberry Pi via USB adapter

(* this function is only available after connecting the Wireless NIC module)

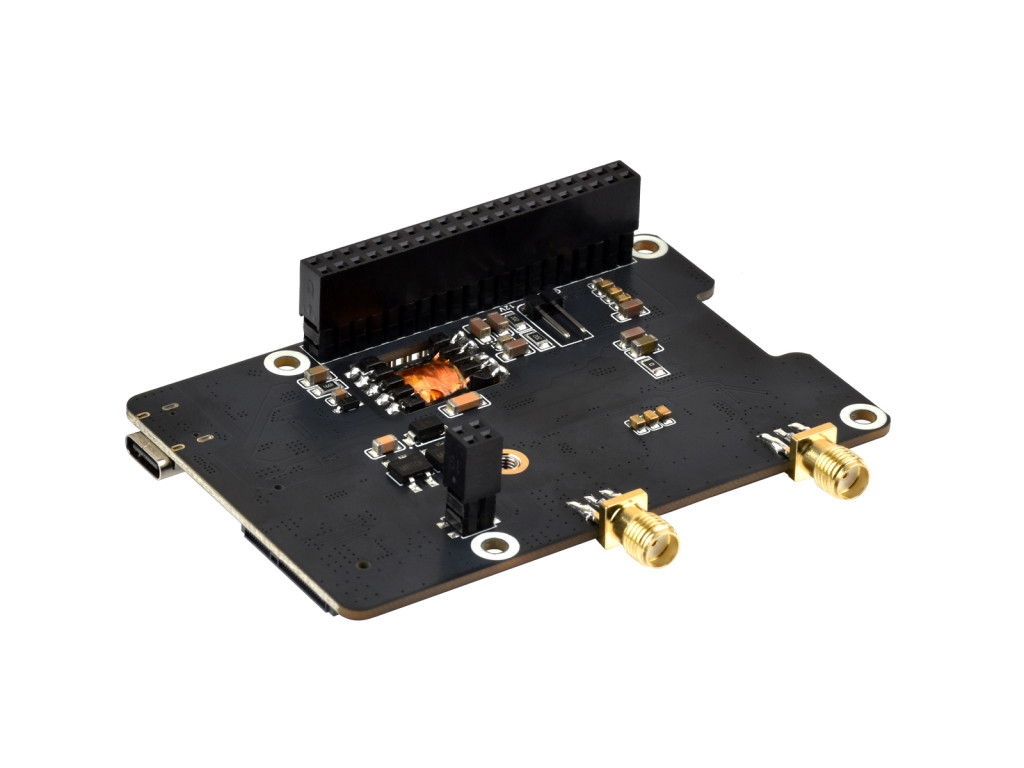

PCIe To M.2 E KEY Adapter With PoE for Raspberry Pi 5, onboard SMA female antenna connector

* for reference only, please refer to the Package Content for detailed part list

Connecting to PI5 via 16PIN Cable

Based on 16PIN PCIe Interface of Raspberry Pi 5. Standard Raspberry Pi 40PIN GPIO stackable header, allows connecting other HATs

* for reference only, please refer to the Package Content for detailed part list

Power Over Ethernet

providing both network connection and power supply for your Raspberry Pi in one cable

PCIe To M.2 E KEY Adapter With PoE HAT, with PoE function

* for reference only, the Raspberry Pi 5 and Network cable are NOT included.

Onboard 5V & 12V header outputs

5V header provides up to 4.5A output (MAX 25W for 12V+5V total output power)be able to power extra devices while providing stable power to Raspberry Pi

Important Notes

Please don't strongly press the transformer on the board to avoid damaging the product when assembling the Raspberry Pi

* for reference only, please refer to the Package Content for detailed part list

how to install

Attach the thermal tapes first, then install the metal heatsink and fix the HAT

* for reference only, please refer to the Package Content for detailed part list

Outline dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/PoE_M.2_E_KEY_HAT+

PCIe adapter board selection

Product Model	Extended Interface	PCIe Version	mounting solution	Power monitoring	features
PCIe TO M.2 Board (D)	M.2_M_KEY	PCIe ×1 Gen2/3	on top		NVME, 2280
PCIe TO 2-CH M.2 HAT+ (B)	M.2_M_KEY × 2	PCIe ×1 Gen2	HAT+	√	2-ch NVME, 2280
PCIe TO 2-CH M.2 HAT+	M.2_M_KEY × 2	PCIe ×1 Gen2	HAT+	√	2-ch NVME, 2242
PCIE TO 2-CH 2.5G ETH HAT+	2.5G ETH × 2	PCIe ×1 Gen2	HAT+	√	2.5G ETH × 2
PCIe TO M.2 HAT+	M.2_M_KEY	PCIe ×1 Gen2/3	HAT+	√	NVME, 2242
PCIe TO M.2 MINI	M.2_M_KEY	PCIe ×1 Gen2/3	on top		NVME, 2242, compact size
PCIe TO M.2 Board (C)	M.2_M_KEY	PCIe ×1 Gen2/3	on side		NVME, 2280, side-mounting
PCIe TO Gigabit ETH Board (C)	Gigabit ETH	PCIe ×1 Gen2	on side		Gigabit ETH port, side-mounting
PCIe TO 2.5G ETH Board (C)	2.5G ETH	PCIe ×1 Gen2	on side		2.5G ETH port, side-mounting
PCIe TO M.2 USB HAT+	M.2_M_KEY, USB3.2 × 4	PCIe ×1 Gen2	on top	√	NVME, 2280, expanded USB3.2 ports
PCIe TO 4G/5G M.2 USB3.2 HAT+	M.2_B_KEY, USB3.2 × 3	PCIe ×1 Gen2	HAT+	√	supports 4G/5G modules, expanded USB3.2 ports
PCIe TO USB 3.2 Gen1 Board (C)	USB3.2 × 4	PCIe ×1 Gen2	on side		expanded USB3.2 ports, side-mounting
PCIe TO USB 3.2 Gen1 HAT+	USB3.2 × 4	PCIe ×1 Gen2	HAT+	√	expanded USB3.2 ports
PCIe TO Gigabit ETH USB3.2 HAT+	USB3.2 × 3, Gigabit ETH	PCIe ×1 Gen2	HAT+	√	expanded USB3.2 ports and Gigabit ETH port
PCIe TO MiniPCIe GbE USB3.2 HAT+	USB3.2 × 2, MiniPCIe, Gigabit ETH	PCIe ×1 Gen2	HAT+	√	expanded MiniPCIe 4G module slot, USB3.2 ports and Gigabit ETH port
RM520N-GL 5G HAT+	M.2_B_KEY	PCIe ×1 Gen2	HAT+	√	access to 5G networking via PCIe interface, multiple 5G modules compatible
PoE M.2 HAT+	M.2_M_KEY	PCIe ×1 Gen2/3	HAT+		with PoE function, NVME, 2242
PoE M.2 HAT+ (B)	M.2_M_KEY	PCIe ×1 Gen2/3	HAT+		with PoE function, NVME, 2280
PoE M.2 HAT+ (C)	M.2_M_KEY	PCIe ×1 Gen2/3	HAT+		with PoE function, NVME, 2242
PoE M.2 E KEY HAT+	M.2_E_KEY	PCIe ×1 Gen2/3	HAT+		with PoE function, Wi-Fi, Bluetooth, 2230
PCIe TO ETH M.2 HAT+	M.2_M_KEY, Gigabit ETH	PCIe ×1 Gen2	HAT+	√	with Gigabit ETH port, NVME, 2280
PCIE TO M.2 E KEY HAT+	M.2_E_KEY	PCIe ×1 Gen2/3	HAT+		Wi-Fi, Bluetooth, M.2_E_KEY, 2230
PCIE TO M.2 E KEY HAT+ (D)	M.2_E_KEY	PCIe ×1 Gen2/3	on top		Wi-Fi, Bluetooth, M.2_E_KEY, 2230
PCIe TO MiniPCIe HAT+	MiniPCIe	PCIe ×1 Gen2	HAT+		Wi-Fi, Bluetooth, MiniPCIe
PCIe TO PCIe x1 Board (C)	PCIe ×1	PCIe ×1 Gen2/3	on side		Compatible with PCIe x1, x4, x8, and x16 devices
PCIe TO 2-CH PCIe HAT	PCIe 16PIN x2	PCIe ×1 Gen2	HAT		Expands 2-Ch PCIe FFC connectors
PCIe TO 4-CH PCIe HAT	PCIe 16PIN x4	PCIe ×1 Gen2	HAT		Expands 4-Ch PCIe FFC connectors
PCIE TO 4-CH NVME Board (B)	M.2_M_KEY × 4	PCIe ×1 Gen2	on bottom	√	4-ch NVME, 2280, onboard DC power jack
PCIe TO 2-CH SATA HAT+	SATA × 2	PCIe ×1 Gen2	on top		2-ch SATA interfaces
PCIE TO 4-CH 2.5G ETH Board (B)	2.5G ETH × 4	PCIe ×1 Gen2	on bottom	√	4-ch ETH ports
PCIE TO 4-CH Gigabit ETH Board (B)	Gigabit ETH × 4	PCIe ×1 Gen2	on bottom	√	4-ch ETH ports

Brand
Waveshare

PartNumber
PoE M.2 E KEY HAT+ Acce A

Raktárkészlet
VAN

Cikkszám
RPI-WS30396

Státusz
ÚJ

PoE M.2 E KEY HAT+

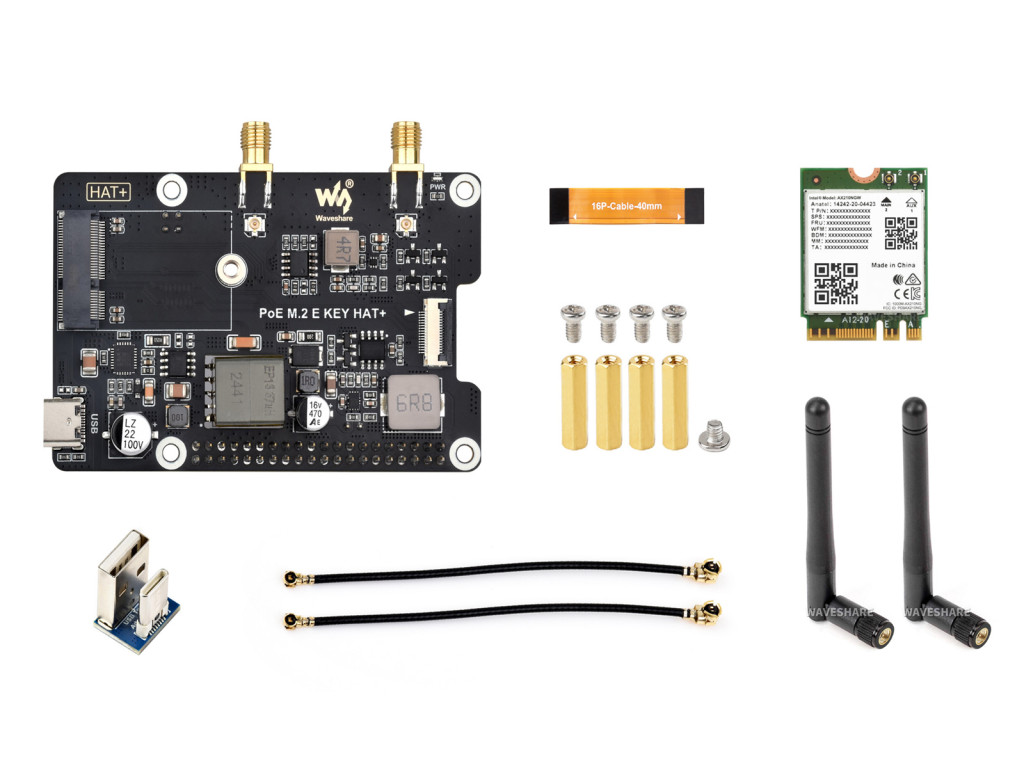

1. PoE M.2 E KEY HAT+ x1
