Ipari Gigabit PoE Splitter, 5V 5A Type-C / DC táp kimeneti port, beépített MPS vezérlő chip, biztonságosabb és stabilabb

Raktárkészlet: VAN
Ipari Gigabit PoE Splitter, 5V 5A Type-C / DC táp kimeneti port, beépített MPS vezérlő chip, biztonságosabb és stabilabb
  • Ipari Gigabit PoE Splitter, 5V 5A Type-C / DC táp kimeneti port, beépített MPS vezérlő chip, biztonságosabb és stabilabb
  • Ipari Gigabit PoE Splitter, 5V 5A Type-C / DC táp kimeneti port, beépített MPS vezérlő chip, biztonságosabb és stabilabb
  • Ipari Gigabit PoE Splitter, 5V 5A Type-C / DC táp kimeneti port, beépített MPS vezérlő chip, biztonságosabb és stabilabb
10 298 Ft + ÁFA | Bruttó:13 079 Ft
db Kosárba Kosárba
Olcsóbban szeretném
Ipari Gigabit PoE Splitter, 5V 5A Type-C / DC táp kimeneti port, beépített MPS vezérlő chip, biztonságosabb és stabilabb
Részletek Adatok Csomag tartalma
  • Industrial Gigabit PoE Splitter, options for 5V 5A Type-C / DC Power Output Port, Onboard MPS Control Chip, Safer And More Stable
    Industrial Gigabit PoE Splitter

    Options for 5V 5A Type-C or DC power output port

    Supports IEEE 802.3af/at-compliant Gigabit Ethernet

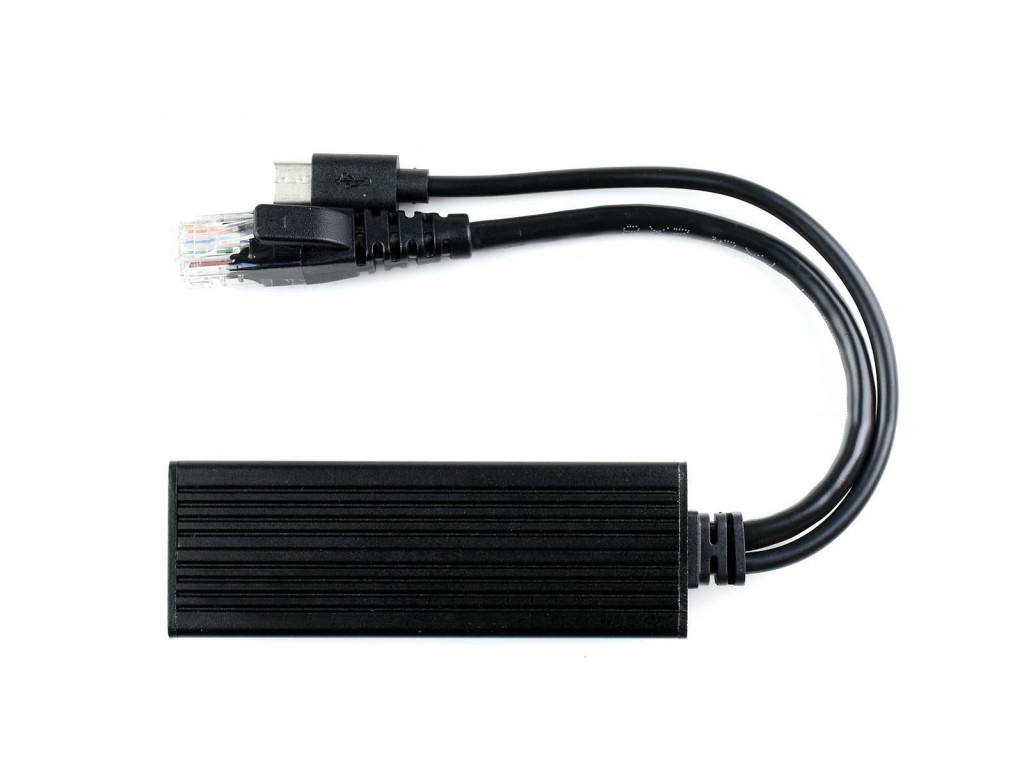

    Industrial Gigabit PoE splitter with Type-C port, front viewIndustrial Gigabit PoE splitter, features
    Version options
    POE-SPLITTER-25W-TYPE-C

    POE-SPLITTER-25W-TYPE-CType-C Port Version

    POE-SPLITTER-25W-5.5-2.1

    POE-SPLITTER-25W-5.5-2.1DC Port Version

    Features at a glance
    • Adopts MPS control chip solution, high-efficiency, high-safety, stable-performance
    • 10/100/1000Mbps auto-negotiation Ethernet port
    • Supports 802.3af/at-compliant PoE standard
    • Adopts isolated SMPS (Switching Mode Power Supply), effectively protecting the powered device
    • 5V DC output, suitable for powering and networking Raspberry Pi and other small-scale network devices
    • Black dull-polish metal case, sturdy and rugged, higher protection level, better heat dissipation
    Specifications
    Power supplysupports 1/2(+); 3/6(-); 4/5(+); 7/8(-) powering
    PoE input voltage37V ~ 57V
    Power output5V 5A (MAX)
    CableCat-5 UTP
    StandardIEEE 802.3 af/at PoE Ethernet
    Data rate10/100/1000Mbps
    LED indicatorPoE power input indicator
    Dimensions102.5 × 29.6 × 24.8mm (L × W × H)
    Operating temperature-40℃ ~ 85℃
    MPS Control Chip Solution

    High-efficiency, Safer And More Stable

    Industrial Gigabit PoE splitter, adopts MPS control chip solution
    Switching Mode Power Supply (SMPS)

    isolated circuit protection, effectively protecting the powered device

    Industrial Gigabit PoE splitter, adopts SMPS isolation
    Industrial grade protection case

    aluminum alloy case, sturdy and rugged, higher protection level, better heat dissipation

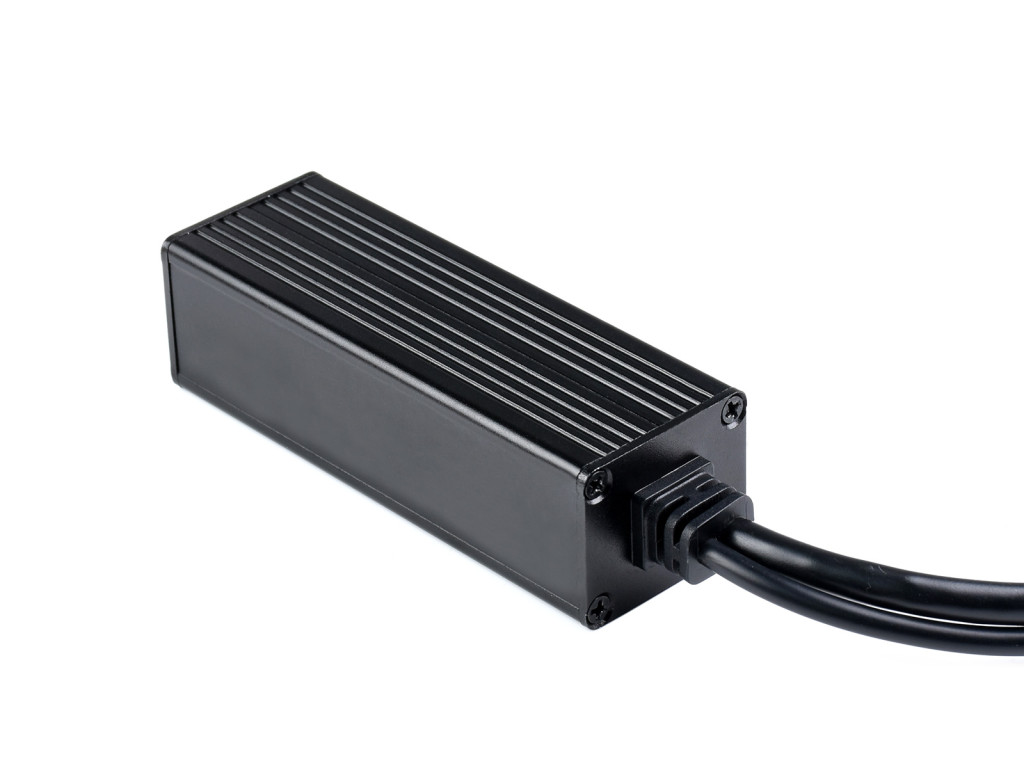

    Industrial Gigabit PoE splitter with industrial grade protection case
    Application examples

    Easy to access PoE Switch for powering the Raspberry Pi Or Other 5V-Powered Network Devices

    Industrial Gigabit PoE splitter, application examples
    Usage examples
    Industrial Gigabit PoE splitter, connecting with Raspberry Pi 4B

    * for reference only, the Raspberry Pi and switch are NOT included, please check the Package Content for the detailed part list.

    Outline dimensions
    Industrial Gigabit PoE splitter, outline dimensions
  • Brand
    Waveshare
    PartNumber
    POE-SPLITTER-25W-TYPE-C
    Raktárkészlet
    VAN
    Cikkszám
    RPI-WS27736

  • POE-SPLITTER-25W-TYPE-C

    POE-SPLITTER-25W-TYPE-C x1

    POE-SPLITTER-25W-TYPE-C

    POE-SPLITTER-25W-5.5-2.1

    POE-SPLITTER-25W-5.5-2.1 x1

    POE-SPLITTER-25W-5.5-2.1
:
;
