Termék részletek
Waveshare RP2350 CAN fejlesztőkártya, Raspberry Pi RP2350A alapú, kétmagos és két architektúrájú mikrokontroller, beépített XL2515 CAN vezérlő
Waveshare RP2350 CAN fejlesztőkártya, Raspberry Pi RP2350A kétmagos és két architektúrájú mikrokontrolleren, akár 150 MHz működési frekvenciával, beépített XL2515 CAN vezérlővel
-

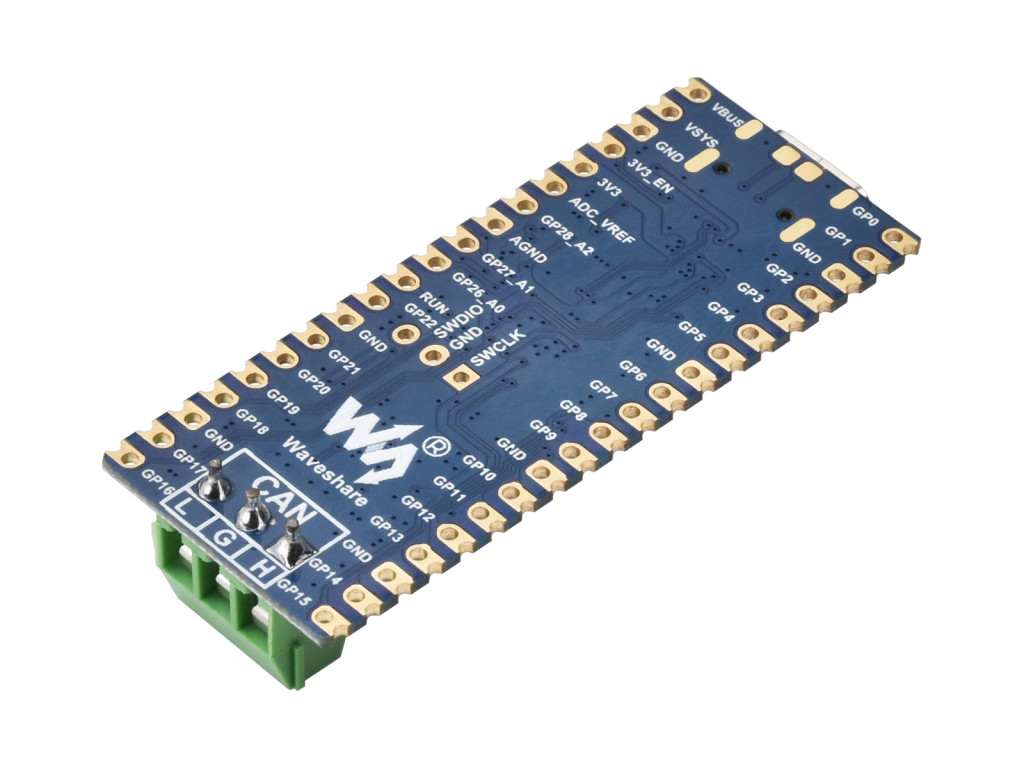

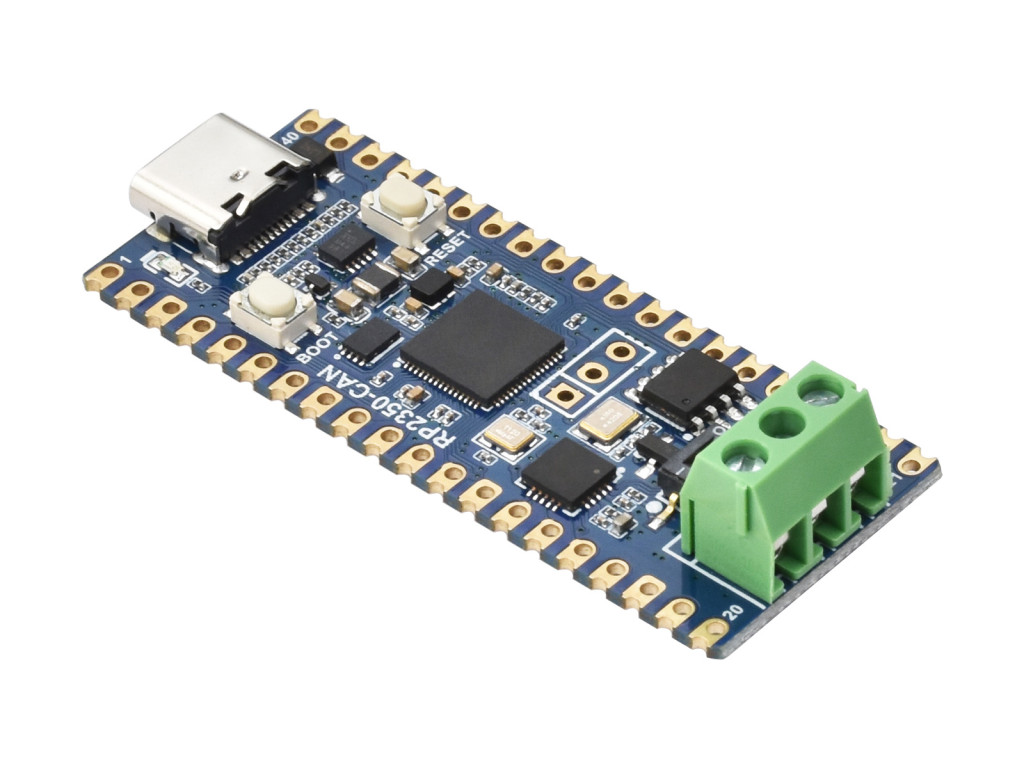

Waveshare RP2350 CAN Development Board, Based On Raspberry Pi RP2350A Dual-core & Dual-architecture Microcontroller, Up To 150 MHz Operating Frequency, Onboard XL2515 CAN ControllerRP2350-CAN Development Board
a Pico-like MCU board based on Raspberry Pi RP2350A
Compatible with most Raspberry Pi Pico modules
Board specifications- RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
- Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz
- 520KB SRAM and 4MB onboard Flash memory
- Onboard XL2515 CAN controller, fully supports CAN V2.0B specification with communication rate up to 1 Mbps
- Type-C connector, keeps it up to date, easier to use
- Castellated module allows soldering directly to carrier boards
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
- Accurate clock and timer on-chip
- Temperature sensor
- Accelerated floating-point libraries on-chip
- 12 × Programmable I/O (PIO) state machines for custom peripheral support
C/C++, MicroPython supportComprehensive SDK, dev resources, tutorials to help you easily get started
dual-core, dual-architectureAdopts dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz
onboard XL2515 CAN controllerfully supports CAN V2.0B specification and is capable of transmitting and receiving standard, extended, and remote frames. The communication rate is up to 1 Mbps with SIT65HVD230 transceiver
26 × multi-function GPIO pinsconfigurable pin function, allows flexible development and integration

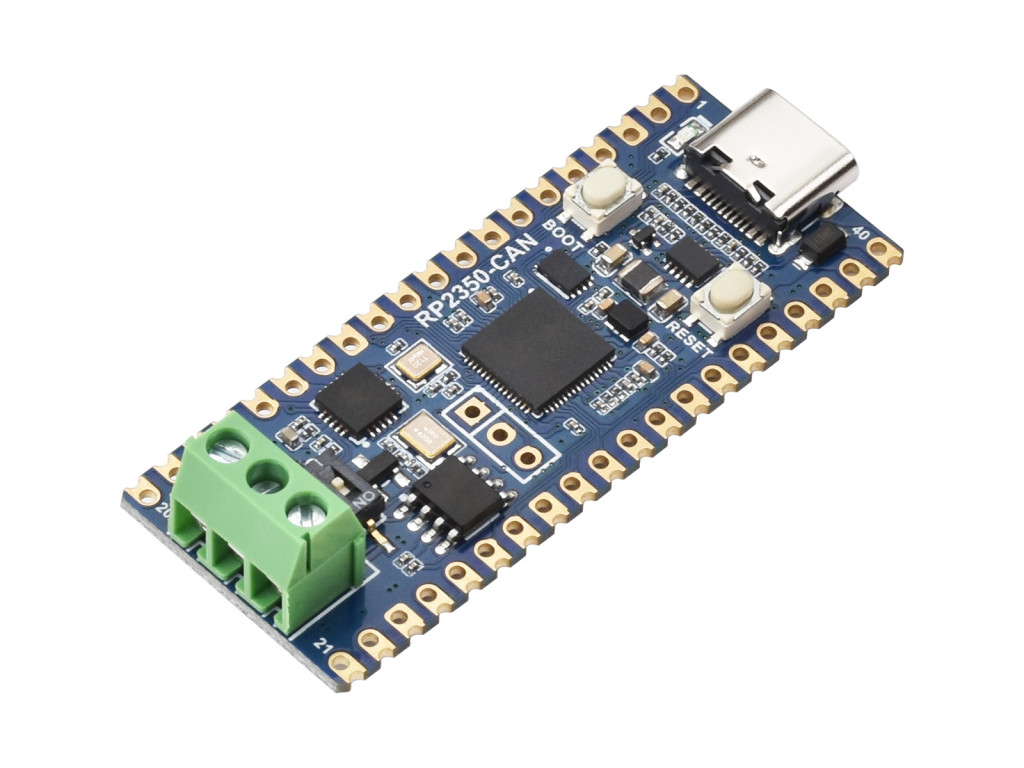

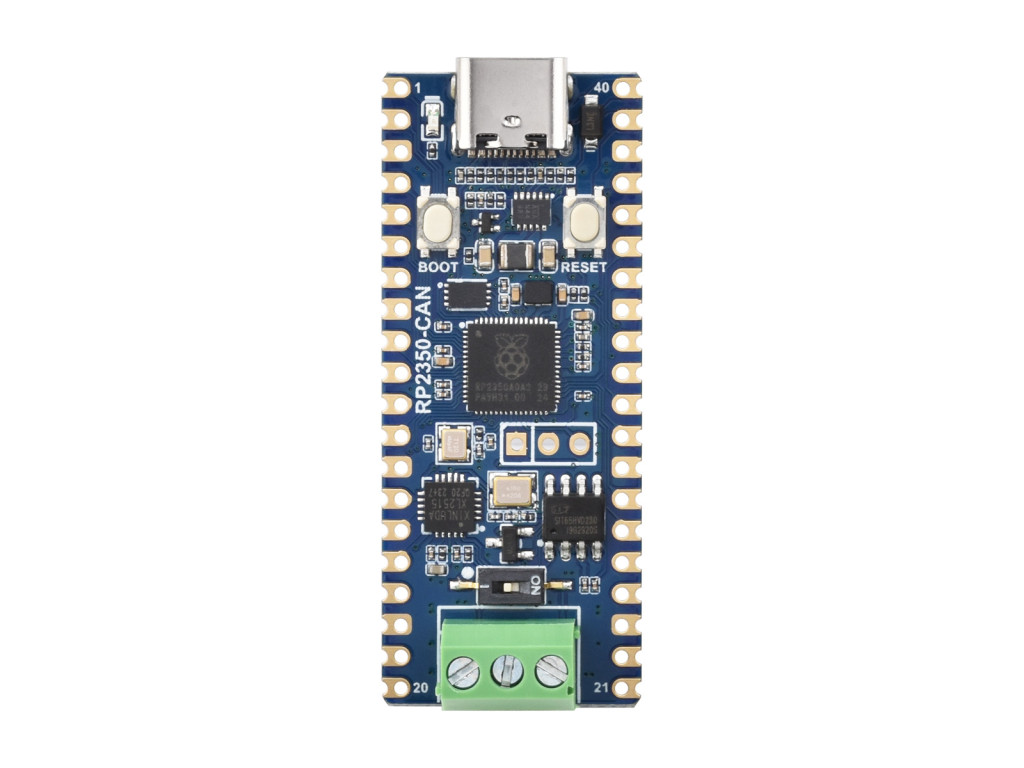

What's On Board
- RP2350A Dual-core and dual-architecture design, up to 150 MHz operating frequency
- P25Q32SH-UXH-IR 4MB NOR-Flash
- BOOT button
- RESET button
- MP28164high efficiency DC-DC buck-boost chip
- User LED (not power indicator)
- USB Type-C connector for program downloading, supports USB1.1 hosts and slave devices
- Debug pins
- SIT65HVD230DR CAN transceiver
- XL2515QF20 CAN controller
- Terminal resistor selection enable/disable 120R matching resistor
- CAN screw terminal

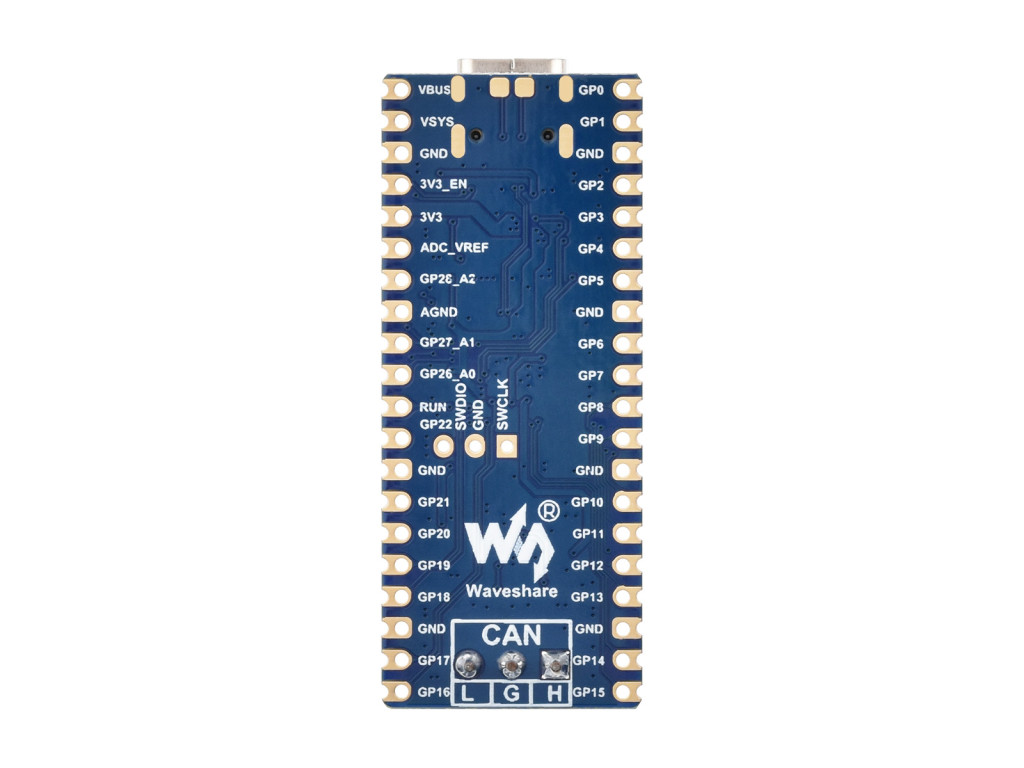

- GPIO header Compatible with Raspberry Pi Pico pin header
outline dimensions
Pico Product SelectionPRODUCT Voltage regulator chip USB Flash Lithium battery header Onboard LCD RP2350 chip
Raspberry Pi Pico 2DC-DC, 800mA Micro USB 4MB - -
Raspberry Pi Pico 2 WDC-DC, 800mA Micro USB 4MB - with WIFI and Bluetooth
Raspberry Pi Pico 2 WHDC-DC, 800mA Micro USB 4MB - with WIFI and Bluetooth
CAN ver.DC-DC, 2000mA Type-C 4MB - CAN interface
Type-A ver.LDO, 500mA Type-A 4MB - -
Type-C ver.LDO, 800mA Type-C 4MB - -
Tiny ver.LDO, 800mA Separate Type-C port adapter 4MB - Separate adapter board design, adapting USB Type-C port via FPC
ETH Port ver.LDO, 800mA Type-C 4MB - with Ethernet port
USB ver.LDO, 500mA Type-A, Type-C 2MB - with PIO-USB Type-A and USB Type-C port
1.28inch Round LCD ver.LDO, 300mA Type-C 4MB Support(allows recharging the battery and powering the board at the same time) 1.28inch IPS LCD
1.28inch Round Touch LCD ver.LDO, 300mA Type-C 16MB Support(allows recharging the battery and powering the board at the same time) 1.28inch IPS touch LCD
1.43inch Round Touch AMOLED ver.DC-DC, 2000mA Type-C 16MB Support(allows recharging the battery and powering the board at the same time) 1.43inch AMOLED Touch LCD
1.47inch LCD ver.LDO, 300mA Type-C 16MB - 1.47inch IPS LCD
1.47inch LCD USB ver.LDO, 300mA Type-A 16MB - 1.47inch IPS LCD
1.69inch Touch LCD ver.LDO, 500mA Type-C 16MB Support(allows recharging the battery and powering the board at the same time) 1.69inch Touch LCD
2inch Touch LCD ver.DC-DC, 2000mA Type-C 16MB Support(allows recharging the battery and powering the board at the same time) 2inch Touch LCD
2.8inch Touch LCD ver.LDO, 800mA Type-C 16MB Support(allows recharging the battery and powering the board at the same time) 2.8inch IPS Touch LCD
0.96 LCD ver.DC-DC, 2000mA Type-C 4MB Support(allows recharging the battery and powering the board at the same time) 0.96inch IPS LCD
Plus ver.DC-DC, 2000mA Type-C 4MB/16MB Support(allows recharging the battery and powering the board at the same time) - RP2040 chip
Raspberry Pi Pico WDC-DC, 3000mA Micro USB 2MB - with WIFI
Raspberry Pi Pico WHDC-DC, 3000mA Micro USB 2MB - with WIFI
Raspberry Pi PicoDC-DC, 800mA Micro USB 2MB - -
Raspberry Pi Pico HDC-DC, 800mA Micro USB 2MB - -
Type-A ver.LDO, 500mA Type-A 4MB - -
Mini ver.LDO, 800mA Type-C 2MB - -
Tiny ver.LDO, 500mA Separate Type-C port adapter 2MB - Separate adapter board design, adapting USB Type-C port via FPC
RGB Matrix ver.LDO, 500mA Type-C 2MB - Onboard 5×5 RGB LED matrix
BLE ver.LDO, 300mA Separate Type-C port adapter 2MB - Supports Bluetooth 5.1, separate adapter board design, adapting USB Type-C port via FPC
ETH Port ver.LDO, 500mA Type-C 4MB - with Ethernet port
0.99inch Round LCD with case ver.LDO, 500mA Type-C 2MB - 0.99inch IPS LCD, CNC metal case
1.28inch Round LCD ver.LDO, 300mA Type-C 2MB Support(allows recharging the battery and powering the board at the same time) 1.28inch IPS LCD
1.28inch Round LCD with case ver.LDO, 300mA Type-C 2MB Support(allows recharging the battery and powering the board at the same time) 1.28inch IPS LCD, CNC metal case
1.28inch Round Touch LCD ver.LDO, 500mA Type-C 16MB Support(allows recharging the battery and powering the board at the same time) 1.28inch Touch LCD
1.28inch Round Touch LCD with case ver.LDO, 500mA Type-C 16MB Support(allows recharging the battery and powering the board at the same time) 1.28inch Touch LCD, CNC metal case
1.69inch Touch LCD ver.LDO, 500mA Type-C 16MB Support(allows recharging the battery and powering the board at the same time) 1.69inch Touch LCD
0.96 LCD ver.DC-DC, 1800mA Type-C 2MB Support(allows recharging the battery and powering the board at the same time) 0.96inch IPS LCD
Plus ver.DC-DC, 1800mA Type-C 4MB/16MB Support(allows recharging the battery and powering the board at the same time) -
DVI port ver.LDO, 300mA Type-C 16MB Support(allows recharging the battery and powering the board at the same time) Onboard DVI interface, TF card slot and PIO-USB port
Cam & LCD ver.- Type-C 16MB - Onboard grayscale camera and 1.14inch IPS LCD display
-
Brand WaveshareRaktárkészlet VANCikkszám RPI-WS30945Státusz ÚJ
-
RP2350-CAN x1
