Termék részletek

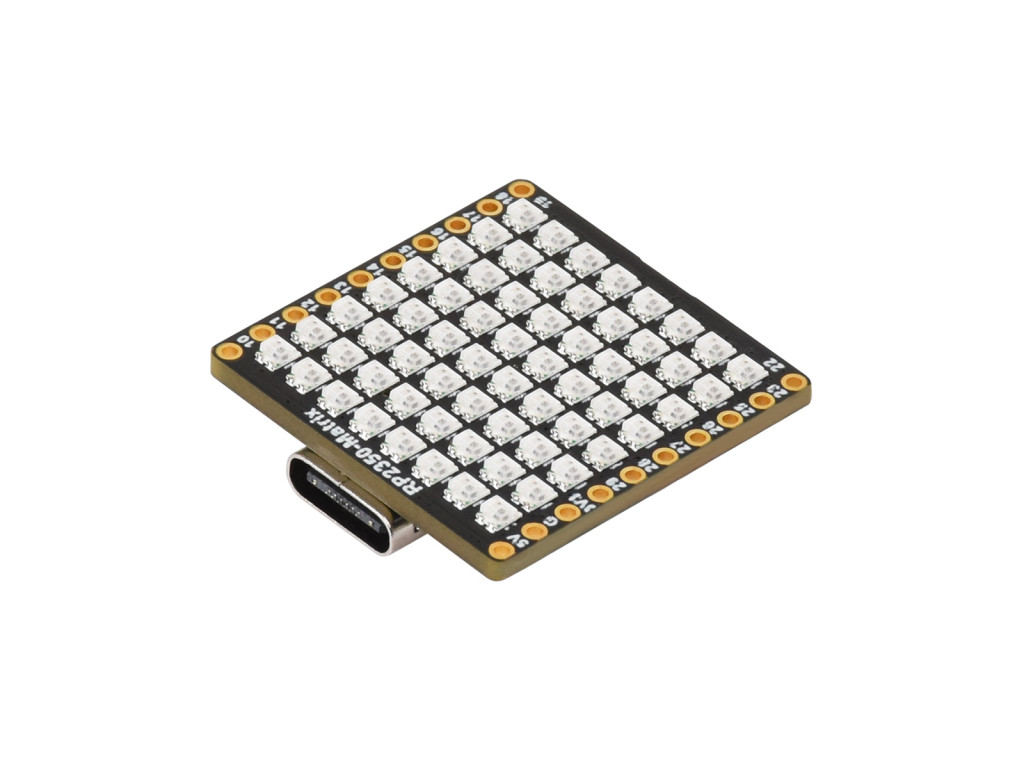

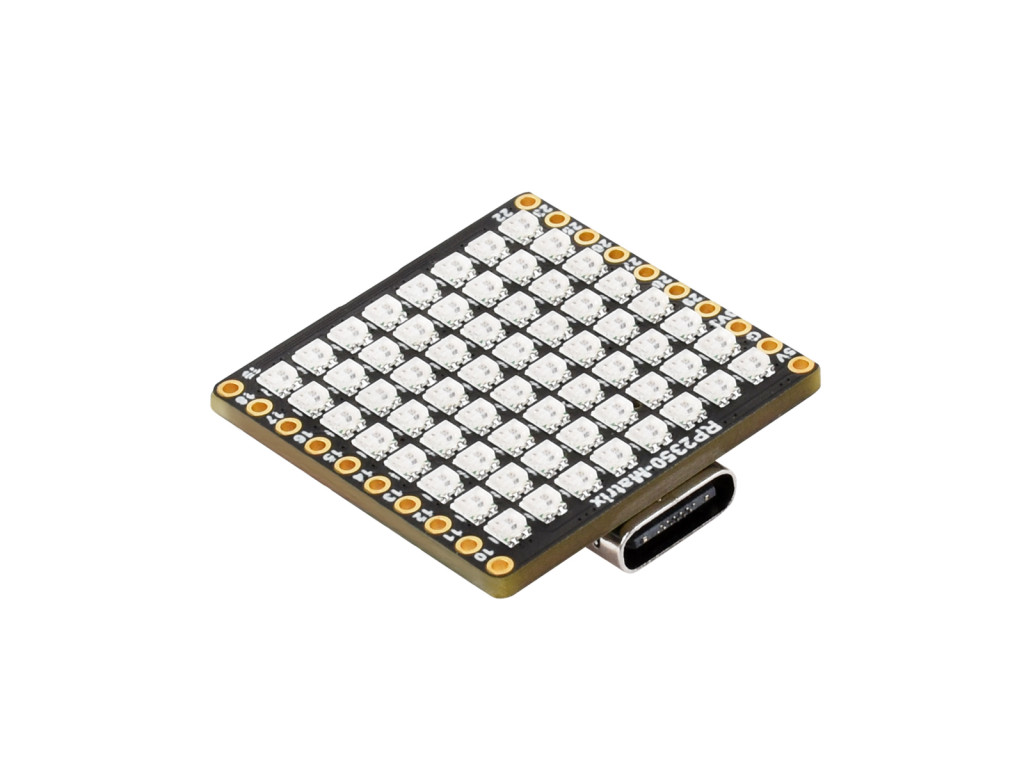

RP2350-Matrix mikrovezérlő fejlesztőkártya, kétmagos és két architektúrájú kialakítás, beépített 6 tengelyes érzékelő és 8 × 8 RGB LED mátrix színes megvilágítású kijelzőhöz
RP2350-Matrix mikrokontroller fejlesztőkártya, kétmagos és két architektúrájú kialakítás, beépített 6 tengelyes érzékelő és 8x8 RGB LED mátrix színes megvilágítású kijelzőhöz
-
RP2350-Matrix Microcontroller Development Board, Dual-core And Dual-architecture Design, Onboard 6-Axis Sensor And 8 × 8 RGB LED Matrix For Colorful Lighting DisplayRP2350-Matrix development board
Based on RP2350, adapting 25 × multi-function GPIO pins
specifications- RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
- Adopts unique dual-core and dual-architecture design: dual ARM Cortex-M33 or dual Hazard3 RISC-V processors support, flexible clock running up to 150 MHz
- Built-in 520KB of SRAM and 16MB of onboard Flash memory
- Type-C port, easier to use
- Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope)
- Onboard 8 × 8 RGB LED matrix for colorful lighting display
- Adapting Dout pin for extending RGB matrix
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- 25 × multi-function GPIO pins
- 1 × HSTX, 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC and 16 × controllable PWM channels
- Accurate clock and timer on-chip
- Temperature sensor
- Accelerated floating-point libraries on-chip
- 12 × Programmable I/O (PIO) state machines for custom peripheral support
QMI8658 gyroscope sensorOnboard QMI8658 6-axis IMU for tilt angle and speed measurement

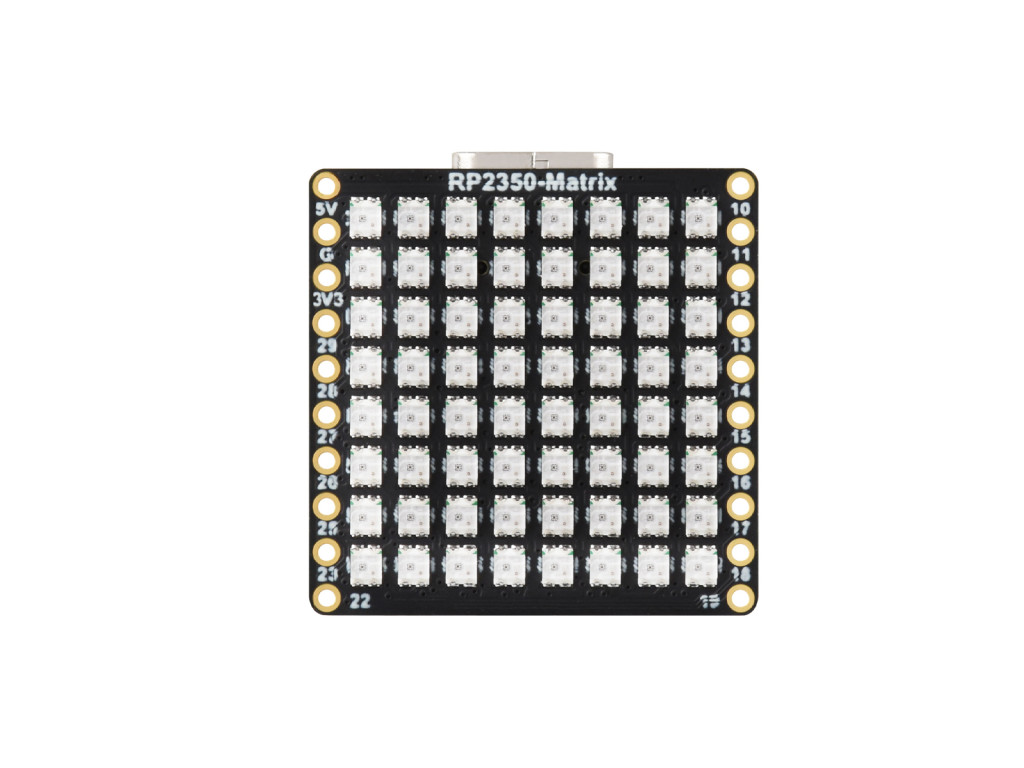

Onboard 8 × 8 RGB LED MatrixFor colorful lighting display
dual-core, dual-architectureThe unique dual-core, dual-architecture capability of RP2350A allows users to choose between a pair of industry-standard Arm Cortex-M33 cores, and a pair of open-hardware Hazard3 cores, giving developers a chance to experiment with the RISC-V architecture in a stable, well-supported environment
Support C/C++, MicroPython, Arduino IDE

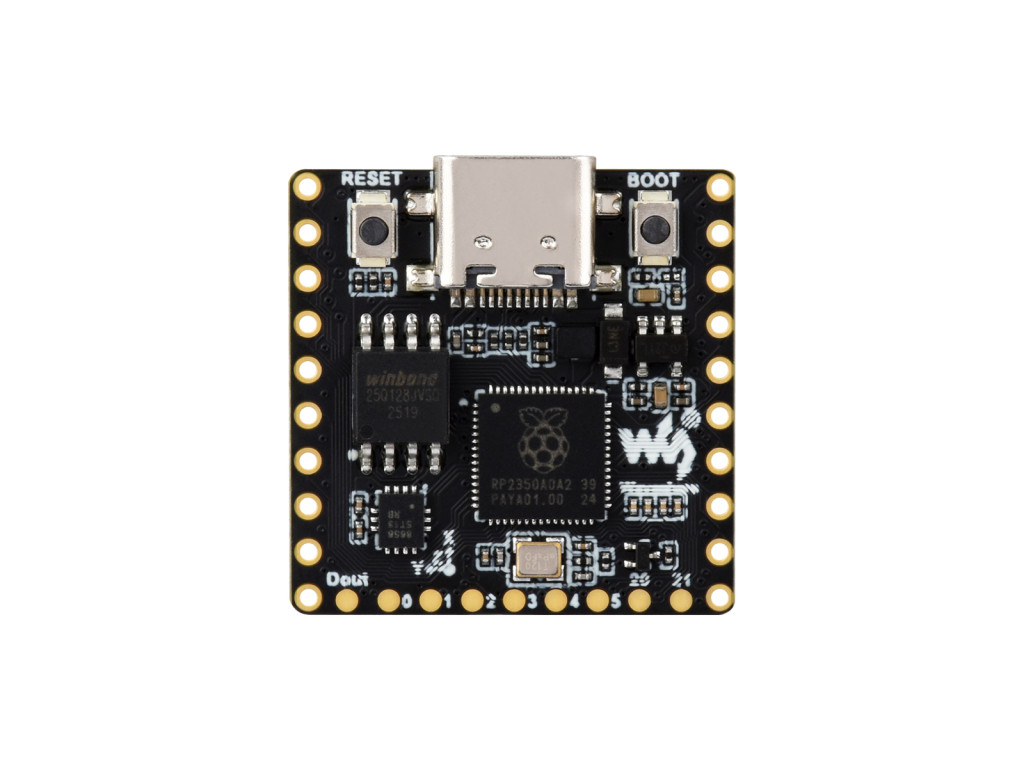

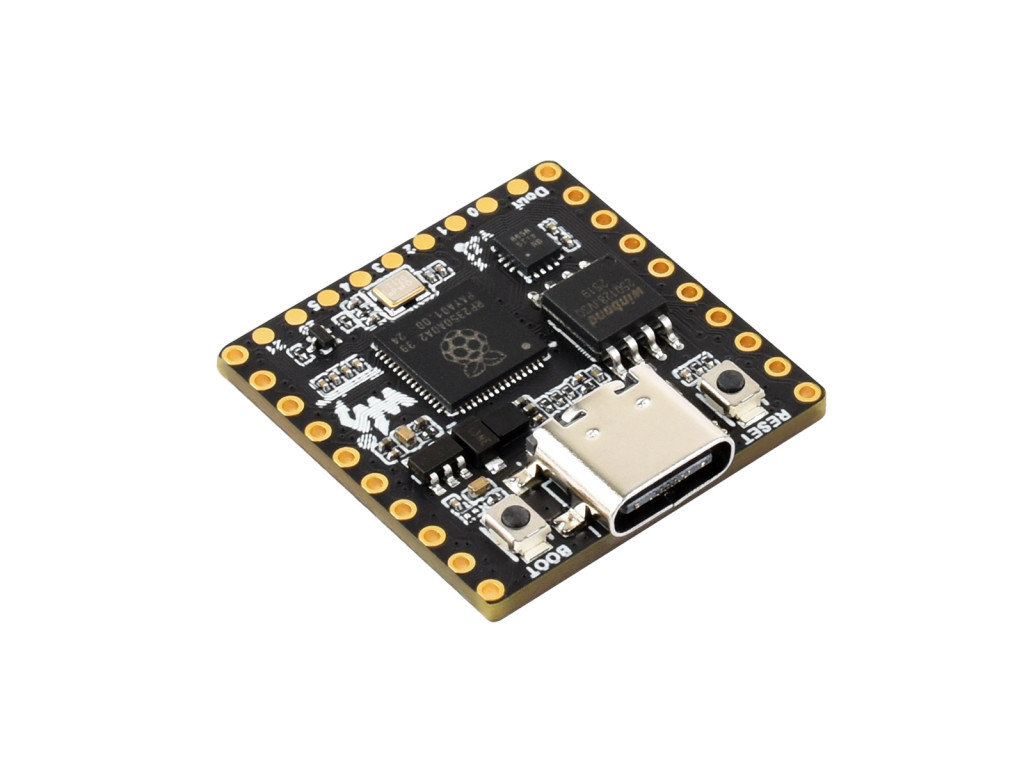

What's On Board
- RP2350ADual-core and dual-architecture design, up to 150 MHz operating frequency
- 16MB Flash
- QMI8658QST 6-axis sensor (3-axis accelerometer, 3-axis gyroscope)
- Dout pin for extending RGB matrix
- RESET button
- USB Type-C connectorfor programming, USB 1.1 with device and host support
- BOOT buttonpress it when resetting to enter download mode
- ME6217C33M5GLow dropout regulator, 800mA output (Max.)
- 8 × 8 RGB LED Matrix
Pin definition
outline dimensions
Pico Product SelectionPRODUCT Voltage regulator chip USB Flash Lithium battery header Onboard LCD RP2350 chip
Raspberry Pi Pico 2DC-DC, 800mA Micro USB 4MB - -
Raspberry Pi Pico 2 WDC-DC, 800mA Micro USB 4MB - with WIFI and Bluetooth
Raspberry Pi Pico 2 WHDC-DC, 800mA Micro USB 4MB - with WIFI and Bluetooth
CAN ver.DC-DC, 2000mA Type-C 4MB - CAN interface
Type-A ver.LDO, 500mA Type-A 4MB - -
Type-C ver.LDO, 800mA Type-C 4MB - -
Tiny ver.LDO, 800mA Separate Type-C port adapter 4MB - Separate adapter board design, adapting USB Type-C port via FPC
RGB Matrix ver.LDO, 800mA Type-C 16MB - Onboard 8 x 8 RGB LED Matrix
ETH Port ver.LDO, 800mA Type-C 4MB - with Ethernet port
USB ver.LDO, 500mA Type-A, Type-C 2MB - with PIO-USB Type-A and USB Type-C port
core boardLDO, 800mA Separate Type-C port adapter 16MB - -
wireless Plus ver.LDO, 800mA Type-C 16MB - Supports Wi-Fi and Bluetooth
1.28inch Round LCD ver.LDO, 300mA Type-C 4MB Support(allows recharging the battery and powering the board at the same time) 1.28inch IPS LCD
1.28inch Round Touch LCD ver.LDO, 300mA Type-C 16MB Support(allows recharging the battery and powering the board at the same time) 1.28inch IPS touch LCD
1.43inch Round Touch AMOLED ver.DC-DC, 2000mA Type-C 16MB Support(allows recharging the battery and powering the board at the same time) 1.43inch AMOLED Touch LCD
1.64inch Touch AMOLED ver.DC-DC, 2000mA Type-C 16MB Support(allows recharging the battery and powering the board at the same time) 1.64inch AMOLED Touch LCD
1.8inch Touch AMOLED ver.DC-DC, 2000mA LDO，300mA Type-C 16MB Support(allows recharging the battery and powering the board at the same time) 1.8inch AMOLED Touch LCD
1.47inch LCD ver.LDO, 300mA Type-C 16MB - 1.47inch IPS LCD
1.47inch LCD USB ver.LDO, 300mA Type-A 16MB - 1.47inch IPS LCD
1.69inch Touch LCD ver.LDO, 500mA Type-C 16MB Support(allows recharging the battery and powering the board at the same time) 1.69inch Touch LCD
2inch Touch LCD ver.DC-DC, 2000mA Type-C 16MB Support(allows recharging the battery and powering the board at the same time) 2inch Touch LCD
2.41inch Touch AMOLED ver.DC-DC, 2000mA Type-C 16MB Support(allows recharging the battery and powering the board at the same time) 2.41inch Touch AMOLED
2.8inch Touch LCD ver.LDO, 800mA Type-C 16MB Support(allows recharging the battery and powering the board at the same time) 2.8inch IPS Touch LCD
2.8inch Round Touch LCD ver.LDO, 800mA Type-C 16MB Support(allows recharging the battery and powering the board at the same time) 2.8inch IPS Touch LCD, RGB interface
0.96 LCD ver.DC-DC, 2000mA Type-C 4MB Support(allows recharging the battery and powering the board at the same time) 0.96inch IPS LCD
Plus ver.DC-DC, 2000mA Type-C 4MB/16MB Support(allows recharging the battery and powering the board at the same time) -
DVI port ver.DC-DC, 2000mA Type-C 16MB Support(allows recharging the battery and powering the board at the same time) Onboard DVI interface, TF card slot and PIO-USB port RP2040 chip
Raspberry Pi Pico WDC-DC, 3000mA Micro USB 2MB - with WIFI
Raspberry Pi Pico WHDC-DC, 3000mA Micro USB 2MB - with WIFI
Raspberry Pi PicoDC-DC, 800mA Micro USB 2MB - -
Raspberry Pi Pico HDC-DC, 800mA Micro USB 2MB - -
Type-A ver.LDO, 500mA Type-A 4MB - -
Mini ver.LDO, 800mA Type-C 2MB - -
Tiny ver.LDO, 500mA Separate Type-C port adapter 2MB - Separate adapter board design, adapting USB Type-C port via FPC
RGB Matrix ver.LDO, 500mA Type-C 2MB - Onboard 5×5 RGB LED matrix
BLE ver.LDO, 300mA Separate Type-C port adapter 2MB - Supports Bluetooth 5.1, separate adapter board design, adapting USB Type-C port via FPC
ETH Port ver.LDO, 500mA Type-C 4MB - with Ethernet port
0.99inch Round LCD with case ver.LDO, 500mA Type-C 2MB - 0.99inch IPS LCD, CNC metal case
1.28inch Round LCD ver.LDO, 300mA Type-C 2MB Support(allows recharging the battery and powering the board at the same time) 1.28inch IPS LCD
1.28inch Round LCD with case ver.LDO, 300mA Type-C 2MB Support(allows recharging the battery and powering the board at the same time) 1.28inch IPS LCD, CNC metal case
1.28inch Round Touch LCD ver.LDO, 500mA Type-C 16MB Support(allows recharging the battery and powering the board at the same time) 1.28inch Touch LCD
1.28inch Round Touch LCD with case ver.LDO, 500mA Type-C 16MB Support(allows recharging the battery and powering the board at the same time) 1.28inch Touch LCD, CNC metal case
1.69inch Touch LCD ver.LDO, 500mA Type-C 16MB Support(allows recharging the battery and powering the board at the same time) 1.69inch Touch LCD
0.96 LCD ver.DC-DC, 1800mA Type-C 2MB Support(allows recharging the battery and powering the board at the same time) 0.96inch IPS LCD
Plus ver.DC-DC, 1800mA Type-C 4MB/16MB Support(allows recharging the battery and powering the board at the same time) -
DVI port ver.LDO, 300mA Type-C 16MB Support(allows recharging the battery and powering the board at the same time) Onboard DVI interface, TF card slot and PIO-USB port
Cam & LCD ver.- Type-C 16MB - Onboard grayscale camera and 1.14inch IPS LCD display
-
Brand WavesharePartNumber RP2350-MatrixRaktárkészlet VANCikkszám RPI-WS32225
-
RP2350-Matrix x 1
