RS232/485/422 - CAN ipari leválasztott átalakító, Modbus RTU átalakítás támogatása, többszörös védelmi áramkörök
Részletek Adatok Csomag tartalma
  • RS232/485/422 To CAN Industrial Isolated Converter, Supports Modbus RTU Conversion, Multiple Protection Circuits
    RS232/485/422 to CANIndustrial isolated converter

    RS232/485/422 to CAN data conversion, supports Modbus RTU conversion

    multiple industrial protections such as galvanic isolation, lightningproof protection, and ESD protection. Suitable for industrial control equipment and/or applications with high communication requirement

    Features At A Glance
    • Supports data communication and conversion between RS232/485/422 and CAN interfaces
    • Compliant with CAN 2.0B (extended frame) specification, compatible with CAN 2.0A (standard frame) specification; Compliant with ISO 11898-1/2/3 standard
    • CAN baud rate: 10kbps~1000kbps, configurable
    • Supports 14 sets of configurable filters, can only receive CAN bus data in specific range and type
    • Supports 4 operating modes: transparent conversion, transparent with identifiers conversion, format conversion, and Modbus RTU protocol conversion
    • Up to 1000 frames CAN buffer for buffering transmission data to prevent data loss
    • Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
    • Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
    • Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
    • Onboard 15KV ESD isolation protection and 600W lightningproof & anti-surge protection
    • Onboard 120R terminal resistor on the RS485/RS422 port, configurable by jumper
    • Supports device firmware upgrade via RS232/485/422, more convenient for firmware customization
    • Supports setting operation parameters via configuration software or serial commands, capable of saving settings after power off
    • Onboard power supply screw terminal, allows 5V~36V DC wide range input
    • 4 LEDs for indicating the power and transceiver status
    • Industrial grade metal case, supports wall-mount and rail-mount installation, solid and beautiful, easy to install
    Specifications
    PRODUCT TYPEActive digital isolated RS232/485/422 to CAN converter
    POWER SUPPLY INTERFACEPower supply5~36V DC
    ProtectionAnti-reverse
    Device portRS232/485/422, CAN
    isolated CANConnectorScrew terminal
    Direction controlHardware automatic control
    ResistorOnboard 120R matching resistor
    Baud rate10kbps~1000kbps
    isolated RS232ConnectorDB9 female
    Transmission distanceabout 15m
    Transmission modepoint-to-point
    Baud rate1200bps~460800bps
    isolated RS485/422ConnectorScrew terminal
    Direction controlHardware automatic control
    ProtectionTVS diode, surge protection & ESD protection, power isolation and signal isolation
    ResistorOnboard reserved 120R matching resistor, NC by default, enabled via jumper
    Transmission modePoint-to-multipoints (485 mode: up to 32 nodes, it is recommended to use repeaters for 16 nodes or more； 422 mode: up to 256 nodes, it is recommended to use repeaters for 16 nodes or more)
    Baud rate1200bps~460800bps
    IndicatorsPWRRed power indicator, lights up when voltage is detected
    RUNSystem operating indicator, turns off if CAN bus is abnormal
    COMRS232/485/422 RX indicator, lights up when RS232 or 485 or 422 port receives data
    CANCAN RX indicator, lights up when CAN port receives data
    operating environmentTemperature range-15 ~ 70℃
    Primary function

    Achieves data transmission and conversion between RS232/RS485/RS422 and CAN interfaces

    Supports wide range baud rate

    RS232/485/422 communication baud rate: 1200 ~ 460800bps CAN communication baud rate: 10kbps ~ 1Mbps

    Supports Four operating modes

    Transparent conversion, transparent with identifiers conversion, Format Conversion, and Modbus RTU protocol conversion

    Supports Host Computer Configuration
    Galvanic isolated Design
    • Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
    • Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
    Multiple Protection, Safe And Stable

    Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection. Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance.

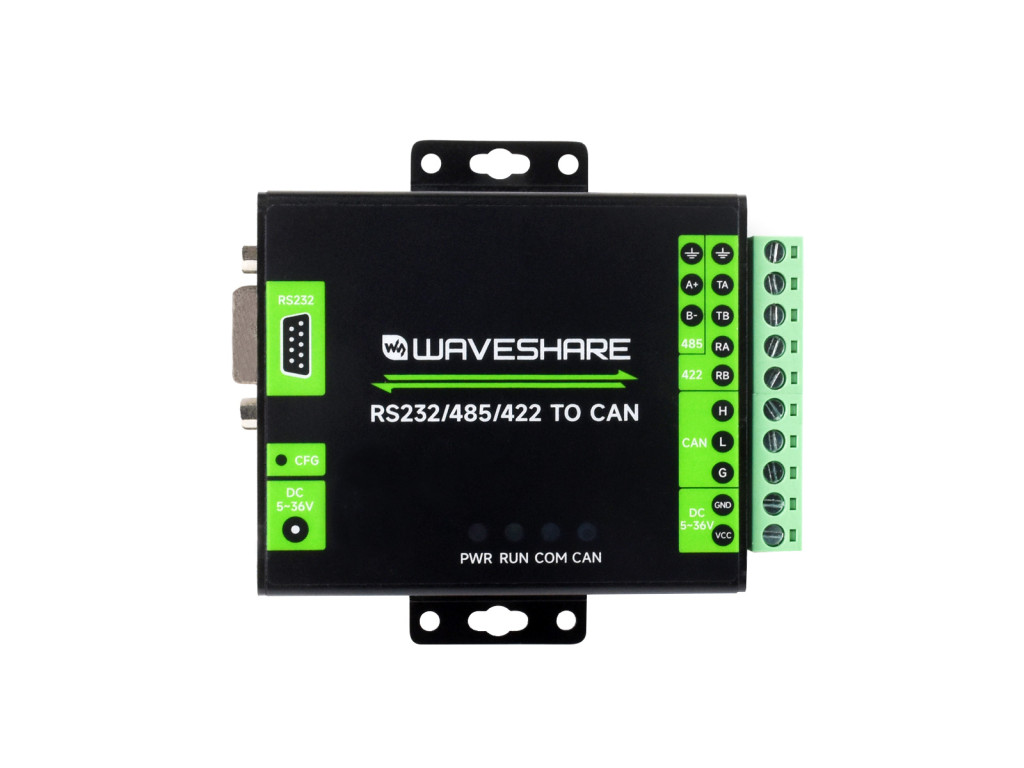

    Interface Introduction
    Pin Definition

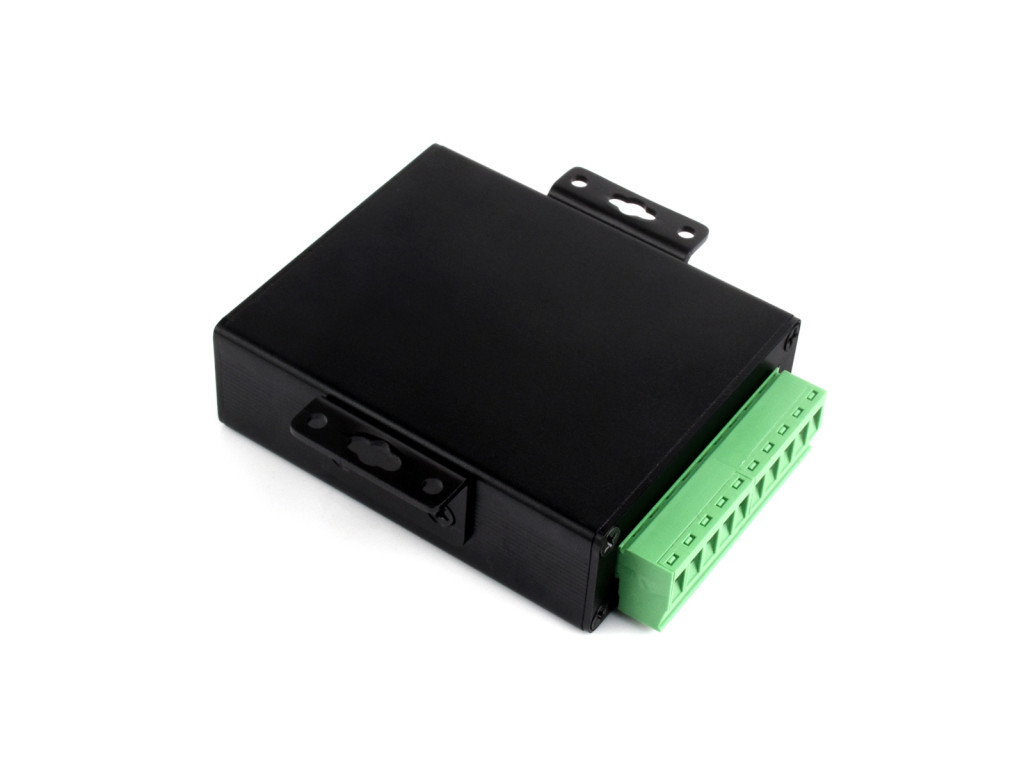

    Wall-mount And Rail-mount Support
    Application Examples

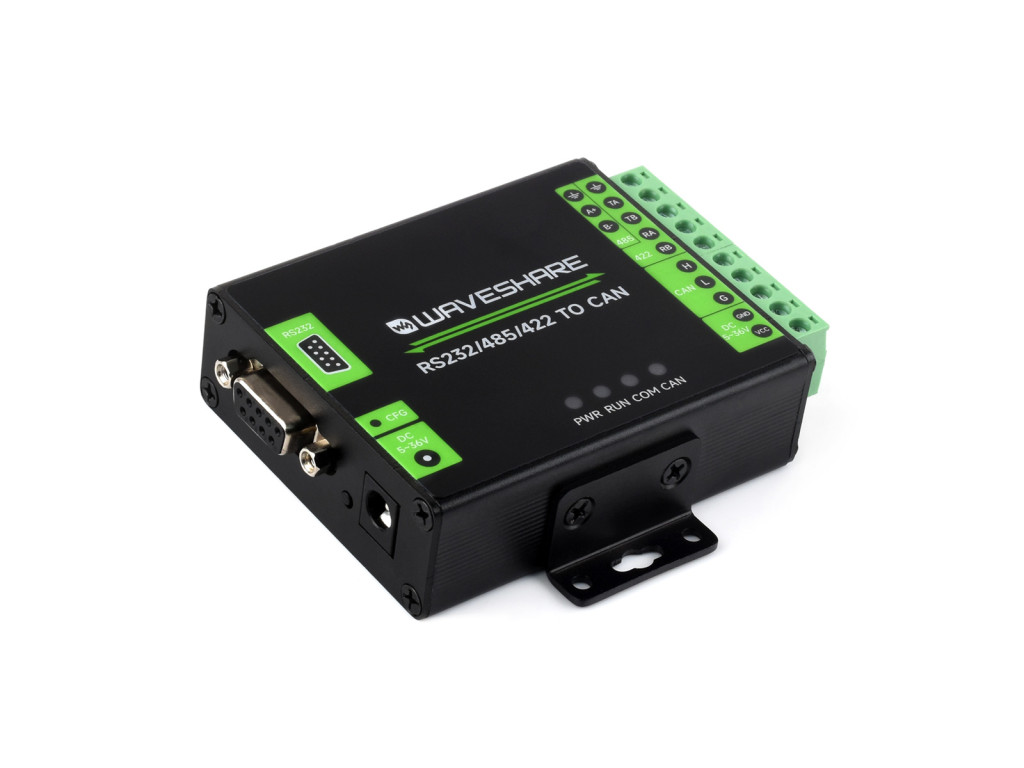

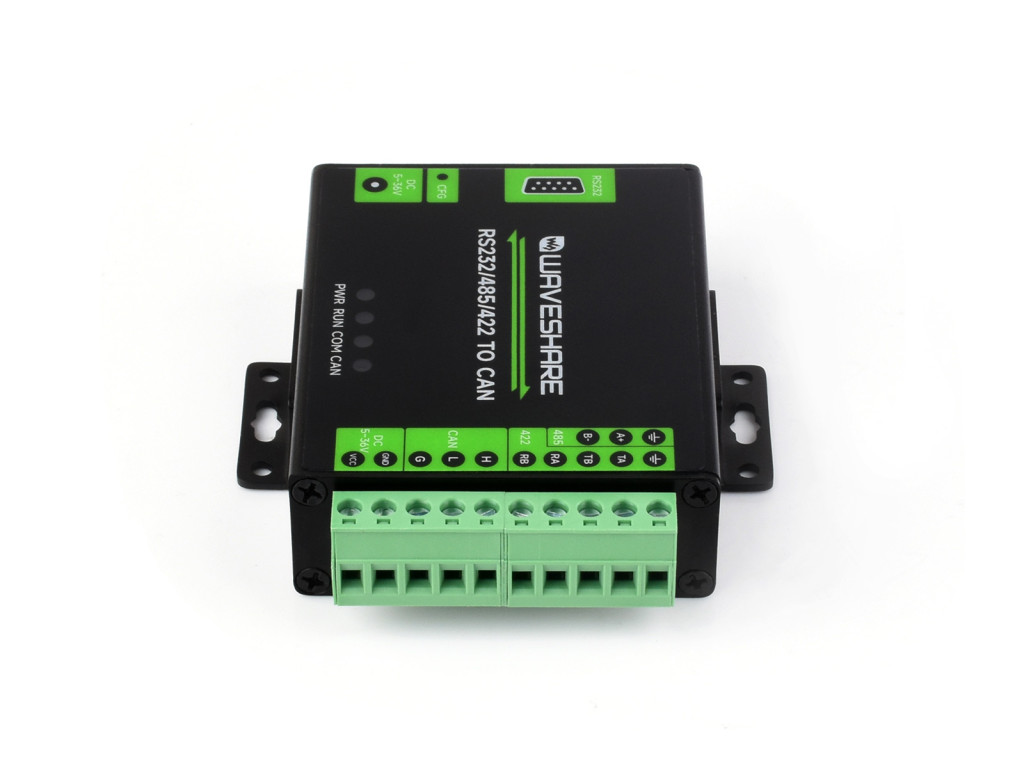

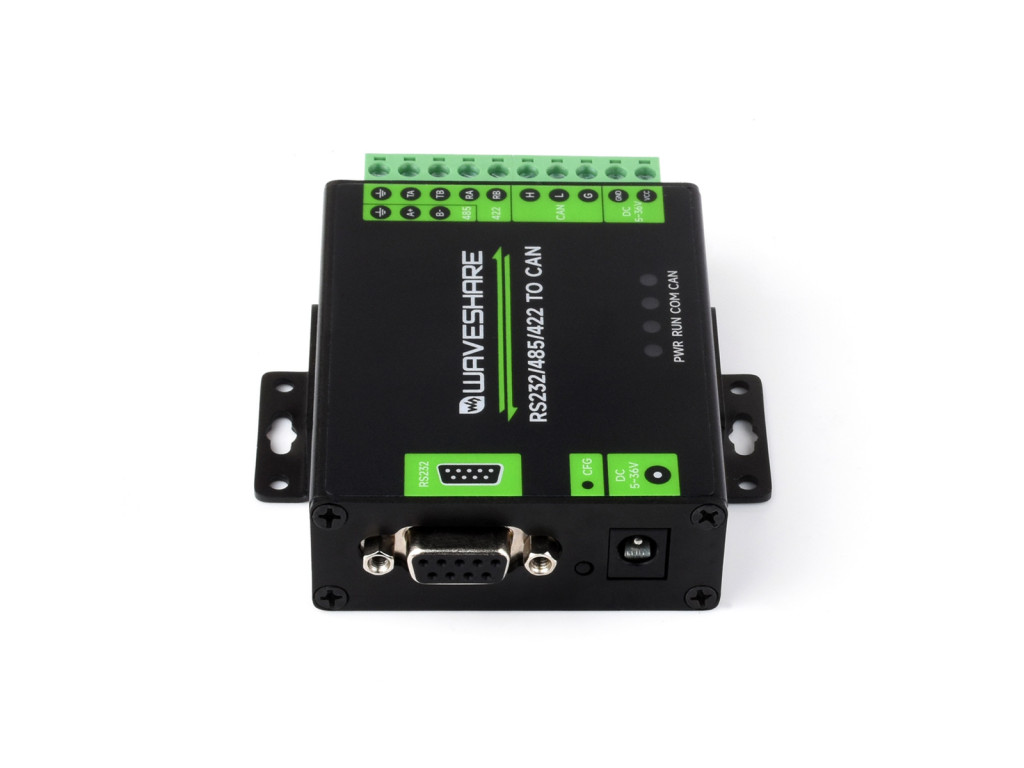

    Product Show
    Outline dimensions
    Resources & Services
    WIKI:www.waveshare.com/wiki/RS232/485/422_TO_CAN

    * Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

  • Brand
    Waveshare
    PartNumber
    RS232/485/422 TO CAN
    Raktárkészlet
    VAN
    Cikkszám
    RPI-WS26333

  • The power supply of this product is not included, it is recommended to purchase 12V power supply if you need it.

    1. RS232/485/422 TO CAN x1
    2. Rail-mount buckle x1
    3. Screwdriver x1
:
;
