Izolált RS232 / RS485 / CAN / CAN FD bővítőkártya Raspberry Pi-hez, 2x RS485, 1x RS232, 1x CAN FD és 1x CAN, fali és sínre szerelhető támogatás

Raktárkészlet: VAN
Izolált RS232 / RS485 / CAN / CAN FD bővítőkártya Raspberry Pi-hez, 2x RS485, 1x RS232, 1x CAN FD és 1x CAN, fali és sínre szerelhető támogatás
  • Izolált RS232 / RS485 / CAN / CAN FD bővítőkártya Raspberry Pi-hez, 2x RS485, 1x RS232, 1x CAN FD és 1x CAN, fali és sínre szerelhető támogatás
  • Izolált RS232 / RS485 / CAN / CAN FD bővítőkártya Raspberry Pi-hez, 2x RS485, 1x RS232, 1x CAN FD és 1x CAN, fali és sínre szerelhető támogatás
  • Izolált RS232 / RS485 / CAN / CAN FD bővítőkártya Raspberry Pi-hez, 2x RS485, 1x RS232, 1x CAN FD és 1x CAN, fali és sínre szerelhető támogatás
  • Izolált RS232 / RS485 / CAN / CAN FD bővítőkártya Raspberry Pi-hez, 2x RS485, 1x RS232, 1x CAN FD és 1x CAN, fali és sínre szerelhető támogatás
29 469 Ft + ÁFA | Bruttó:37 426 Ft
db Kosárba Kosárba
Olcsóbban szeretném
Izolált RS232 / RS485 / CAN / CAN FD bővítőkártya Raspberry Pi-hez, 2x RS485, 1x RS232, 1x CAN FD és 1x CAN bővíthető, támogatja a falra és sínre szerelhető telepítést
Részletek Adatok Csomag tartalma
  • Isolated RS232 / RS485 / CAN / CAN FD Expansion Board For Raspberry Pi, expands 2x RS485, 1x RS232, 1x CAN FD, and 1x CAN, Supports Wall-mount & Rail-mount Installation
    Industrial isolated interface expansion board

    Suitable for Raspberry Pi 4B / 5, expands 2x RS485 + 1x RS232 + 1x CAN FD + 1x CAN

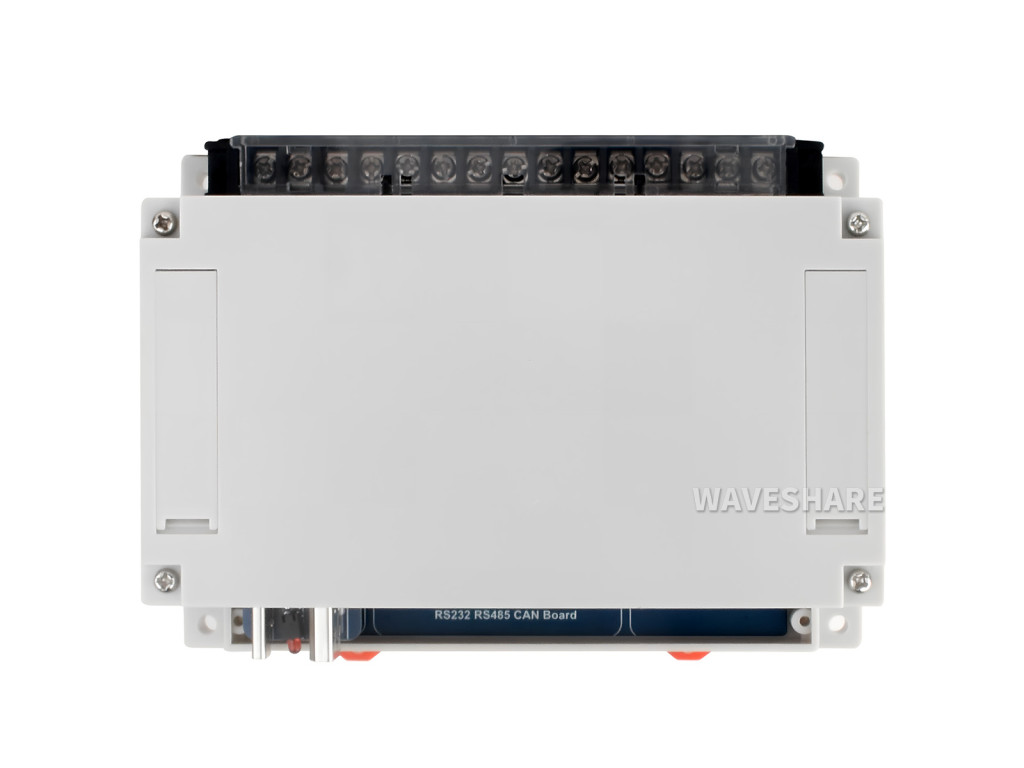

    RS232 / RS485 / CAN / CAN FD expansion board, front view
    Features at a glance

    TheRS232 RS485 CAN Board is an industrial isolated interface expansion board designed for Raspberry Pi 4B / Raspberry Pi 5, provides a variety of industrial communication interfaces: 2x RS485, 1x RS232, 1x CAN FD, and 1x CAN, each with electrical isolation. Onboard lightningproof, anti-electrostatic protection, etc. for more secure and reliable communication.

    Comes with industrial rail-mount enclosure for easy integration in industrial control applications. Provides sufficient internal space for users to stack other HATs or expansion boards, and reserved installation space of PCIe adapter board for Raspberry Pi 5, which is more convenient for further expansion.

    • Based on Raspberry Pi 40PIN GPIO header, suitable for Raspberry Pi 4B and Raspberry Pi 5
    • Adopts SC16IS752 and SP485 combination scheme, expands SPI to 2x RS485 interface
    • Adopts MCP2515 and SN65HVD230 combination scheme, expands SPI to 1x CAN interface
    • Adopts MCP2518FD and MCP2562FD combination scheme, expands SPI to 1x CAN FD interface
    • Adopts Raspberry UART and SP3232EEN combination scheme, expands UART to 1x RS232 interface
    • Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection
    • Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance
    • Onboard unibody power supply isolation, needs no extra power supply for the isolated terminal, provides stable current/voltage outputs of RS232, RS485, CAN, and CAN FD interfaces, and improves the anti-interference and anti-shock performance
    • Onboard digital isolation chip for safer signal isolation communication and better stability and anti-interference performance
    • Onboard external power supply screw terminal for 7~36V wide voltage power input, combines with Pi5 Connector Adapter (B) to power the Raspberry Pi and the expansion board at the same time
    • Onboard 120Ω terminal resistor, configured by jumper
    • Reserved interrupt resistor pad for flexible switching the interrupt pin if there is pin conflict when working with other HATs
    • Comes with online development resources and manual (examples for Raspberry Pi Python/C)
    Specifications
    Product TypeIndustrial isolated interface expansion board for Raspberry Pi
    Applicable BoardRaspberry Pi 4B, Raspberry Pi 5
    Communication interfaceSPI + UART
    extended Industrial interfacesinterfaceChip SchemeBaudrate
    1-ch isolated CAN FDMCP2518FD + MCP2562FD5kbps ~ 8 Mbps
    1-ch isolated CANMCP2515 + SN65HVD2305kbps ~ 1 Mbps
    2-ch isolated RS485SC16IS752 + SP485300 bps ~ 921600 bps
    1-ch isolated RS232SP3232EEN
    ExpandabilitySupports extending functions such as NVME, ETH, USB, 4G/5G for Raspberry Pi 5 through PCIe interface
    Supports stacking with other HATs through 40PIN GPIO header for Raspberry Pi 4B/5 (make sure there are no pin conflicts and the dimension is compatible)
    power supply methods (choose one of two)5V Type-C power port of Pi5 Connector Adapter (B)
    External screw terminal for DC 7-36V wide voltage input
    DimensionsL × W × H: 154.6 × 83.7 × 59 mm
    EnclosureEco-friendly plastic case, supports wall-mount & rail-mount installation
    suitable for Raspberry Pi 4B/5

    Based on Raspberry Pi 40PIN GPIO header

    RS232 / RS485 / CAN / CAN FD expansion board, connecting with Raspberry Pi 5

    * for reference only, the Raspberry Pi 5 and PCIe board are not included.

    Supports two power supply methods

    Onboard Type-C 5V port and DC 7~36V wide voltage screw terminal, can be powered directly from a Raspberry Pi power supply, or used in industrial wide-voltage power supply scenarios

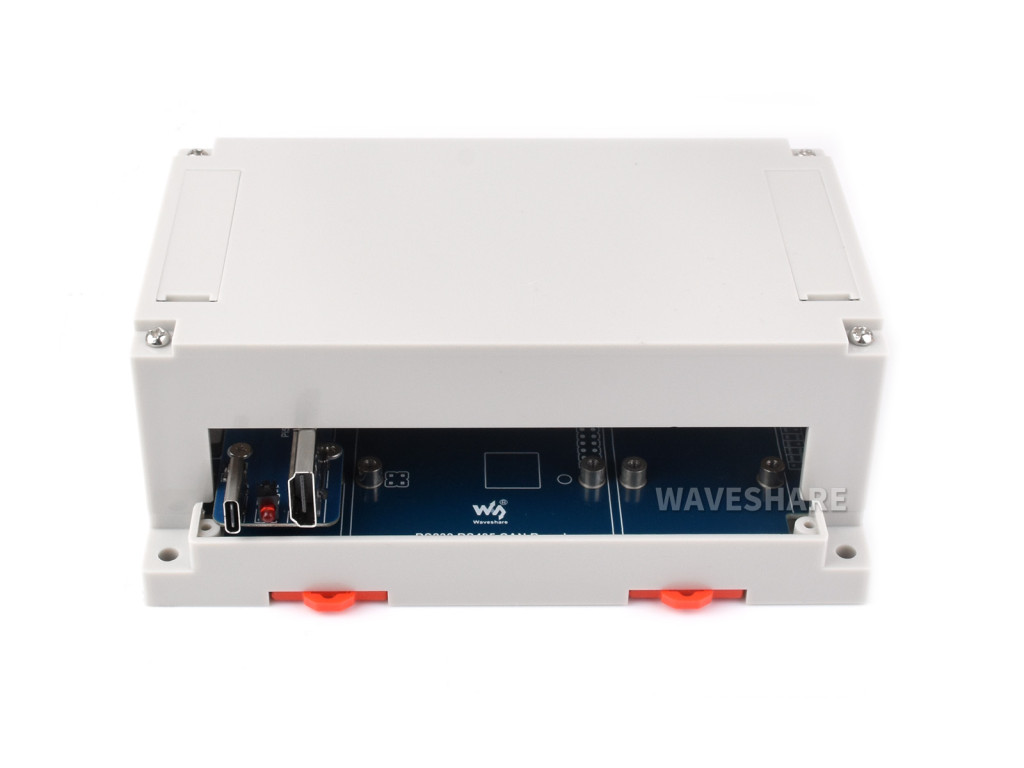

    RS232 / RS485 / CAN / CAN FD expansion board, power supply via Type-C 5V

    Supports Type-C 5V power supply

    RS232 / RS485 / CAN / CAN FD expansion board, power supply via screw terminal

    Supports 7~36V wide range voltage input

    Expands multiple isolated industrial interfaces

    Supports connecting with Multiple Peripherals Via CAN, RS485, And RS232 Interfaces

    RS232 / RS485 / CAN / CAN FD expansion board, expands multiple isolated industrial interfaces
    Large internal space, strong expansibility

    Provides enough internal space of the case for users to connect other modules and expand more functions

    Extending NVME, ETH, USB, and 4G/5G, etc. for Pi 5 through PCIe or 40PIN GPIO

    RS232 / RS485 / CAN / CAN FD expansion board, with large internal space

    PCIe adapter Board Compatible

    Supports stacking with some HATs* through 40PIN GPIO header for Pi 4B/5

    * Note: make sure there are no pin conflicts and the dimension is compatible

    RS232 / RS485 / CAN / CAN FD expansion board, stacking with some HATs

    * for reference only, please refer to the Package Content for detailed part list

    Assembly instruction

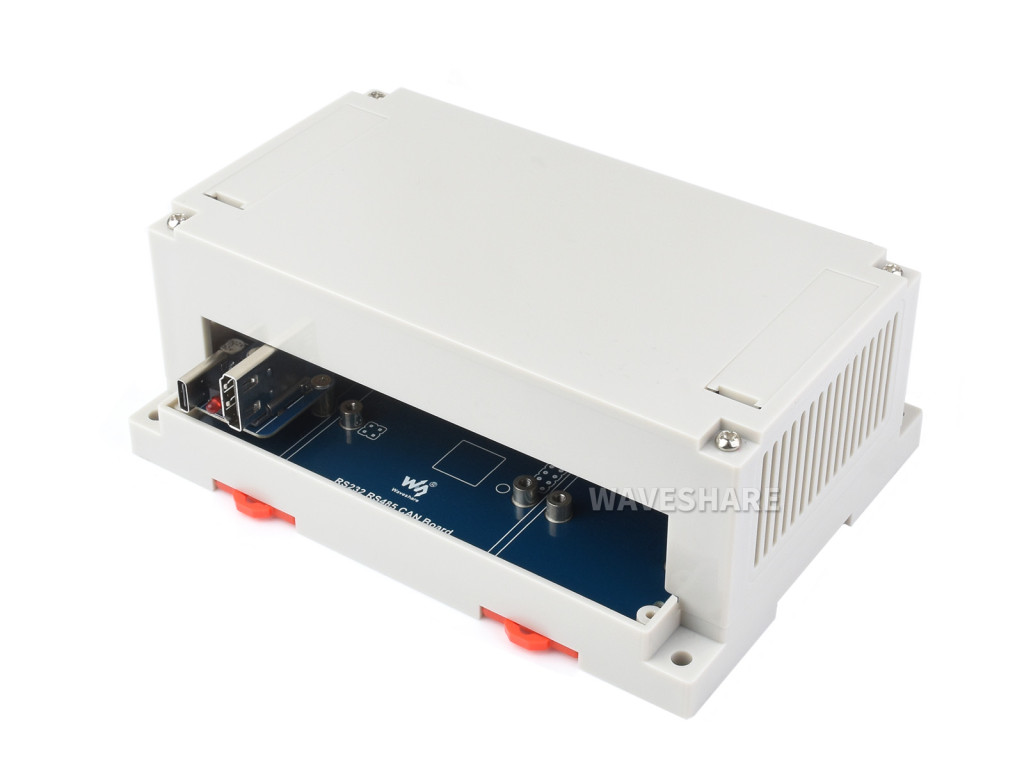

    RS232 / RS485 / CAN / CAN FD expansion board, how to install

    * for reference only, please refer to the Package Content for detailed part list

    Enclosure Design

    ABS Eco-friendly plastic case, supports wall-mount & rail-mount, making industrial installation more flexible

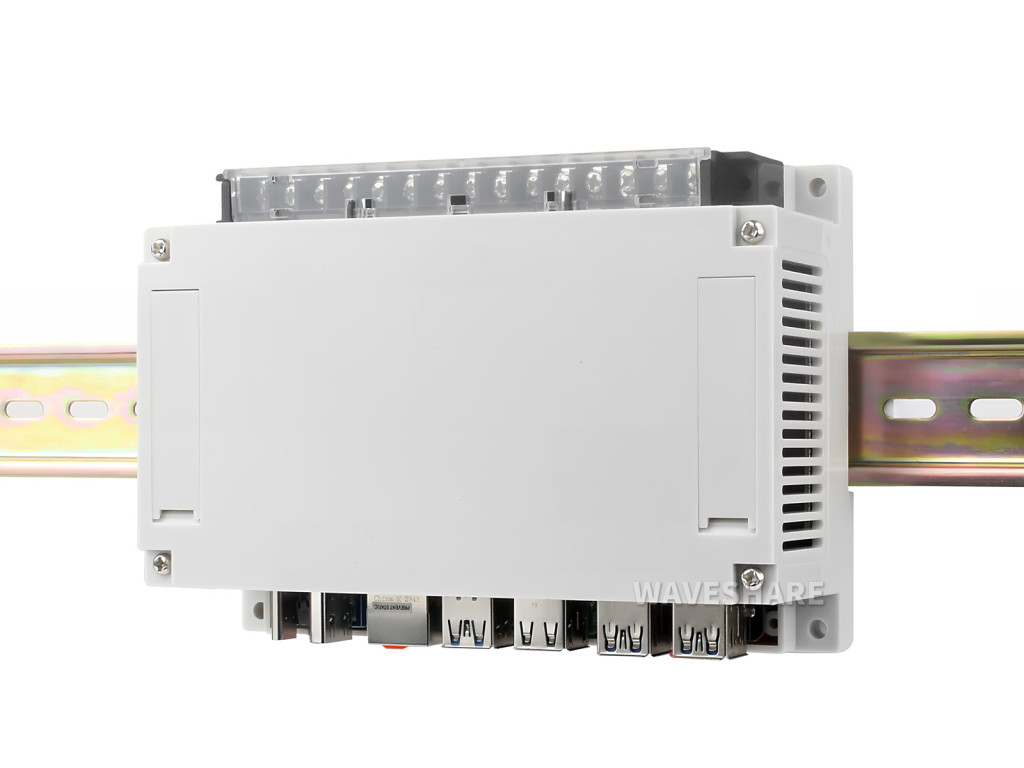

    RS232 / RS485 / CAN / CAN FD expansion board, rail-mount support

    With rail-mount buckle, supports 35mm standard guide rail

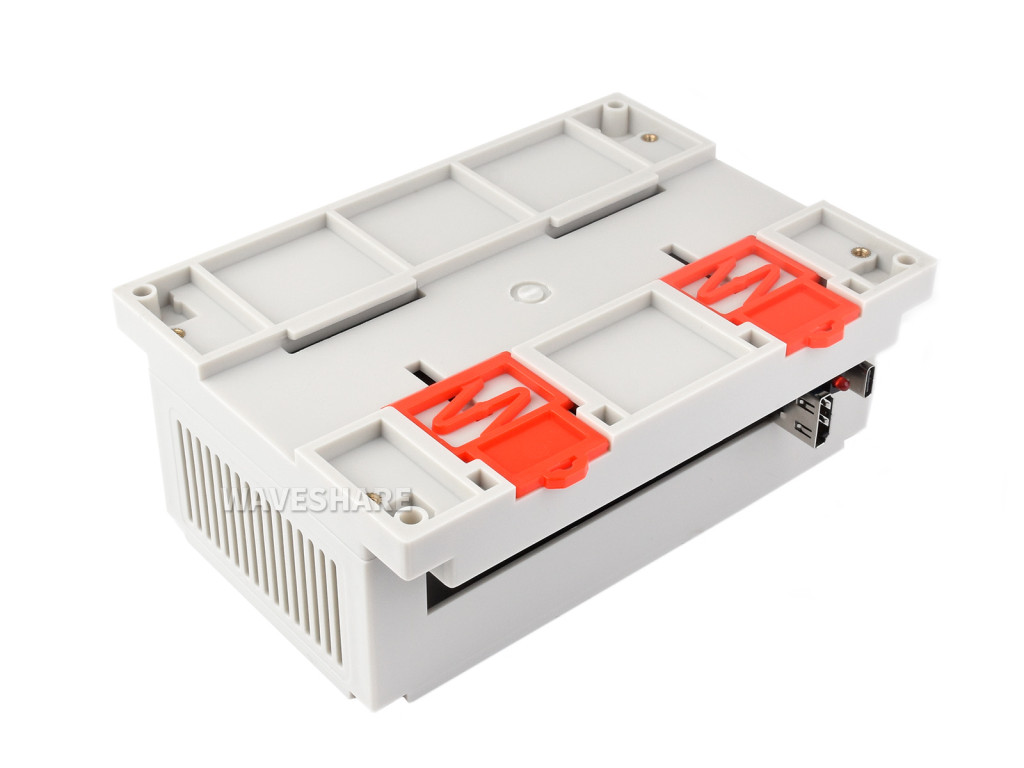

    RS232 / RS485 / CAN / CAN FD expansion board, wall-mount support

    Wall-mount support

    Interface introduction
    RS232 / RS485 / CAN / CAN FD expansion board, interface introduction
    Support Batch Customization

    Support software and hardware customizationIncluding hardware interface, LOGO, label, case and web page, etc.

    RS232 / RS485 / CAN / CAN FD expansion board, support batch customization
    Outline dimensions
    RS232 / RS485 / CAN / CAN FD expansion board, outline dimensions
  • Brand
    Waveshare
    Raktárkészlet
    VAN
    Cikkszám
    RPI-WS28164
    1. RS232 RS485 CAN Board (with ABS plastic case)x1
    2. 40PIN cable x1
    3. Pi5 Connector Adapter (B) x1
    4. Screws pack x1
    RS232 RS485 CAN Board
:
;
