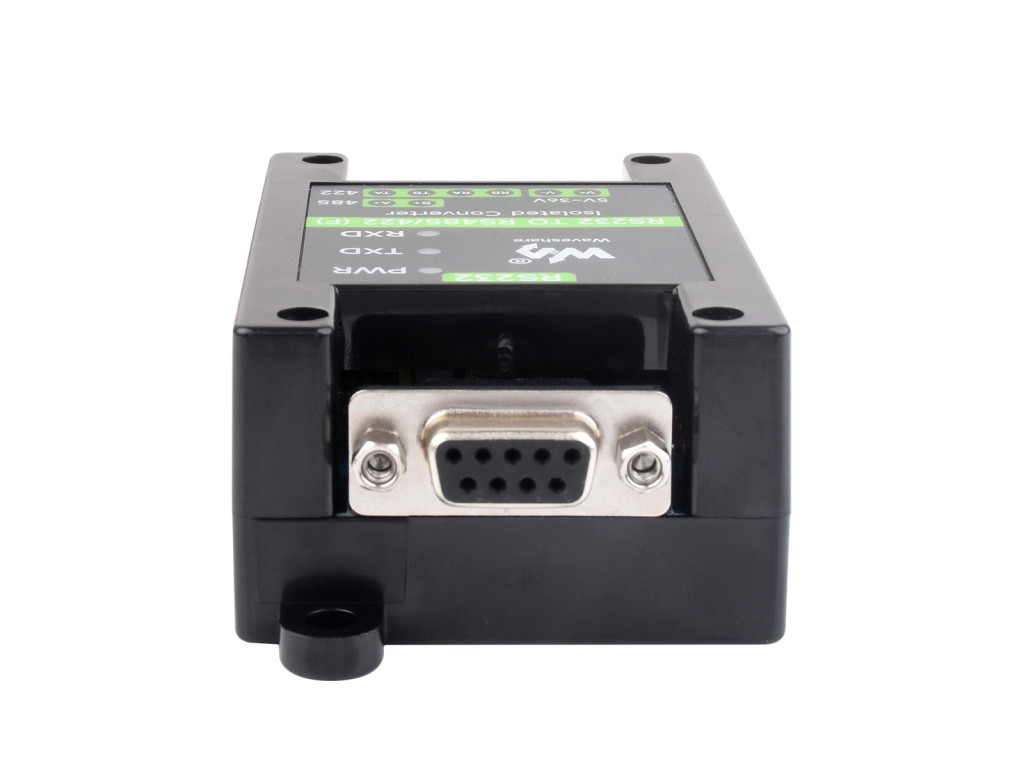

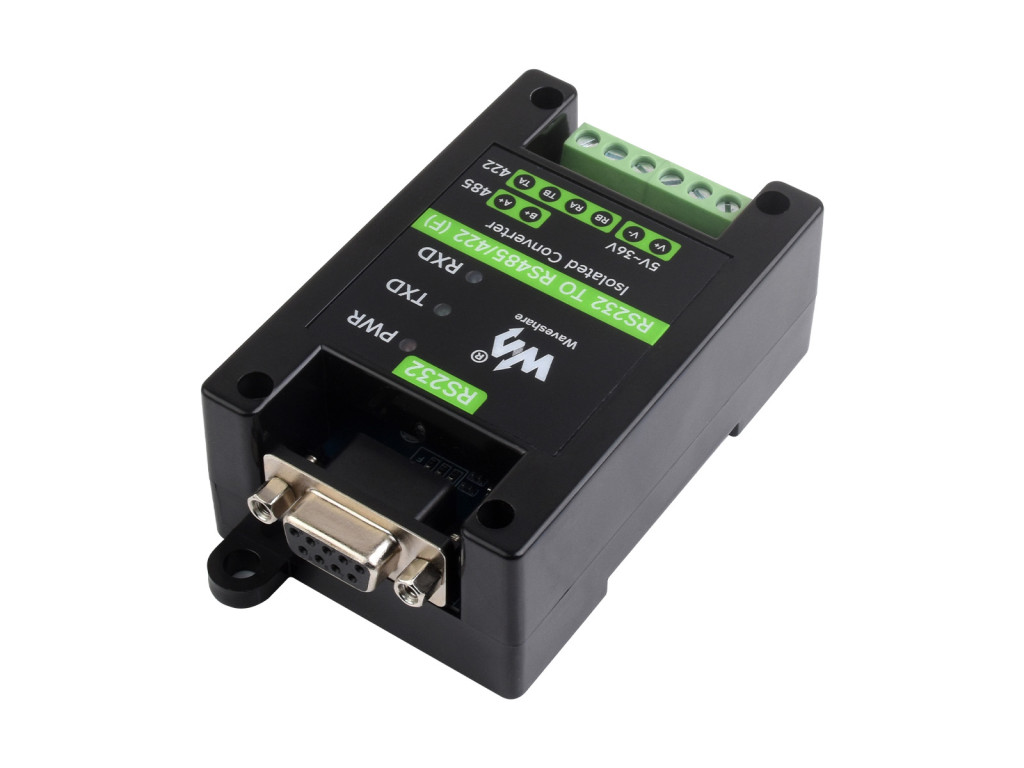

RS232-RS485/422 konverter, izolált , beépített eredeti SP3232EEN és SP485EEN chipek, opciók RS232 DB9 dugaszoló / aljzathoz

Adopts SP3232EEN and SP485EEN chips solution, provides stable communication with built-in galvanic isolation, lightningproof and anti-electrostatic protection and so on, it is an ideal choice for industrial control equipments and/or applications with high communication requirement.

• Onboard SP3232EEN and SP485EEN chips. Fast communication, stable and reliable, better compatibility
• Stable transmission at the rate of 300~921600bps
• Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
• Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
• Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
• Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance
• Onboard 15KV ESD isolation protection and 600W lightningproof & anti-surge protection
• Onboard 120R terminal resistor on the RS485/RS422 interface, disable by default, configurable by jumper

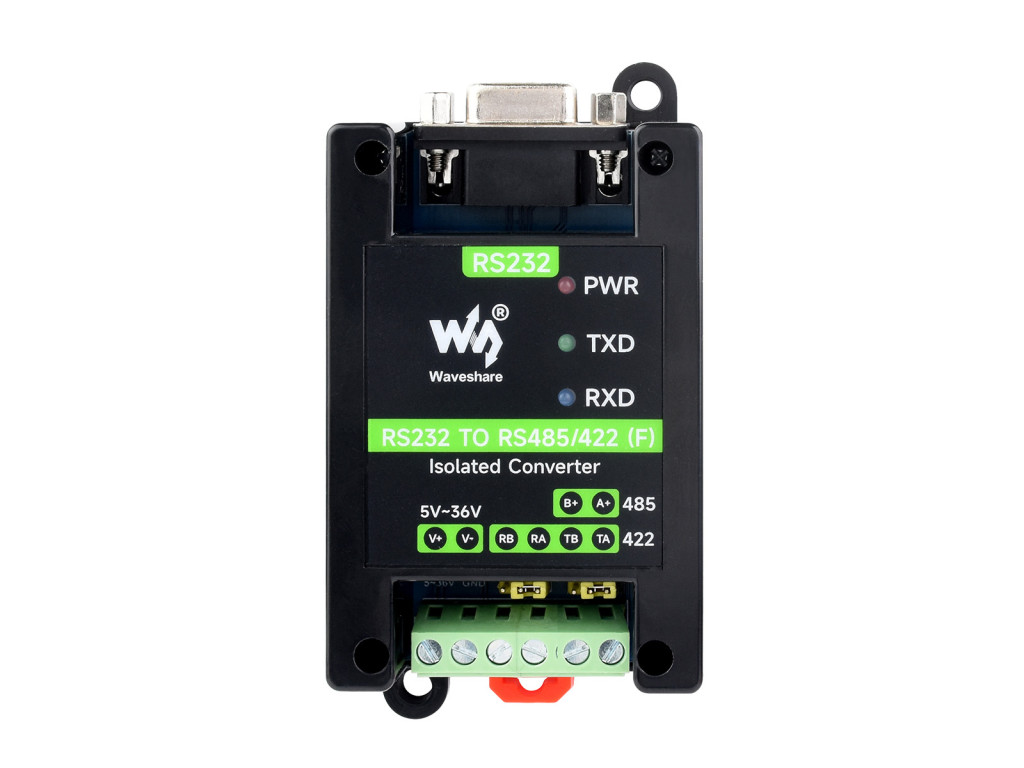

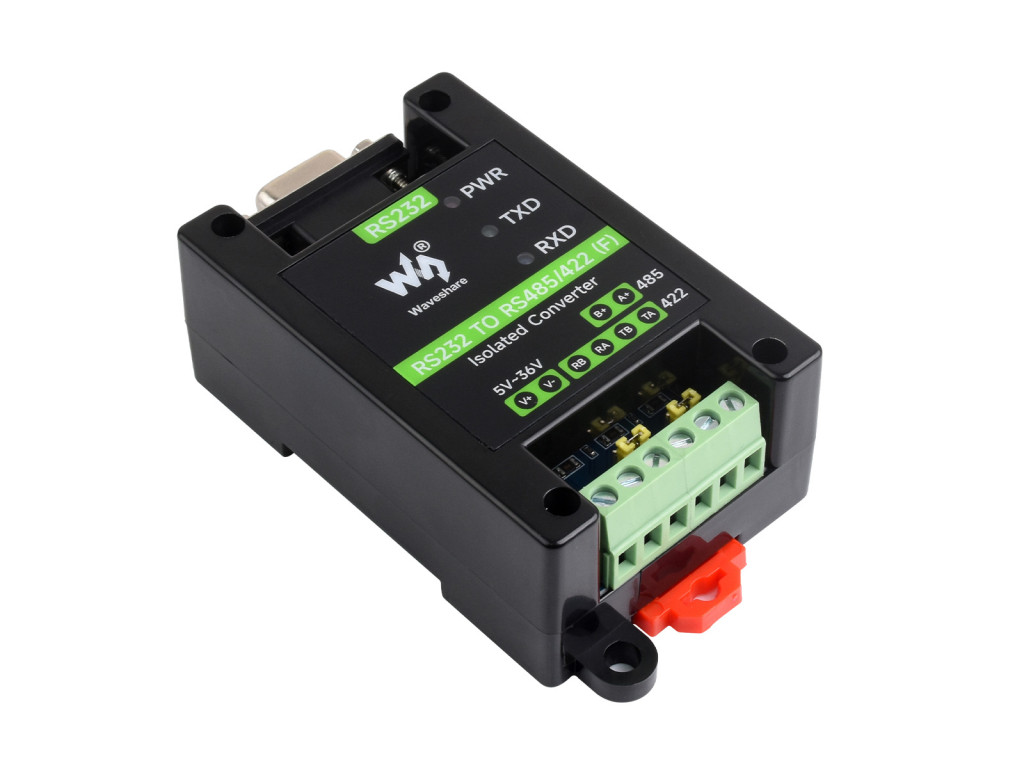

• Onboard power supply screw terminal, allows 5V~36V DC wide range input
• 3 LEDs for indicating the power and transceiver status

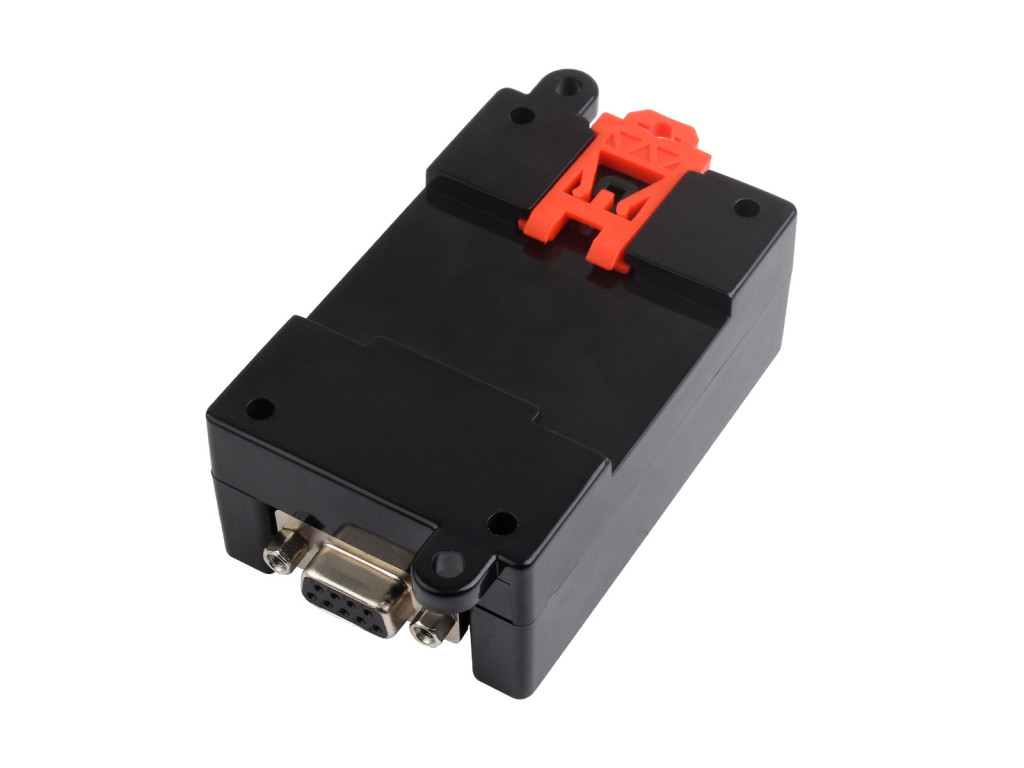

• Industrial rail-mount ABS case design, small in size, easy to install, and cost-effective

Converting the RS232 signal into balanced differential RS485/422 signal for interface converting, expanding nodes and long-distance communication.

• Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
• Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption

Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection. Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance.

The RS232 signal can be converted into a balanced differential RS485/422 signal with stable transmission rate, the transmission distance is about 1.2km for RS485/422

---

WIKI:www.waveshare.com/wiki/RS232_TO_RS485/422

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
