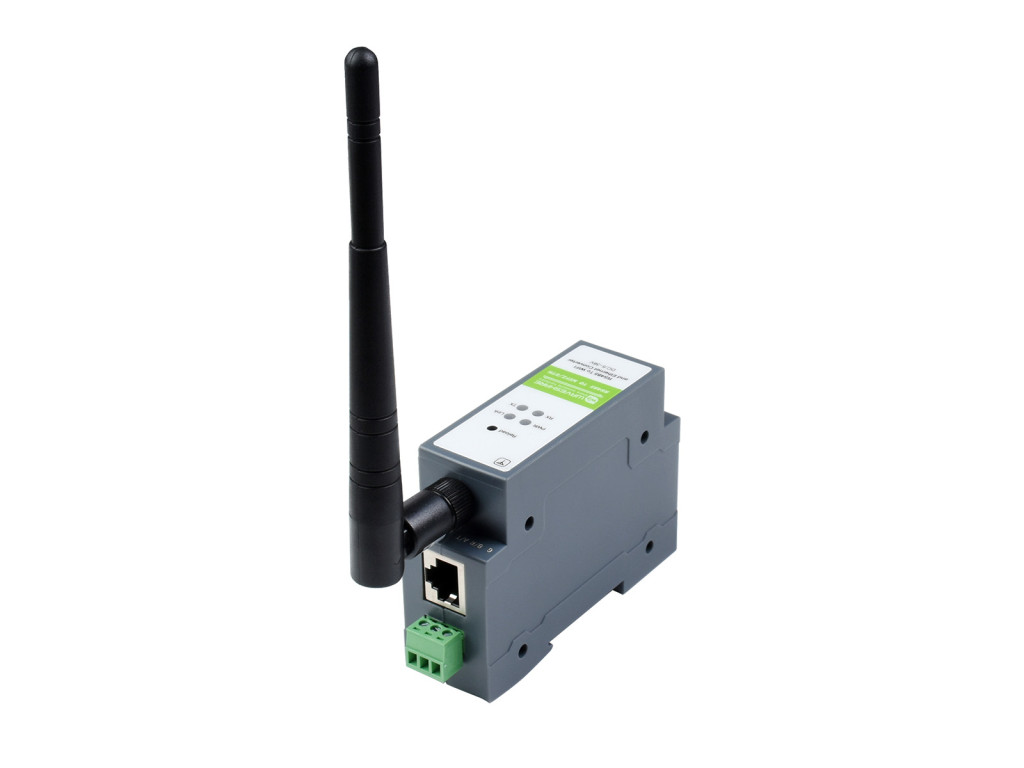

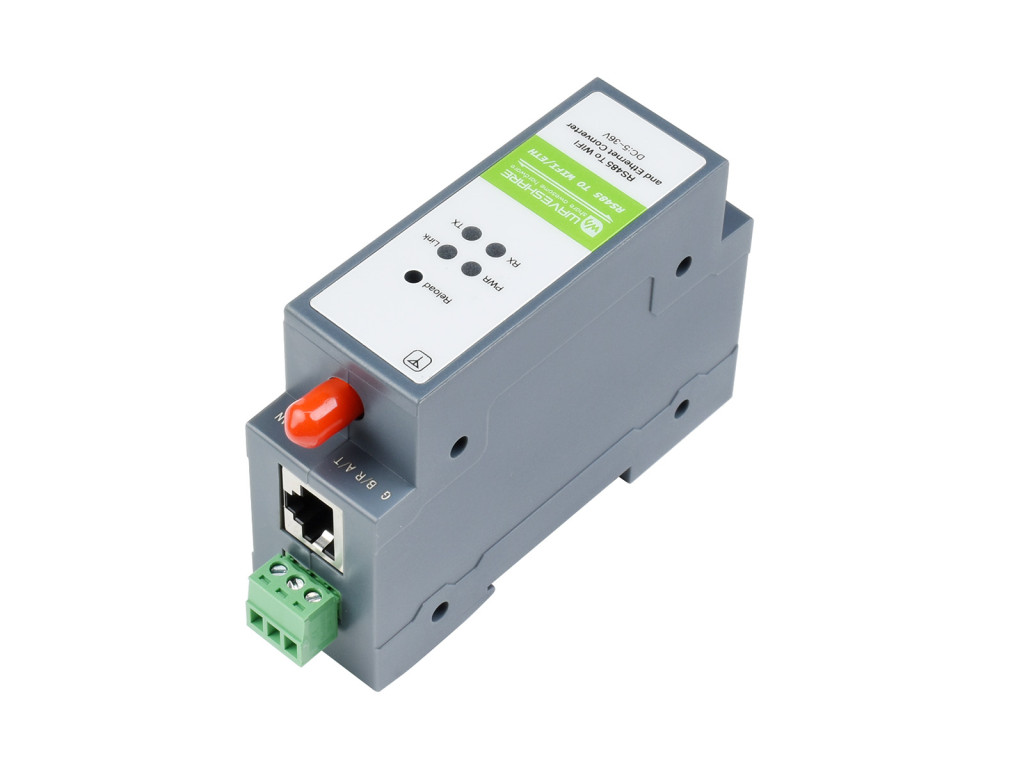

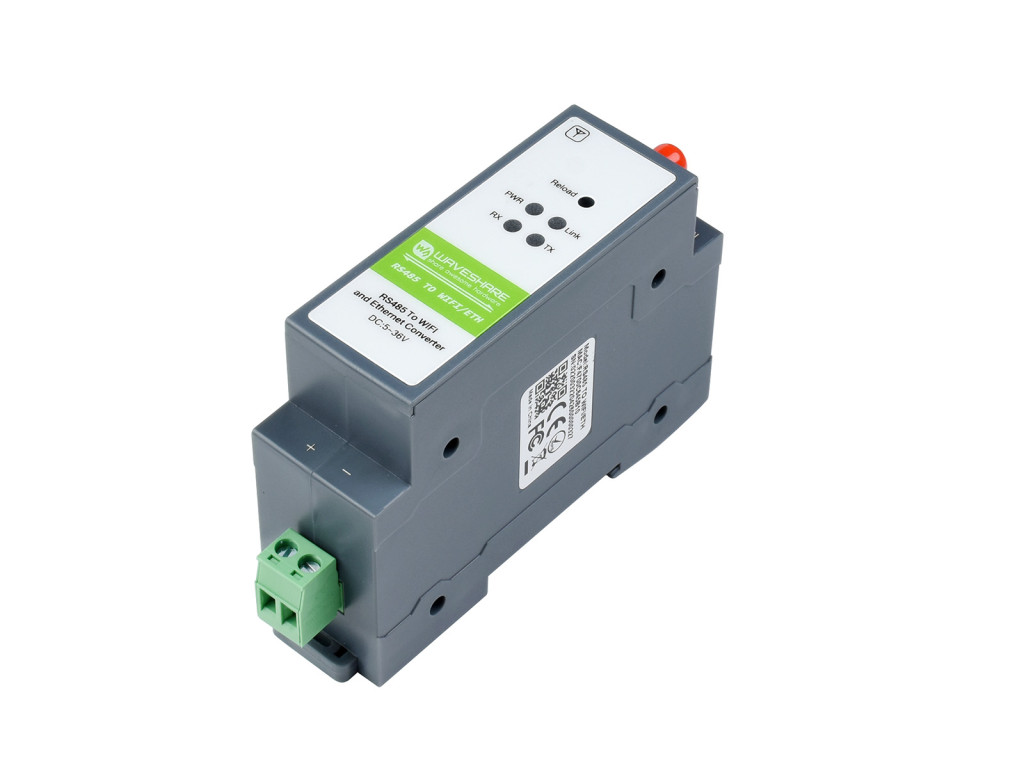

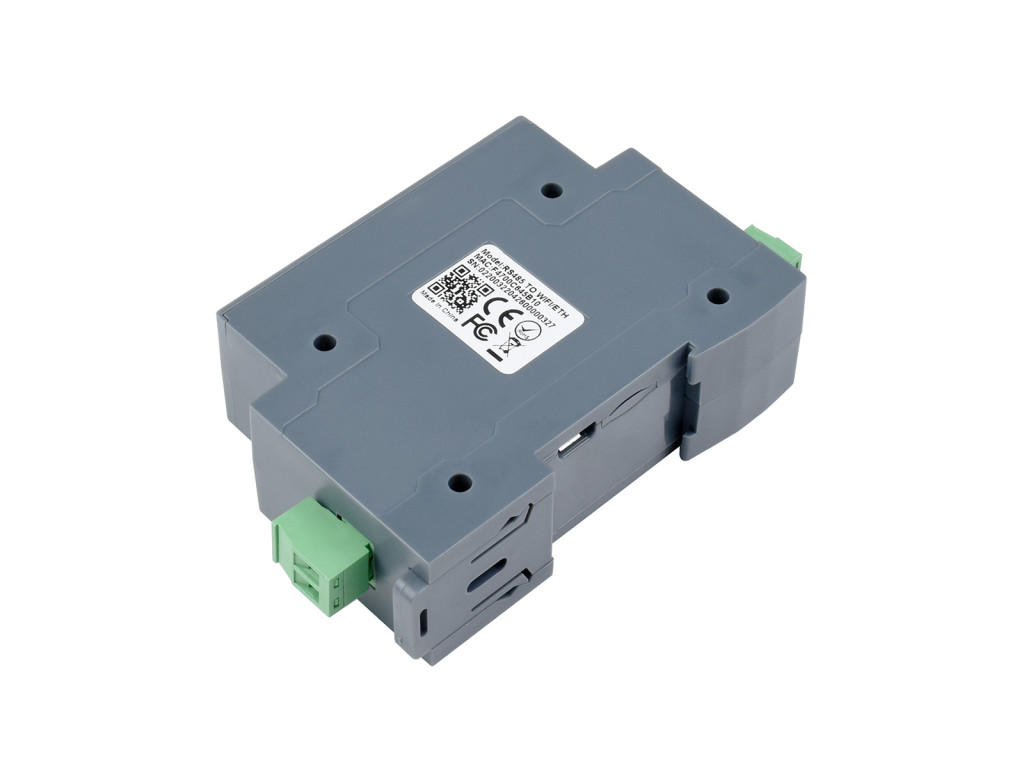

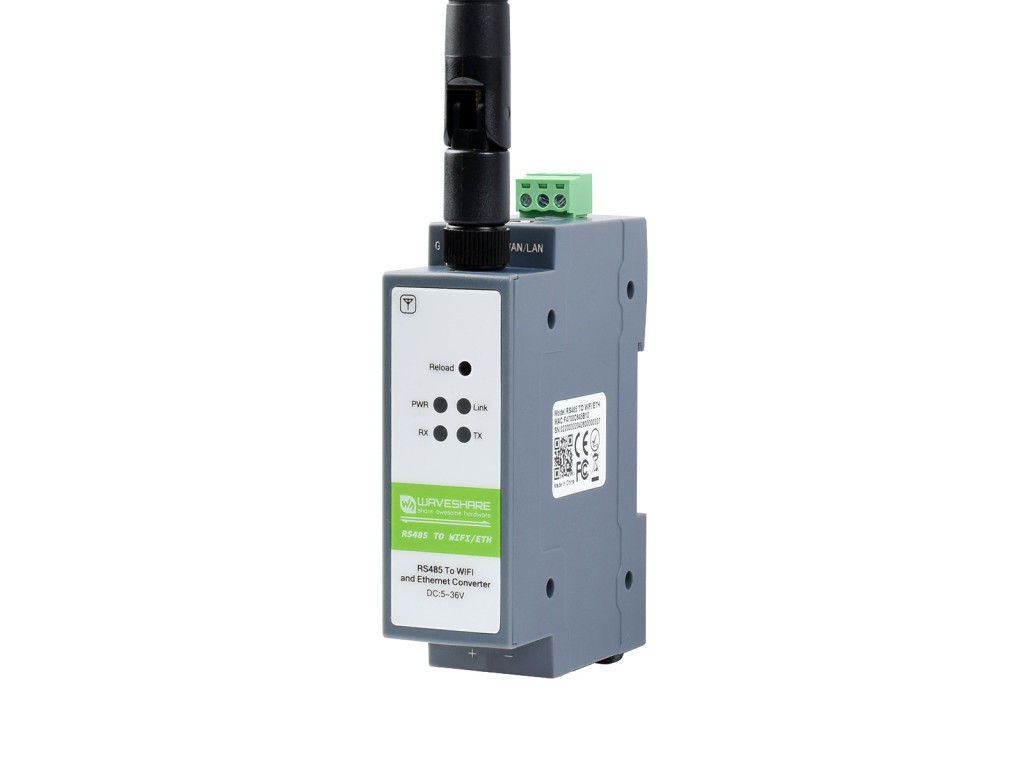

Sínre szerelhető soros szerver, RS485-WIFI/Ethernet modul, Modbus MQTT gateway

Name: Sínre szerelhető soros szerver, RS485-WIFI/Ethernet modul, Modbus MQTT gateway
Brand: Waveshare
SKU: RPI-WS21968
Price: 29850 HUF
Availability: InStock

23 504 Ft + ÁFA | Bruttó:29 850 Ft

Kosárba

Olcsóbban szeretném

Sínre szerelhető soros szerver, RS485-WIFI/Ethernet modul, Modbus MQTT átjáró

Részletek Adatok Csomag tartalma

Rail-Mount Serial Server, RS485 to WIFI/Ethernet Module, Modbus MQTT Gateway

RS485 to WIFI/Ethernet Module

Rail-mount RS485 serial server

Modbus Gateway

MQTT Gateway

Features at a glance

This is a RS485 device data acquisitor / IoT gateway designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to HTTPD Client, etc. With RS485, WIFI and Ethernet ports, the module can realize functions such as serial to WIFI, serial to Ethernet, Ethernet to WIFI and so on. Using screw terminals for power input, it supports 5~36V wide range power supply. Rail-mount V0 flame-retardant case design, small in size, easy to install. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring...

Specifications

Outline
Communication interface	RS485, screw terminal
Power supply	5 ~ 36V DC, screw terminal
Case	PC + ABS, V0 flame retardant grade
Dimensions	L × W × H: 109.66 × 28 × 64.71 mm
Communication
Ethernet	10 / 100M auto-negotiation RJ45 connector
WIFI	802.11b/g/n compliant
Serial port	RS485 interface (Anti-surge, Lightningproof, Over-current protection)
Wireless specification
Frequency Band	2.412 ~ 2.484 GHz
Wireless network	Station / AP / AP+Station Mode
Security mechanism	WPA-PSK / WPA2-PSK
Encryption type	TKIP / AES
Transmitting power	802.11b: +19dBm (Max.@11Mbps) 802.11g: +18dBm (Max.@54Mbps) 802.11n: +17dBm (Max.@HT20, MCS7); +17dBm (Max.@HT40, MCS7)
Receiving sensitivity	802.11b: -89dBm (@11Mbps) 802.11g: -81dBm (@54Mbps) 802.11n: -73dBm (@HT20, MCS7); -71dBm (@HT40, MCS7)
Serial specification
Baudrate	300 ~ 460800 bps
Parity bit	none, odd, even, mark, space
Data bit	5 ~ 9 bits
Flow control	N/A
Software
Protocol	TCP / UDP / ARP / ICMP / DHCP / DNS / HTTP / MQTT
Configuration	host, web browser, serial AT command
Communication method	TCP/IP direct communication, VCOM
Operating mode	Transparent transmission, serial command, HTTPD Client, Modbus TCP to Modbus RTU
Environment requirement
Operating temperature	-40℃ ~ 85℃
Storage temperature	-45℃ ~ 125℃
Humidity range	5% ~ 95% relative humidity

Primary function

Support RS485 to WIFI, RS485 to Ethernet, Ethernet to WIFI, etc.

Rail-mount Serial Server

Industrial Rail-mount Support, Easy to Install, Compact Size, Cost-effective

Function Block Diagram

Support Transparent Transmission Mode

Supports TCP Server / TCP Client / UDP Server / UDP Client

Serial Command Mode

The user sends data to the server according to the protocol Send data to different servers without restarting

Support HTTPD Client Mode

After the user has set the HTTP header through AT commands or web page, the module can send data to the HTTP server, or obtain data from the HTTP server

Support MQTT function

Devices can subscribe to other MQTT client messages, and can publish topic information to the server. Supports subscription of 6 messages and publication of 6 topics, wider range of use and more applicable scenarios. Users can view device-related information through terminal devices or cloud platforms

Modbus Gateway support

Support Modbus TCP and Modbus RTU interconversion mode

AT command mode

The user can query the current status of the module, or set related parameters, by sending AT commands

Features

Multi Configuration MethodsSupports muliti configuration methods such as hosts, Web Browser and serial port Configuration

Socket Distribution ProtocolIn the transparent transmission mode, the serial device can send data to the specified Socket link; the network data of each Socket is sent to the serial device through the serial port.

Hardware ProtectionESD Level 4 Static Protection, Level 3 Surge Protection, EFT Level 3 Electrical Fast Transient/Burst Protection.

Customized registration packets, heartbeat packetsThe registration package is used to identify the device information to the server, so that the server can identify the device.

Interface introduction

Outline dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/RS485_TO_WIFI/ETH

Selection guide

Model	network port	Isolation Protection	Serial Port Type	Power Supply methods	Voltage Range	Dimensions (L × W × H)
RS485 TO ETH (B)	Common network port	-	Single serial port server	Screw terminal	DC 9~24V	87.0×36.0×59.0mm
RS485 TO POE ETH (B)	PoE network port	Power isolation, Signal isolation	Single serial port server	Screw terminal + PoE port	DC 6V~36V	87.0×36.0×59.0mm
RS485 TO ETH (C)	Common network port	Power isolation, Signal isolation	Single serial port server	Screw terminal	DC 6V~36V	87.0×36.0×59.0mm
RS232 TO ETH (B)	Common network port	Power isolation, Signal isolation	Single serial port server	Screw terminal	DC 6V~36V	87.0×36.0×59.0mm
RS232 TO POE ETH (B)	PoE network port	Power isolation, Signal isolation	Single serial port server	Screw terminal + PoE port	DC 6V~36V	87.0×36.0×59.0mm
RS232/485/422 TO ETH (B)	Common network port	Power isolation, Signal isolation	RS232/485/422 choose one, single serial port server	Screw terminal + DC 5.5 power port	DC 6V~36V	88.7×72.5×24.2mm
RS232/485/422 TO POE ETH (B)	PoE network port	Power isolation, Signal isolation	RS232/485/422 choose one, single serial port server	Screw terminal + PoE port + DC 5.5 power port	DC 6V~36V	88.7×72.5×24.2mm
2-CH RS485 TO ETH (B)	Common network port	Power isolation, Signal isolation	Dual serial ports server	Screw terminal + DC 5.5 power port	DC 6V~40V	78.0×72.5×24.2mm
2-CH RS485 TO POE ETH (B)	PoE network port	Power isolation, Signal isolation	Dual serial ports server	Screw terminal + PoE port + DC 5.5 power port	DC 6V~40V	78.0×72.5×24.2mm
RS232 RS485 TO ETH (B)	Common network port	Power isolation, Signal isolation	Dual serial ports server	Screw terminal + DC 5.5 power port	DC 6V~40V	78.0×72.5×24.2mm
RS232 RS485 TO POE ETH (B)	PoE network port	Power isolation, Signal isolation	Dual serial ports server	Screw terminal + PoE port + DC 5.5 power port	DC 6V~40V	78.0×72.5×24.2mm
4-CH RS485 TO ETH (B)	Common network port	Power isolation, Signal isolation	4 serial ports server	Screw terminal	DC 6V~40V	91.0×64.5×24.2mm
4-CH RS485 TO POE ETH (B)	PoE network port	Power isolation, Signal isolation	4 serial ports server	Screw terminal + PoE port	DC 6V~40V	91.0×64.5×24.2mm
8-CH RS485 TO ETH (B)	Common network port	Power isolation, Signal isolation	8 serial ports server	Screw terminal	DC 7V~36V	93×103.5×29.7mm
8-CH RS485 TO POE ETH (B)	PoE network port	Power isolation, Signal isolation	8 serial ports server	Screw terminal + PoE port	DC 7V~36V	93×103.5×29.7mm
