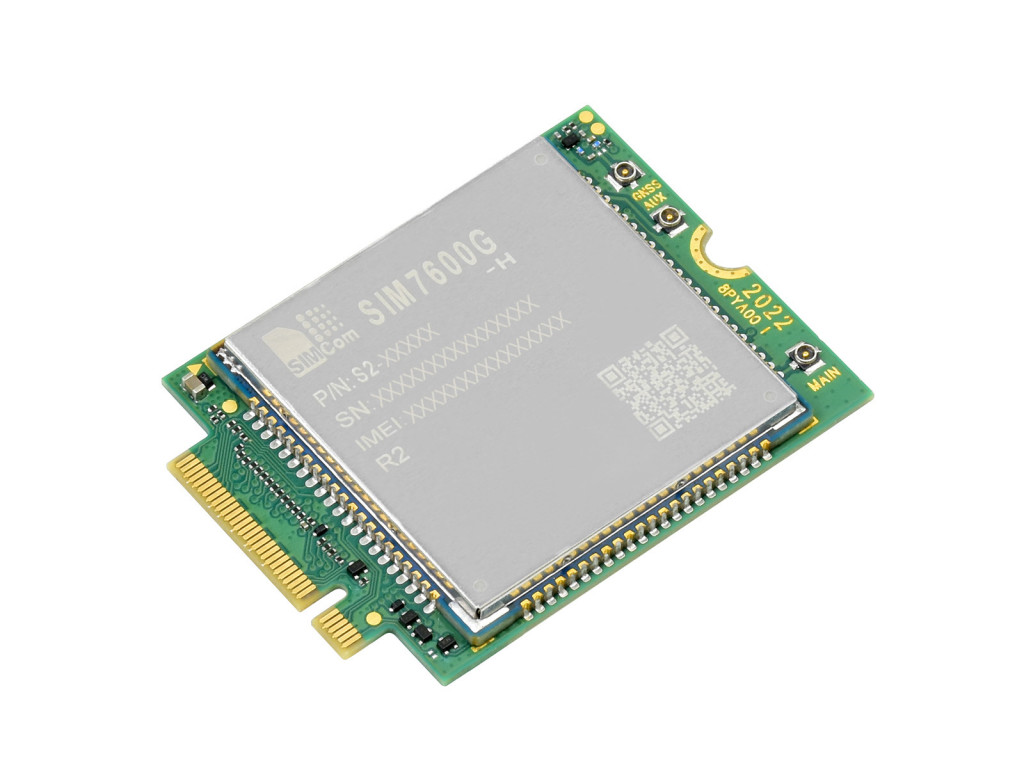

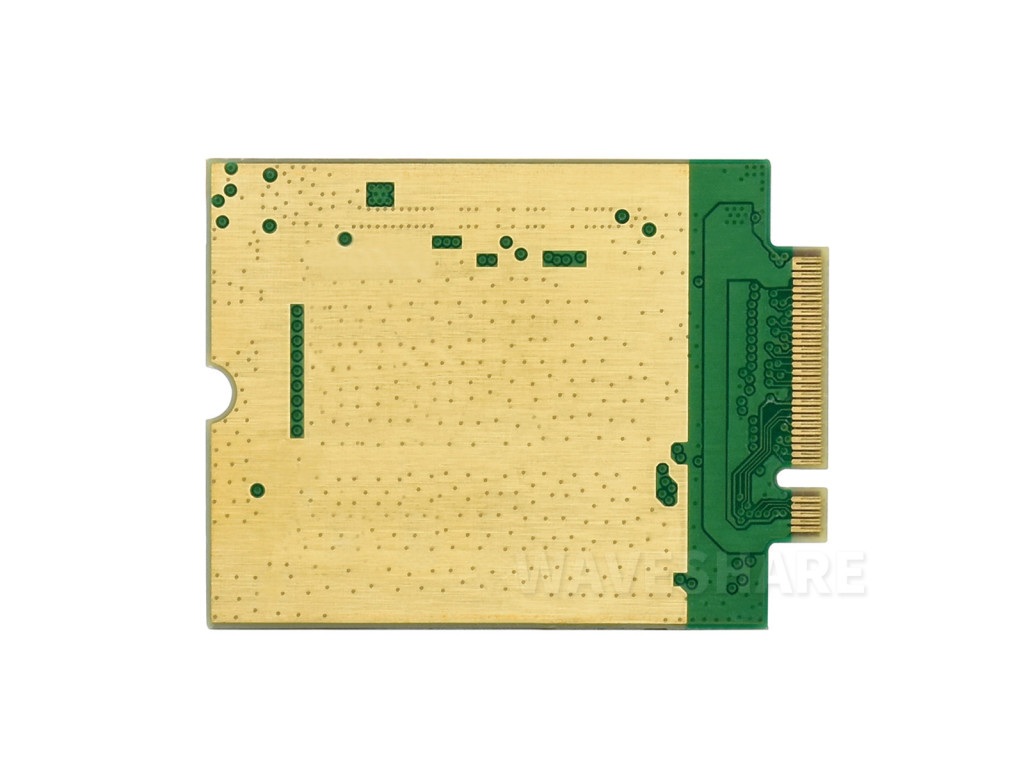

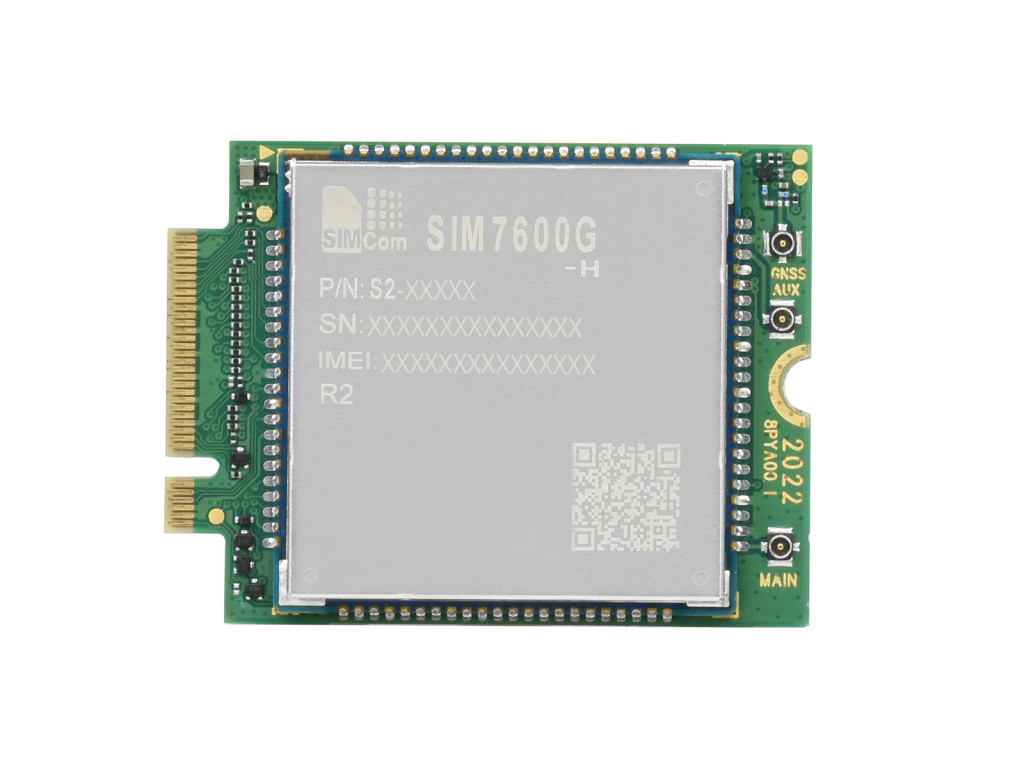

SIM7600G-H-M.2 SIMCom eredeti 4G LTE Cat-4 modul, globális lefedettség, GNSS, M.2 csatlakozó

ÚJ
Raktárkészlet: VAN
SIM7600G-H-M.2 SIMCom eredeti 4G LTE Cat-4 modul, globális lefedettség, GNSS, M.2 csatlakozó
  • SIM7600G-H-M.2 SIMCom eredeti 4G LTE Cat-4 modul, globális lefedettség, GNSS, M.2 csatlakozó
  • SIM7600G-H-M.2 SIMCom eredeti 4G LTE Cat-4 modul, globális lefedettség, GNSS, M.2 csatlakozó
18 832 Ft + ÁFA | Bruttó:23 917 Ft
db Kosárba Kosárba
Olcsóbban szeretném
SIM7600G-H-M.2 SIMCom eredeti 4G LTE Cat-4 modul, globális lefedettség, GNSS támogatással, M.2 B KEY csatlakozó, LTE-TDD, LTE-FDD, HSPA+, GSM, GPRS, EDGE
Részletek Adatok Csomag tartalma
  • Prohibited by the module manufacturer SIMCOM, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.
    SIM7600G-H-M.2 SIMCom original 4G LTE Cat-4 module, global coverage, with GNSS support, M.2 B KEY connector, LTE-TDD, LTE-FDD, HSPA+, GSM, GPRS, EDGE
    SIM7600G-H-M.2

    LTE Cat-4 module, M.2 B KEY

    The SIM7600G-H-M.2 series is the LTE Cat 4 module which supports wireless communication modes of LTE-TDD/ LTE-FDD/HSPA+/GSM/GPRS/EDGE etc. It supports maximum 150Mbps downlink rate and 50Mbps uplink rate.

    The SIM7600G-H-M.2 series adopts M.2 form factor and consists of a SIM7600-H series module and a M.2 adapter board. It is easy for customers to integrate.

    The SIM7600G-H-M.2 series integrates multiple satellite high accuracy positioning GNSS systems, with multiple built-in network protocols, supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function, AT commands are compatible with SIM7500/SIM7600 series modules.

    Meanwhile the SIM7600G-H-M.2 series integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, GPIO, which is suitable for main IoT applications such as telematics, surveillance devices, CPE, industrial routers, and remote diagnostics etc.

    Product Advantages
    • M.2 interface with strong compatibility
    • Multi-constellation GNSS receiver support
    • Suitable for LTE, UMTS and GSM networks with global coverage
    • Abundant software functions: FOTA, LBS, TLS
    • AT commands of the SIM7600-H-M2 series are compatible with the SIM7500/SIM7600 series modules
    Specifications
    Frequency Band
    LTE-FDDB1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66
    LTE-TDDB34, B38, B39, B40, B41
    WCDMAB1, B2, B4, B5, B6, B8, B19
    GSM850, 900, 1800, 1900MHz
    GNSSGPS, Beidou, GLONASS, GALILEO, QZSS
    Data Transfer
    LTE150 Mbps (DL)  /  50 Mbps (UL)
    HSPA+42 Mbps (DL)  /  5.76 Mbps (UL)
    WCDMA384 Kbps (DL)  /  384 Kbps (UL)
    EDGE236.8 Kbps (DL)  /  236.8 Kbps (UL)
    GPRS85.6 Kbps (DL)  /  85.6 Kbps (UL)
    Software Features
    Operating systemWindows/Linux/Android
    ProtocolTCP, IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, DNS
    SMSSupports MT, MO, CB, Text, PDU
    Firmware upgradeUSB/FOTA
    Hardware Specifications
    SIM card1.8V/3.0V
    Antenna interfaceIPEX-4 connector (LTE main antenna + LTE diversity antenna + GNSS antenna)
    Power supply3V ~ 4.2V
    Form factorM.2 B KEY
    Dimensions42.0 × 31.4 × 3.8mm
    Operating temperature-40℃ ~ +85℃
    Applications
    Applicable regionsglobal coverage
    ExamplesHealthcare, smart payment, Internet talk, environmental monitoring, energy monitoring, fleet management, smart industry, intelligent agriculture, etc.
    Resources & Services
    Wiki:SIM7600G-H-M.2
  • Brand
    SIMCom
    PartNumber
    SIM7600G-H-M.2
    Raktárkészlet
    VAN
    Cikkszám
    RPI-WS19458
    Státusz
    ÚJ
    1. SIM7600G-H-M.2 x1
:
;
