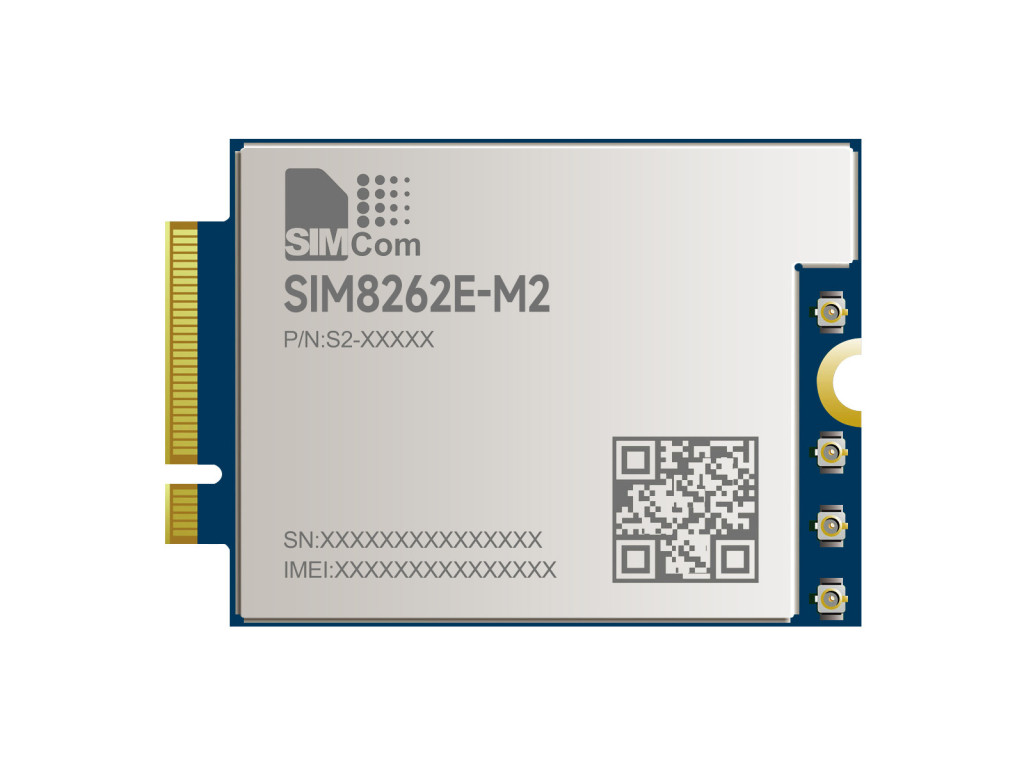

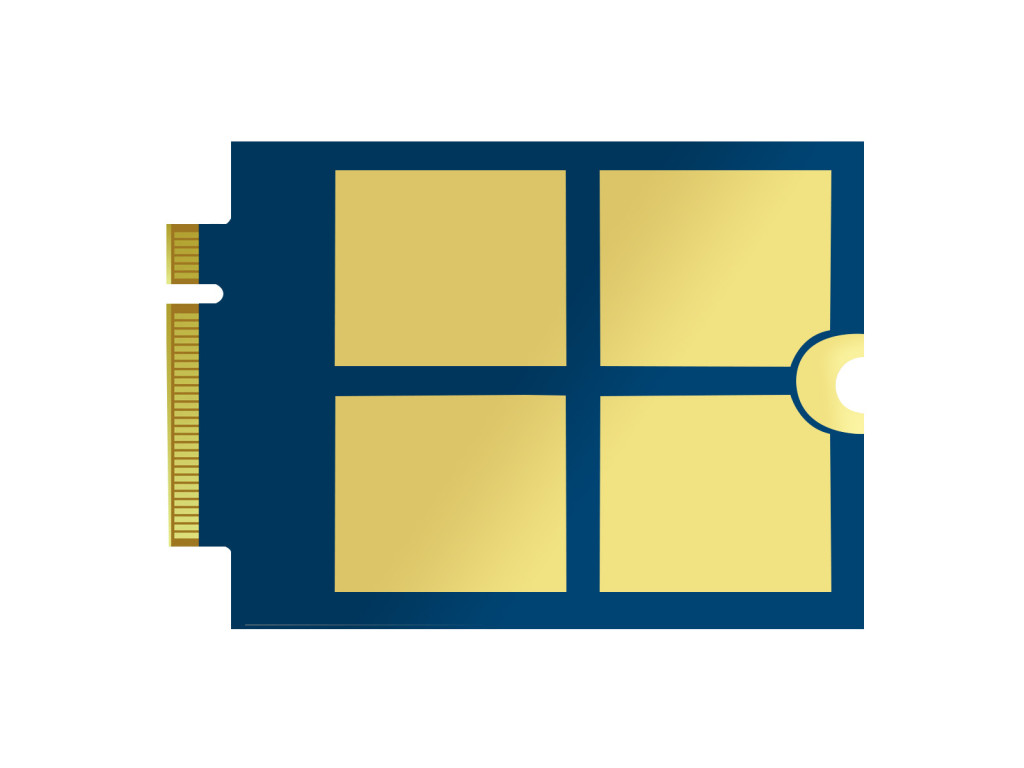

SIM8262E-M2 SIMCom eredeti 5G modul, M.2 formátum, Qualcomm Snapdragon X62

ÚJ
Raktárkészlet: VAN
SIM8262E-M2 SIMCom eredeti 5G modul, M.2 formátum, Qualcomm Snapdragon X62
  • SIM8262E-M2 SIMCom eredeti 5G modul, M.2 formátum, Qualcomm Snapdragon X62
93 283 Ft + ÁFA | Bruttó:118 470 Ft
db Kosárba Kosárba
Olcsóbban szeretném
SIM8262E-M2 SIMCom eredeti 5G modul, M.2 formátum, Qualcomm Snapdragon X62
Részletek Adatok Csomag tartalma
  • Prohibited by the module manufacturer SIMCOM, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.
    SIM8262E-M2 SIMCom original 5G module, M.2 form factor, Qualcomm Snapdragon X62
    SIM8262E-M2

    SIMCom 5G Module Sub-6G Module Based on Qualcomm Snapdragon X62 Adopt 3GPP 5G Release 16

    The SIM8262E-M2 is the Multi-Band 5G NR/LTE-FDD/LTE-TDD/HSPA+ module which supports R16 5G NSA/SA up to 2.4Gbps data transfer.

    It has strong extension capability with abundant interfaces including PCIe, USB3.1, GPIO etc. The module provides much flexibility and ease of integration for customer's applications.

    The SIM8262E-M2 adopts M.2 form factor, and AT commands are compatible with the SIM7912G/SIM8200X-M2 series modules. This also minimizes the investments of customers and enables a short time-to-market.

    It is designed for applications that need high throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for many applications.

    Product Advantages
    • Standard M.2 interface.
    • High throughput data communication.
    • AT commands of the SIM8262E-M2 are compatible with SIM7912G/SIM8200X-M2 series modules
    Specifications
    SIM8200EA-M2SIM8202G-M2SIM8262E-M2SIM8262A-M2
    5G Standard3GPP R153GPP R16
    ChipQualcomm Snapdragon X55Qualcomm Snapdragon X62
    Frequency band
    Sub-6Gn1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n48, n66, n71, n78n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n66, n71, n77, n78, n79n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78,n79n1, n2, n5, n7, n12, n13, n14, n18, n20, n25, n30, n41, n48, n66, n71, n77, n78, n79
    LTE-FDDB1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32B1,B2, B4, B5, B7, B12, B13, B14, B17, B18, B19, B25, B26, B29, B30, B66, B71
    LTE-TDDB34, B38, B39, B40, B41, B42, B43, B48B38, B39, B40, B41, B42, B43B38,B41,B42,B43, B46, B48
    WCDMAB1, B2, B3, B4, B5, B8B1, B5, B8B1,B2,B4,B5,B8
    GNSSGPS, GLONASS, Beidou, Galileo, and QZSS
    Data rate
    Sub-6G2.4 Gbps (DL) / 500 Mbps (UL)
    LTE1 Gbps (DL) / 200 Mbps (UL)
    HSPA+42 Mbps (DL) / 5.76 Mbps (UL)
    Software functions
    Operating systemsWindows/Linux/Android
    Communication protocolsTCP/IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, MQTTS, DNS, SSL3.0
    Dial UpRNDIS、NDIS、PPP、MBIM
    SMSSupports MT, MO, CB, Text, PDU
    Firmware upgradeSupports firmware upgrade via USB port
    Hardware Specifications
    SIM Card1.8V/2.95V
    AntennaFor 3G/4G/5G/GNSS
    6 × IPEX-4 connectors4 × IPEX-4 connectors
    Power Supply3.135~4.4V
    Form FactorM.2
    Dimensions52.0 × 30.0 × 2.3 mm42.0 × 30.0 × 2.3 mm
    Operating Temperature-30℃ ~ +70℃
    Applications
    Applicable regionsexcept AmericasAmericas
    The applicable regions above are for reference only, please choose the right module according to your local operator network coverage and supported frequency bands
    Application examplesCPE, Smart gateway, Live streaming, Remote medical treatment, Intelligent security
