Termék részletek

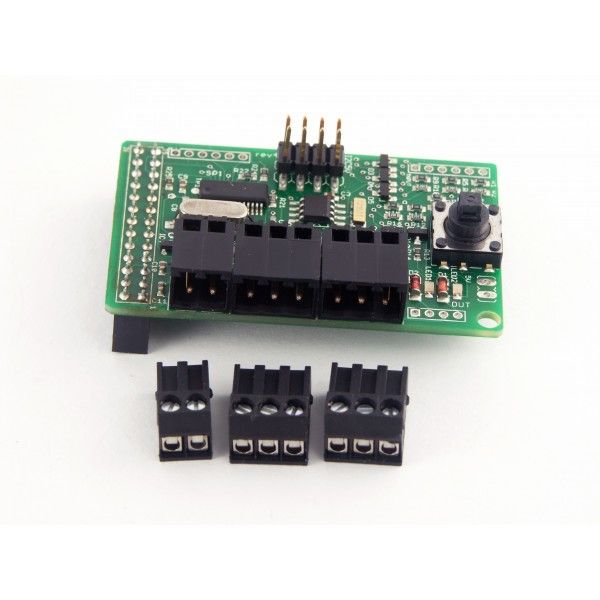

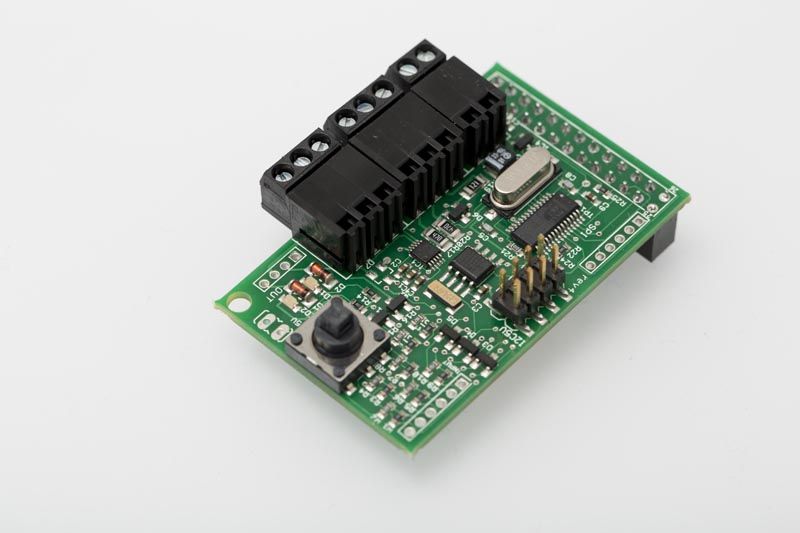

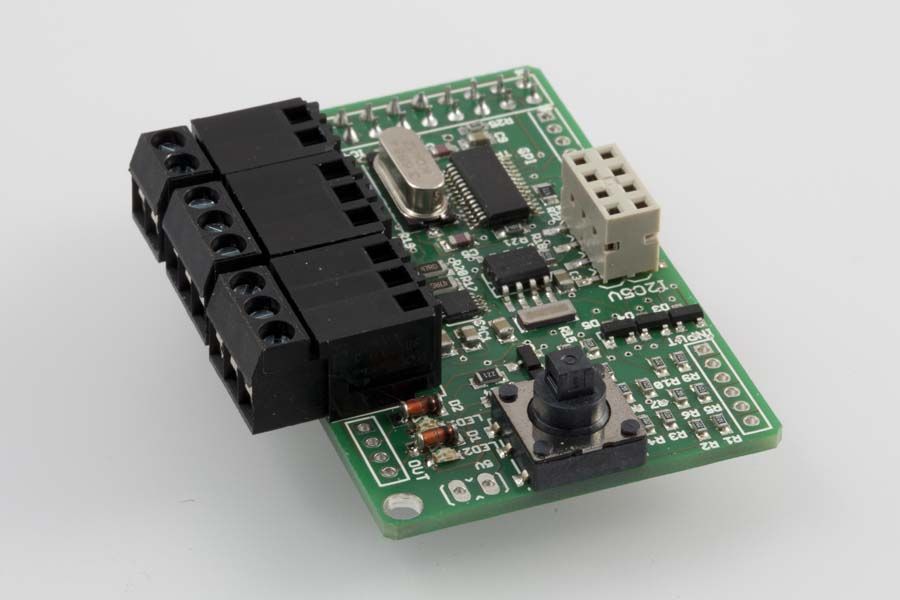

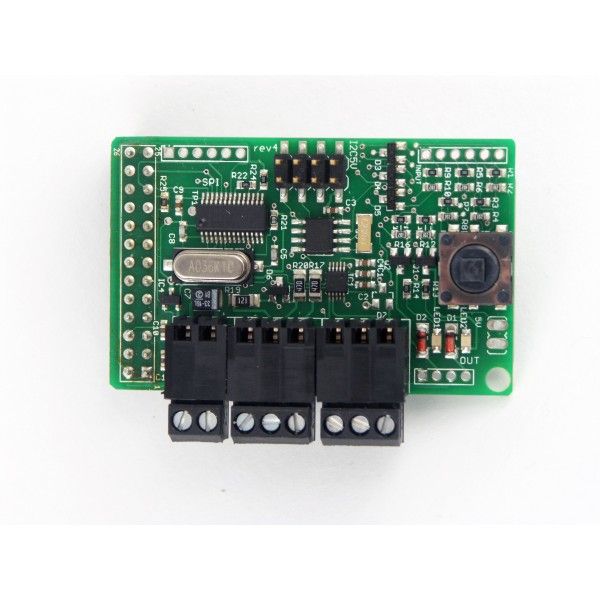

RaspiComm RS232/RS485 kommunikációs modul Raspberry PI-hez
-
Leírás
A RaspiComm kommunikációs kártyával a Raspberry PI számítógép az ipari kontrollerek táborába lép.
Egyszerűen alakítható ki vele intelligens vezérlő, mely a szabványos RS232 és/vagy RS485 soros kommunikációt használja.
Ezen képességein felül a kártya tartalmaz real time clock óramodult, hogy hálózati kapcsolat nélkül is képes legyen az időt kezelni. Valamint ki- és bemeneti digitális IO portokat, I2C interfészt, további eszközkök (pl LCD, relé stb...) közvetlen vezérléséhez.
Saját driver biztosítja a közvetlen programozhatóságot. Akár 'C'-ből, vagy Pythonból is elérhető.

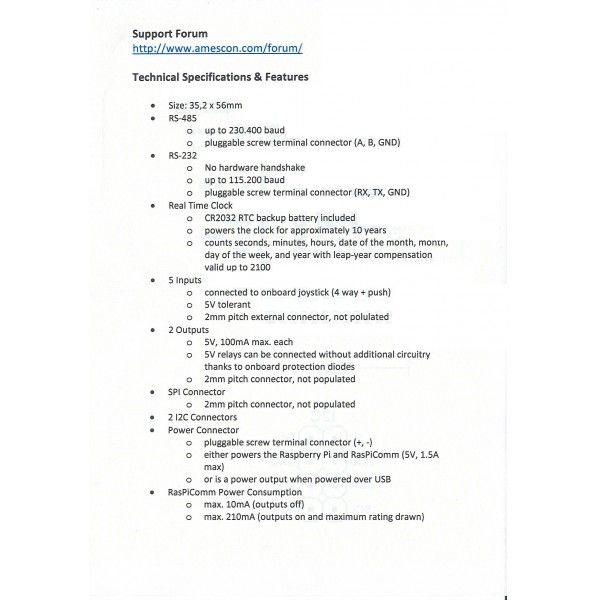

Technical Specifications & Features
- Size: 35,2 x 56mm
- RS-485
- up to 230.400 baud
- pluggable screw terminal connector (A, B, GND)
- RS-232
- no hardware handshake
- up to 115.200 baud
- pluggable screw terminal connector (RX, TX, GND)
- Real Time Clock

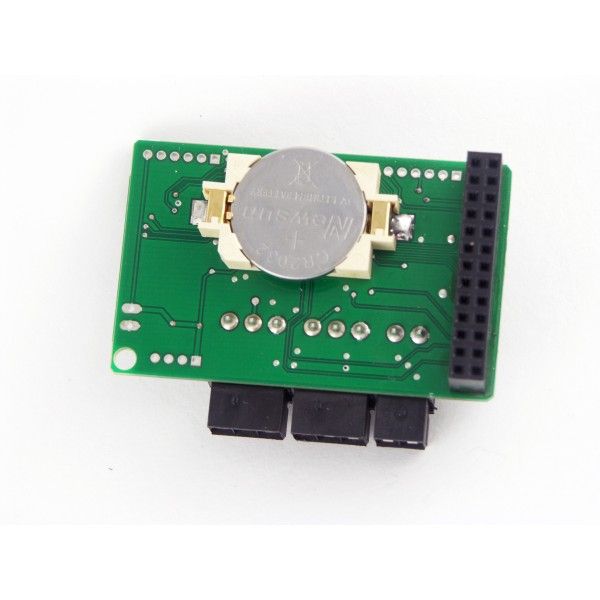

- CR2032 RTC backup battery included
- powers the clock for approximately 10 years
- counts seconds, minutes, hours, day of the week, date (day, month, and year) with leap-year compensation valid up to 2100
- 5 Inputs
- connected to onboard joystick (4 way + push)
- 5V tolerant
- 2mm pitch external connector, not populated
- 2 Outputs
- 5V, 100mA max. each
- 5V relays can be connected without additional circuitry thanks to onboard protection diodes
- 2mm pitch connector, not populated
- SPI Connector2 I2C Connectors
- 2mm pitch connector, not populated
- Power ConnectorRasPiComm Power Consumption
- pluggable screw terminal connector (+, -)
- either powers the Raspberry Pi and RasPiComm (5V, 1.5A max)
- or is a power output when powered over USB
- max. 10mA (outputs off)
- max. 210mA (outputs on and maximum rating drawn)
Linkek:
- Angol nyelvű felhasználói kézikönyv itt érhető el: Raspicomm_User_Manual.pdf
- Telepítési útmutató: http://www.amescon.com/products/getting-started.aspx
- Példa programok: http://www.amescon.com/products/sample-apps.aspx
- Fórum: http://www.amescon.com/forum.aspx
- http://www.amescon.com/media/3444/RaspiComm_rev5.pdf
-
Raktárkészlet NINCSCikkszám RPI-675463Státusz Megszűnt
