TOF (time of flight) Mini Laser Range Sensor, UART / I2C Communication Support, Long Range

Részletek Adatok Csomag tartalma

We cannot sell this product or provide any tech support to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.

TOF (time of flight) Mini Laser Range Sensor, UART / I2C Communication Support, Long Range

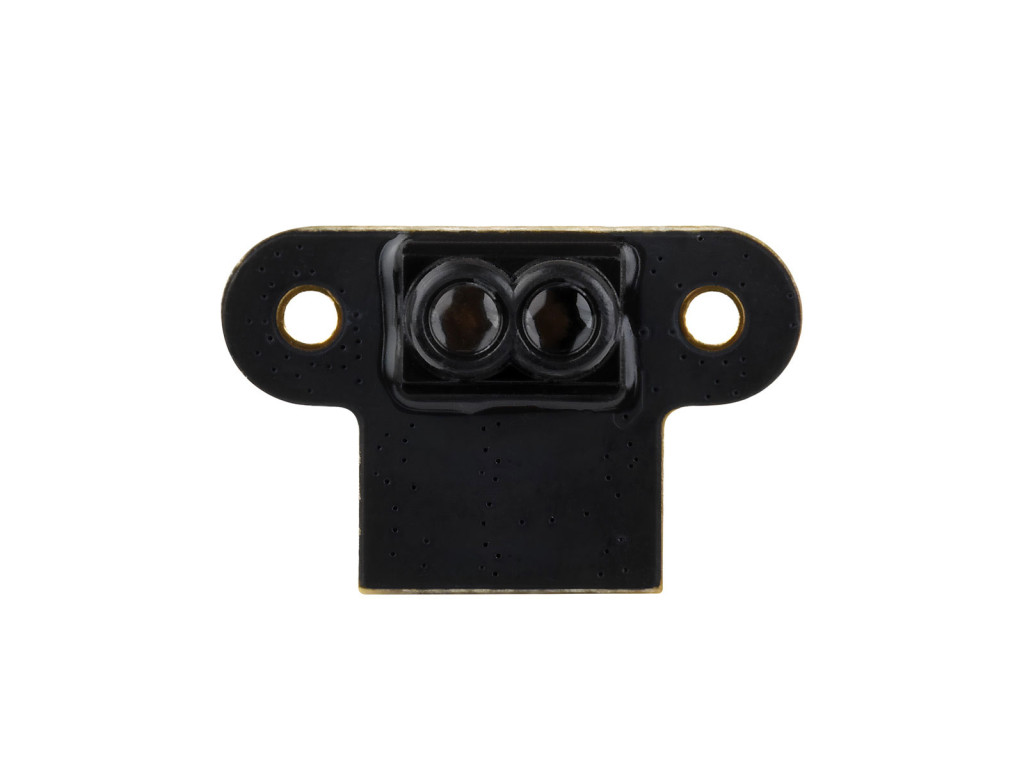

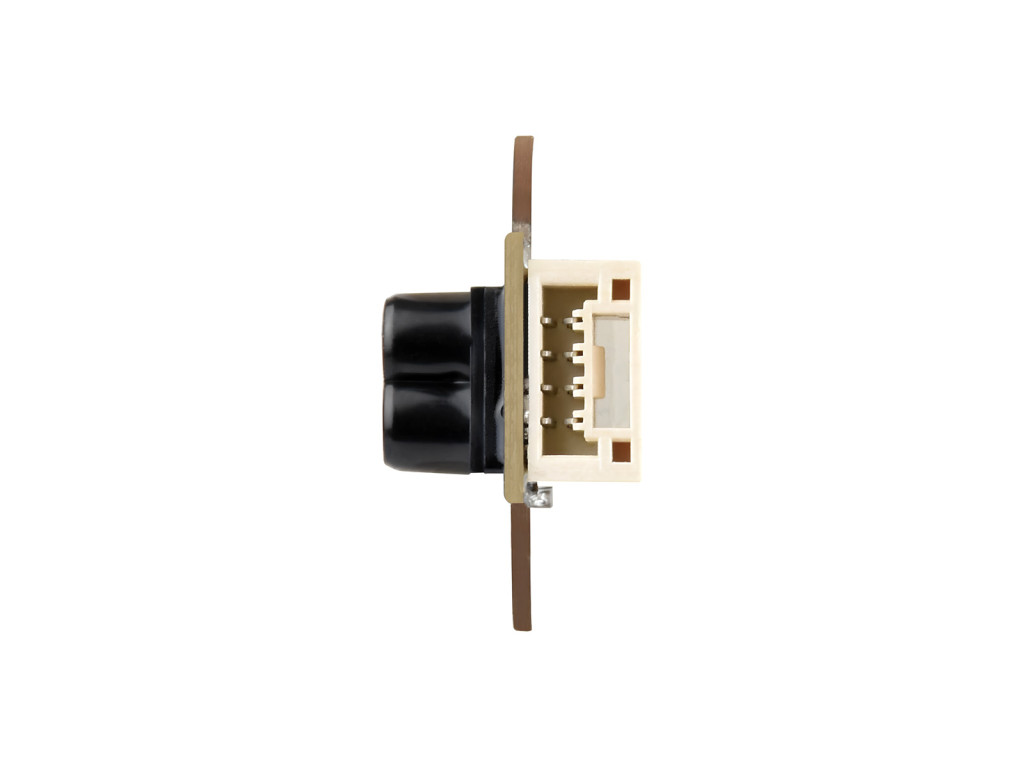

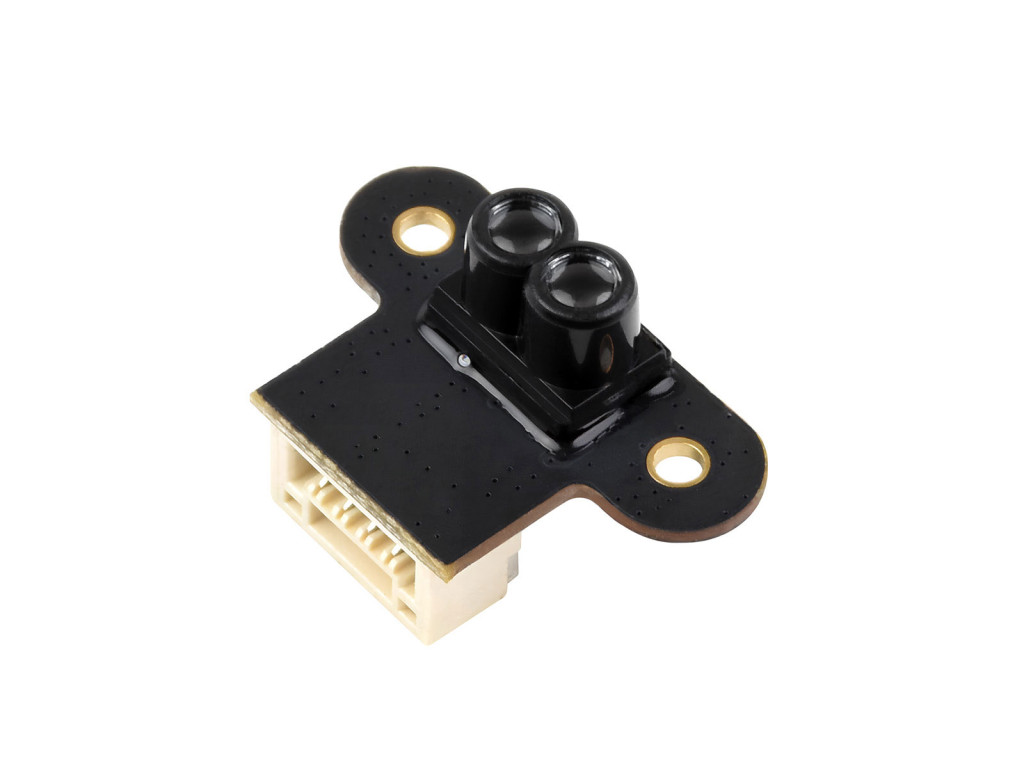

TOF Mini Laser Range Sensor

long range | short blind zone | stable/accurate/sensitive | indoor/outdoor

Product overview

This is a TOF-based (time of flight) mini laser ranging sensor with embedded MCU and ranging algorithm, which the measuring range is up to 7.8m and the accuracy is up to ±4cm. It supports UART or I2C communication bus, features longer measuring distance and higher light interference tolerance capability due to its ultra narrow FOV, suitable for either indoor or outdoor condition. And its ambient light tolerance is up to 100K LUX.

This sensor can be widely used in applications like common distance measuring, robot obstacle avoidance / route planning, as well as ceiling detection / stacking detection, and more...

Specifications

Typical measuring range	0.02m ~ 7.8m
Typical measuring accuracy	±4cm (0.02m ~ 7.8m)
Wavelength	940nm
Field of view (FOV)	2° ~ 3°
Communication interface	Default: UART (3.3V TTL signal level)
	I2C (cascading support, the slave address is 0x08+module ID)
	complementary I/O level output (distance parameter is not available in this mode)
Baudrate	UART: 4.8Kbps ~ 3000Kbps (921.6Kbps by default)
Baudrate	I2C: up to 400Kbps
Power supply	4.3 ~ 5.2V
Power consumption	100mW (UART active output, 5.0V power supply, 20mA current)
Weight	1g
Operating temperature	-10°C ~ 60°C
Dimensions	18.8mm × 12mm × 10.3mm (L × W × H)

Cost effective solution

0.02 ~ 7.8m long range low cost ranging modulehigh stability, high accuracy, high sensitivity ranging

TOF Mini Laser Range Sensor, long range low cost ranging module

UART / I2C / IO communication support

UART mode: supports active query outputI2C mode: up to 8x cascades I/O mode: unable to output distance parameter

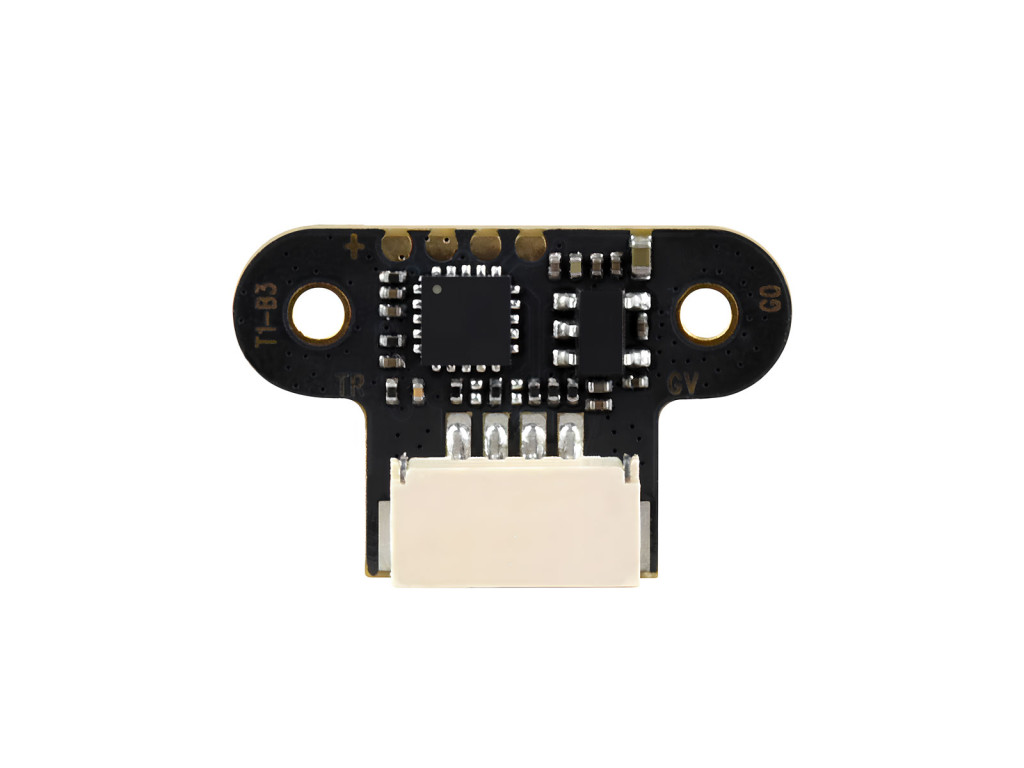

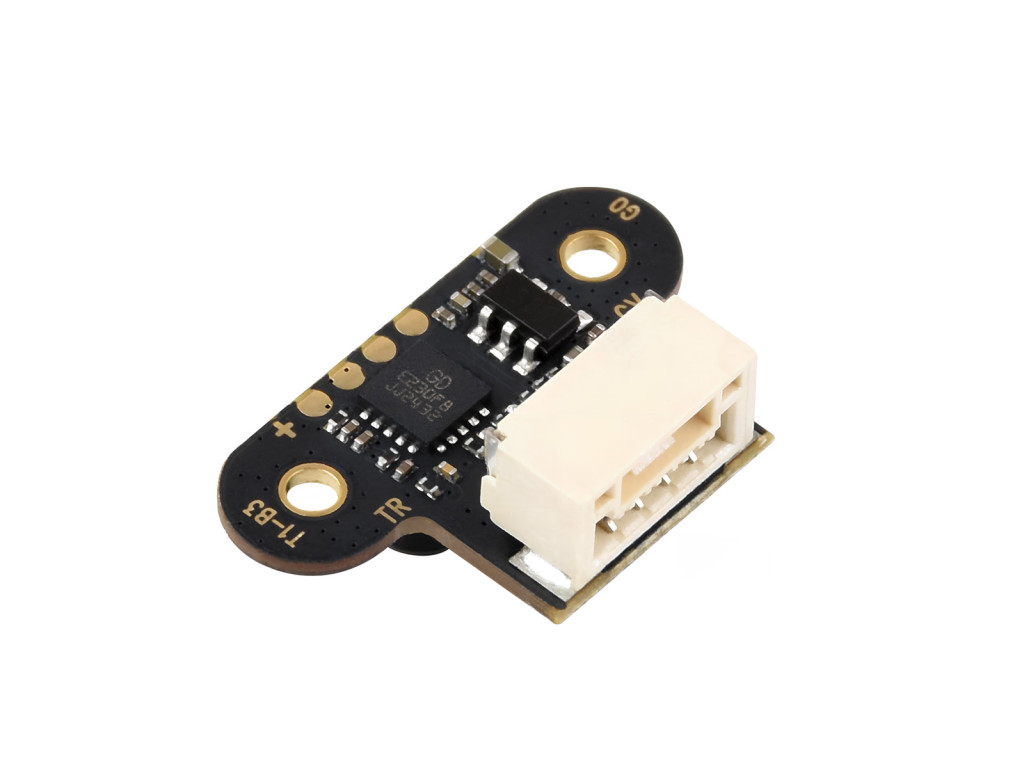

TOF Mini Laser Range Sensor, interfaces and mounting holes

applications

Hydraulic Stacking Detection

Hardware connection

connecting with Raspberry Pi (via I2C)

connecting with Raspberry Pi (via UART)

connecting with Raspberry Pi (via I/O pins)

for reference only, the Raspberry Pi board is NOT included.

Outline Dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/TOF_Laser_Range_Sensor_Mini

Selection guide

Version	TOF Laser Range Sensor					TOF MINIF Range Sensor		TOF MINIS Range Sensor	TOF MINI Range Sensor
Model	Standard	B	C	D	Mini	Standard	B	Standard	Standard
Typical measuring range	Short range: 0.012m ~ 2.16m	0.10m ~ 15.0m	0.05m ~ 25.0m	0.05m ~ 50.0m	0.02m ~ 7.8m	0.02m ~ 20m	0.02m ~ 5m		0.02m ~ 4m
	Mid range: 0.012m ~ 3.60m
	Long range: 0.01m ~ 5.00m
Typical measuring accuracy	Short range: accuracy ±1.0cm, standard deviation <0.3cm	0.10m ~ 2m ±2cm; 2m ~ 15m ±2%	0.05m ~ 25m ±3cm	0.05m ~ 50m ±3cm	0.02m ~ 7.8m ±4cm	<1m@±30mm, >1m@±3%
	Mid range: accuracy ±1.0cm,standard deviation <1.5cm
	Long range: accuracy ±1.5cm,standard deviation <0.5cm@0.01m~3m,standard deviation <8cm@3m~5m
Resolution	1mm					5mm
Power supply	4.3V ~ 5.2V	3.7V ~ 5.2V(reverse-proof)	4.3V ~ 5.2V			4V ~ 5.6V
Operating temperature	-10°C ~ 60°C					-20℃ ~ 70℃
Wavelength	940nm (Class1 standard compliant)	750nm ~ 830nm compliant with IEC 60825-1:2014 version 3 Class2 standard	905nm		940nm		940nm (Class1 standard compliant)
Field of view (FOV)	15° ~ 27° (adjustable)	1° ~ 2°			2° ~ 3°	3° ± 0.5°		1.48	25° ~ 30°
Communication interface	-							RS485 (Modbus RTU Server Mode)	-
	UART (3.3V TTL signal level)
	CAN(both of the two ports can be used as CAN simultaneously)	-
	-	I2C (cascading support, the slave address is 0x08 + module ID)				-
	complementary I/O level output	-	complementary I/O level output			-
Baudrate	UART: 115.2 ~ 3000K (921.6Kbps by default)		UART: 4.8Kbps ~ 3000Kbps(921.6Kbps by default))			UART: 115.2Kbps
Baudrate	CAN: 100Kbps ~ 3000Kbps(100Kbps by default)	I2C: up to 400Kbps				-
Cascade support	UART: supports up to 8x cascades CAN: supports up to 7x cascades	I2C: supports up to 8x cascades				-
Ambient light tolerance	weak tolerance, indoor only	about 100K LUX tolerance, suits both indoor and outdoor							20KLux (weak tolerance, indoor only)
Power consumption	290mW (UART active output, long-range mode, 5.0V power supply, 58mA current)	610mW (UART active output, 5.0V power supply, 122mA current)	250mW (UART active output, 5.0V power supply, 50mA current)		100mW (UART active output, 5.0V power supply, 20mA current)	170mW	100mW ~ 140mW
Weight	2.7g	7.5g			1g	3.6g		15.8g	3g
Dimensions (L × W × H)	35.58×12×8.05	22.7×28×13.6			18.8×12×10.3	35.5×16.2×13.5		Diameter: 29.5mm, Height: 18.00mm	17.37×13×6.88
