TOF MINI laser range sensor, based on Time-of-Flight (TOF) technology, built-in controller and ranging algorithm, UART communication support
Részletek Adatok Csomag tartalma
  • We cannot sell this product or provide any tech support to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.
    TOF MINI laser range sensor, based on Time-of-Flight (TOF) technology, built-in controller and ranging algorithm, UART communication support

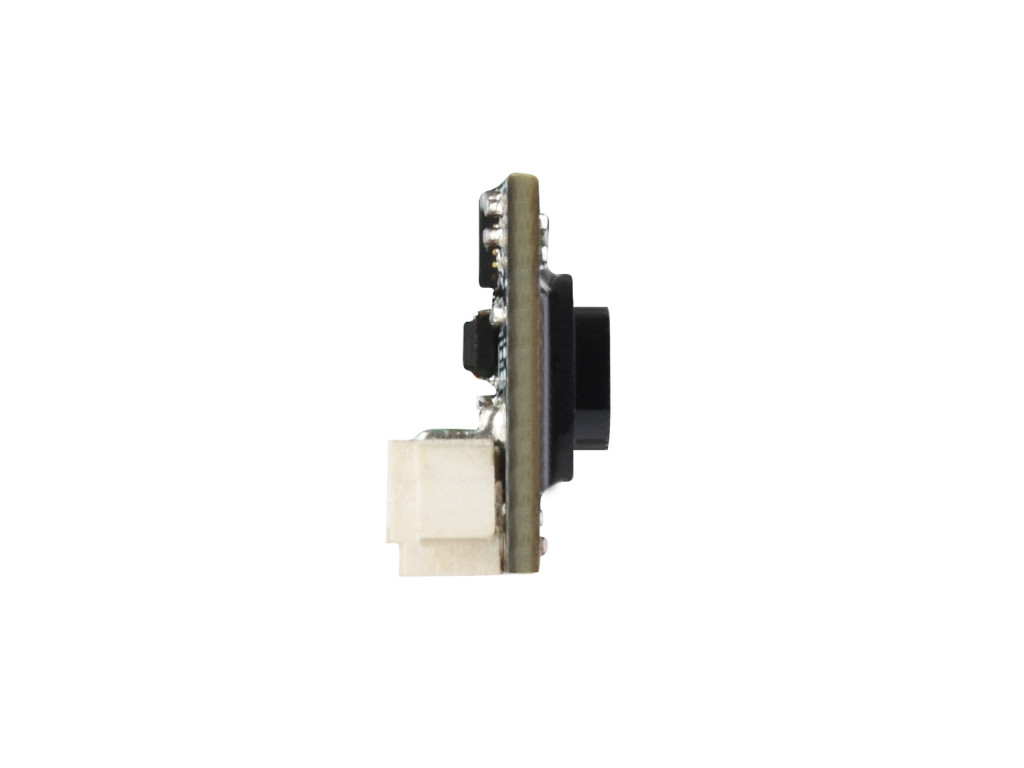

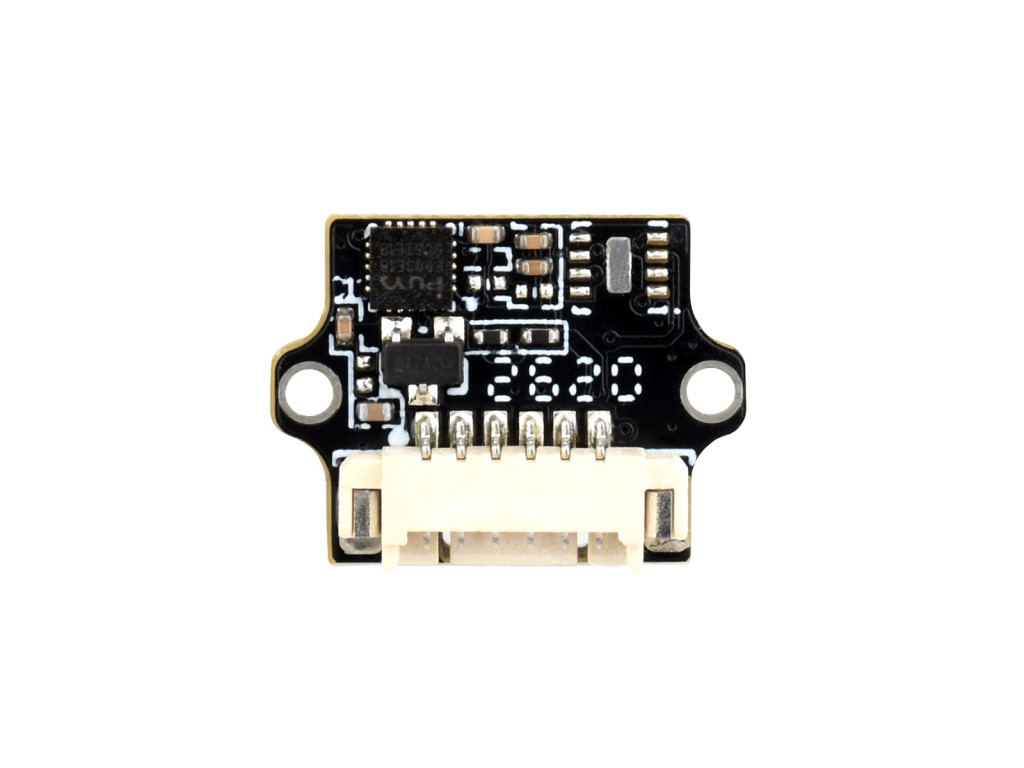

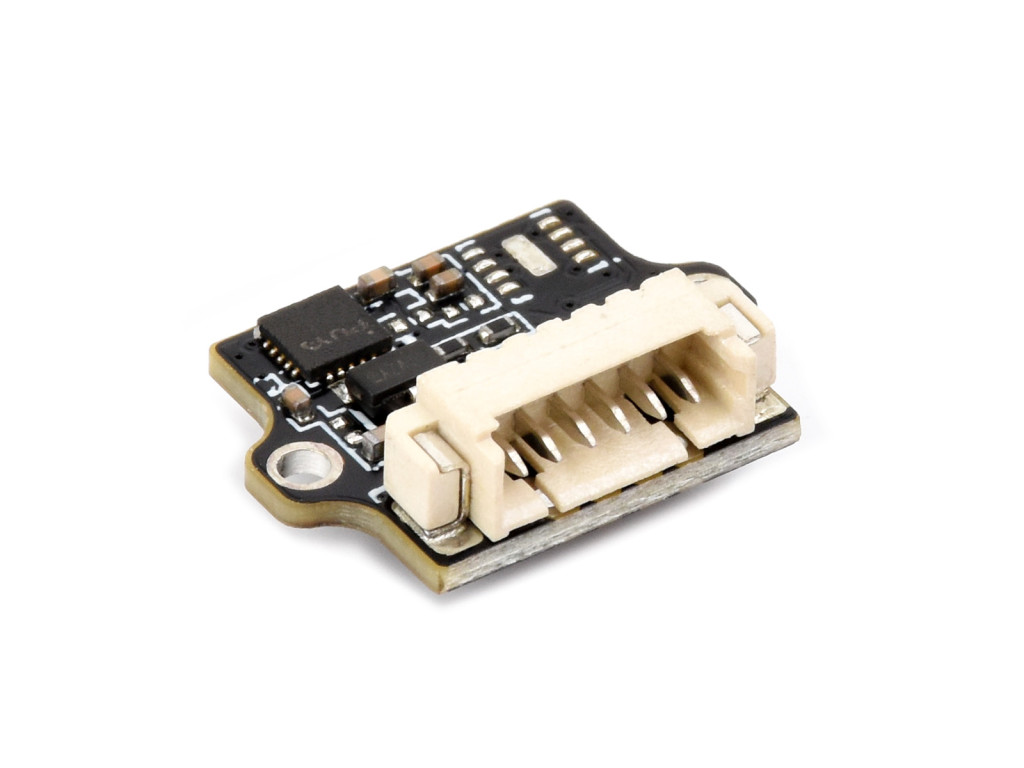

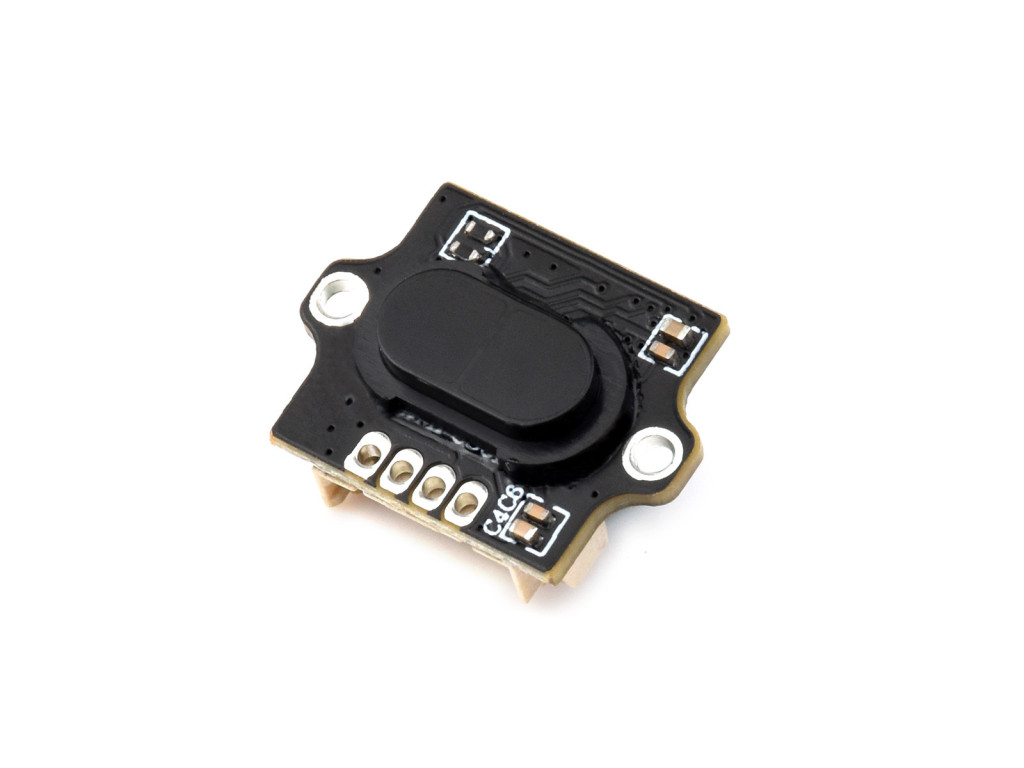

    TOF MINI Laser Range Sensor

    long range | Short Blind Zone | stable/accurate/sensitive

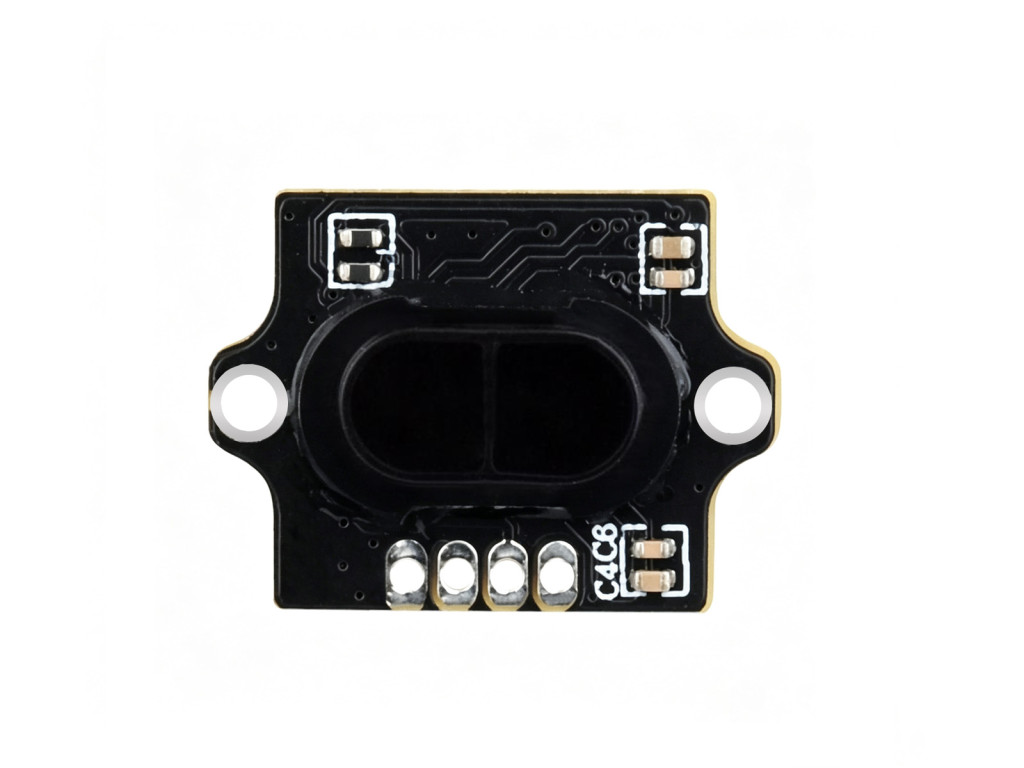

    TOF (time of flight) Laser Range Sensor, front view and features
    Product overview

    TheTOF MINI Range Sensor is a laser ranging sensor based on Time-of-Flight (TOF) technology. Built-in controller and ranging algorithm, providing a measurement range of up to 4m with an accuracy within ± (1% ~ 3%). Supports UART communication. Suitable for indoor environments, with ambient light resistance of up to approximately 20K Lux, enabling applications such as distance measurement, robotic obstacle avoidance, path planning, ceiling detection, and material level measurement.

    Specifications
    ModuleTOF MINI Range Sensor
    Typical measuring range0.02m ~ 4m
    Typical measuring accuracy± (1% ~ 3%)
    Field of view (FOV)25° ~ 30°
    Refresh rate30Hz (Supports bulk customization for higher frequency, up to 90Hz)
    Ambient light tolerance20K Lux
    Operating temperature-20°C ~ +70°C
    Operating humidity35% ~ 80%RH
    Laser Safety ClassLASER CLASS 1 (IEC 60825-1: 2014)
    Wavelength940nm
    Communication interfaceUART
    Baud rate115200
    Data Bits8
    Stop Bits1
    ParityNONE
    Power supply4V ~ 5.6V
    Power consumption100mW ~ 140mW
    Average/Peak Current25mA/26mA
    Weight3g
    Case MaterialPC
    Storage temperature-40℃ ~+80℃
    Dimensions (L × W × H)17.37 × 13.00 × 6.88 (mm)
    Cost effective solution

    long-range low-cost ranging module with a measurement range of 0.02m ~ 4m,high stability, high accuracy, high sensitivity ranging

    TOF (time of flight) Laser Range Sensor, long range low cost ranging module
    applications
    TOF (time of flight) Laser Range Sensor, applications
    TOF (time of flight) Laser Range Sensor, Obstacle Detection applications

    Obstacle Detection

    Hardware connection

    connecting with Raspberry Pi board

    TOF (time of flight) Laser Range Sensor, connecting with Raspberry Pi

    *for reference only, please refer to the package content for detailed part list.

    Outline Dimensions
    TOF (time of flight) Laser Range Sensor, outline dimensions
    Selection guide
    VersionTOF Laser Range SensorTOF MINIF Range SensorTOF MINIS Range SensorTOF MINI Range Sensor
    ModelStandardBCDMiniStandardBStandardStandard
    Typical measuring rangeShort range: 0.012m ~ 2.16m0.10m ~ 15.0m0.05m ~ 25.0m0.05m ~ 50.0m0.02m ~ 7.8m0.02m ~ 20m0.02m ~ 5m0.02m ~ 4m
    Mid range: 0.012m ~ 3.60m
    Long range: 0.01m ~ 5.00m
    Typical measuring accuracyShort range: accuracy ±1.0cm, standard deviation <0.3cm0.10m ~ 2m ±2cm; 2m ~ 15m ±2%0.05m ~ 25m ±3cm0.05m ~ 50m ±3cm0.02m ~ 7.8m ±4cm<1m@±30mm, >1m@±3%
    Mid range: accuracy ±1.0cm,standard deviation <1.5cm
    Long range: accuracy ±1.5cm,standard deviation <0.5cm@0.01m~3m,standard deviation <8cm@3m~5m
    Resolution1mm5mm
    Power supply4.3V ~ 5.2V3.7V ~ 5.2V(reverse-proof)4.3V ~ 5.2V4V ~ 5.6V
    Operating temperature-10°C ~ 60°C-20℃ ~ 70℃
    Wavelength940nm (Class1 standard compliant)750nm ~ 830nm compliant with IEC 60825-1:2014 version 3 Class2 standard905nm940nm940nm (Class1 standard compliant)
    Field of view (FOV)15° ~ 27° (adjustable)1° ~ 2°2° ~ 3°3° ± 0.5°1.4825° ~ 30°
    Communication interface-RS485 (Modbus RTU Server Mode)-
    UART (3.3V TTL signal level)
    CAN(both of the two ports can be used as CAN simultaneously)-
    -I2C (cascading support, the slave address is 0x08 + module ID)-
    complementary I/O level output-complementary I/O level output-
    BaudrateUART: 115.2 ~ 3000K (921.6Kbps by default)UART: 4.8Kbps ~ 3000Kbps(921.6Kbps by default))UART: 115.2Kbps
    CAN: 100Kbps ~ 3000Kbps(100Kbps by default)I2C: up to 400Kbps-
    Cascade supportUART: supports up to 8x cascades CAN: supports up to 7x cascadesI2C: supports up to 8x cascades-
    Ambient light toleranceweak tolerance, indoor onlyabout 100K LUX tolerance, suits both indoor and outdoor20KLux (weak tolerance, indoor only)
    Power consumption290mW (UART active output, long-range mode, 5.0V power supply, 58mA current)610mW (UART active output, 5.0V power supply, 122mA current)250mW (UART active output, 5.0V power supply, 50mA current)100mW (UART active output, 5.0V power supply, 20mA current)170mW100mW ~ 140mW
    Weight2.7g7.5g1g3.6g15.8g3g
    Dimensions (L × W × H)35.58×12×8.0522.7×28×13.618.8×12×10.335.5×16.2×13.5Diameter: 29.5mm, Height: 18.00mm17.37×13×6.88
  • Brand
    Waveshare
    PartNumber
    TOF MINI Range Sensor
    Raktárkészlet
    VAN
    Cikkszám
    RPI-WS35107
    Státusz
    ÚJ
    1. TOF MINI Range Sensor x1
    2. MX1.25 4PIN cable 100mm x1
    1TOF (time of flight) MINIF Range Sensor
