TOF lézeres távolságmérő, 5 m hatótáv, D-TOF egypontos lézeres érzékelőn alapul, UART kommunikációt támogat

ÚJ
Raktárkészlet: VAN
TOF lézeres távolságmérő, 5 m hatótáv, D-TOF egypontos lézeres érzékelőn alapul, UART kommunikációt támogat
  • TOF lézeres távolságmérő, 5 m hatótáv, D-TOF egypontos lézeres érzékelőn alapul, UART kommunikációt támogat
  • TOF lézeres távolságmérő, 5 m hatótáv, D-TOF egypontos lézeres érzékelőn alapul, UART kommunikációt támogat
  • TOF lézeres távolságmérő, 5 m hatótáv, D-TOF egypontos lézeres érzékelőn alapul, UART kommunikációt támogat
  • TOF lézeres távolságmérő, 5 m hatótáv, D-TOF egypontos lézeres érzékelőn alapul, UART kommunikációt támogat
4 032 Ft + ÁFA | Bruttó:5 121 Ft
db Kosárba Kosárba
Árváltozás értesítő
TOF (time of flight) Laser Range Sensor, based on D-TOF Single-Point Laser Sensor, UART Communication Support
Részletek Adatok Csomag tartalma
  • We cannot sell this product or provide any tech support to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.
    TOF (time of flight) Laser Range Sensor, based on D-TOF Single-Point Laser Sensor, UART Communication Support
    TOF MINIF Laser Range Sensor

    long range | Short Blind Zone | stable/accurate/sensitive | indoor/outdoor

    Provides resources for Raspberry Pi, ESP32, Raspberry Pi Pico, Arduino, etc.

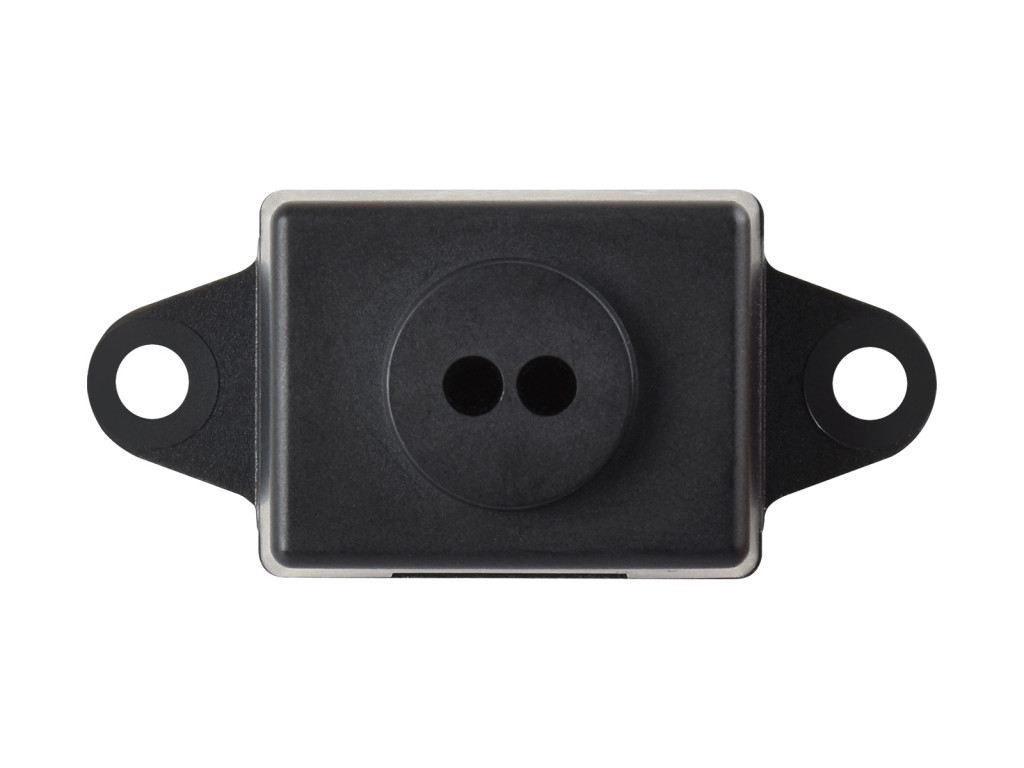

    TOF (time of flight) Laser Range Sensor, front view and features
    Version Options

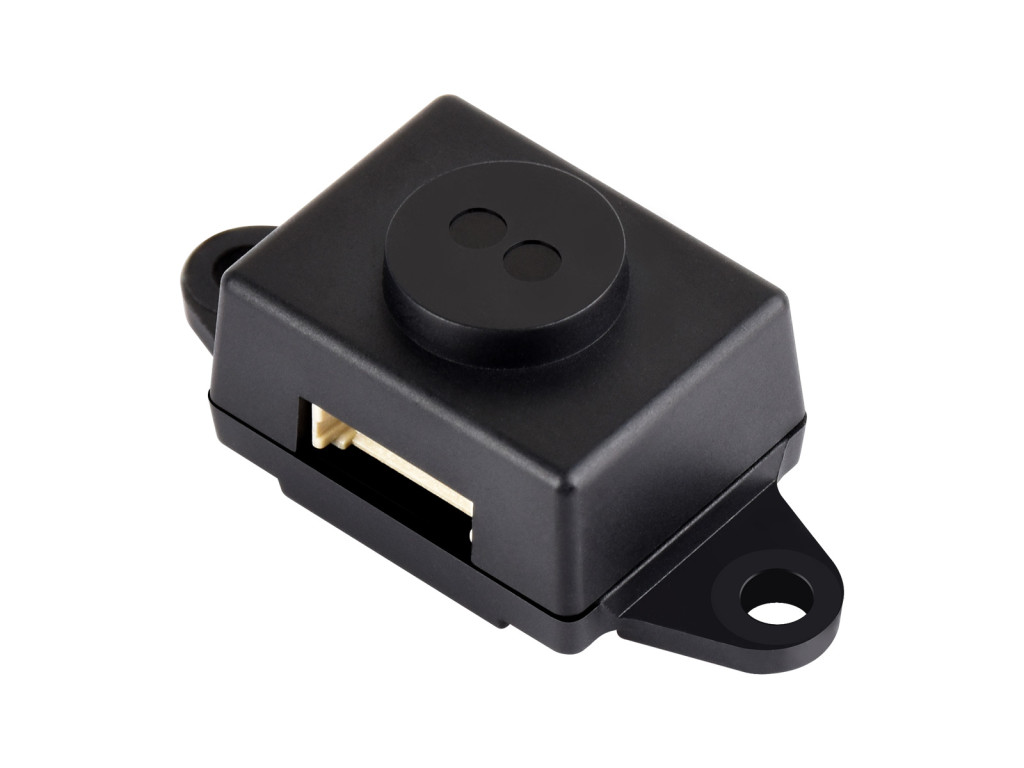

    TOF (time of flight) Laser Range Sensor, front view

    TOF MINIF Range Sensor 0.02m ~ 20m typical measurement range

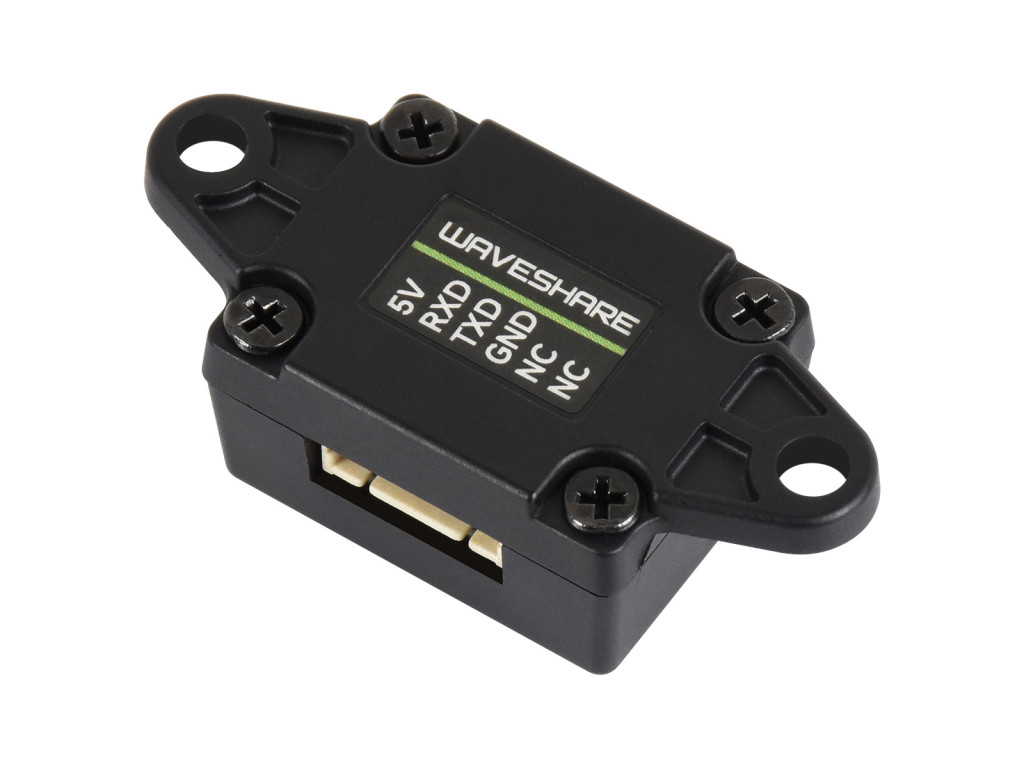

    TOF (time of flight) Laser Range Sensor, front view

    TOF MINIF Range Sensor (B) 0.02m ~ 5m typical measurement range

    Product overview

    TheTOF MINIF Range Sensor is a laser ranging sensor based on Time-of-Flight (TOF) technology. Built-in controller and ranging algorithm, providing a measurement range of 0.02 ~ 5m/20m with an accuracy within ± (1% ~ 3%). Supports UART communication and features an ultra-narrow FOV for long-range measurement. Suitable for both indoor and outdoor environments, with ambient light resistance of up to approximately 100K Lux, enabling applications such as distance measurement, robotic obstacle avoidance, path planning, ceiling detection, and material level measurement.

    Specifications
    ModuleTOF MINIF Range SensorTOF MINIF Range Sensor (B)
    Typical measuring range0.02m ~ 20m0.02m ~ 5m
    Typical measuring accuracy± (1% ~ 3%)± (1% ~ 3%)
    Field of view (FOV)3°±0.5°3°±0.5°
    Refresh rate30Hz (Supports bulk customization for higher frequency, up to 90Hz)30Hz (Supports bulk customization for higher frequency, up to 90Hz)
    Ambient light tolerance100K Lux100K Lux
    Operating temperature-20°C ~ +70°C-20°C ~ +70°C
    Operating humidity35% ~ 80%RH35% ~ 80%RH
    Laser Safety ClassLASER CLASS 1LASER CLASS 1
    Wavelength940nm940nm
    Communication interfaceUARTUART
    Baud rate115.2Kbps (Supports bulk customization for higher rate, up to 2Mbps)115.2Kbps
    Power supply4V ~ 5.6V4V ~ 5.6V
    Communication Level3.3V3.3V
    Power consumption170mW100mW ~ 140mW
    Weight3.6g3.6g
    Case MaterialPCPC
    Storage temperature-40℃ ~+80℃-40℃ ~+80℃
    Dimensions (L × W × H)35.5 x 16.5 x 13.5 (mm)35.5 × 16.2 × 13.5 (mm)
    Cost effective solution

    long-range low-cost ranging module with a Measurement Range of 0.02m ~ 5m/20m,high stability, high accuracy, high sensitivity ranging

    TOF (time of flight) Laser Range Sensor, long range low cost ranging module
    UART communication support

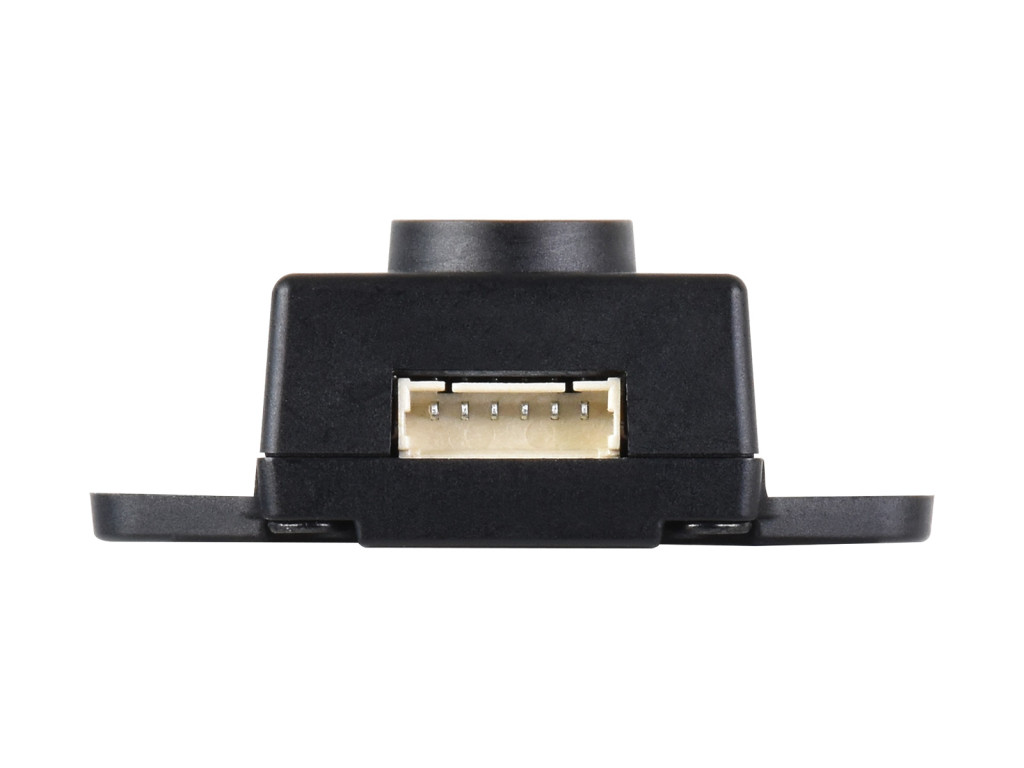

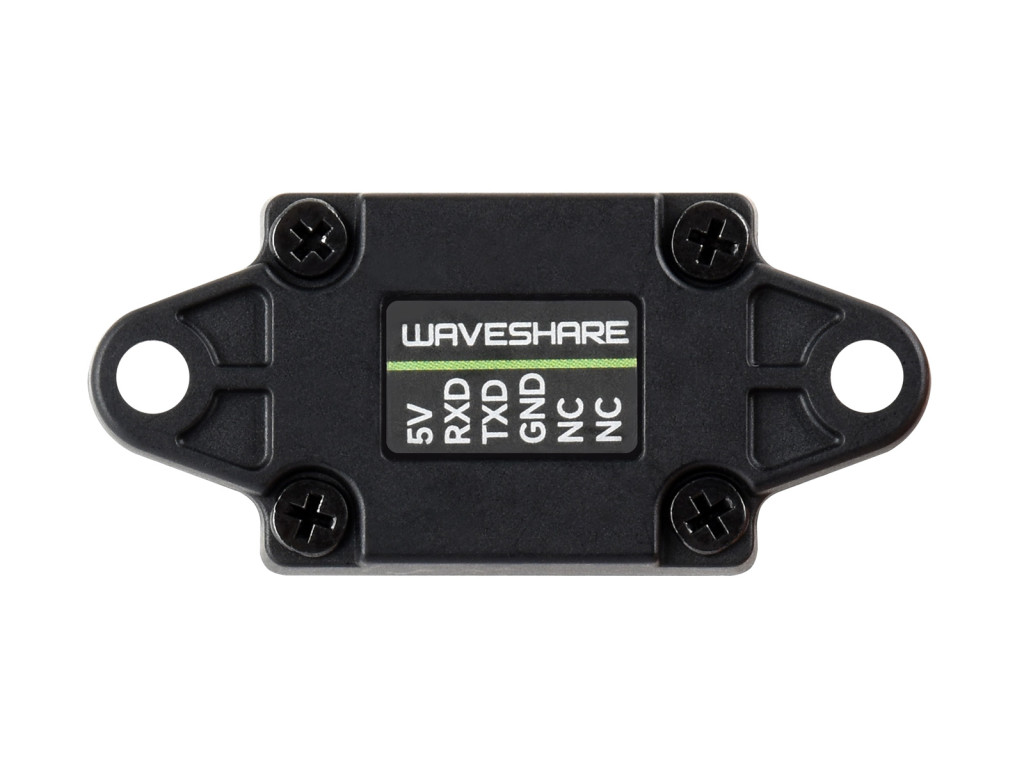

    TOF (time of flight) Laser Range Sensor, interfaces and mounting holes
    applications
    TOF (time of flight) Laser Range Sensor, applications
    TOF (time of flight) Laser Range Sensor, Hydraulic Stacking Detection applications

    Hydraulic Stacking Detection

    Hardware connection

    connecting with Raspberry Pi board

    TOF (time of flight) Laser Range Sensor, connecting with Raspberry Pi

    *for reference only, please refer to the package content for detailed part list.

    Outline Dimensions
    TOF (time of flight) Laser Range Sensor, outline dimensions
    Selection guide
    VersionTOF Laser Range SensorTOF MINIF Range SensorTOF MINIS Range SensorTOF MINI Range Sensor
    ModelStandardBCDMiniStandardBStandardStandard
    Typical measuring rangeShort range: 0.012m ~ 2.16m0.10m ~ 15.0m0.05m ~ 25.0m0.05m ~ 50.0m0.02m ~ 7.8m0.02m ~ 20m0.02m ~ 5m0.02m ~ 4m
    Mid range: 0.012m ~ 3.60m
    Long range: 0.01m ~ 5.00m
    Typical measuring accuracyShort range: accuracy ±1.0cm, standard deviation <0.3cm0.10m ~ 2m ±2cm; 2m ~ 15m ±2%0.05m ~ 25m ±3cm0.05m ~ 50m ±3cm0.02m ~ 7.8m ±4cm<1m@±30mm, >1m@±3%
    Mid range: accuracy ±1.0cm,standard deviation <1.5cm
    Long range: accuracy ±1.5cm,standard deviation <0.5cm@0.01m~3m,standard deviation <8cm@3m~5m
    Resolution1mm5mm
    Power supply4.3V ~ 5.2V3.7V ~ 5.2V(reverse-proof)4.3V ~ 5.2V4V ~ 5.6V
    Operating temperature-10°C ~ 60°C-20℃ ~ 70℃
    Wavelength940nm (Class1 standard compliant)750nm ~ 830nm compliant with IEC 60825-1:2014 version 3 Class2 standard905nm940nm940nm (Class1 standard compliant)
    Field of view (FOV)15° ~ 27° (adjustable)1° ~ 2°2° ~ 3°3° ± 0.5°1.4825° ~ 30°
    Communication interface-RS485 (Modbus RTU Server Mode)-
    UART (3.3V TTL signal level)
    CAN(both of the two ports can be used as CAN simultaneously)-
    -I2C (cascading support, the slave address is 0x08 + module ID)-
    complementary I/O level output-complementary I/O level output-
    BaudrateUART: 115.2 ~ 3000K (921.6Kbps by default)UART: 4.8Kbps ~ 3000Kbps(921.6Kbps by default))UART: 115.2Kbps
    CAN: 100Kbps ~ 3000Kbps(100Kbps by default)I2C: up to 400Kbps-
    Cascade supportUART: supports up to 8x cascades CAN: supports up to 7x cascadesI2C: supports up to 8x cascades-
    Ambient light toleranceweak tolerance, indoor onlyabout 100K LUX tolerance, suits both indoor and outdoor20KLux (weak tolerance, indoor only)
    Power consumption290mW (UART active output, long-range mode, 5.0V power supply, 58mA current)610mW (UART active output, 5.0V power supply, 122mA current)250mW (UART active output, 5.0V power supply, 50mA current)100mW (UART active output, 5.0V power supply, 20mA current)170mW100mW ~ 140mW
    Weight2.7g7.5g1g3.6g15.8g3g
    Dimensions (L × W × H)35.58×12×8.0522.7×28×13.618.8×12×10.335.5×16.2×13.5Diameter: 29.5mm, Height: 18.00mm17.37×13×6.88
  • Brand
    Waveshare
    PartNumber
    TOF MINIF Range Sensor (B)
    Raktárkészlet
    VAN
    Cikkszám
    RPI-WS35106
    Státusz
    ÚJ
    1. OPTIONS TOF MINIF Range Sensor x1
    2. MX1.25 4PIN cable 100mm x1
    1TOF (time of flight) MINIF Range Sensor
    2
:
;
